Product Highlights


Bass Package: MTX JH300 + Hifonics HFi12D4 + 8 GA Kit + Sub Box • 600W Max • CEA-2006 Compliant • Includes Everything You Need To Add Bass To Your Car

Description


MTX brand icon

Authorized dealer

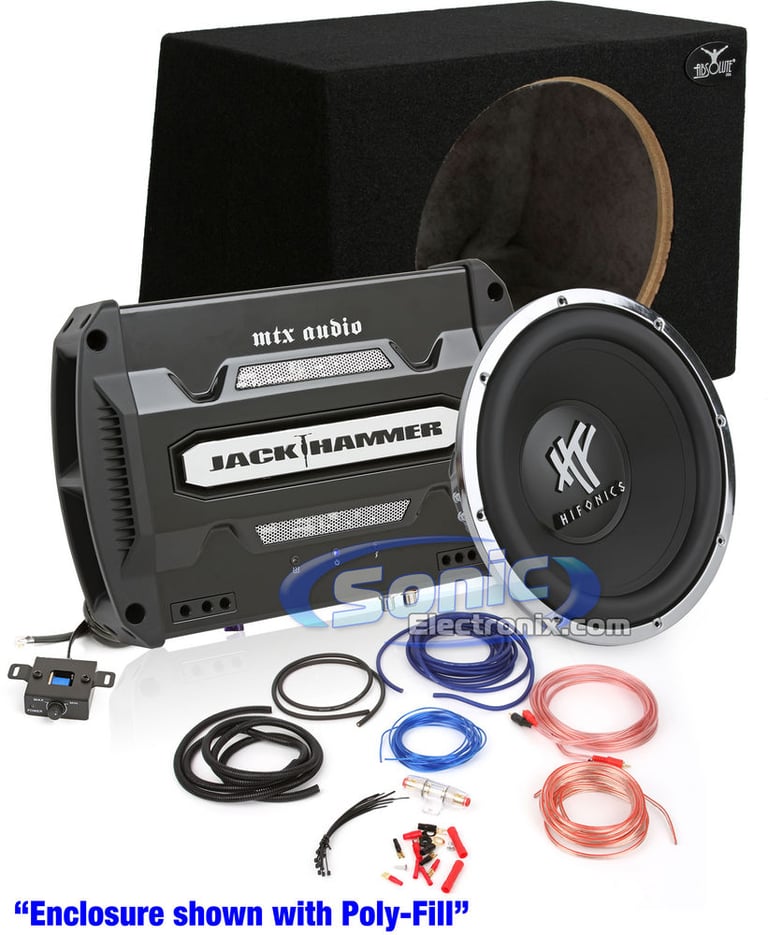

Sonic Electronix Exclusive Bass Package

This combo package includes one Hifonics HFI Series 12" subwoofer and a MTX Audio Class D JackHammer Series Amplifier. This monoblock amplifier is a perfect match for the 12" subwoofer when wired at 2 ohms. The amplifier is equipped with a built-in cooling fan that protects from overheating and keeps the subwoofer bumpin for extended periods of time. This exclusive package also includes a sealed 12" enclosure and a 8 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

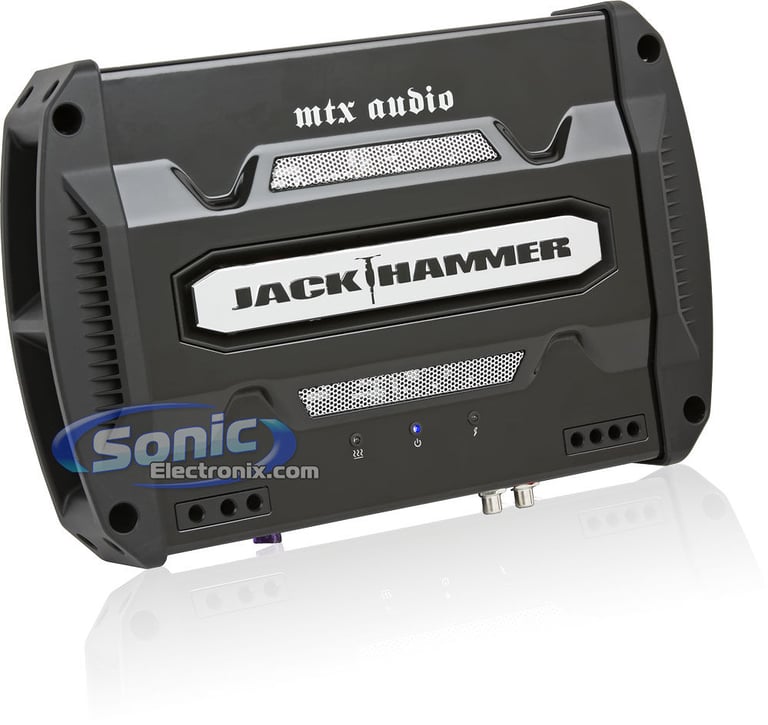

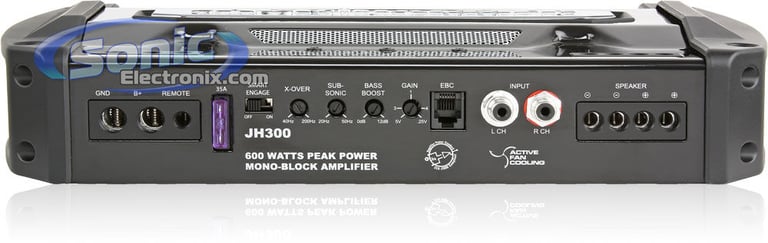

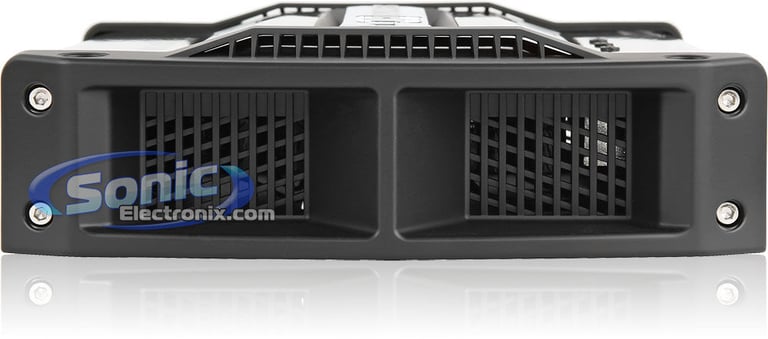

MTX Audio Amplifier Features
  • JackHammer Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
  • Max power output: 600 watts x 1 chan.
  • Adaptive class D technology

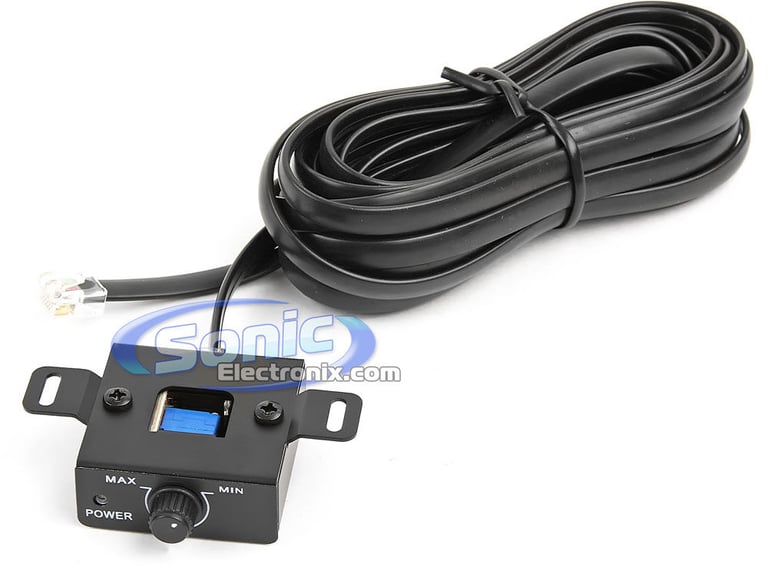

  • Wired remote bass level control included
  • LED power, overheat, and voltage indicators
  • Tuned Bass EQ (0-12 dB bass boost at 40 Hz)
  • JackStands are included, which are mounting platforms that enables a user to mount up to three amplifiers
  • Gain control
  • Built-in active fan cooling technology adjusts fan speed according to the usage of the amplifier
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (40-5000 Hz, 24 dB/octave)
  • Subsonic filter (20-50 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-200 Hz
  • Dimensions: 12-1/8"L x 8"W x 2-3/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 90-Day Manufacturer’s warranty

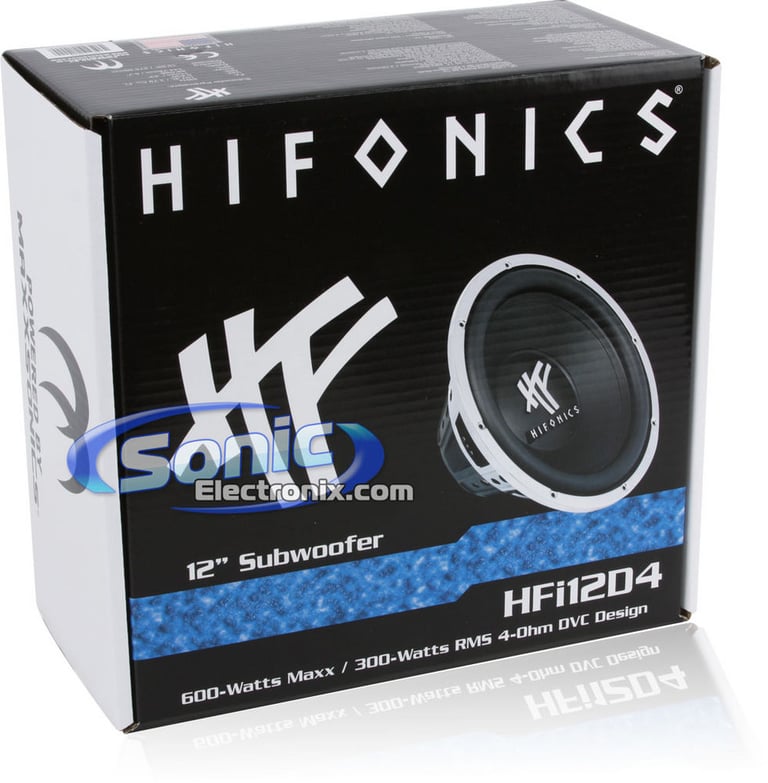

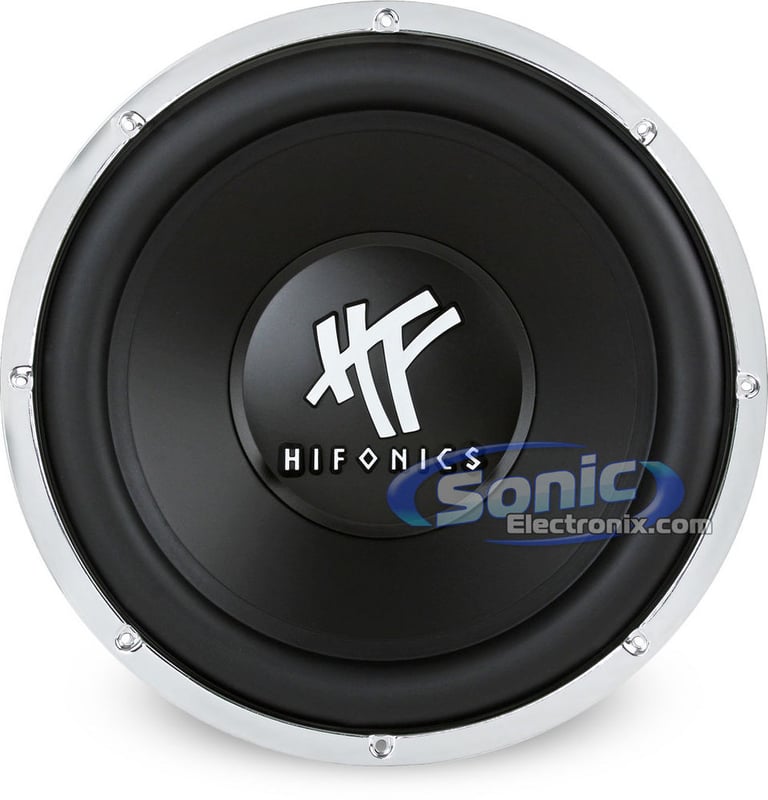

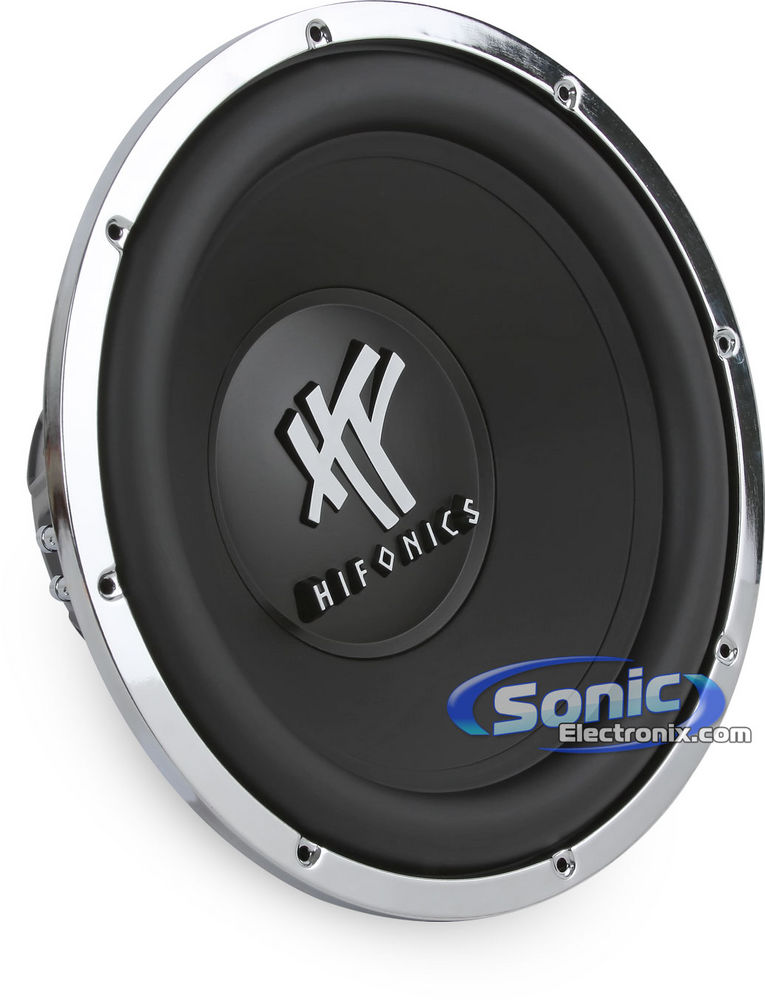

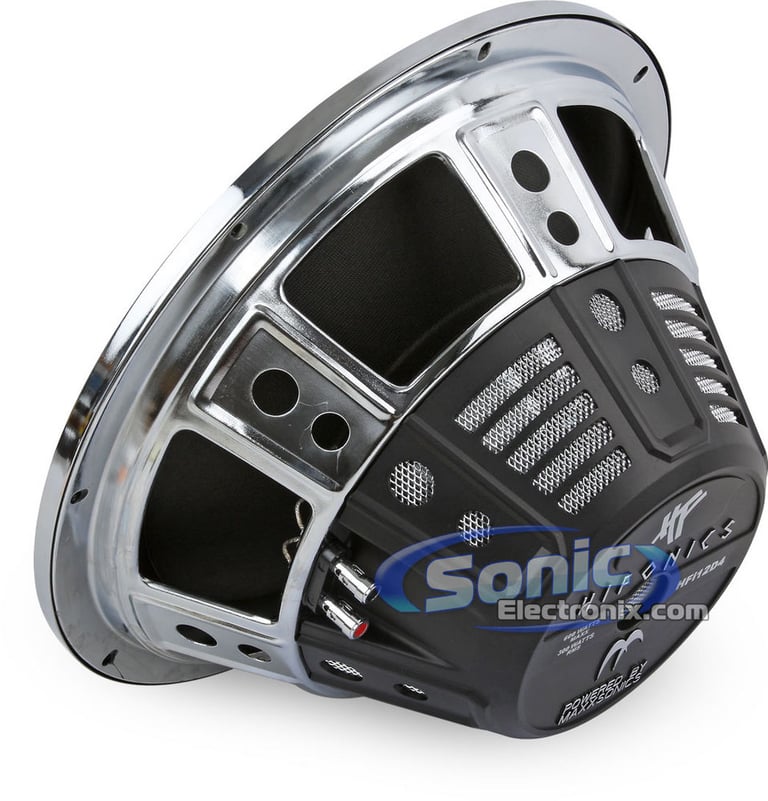

Hifonics Subwoofer Features
  • 12" Dual 4 Ohm HFi Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: Dual 4 ohm
  • Injected poly light rigid cone
  • 1” NBR Reinforced rubber surround
  • High-excursion rubber surround
  • Integrated one piece poly cotton spider
  • Poly-mica cone damping
  • Nickel plated push and insert speaker terminals
  • Dual 4 ohm high-temp multi-layer high-temp voice coil
  • Front-plate and voice-coil cooling
  • Poly light dust cap
  • Heat dispersing ported back plate
  • Ultra ridged chrome stamped steel basket
  • High strength ABS motor cover
  • High-energy magnet
  • Large air cooled magnet assembly
  • Anti-resonant rubber magnet boot
  • Sensitivity: 88 dB
  • 1-year SonicElectronix.com warranty

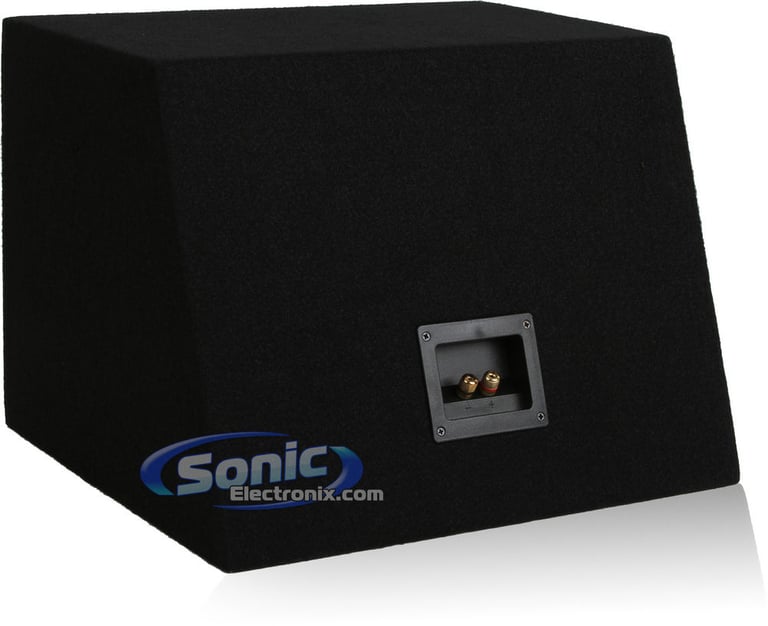

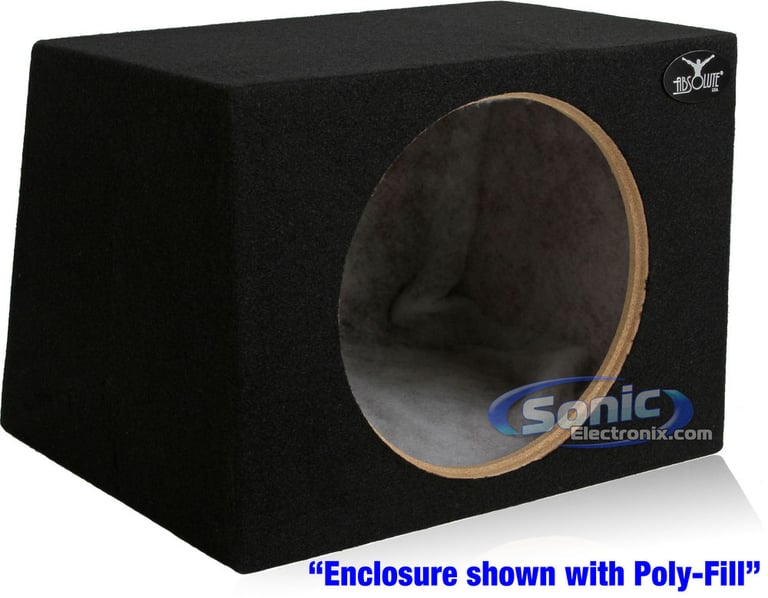

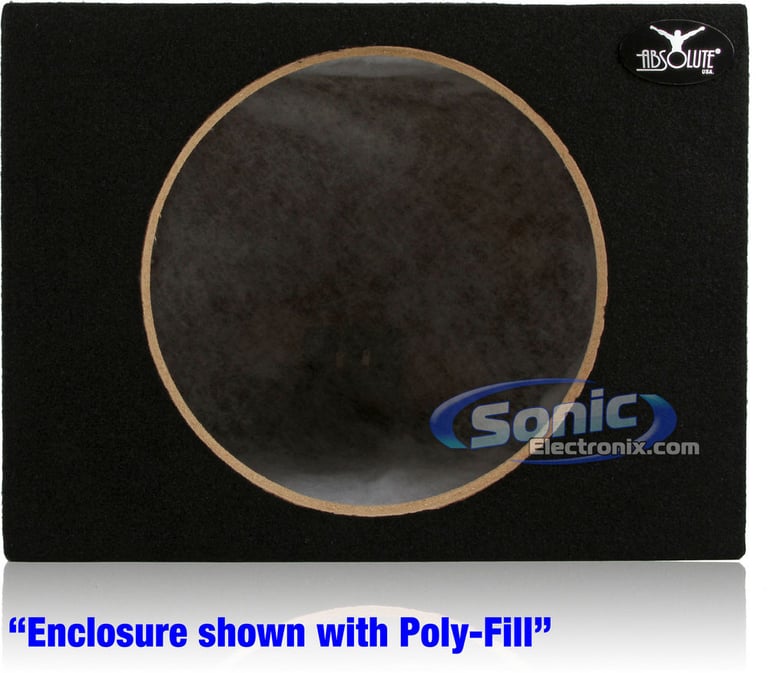

Absolute Subwoofer Enclosure Features

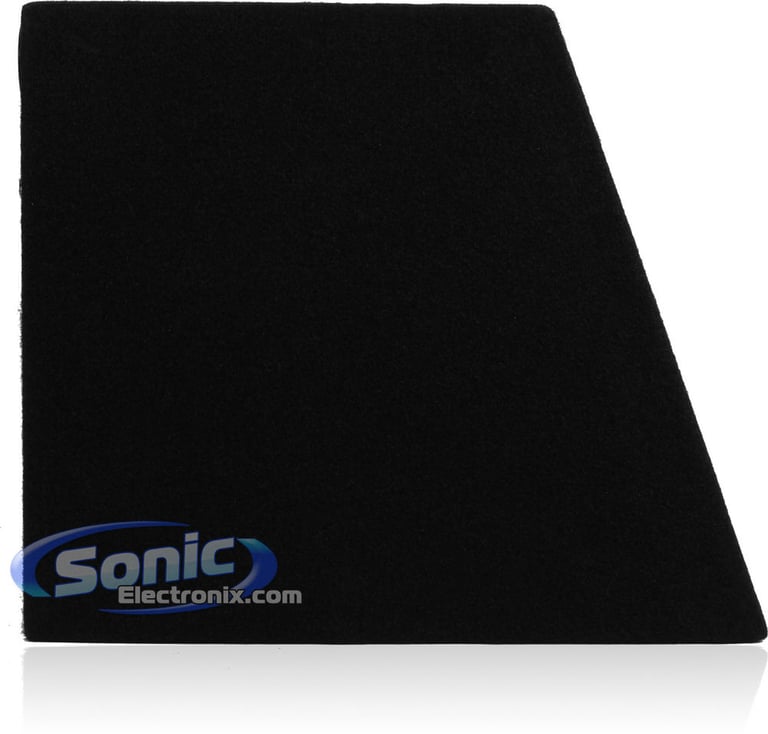

  • Single 12" Sealed Angled MDF Subwoofer Enclosure
  • Insulated fiberglass liner
  • 3/4" High quality MDF material
  • Professionally Sealed, caulked, and carpeted
  • Designed for round woofers
  • Durable black carpeting

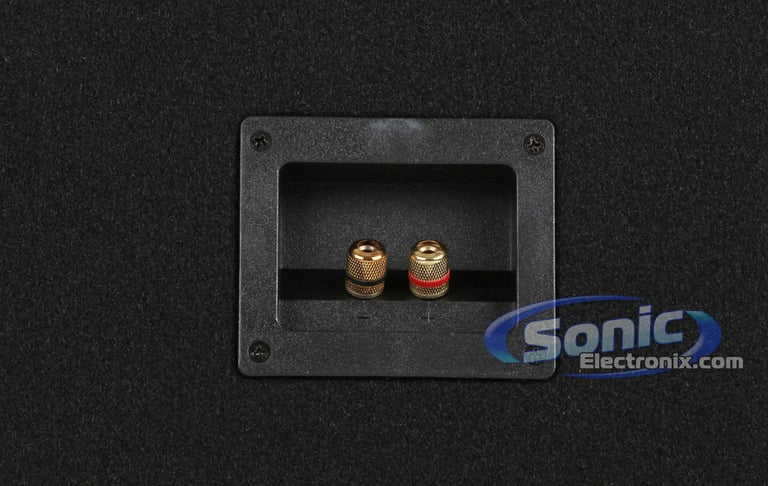

  • Gold screw terminals
  • Subwoofer mounting depth: 10-1/2"
  • Subwoofer cutout diameter: 11-5/8"
  • Total box volume: 1.20 cubic feet
  • Dimensions: 12"TD x 15-7/8"BD x 18"W x 13-3/4"H

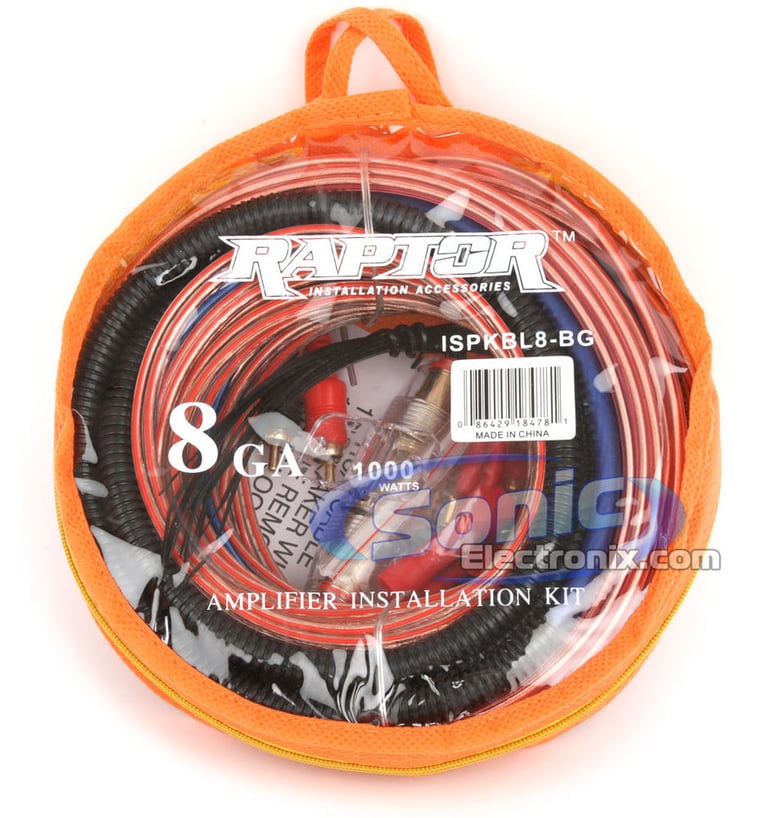

Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:

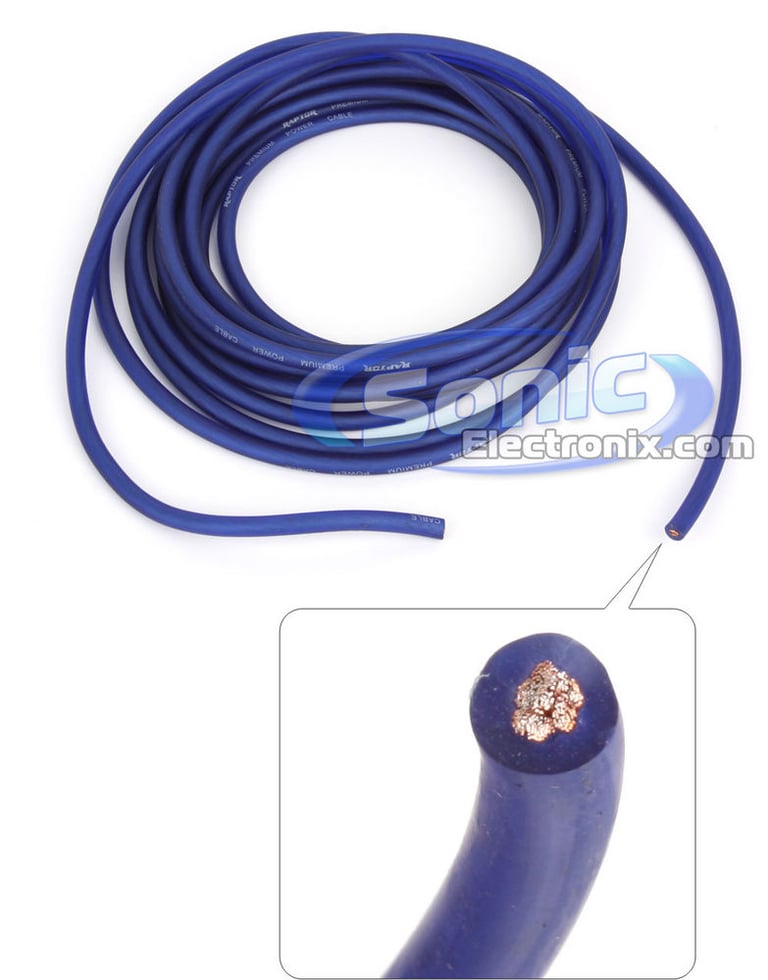

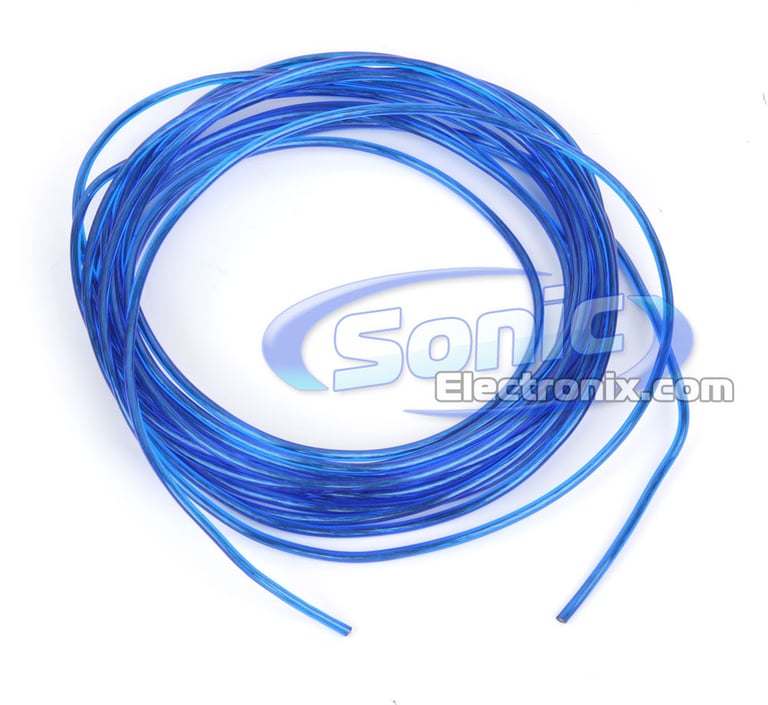

  1. 17 ft. of 8 Gauge blue power cable

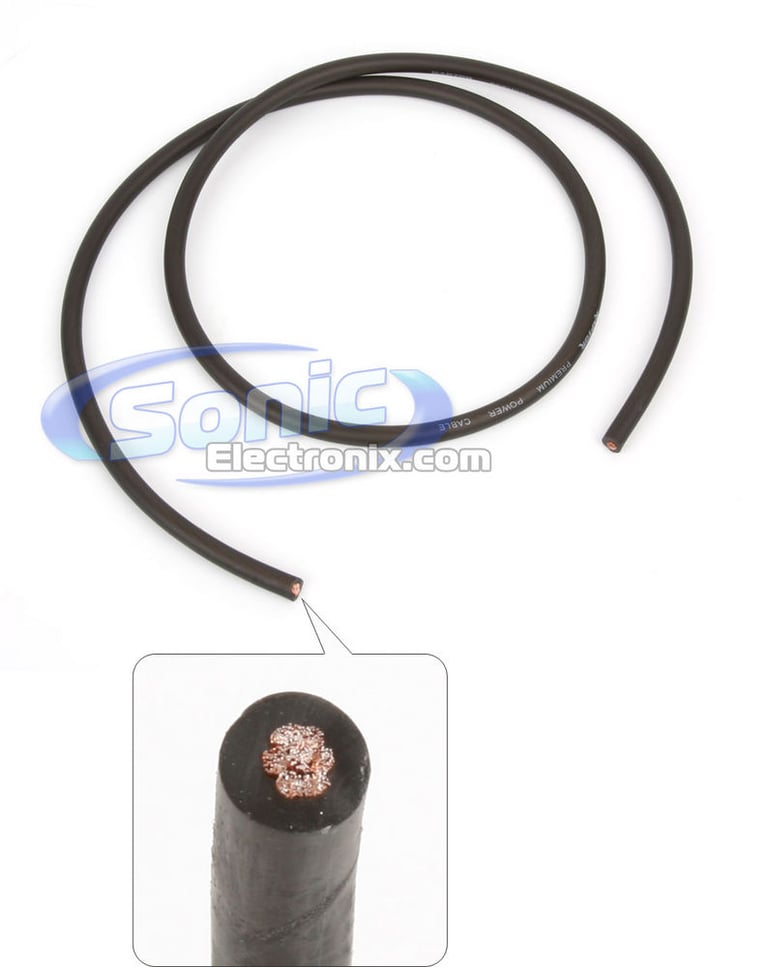

  2. 3 ft. 8 Gauge black ground cable

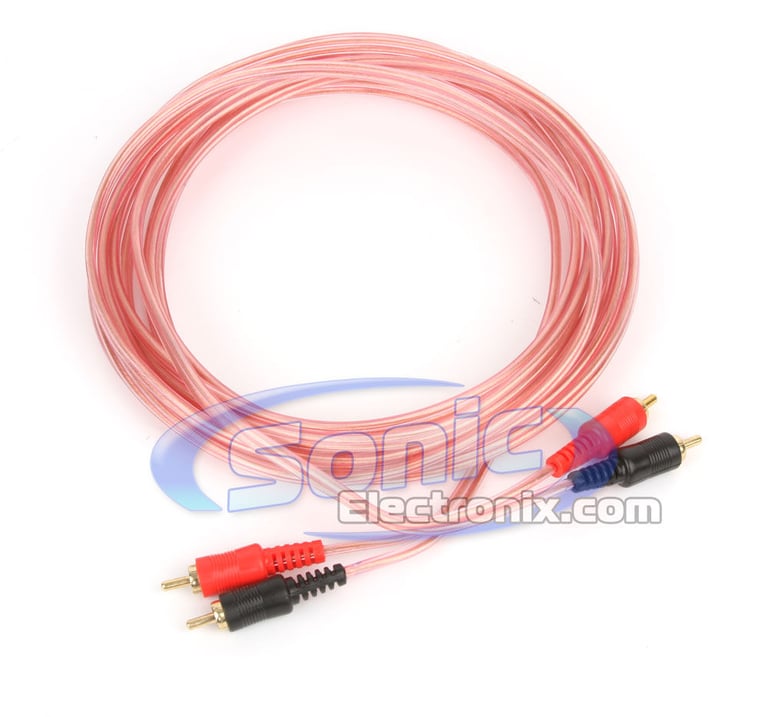

  3. 17 ft. Neon blue series RCA cable

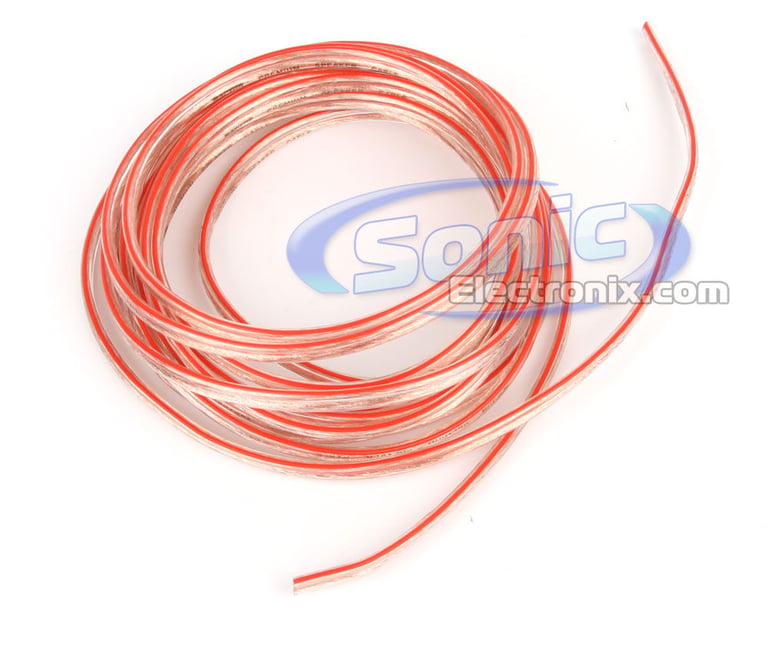

  4. 16 ft. of Premium speaker cable
  5. 17 ft. of 18 Gauge blue remote turn-on wire

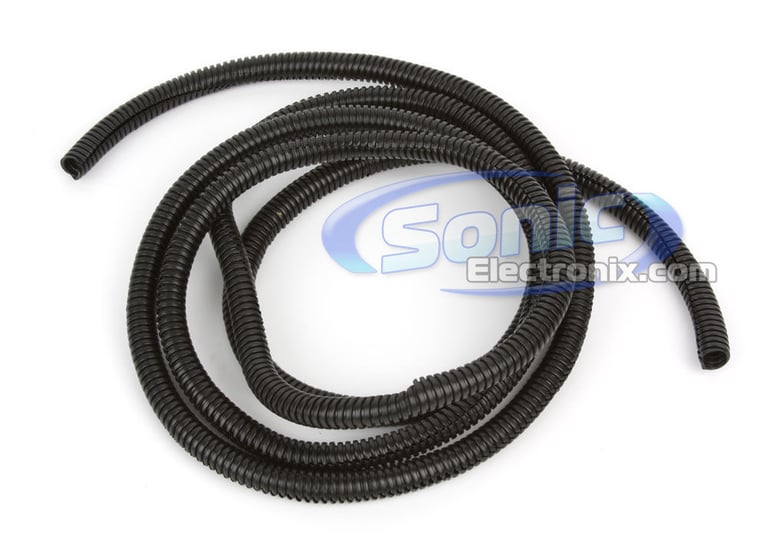

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

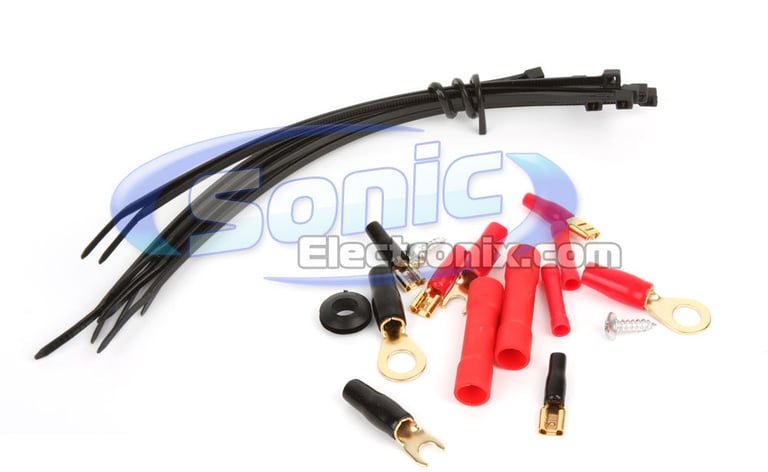

  9. All Necessary Hardware for Installation

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$456.68

List price $593.98

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$279.99

List price $369.98

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$279.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

VSW124V3_NDA15001_XKIT42 small

NVX VSW124v3 + NDA15001 + XKIT42

• Two 12" VSW124v3 VS-Series 600W RMS Subwoofers
• 3000W Peak (1500W RMS) Class D NDA15001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(175)

$569.96

List price $743.96

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 5000 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
75 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
300 watts
Peak Power Handling
600 watts
Woofer Surround
Rubber
Woofer Composition
Injection Molded Polypropylene
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
88 dB
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
13-3/4"
Width
18"
Depth
10-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

JH300-RB_HFi12D4

Weight:

40.25lbs

Internal SKU:

LS-jh300-RB_hfi12d4

Internal Product ID:

29414

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


600W Complete MTX Audio + Hifonics Bass Package thumbnail image

5 star
60%
4 star
26%
3 star
9%
2 star
1%
1 star
3%



Durability
4.3
Value
4.7
Features
4.3
Design
4.4
Usability
4.7

Customer Reviews

Sort by:

Loading...

Best cheap sub i found for the cash

The following review is for HFi12D4, which is a part of the bundle you are viewing.

I had doubt`s about a sub this cheap. I bought 4 of them and put them in a ported box and all i can say is wow they sound awesome for the price and get pretty loud but they do have limits. I have them hooked to a hifonics brutus bxi1610d in a 2 Ohm load and if turned up to loud you can smell them but for the price there not bad but if you want ground pounding bass look to other subs but if your on a budget & just looking for something to get by with there worth the cash....

By Mr.Bird on June 15, 2010

41 found this helpful


Pretty Good - Run them at 200 rms and they are fine.

The following review is for HFi12D4, which is a part of the bundle you are viewing.

I purchased one of these speakers at a liquidation, which cost me more.
I built my own box to my specs because i like bass around 20 to 35 hertz.
My box is 3.92 cubic ft with a 4 inch port, tuned it to 25 hertz. with this speaker it really pounds some those low low bass songs.

Songs used: "I'm Goin In" - Lil Wayne, "6 Foot 7 Foot" - Lil Wayne
"It's Goin Down" - Yung Joc "Blueberry Yum Yum(Chopped and Screwed) - Ludacris". Some songs from Birdman, of course "Late Night Tip" - 3 6 Mafia. "Oxycotton(Chopped and Screwed)" - Lil Wyte
"In Da Club " - 50 Cent. "Hypnotize & White Girl" - Young Jeezy

These are just a few I could remember

By Bryan on March 22, 2011

40 found this helpful


Great Value

The following review is for HFi12D4, which is a part of the bundle you are viewing.

I own 2 of these, with a sony 1600 watt mono amp. They are a great buy for anybody wanting good sound with a low budget.

By Kevin on February 6, 2011

40 found this helpful


eh not to good :/

The following review is for HFi12D4, which is a part of the bundle you are viewing.

i hooked 2 of these up and ran them at 300 watts rms each and the second day of playing them they started to bottom out on a few songs and they almost blew :/ but on low volume these really compliment the music but if your looking for low and loud bass these wont do the job as well as others

By jon on November 12, 2010

40 found this helpful


greatt sub veryy satisfiedd!

The following review is for HFi12D4, which is a part of the bundle you are viewing.

This is a great deal for the price I got two hooked up to a 800 watt kenwood amp giving 230 rms to each sub and its beating up my trunk like you wouldnt believe people even been askin me if they were two 15"s!! I think there loud and meet most peoples expectations, imo great buy you wont be disappointed..planning on buying two more in the future and a bigger amp but for now im defenetly loud with these

By chris on November 6, 2010

39 found this helpful


this hifonics sub was great

The following review is for HFi12D4, which is a part of the bundle you are viewing.

Great sub for the money!

By jackie on December 6, 2011

38 found this helpful


Good Product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

Used this package on my Mazda 6 i Sport and it covered the length of the car fine. Had scrap to splice off onto multiple amps.

By NETech on November 14, 2011

37 found this helpful


good price

The following review is for HFi12D4, which is a part of the bundle you are viewing.

These are good speakers. For the money. I like them I would recommend them to somebody else.

By goofy on March 28, 2011

38 found this helpful


Best Bang For Your Buck!!

The following review is for HFi12D4, which is a part of the bundle you are viewing.

For the price, I dont feel you can beat this speaker.
It is crisp, clear, and best of all, HITS HARD IN A PORTED BOX.
I built the box to Hifonics specs with the proper volume and port size, and I am very happy with its performance. I have delt with many high end, high dollar woofers and Im just amazed at this little cheap guy.
I am giving it roughly 600watts RMS and 1000Watts peak with no distortion, just clean hard bass. I was unsure about giving it this much power, but it handles it very well. Its all about the box and amp. Dont skimp on a box, get the proper volume and port size and this sub will impress you. Bass, I love You plays amazing and this woofer can MOVE SOME AIR. Thats all I have to say.

By Swanks on March 22, 2011

38 found this helpful


I love em

The following review is for HFi12D4, which is a part of the bundle you are viewing.

These subs far exceeded my expectations for how much I paid for them. I have these in a fat ported box in my Civic with a Boss GT1500D. All it does is rattle everything and make everyone laugh. Unfortunately, the frequency response isn't quite up there with Kicker or other top brands. They quiver a bit in hi-bass, the mid-bass in these are great, but they kinda bottom out when it comes to low-bass. Surely, they earthquake on low-bass but its just not quite up there with other subs. But all in all, they are still a definite GO for how much they cost. So buy em =]

By KyL on June 8, 2010

38 found this helpful




(2) BBIC5,BBIC5,BAK42BK,XTHUNDER800.5 small

MTX XTHUNDER800.5 800 Watt RMS 5-Channel Class D Car Stereo Amplifier+Amp Kit

800W RMS XThunder Series 5-Channel Full Range Class D Amplifier Package

(83)

$517.95

List price $819.91

CAR710W-RB small

Jensen CAR710W (Refurbished)

7" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

(2)

$319.99

List price $349.99

RCX-165 small

Focal RCX-165 (RCX 165)

Auditor Line 6.5” 2-Way Coaxial Speakers

(1)

$104.99

List price $170.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Chevrolet Impala

2016 Audi Q3 Quattro

1993 Dodge Caravan

2004 Mazda B3000

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
