310W Complete Phoenix Gold + Pioneer Premier Bass Package

Phoenix Gold RSd 300.1 Amplifier + 10" Pioneer Premier TS-W1008D4 Sub + 8 GA Amp Kit + Sealed Box

EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: Phoenix Gold Amplifier + Pioneer TSW1008D4 Subwoofer + 8 GA Amp Kit + Subwoofer Box • 310W RMS • Includes Everything You Need To Add Bass To Your Car • Sonic Electronix Exclusive Bass Package

Learn more about the rsd3001_tsw1008d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights


Bass Package: Phoenix Gold Amplifier + Pioneer TSW1008D4 Subwoofer + 8 GA Amp Kit + Subwoofer Box • 310W RMS • Includes Everything You Need To Add Bass To Your Car • Sonic Electronix Exclusive Bass Package

Description


Phoenix Gold brand icon

Authorized dealer

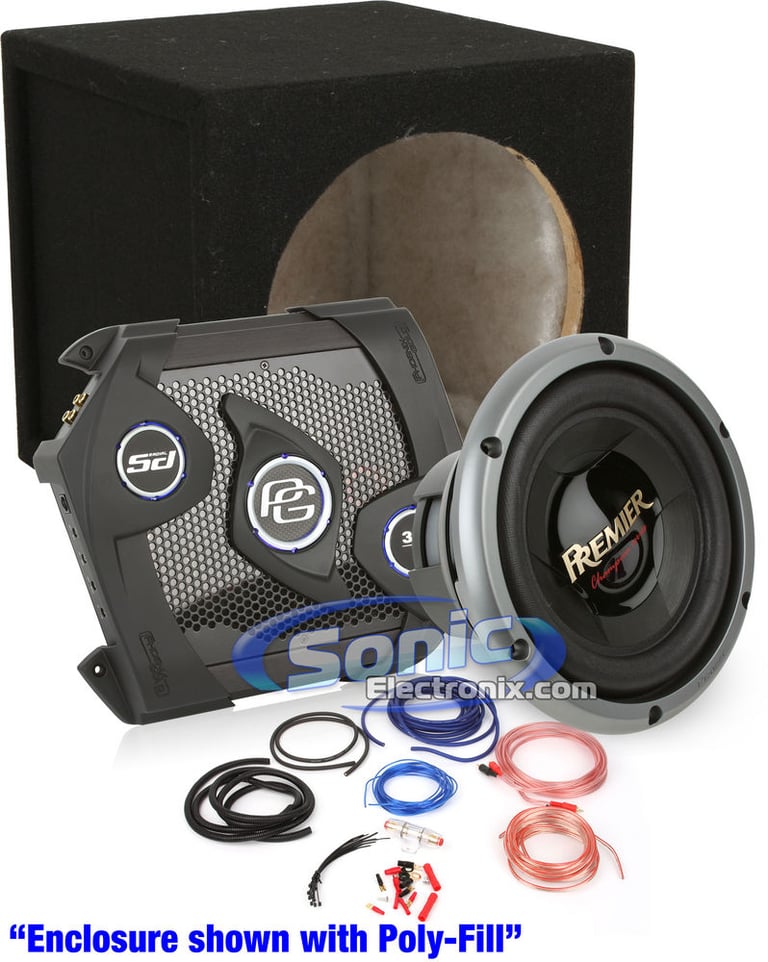

Sonic Electronix Exclusive Bass Package

This combo package includes one Pioneer Premier Champion Series 10" subwoofer and a Phoenix Gold Radial SD Series Amplifier. This monoblock amplifier is a perfect match for the 10" subwoofer when wired at 2 ohms. The amplifier is equipped with on board protection circuitry that helps protect the amp from over powering the subwoofer. This exclusive package also includes a sealed 10" enclosure and a 8 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

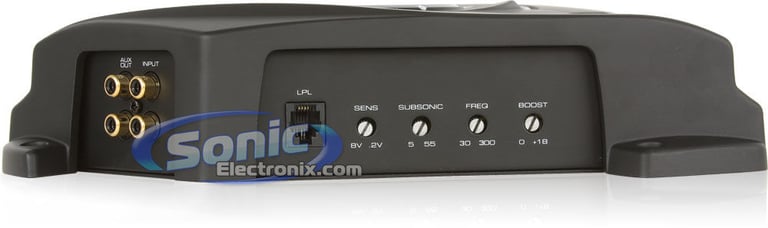

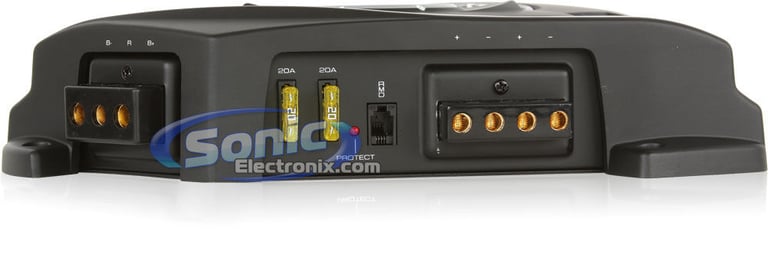

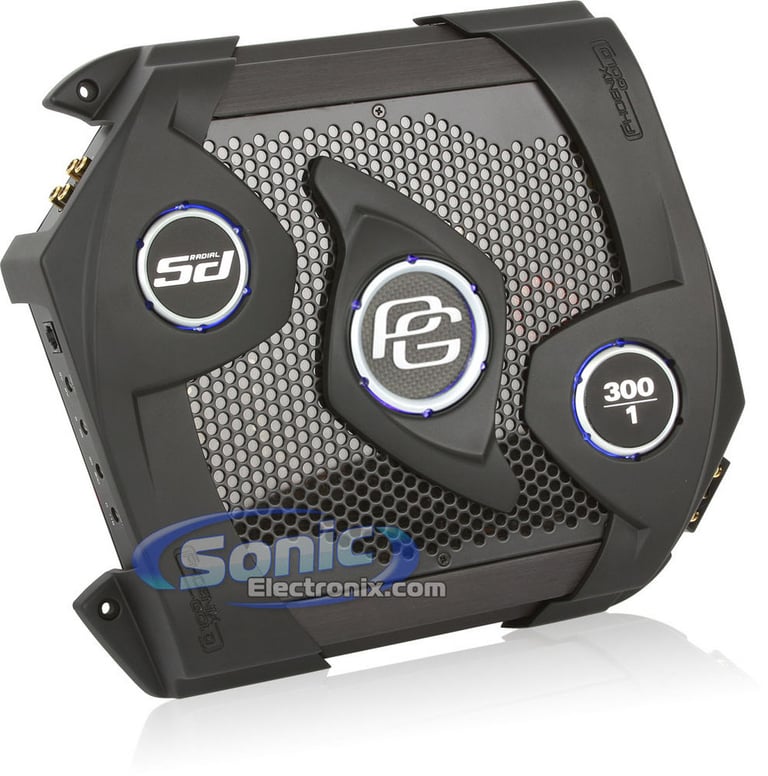

Phoenix Gold Amplifier Features
  • 300 watts, RSd Class AB Monoblock Amplifier
  • RMS Power Output:
    • 4 Ohm: 180 watts x 1 chan.
    • 2 Ohm: 310 watts x 1 chan.
  • High Speed, High Current MOSFET Switching Power Supply
  • On Board Protection Circuitry
  • Multi-Function Protection Indicator
  • Built-In Low Pass Crossover, 30 Hz - 300 Hz @ 18 dB/oct.
  • Variable Bass Boost(0 - 18 dB)
  • Wide Range Input Sensitivity Adjustment
  • Line Outputs
  • S/N Ratio: 84 dB
  • Dimensions: 12-7/8"L x 11-3/16"W x 2-3/8"H
  • Exclusive Authorized Internet Dealer
  • 2-year Manufacturer's warranty
Hifonics Subwoofer Features
  • 12" Dual 4 Ohm HFi Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: Dual 4 ohm
  • Injected poly light rigid cone
  • 1” NBR Reinforced rubber surround
  • High-excursion rubber surround
  • Integrated one piece poly cotton spider
  • Poly-mica cone damping
  • Nickel plated push and insert speaker terminals
  • Dual 4 ohm high-temp multi-layer high-temp voice coil
  • Front-plate and voice-coil cooling
  • Poly light dust cap
  • Heat dispersing ported back plate
  • Ultra ridged chrome stamped steel basket
  • High strength ABS motor cover
  • High-energy magnet
  • Large air cooled magnet assembly
  • Anti-resonant rubber magnet boot
  • Sensitivity: 88 dB
  • 1-year SonicElectronix.com warranty

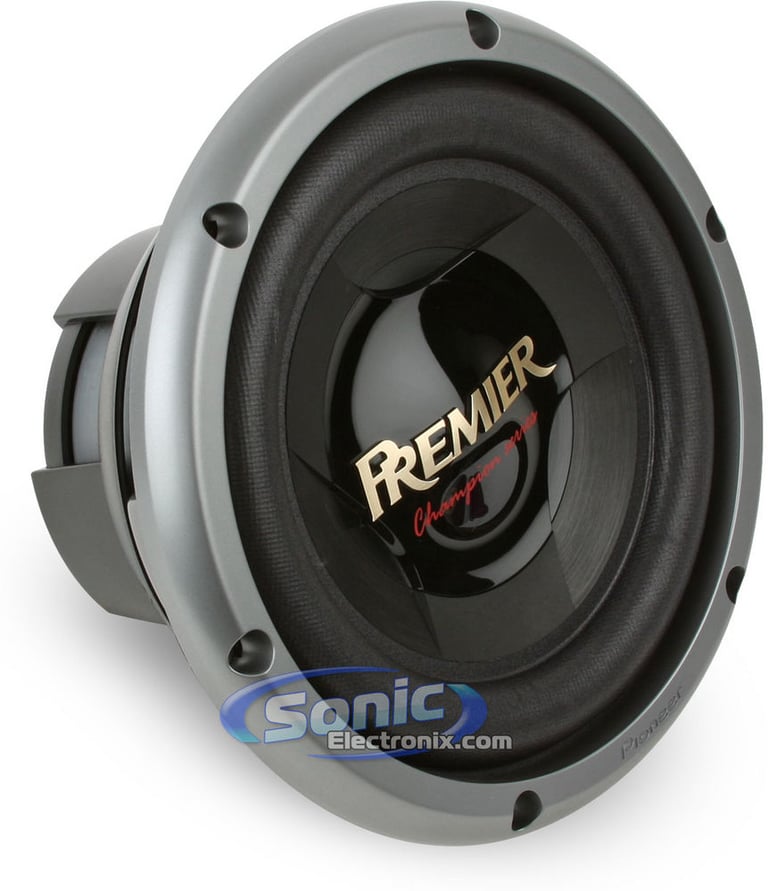

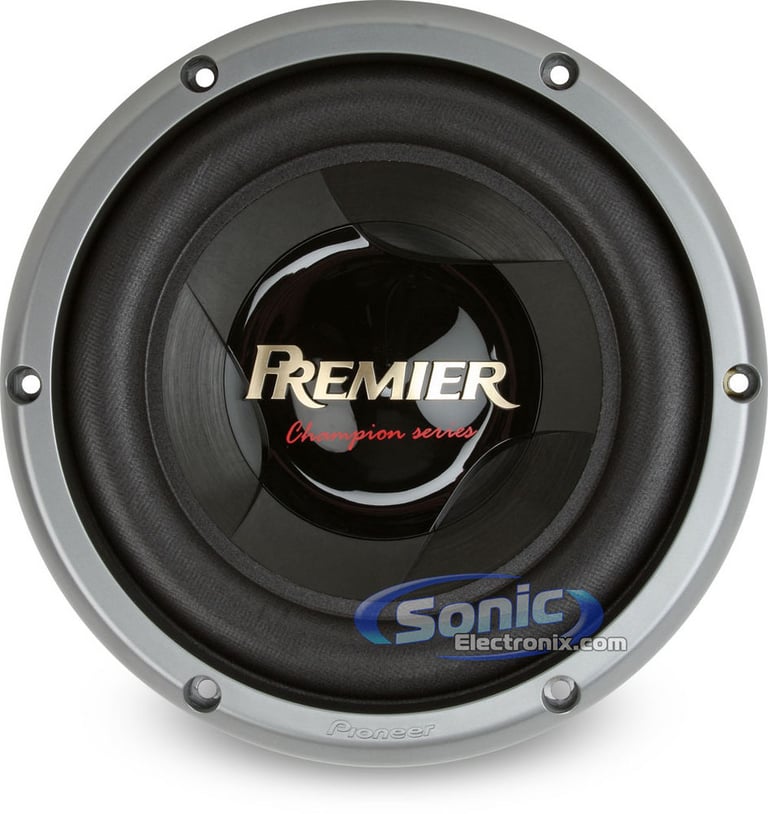

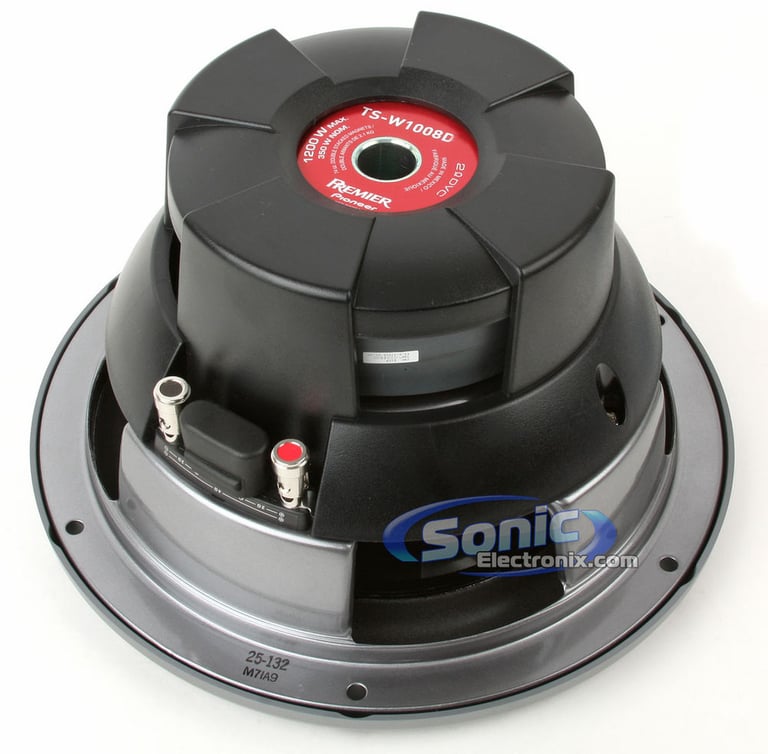

Pioneer Subwoofer Features
  • 10" Dual 4 ohm Premier Champion Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 350 watts
  • Impedance: Dual 4 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Cone reinforcement arcs cone design
  • Wide roll, three-layer fiber woven radial surround
  • Stamped basket with magnet cover
  • Copper voice coil with phenol resin coated glass cloth voice coil bobbin
  • Aramid fiber spider
  • 4-Layer, Long Voice Coil
  • Frequency response: 20-180 Hz
  • Sensitivity: 92 dB
  • 2-year SonicElectronix.com warranty

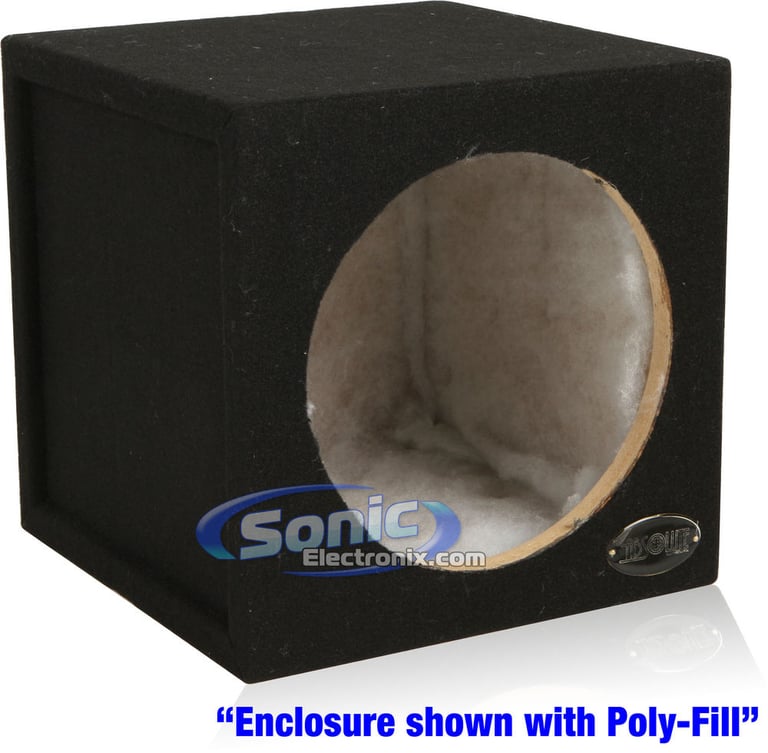

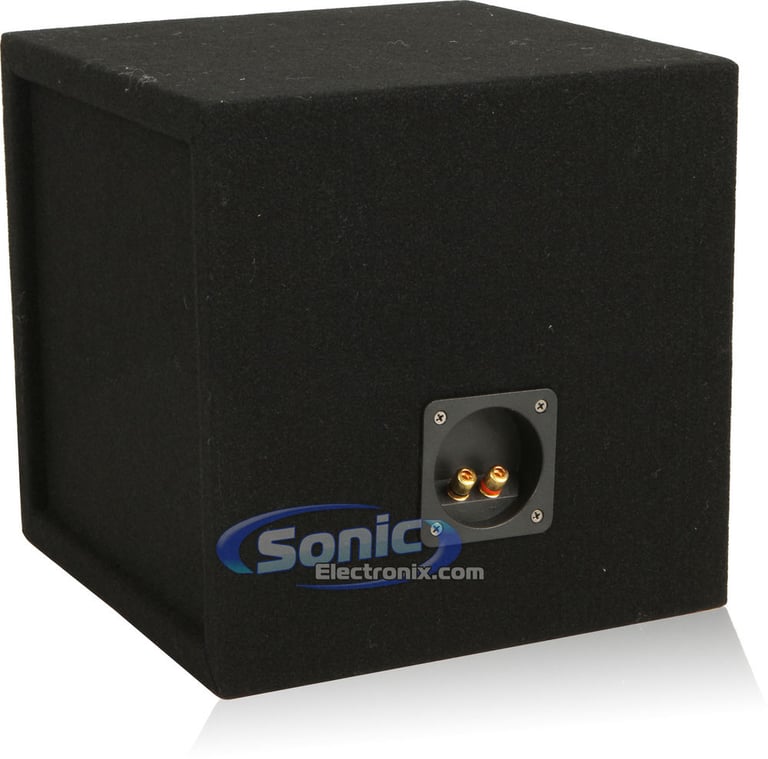

Absolute Subwoofer Enclosure Features
  • 10" Sealed Square Subwoofer Enclosure
  • Black carpet
  • Gold plated screw terminals (banana clip ready)
  • Mounting depth: 10-5/8"
  • Cutout diameter: 9-1/8"
  • Box volume: 0.66 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 12"D x 12"W x 12"H
  • Authorized Internet Dealer

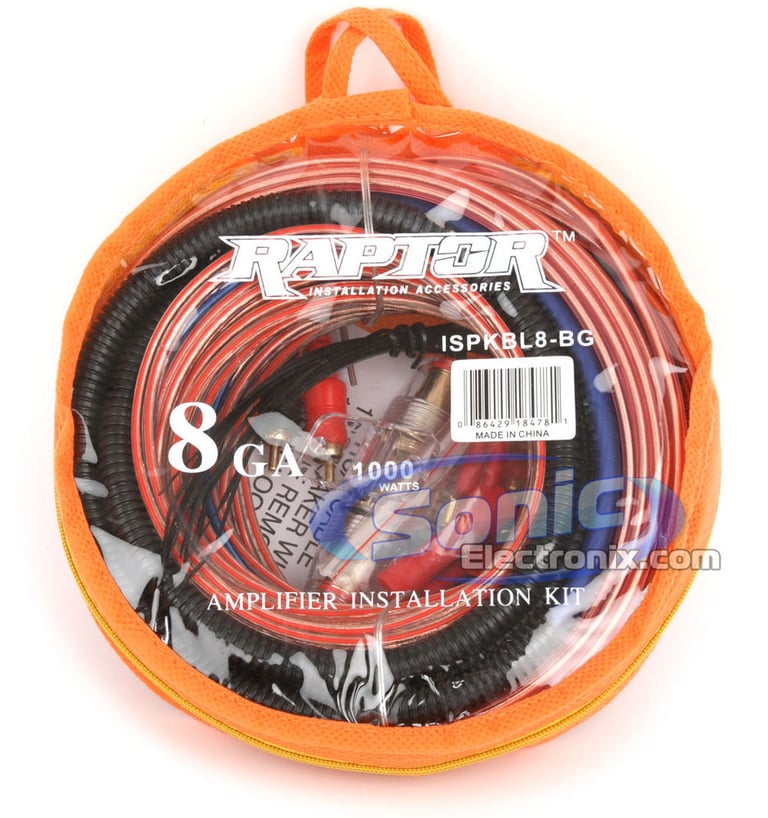

Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 8 Gauge (AWG) Power and ground cable for excellent power transfer
  • Designed for systems up to 1000W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:

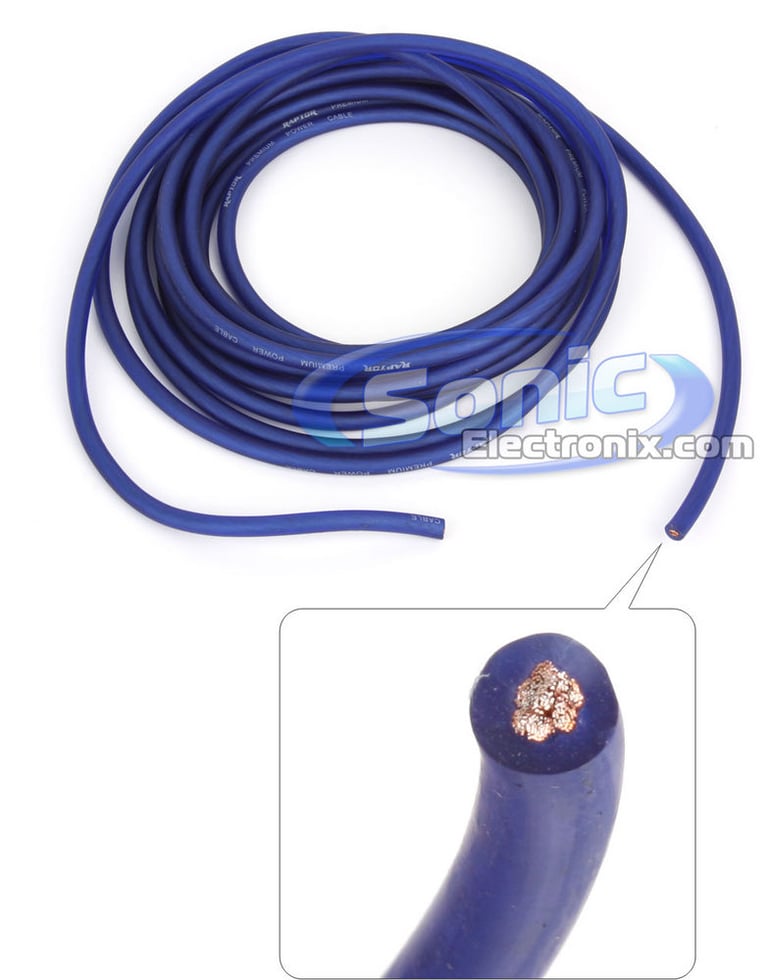

  1. 17 ft. of 8 Gauge blue power cable

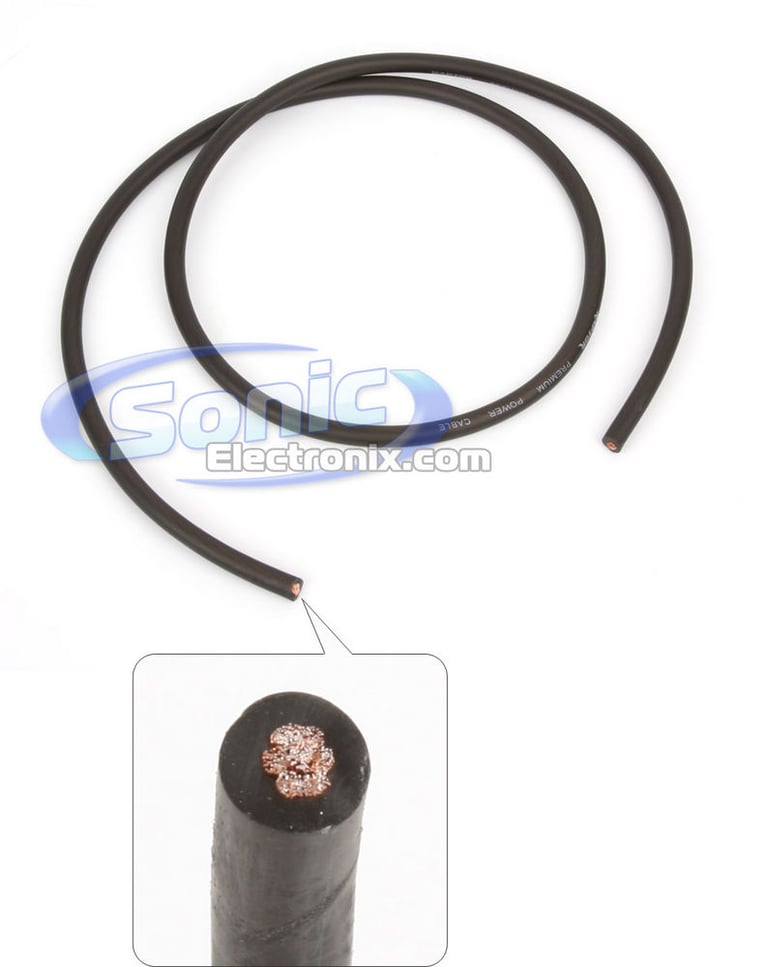

  2. 3 ft. 8 Gauge black ground cable

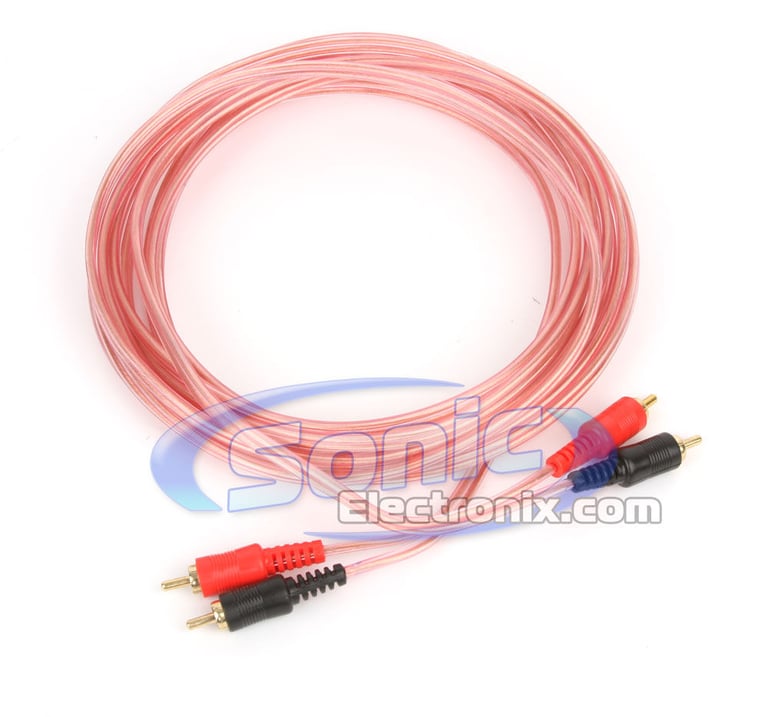

  3. 17 ft. Neon blue series RCA cable

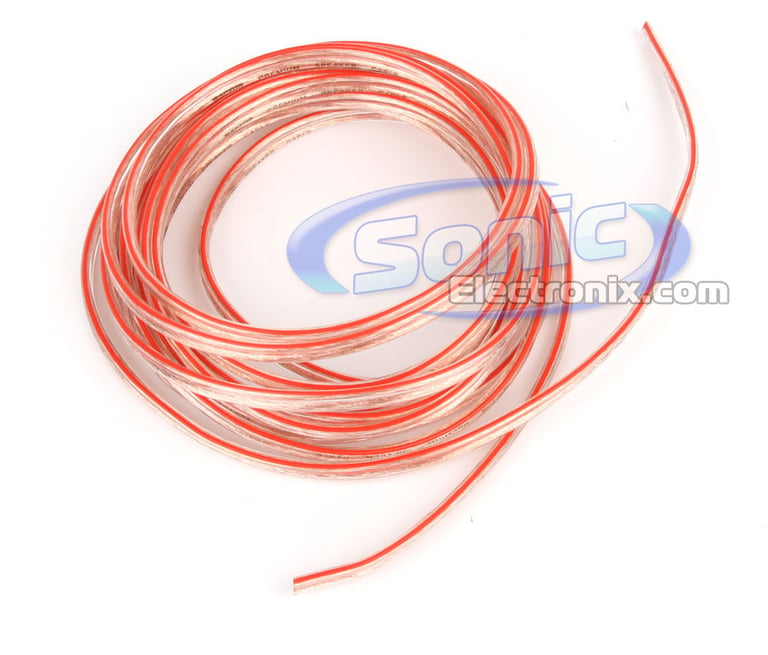

  4. 16 ft. of Premium speaker cable

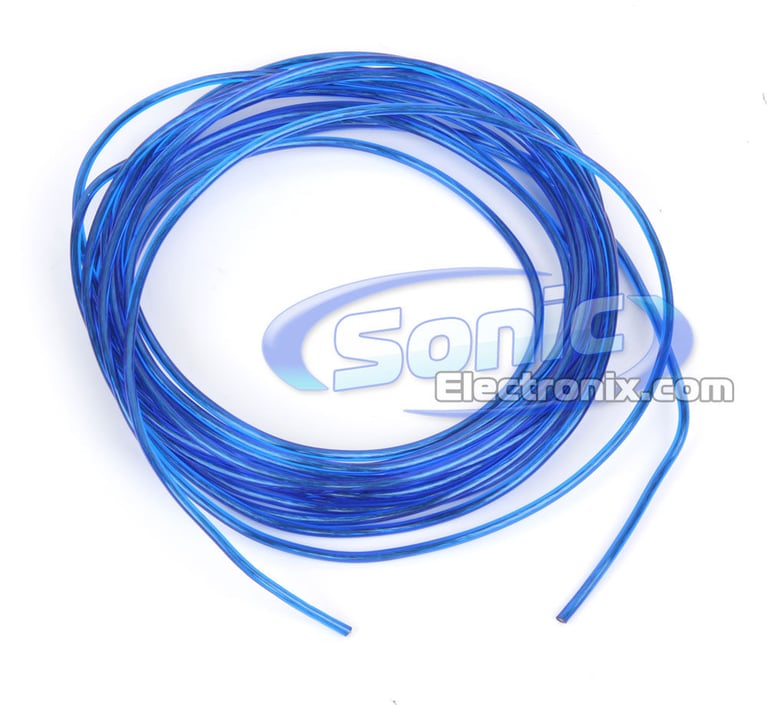

  5. 17 ft. of 18 Gauge blue remote turn-on wire

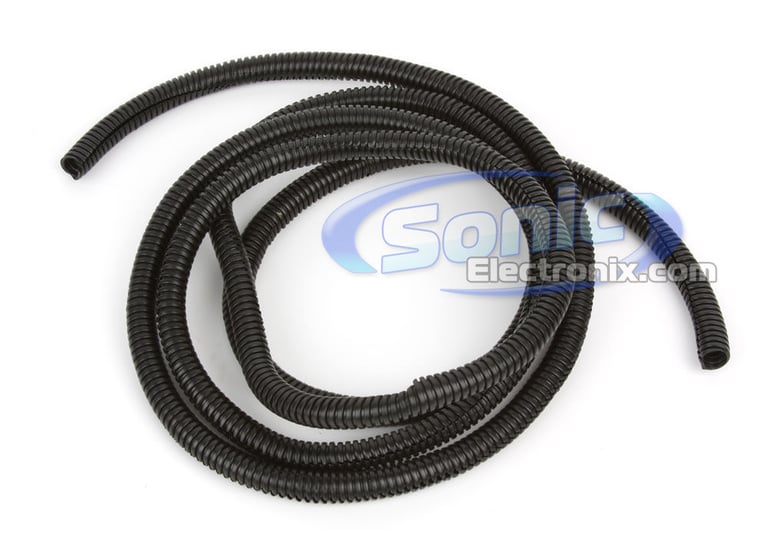

  6. 6 ft. Split loom tubing
  7. 1 AGU Fuse Holder
  8. 50 AMP Fuse

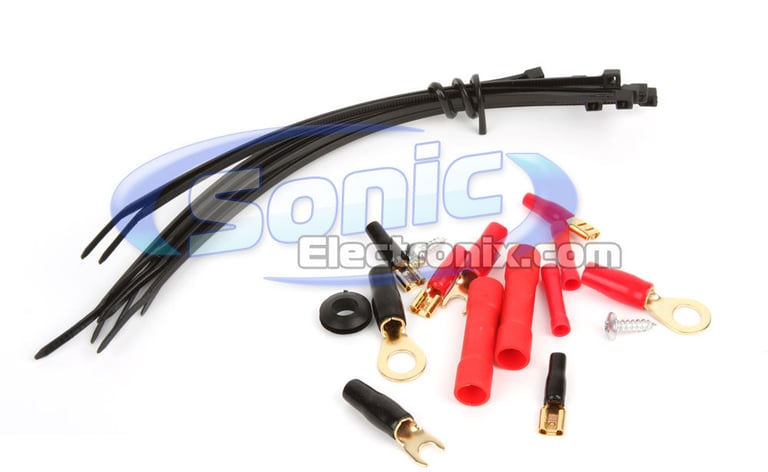

  9. All Necessary Hardware for Installation

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
310 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
5 - 55 Hz
Signal-to-Noise Ratio
84 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 2
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
350 watts
Peak Power Handling
1200 watts
Woofer Surround
Fiber Woven Radial
Woofer Composition
Injection Molded Polypropylene with Carbon, Glass Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
92 dB
Frequency Response
20 - 180 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
12"
Width
12"
Depth
12"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RSd300.1_TS-W1008D4

Weight:

44.00lbs

Internal SKU:

rsd3001_tsw1008d4

Internal Product ID:

29425

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


310W Complete Phoenix Gold + Pioneer Premier Bass Package thumbnail image

5 star
59%
4 star
31%
3 star
7%
2 star
0%
1 star
2%



Durability
4.6
Value
4.7
Features
4.4
Design
4.5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Good Product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

Used this package on my Mazda 6 i Sport and it covered the length of the car fine. Had scrap to splice off onto multiple amps.

By NETech on November 14, 2011

37 found this helpful


Comes with everything you need at a great price!

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I ordered this kit for my two 12" mtx subs and a one channel amp and it came with all of the wiring necessary to gets my subs bumping

By Luke on August 23, 2010

35 found this helpful


One word,... Awesome!!!

The following review is for RSd300.1, which is a part of the bundle you are viewing.

Pros: Reliable, User friendly, Great power...
Cons: None found so far....

I've had this amp for a out 6 months now and I must say it's a trooper. I've already blow one subwoofer. I've ran it in the hot summer days, and it stays cool, has shut down on me! Even on these cold winter days I haven't had any performance issues! And my music has never sounded so precise and crisp!!! 2 thumbs up in my books. Also thanks to Sonicelectronix for providing such awesome products as this Phoenix Gold RSd300.1 amp!!! Great, great, great product

By Co on December 24, 2010

14 found this helpful


Great product

The following review is for TS-W1008D4, which is a part of the bundle you are viewing.

Great product nice a loud

By Jenny on November 17, 2010

12 found this helpful


One of the BEST sounding subs

The following review is for TS-W1008D4, which is a part of the bundle you are viewing.

I've always been about car audio,i've owned several different brands of subwoofers from Orion to Rockford Fosgate (some of the best out there). Well i decided to buy myself one of these subs out of curiosity. As soon as i got it i looked at the spec sheet from Pioneer. I went with the specs and built a ported box at 1.1 cubic space, and man let me tell ya this one 10 in.sub at 2 ohms sounds better than my two Distinct Audio 12's in a sealed a box. It handles my 5001bd from Rockford Fosgate very well at 65hz. Now im planning to order me another so i can run them at 1 ohm (of course i will need a different amp) for this operation. Just want to say i highly recommend this sub for those who are looking for a good sounding sub that really pounds. Price isn't bad at all.!!!!

By Tito on April 10, 2010

11 found this helpful


Great Value

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I shopped around but couldn't beat the deal I got from Sonic Electronix on this Raptor cable set for connecting my subwoofer.

By Mike on May 30, 2011

9 found this helpful


Great sub

The following review is for TS-W1008D4, which is a part of the bundle you are viewing.

Bought two of these for an under the seat pre-fab box in my 08 F150 Super Crew 6 months ago. Running them with a CRUNCH P-1 5000.5 & a small amount of fiberfill in the box, from day one they've sounded suprisingly good. Good value for the $.

By Red on December 23, 2010

8 found this helpful


Well worth the money!

The following review is for TS-W1008D4, which is a part of the bundle you are viewing.

For the price you pay on this site for this sub you're getting a great deal. I had this sub in a sealed box with internal volume of 1.25 cb ft and powered by a mono Pioneer GM 400w RMS @ 2 ohms amp. The thing pounds hard for a single 10 at only 350w RMS. It sounds great as well. One thing I'd recommend though is to give it a good weeks break in period before pounding it too hard, this sub doesn't handle power so well at first, until it breaks in it seems to do a lot better. I blew my first one in 5 days due to this problem. lol. So be careful. But buy one!

By Ryan on October 17, 2010

8 found this helpful


Great product

The following review is for ISPKBL8-BG, which is a part of the bundle you are viewing.

I used this kit for one Alpine Type R 12 with an MRP-M500 amp and it works perfectly! I don't know if it's true 8 gauge, but I'm sure it's not more than 10 gauge. Been using it for a month and haven't had any problems.

By Alex on January 4, 2011

7 found this helpful


Pioneer Premier TS-W1008D4

The following review is for TS-W1008D4, which is a part of the bundle you are viewing.

For the price and ease of the speakers, they are well worth the purchase, they were sent to us faster then garunteed, easy to set up and sound great, they pound!! I am happy with them, ;)

By chevys10 on December 30, 2010

7 found this helpful



Related Searches


Save up to 10 different vehicles in your garage

Add vehicle
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
