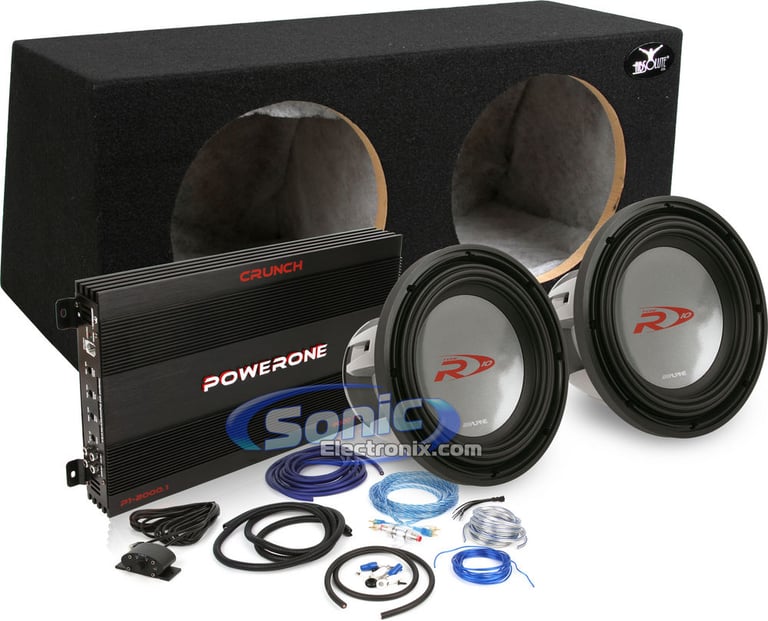

3000W Complete Crunch + Alpine Bass Package

Crunch P1 2000.1 Monoblock Amplifier + 2 Alpine SWR1042D 10" Subs + 4 Gauge Amp Kit + 10" Sealed Box

Crunch
Shop all Crunch
EXCLUSIVE
Product videos
highlight-star-icon

Power One Series Monoblock Class A/B Car Amplifier • 2000W Max • 1000W x 1-Chan @ 1 Ohm • SEPP Analog Amplifier • 10" Dual 4 Ohm Type-R Series Subwoofer • Custom Cast Aluminum Frame • Dual Stacked Magnets • Includes Everything You Need To Add Bass To Your Vehicle

Learn more about the p120001_2-swr1042d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Kenwood KMM-BT232U

Single DIN Digital Media Receiver with Bluetooth

3
-15.00%

$119.00

List price $140.00

Product Highlights


Power One Series Monoblock Class A/B Car Amplifier • 2000W Max • 1000W x 1-Chan @ 1 Ohm • SEPP Analog Amplifier • 10" Dual 4 Ohm Type-R Series Subwoofer • Custom Cast Aluminum Frame • Dual Stacked Magnets • Includes Everything You Need To Add Bass To Your Vehicle

Description


Crunch brand icon

Authorized dealer

Hifonics and Alpine Bass Package

This Sonic Exclusive package showcases two 10" Alpine Type R Subwoofers, paired along with a Crunch P1 2000.1 amplifier. This excellent bass package pushes 1000 watts of continuous RMS power. The Alpine Subwoofers have Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

Each Alpine Type R subwoofer requires 500 watts of RMS power. The included Crunch P1 2000.1 amplifier will compliment this required power by supplying a perfect matchup of RMS continuous power. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

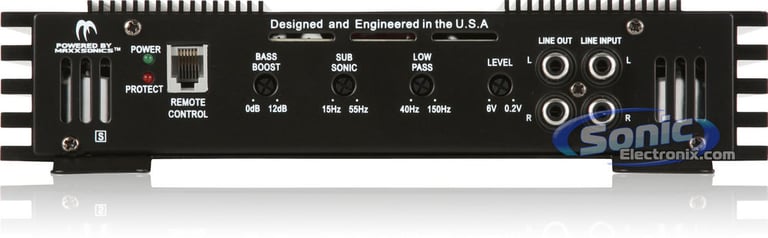

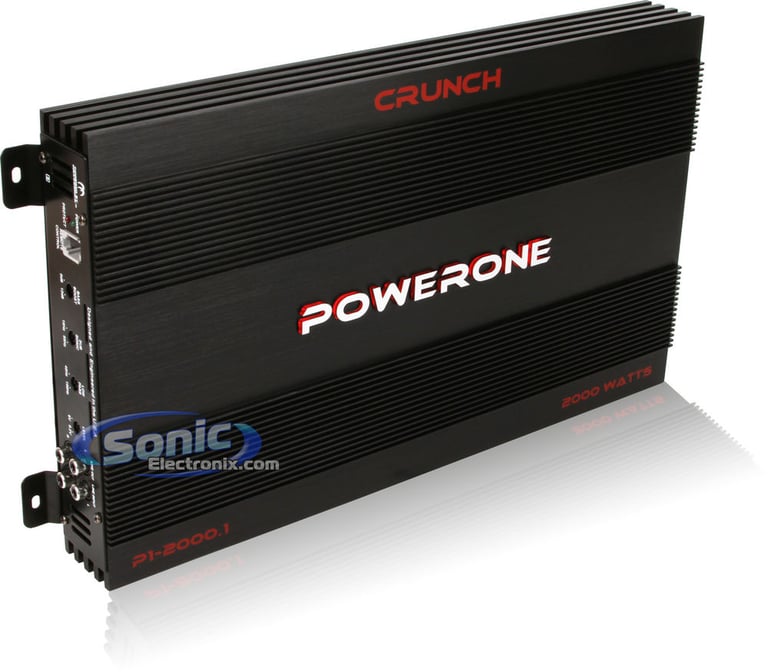

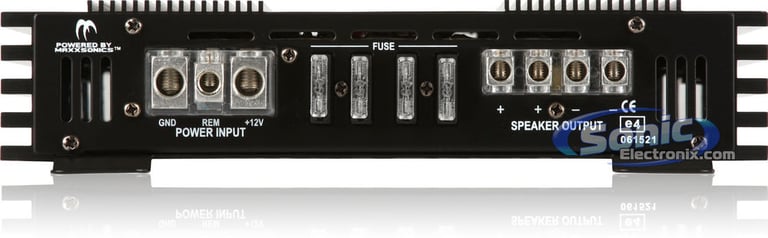

Crunch Amplifier Features:
  • Power One Series Monoblock Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • MAX Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 2000 watts x 1 chan.
  • SEPP Class A/B analog amplifier
  • Pulse Width Modulated MOSFET power supply

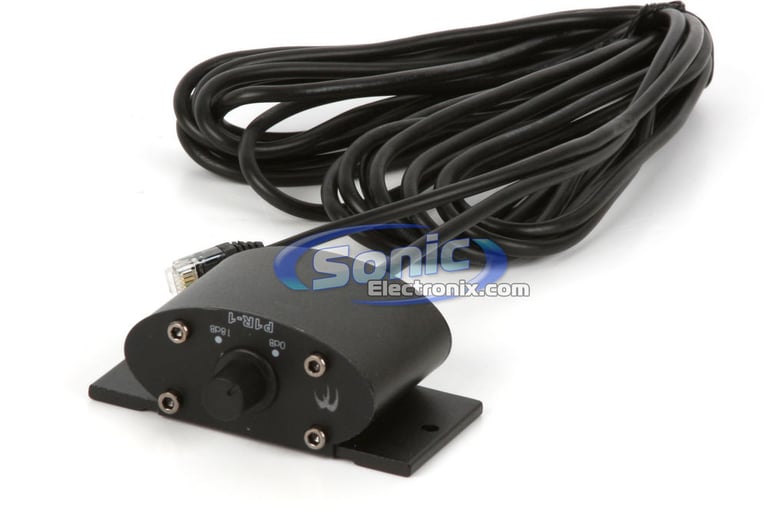

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Slow un-mute soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable low-pass filter (40-150 Hz, 12 dB/octave)
  • Subsonic filter (15-55 Hz)
  • Damping factor: >200
  • Frequency response: 10-300 Hz
  • Dimensions: 15-3/4"L x 9-7/8"W x 2-1/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

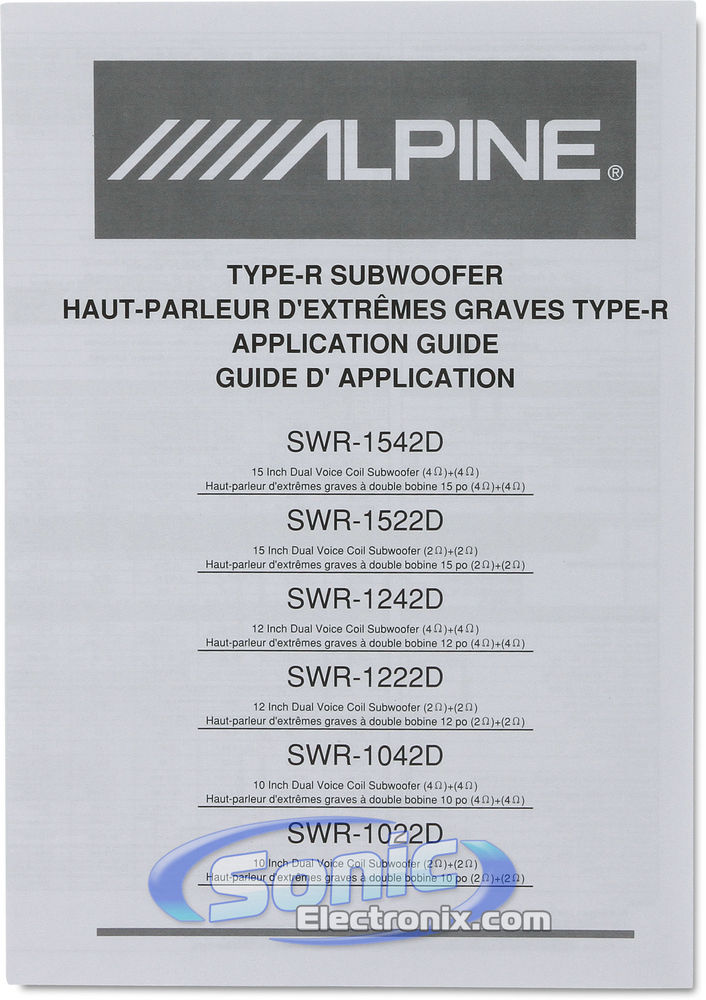

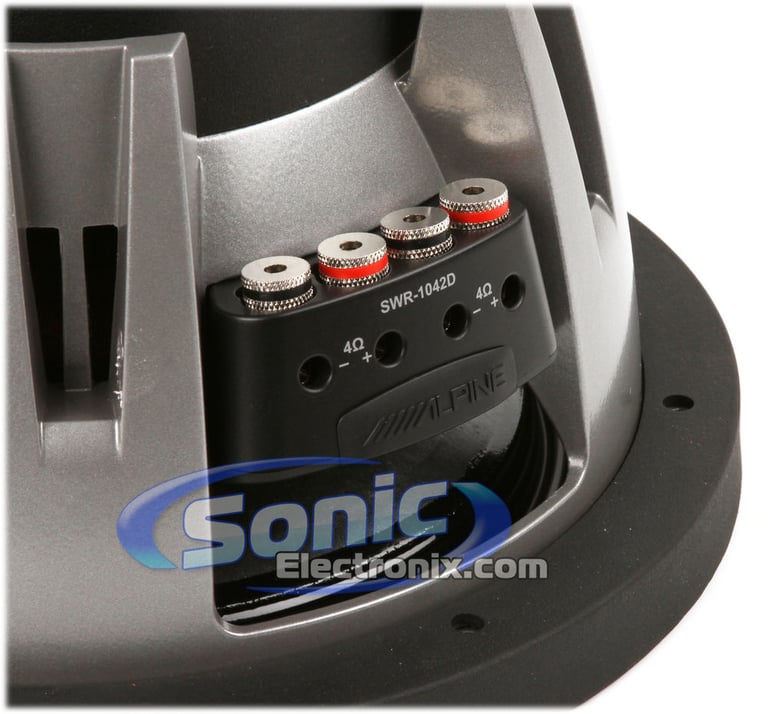

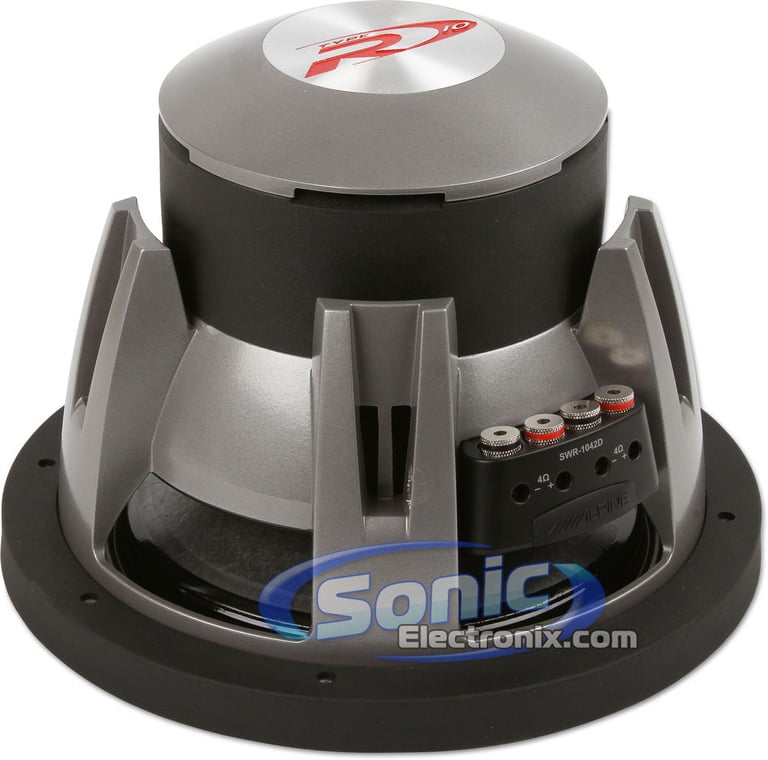

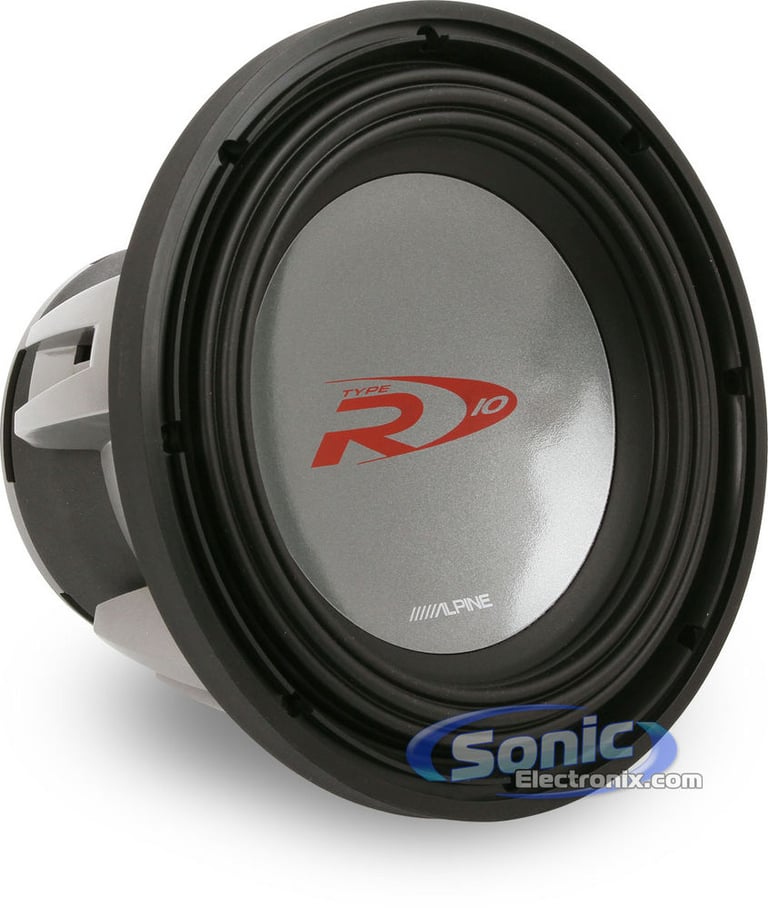

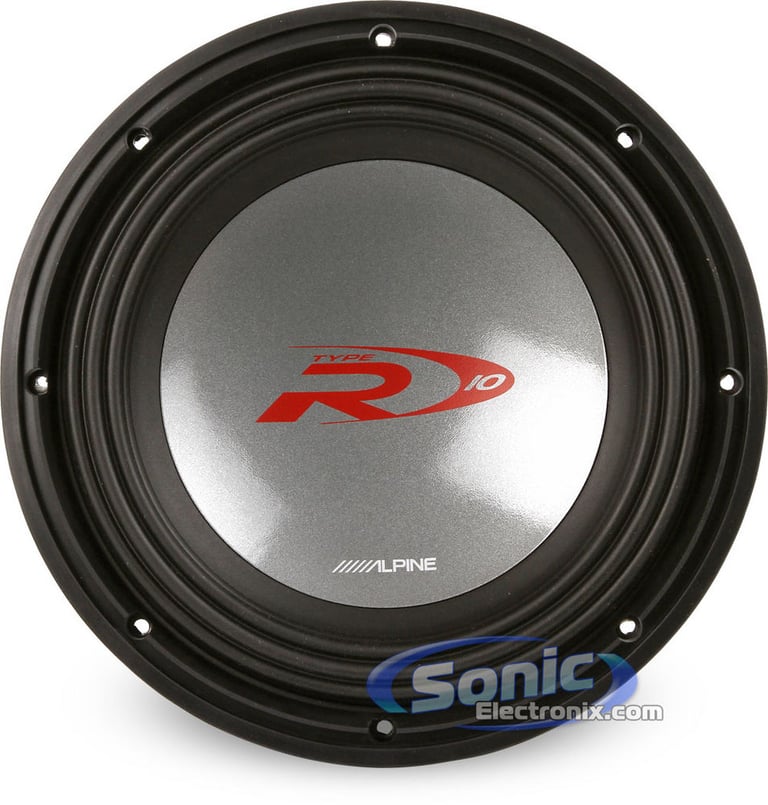

Alpine Type R Subwoofer Features:
  • Two 10" Dual 4 Ohm Type-R Series Subwoofers
  • Power Handling:
    • Peak: 3000 watts total / 1500 watts each
    • RMS: 1000 watts total / 500 watts each
  • Impedance: Dual 4 ohm
  • Kevlar reinforced pulp cone
  • Custom Cast Aluminum Frame with Integrated Perimeter Venting and Heat Transfer Plate
  • Mirrored Progressive Nomex ® Spiders with Reinforced Layer Integrated Tinsel Leads
  • Compound Radius Curve (CRC) Motor Structure
  • Multi-Stage Thermal Management System
  • HAMR Surround and Concealed Mount Gasket
  • Aluminum Airflow Motor Cover
  • Compound Radius Curve Pole Geometry
  • Dual Stacked Magnets
  • Extra Length Extended Pole
  • Flared Pole Vent
  • High Strength Brass Voice Coil Bobbin
  • Frequency Response: 26Hz – 500Hz
  • Designed and Engineered in the USA
  • 1-year SonicElectronix.com warranty

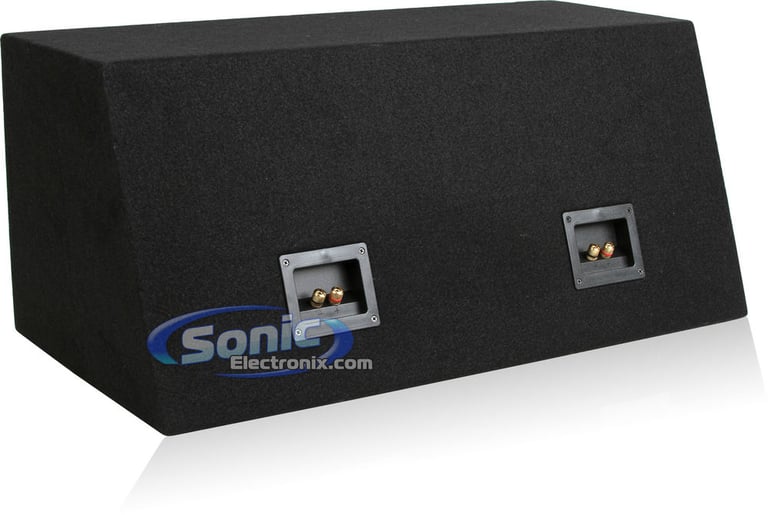

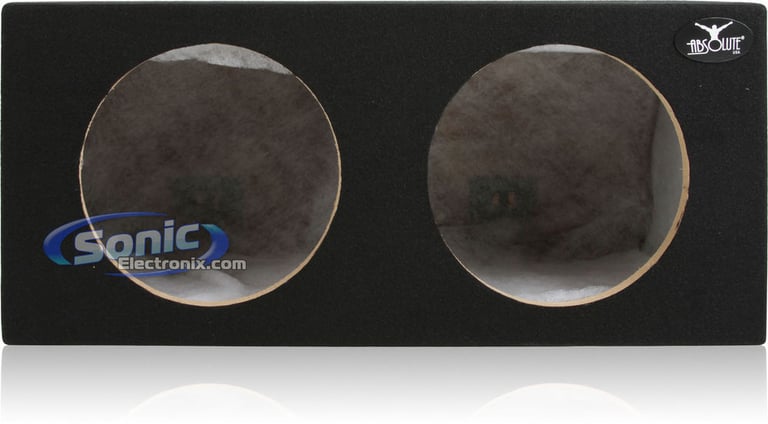

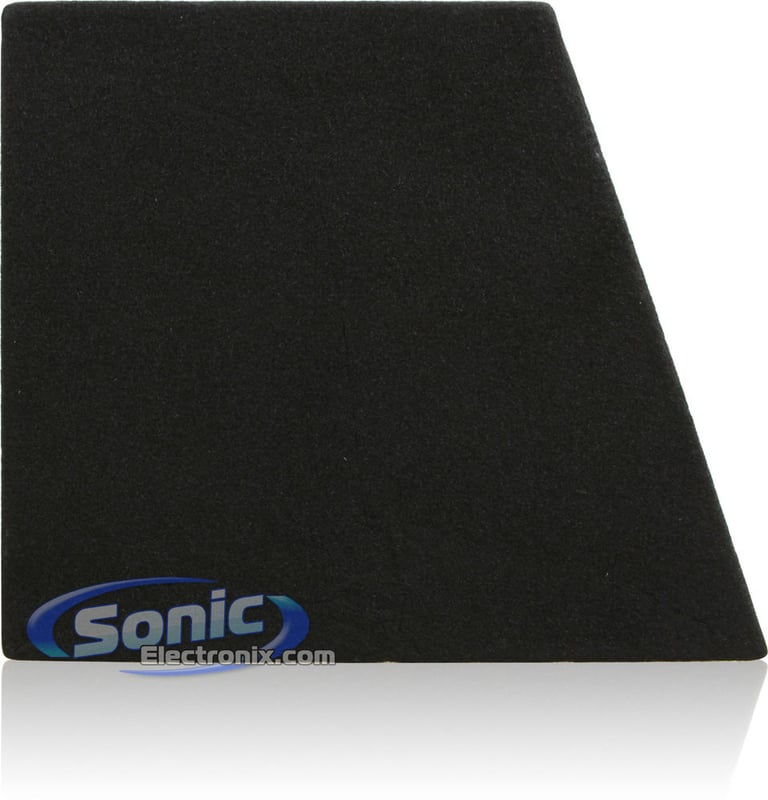

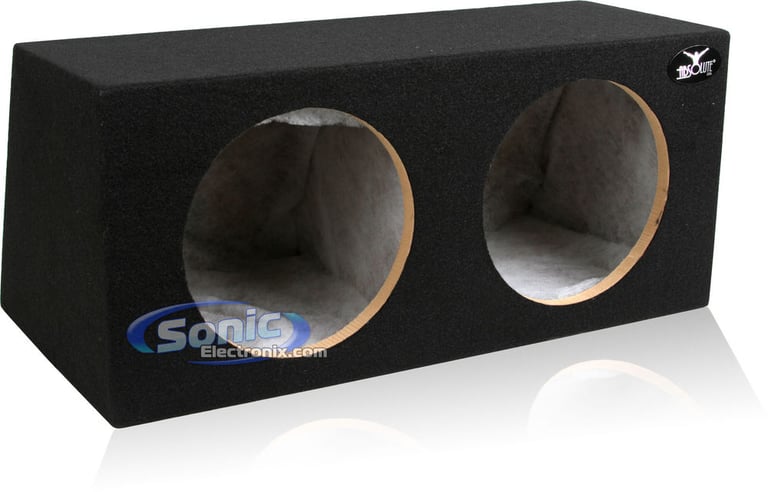

Enclosure Features:
  • Dual 10" Universal Sealed Subwoofer Enclosure
  • Hold two ten inch subwoofers
  • Pre-lined with polyfil for deeper bass
  • Two sets of rear binding posts

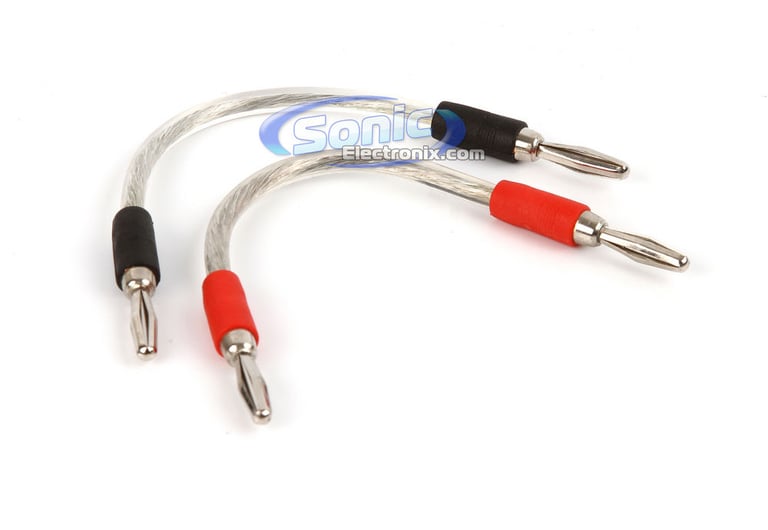

  • Terminals are banana clip ready
  • Covered in durable black carpet
  • Made from 3/4" MDF (Medium Density Fiberboard)
  • Subwoofer mounting depth: 10-1/4"
  • Subwoofer cutout diameter: 9-1/4"
  • Box volume: 0.78 cubic feet (per chamber)
  • Total box volume: 1.56 cubic feet
  • Dimensions: 10"TD x 14"BD x 27"W x 12"H
  • Authorized Internet Dealer
Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:
  1. 17 ft. of 4 Gauge blue power cable
  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable
  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire
  6. 6 ft. of Split loom tubing
  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

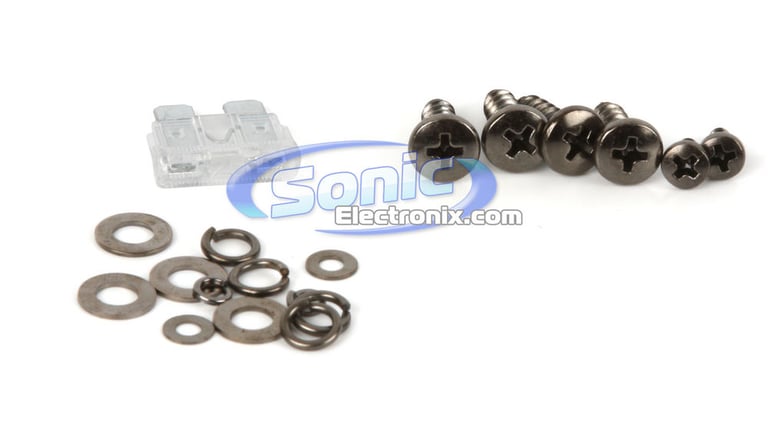

  9. All Necessary Hardware for Installation

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Peak Power Output
2000 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 150 Hz
Subsonic Filter
15 - 55 Hz
Signal-to-Noise Ratio
95 dB
Channel Separation
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 4
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
500 watts
Total RMS Power Handling
1000 watts
Peak Power Handling
1500 watts
Total Peak Power Handling
3000 watts
Woofer Surround
HAMR Rubber Surround
Woofer Composition
Kevlar Reinforced Pulp Paper
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
83 dB
Frequency Response
26 - 600 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
12"
Width
27"
Depth
10"
Second Width
14"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P1-2000.1_SWR-1042D-2

Weight:

95.00lbs

Internal SKU:

p120001_2-swr1042d

Internal Product ID:

29432
