1000W Complete Kenwood + Alpine Bass Package

Kenwood Performance Series KAC-8105D Amplifier + Alpine SWR1242D Type R 12" Sub + 4GA Kit +Sealed Box

Kenwood
Shop all Kenwood
EXCLUSIVE
Product videos
highlight-star-icon

Class D Monoblock Car Amplifier • 500W x 1 chan. @ 2 ohm • Speaker-level inputs • Gold Plated Preamp RCA outputs • 12" Dual 4 Ohm Type-R Series Subwoofer • Multi-Roll Santoprene Surround • Includes Everything You Need To Add Bass To Your Car

Learn more about the kac8105d_swr1242d

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
NVX - Worth the Envy - Direct to Consumer Car Audio
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

Add to cart
RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

$179.95

Add to cart
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

Add to cart
RVM2.0 main Out of stock

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

Notify Me
US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

$399.99

Add to cart
US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

$399.99

Add to cart
RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Add to cart
220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

$389.99

Add to cart
220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

$389.99

Add to cart
220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

$599.99

Add to cart

Product Highlights

Class D Monoblock Car Amplifier • 500W x 1 chan. @ 2 ohm • Speaker-level inputs • Gold Plated Preamp RCA outputs • 12" Dual 4 Ohm Type-R Series Subwoofer • Multi-Roll Santoprene Surround • Includes Everything You Need To Add Bass To Your Car

Description

Kenwood brand icon

Authorized dealer

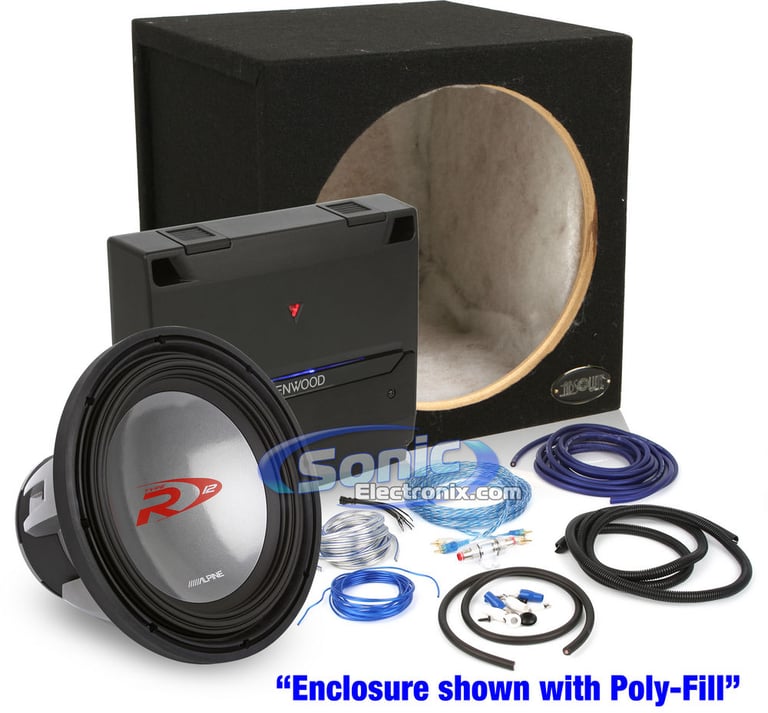

Kenwood and Alpine Complete Bass Package

This Sonic Electronix Exclusive Bass package showcases a Kenwood KAC-8105D Series Amplifier along with an Alpine Type R 12" Subwoofer. This excellent bass package pushes 500 watts of clean, continuous RMS power. The Alpine Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Alpine Type R subwoofer requires 500 watts of RMS power. The included Kenwood KAC-8105D amplifier will compliment this required power by supplying a perfect matchup of certified RMS continuous power. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

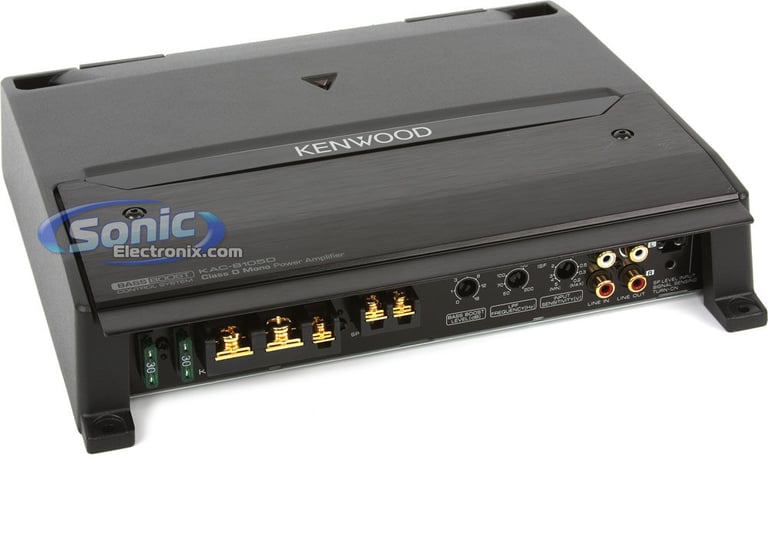

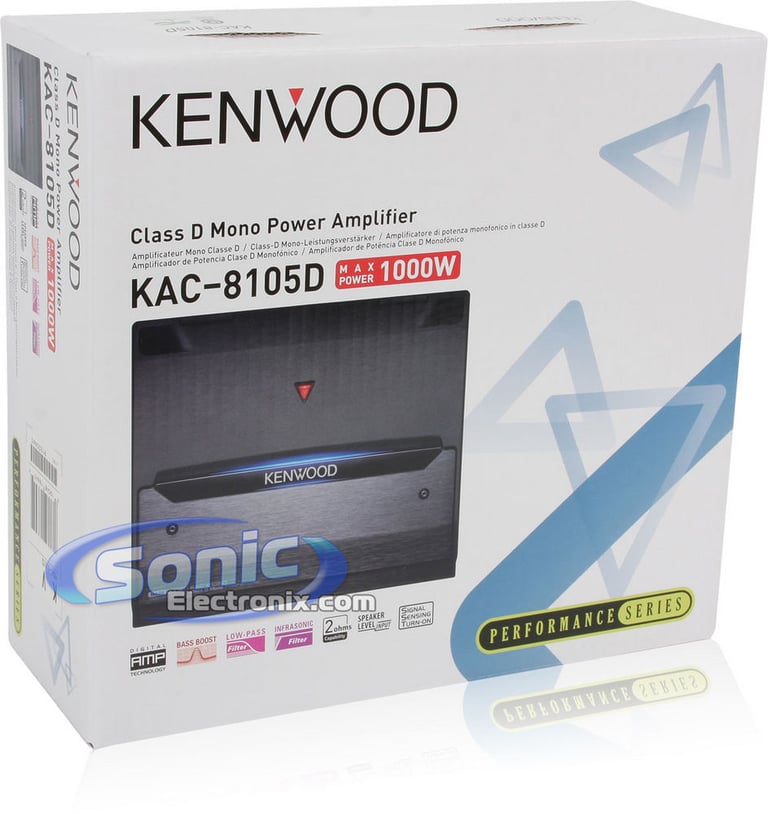

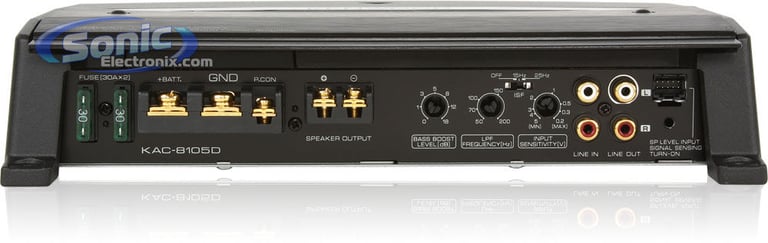

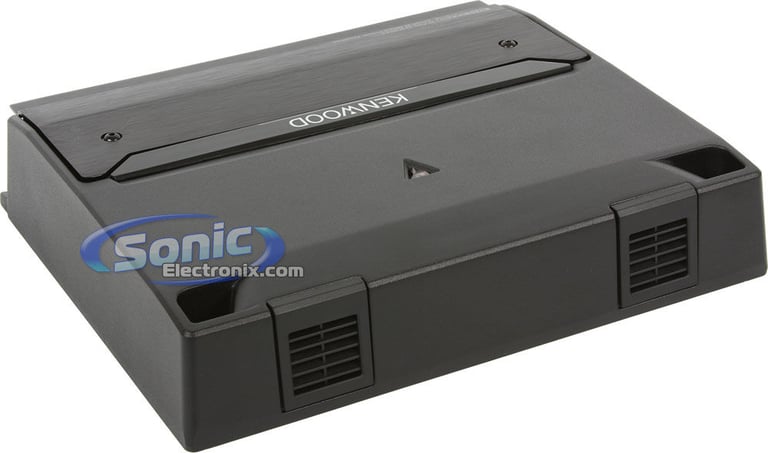

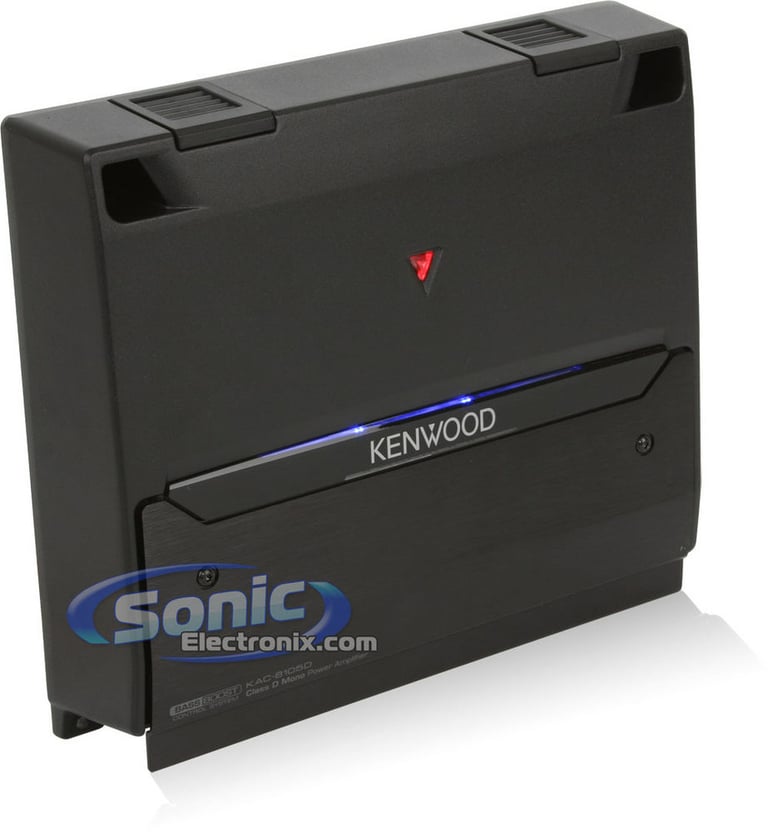

Kenwood KAC Amplifier Features:
  • Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • MOSFET power supply
  • LED power indicator
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs
  • Short circuit, DC offset, overload, and thermal protection circuitry
  • Aluminum die cast heat sink
  • Speaker impedance: 2-8 ohm
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity: 0.2-5 Volts
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Subsonic filter (15/25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-200 Hz
  • Dimensions: 11"L x 2-5/16"H x 9-3/8"D
  • 1-year Sonic Electronix warranty

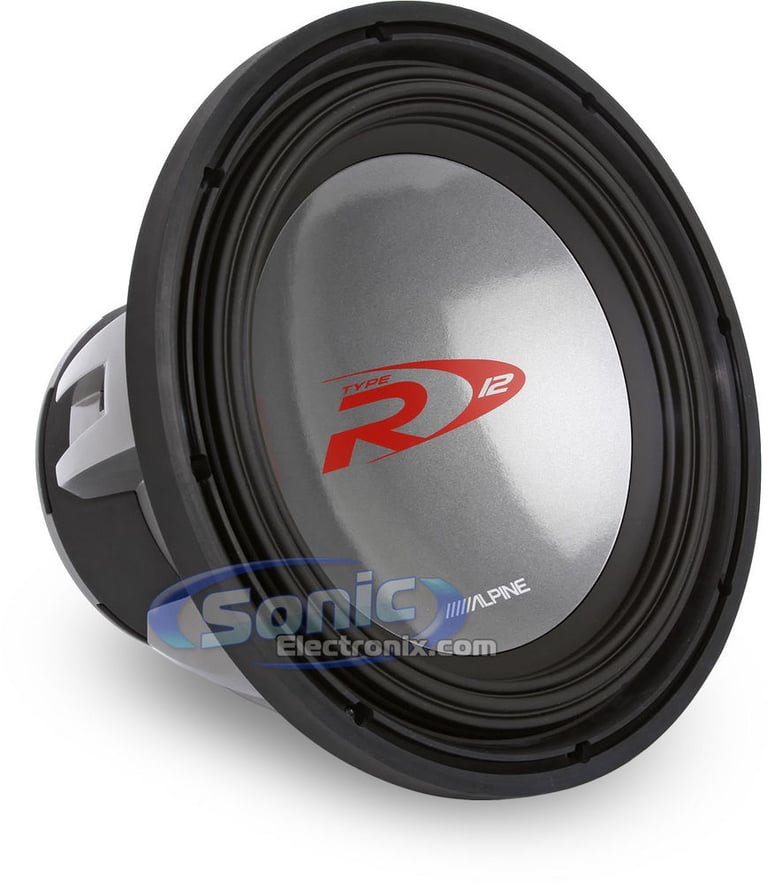

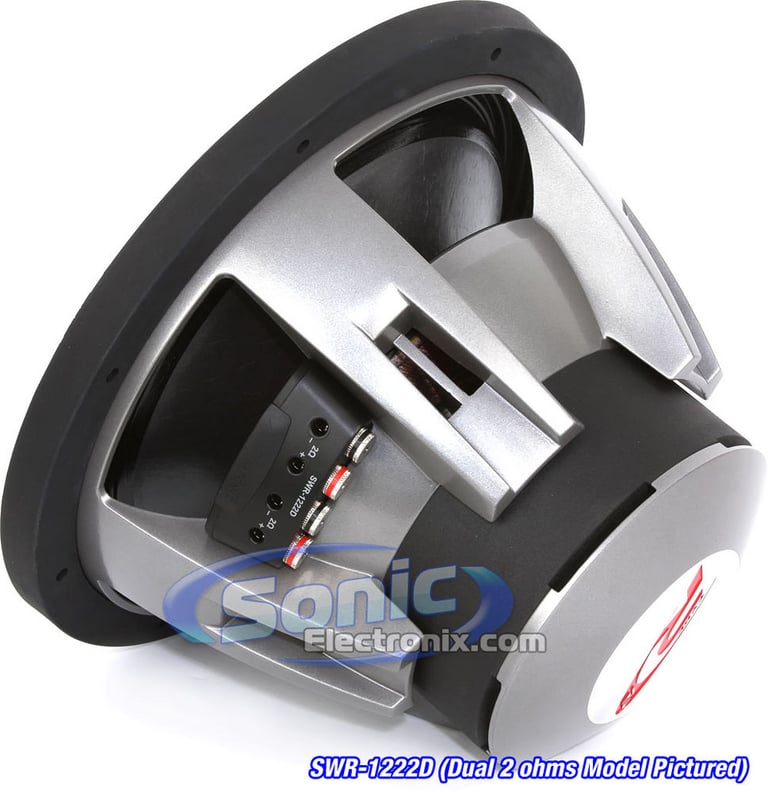

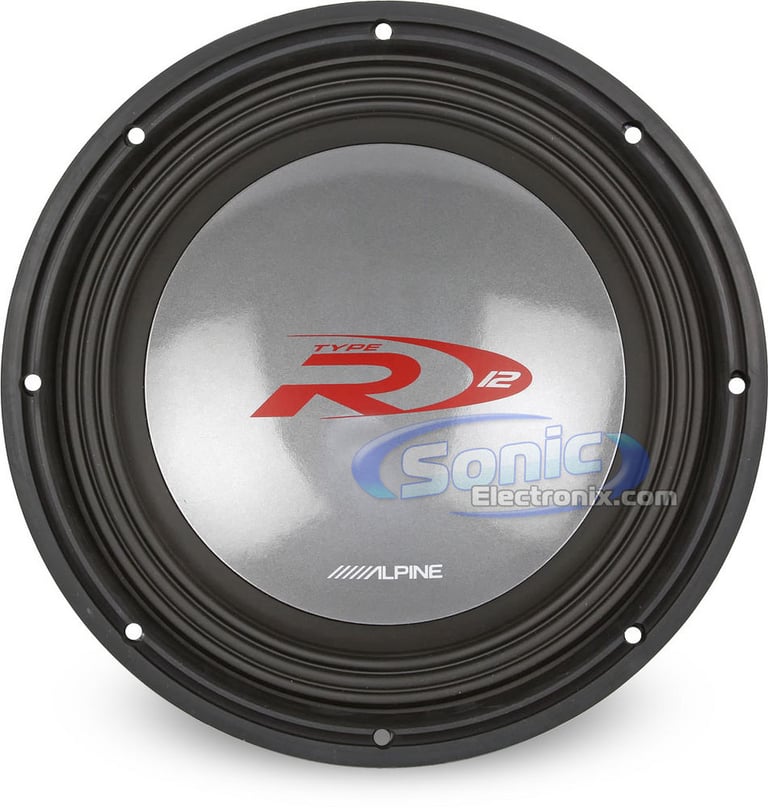

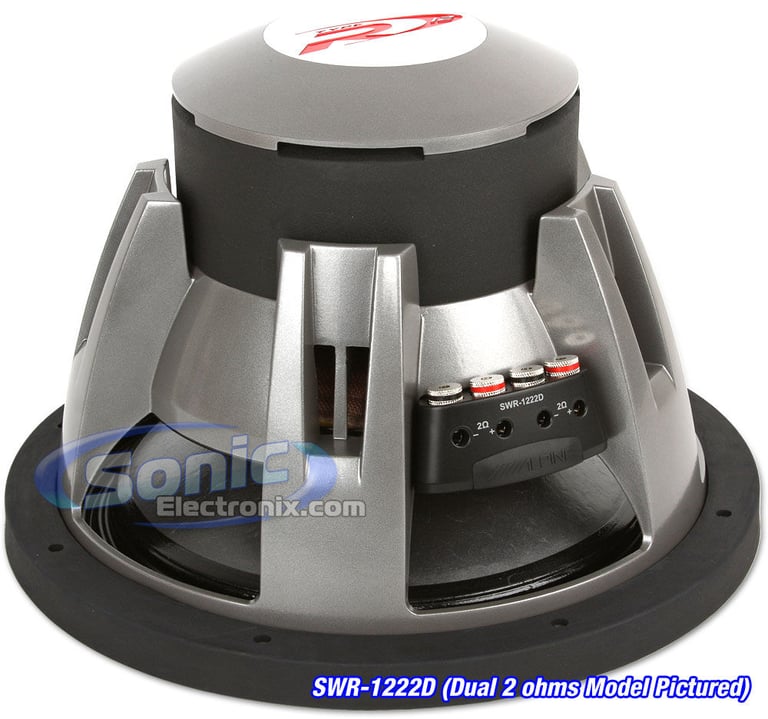

Alpine Type R Subwoofer Features:
  • 12" Dual 4 Ohm Type R Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Parabolic Kevlar reinforced pulp fiber cone woofer

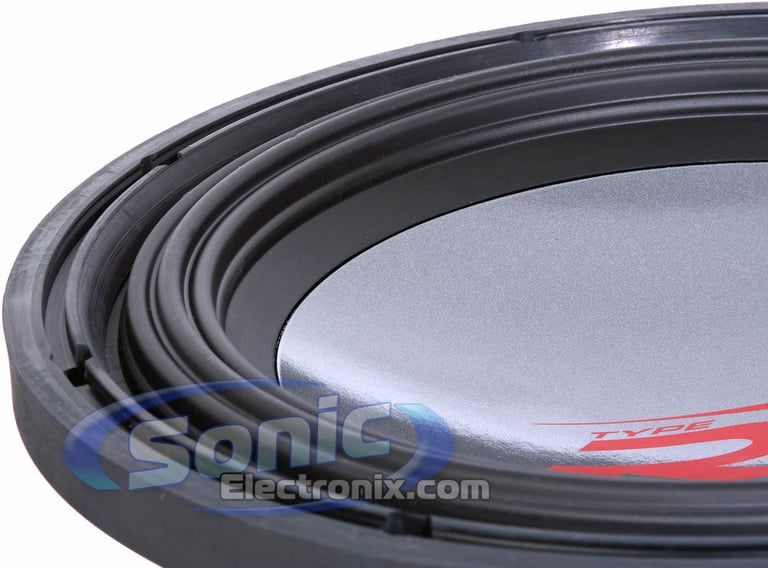

  • High Amplitude Multi-Roll (HAMR) Santoprene surround
  • HAMR Surround integrates a concealed mount gasket for Alpint Type-R grille
  • Custom Cast Aluminum Frame with Integrated Perimeter Venting and Heat Transfer Plate
  • Cast aluminum perimeter vented heat transfer frame
  • Compound Radius Curve (CRC) Motor structure
  • Spiral cut aluminum former with high temperature DVC Winding
  • Radial Vented VC Heat sink and Airflow Management System
  • Mirrored progressive Nomex Spiders with reinforced layer integrated tinsel leads

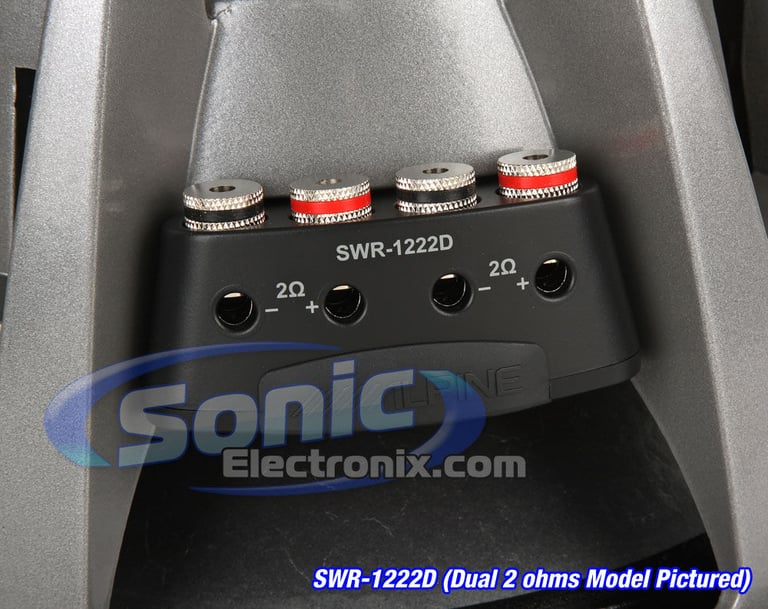

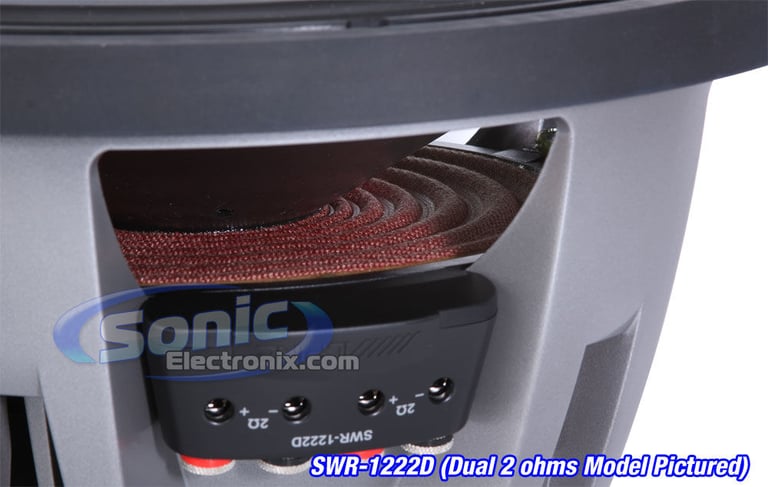

  • One-sided terminal layout
  • 1-year Sonic Electronix warranty

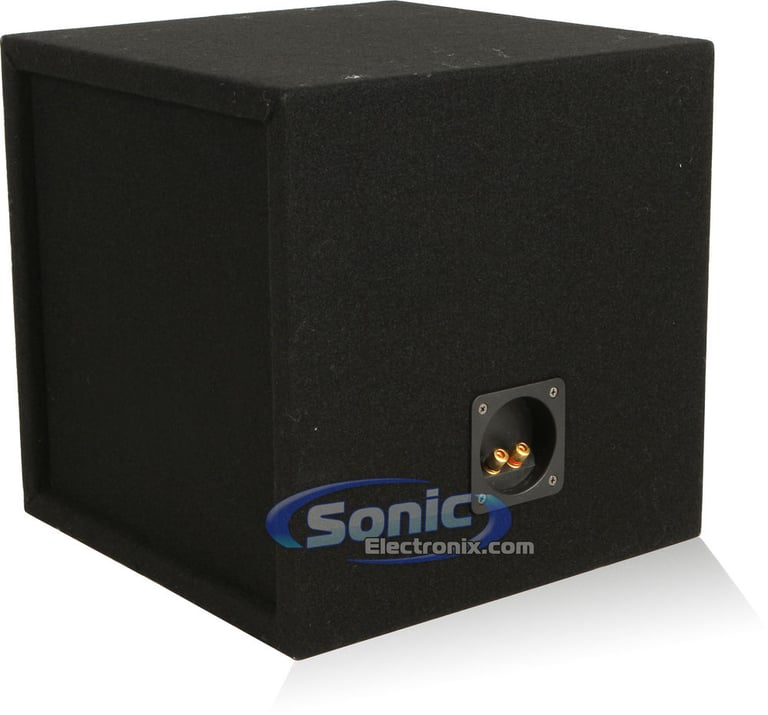

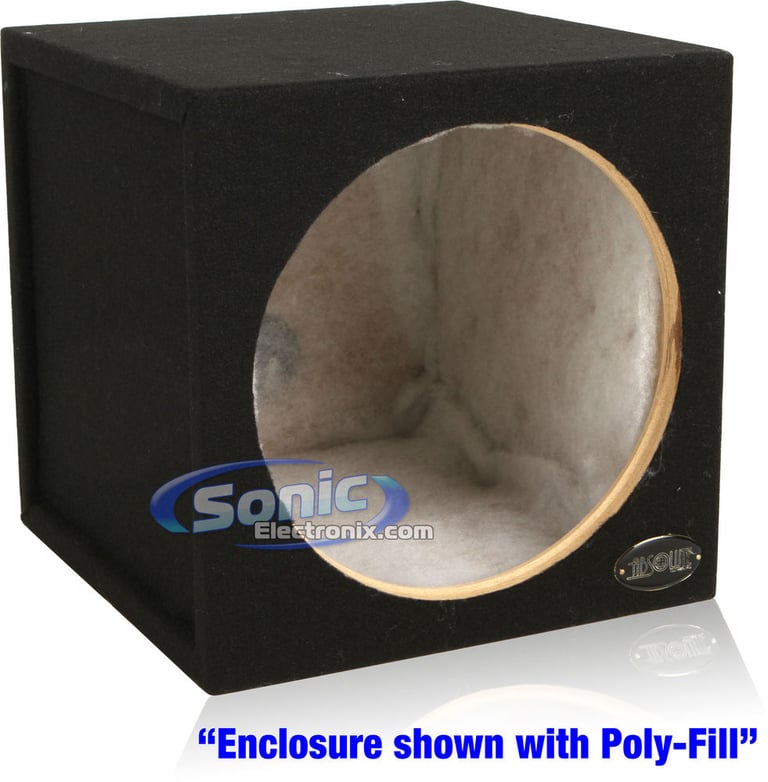

Enclosure Features:
  • 12" Sealed Square Subwoofer Enclosure
  • Black carpet
  • Gold plated binding posts
  • Banana clip ready
  • Mounting depth: 13"
  • Cutout diameter: 11-1/8"
  • Box volume: 1.13 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 14"D x 14"W x 14"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

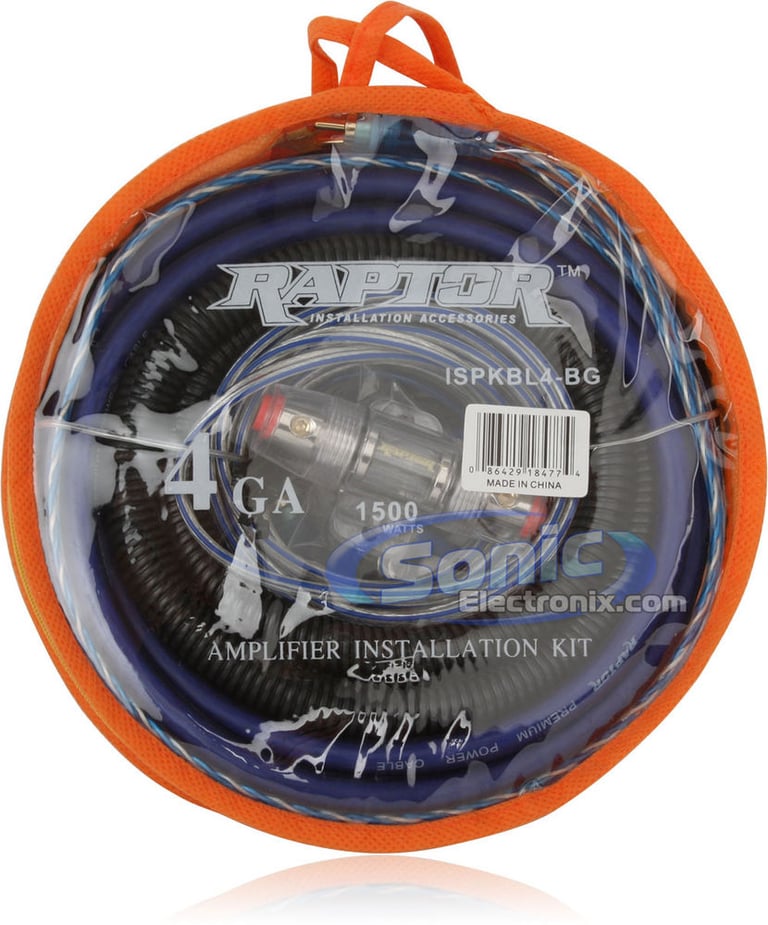

Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:

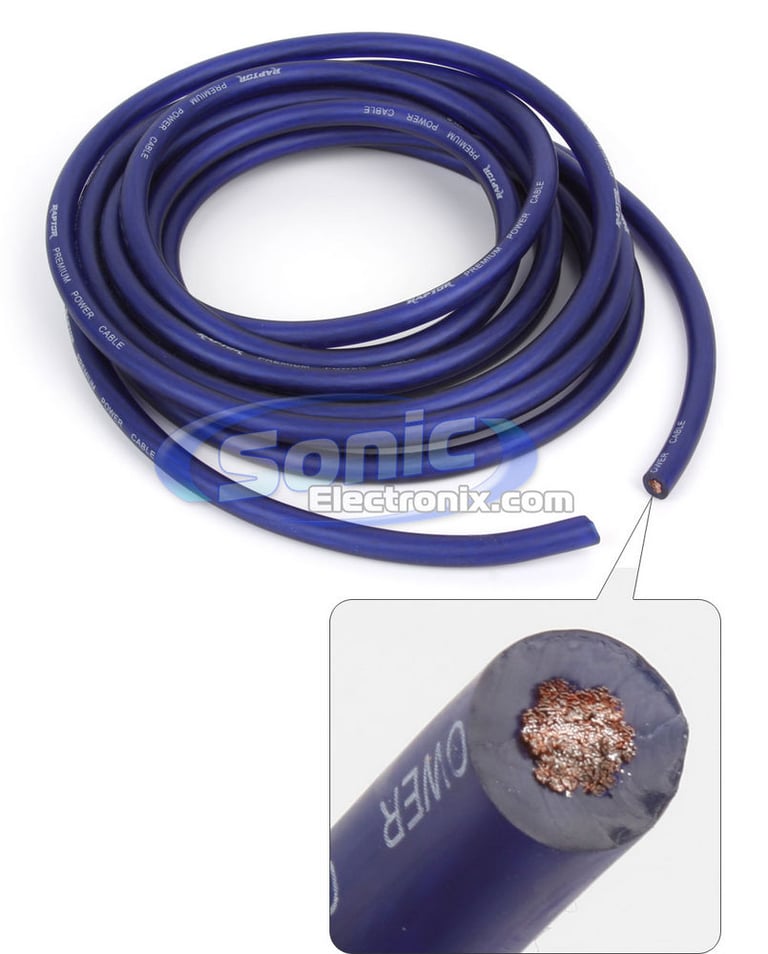

  1. 17 ft. of 4 Gauge blue power cable

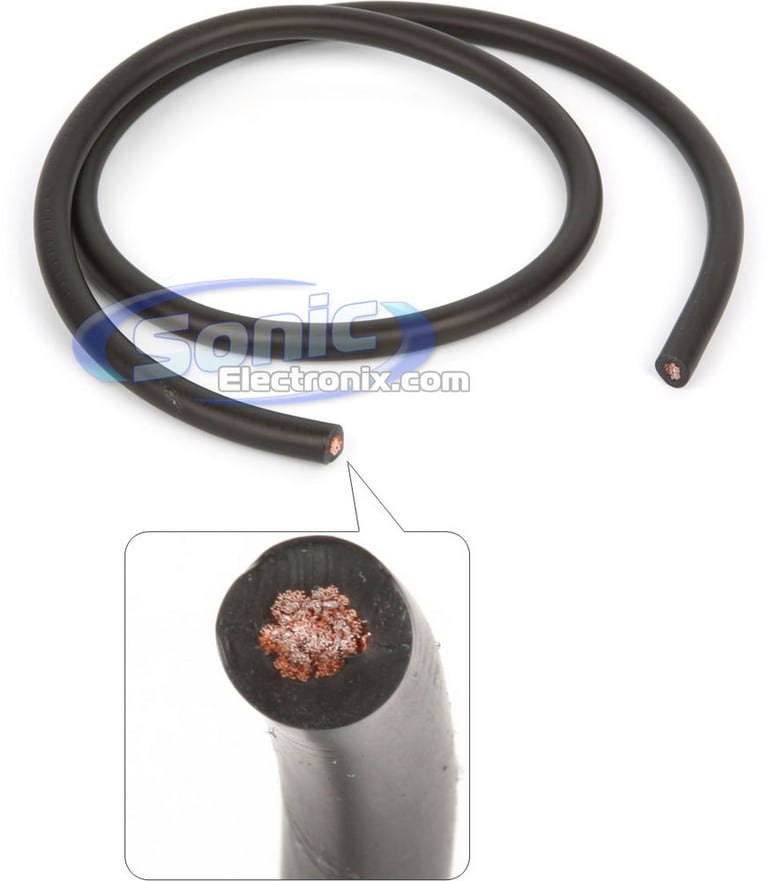

  2. 3 ft. 4 Gauge black ground cable

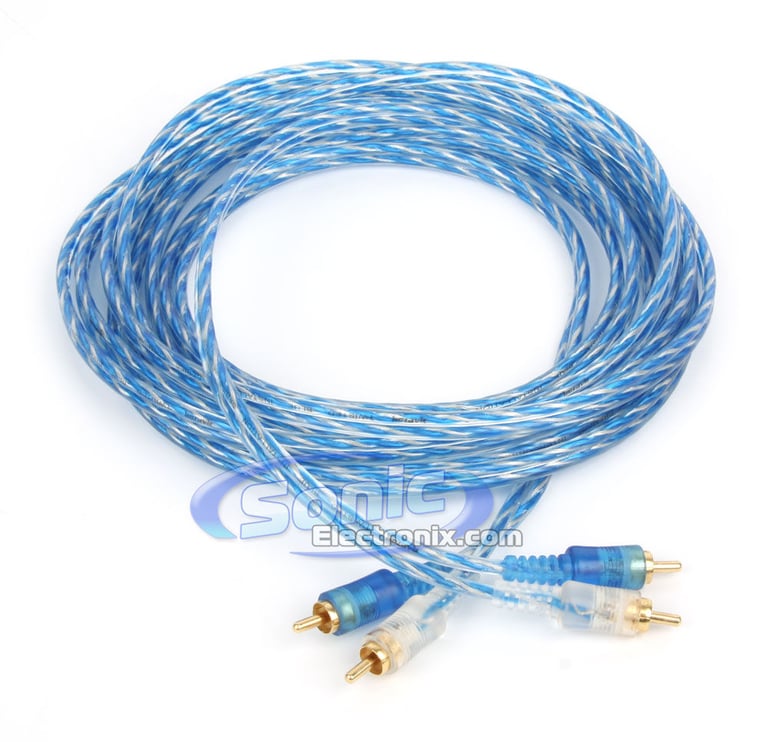

  3. 17 ft. Neon blue series RCA cable

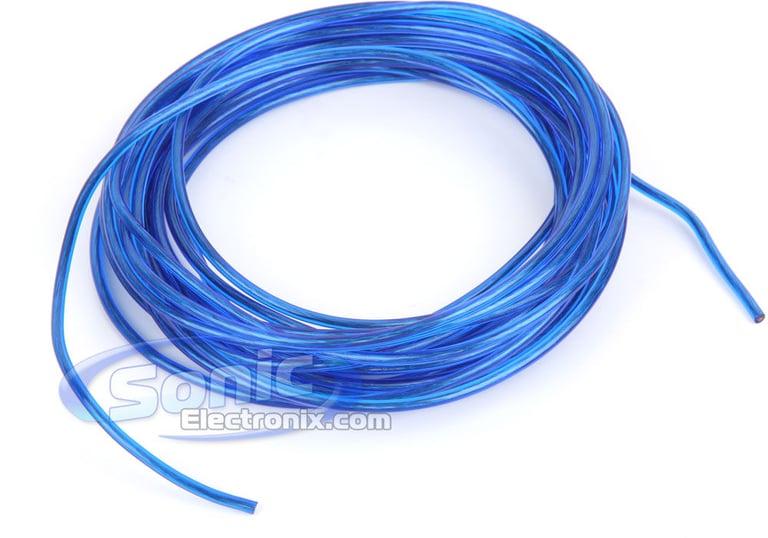

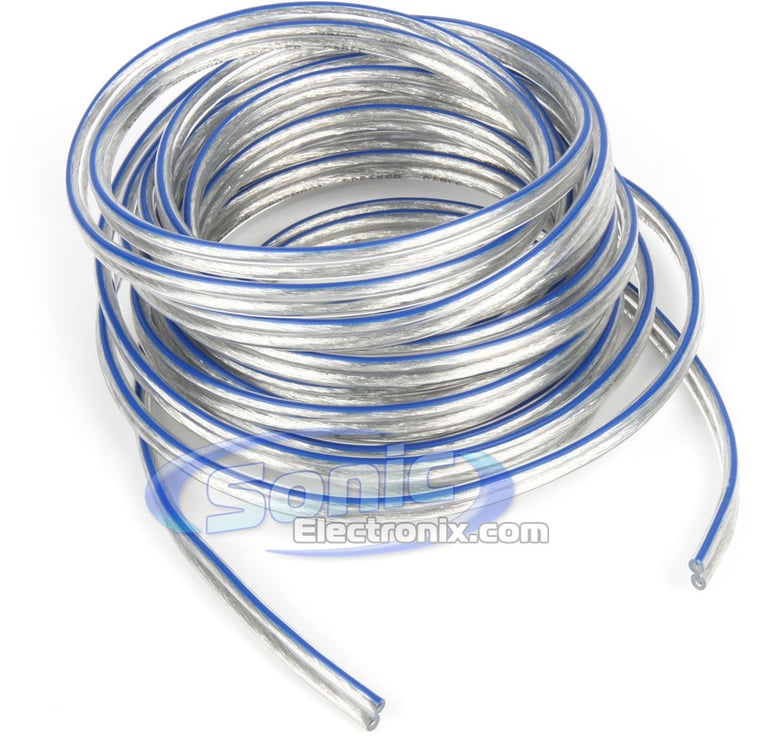

  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire

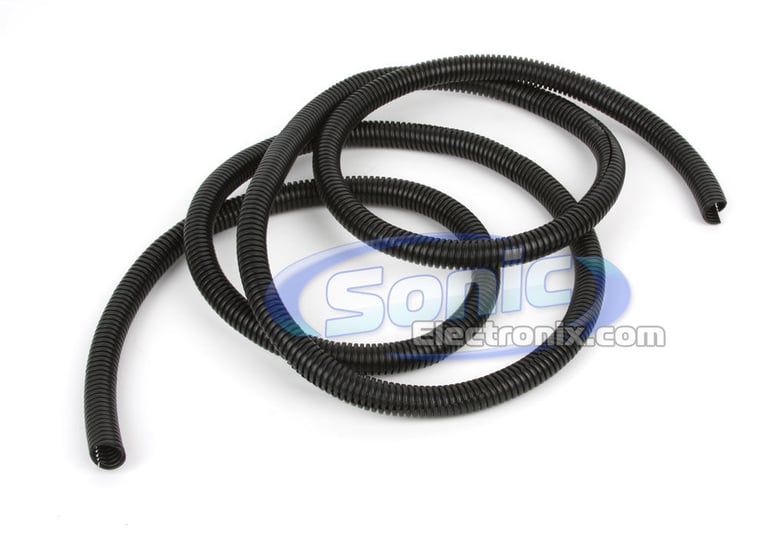

  6. 6 ft. of Split loom tubing

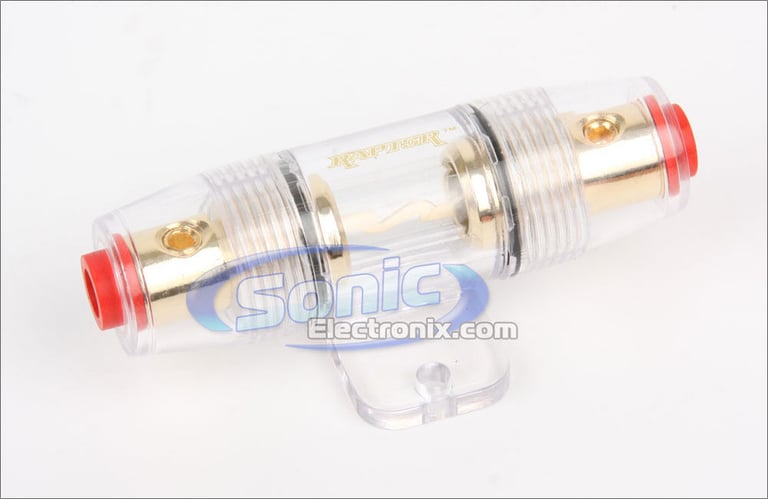

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

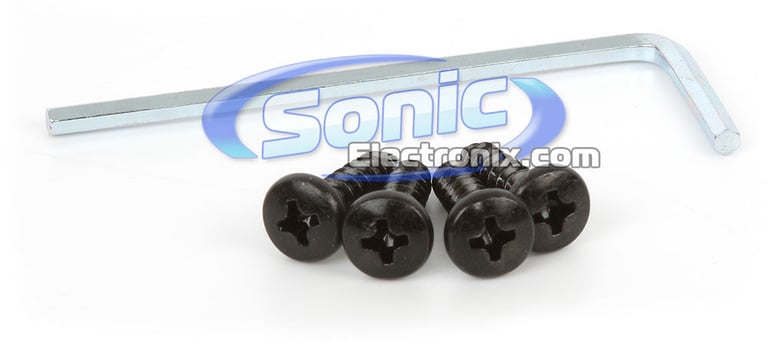

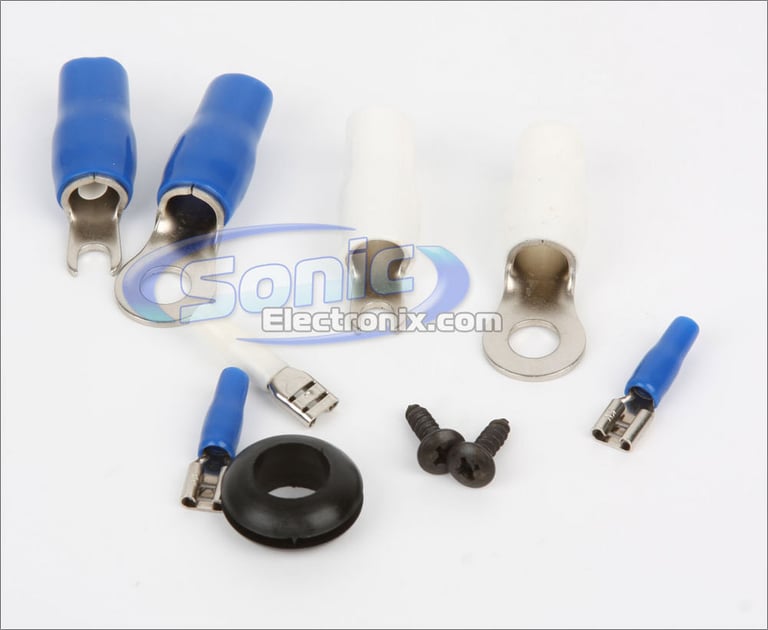

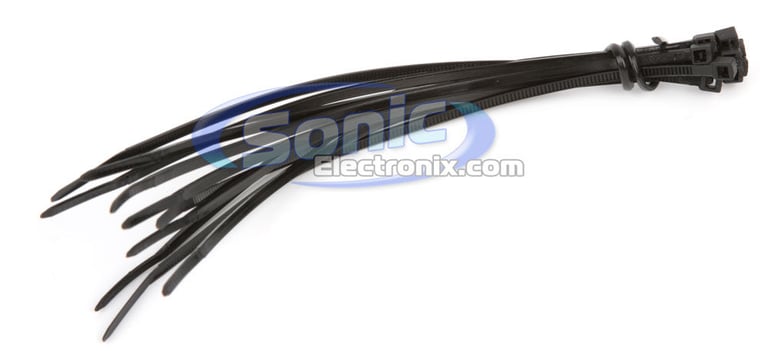

  9. All Necessary Hardware for Installation

Specifications & Details

Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.8%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
15 - 25 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1500 watts
Total Peak Power Handling
1500 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Kevlar Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85 dB
Frequency Response
23 - 500 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details

Manufacturer:

Kenwood

Model Number:

KAC-8105D_SWR-1242D

Weight:

58.80lbs

Internal SKU:

kac8105d_swr1242d

Internal Product ID:

29475
