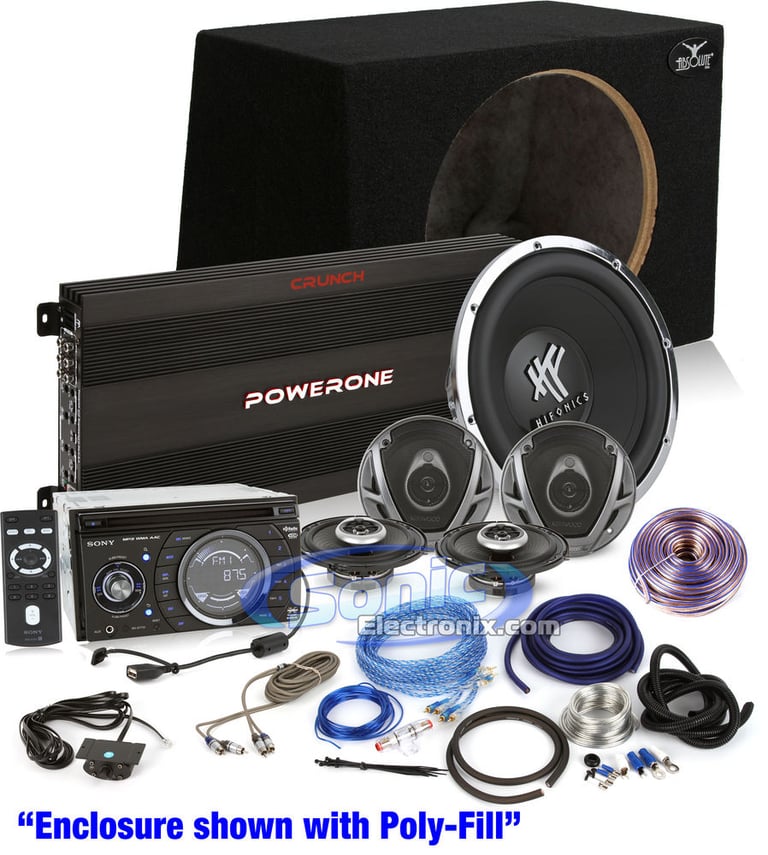

All-Inclusive Car Audio Kit: Sony, Kenwood and Hifonics

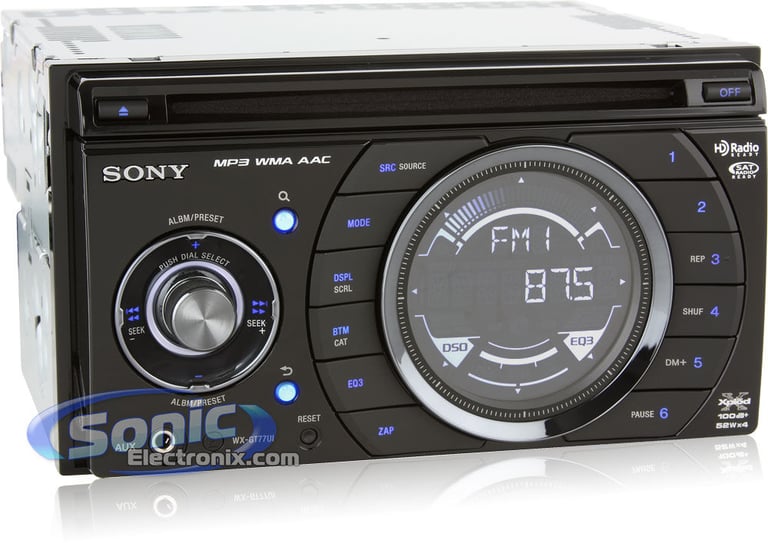

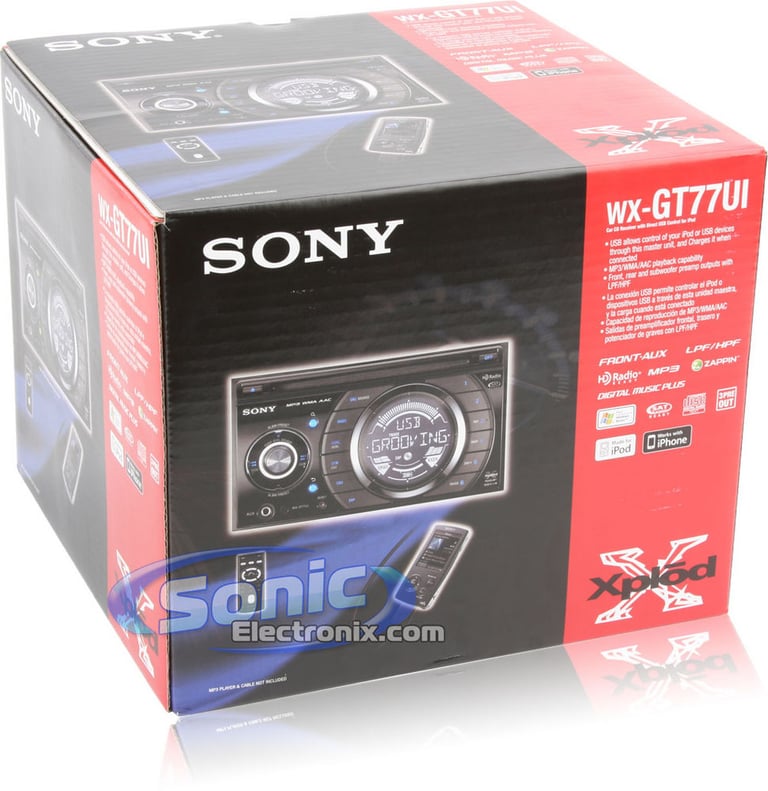

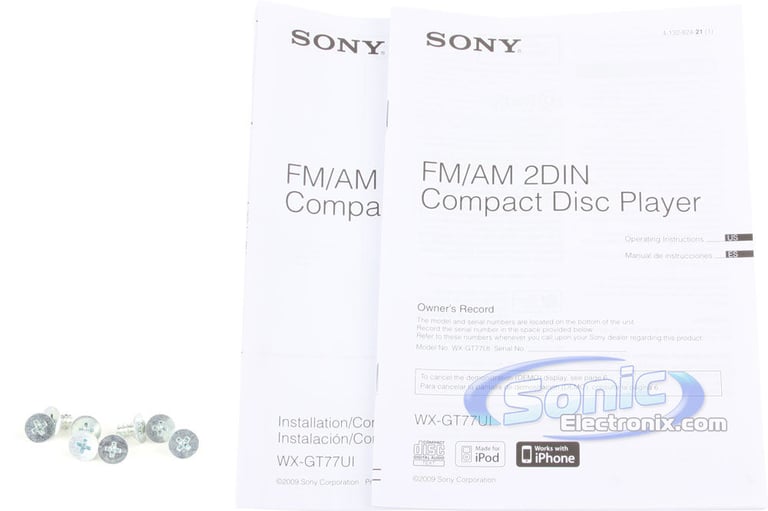

1. Sony WX-GT77UI

In-Dash Double DIN CD, MP3, WMA, AAC Receiver with Front Panel AUX Input and Direct USB Control for iPod

General Features:

• In-dash AM/FM, CD, MP3, WMA, and AAC player with Remote
• iPod and iPhone USB direct connectivity via your standard iPod-to-USB connection cable allows you to charge, control, and playback your iPod through the receiver and stereo system
• Double DIN fixed face
• 2-Line white dot-matrix display

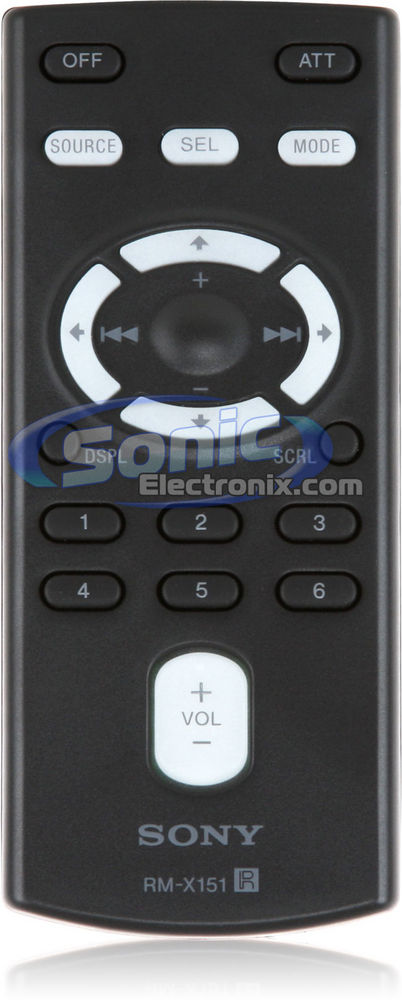

• Wireless remote control included
• Switchable blue and green button lighting
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 52 watts x 4 channels
• RMS: 17 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• 1-year SonicElectronix.com warranty

Playback and Audio Features:

• Playback of CD, CD-R, CD-RW, MP3, WMA, and AAC
• Tuner with 18FM/12AM presets
• Dynamic Soundstage Organizer for a greater ambient sound
• EQ3 (3-band parametric equalizer with preset tone curves)
• ZAPPIN assists in searching track passages and finding the track that you want to listen to

Expandability Options:

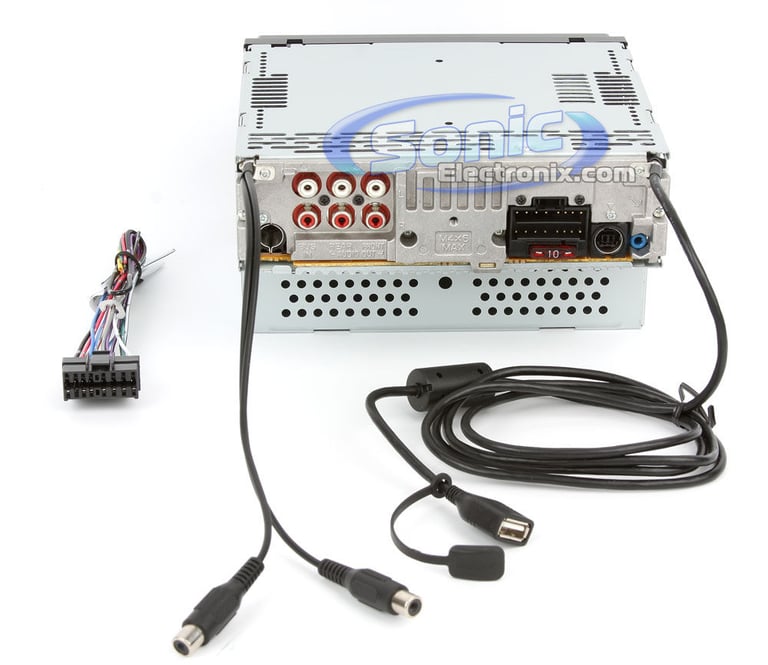

• 3 Sets of 2V preamp outputs (front, rear and subwoofer)
• SIRIUS or XM Satellite Radio Ready: Sony SIRIUS Radio package or Sony XM Radio Package required and sold separately
• HD Radio Ready: The XT100HD Tuner is required and sold separately
• iPod and iPhone Ready: Direct connection through USB
• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Rear USB input: Used for connection to iPod, iPhone, or othe MP3 deivce
• Steering Wheel Control Ready: PAC SWI-PSv1 required and sold separately
• CD Changer controls

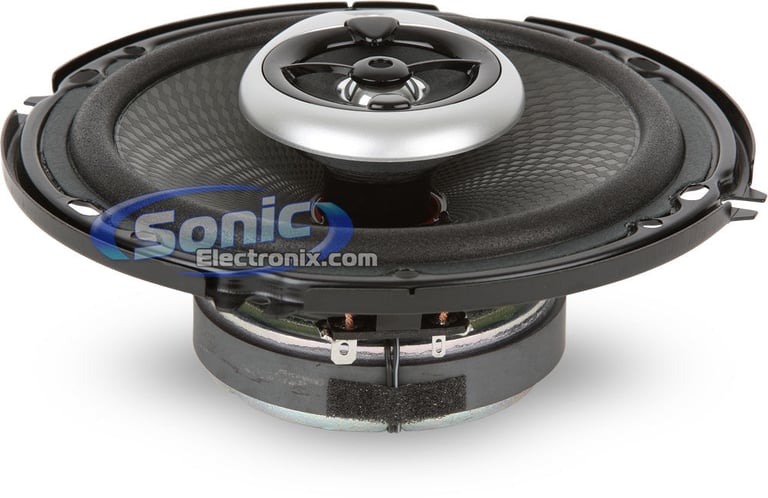

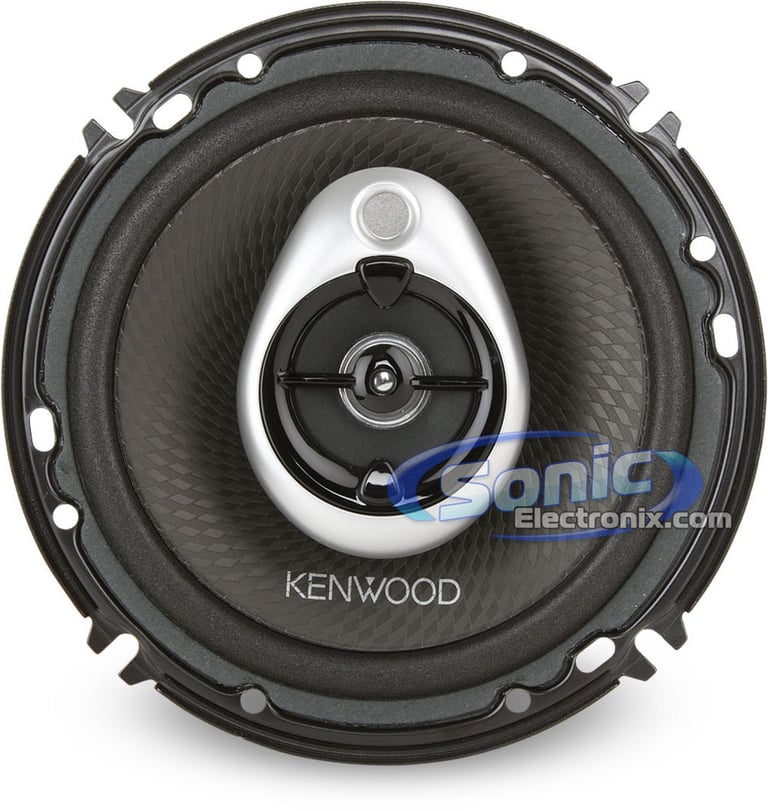

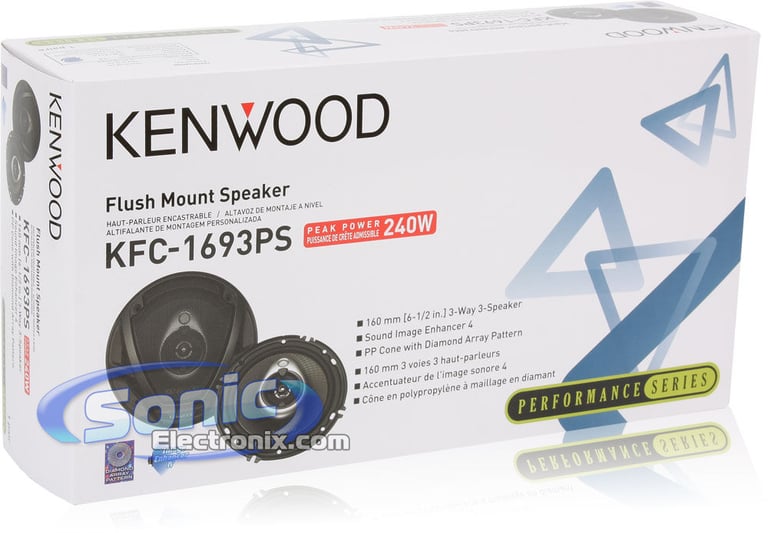

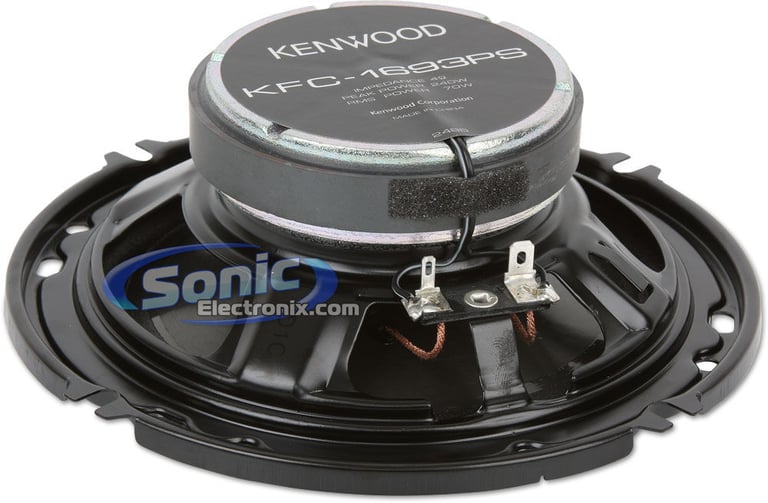

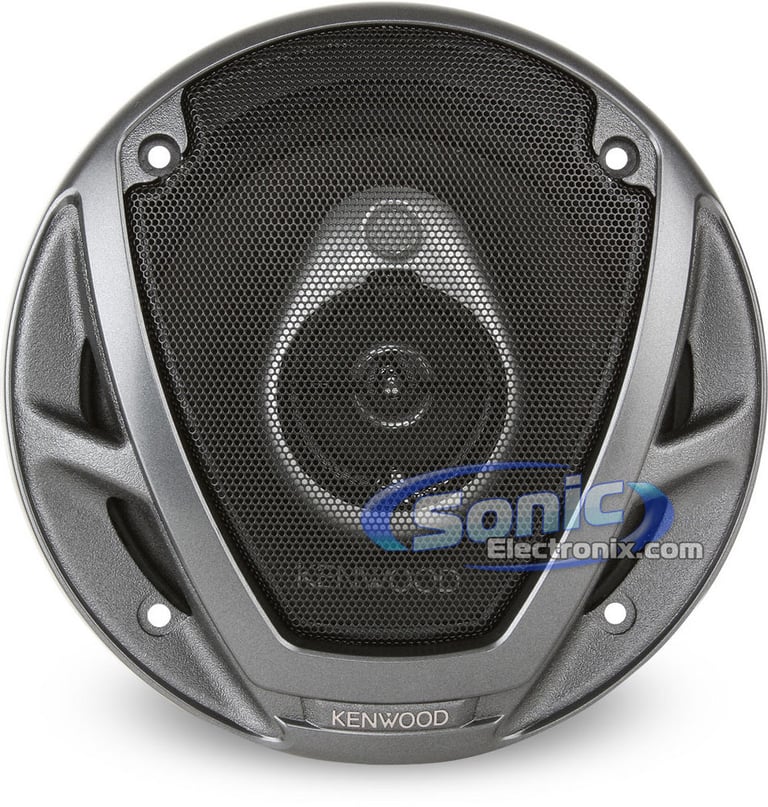

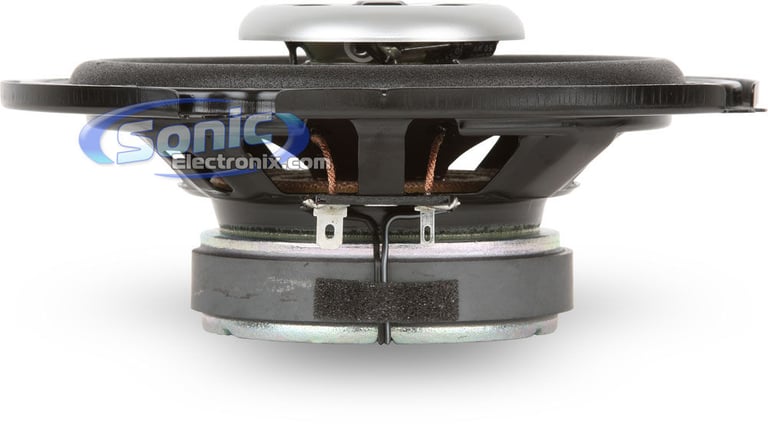

2. Kenwood Performance Series Speakers

Make sure you fill out your vehicle's information on checkout to receive the right sizes for your car

• Kenwood Performance Series Car Speakers
• Enter your car information on checkout and we will send you the speakers that fit your car!
• Polypropylene cone woofer with diamond array pattern
• Urethane foam surround
• Sound Image Enhancer 4 blends the sound from the mid-range and tweeter for clean musical reproduction
• 4 ohm impedance
• Authorized Internet Dealer

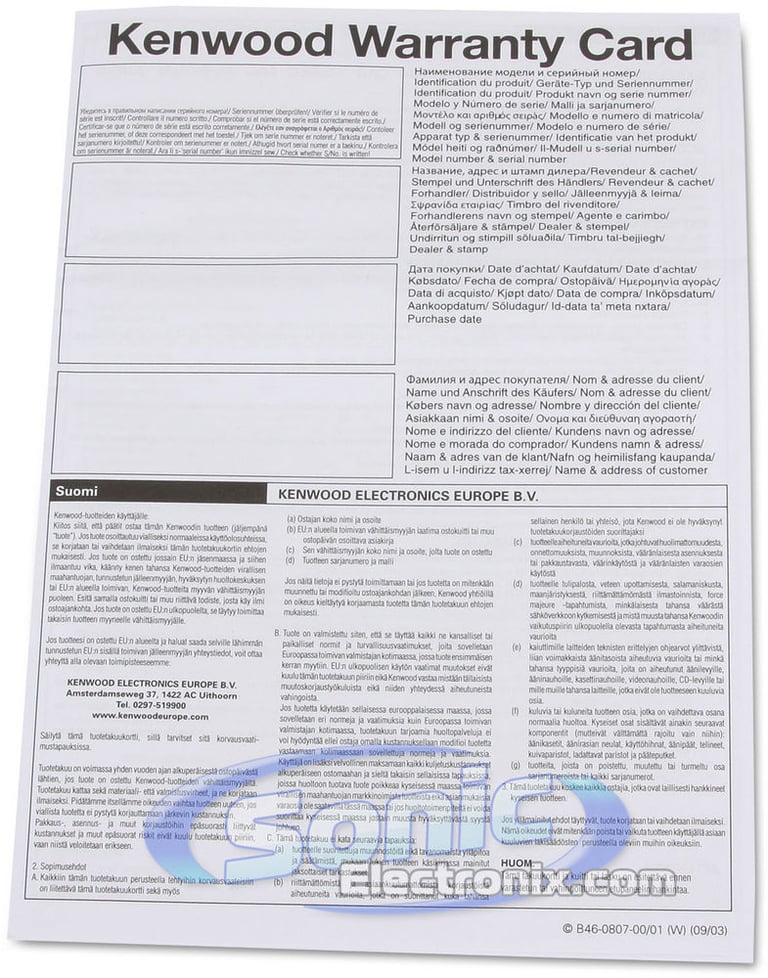

• 1-year Manufacturer's warranty

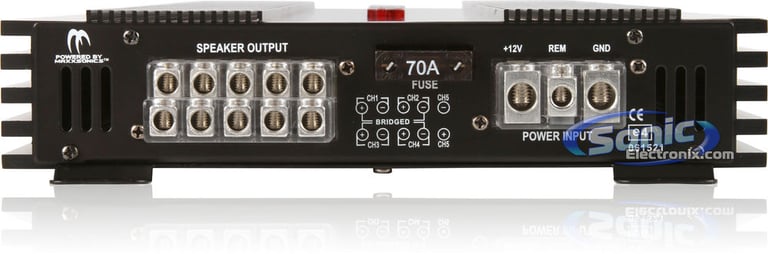

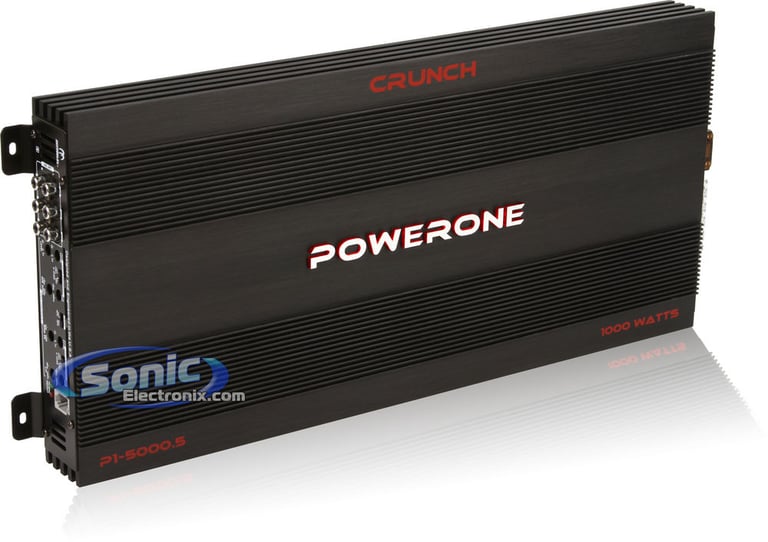

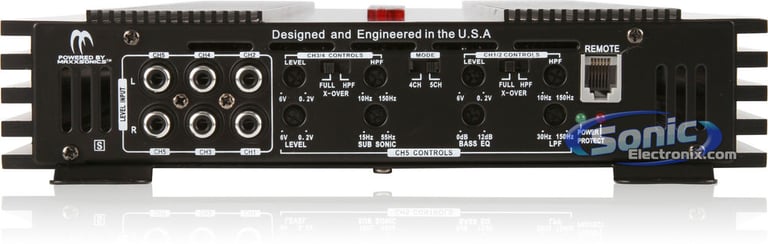

3. Crunch P1 5000.5

1000W Max, 5-Channel Power One Series Car Amplifier

• Power One Series 5-Channel Class A/B Car Amplifier
• RMS Power Rating:
  • 4 ohm: 62.5 watts x 4 chan. + 150 x 1 chan.
  • 2 ohm: 125 watts x 4 chan. + 250 x 1 chan.
  • Bridged, 4 ohm: 250 watts x 2 chan.
• MAX Power Rating (14.4V):
  • 4 ohm: 125 watts x 4 chan. + 300 x 1 chan.
  • 2 ohm: 250 watts x 4 chan. + 500 x 1 chan.
  • Bridged, 4 ohm: 500 watts x 2 chan.
• SEPP Class A/B analog amplifier
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators

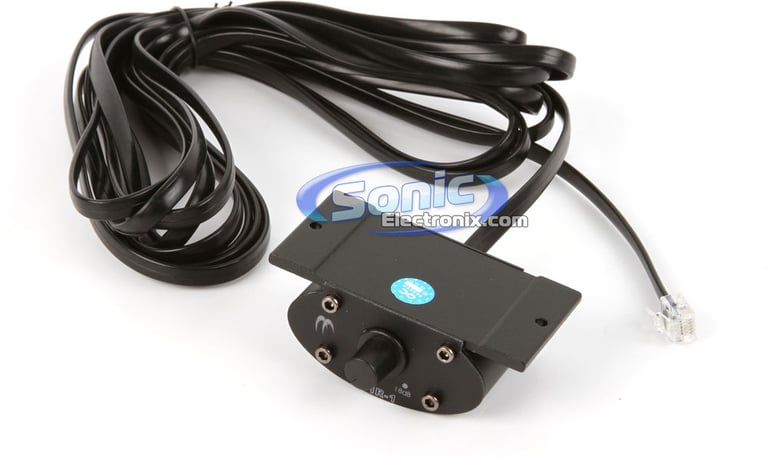

• Bass remote level control included
• Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
• Slow un-mute soft start turn-on
• 5/4/3/2/1 channel operation
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity:
  • Level: 200mV-6V
• Variable high-pass filter (60-12,000 Hz, 12 dB/octave)
• Variable low-pass filter (30-250 Hz, 12 dB/octave)
• Damping factor: >180
• Frequency response: 10-45,000 Hz
• Dimensions: 19-11/16"L x 9-7/8"W x 2-1/16"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

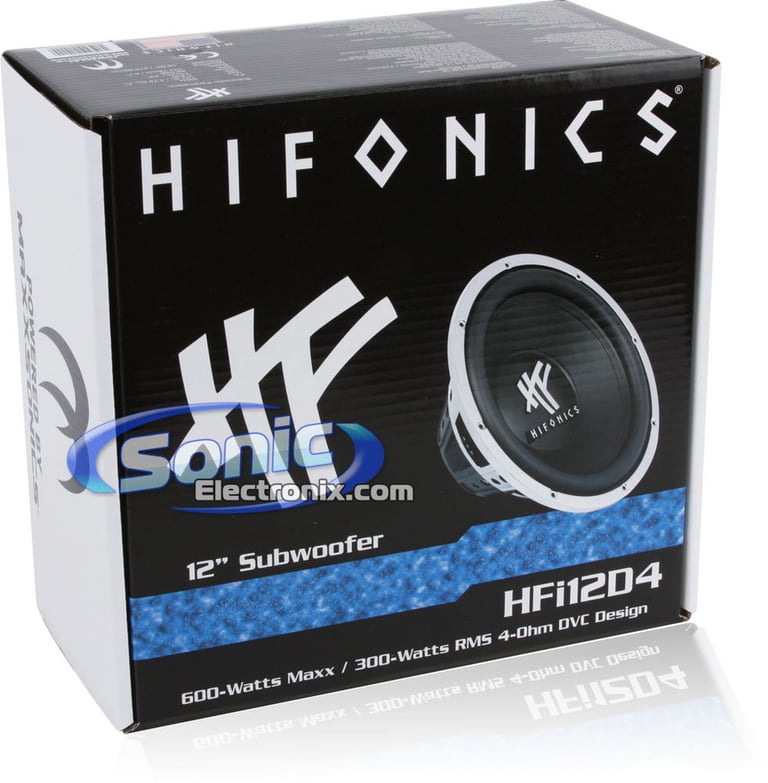

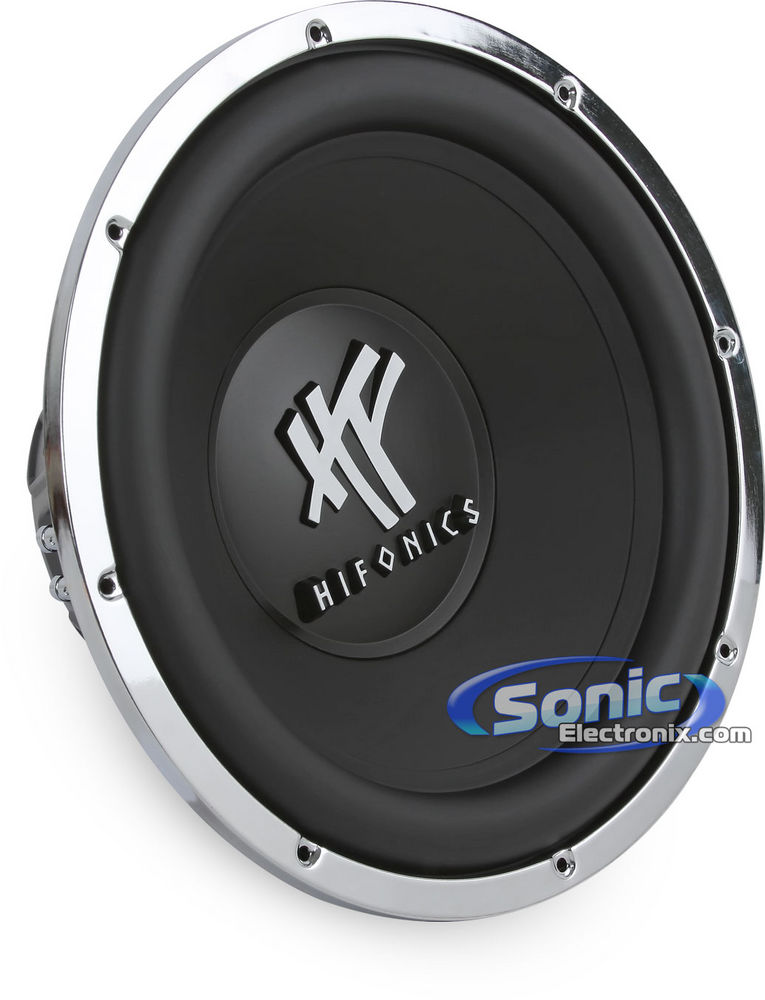

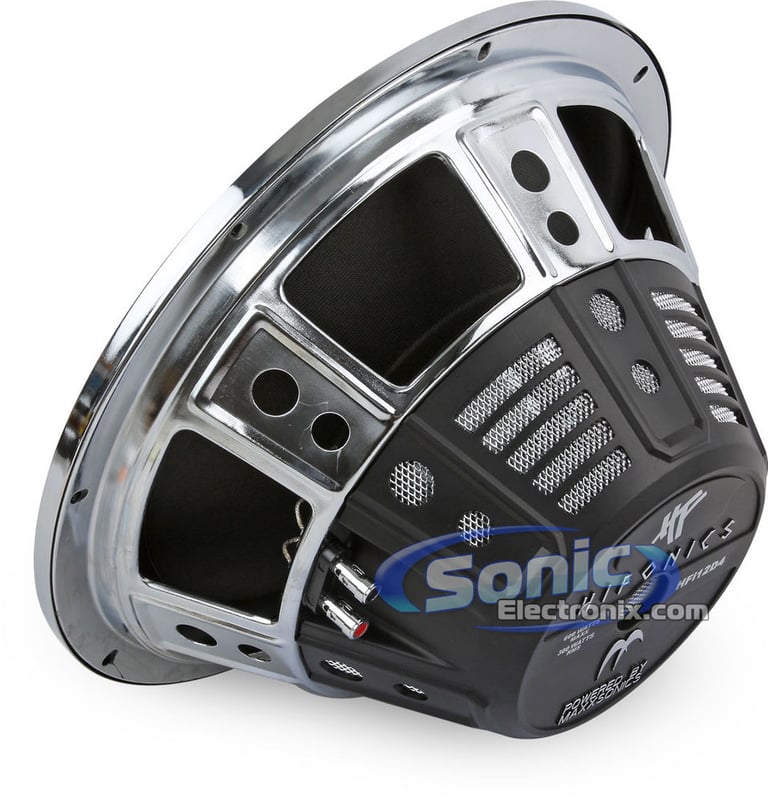

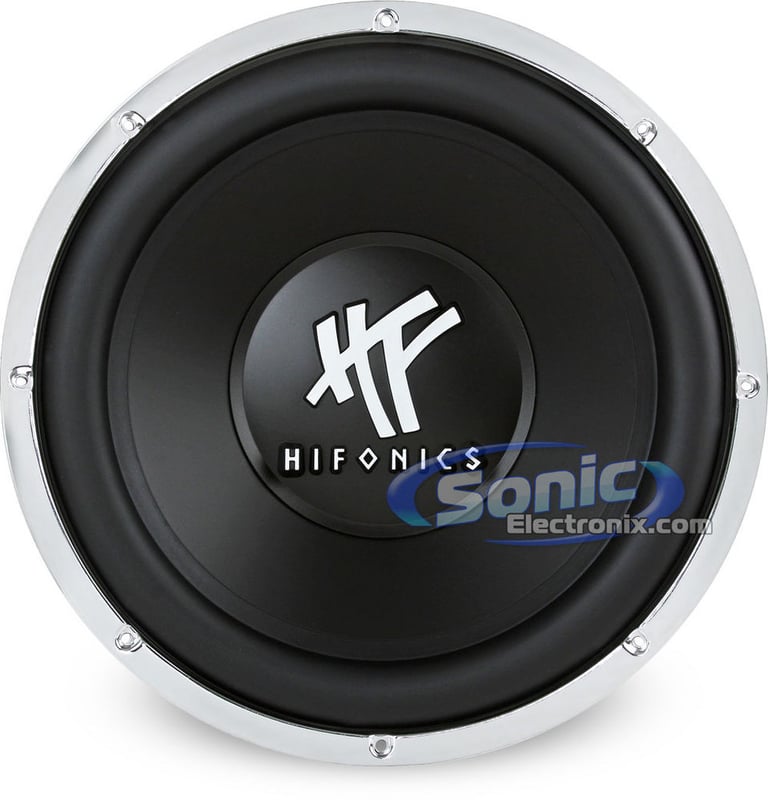

4. Hifonics HFi12D4

12" Dual 4 ohm Subwoofer

• 12" Dual 4 Ohm HFi Series Subwoofer
• Power Handling:
• Peak: 600 watts
• RMS: 300 watts
• Impedance: Dual 4 ohm
• Injected poly light rigid cone
• 1” NBR Reinforced rubber surround
• High-excursion rubber surround
• Integrated one piece poly cotton spider
• Poly-mica cone damping
• Nickel plated push and insert speaker terminals
• Dual 4 ohm high-temp multi-layer high-temp voice coil
• Front-plate and voice-coil cooling
• Poly light dust cap
• Heat dispersing ported back plate
• Ultra ridged chrome stamped steel basket
• High strength ABS motor cover
• High-energy magnet
• Large air cooled magnet assembly
• Anti-resonant rubber magnet boot
• Sensitivity: 88 dB
• 1-year SonicElectronix.com warranty

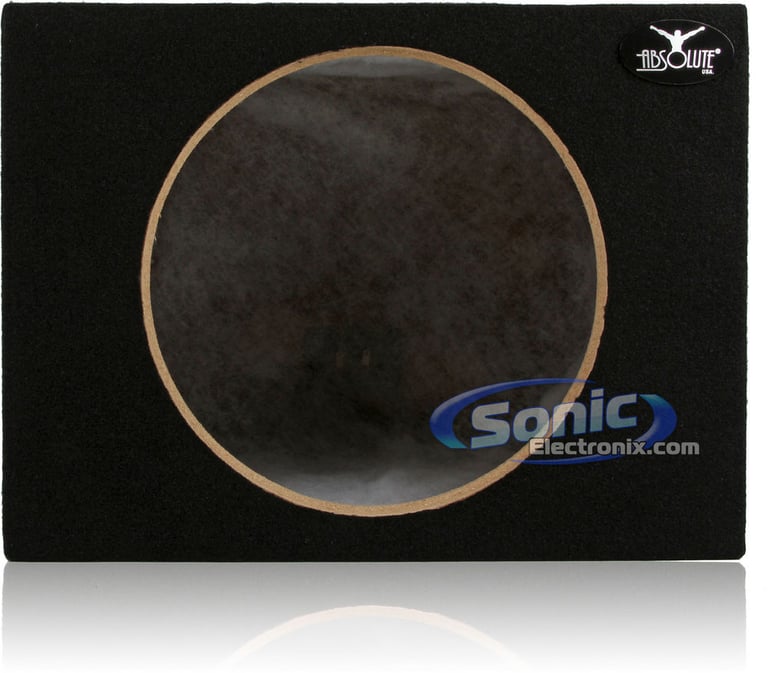

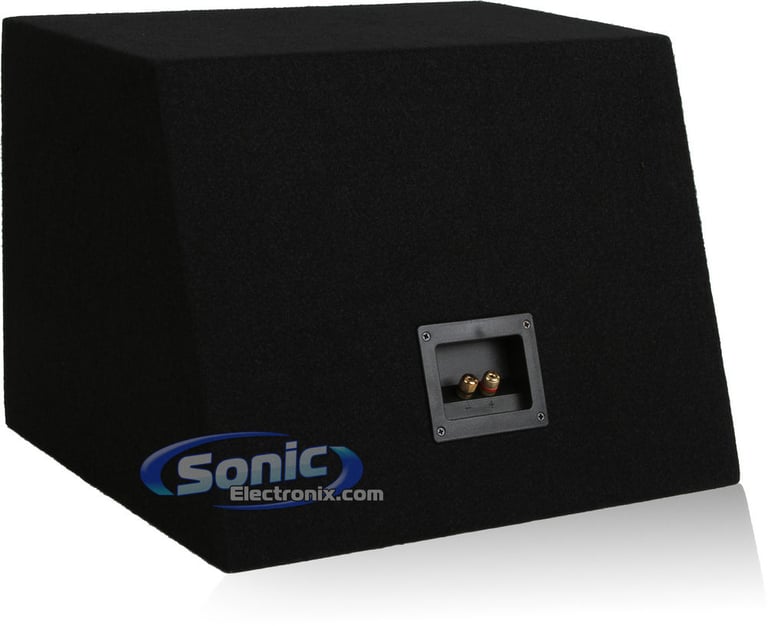

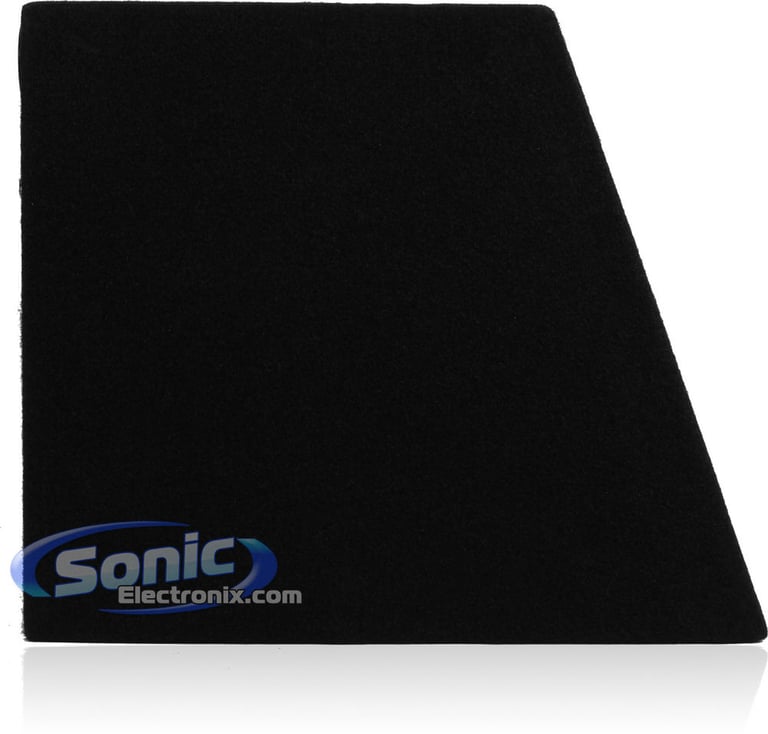

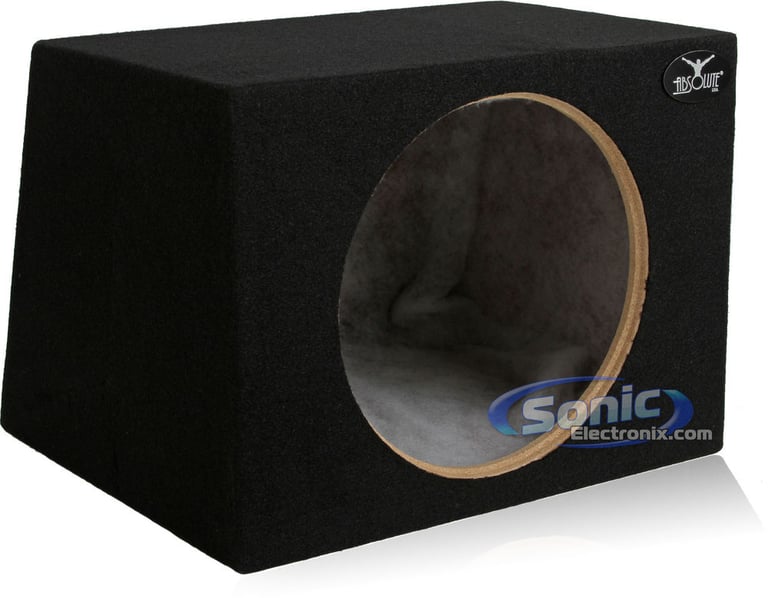

Enclosure: Absolute MSHF12

• Single 12" Sealed Angled MDF Subwoofer Enclosure
• Insulated fiberglass liner
• 3/4" High quality MDF material
• Professionally Sealed, caulked, and carpeted
• Designed for round woofers
• Durable black carpeting

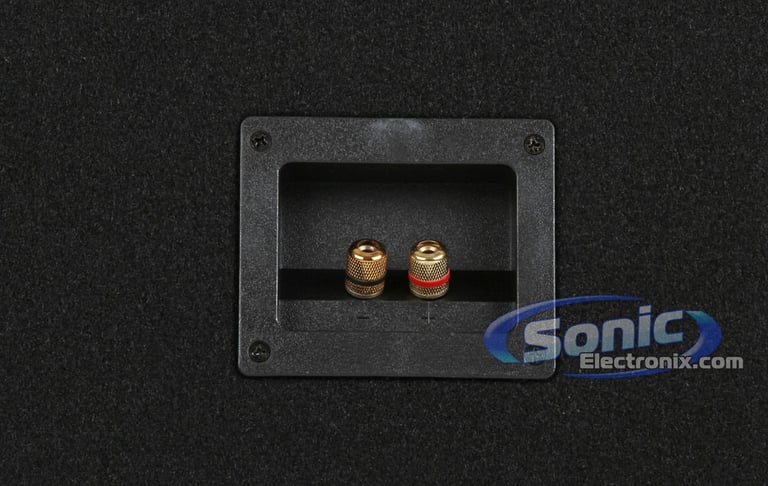

• Gold screw terminals
• Subwoofer mounting depth: 10-1/2"
• Subwoofer cutout diameter: 11-5/8"
• Total box volume: 1.20 cubic feet
• Dimensions: 12"TD x 15-7/8"BD x 18"W x 13-3/4"H

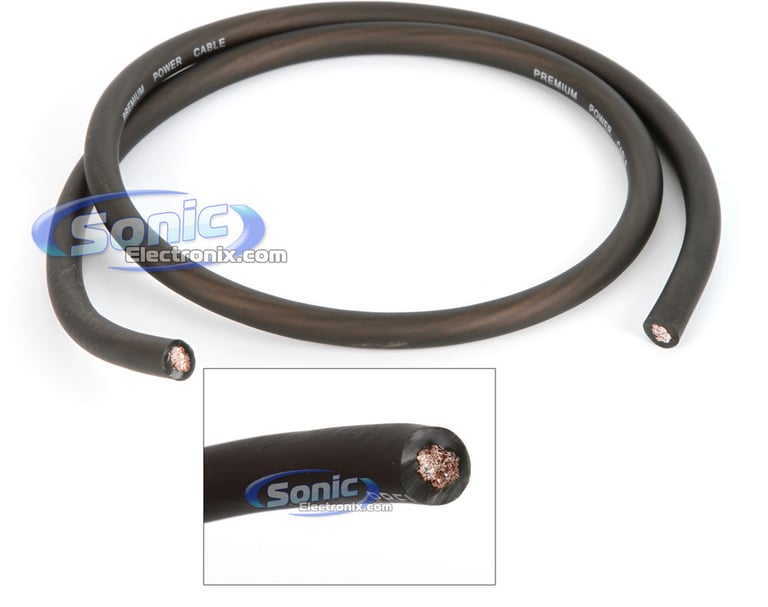

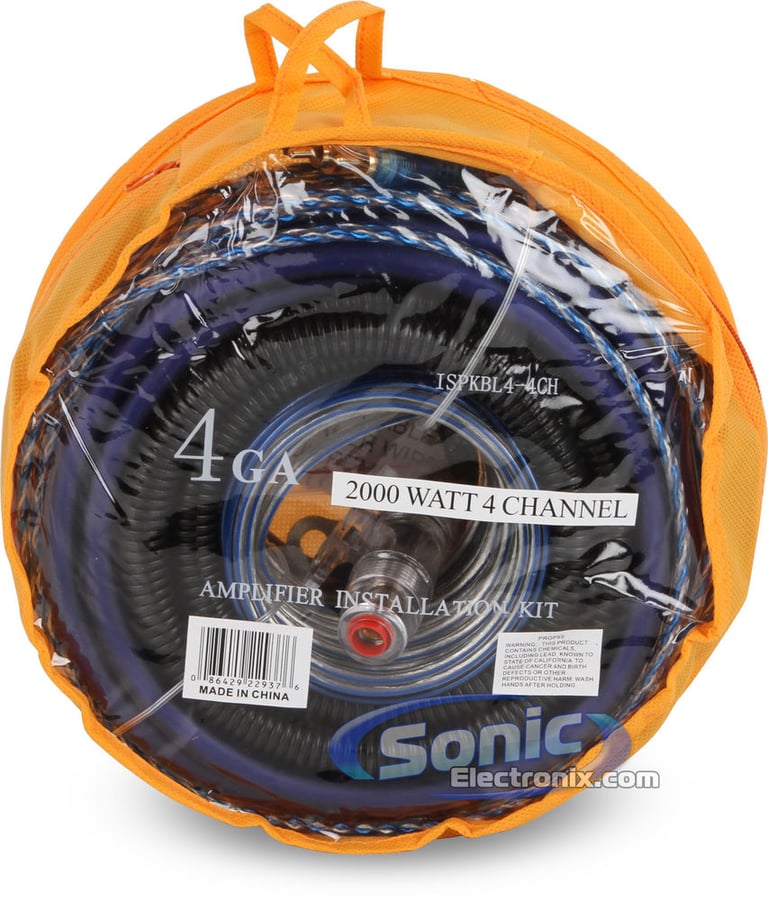

Amplifier Kit: Raptor 4 Gauge

• Amplifier Installation Kit with RCA Interconnect Cable
• 4 Gauge Power and ground cable for excellent power transfer
• Designed for systems up to 1500W
• Comes with everything needed to install an amplifier
• RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
• Speaker cable is easy to install with clean and clear sound
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

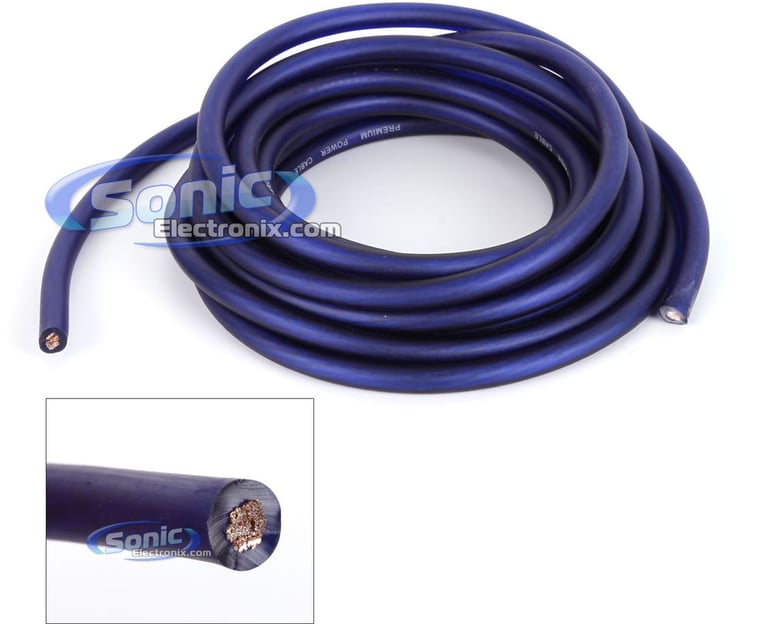

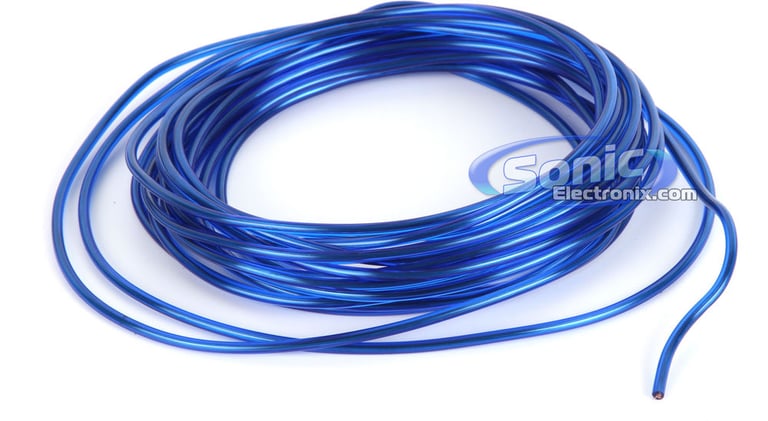

1. 17 ft. of 4 Gauge blue power cable
2. 3 ft. 4 Gauge black ground cable

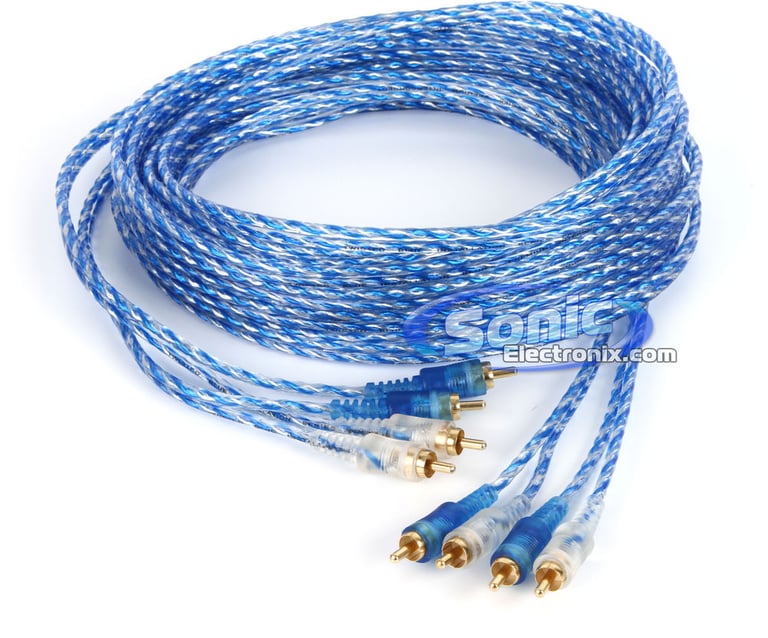

3. Two pair of 17 ft. Neon blue series RCA cables

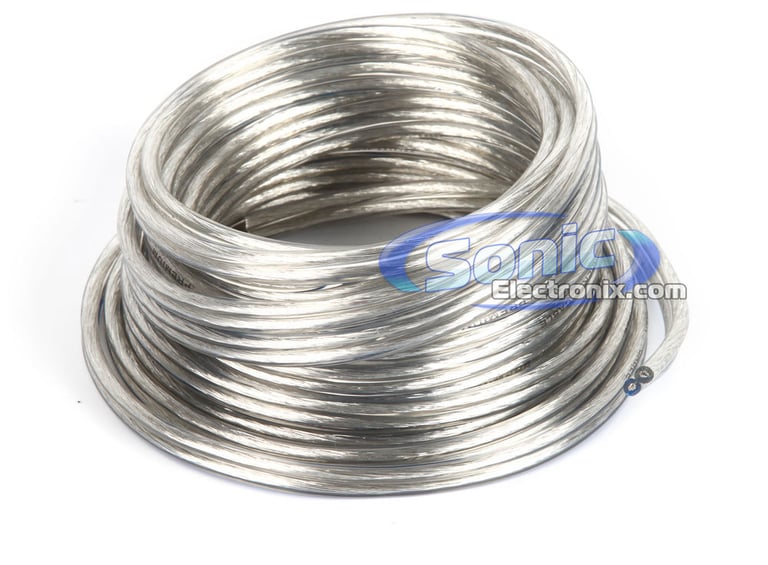

4. 16 ft. of Speaker wire
5. 17 ft. of 18 Gauge blue remote turn-on wire
6. 6 ft. of Split loom tubing

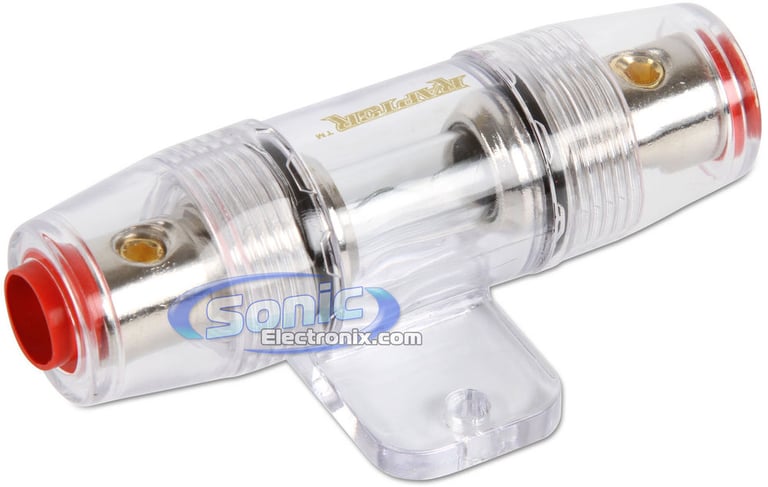

7. 1 AGU Fuse Holder
8. 60 AGU Fuse

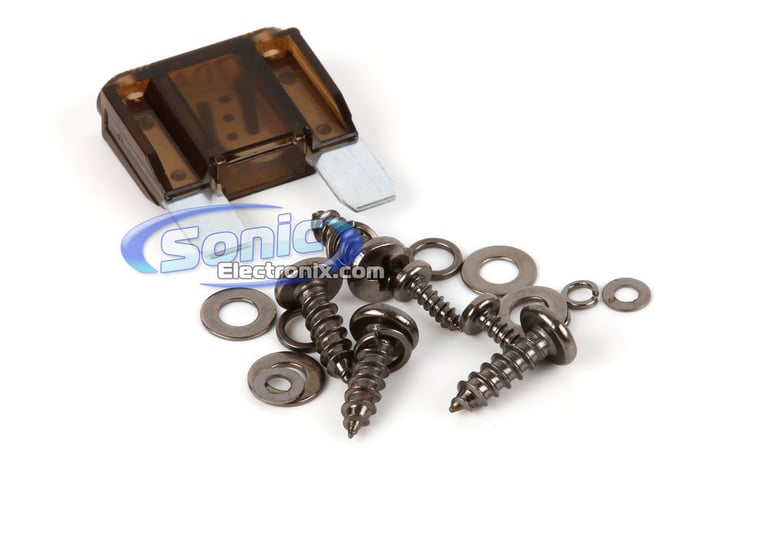

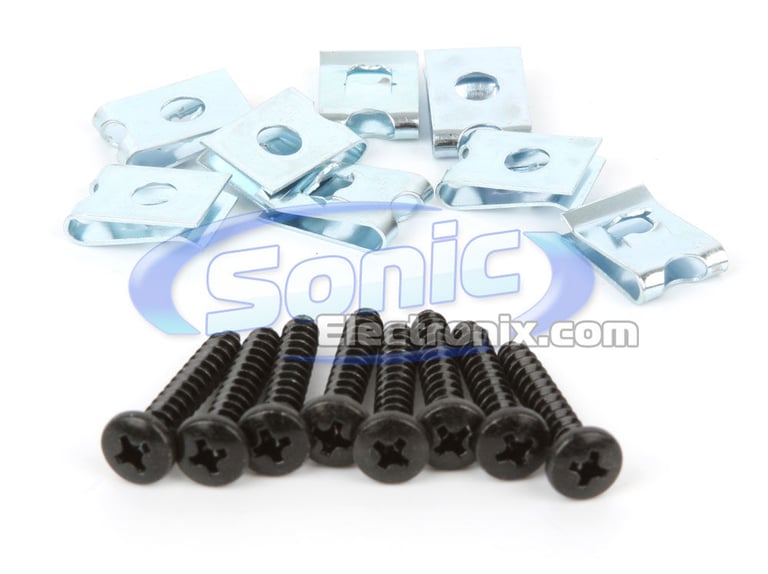

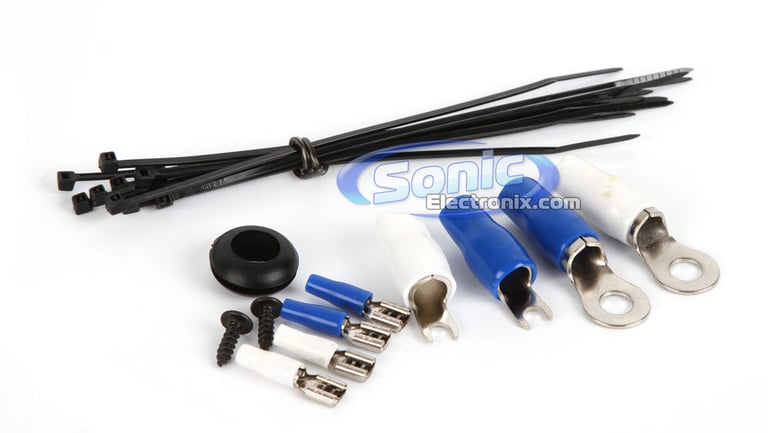

9. All Necessary Hardware for Installation

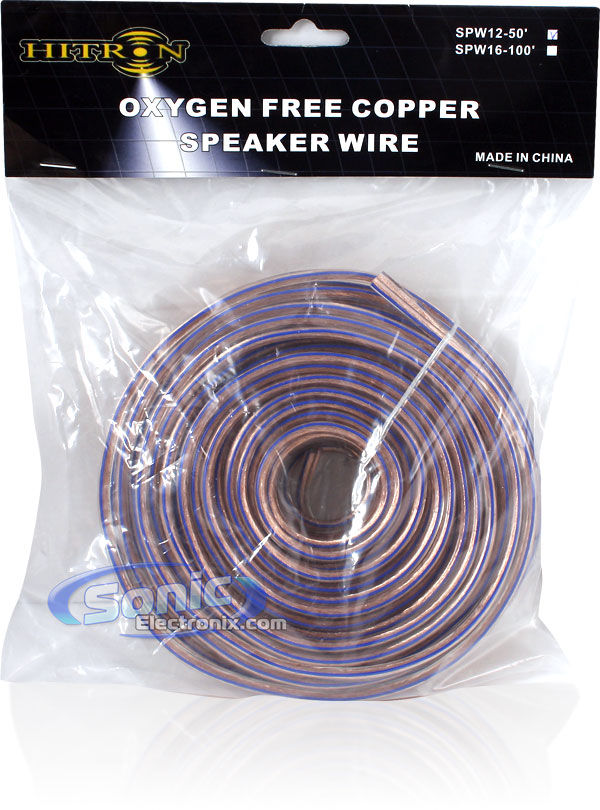

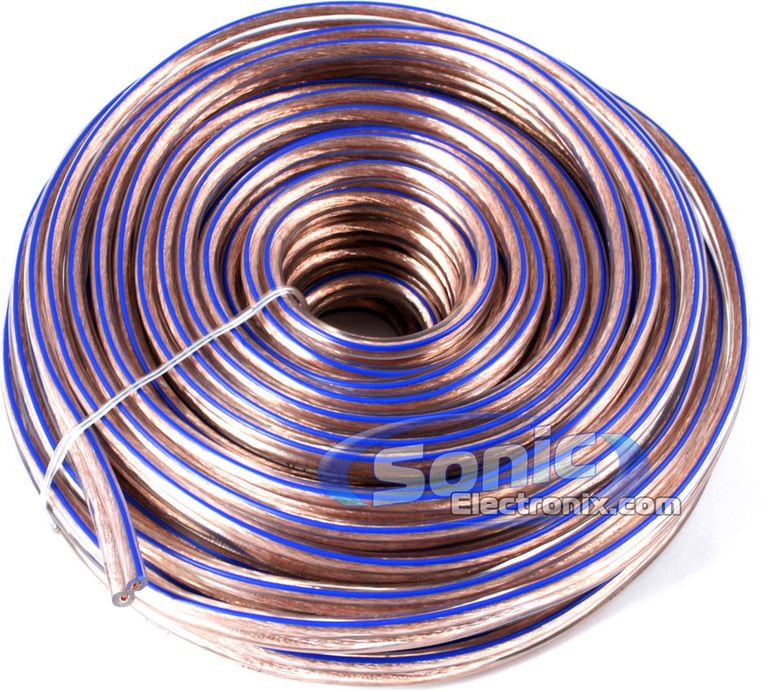

Speaker Wire: Hitron 12 Gauge

• 12 Gauge speaker wire
• 50 ft. speaker wire
• OFC (Oxygen Free Copper) wire used for less sound interference
• Works great with various size speakers
• Easy color cosmetics to keep speaker polarity (positive/negative color differences)

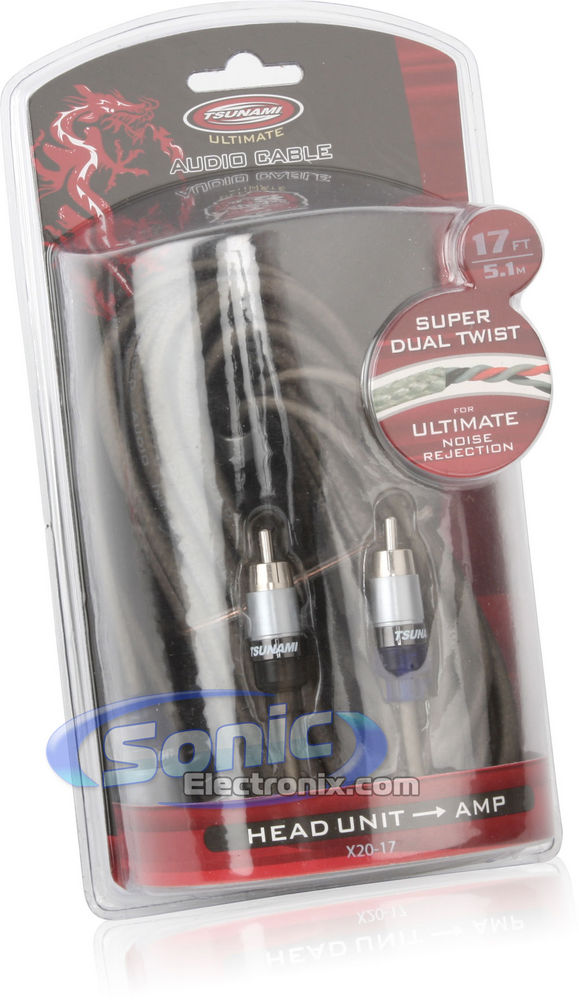

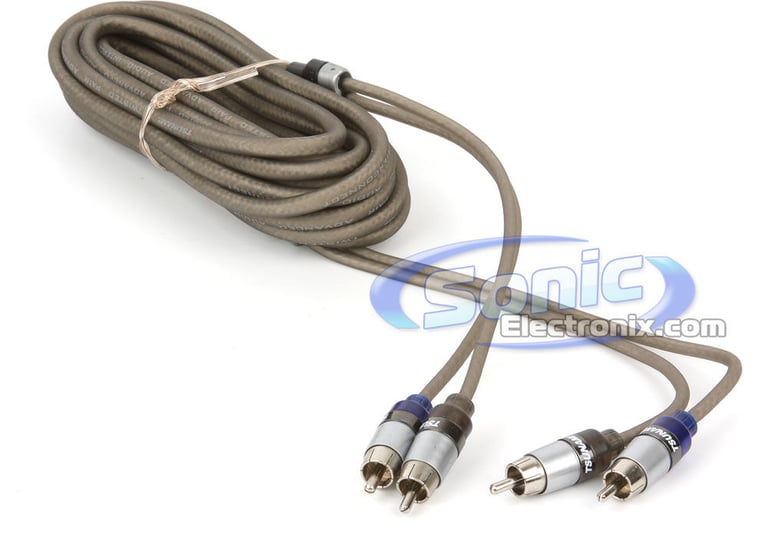

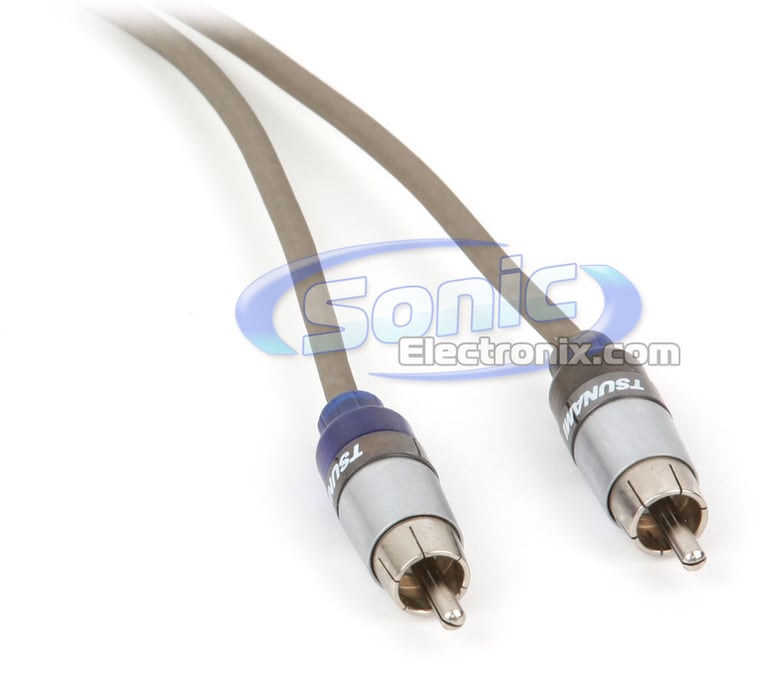

RCA Interconnect Cables: Tsunami X20

• 2-Channel Twisted Pair of Advanced Audio RCA Interconnect Cables
• 100% Oxygen free copper and precision wound technology
• Produces accurate and transparent sound reproduction
• Utilizes a super-flex PVC jacket and custom metal barrel connector
• Nickel-plated split tips and rings
• Color-coded high tech barrels
• Length: 17 feet
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
