650W Complete Phoenix Gold + Kicker Bass Package

Phoenix Gold RSd6001 Amplifier + Kicker Solo-Baric L5 08S12L54 12" Sub + 4 GA Amp Kit + Sealed Box

Phoenix Gold
Shop all Phoenix Gold
EXCLUSIVE
Product videos
highlight-star-icon

Phoenix Gold RSd Series Class D Monoblock Amplifier • 650W x 1 chan. @ 2 Ohm • MOSFET Power supply • 12" Solo-Baric L5 Series Subwoofer • Santoprene rubber surround • Stamped steel basket • Includes Everything You Need To Add Bass To Your Vehicle

Learn more about the rsd6001_08s12l54

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Add to cart
FRING69 main

NVX FRING69

Universal 6x9" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

13
-20.01%

$15.99

List price $19.99

Add to cart
PRO-X694BM main

DS18 PRO-X694BM (Sold individually)

400W Peak (200W RMS) 6x9” PRO-X Series 4-ohm Midrange Bullet Loudspeaker

2

$83.95

Add to cart
51KSC6904 main Out of stock

Kicker KSC69 (51KSC6904)

600W Peak (300W RMS) 6x9" KS Series 2 Way Coaxial 4-ohm Shallow Mount Speakers

-11.11%

$159.99

List price $179.99

Add to cart

Product Highlights

Phoenix Gold RSd Series Class D Monoblock Amplifier • 650W x 1 chan. @ 2 Ohm • MOSFET Power supply • 12" Solo-Baric L5 Series Subwoofer • Santoprene rubber surround • Stamped steel basket • Includes Everything You Need To Add Bass To Your Vehicle

Description

Phoenix Gold brand icon

Authorized dealer

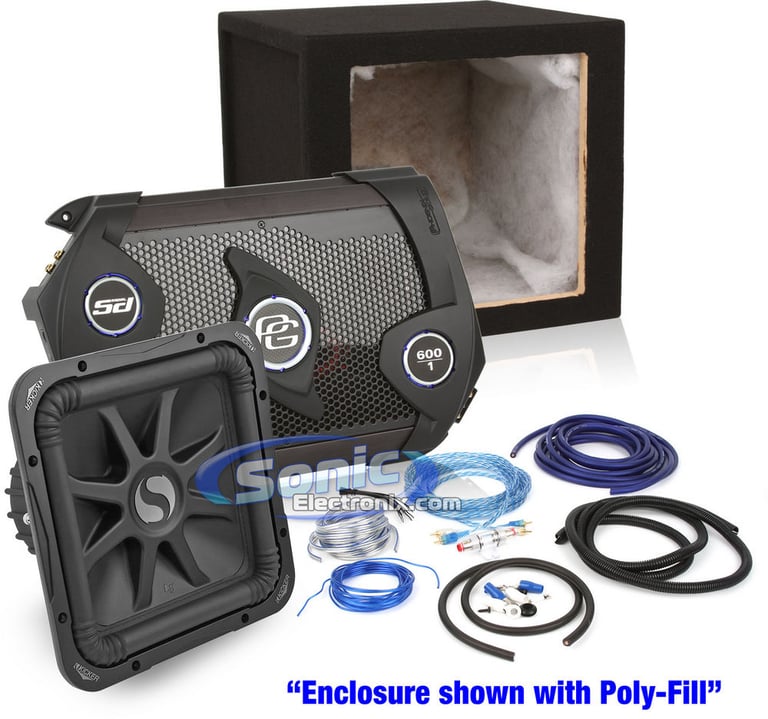

Phoenix Gold and Kicker Complete Bass Package

This Sonic Electronix Exclusive Bass package showcases a Phoenix Gold RSd600.1 Amplifier along with a Kicker Solo-Baric L5 Subwoofer. This excellent bass package pushes 650 watts of clean, continuous RMS power. The Kicker L5 Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel down to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Kicker S12L54 subwoofer requires 600 watts of RMS power. The included Phoenix Gold RSd600.1 amplifier will compliment this required power by supplying a perfect matchup of certified RMS continuous power. This package also includes a sealed subwoofer enclosure to help for responsive, clean bass, and also a 4 gauge amplifier kit which is perfect to supply power to the amplifier.

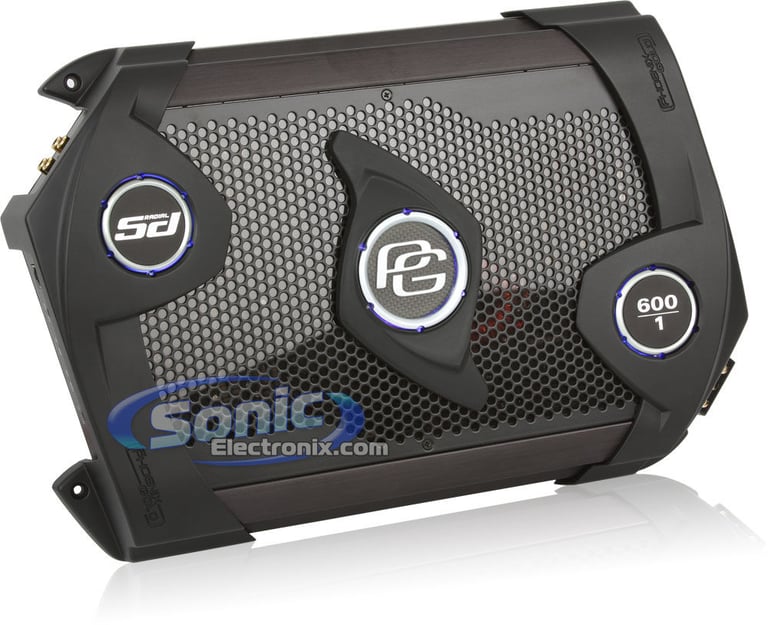

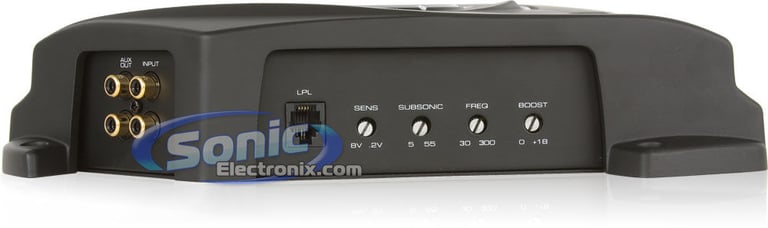

Phoenix Gold RSd Amplifier Features:
  • 650 watts, RSd Class D Monoblock Amplifier
  • RMS Power Output:
    • 4 Ohm: 400 watts x 1 chan.
    • 2 Ohm: 650 watts x 1 chan.
  • High Speed, High Current MOSFET Switching Power Supply
  • On Board Protection Circuitry
  • Multi-Function Protection Indicator
  • Built-In Low Pass Crossover, 30 Hz - 300 Hz @ 18 dB/oct.
  • Variable Bass Boost(0 - 18 dB)
  • Wide Range Input Sensitivity Adjustment
  • Line Level Inputs
  • AUX Outputs
  • S/N Ratio: 82 dB
  • Dimensions: 16-7/8"L x 11-3/16"W x 2-3/8"H
  • Exclusive Authorized Internet Dealer
  • 2-year Manufacturer's warranty

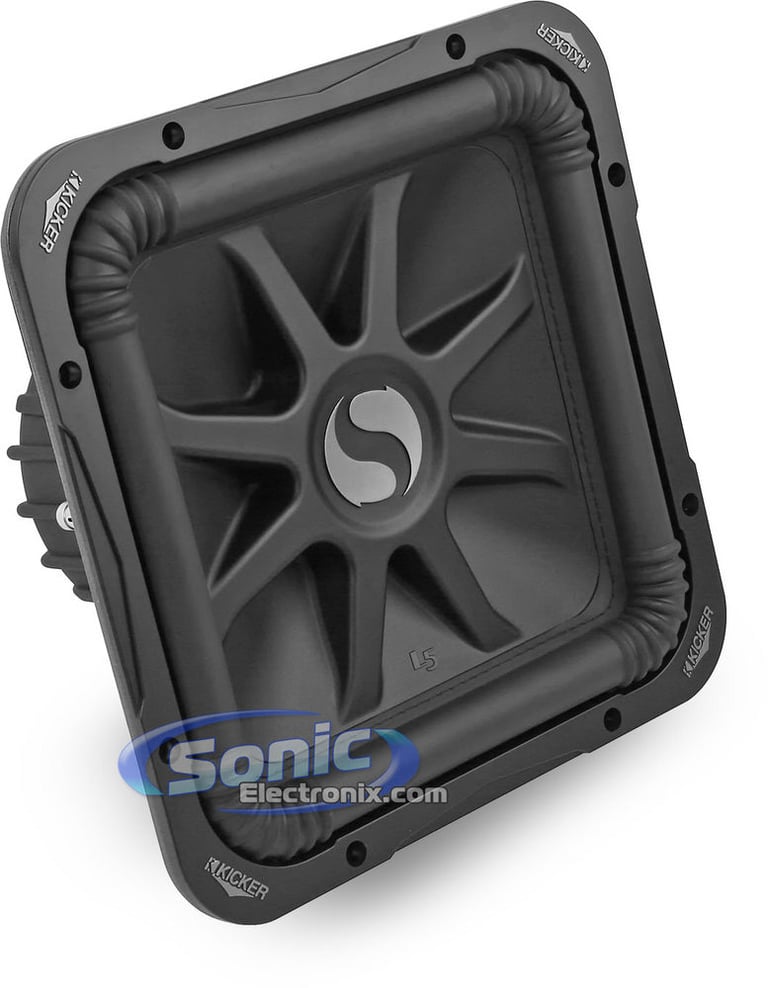

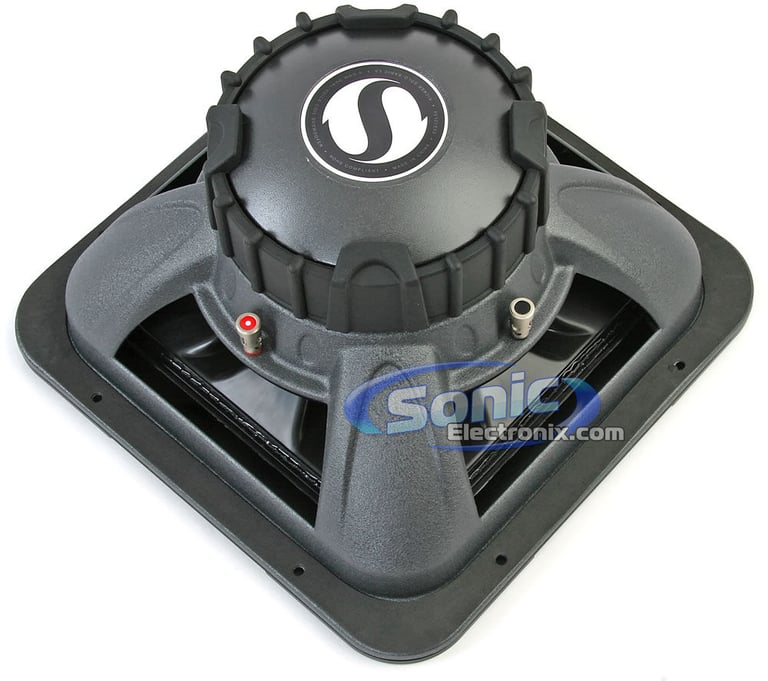

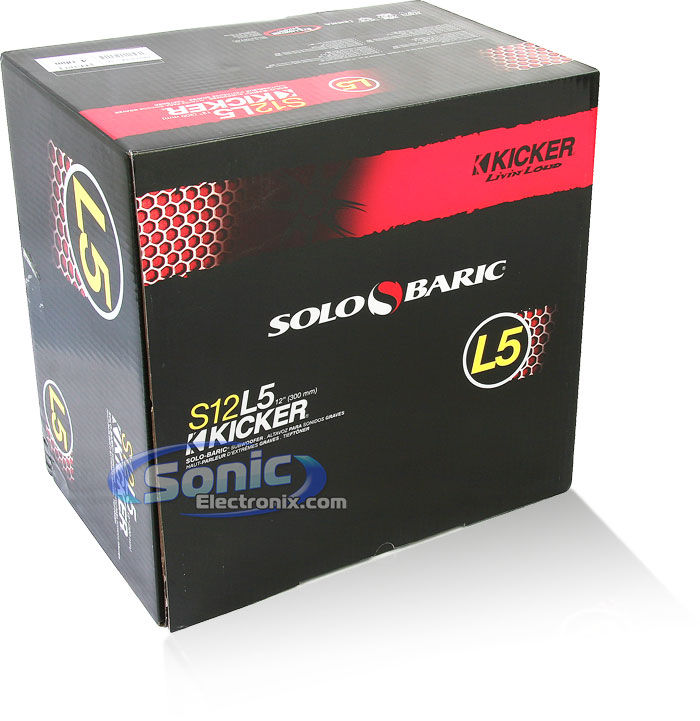

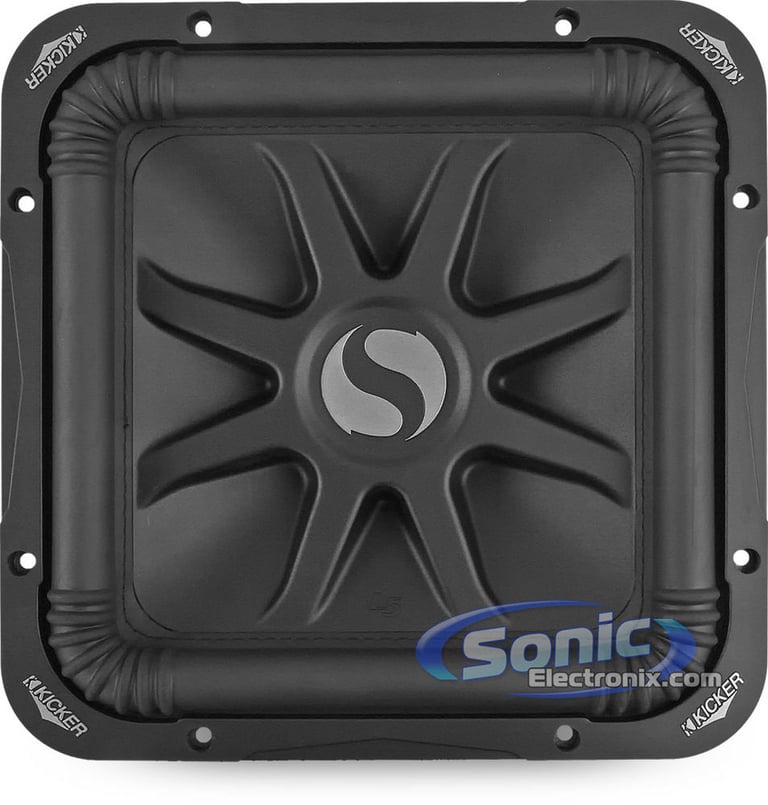

Kicker L5 Subwoofer Features:
  • 12" Solo-Baric L5 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Titanium deposit impregnated cone woofer with rolled outer edge
  • Santoprene rubber surround
  • Stamped steel basket
  • Vented 360° back bracing
  • Rear foam gasket
  • Spring loaded terminals
  • Poly-cotton semi-progressive spider
  • Heat-dispersing, solid pole piece
  • Spiralead™ tinsel leads
  • High-temperature dual 4 ohm voice coils
  • Frequency response: 20-100 Hz
  • Sensitivity: 87 dB
  • Other search terms: S12L5, S12L54, 12L5, 12L54, 08S12L54
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

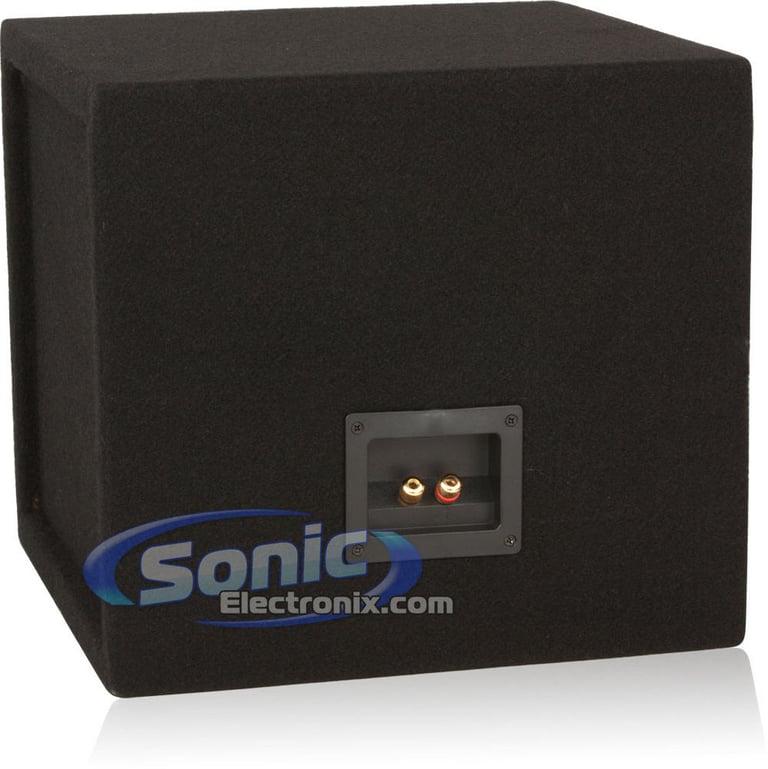

Enclosure Features:
  • 12" Square Vented Enclosure
  • Designed specifically for the Kicker Solo-Baric L5 and L7 subwoofers

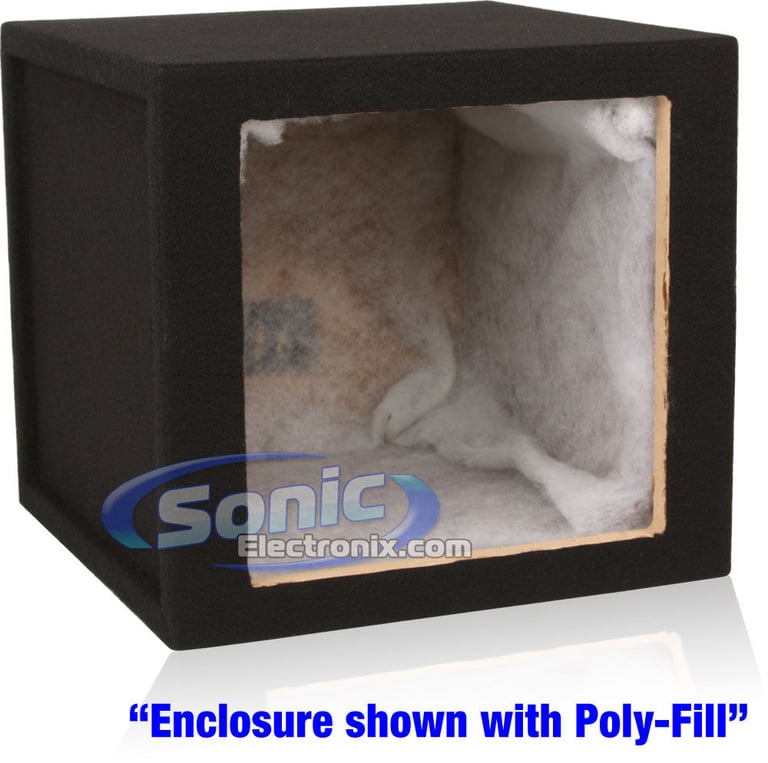

  • Pre-lined with a poly-fil lining delivering optimized sound quality
  • Gold plated terminals for premium signal transfer
  • Banana-clip ready allowing quick and easy access
  • Accommodating color coordinated binding post connections
  • Exceptional black carpet finish
  • Mounting depth: 14-3/8"
  • Cutout dimension: 11-1/4"
  • Box volume: 1.343 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 15-1/8"D x 15-1/8"W x 14"H
  • Authorized Internet Dealer

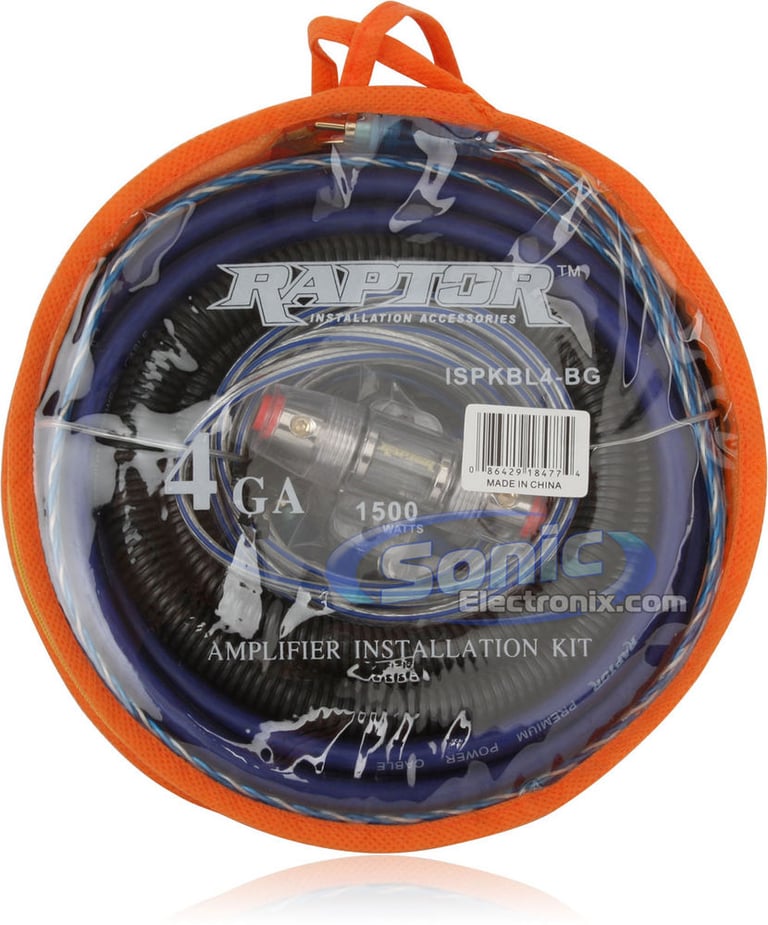

Amplifier Kit Features:
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Kit Includes:

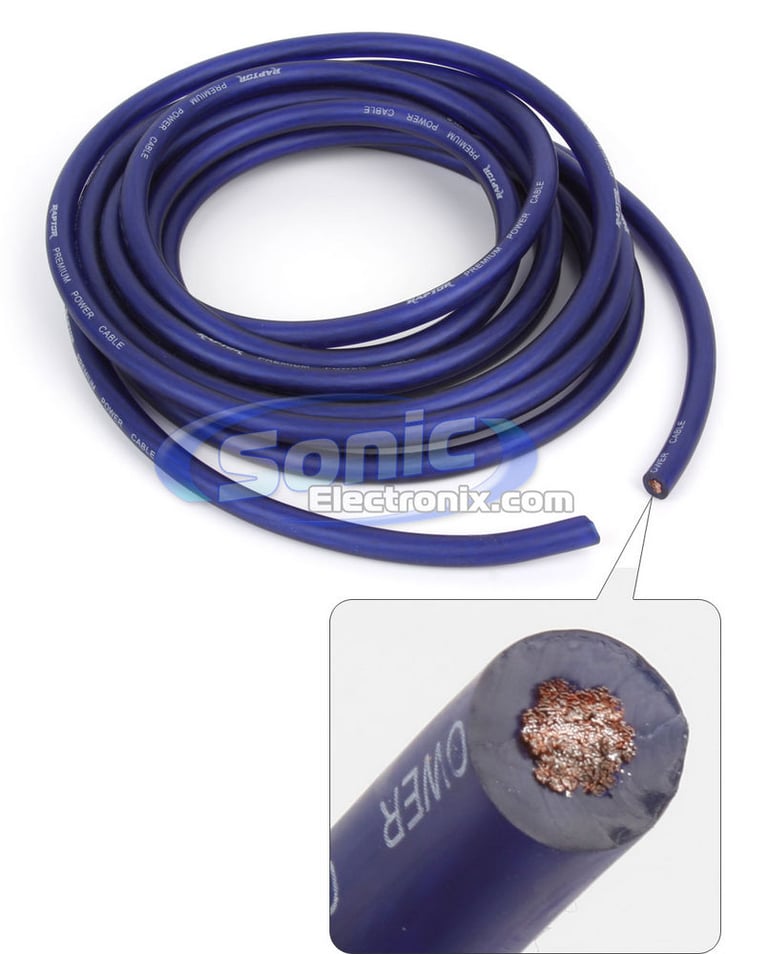

  1. 17 ft. of 4 Gauge blue power cable

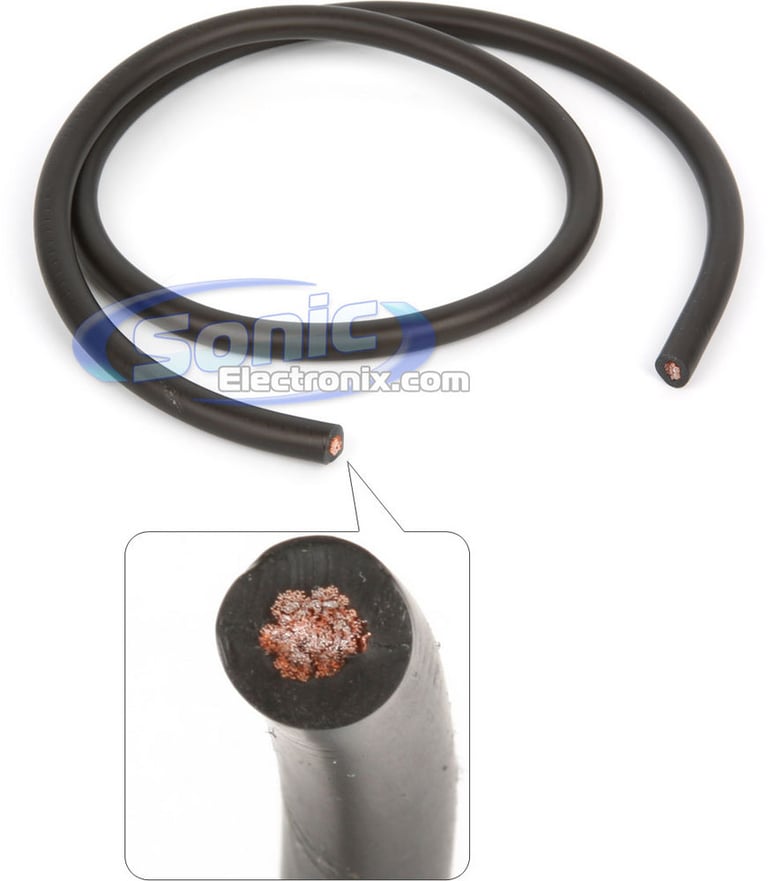

  2. 3 ft. 4 Gauge black ground cable

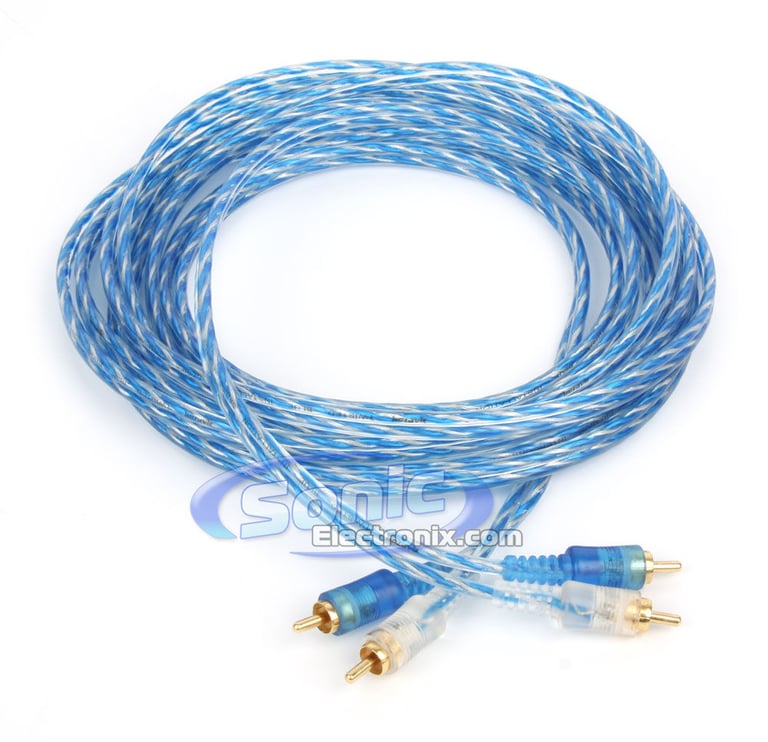

  3. 17 ft. Neon blue series RCA cable

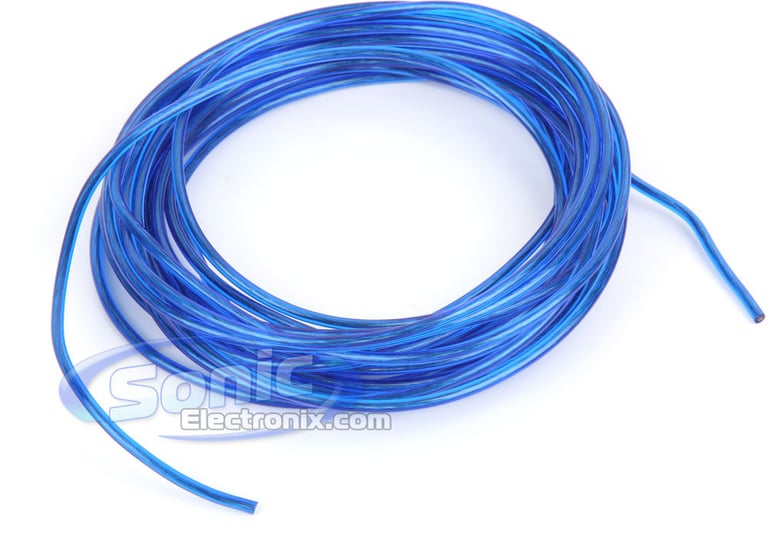

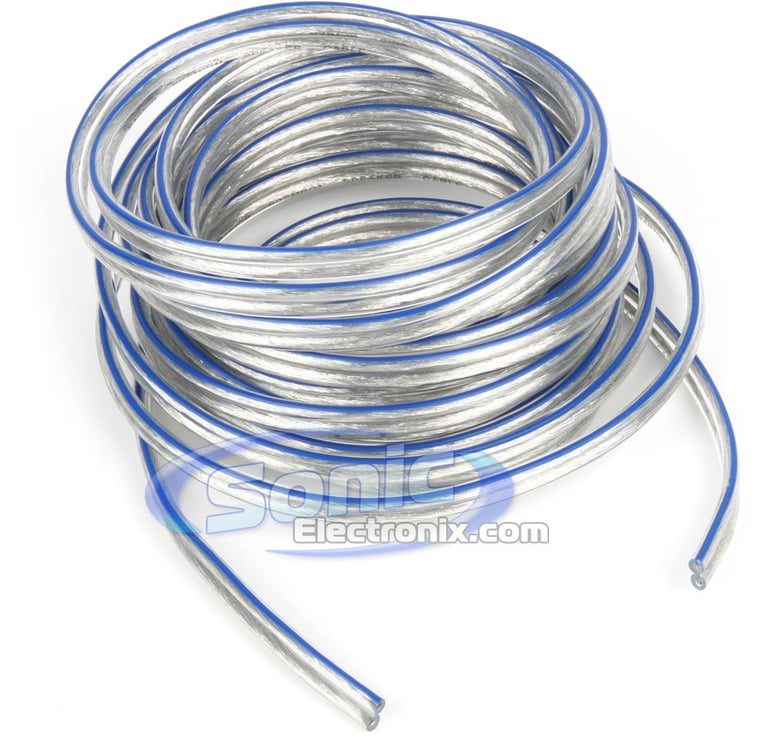

  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire

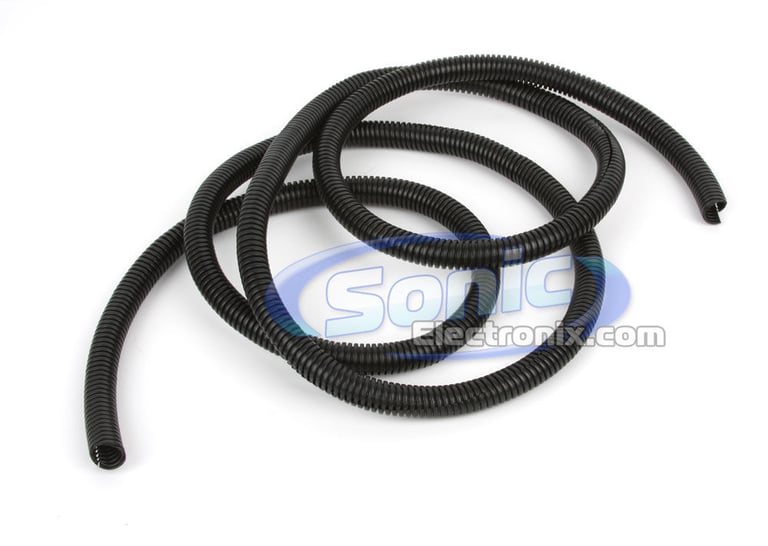

  6. 6 ft. of Split loom tubing

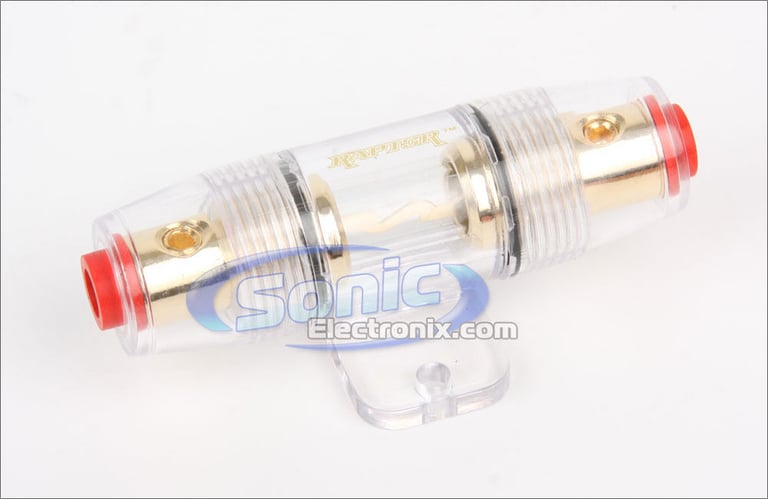

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse

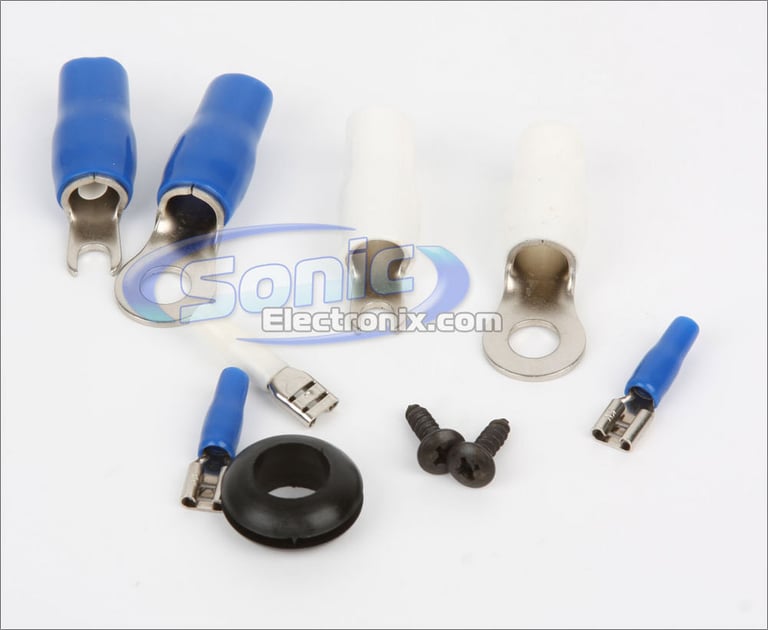

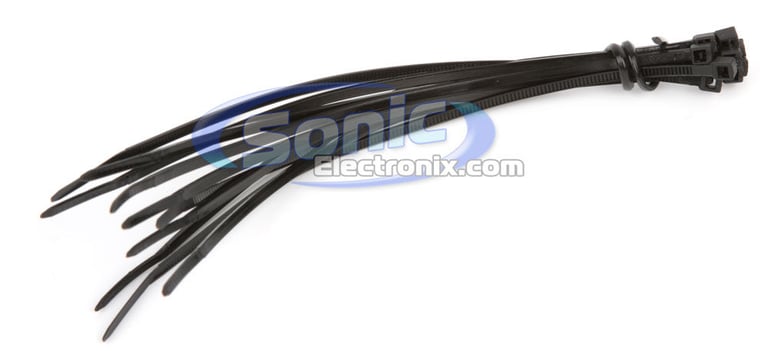

  9. All Necessary Hardware for Installation
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Add to cart
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Add to cart
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Add to cart
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Add to cart
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Add to cart
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Add to cart

Specifications & Details

Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
650 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
5 - 55 Hz
Signal-to-Noise Ratio
82 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)

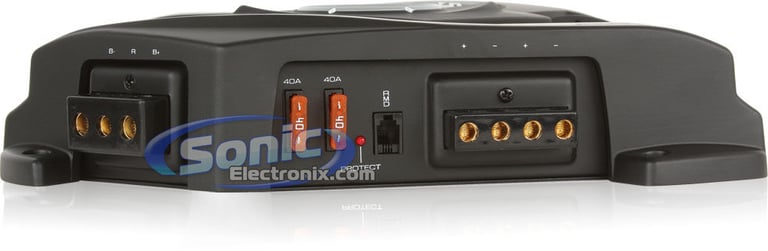

Fuse Rating
40A x 2
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
600 watts
Total RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
1200 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
87 dB
Frequency Response
20 - 100 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
15-1/8"
Depth
15-1/8"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Phoenix Gold

Model Number:

RSd600.1_08S12L54

Weight:

63.80lbs

Internal SKU:

rsd6001_08s12l54

Internal Product ID:

29483
