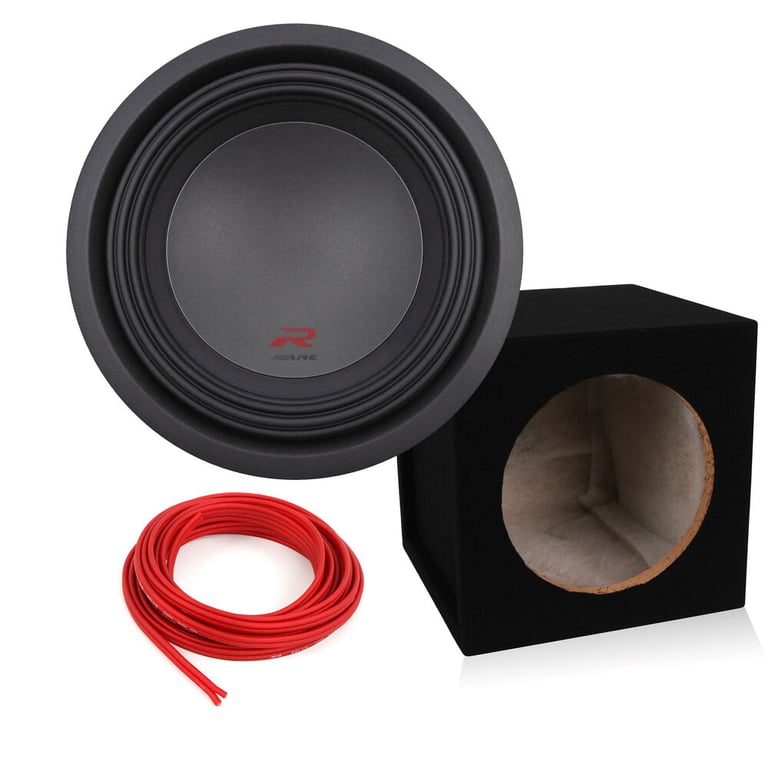

Alpine R-W10D4 Subwoofer + Free Sealed Enclosure and Speaker Wire

2250W Max (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 2250W Max
• 750W RMS
• Parabolic pulp/kevlar cone
• H.A.M.R. surround
• Cast aluminum frame with integral shorting sleeve
• Polypropylene, mica and talc dust cap
• 111 oz. Strontium ferrite segmented magnet

Learn more about the rw10d4_mdfs10_bbsw127

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

FRING69 main

NVX FRING69

Universal 6x9" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

13
-20.01%

$15.99

List price $19.99

PRO-X694BM main

DS18 PRO-X694BM (Sold individually)

400W Peak (200W RMS) 6x9” PRO-X Series 4-ohm Midrange Bullet Loudspeaker

2

Kicker KSC69 (51KSC6904)

600W Peak (300W RMS) 6x9" KS Series 2 Way Coaxial 4-ohm Shallow Mount Speakers

-11.11%

$159.99

List price $179.99

Description


Alpine brand icon

Authorized dealer

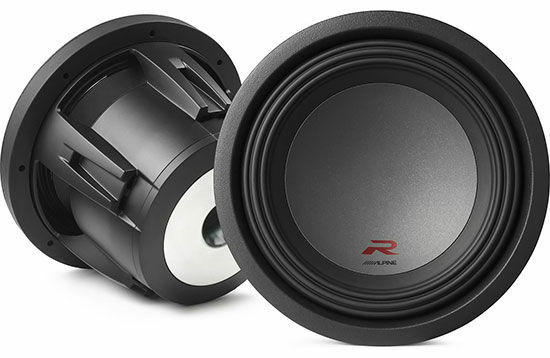

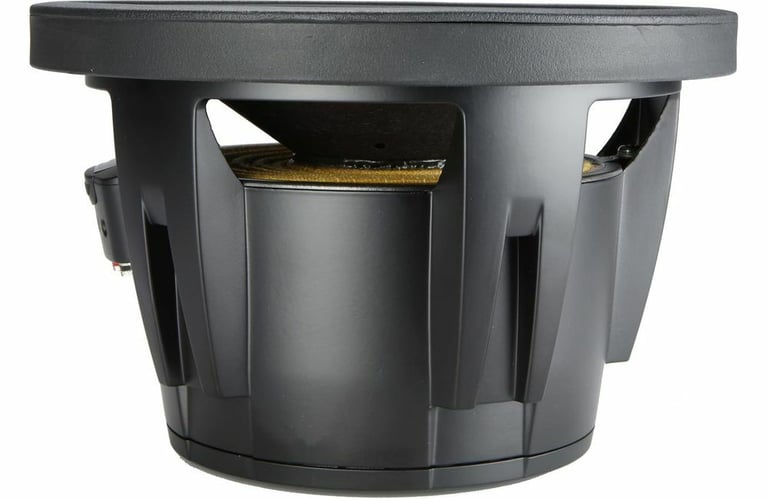

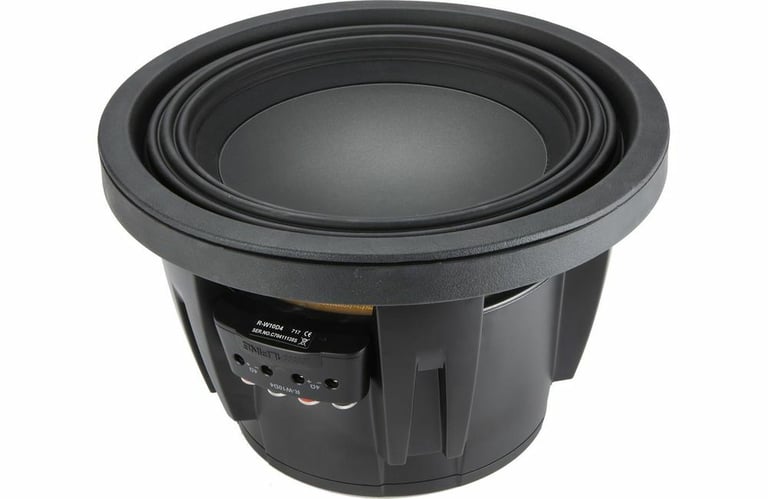

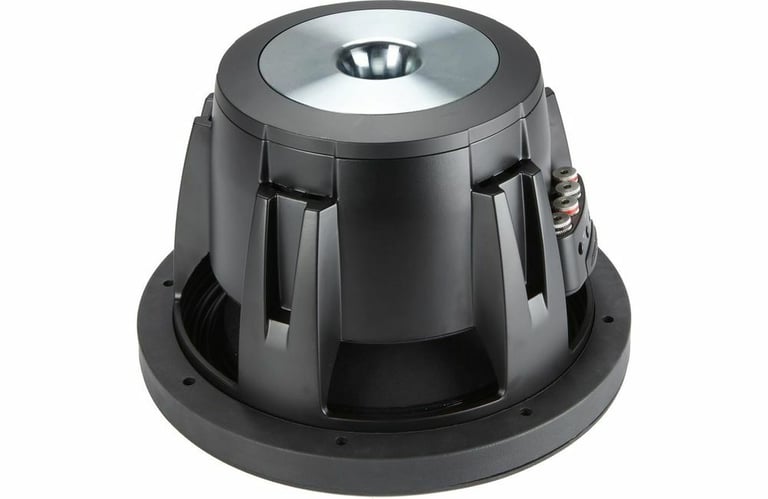

Alpine R-W10D4

2250W Max (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer
Quantity: 1

General Features:

  • 10" Dual 4 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6" High excursion overhung voice coil
  • 111 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 5-7/8"
  • Cutout diameter: 9-1/16"
  • Frequency Response: 26 - 200Hz
  • Sensitivity: 82.4dB
  • Resonance Frequency (Fs): 31Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

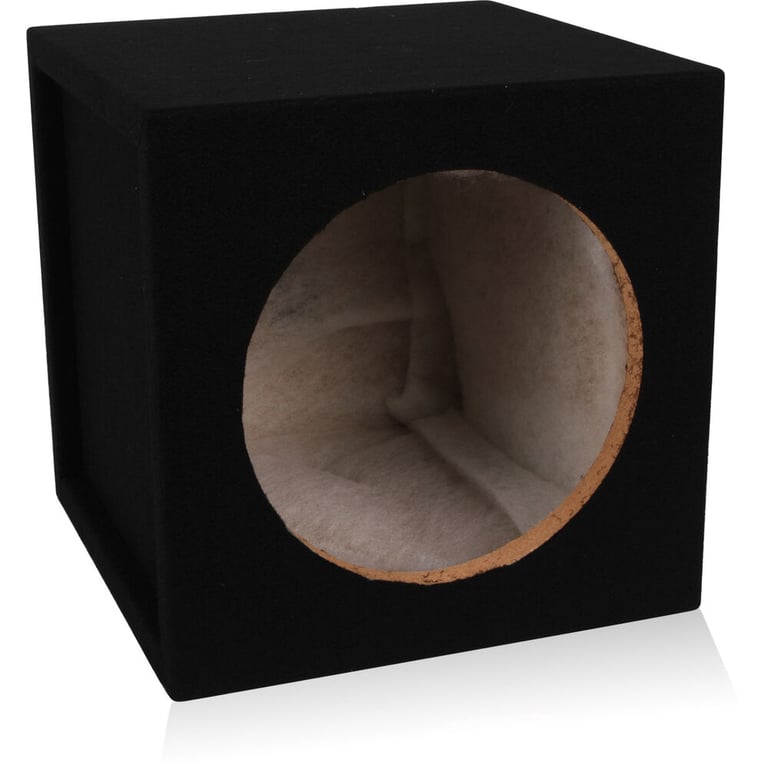

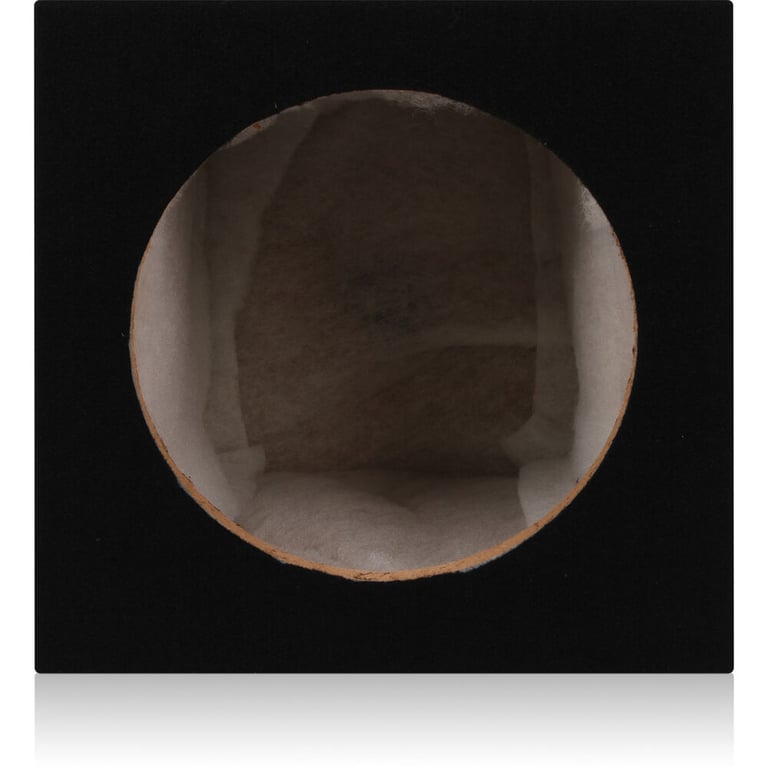

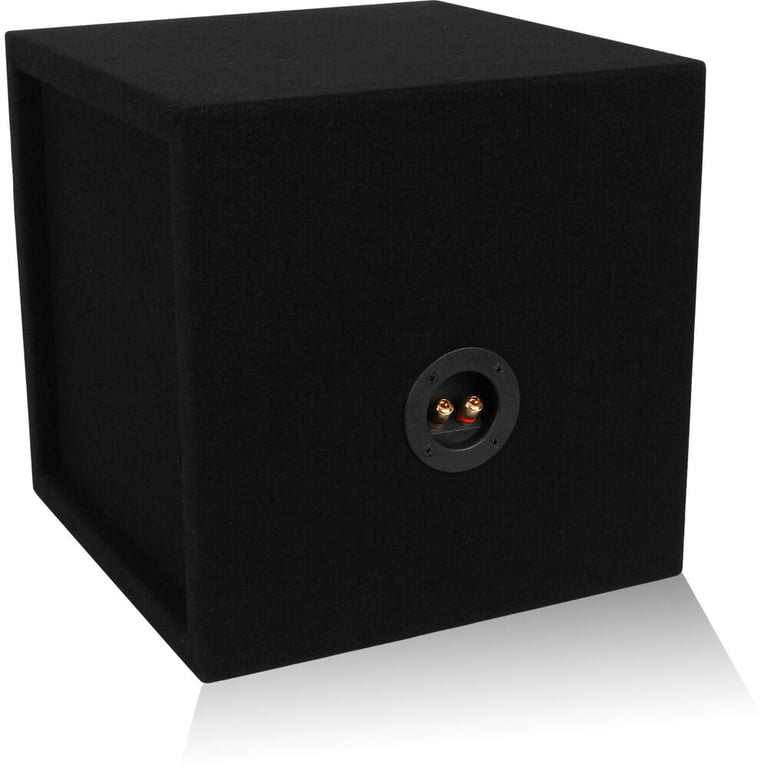

Single 10" Sealed MDF Subwoofer Enclosure (Belva MDFS10)

10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (0.77 cu ft airspace 10SQTC)
Quantity: 1

General Features:

  • Single Sealed 10" Enclosure
  • Internal box volume: 0.77 cubic ft
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 12-1/2"L x 12-1/2"D x 12-1/2"H
  • 30 Day return policy

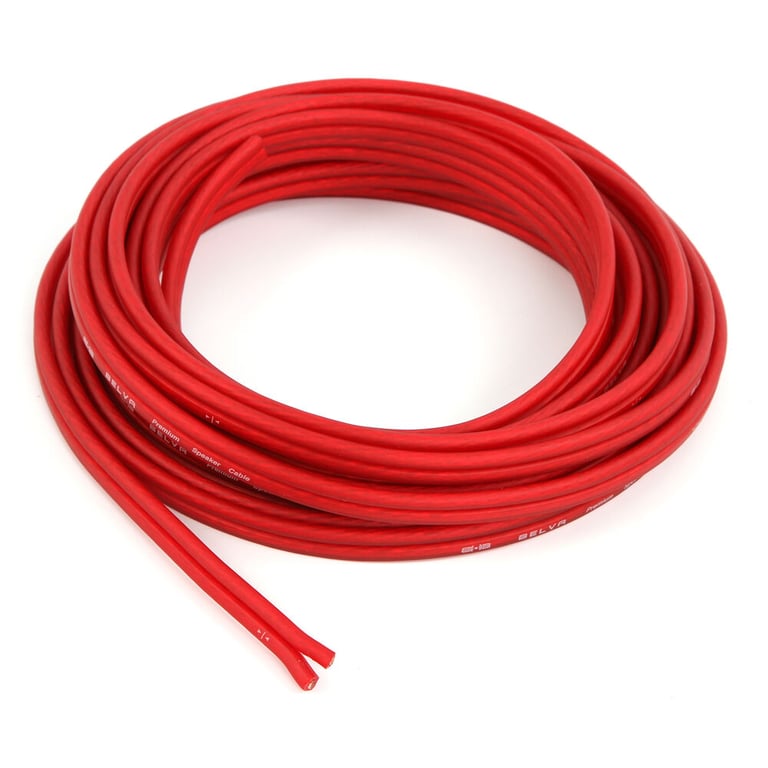

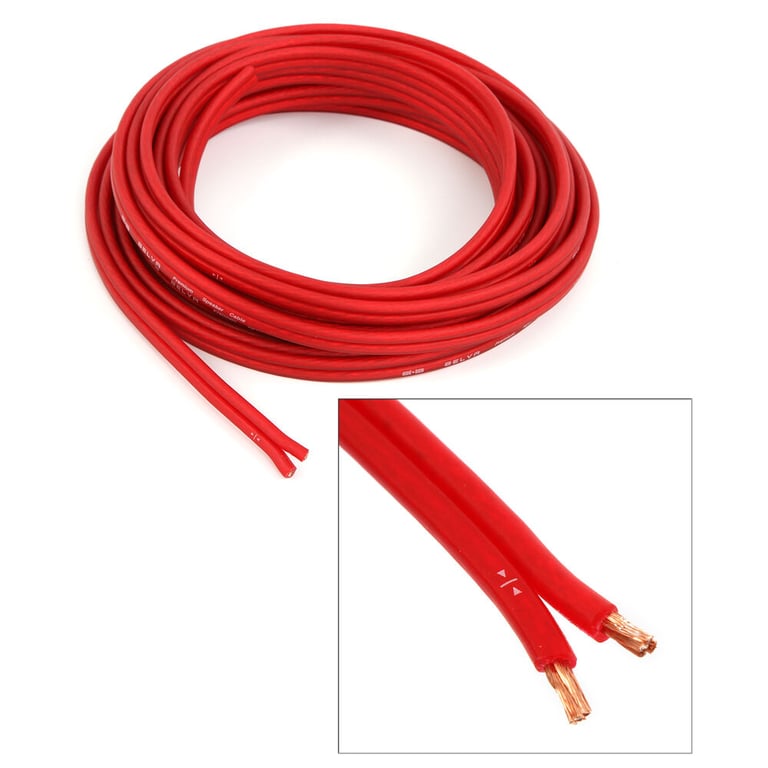

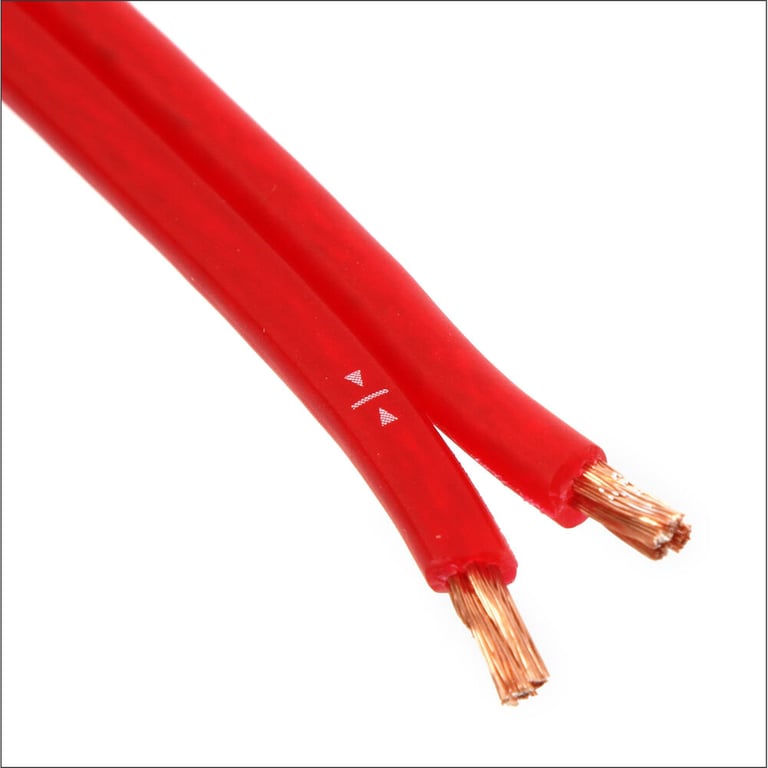

Belva BBSW127

12 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

  • 12 Gauge Speaker Wire
  • High strand count for maximum flexibility
  • Ultra-flexible PVC blended jacket for easy installation
  • Packed in resealable bag
  • Length: 7m (23 Ft)
  • Also available in 16 Gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Alpine R-W10D4, MDFS10, BBSW127 thumbnail
(newest, current model)
Alpine SWR-10D4 thumbnail
(previous model, replaced by Alpine R-W10D4 Subwoofer + Free Sealed Enclosure and Speaker Wire)
Alpine SWR-1043D thumbnail
(previous model, replaced by Alpine Type-R SWR-10D4)
Alpine SWR-1042D thumbnail
(previous model, replaced by Alpine SWR-1043D)
Alpine SWR-1041D thumbnail
(previous model, replaced by Alpine SWR-1042D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine R-W10D4 Subwoofer + Free Sealed Enclosure and Speaker Wire Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine R-W10D4 Subwoofer + Free Sealed Enclosure and Speaker Wire Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine R-W10D4 Subwoofer + Free Sealed Enclosure and Speaker Wire Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine R-W10D4 Subwoofer + Free Sealed Enclosure and Speaker Wire Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
2250 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.6"
Frequency Response
26 - 200 Hz
Sensitivity
82.4 dB
Xmax (millimeters)
20 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
H.A.M.R
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.58 cubic feet
Optimum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
31 Hz
Equivalent Compliance (Vas)
20 liters
Total Speaker Q Value (Qts)
.55
Electrical Q Value (Qes)
.59
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
7.71
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R-W10D4, MDFS10, BBSW127

Weight:

26.65lbs

Internal SKU:

rw10d4_mdfs10_bbsw127

Internal Product ID:

181655

Customer Ratings & Reviews


Alpine R-W10D4 Subwoofer + Free Sealed Enclosure and Speaker Wire thumbnail image

5 star
82%
4 star
14%
3 star
4%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.7
Design
4.8
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

As expected

The following review is for BBSW127, which is a part of the bundle you are viewing.

Could have a better way to decide which wire to use as positive or negative. Only has spaced print on one wire.

By George on August 8, 2014

159 found this helpful


beau produit

The following review is for BBSW127, which is a part of the bundle you are viewing.

Belva est une marque qui se rapproche de la marque stinger a premiere vue.bon produit.

By dimitry on December 1, 2013

154 found this helpful


Great wire

The following review is for BBSW127, which is a part of the bundle you are viewing.

This is some great speaker wire looks good works good and you get so much for so cheap

By Shane on February 1, 2015

141 found this helpful


High Quality Box!

The following review is for MDFS10, which is a part of the bundle you are viewing.

I use this box for my Rockford Fosgate 10 and it sounds amazing in my hatch. Connectors felt solid, box felt solid. 100% recommend this!

By Franklin on September 7, 2014

127 found this helpful


Great box for the $.

The following review is for MDFS10, which is a part of the bundle you are viewing.

Dropped a RF prime In and sounds great. Well built. Great value.

By Chris on September 20, 2012

130 found this helpful


Great Value!

The following review is for MDFS10, which is a part of the bundle you are viewing.

Sturdy, fits like a glove not too big, not too small either. Can't make it for the amount they sell it.

By 56 Buick on October 20, 2012

129 found this helpful


FREE box...

The following review is for MDFS10, which is a part of the bundle you are viewing.

Box is well built, its hard to mess up building a small sealed box.. The only problem was sub opening wasn't large enough for my sub, 5 minutes with a jigsaw and vacumn took care of that though..

By Bryan on September 18, 2013

126 found this helpful


Decent Small Box

The following review is for MDFS10, which is a part of the bundle you are viewing.

For the money it is a pretty good product. The carpet is a nice black. Very dark and very clean. The box is solid and can take a beating. The terminal cup is nice as its a binding post and not those crappy pressure tabs. Good box, decent sealing, good carpet.

By Lori on October 6, 2010

125 found this helpful


well built for price

The following review is for MDFS10, which is a part of the bundle you are viewing.

i have a dvc pioneer 10" sub that fits perfectly in this box and sounds great. looks good in trunk and still gives me room to put stuff in it

By matt on January 24, 2010

126 found this helpful


Nice enclosure

The following review is for MDFS10, which is a part of the bundle you are viewing.

Not much can really be said about a sub enclosure, other than it does its job well. My Rockford Fosgate P1S2-10 fit in snuggly. The only thing that was a tad iffy was that when drilling once the bit went through it would catch of the inside insulation and mess it up, but quite honestly it didn't really bother me at all. Good enclosure.

By Esteban on December 11, 2014

116 found this helpful




RP-HV41-A small

Panasonic RP-HV41-A Eardrops In-Ear Headphones (Light Blue/Light Green)

Light Blue/Light Green Eardrops In-Ear Headphones

$5.99

List price $19.99

A3000DB small

Power Acoustik A3000DB

3000W Max, Class D Monoblock Amplifier

(13)

$269.99

List price $649.99

SLPK-POL-RZR800v2 small

JL Audio Stealthbox® SLPK-POL-RZR800v2

Custom fit subwoofer enclosure for select 2008-2013 Ranger RZR and Ranger RZR S 800 EPS LE / 800 and Ranger RZR S Military SlamPak Audio System

$1999.99

List price $2099.99

SB-POL-RNGR/SYS small

JL Audio Stealthbox® SB-POL-RNGR/SYS

Custom fit subwoofer enclosure for select 2004-2010 Ranger and Ranger Crew 700 / 800

$1399.99

List price $2499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Dodge Ram C/V

1990 Mercury Tracer

1970 GMC C2500 Pickup

2024 Cadillac CT4

2024 Lucid Air

2010 Chrysler 300

2008 Chevrolet Avalanche

2010 Land Rover LR2

1999 Suzuki Swift

1999 Dodge Ram 2500 Van

Vehicle
Store
Delete

2023 Can-Am Defender

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
