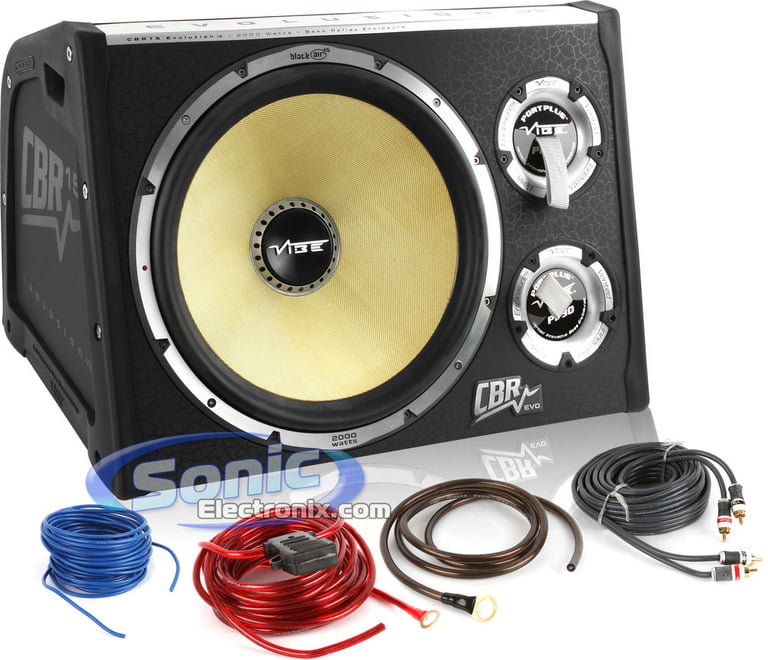

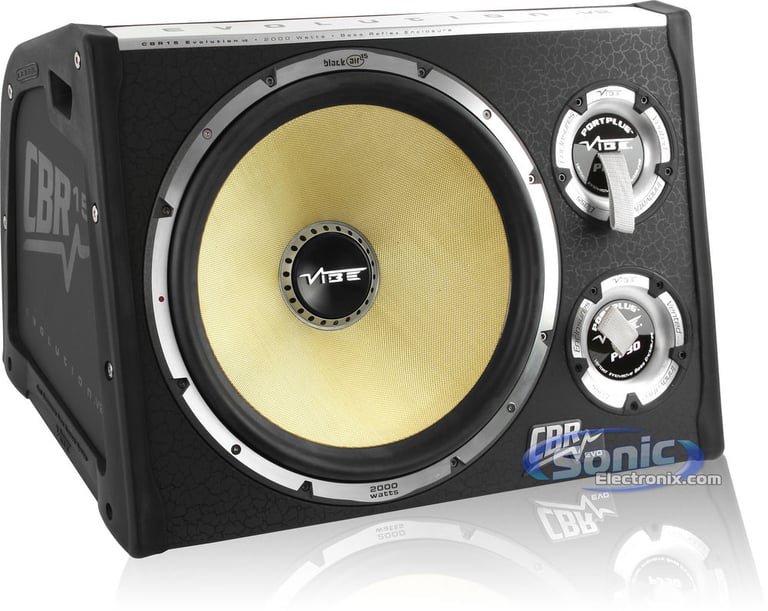

Vibe Audio CBR15ACTIVE

2000W Max, 15" Black Air Series Amplified and Ported Subwoofer Enclosure with Complete Amp Wiring Kit (CBR15AEVO-V2)

VIBE
Shop all VIBE
highlight-star-icon

15" Black Air Series Subwoofer • Dual 2 ohm • 2000 Watts Max • 650 Watts RMS • Polyglass Cone • Included 600 Watt Amplifier • Dual Spider Assembly • FEMM Motor and FEA Cone • Variable Port Tuning For User Controlled Bass

Learn more about the cbr15active

We apologize

This item has been discontinued


Loading...
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Description


VIBE brand icon

Authorized dealer

Vibe Black Air Subwoofer Features:
  • 15" Dual 2 ohm Black Air Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 650 watts
  • Impedance: Dual 2 ohm
  • Polyglass cone made from a combination of polypropylene and fiberglass
  • Multi-roll rubber surround achieves better linearity throughout the subwoofers excursion range
  • Dual Voice Coils (DVC) offers multiple impedance options
  • Unique cone support is specially designed for rigidity without excessive weight
  • Dual spider assists with the control and stability of the cone, as well as higher power handling
  • FEMM Motor provides low distortion and linear flux saturation
  • FEA Cone is designed using Finite Element Analysis (FEA) to ensure maximum rigidity to weight
  • Alloy torsion basket provides rigidity and support for motor and moving parts
  • Removable rubber boot for greater magnet protection
  • Aluminum alloy gasket is made from high quality machined aluminum
  • Screw input terminals allow for heavier gauge speaker wire to be connected to the voice coil
  • 2-1/2" Aluminum 4-layer voice coil
  • Single 75 oz. ferrite magnet
  • Mounting depth: 7-1/2"
  • Mounting diameter: 13-7/8"
  • Frequency response: 20-850 Hz
  • Sensitivity: 90 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amplifier Features:

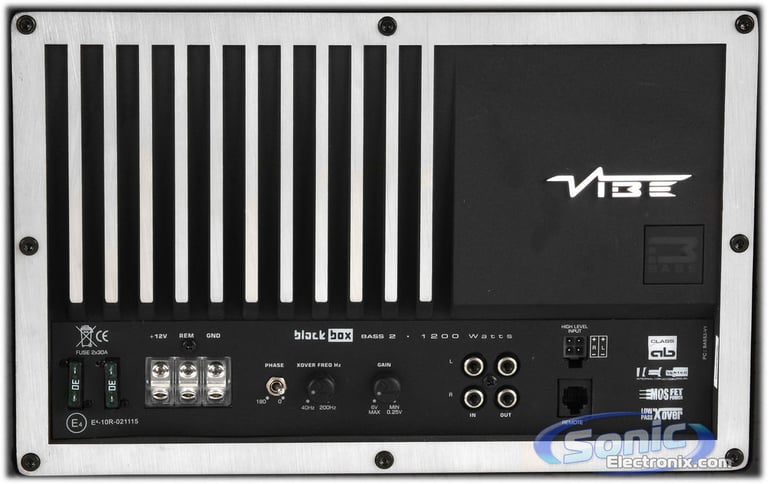

  • Blackbox Bass 2 Series Preloaded Amplifier

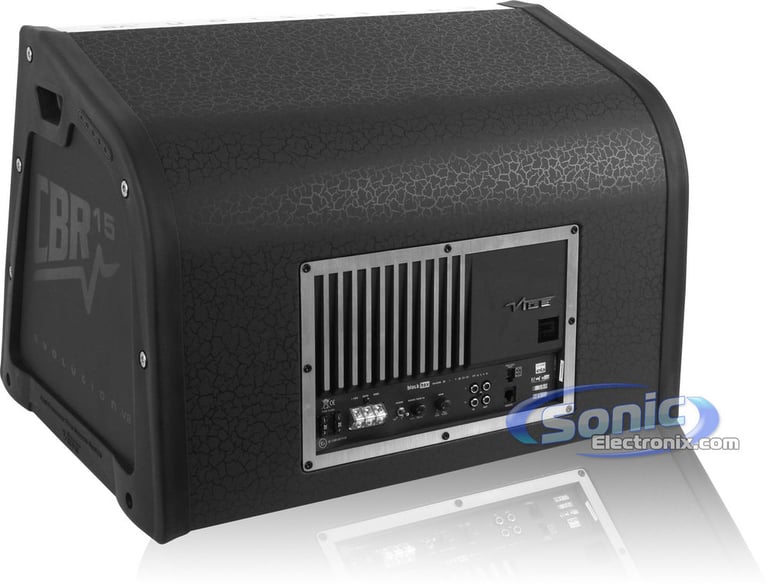

  • Amplifier is built into the enclosure for easy installation
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
  • Max power output: 1200 watts x 1 chan.
  • LED power (green) and protect (red) indicators
  • Variable gain control
  • Input sensitivity:
    • Low level: 200mV-6V
    • High level: 2V-20V
  • Variable low-pass filter (40-200 Hz)
  • Phase Shift: 0-180°
  • Frequency response: 40Hz - 200KHz

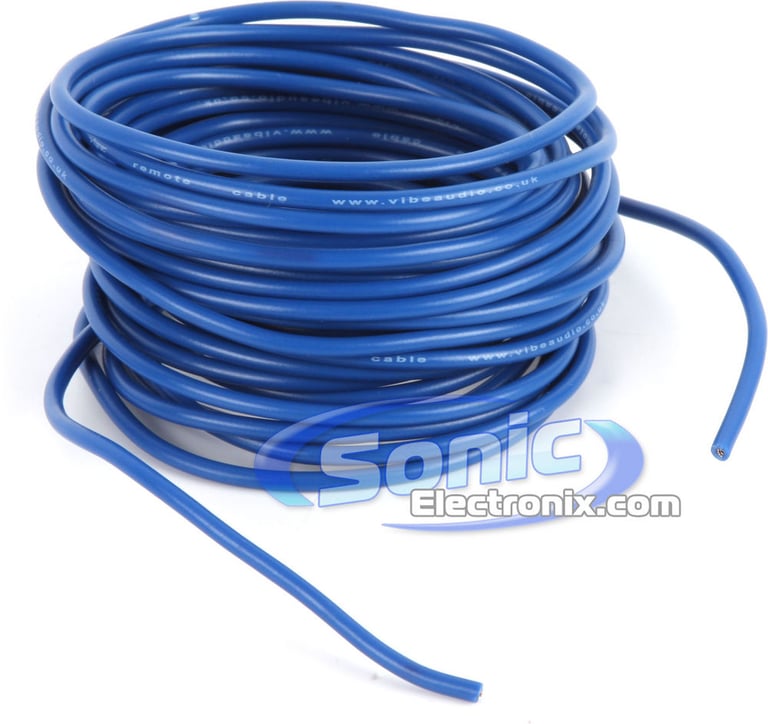

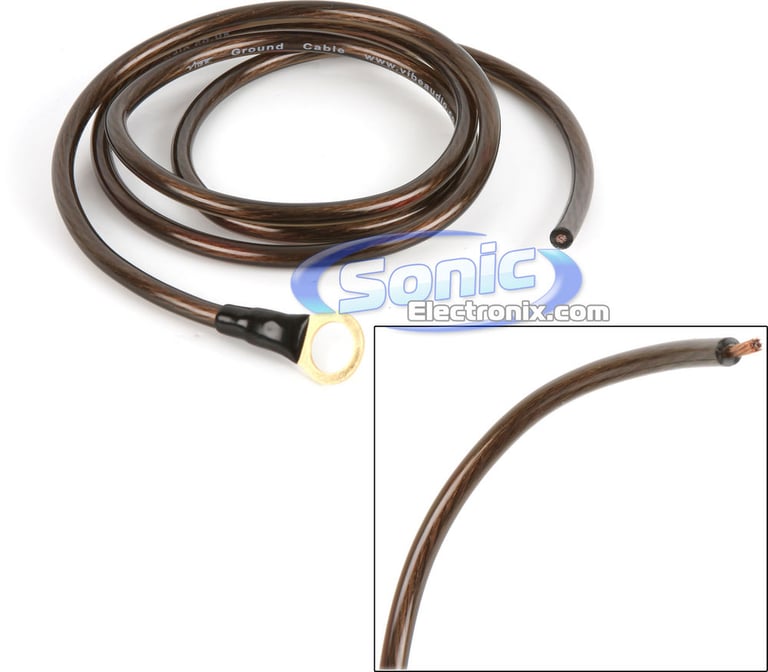

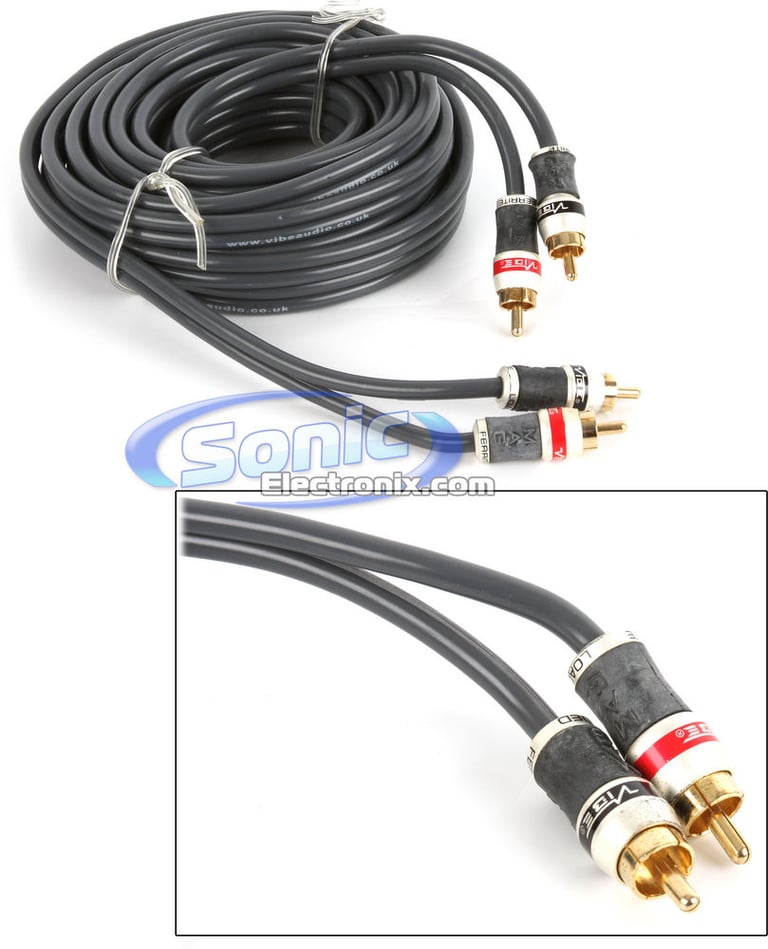

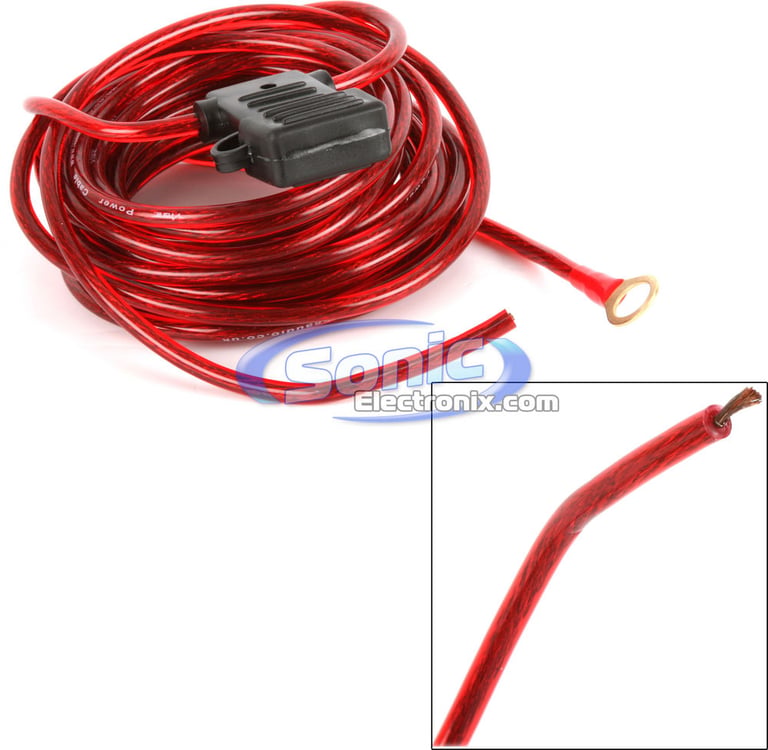

  • Includes power cable, ground cable, remote turn-on wire, and RCA interconnects
Enclosure Features:

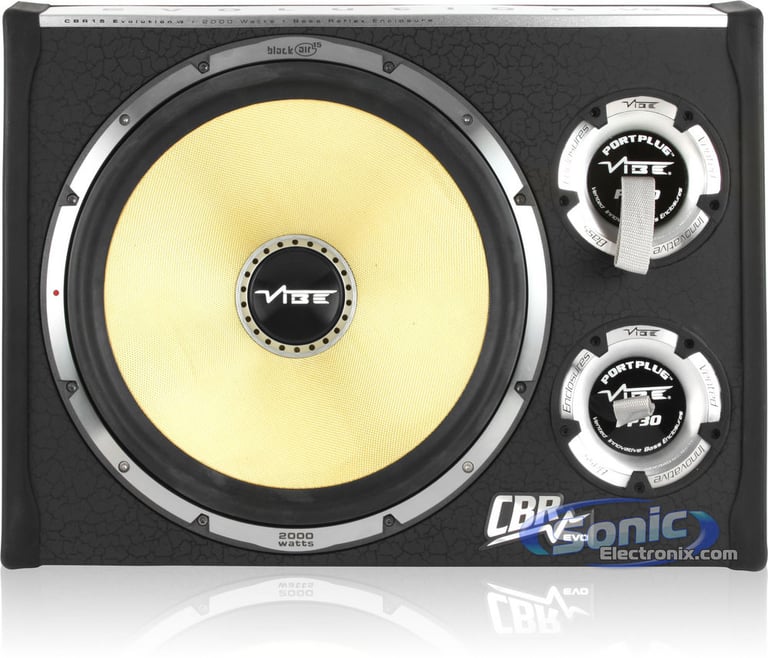

  • 15" Ported Subwoofer Enclosure
  • Box pre-installed with a VIBE BA15 subwoofer

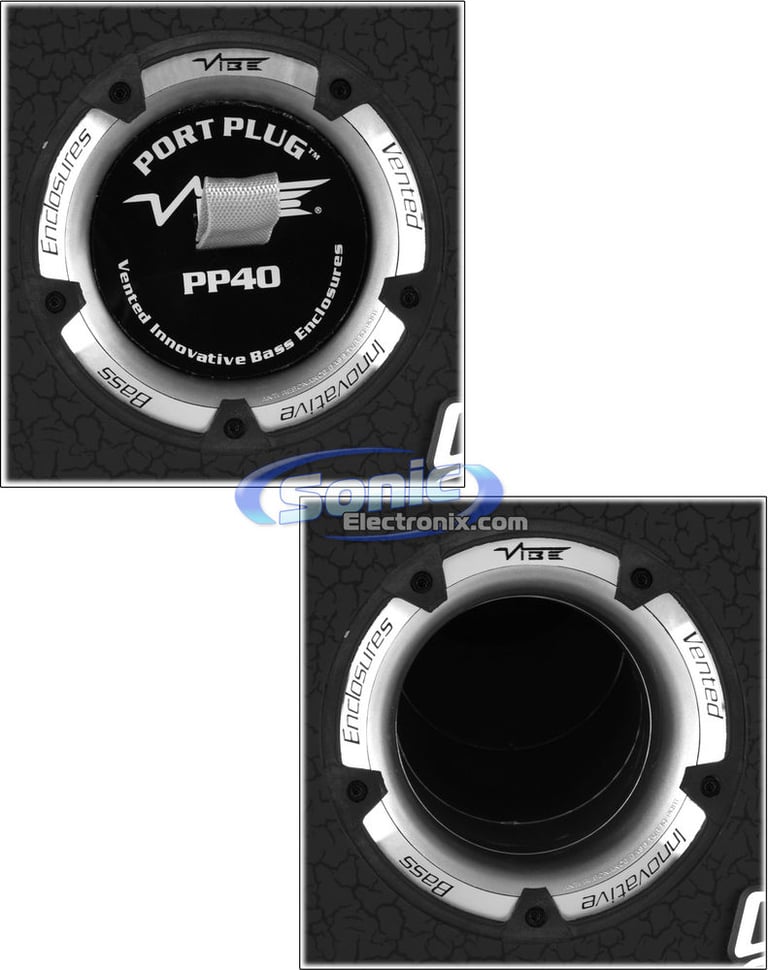

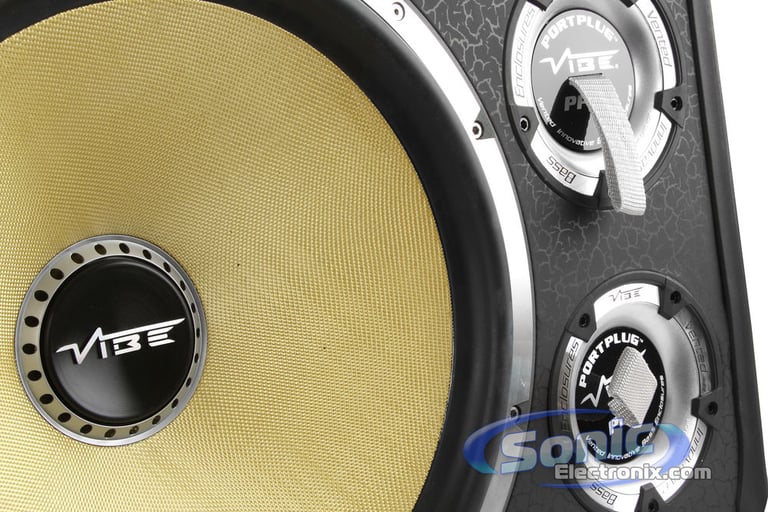

  • Variable Port Tuning allows for different port configurations
  • Made from durable 3/4" MDF
  • Designed and engineered specifically for the loaded subwoofer
  • Sealed enclosure produces tight bass
  • Final impedance of the entire loaded enclosure is 4 ohm
  • Dimensions: 16-1/2"L x 23-1/4"W x 16-1/2"H

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
600 watts x 1 channel
Peak Power Output
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Remote bass/level controller
No
Fuse Rating
30A x 2
Subwoofer Specifications
Subwoofer Size
15"
RMS Power Handling
650 watts
Total RMS Power Handling
650 watts
Peak Power Handling
2000 watts
Total Peak Power Handling
2000 watts
Woofer Surround
Rubber
Woofer Composition
Polyglass
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
90 dB
Frequency Response
20 - 850 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
16-1/2"
Width
23-1/4"
Depth
17-15/16"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CBR15ACTIVE

Weight:

50.00lbs

Internal SKU:

cbr15active

Internal Product ID:

29496
