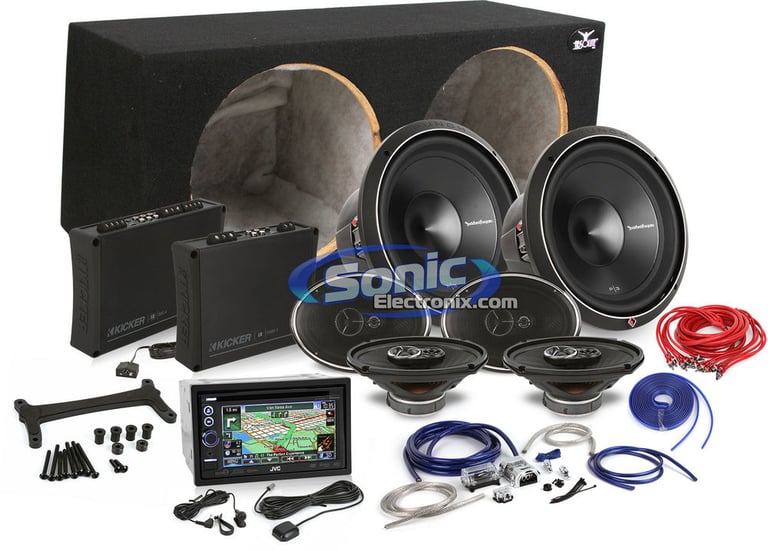

All-Inclusive GPS/DVD Navigation w/ JVC, Kenwood, Kicker and Rockford Fosgate

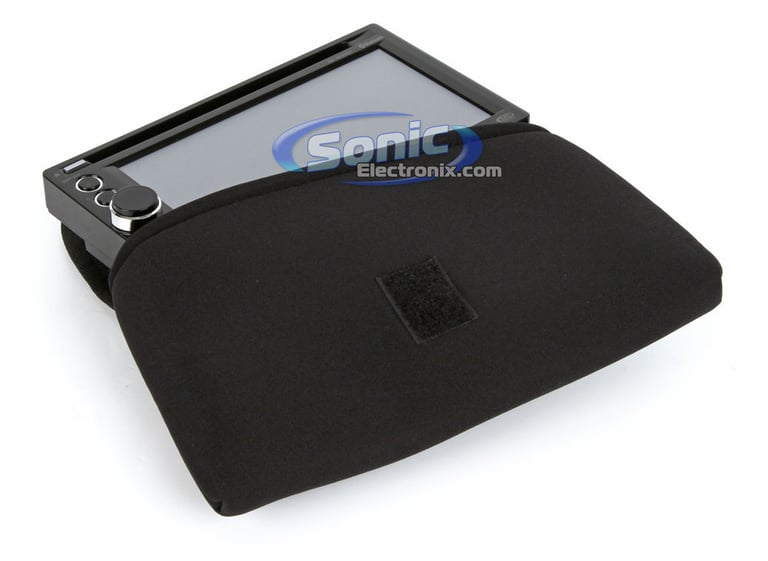

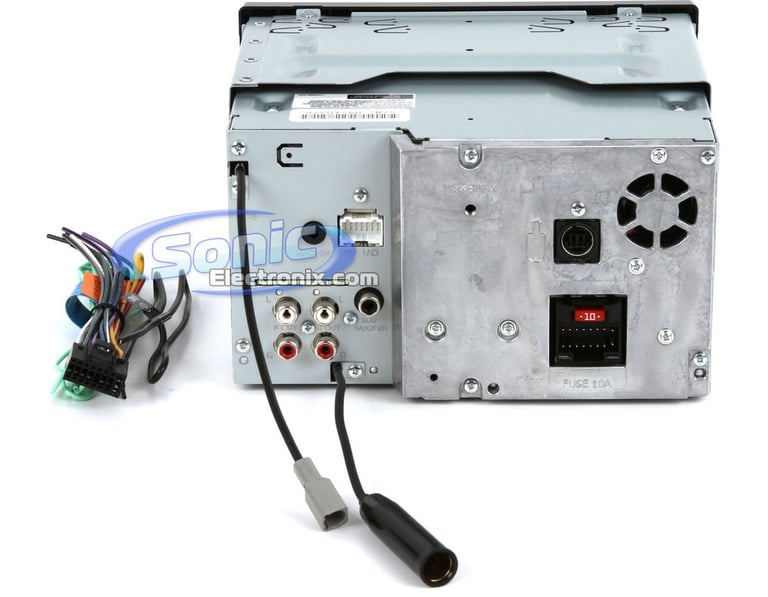

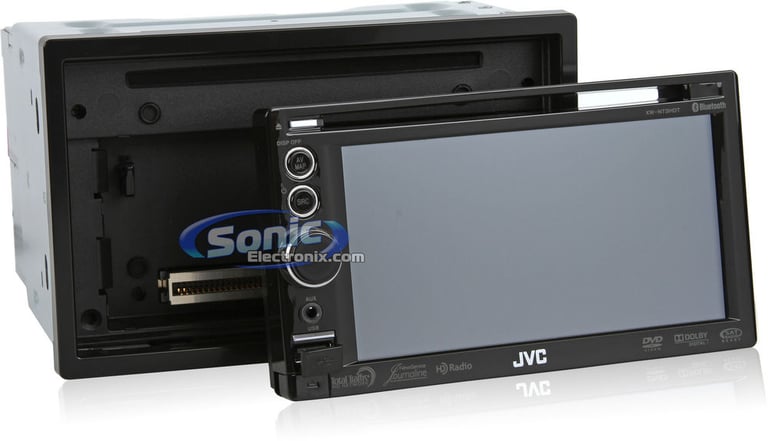

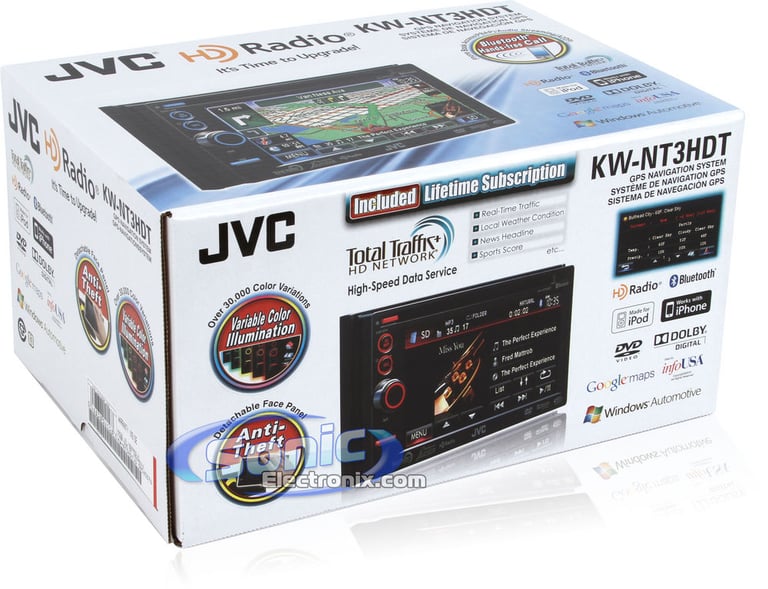

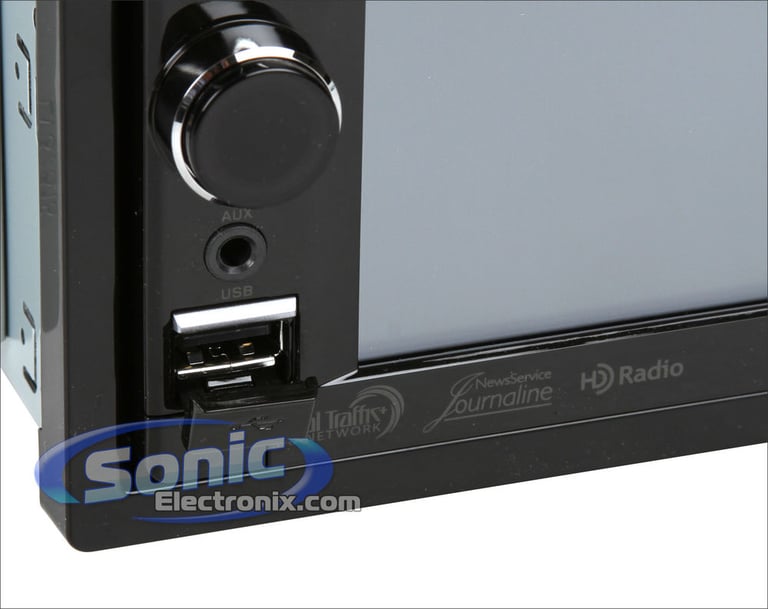

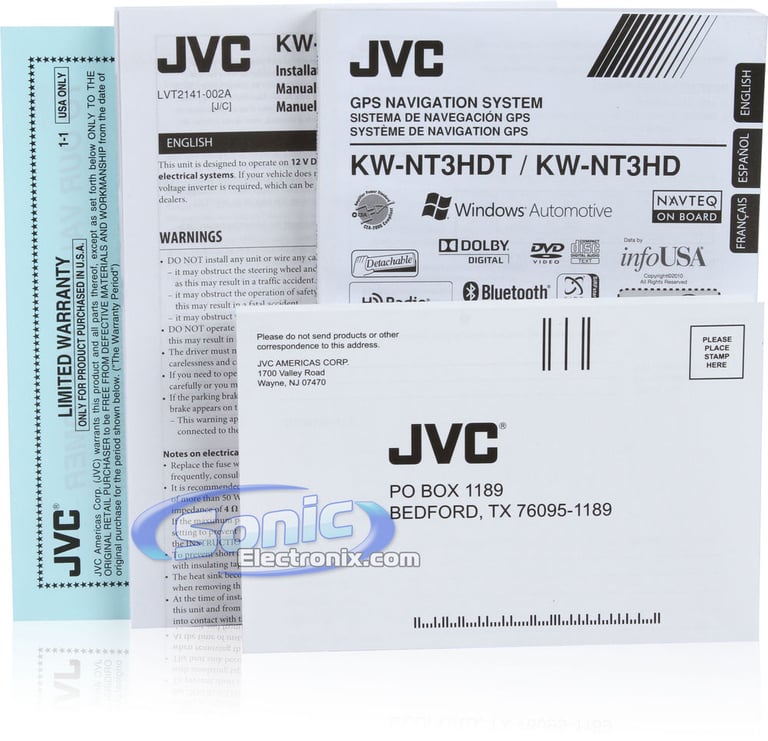

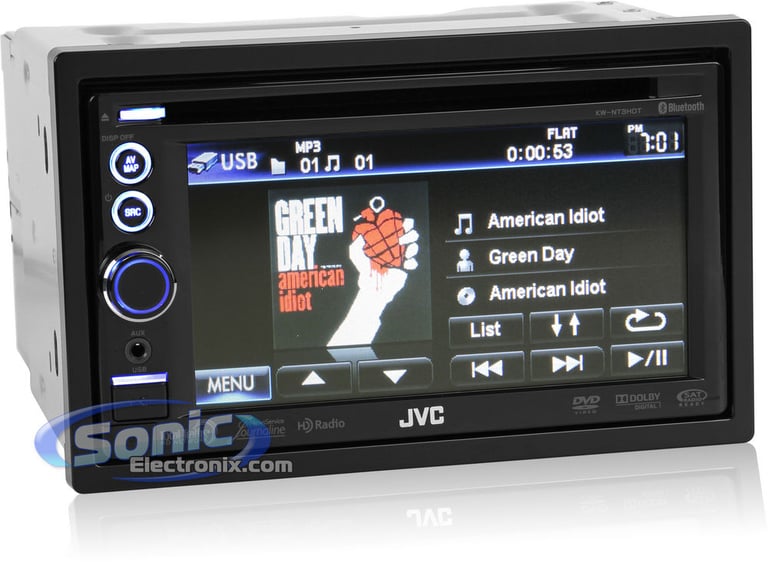

Car Stereo: JVC KW-NT3HDT

General Features:

• In-dash Double DIN AM/FM, DVD, CD, MP3, WMA player

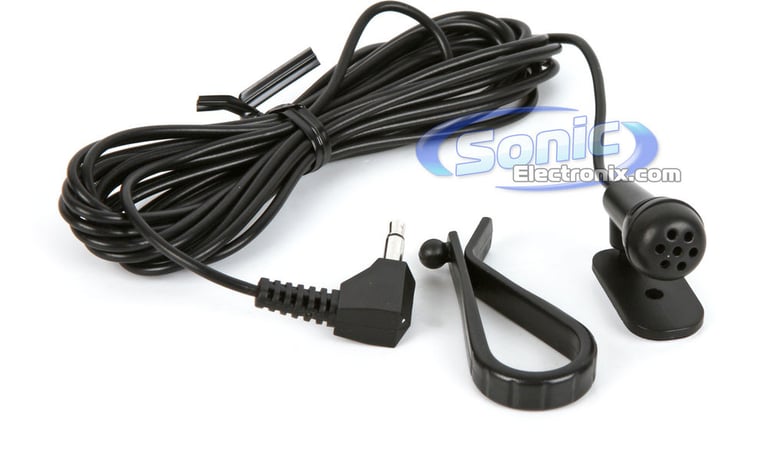

• Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
• Built-in HD Radio Tuner allows the reception of high quality HD Radio signals for clean and clear reception with no subscription fee or additional tuner purchase required
• iPod Ready: Direct connection through USB

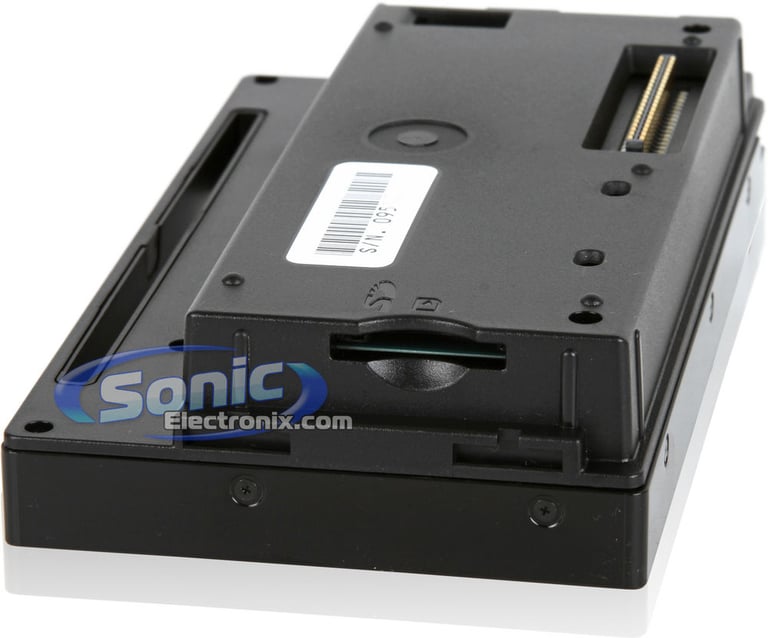

• Fully detachable faceplate

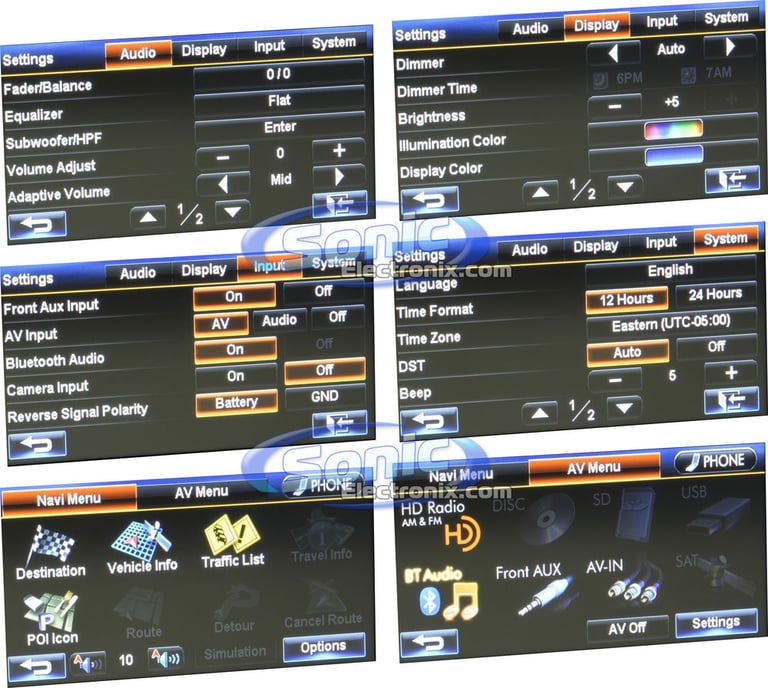

• 6.1" TFT-LCD Touchscreen Display
• Separated variable color and LED Backlight illumination
• Customizable start-up message greets you when the receiver starts up and shuts down
• CEA-2006 compliant amplifier
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 20 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Playback and Audio Features:

• Playback of DVD, DVD-R/RW, DVD+R/RW, CD, CD-R, CD-RW, MP3, and WMA
• DiAS Digital Tuner with 18FM/6AM presets
• 7-Band iEQ
• Subwoofer output with level/frequency control
• Advanced multi-bit DAC
• 2-Channel Dolby Digital audio
• High- and low-pass filter

Expandability Options:

• 3 Sets of 2.5V preamp outputs (front, rear and subwoofer)
• SIRIUS or XM Satellite Radio Ready: A subscription is required for service as well as purchase of either the JVC SIRIUS Satellite Radio Package or JVC XM Radio Package
• iPod USB direct connectivity via your standard iPod-to-USB connection cable allows you to charge, control, and playback your iPod through the receiver and stereo system
• Built-in Bluetooth technology:
• Dial and receive calls without using your cell phone
• Phonebook transfer (up to 500 numbers) and phone book access
• Wireless audio streaming
• One-key switch from handsfree to cell phone handset conversation
• Built-in HD Radio tuner with iTunes Tagging for clear radio reception and no subscription fee
• Find out if the HD Radio News and traffic availability is in your area with our HD Station List
• Total Traffic+ HD Network provides real time traffic information (no subscription necessary)
• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Front USB Input
• Built-in SD Card slot
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately
• Composite video output
• Rearview camera input

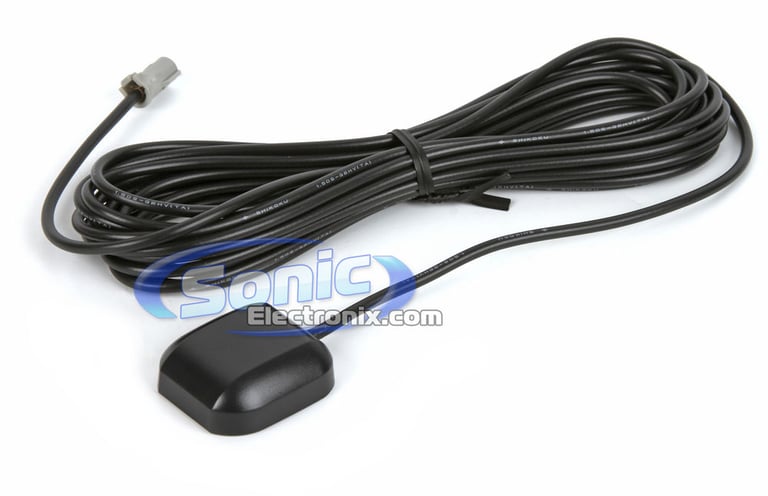

Navigation Features:

Learn more about
Navigation Search Functions

• Flash memory based NAVTEQ navigation
• Full map coverage of United States, Alaska, Hawaii, Canada and Puerto Rico
• Quick search function
• Speed alert and point-of-interest alert
• Search points-of-interest by name, vicinity, phone number, address, zip code, coordinates, previous, favorites and User P.O.I
• Voice guidance language (English, Spanish, French)
• Text-to-speech (English, Spanish, French)
• Destination memory includes 100 favorites, last 50 and 4 via points
• Fastest, shortest, avoid freeway, ferry and toll road route calculation options
• Speed limit display
• 3 Types of vehicle position icons
• Use the "Street Director Assistant" to add your own points-of-interest from Google Maps

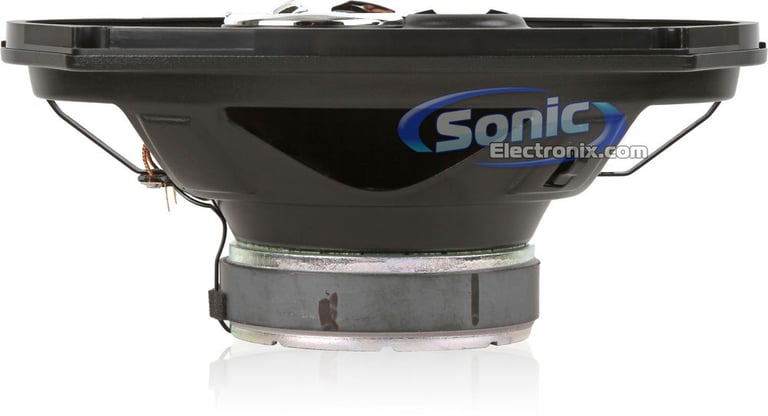

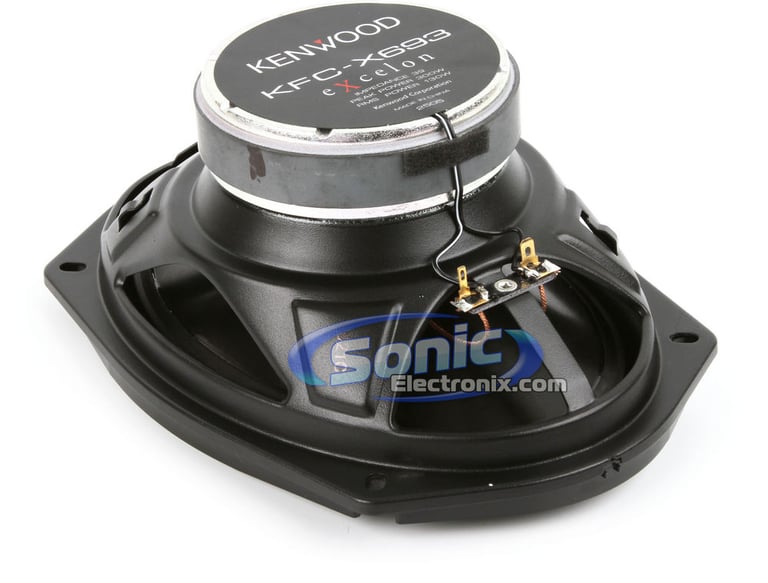

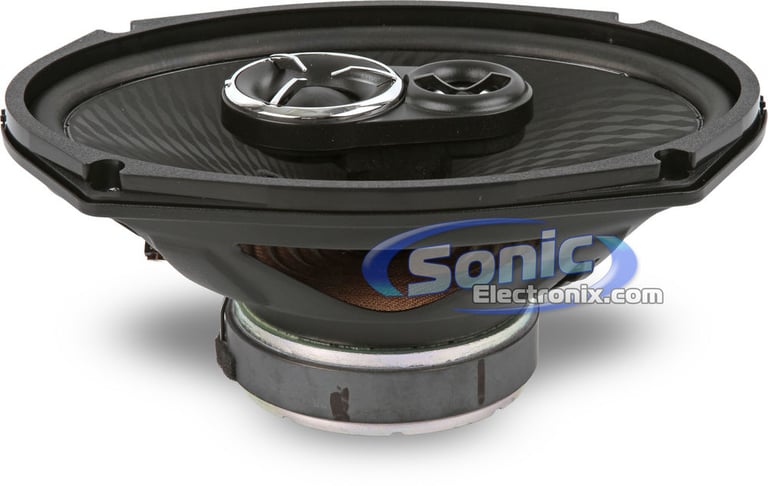

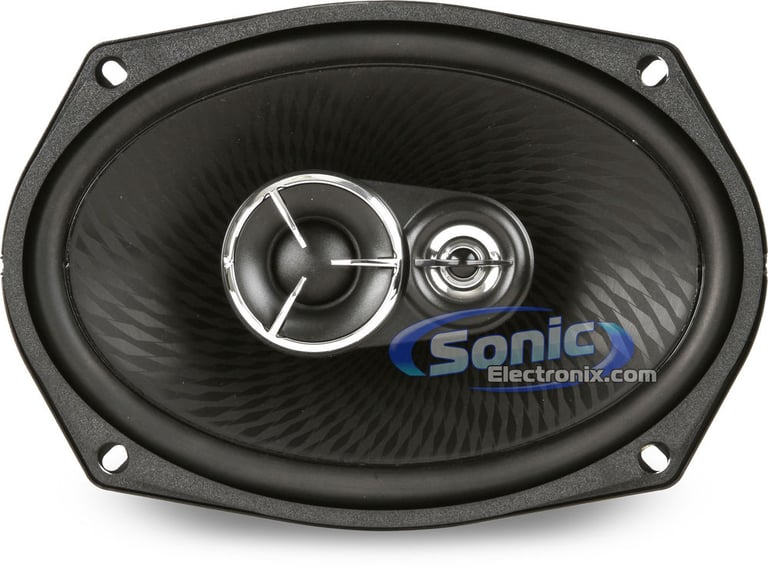

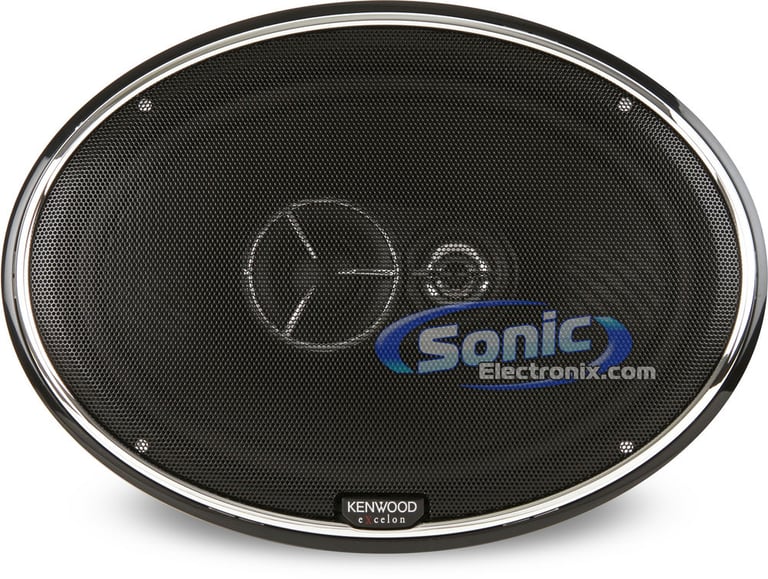

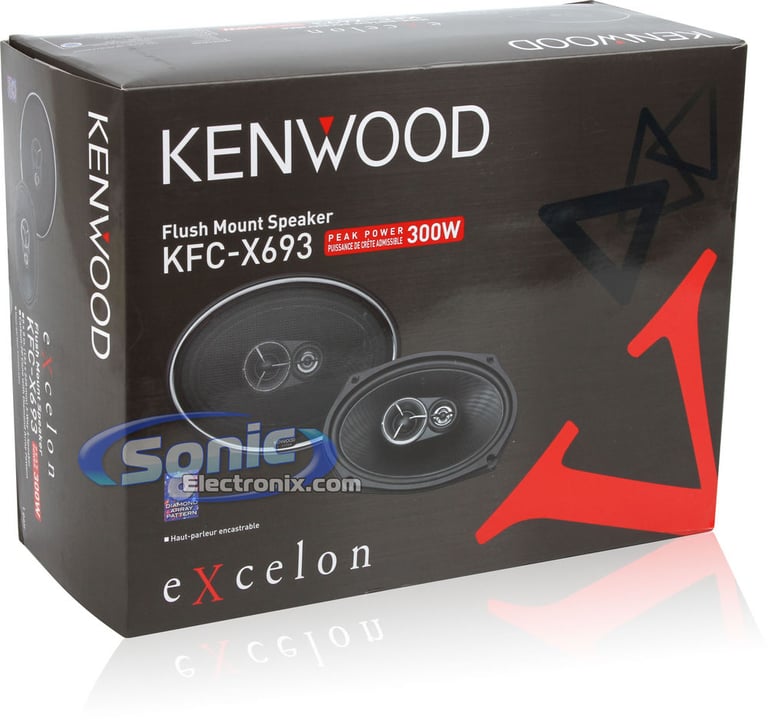

Speakers: Kenwood eXcelon Series

• Kenwood eXcelon Car Speakers
• Enter your car information on checkout and we will send you the speakers that fit your car!
• Carbon-polypropylene cone woofer
• Butyl rubber surround
• 3 ohm impedance
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

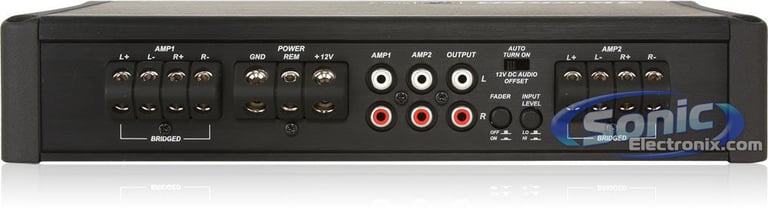

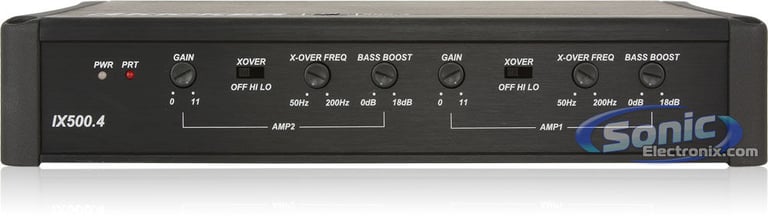

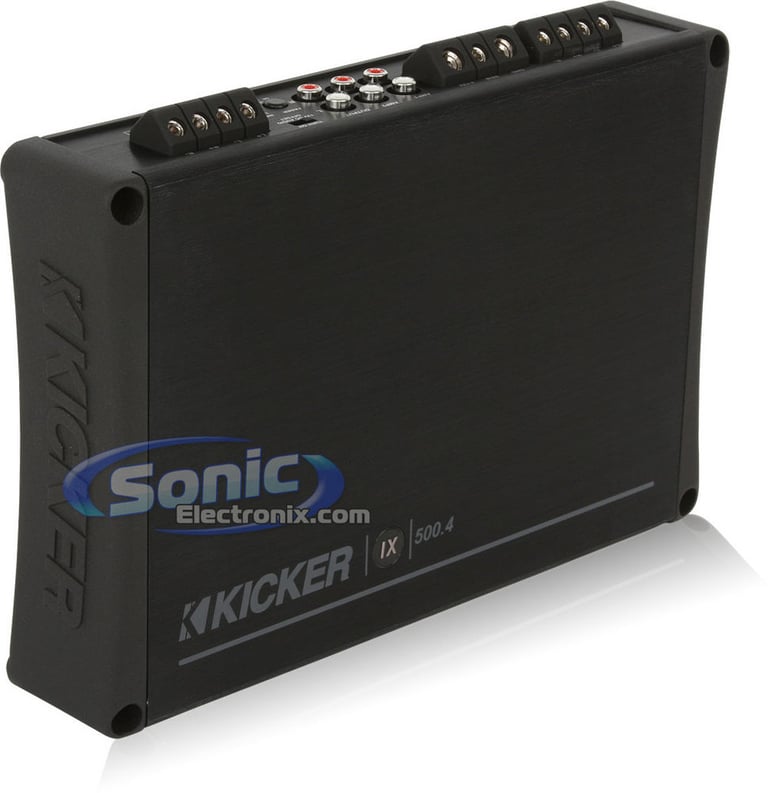

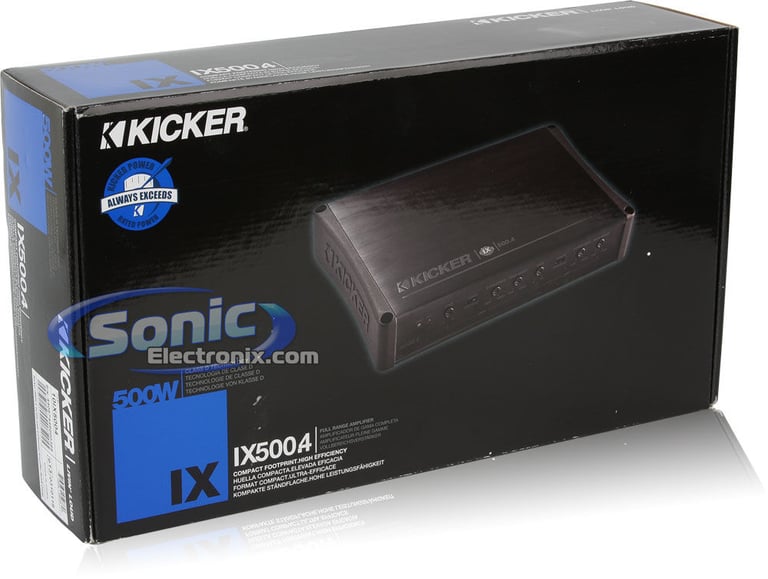

4-Channel Amplifier: Kicker IX500.4

• IX Series 4-Channel Class D Car Amplifier
• RMS Power Rating:
  • 4 ohm: 75 watts x 4 chan.
  • 2 ohm: 125 watts x 4 chan.
  • Bridged, 4 ohm: 250 watts x 2 chan.
• Total RMS power output: 500 watts
• Max Power output: 1000 Watts
• High-efficiency nonregulated MOSFET power supply
• LED power (blue) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
• Optional Kicker 10IXSM stacking mounts available for a clean install
• Optional vinyl skins for personalizing heat sinks available
• Super-small footprint for easy mounting, decreased weight, and increased cargo space
• 4/3/2 channel operation
• Preamp RCA outputs
• 5-Way System Protection circuitry (thermal, overload, speaker short protection, undervoltage, amd overvoltage)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity:
  • Low level: 125mV-5V
  • High level: 250mV-10V
• Built-in electronic crossover for variable high-pass filters, low-pass filters, and off (bypass)
• Variable high-pass filter (50-200 Hz, 12 dB/octave)
• Variable low-pass filter (50-200 Hz, 12 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response: 20-20,000 Hz
• Dimensions: 11-3/8"L x 7-7/8"W x 2-3/16"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

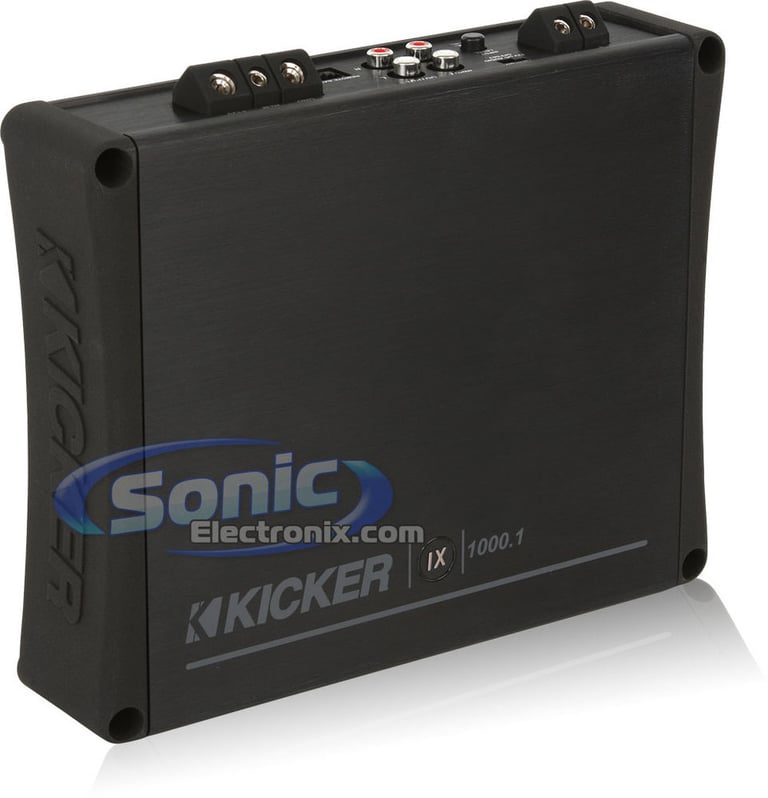

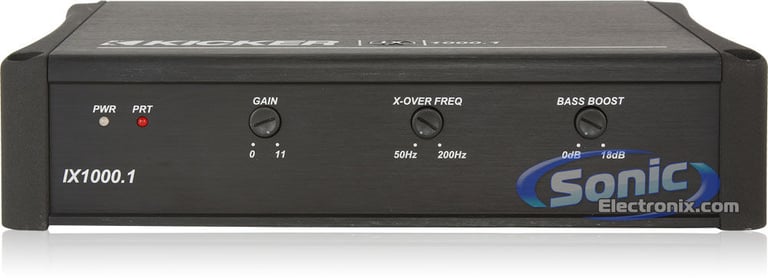

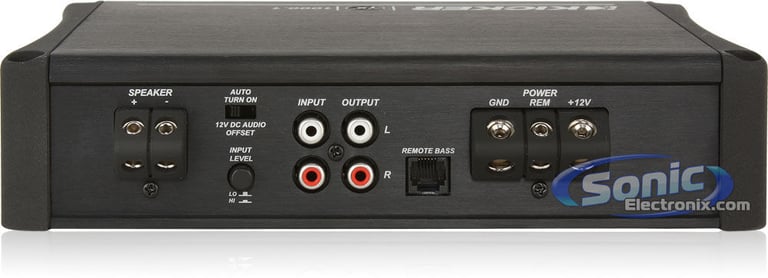

Monoblock Amplifier: Kicker IX1000.1

• IX Series Monoblock Class D Car Amplifier
• RMS Power Rating:
  • 4 ohm: 550 watts x 1 chan.
  • 2 ohm: 1000 watts x 1 chan.
• Max power output: 2000 watts
• High-efficiency regulated MOSFET power supply

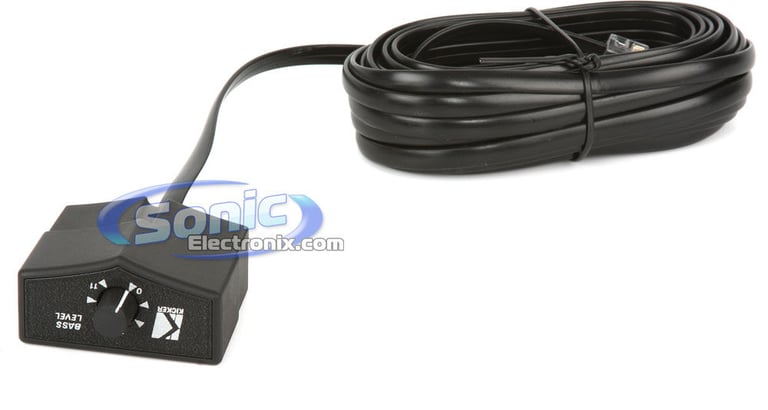

• Remote bass level input (remote level control sold separately)
• LED power (blue) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
• Optional Kicker 10IXSM stacking mounts available for a clean install
• Optional vinyl skins for personalizing heat sinks available
• Super-small footprint for easy mounting, decreased weight, and increased cargo space
• Mono channel operation
• Preamp RCA outputs
• 5-Way System Protection circuitry (thermal, overload, speaker short protection, undervoltage, and overvoltage)
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity:
  • Low level: 125mV-5V
  • High level: 250mV-10V
• Variable low-pass filter (50-200 Hz, 24 dB/octave)
• Fixed subsonic filter (24 dB at 25 Hz)
• CEA-2006 compliant amplifier
• Frequency response: 25-200 Hz
• Dimensions: 9-3/8"L x 7-7/8"W x 2-3/16"H
• 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

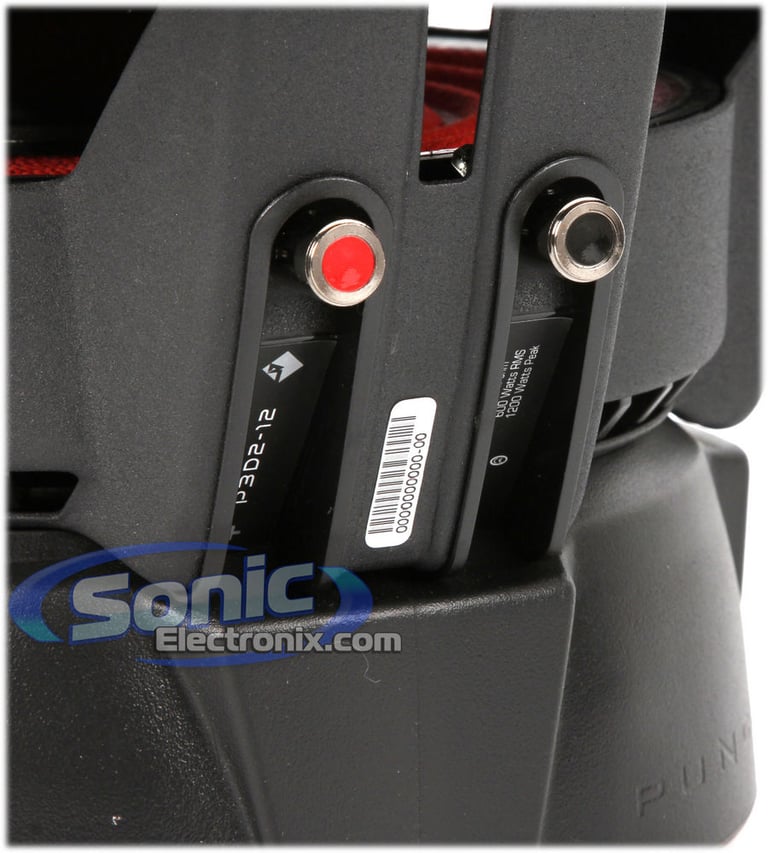

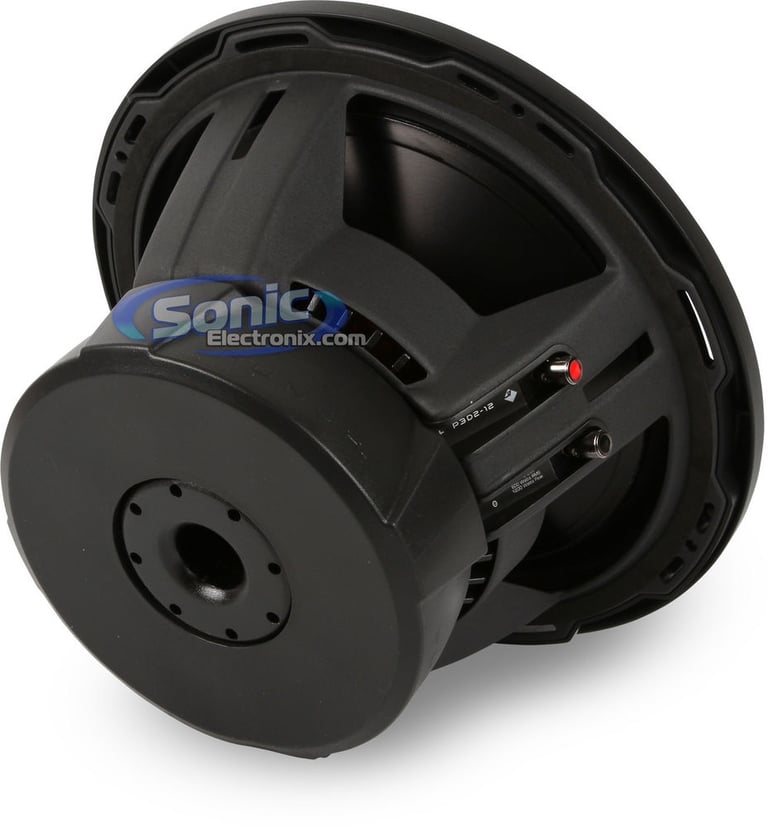

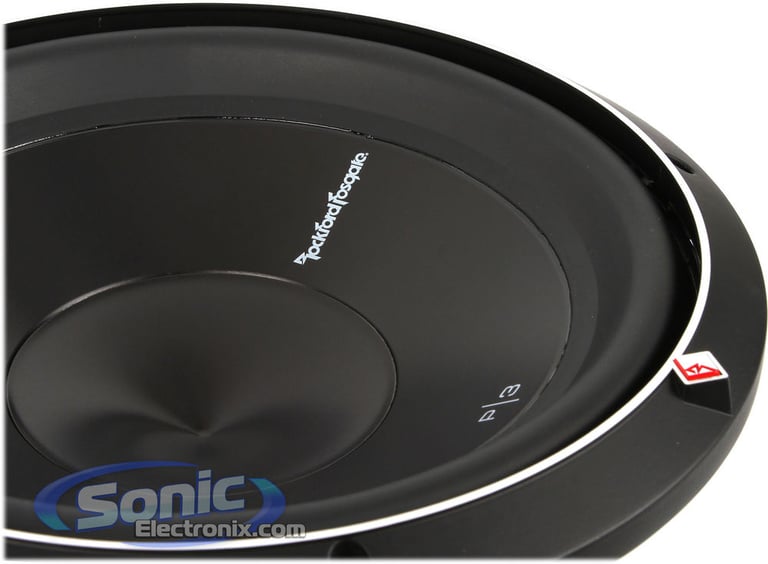

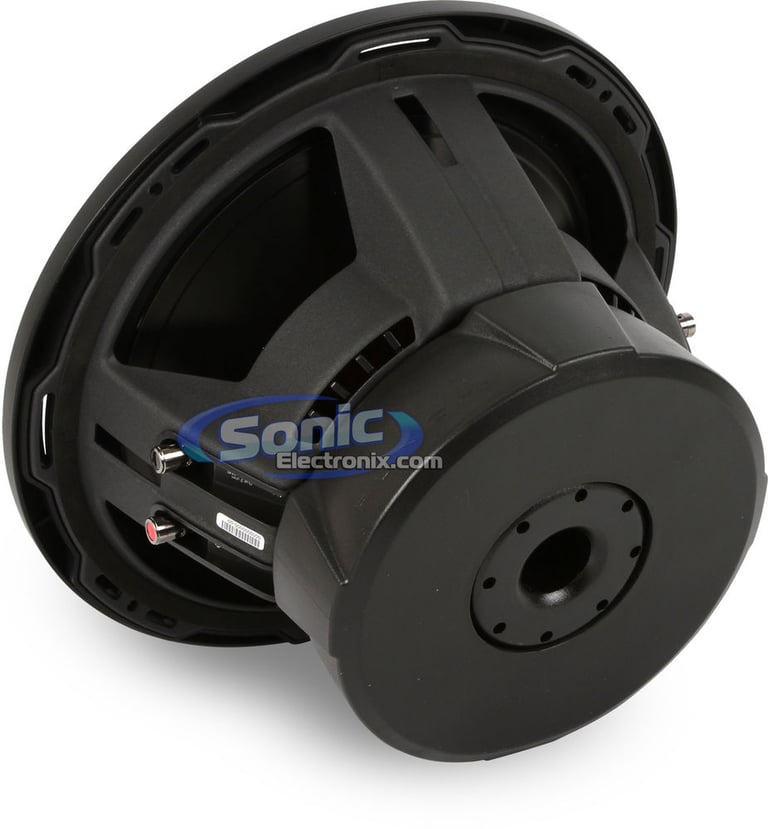

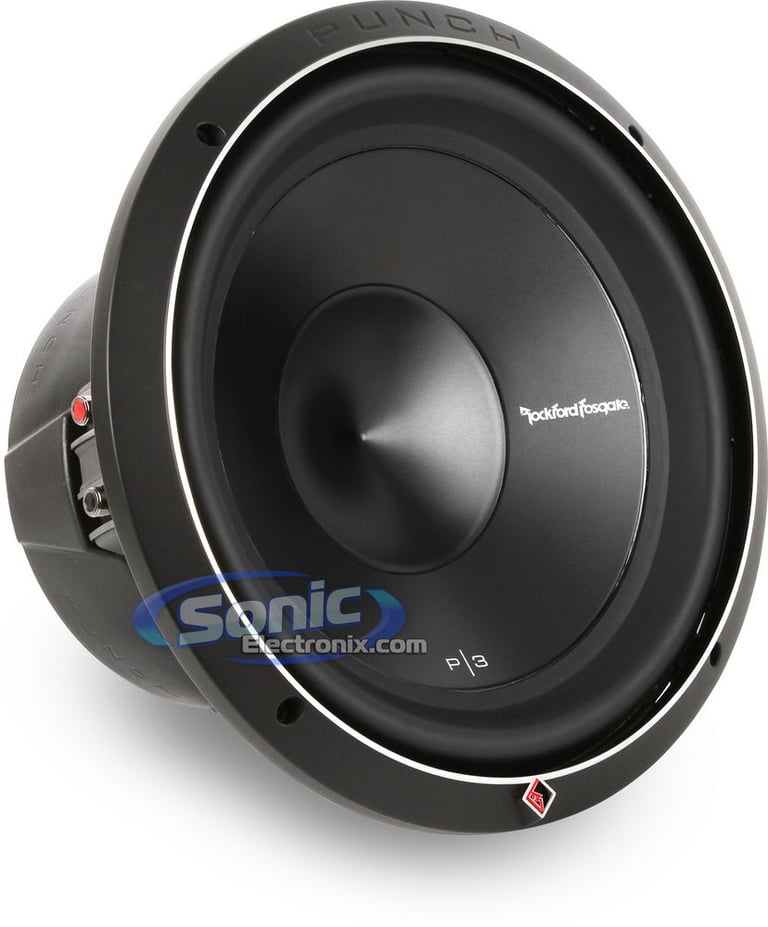

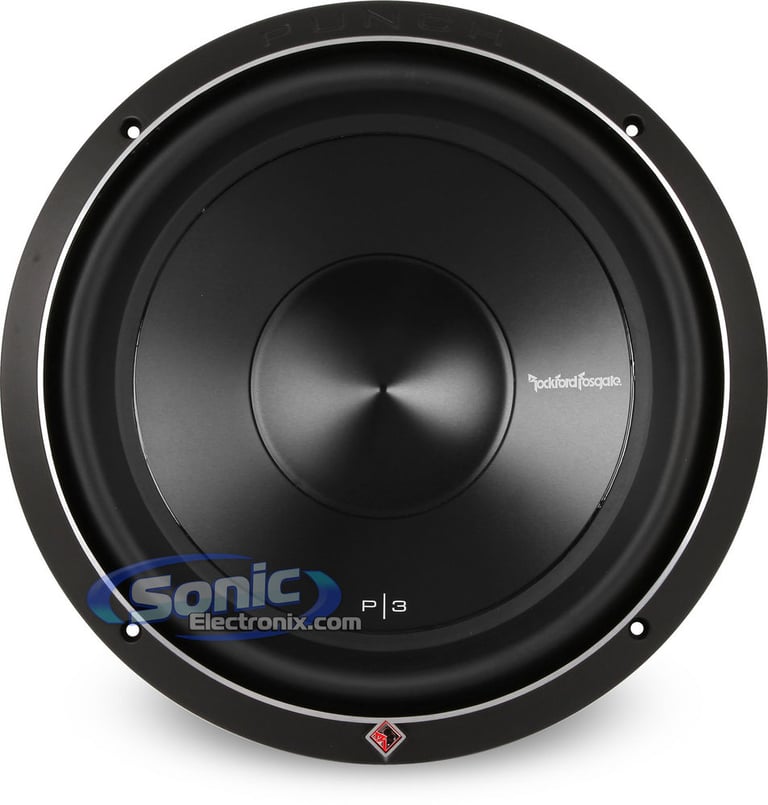

Subwoofers: Rockford Fosgate Punch P3D212

• Two 12" Dual 2 Ohm Rockford Fosgate Punch Series Subwoofers
• Power Handling:
• Peak: 1000 watts each
• RMS: 500 watts each
• Impedance: Dual 2 ohm
• Kevlar Fiber reinforced semi-pressed paper cone
• High excursion Poly-ether-ester surround
• ABS/Acrylic dustcap assembly
• Tear and fatigue resistant poly-cotton dual linear spider
• Embedded 16AWG tinsel leads
• Venturi-Effect cooling increases air speed across key thermal components of the speakers motor parts to maximize cooling
• Reverse mountable subwoofer with reversible diamond cut cast aluminum trim ring
• Tall profile surround allows maximum linear travel without reducing overall piston size
• Extended pole piece and bumped backplate
• 2.5" High temp 4-layer voice coil with spun-laced Nomex® reinforced collar
• Anodized aluminum voice coil former quickly dissipates thermal build-up on the voice coil
• 102 oz. double stacked ferrite magnets
• Protective PVC textured magnet cover
• Dual 10AWG compression speaker connectors
• Frequency response: 27-250 Hz
• Sensitivity: 85 dB
• CEA-2031 Compliant
• 1-year Sonic Electronix.com warranty

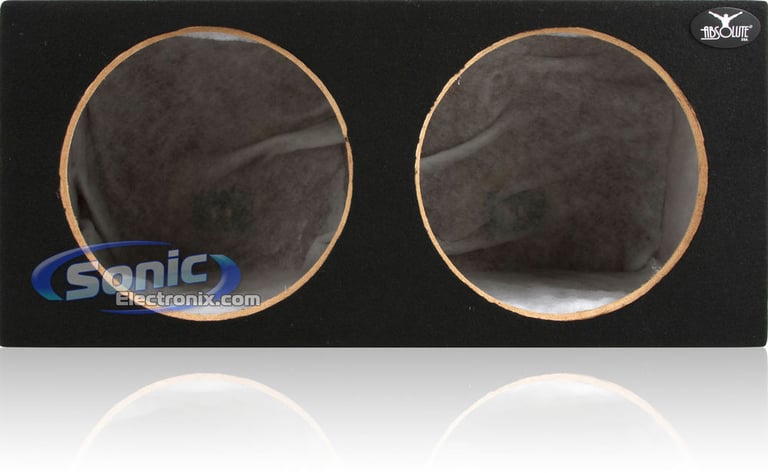

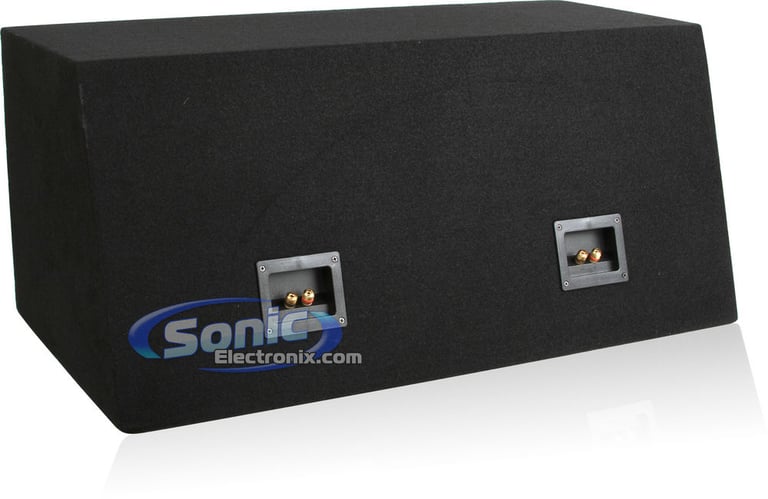

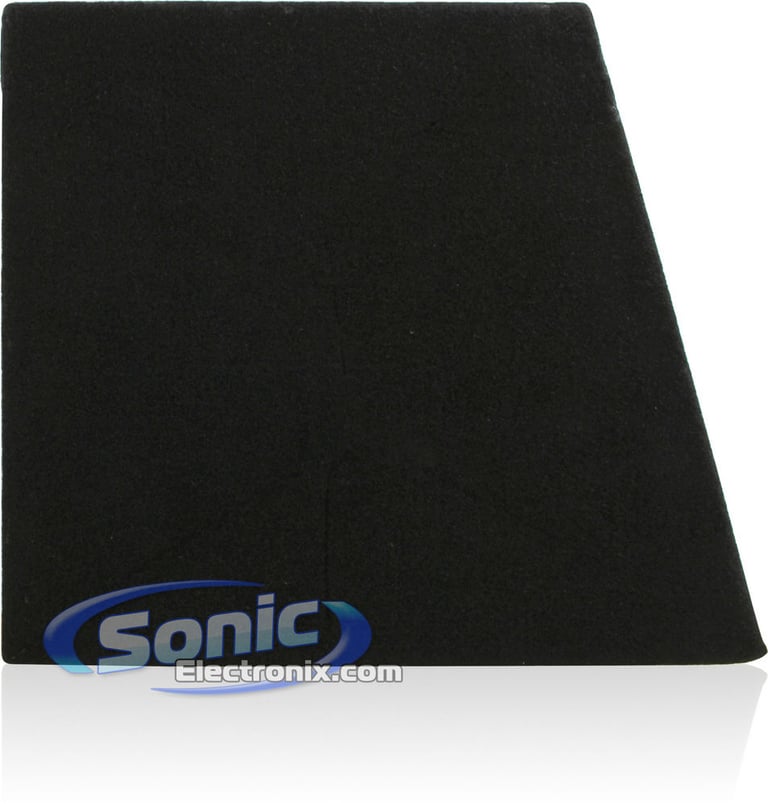

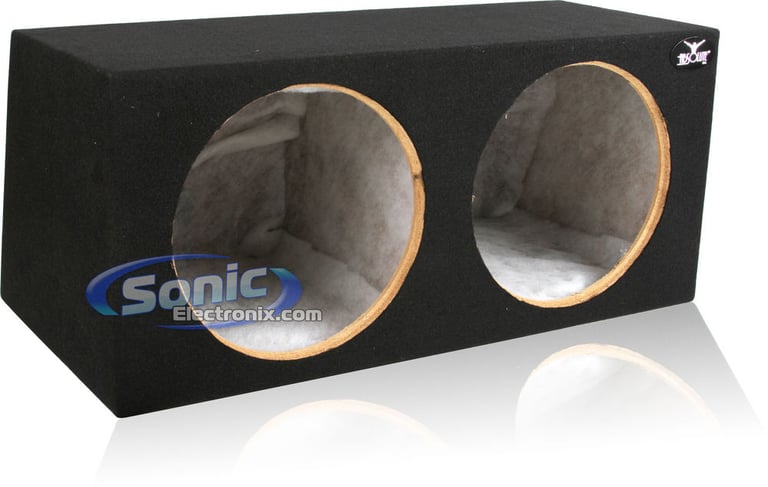

Enclosure: Absolute MDHF12

• 12" Dual Universal Sealed Enclosure
• Covered in black carpet for durability

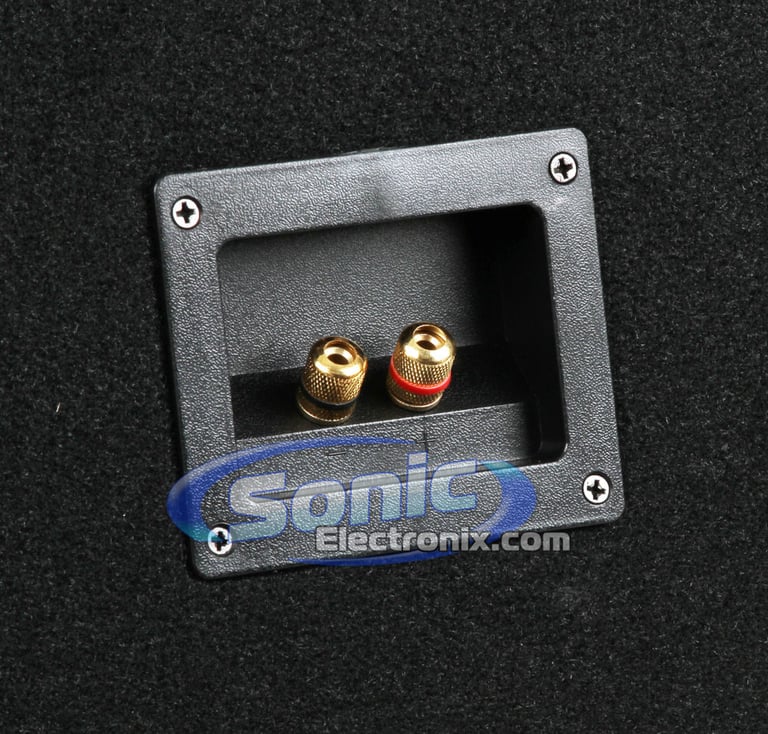

• Two sets of binding posts
• Banana clip ready for easy wiring
• Two sealed chambers gives each subwoofer its own air space
• Poly-fil lining for enhanced bass
• 3/4" MDF(Medium Density Fiberboard) construction
• Subwoofer mounting depth: 12-1/4"
• Subwoofer cutout diameter: 11-1/4"
• Box volume: 1.15 cubic feet (per chamber)
• Total box volume: 2.29 cubic feet
• Dimensions: 12"TD x 15-3/4"BD x 30"W x 13-1/2"H
• Authorized Internet Dealer

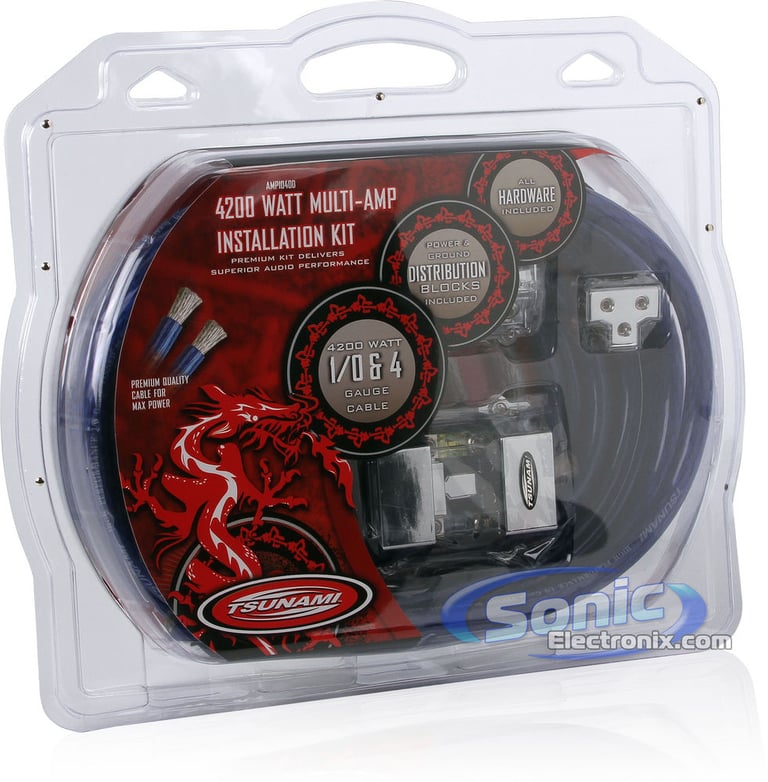

Amplifier Kit: Tsunami AMP1040D

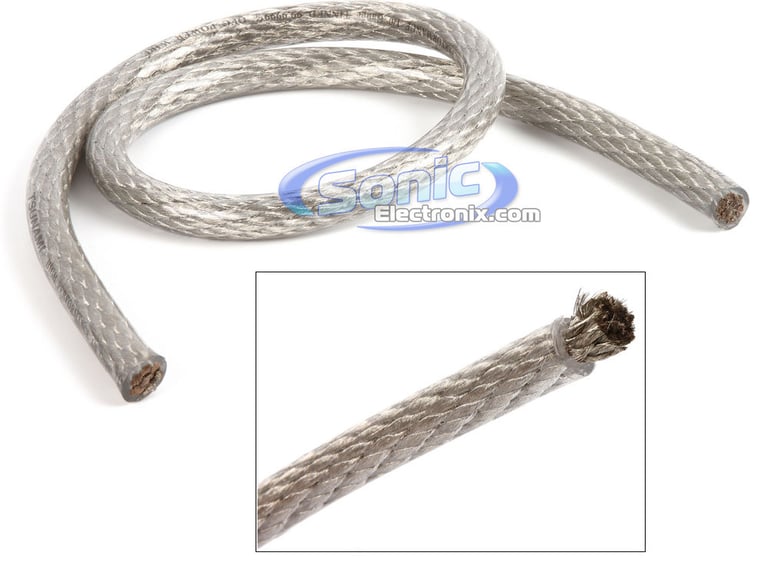

• 1/0 and 4 Gauge Power Amplifier Installation Kit
• Includes all the accessories required for the installation of two amplifiers
• Designed specifically for car audio systems up to 4200 watts
• Premium power and ground wire provides optimal power transfer
• Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
• Terminals are Nickel-plated for excellent signal transfer
• ANL Fuse holder offers ideal protection for high-powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

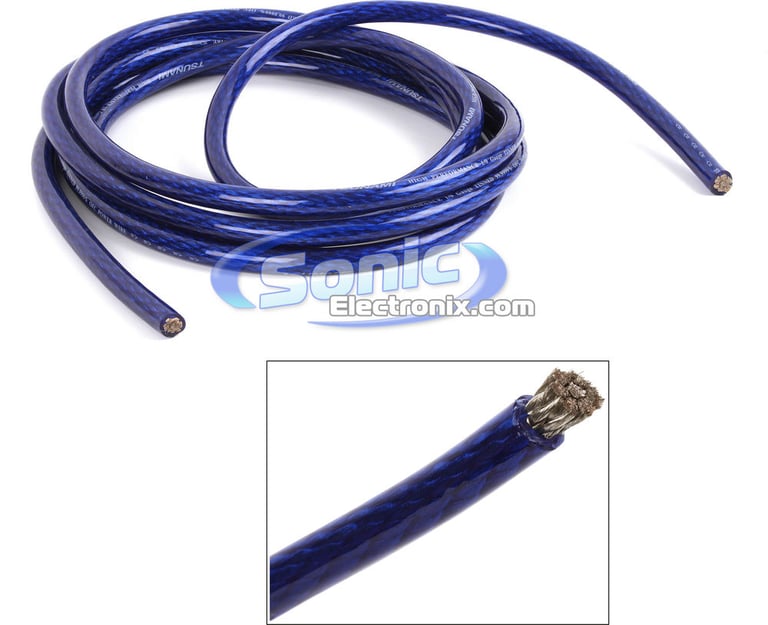

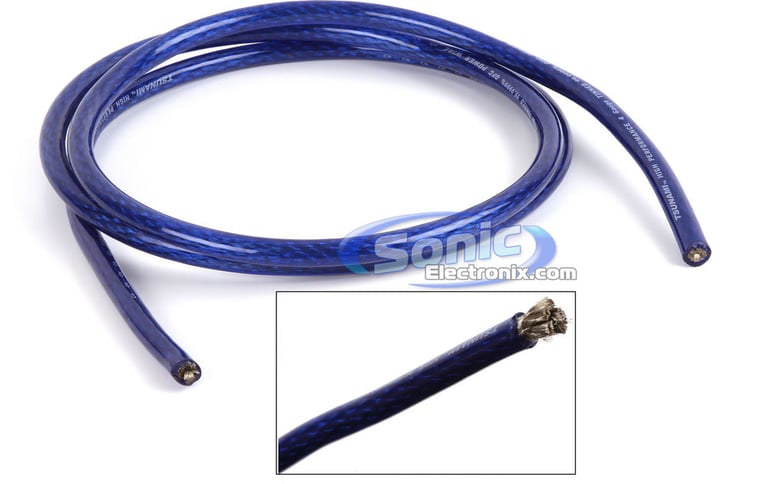

1. 17 ft. of 1/0 AWG Blue power cable

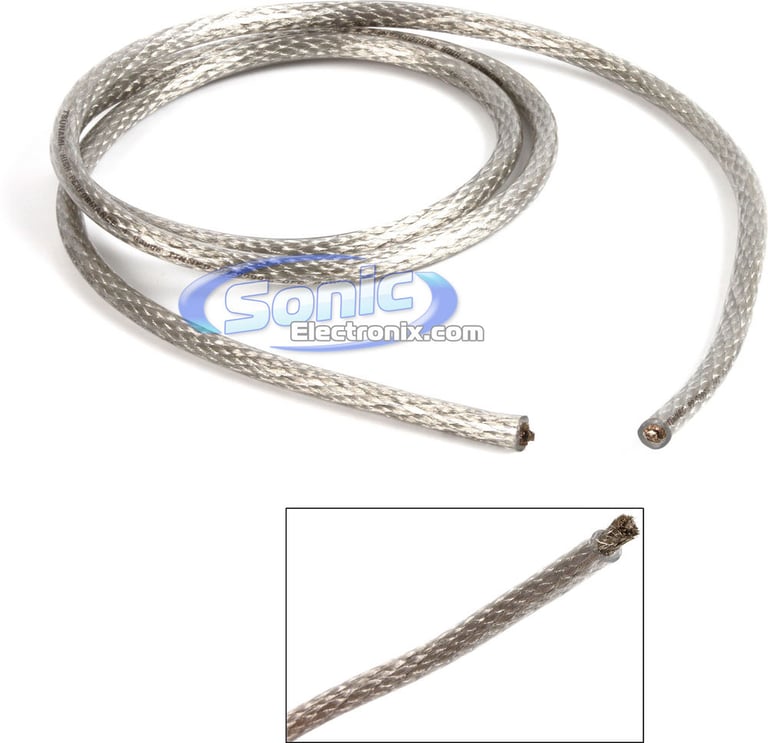

2. 3 ft. of 1/0 AWG Silver ground cable
3. 6 ft. of 4 AWG Blue power cable
4. 6 ft. of 4 AWG Silver ground cable

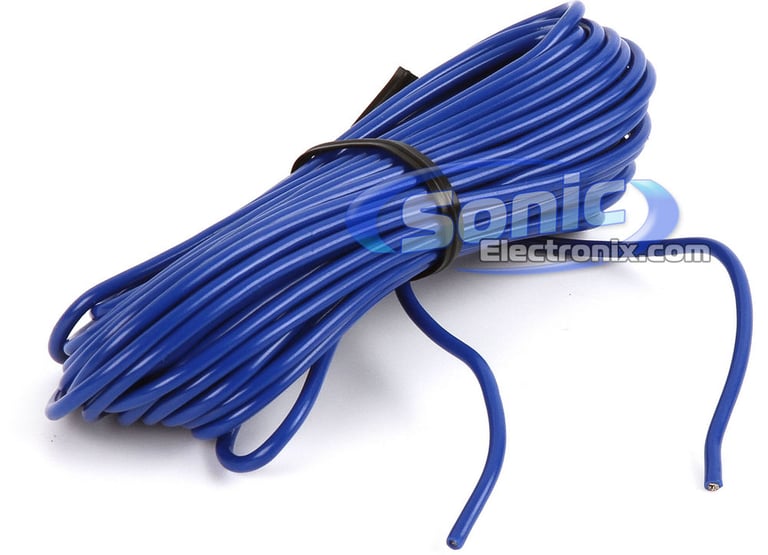

5. 17 ft. of 18 AWG Blue remote turn-on wire

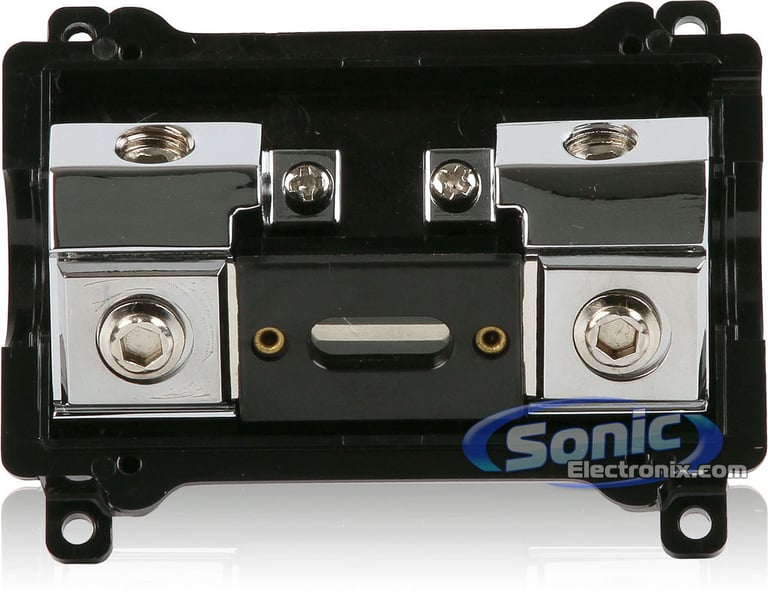

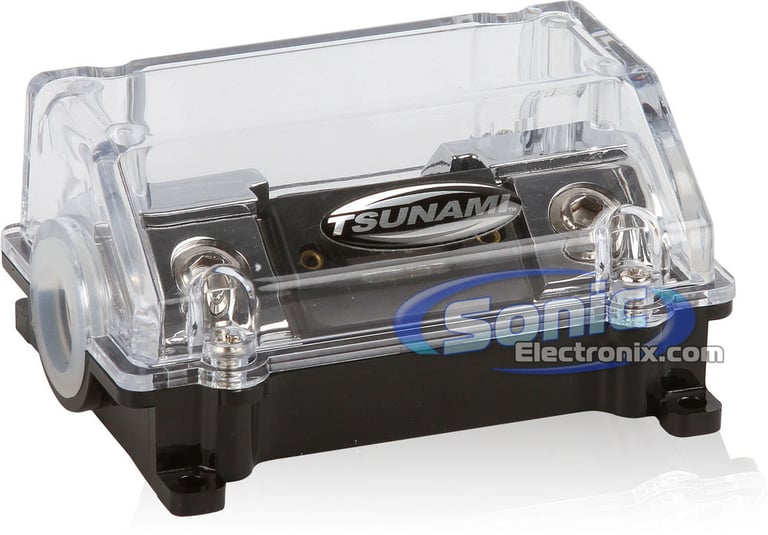

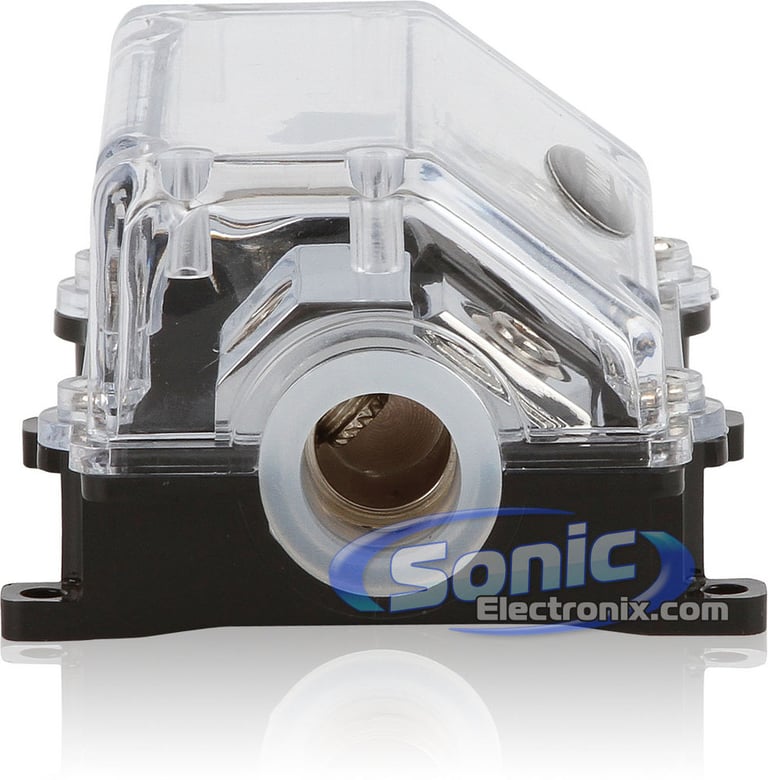

6. 1/0 AWG In-line ANL fuseholder
7. 350 Amp ANL fuse

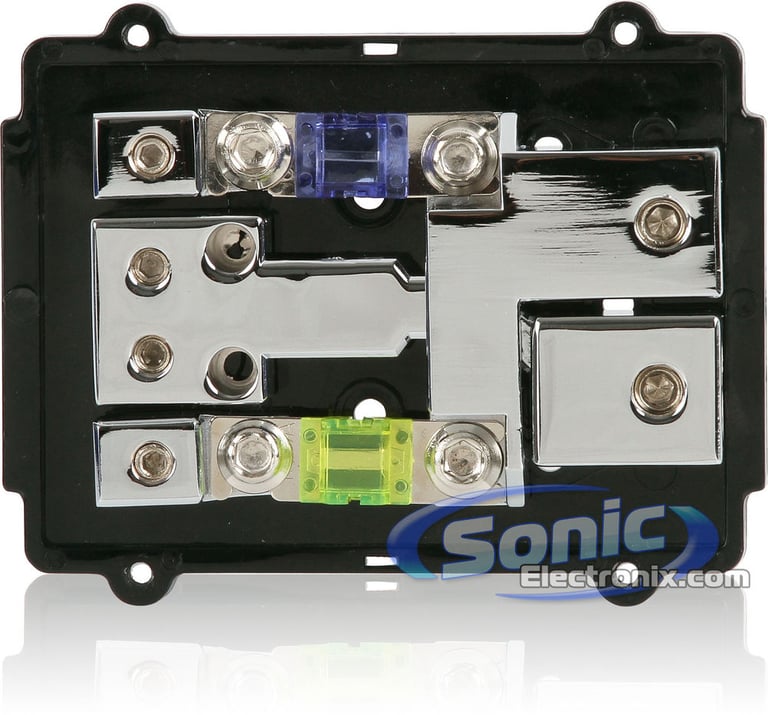

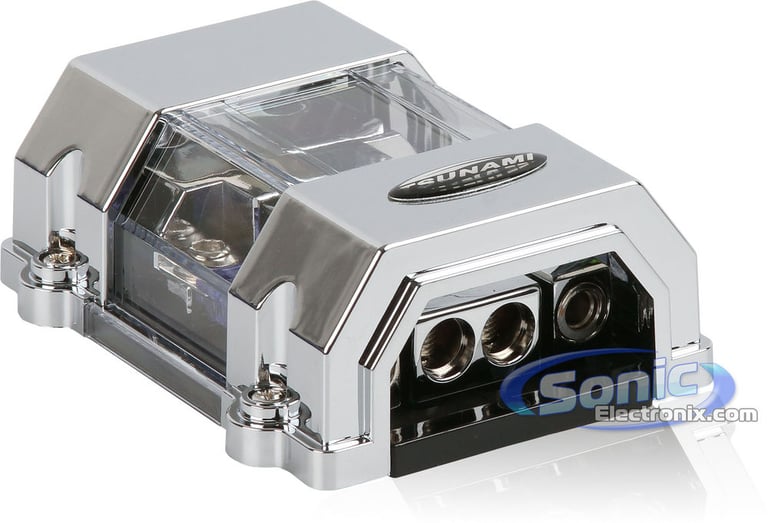

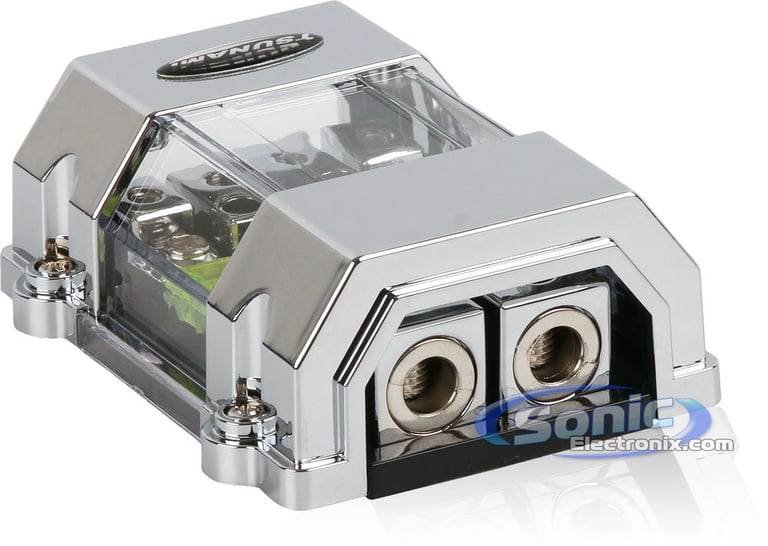

8. Tsunami V10PG2-MANL

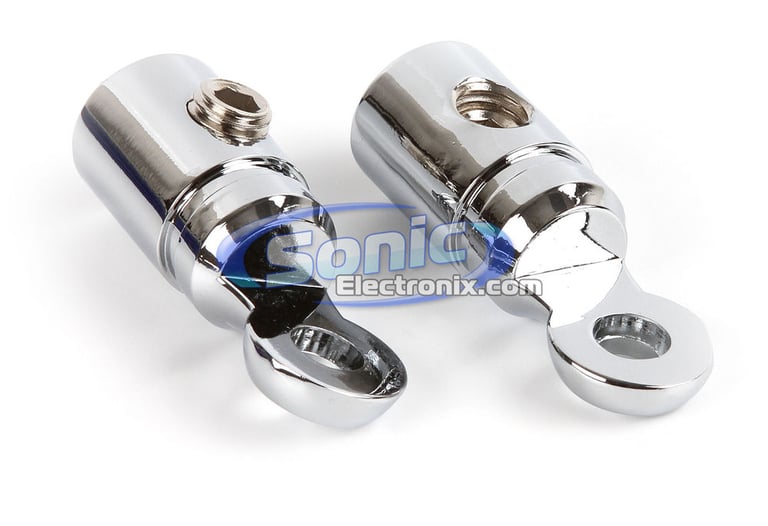

9. 1 GT910 Nickel-plated ground terminal with Lok-Nut
10. 1 GT810P Nickel-plated ring terminal with Lok-Nut
11. 6 ft. 3/4" Split Loom tubing

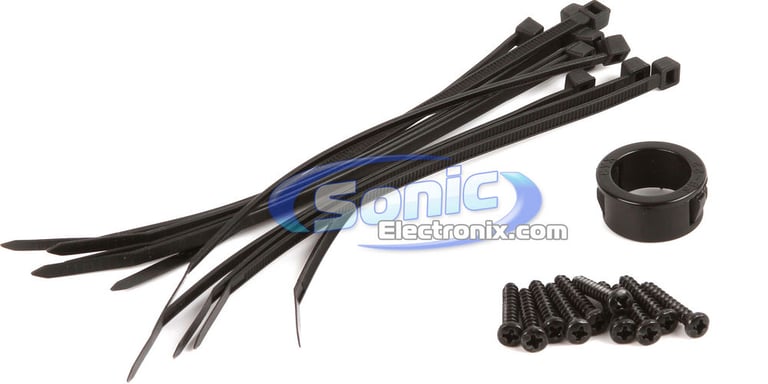

12. Ten 6" Vinyl cable ties
13. Six 8 x 3/4” Phillips nickel-plated panhead screws
14. Two blue vinyl butt connectors
15. Two red vinyl 10 spade terminals
16. One 1/0 gauge snap grommets
17. One spare 60A mini-ANL fuse
18. One spare 100A mini-ANL fuse
19. One spare 350A mini-ANL fuse

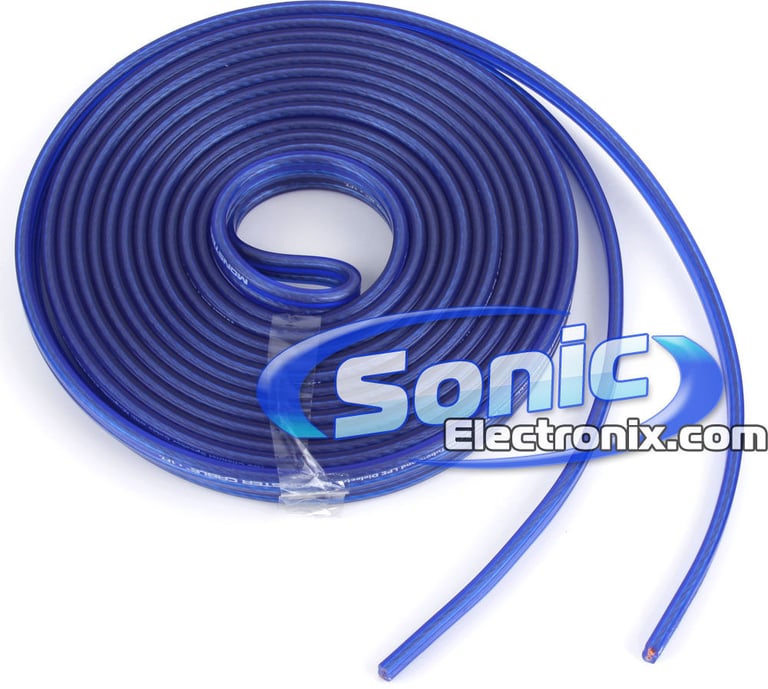

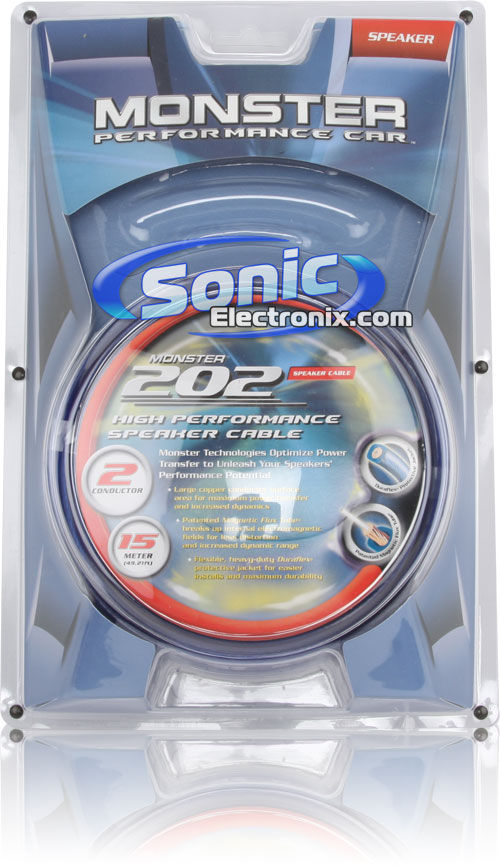

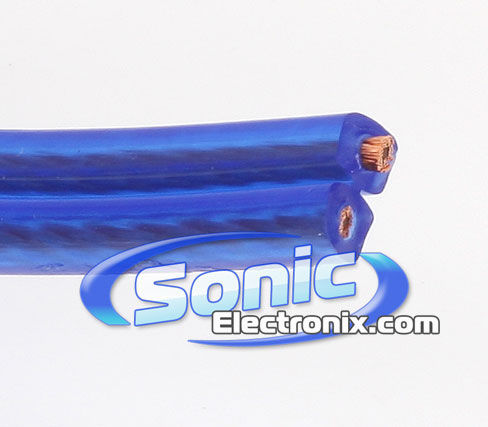

Speaker Wire: Monster Cable MPC S202

• Monster 202 LN Series 2-Conductor Speaker Cable
• High performance speaker cable/li>
• Monster technologies optimize power transfer to unleash your speakers performance potential
• Large copper conductor surface area for maximum power transfer and increased dynamics
• Patented Magnetic Flux Tube breaks up internal electromagnetic fields for less distortion and increased dynamic range
• Flexible, heavy-duty Duraflex protective jacket for easier installs and maximum durability
• Ultra-flat profile for a clean and neat installation
• Length: 50 ft. (15.24 meters)
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

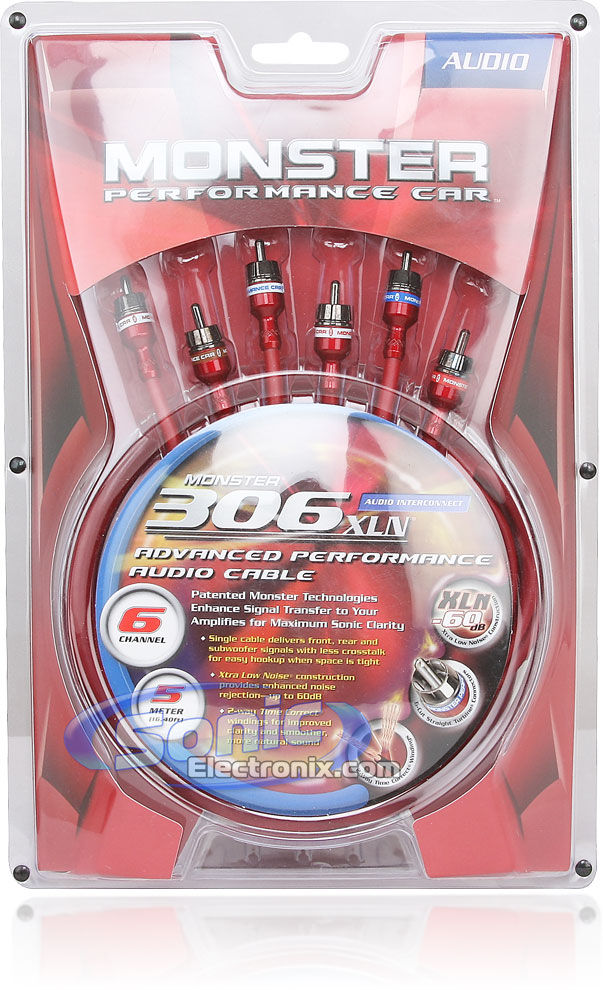

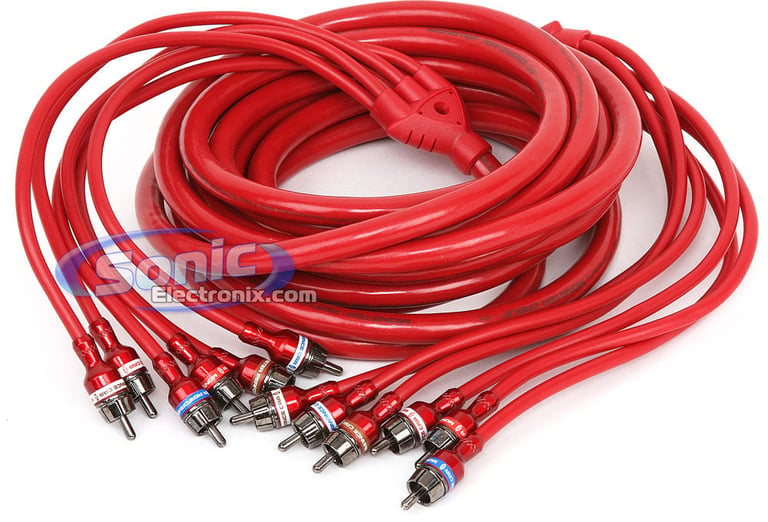

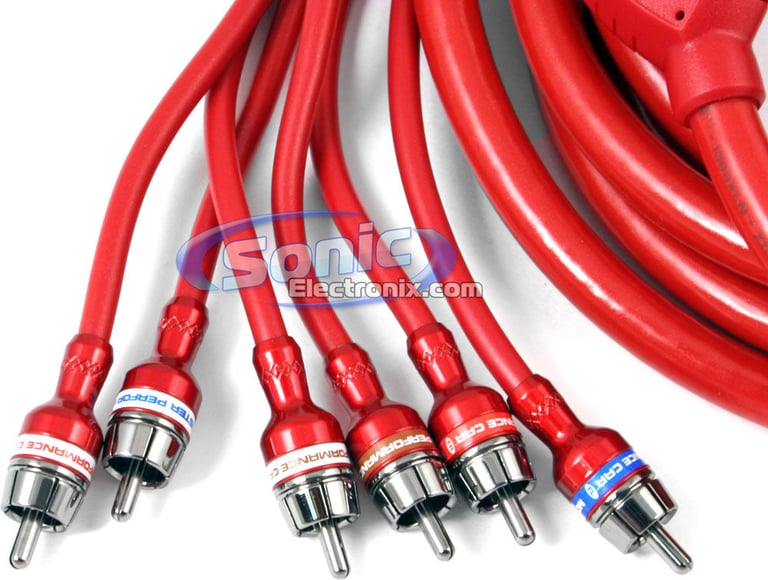

RCA Interconnect Cables: Monster Cable MPC I306

• 6-channel, 16.654 ft. of Monster cable standard car audio interconnect RCA cables
• Maintains an efficient signal transfer
• Delivers front, rear, and subwoofer signals through a single cable for easy installation
• 2-way Time Correct® windings separate high and low frequency networks
• Xtra Low Noise® construction provides advanced noise rejection
• 1-year Manufacturer's Warranty

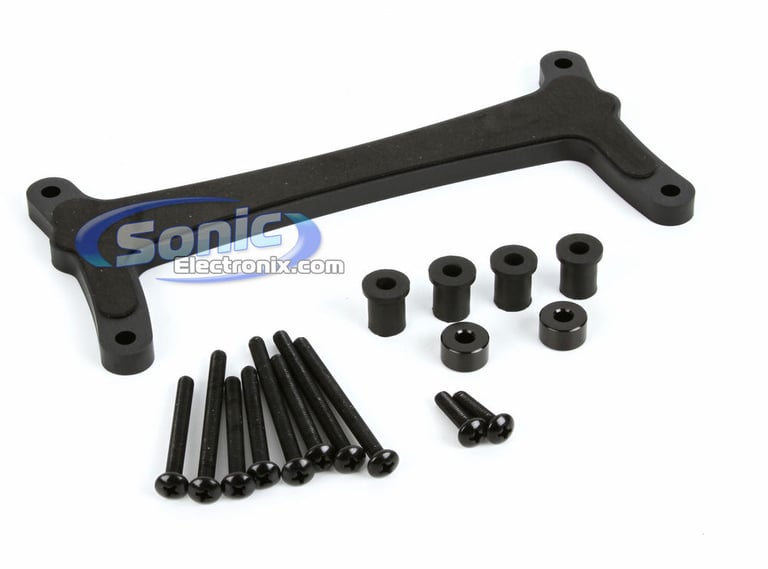

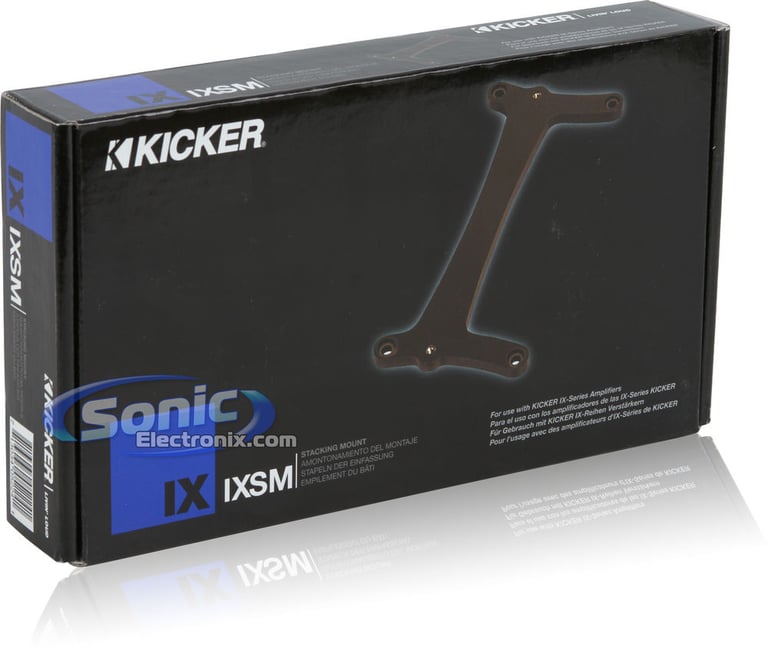

Amplifier Stacking Mount: Kicker IXSM

• Amplifier Stacking Mount for the Kicker IX-Series Amplifiers
• Allows the Kicker IX amplifiers to be stacked on top of each other
• Provides a clean installation of multiple amps
• Universally designed to fit all three models of the IX amplifier series
• Multiple stacking kits can be purchased to accommodates as many IX amps as you need
• Solid and secure mounting
• Designed to match the aesthetics of the IX Series
• Designed to work with the following models:
  • Kicker IX500.4
  • Kicker IX500.1
  • Kicker IX1000.1
