1200W Complete Infinity Reference + RE Audio Bass Package

Infinity Reference 1600A Amplifier + RE Audio SEX12D4 12" Subwoofer + 4GA Amp Kit + Sealed Enclosure

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: Infinity 1600A Monoblock Amplifier + RE Audio SEX12D4 12" Subwoofer + Raptor 4 Gauge Amp Kit + 12" Single Sealed Subwoofer Enclosure • Includes Everything You Need To Add Bass To Your Car

Learn more about the 1600a_sex12d4

We apologize

This item has been discontinued


Loading...
H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Product Highlights


Bass Package: Infinity 1600A Monoblock Amplifier + RE Audio SEX12D4 12" Subwoofer + Raptor 4 Gauge Amp Kit + 12" Single Sealed Subwoofer Enclosure • Includes Everything You Need To Add Bass To Your Car

Description


RE Audio brand icon

Authorized dealer

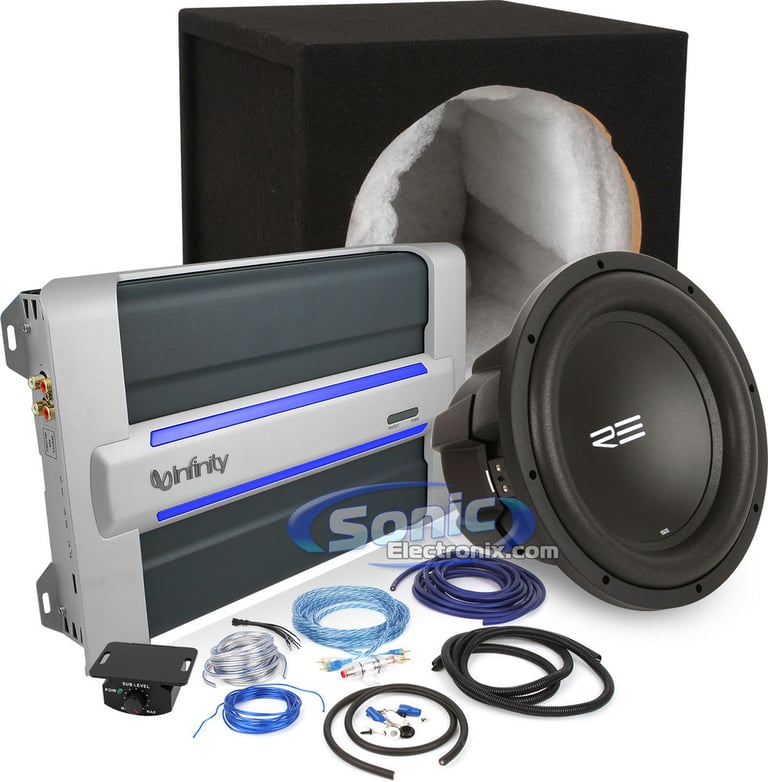

Sonic Electronix Exclusive Bass Package

This combo package includes one RE Audio SE-X Series 12" Subwoofer and a Infinity Reference Series Class D Amplifier. This monoblock amplifier is a perfect match for the 12" subwoofer when wired at 2 ohms. The RE Audio subwoofer features a dual composite 2-piece cone with rubatek foam surround and a wrap around rubber gasket. The amplifier is a CEA-2006 compliant amp so you can be assured that the power ratings are accurate and not beefed up for marketing purposes. This exclusive package also includes a sealed 12" pre-lined poly-fil enclosure and a Raptor 4 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

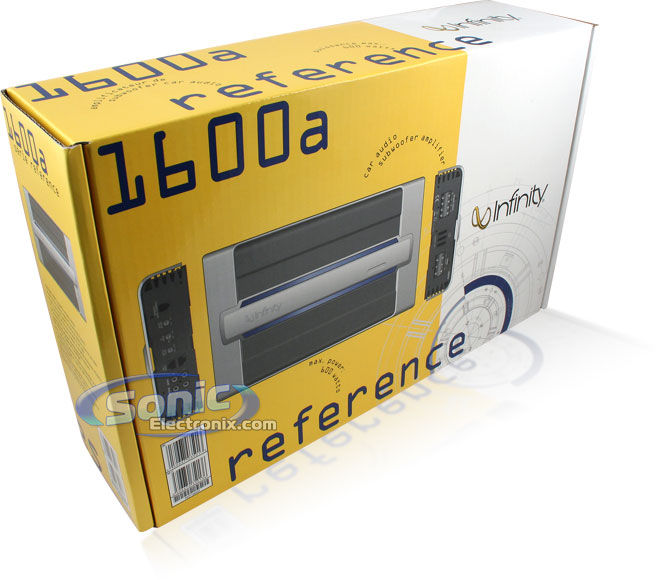

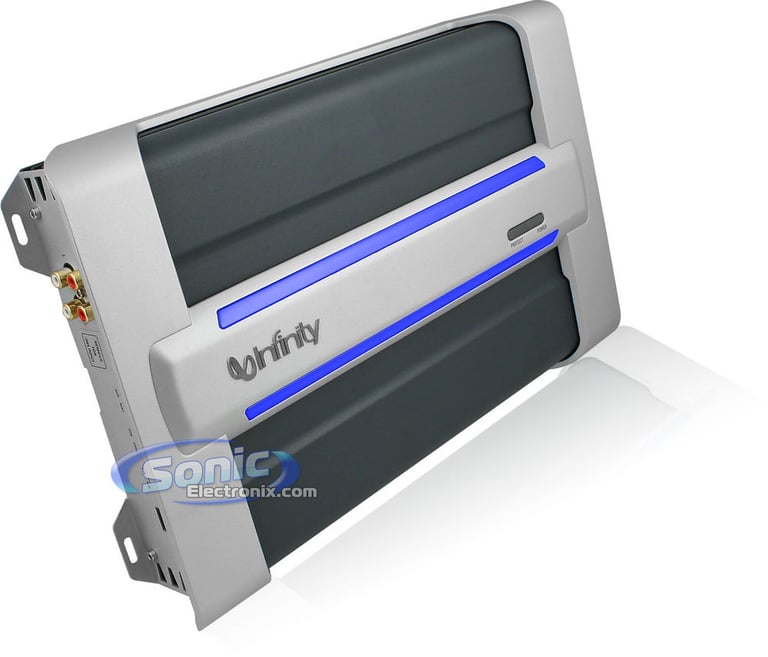

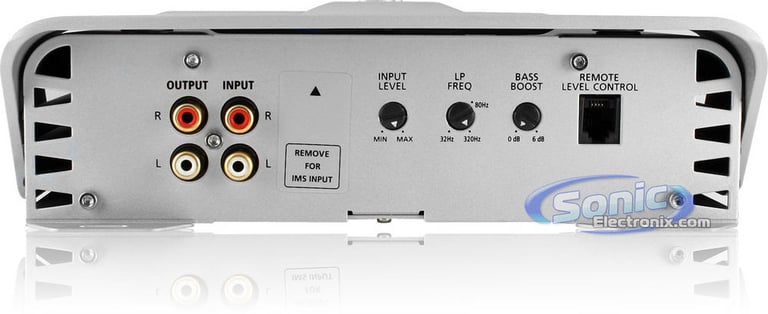

Infinity Amplifier Features
  • Reference Series Class D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • Max Power Output: 894 watts x 1 chan.
  • MOSFET power supply
  • LED power and protection indicators
  • Tuned Bass EQ (0-6 dB bass boost at 50 Hz)
  • IMS inputs allows connection to other Infinity expansion products
  • Gold-plated preamp RCA outputs
  • DC, overheat, over or under voltage, and short circuit amplifier protection
  • Gold-plated RCA level inputs
  • Variable low-pass filter (32-320 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 11-330 Hz
  • Efficiency: 80 dB
  • Dimensions: 14-3/16"L x 9"W x 2-11/16H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

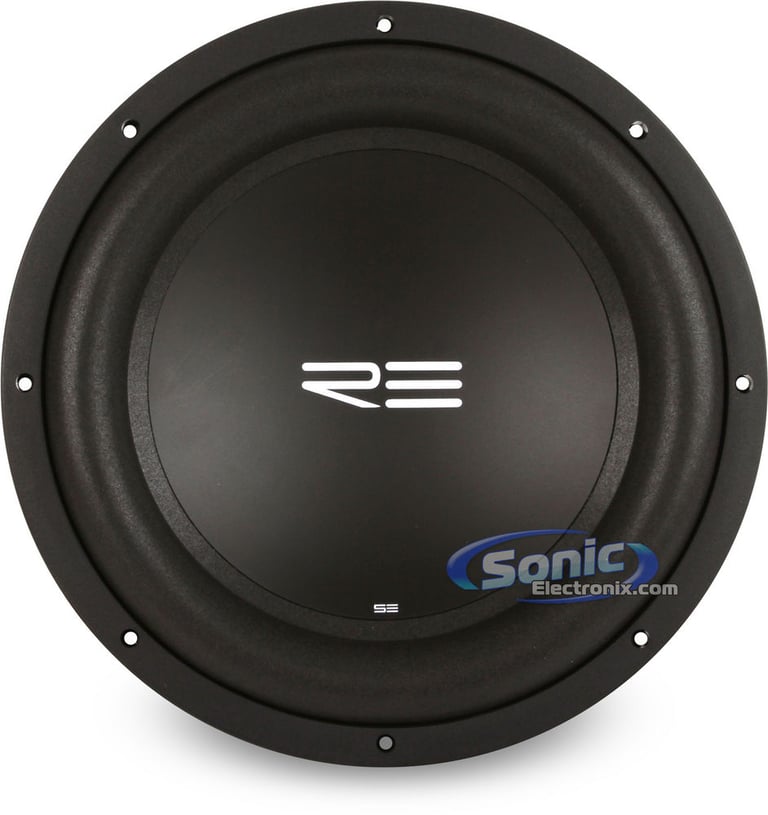

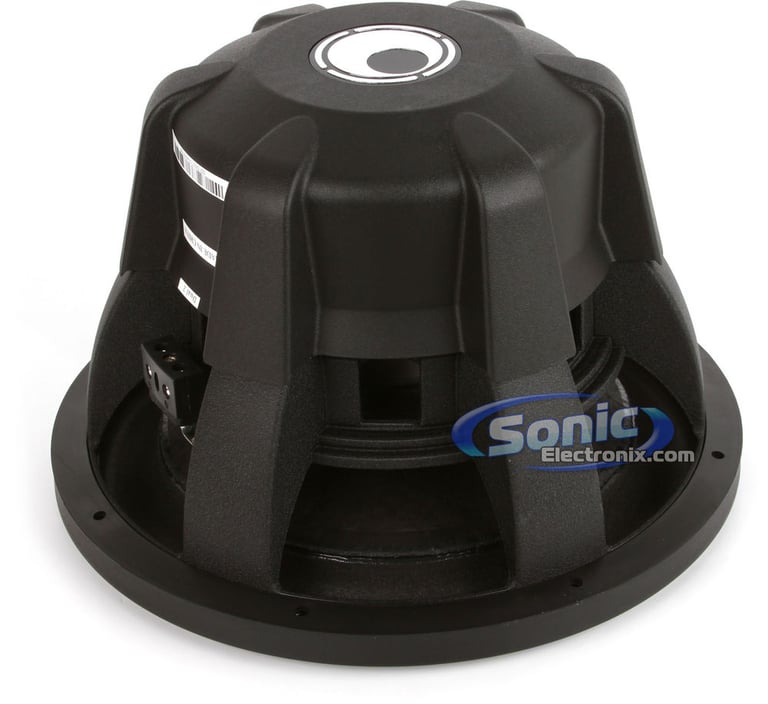

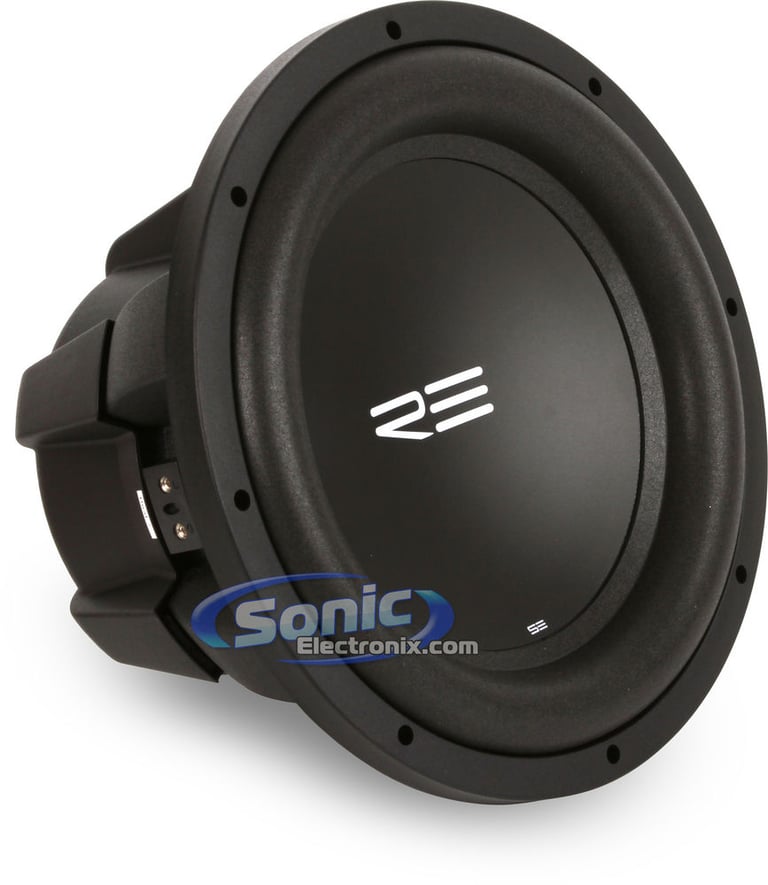

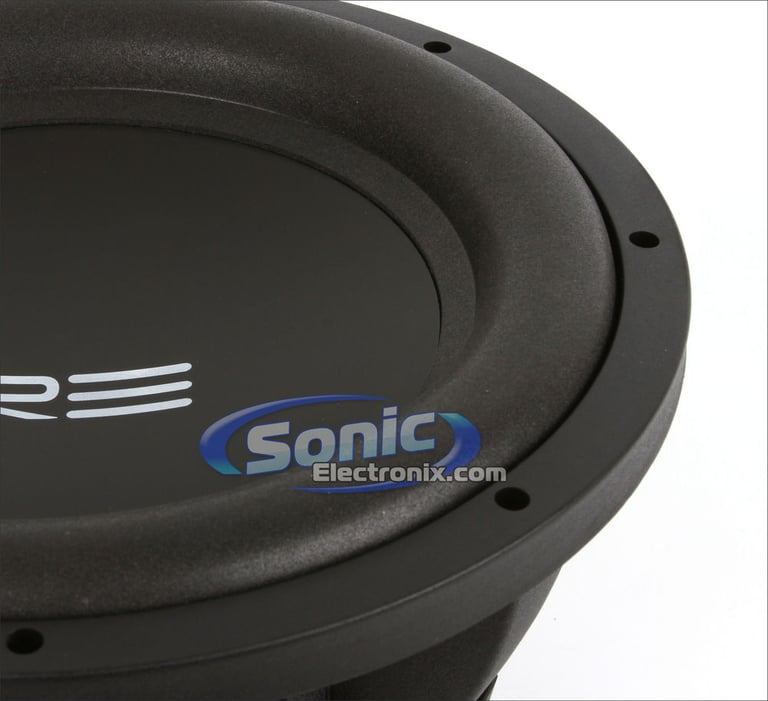

RE Audio Subwoofer Features
  • 12" Dual 4 ohm SEX Series Car Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

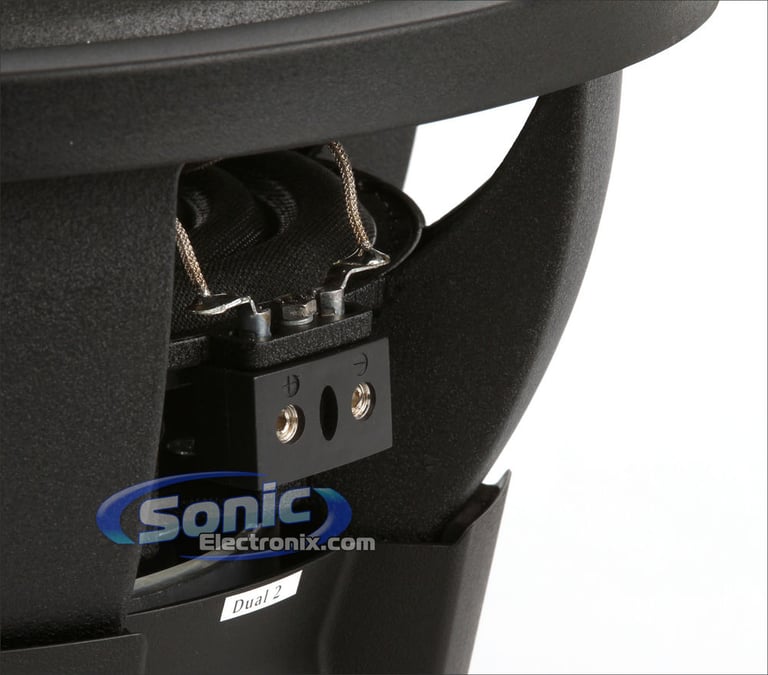

  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Triple stacked magnets
  • Also available in a Dual 2 ohm: RE Audio SEX12D2
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

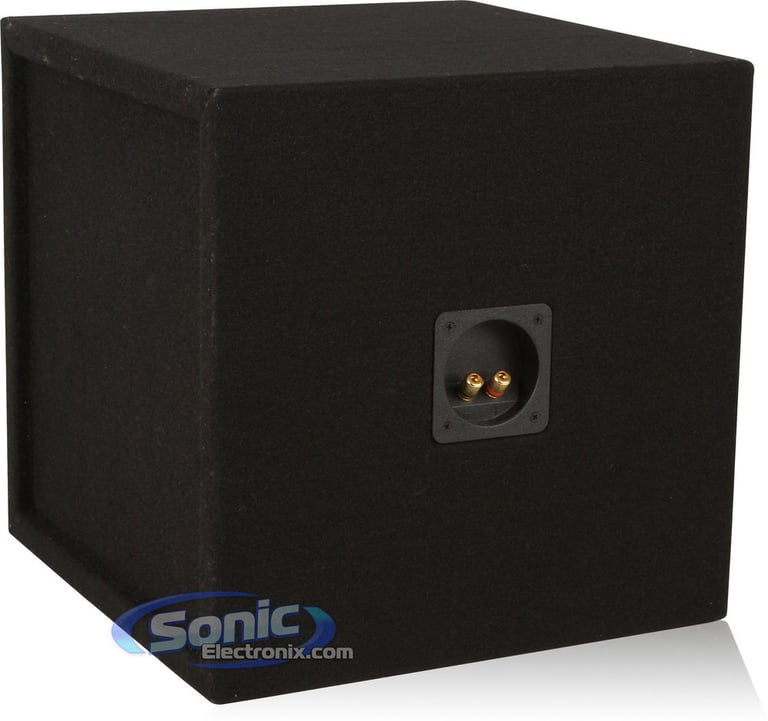

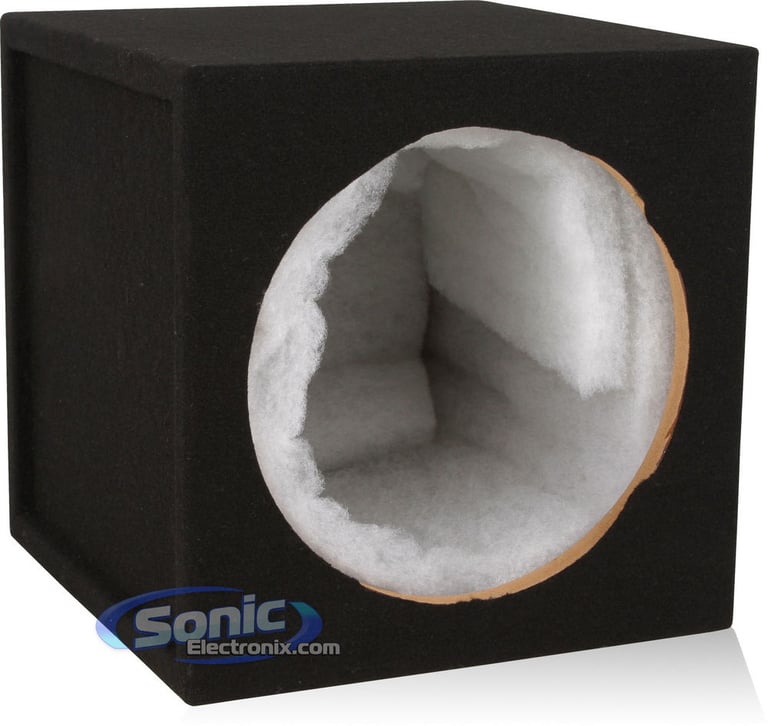

Enclosure Features
  • 12" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet

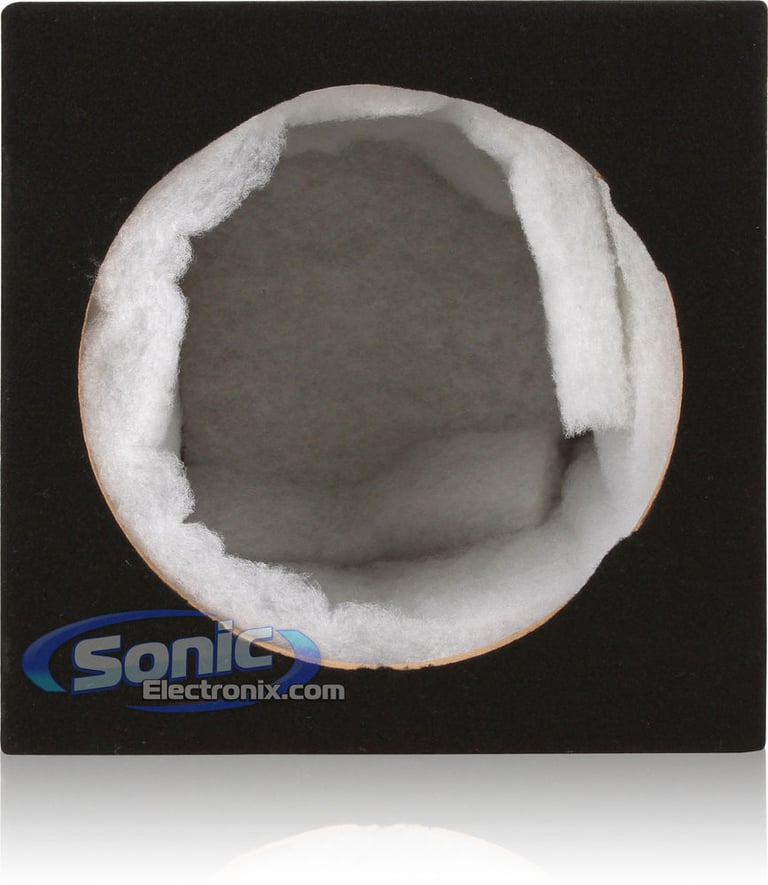

  • Pre-lined with Poly-Fil

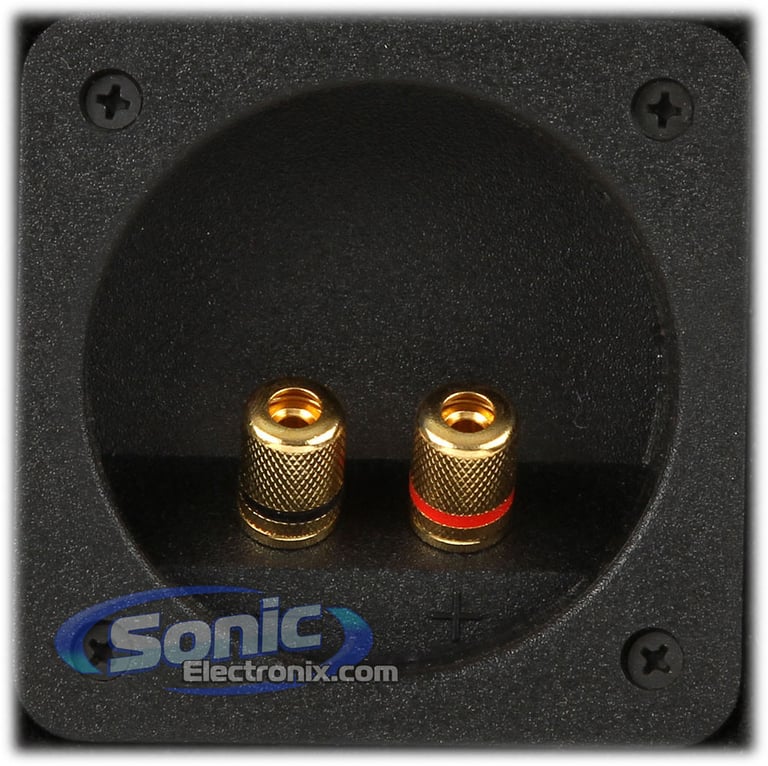

  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.0 cubic feet (per chamber)
  • Total box volume: 1.0 cubic feet
  • Dimensions: 14"D x 14"W x 14"H

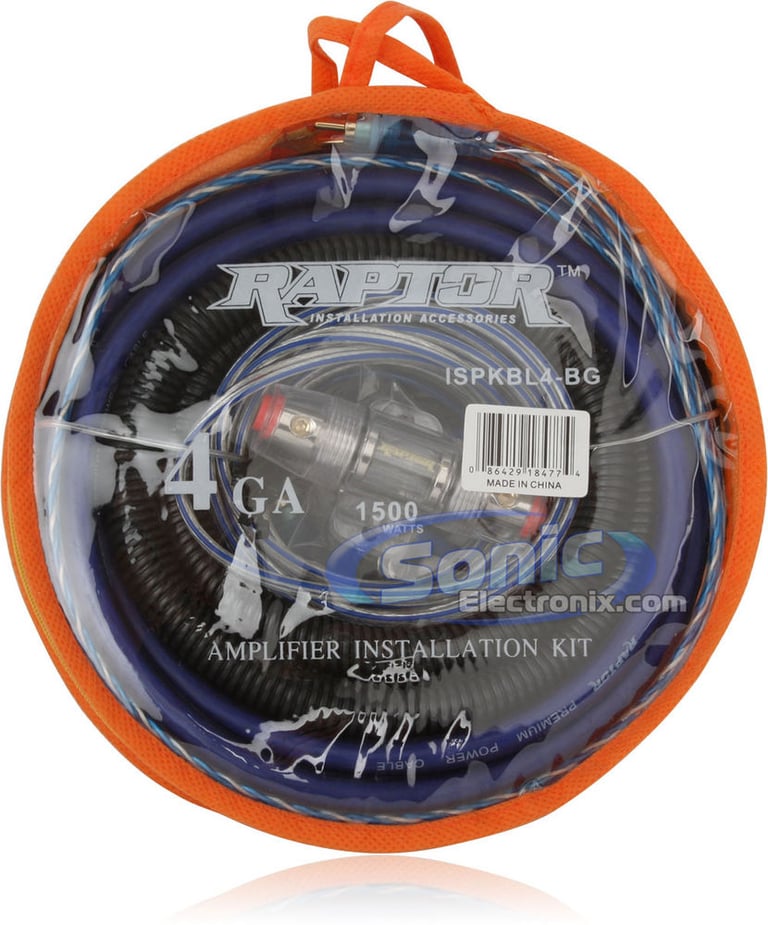

Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable

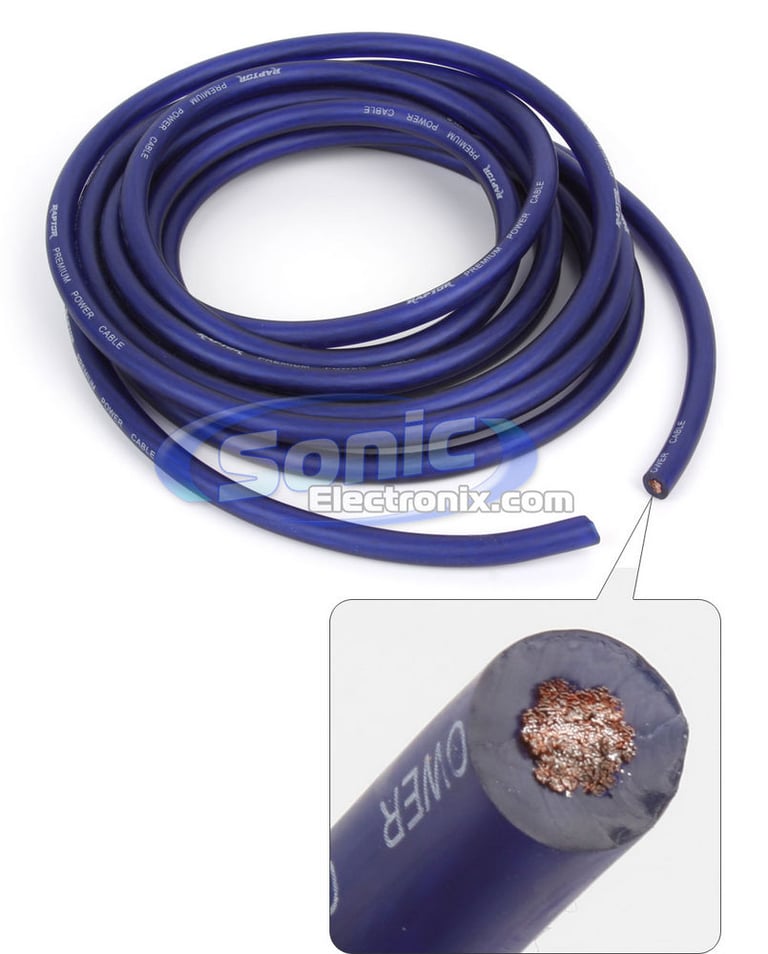

  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference

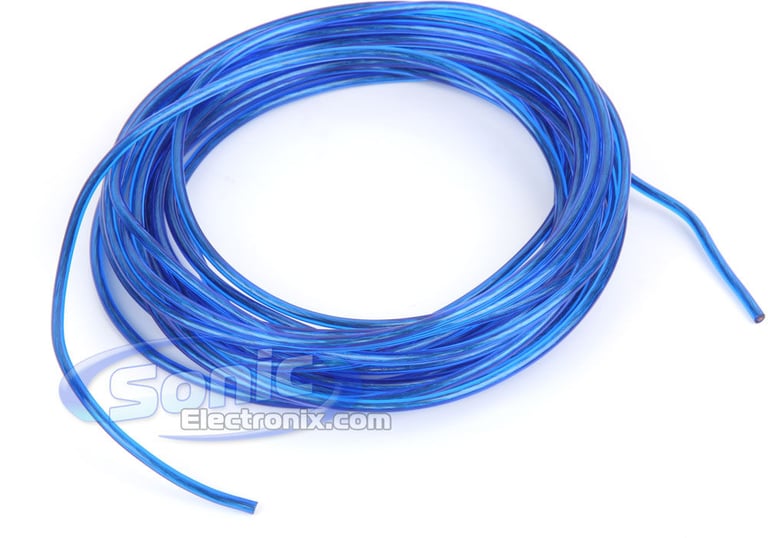

  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:
  1. 17 ft. of 4 Gauge blue power cable

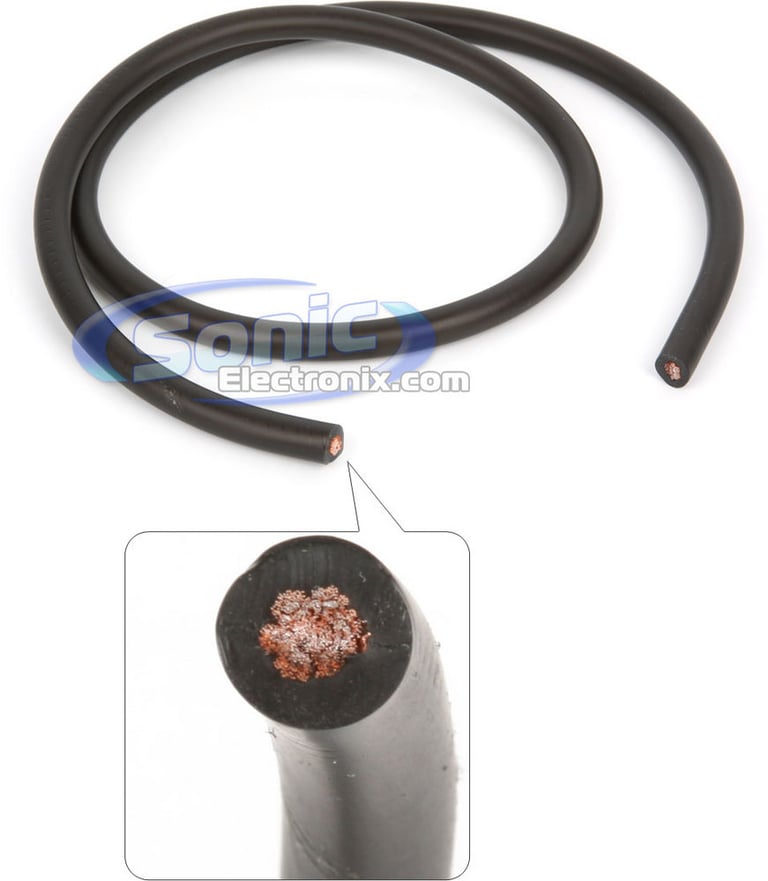

  2. 3 ft. 4 Gauge black ground cable

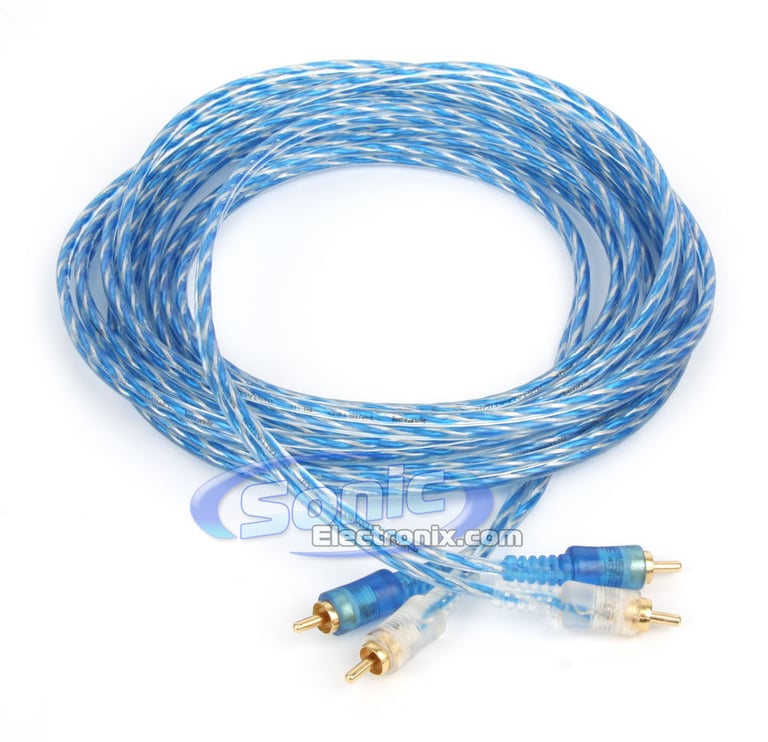

  3. 17 ft. Neon blue series RCA cable

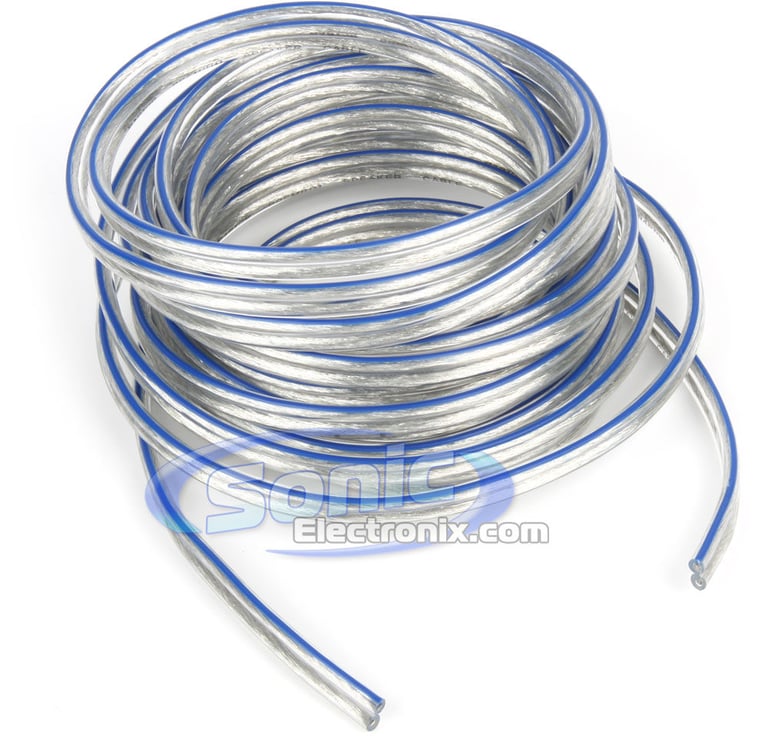

  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire

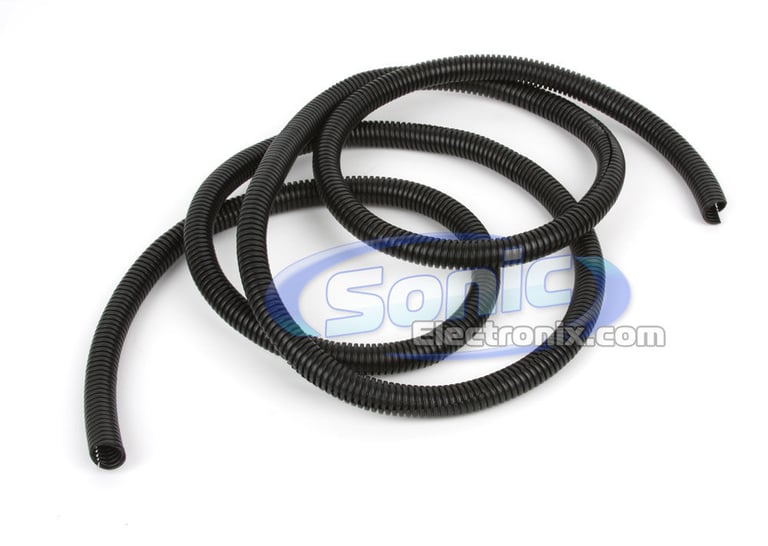

  6. 6 ft. of Split loom tubing

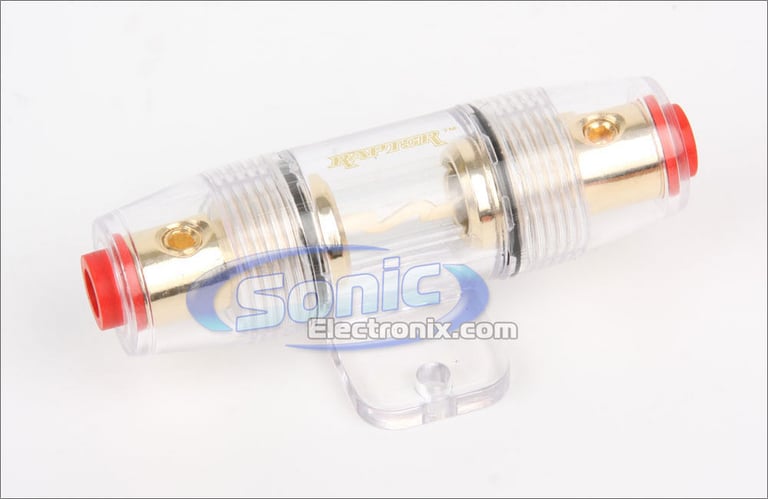

  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse
  9. All Necessary Hardware for Installation

Loading...
Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Peak Power Output
894 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
25A x 3
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
600 watts
Woofer Surround
Rubatek Foam
Woofer Composition
Dual Composite 2-Piece Cone
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

1600A_SEX12D4

Weight:

59.80lbs

Internal SKU:

1600a_sex12d4

Internal Product ID:

29578
