Product Highlights


10" Dual 2 Ohm BMF Series Car Subwoofer • 800W MAX • 400W RMS • DTS Series Monoblock Class D Car Amplifier • MOSFET Power Supply • Variable Bass Boost • Variable Low-Pass Filter • Complete 8 Gauge Amp Kit • 10" Single Sealed Subwoofer Enclosure

Description


RE Audio brand icon

Authorized dealer

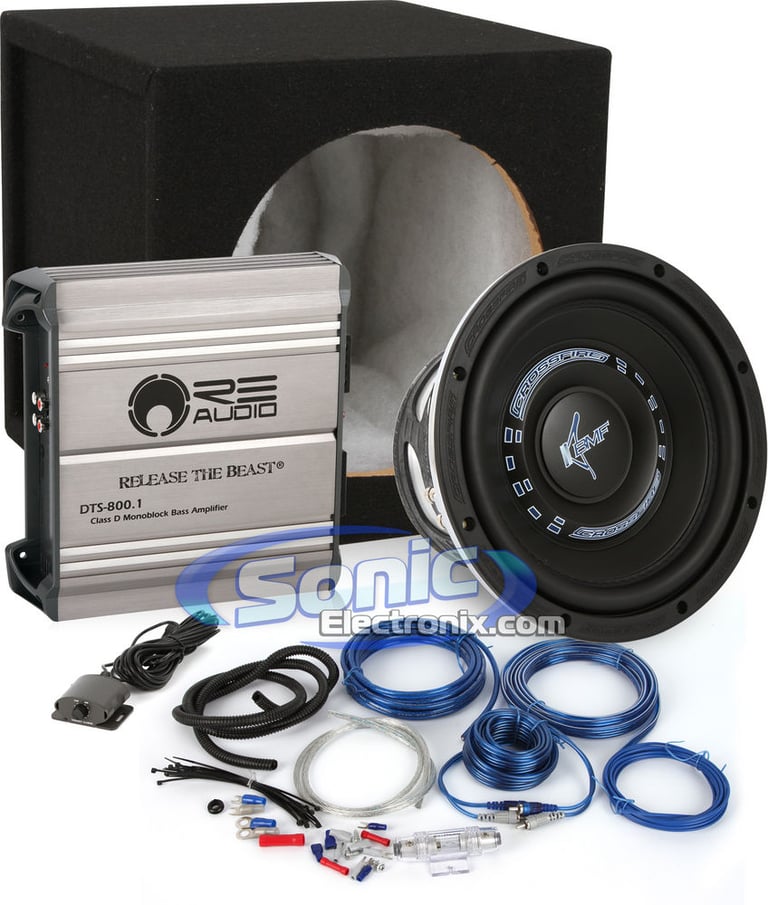

Crossfire and Re Audio Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a RE Audio DTS-800.1 amplifier along with a 10" BMF Series Crossfire Subwoofer. This excellent bass package pushes 400 watts of clean, continuous RMS power. The Crossfire Subwoofer has a Dual 2 ohm Voice Coil; meant to be wired in parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Crossfire BMF1014 10" BMF series subwoofer requires 400 watts of RMS power. The included RE Audio DTS-800.1 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 8 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included will be a single 10" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the Crossfire subwoofer, RE Audio amplifier, sealed enclosure, and Xscorpion amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

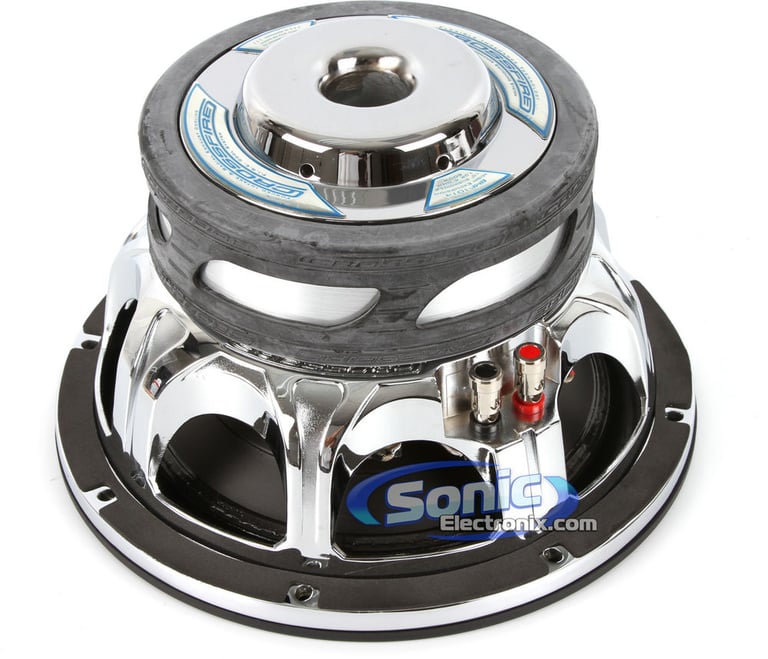

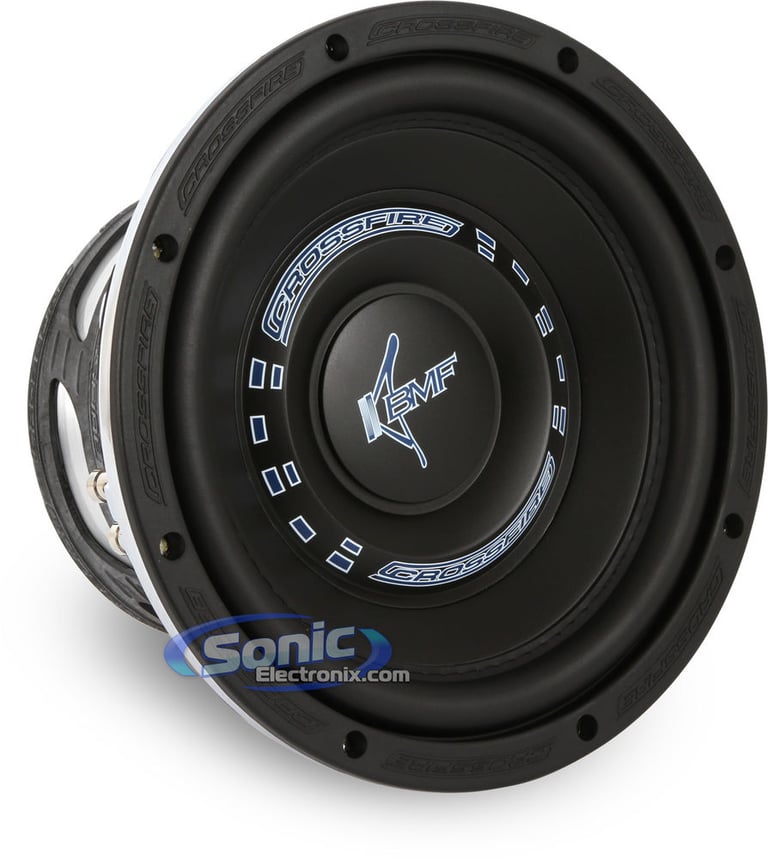

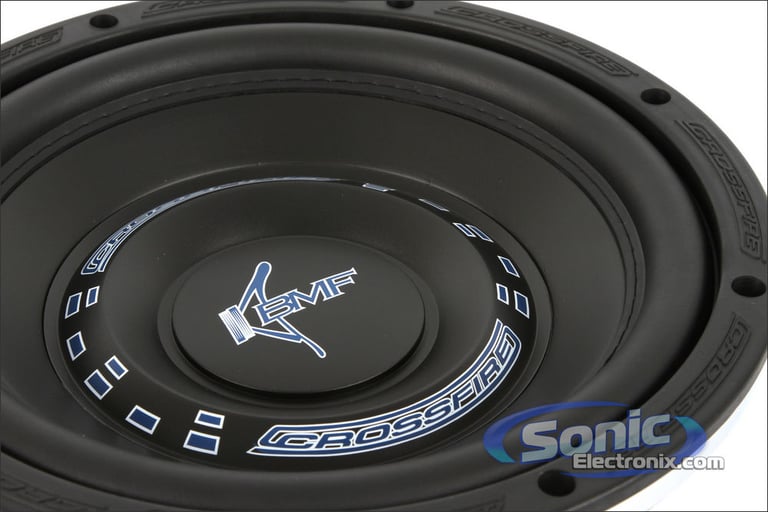

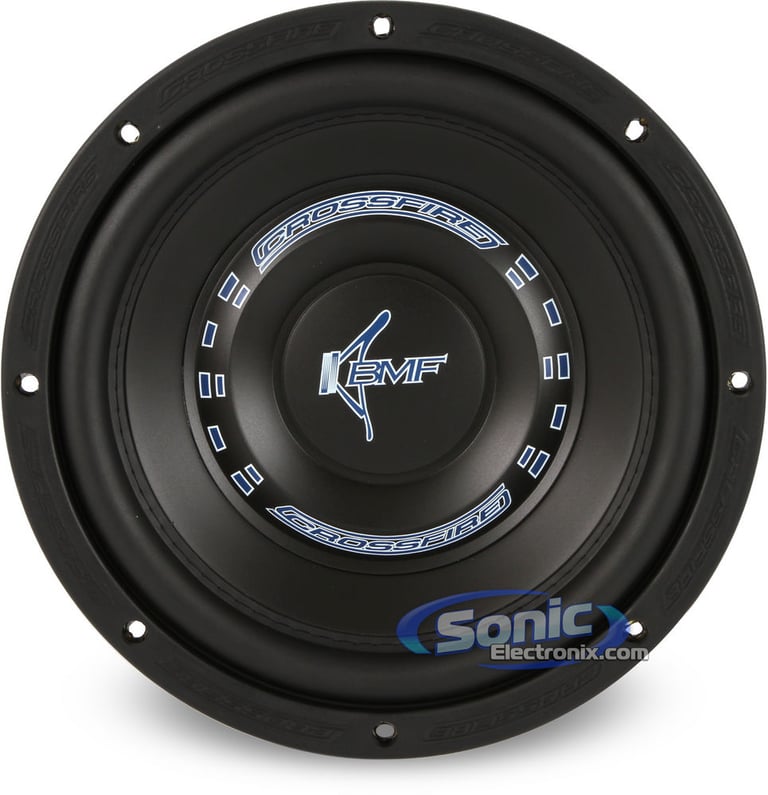

Crossfire BMF1014 Features:
  • 10" Dual 2 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 2 Ohm
  • Co-polymer cone material
  • Stitched rubber surround
  • Proprietary chrome aluminum cast frame

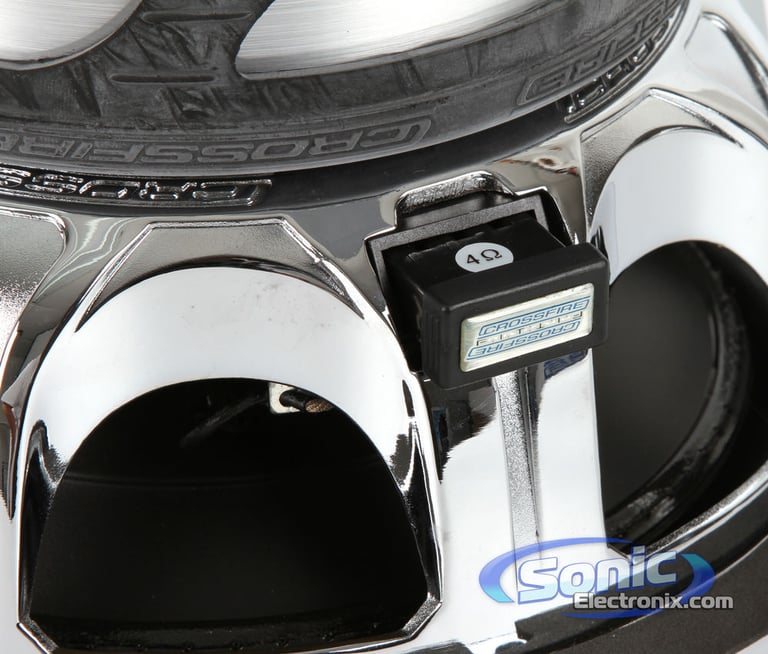

  • Flexible Impedance Technology (FIT)
  • Dual Voice Coil (DVC) impedance selector

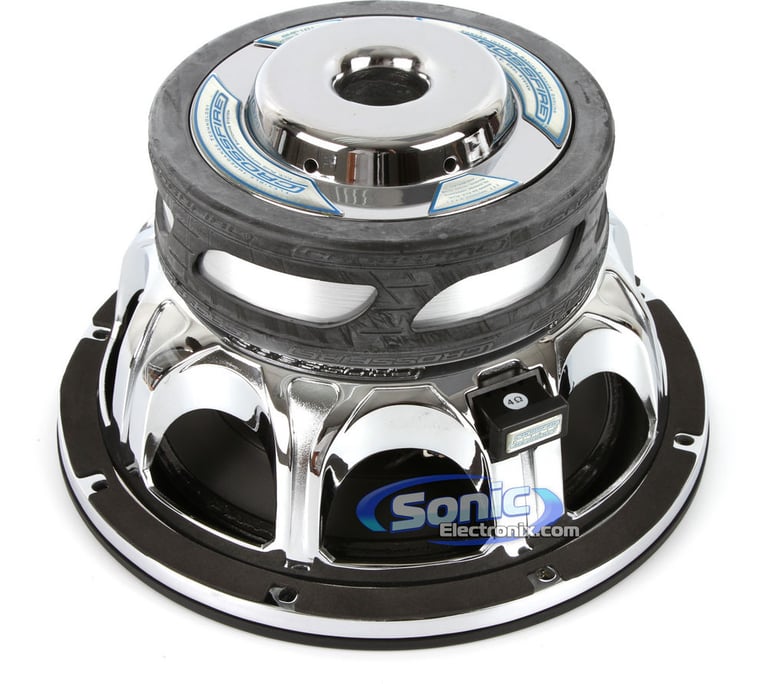

  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

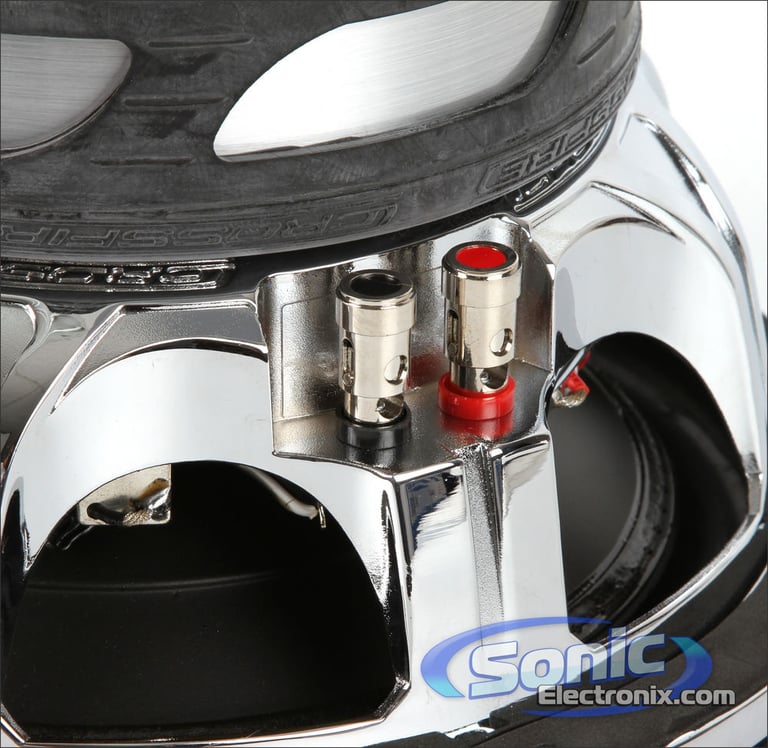

  • Compression nickel-plated sprig loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 2 Ohm Kapton voice coil
  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 83.4 dB
  • Xmax: 14mmm
  • Mounting depth: 5-7/8"
  • Cutout dimensions: 9-1/2"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

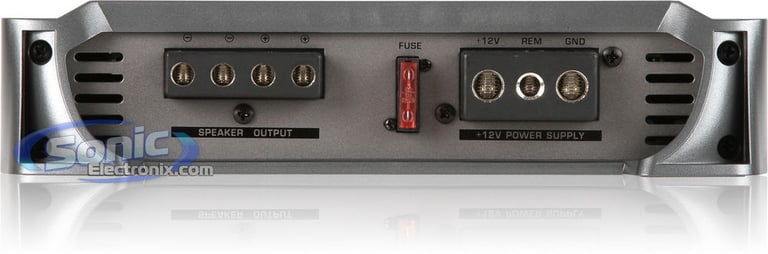

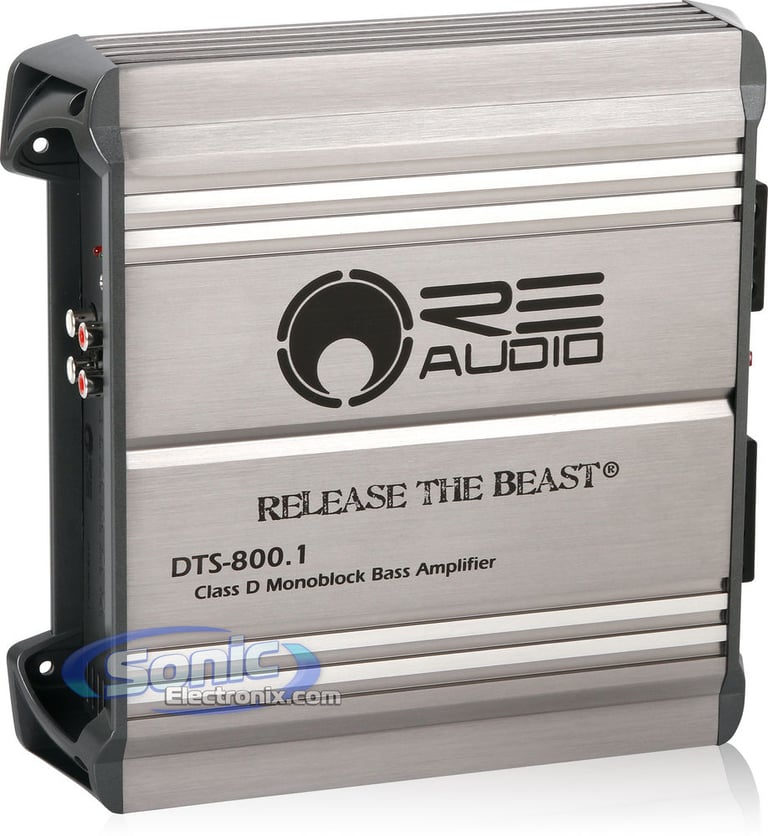

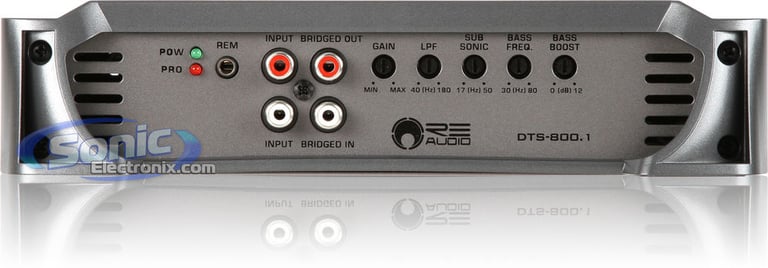

RE Audio DTS-800.1 Features:
  • DTS Series Monoblock Class D Car Amplifier
  • RMS Power Rating (14.4V)):
    • 4 ohm: 162 watts x 1 chan.
    • 2 ohm: 280 watts x 1 chan.
    • 1 ohm: 400 watts x 1 chan.
  • Dynamic power output: 800 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

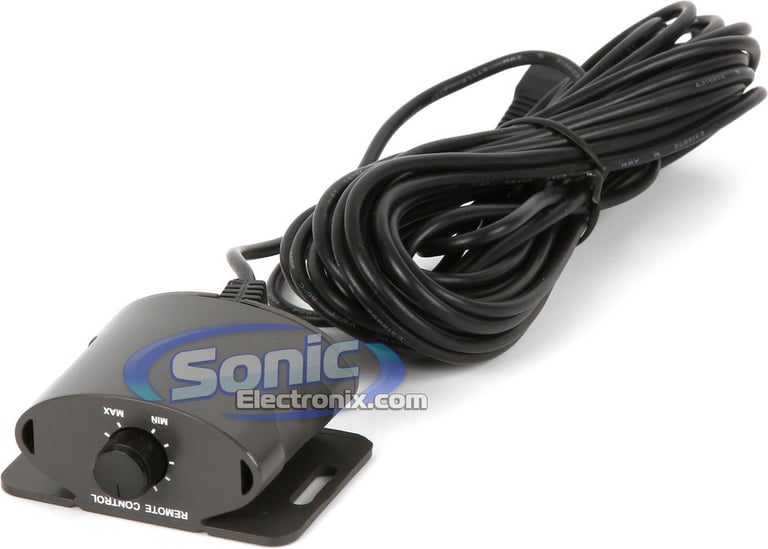

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Bridgeable with multi link technology (MLT)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input Impedance: 20 K-Ohm
  • Input sensitivity:
    • Low level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Subsonic filter (17-50 Hz, 24 dB/octave)
  • Bass frequency (30-80 Hz)
  • Effective damping factor: 150 @ 4 ohm
  • Frequency response: 17-180 Hz
  • Dimensions: 8-1/16"L x 8-11/16"W x 2"H
  • 8-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

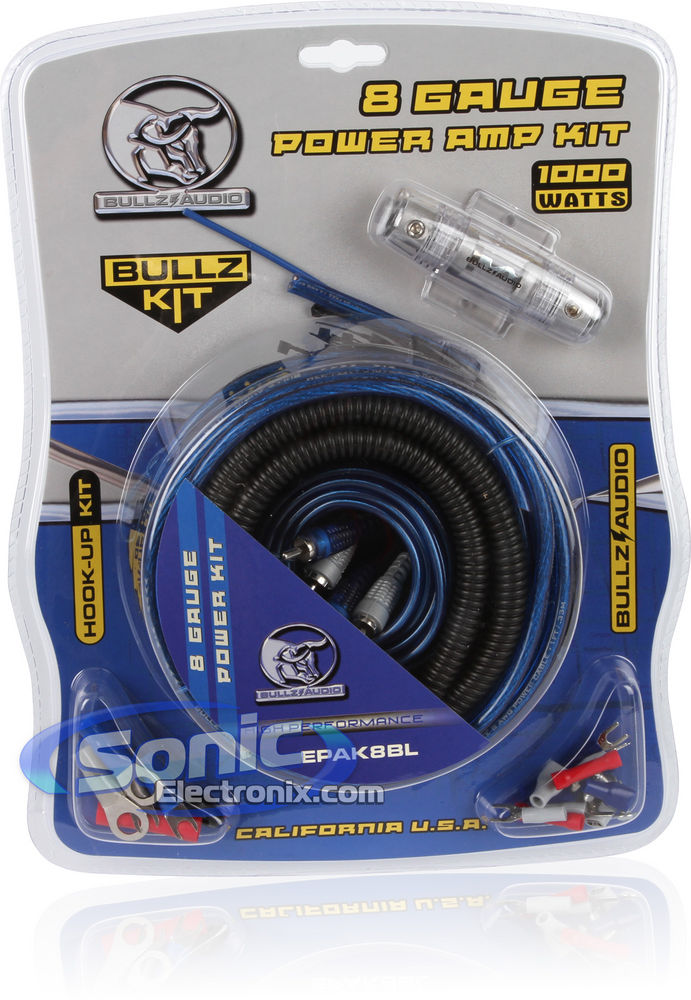

Xscorpion EPAK8BL Features:
  • 8 Gauge Power Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1000 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals are nickel-plated for excellent signal transfer

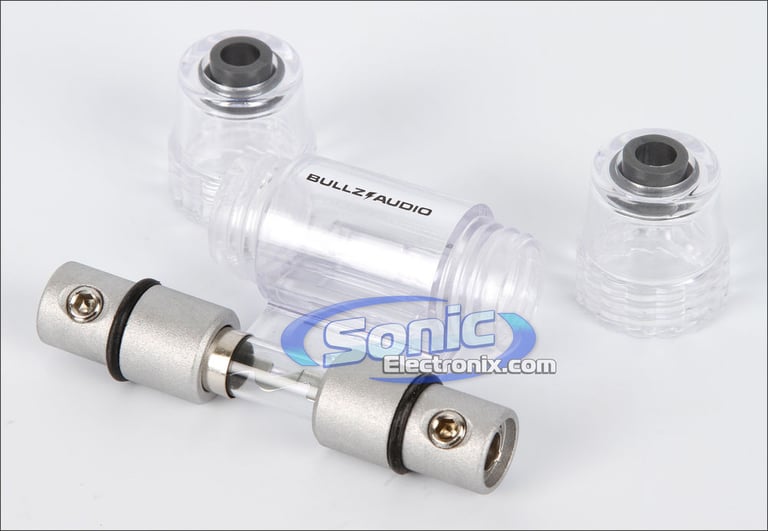

  • AGU Fuse holder offers ideal protection for mid powered systems
  • True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Xscorpion EPAK8BL Includes:

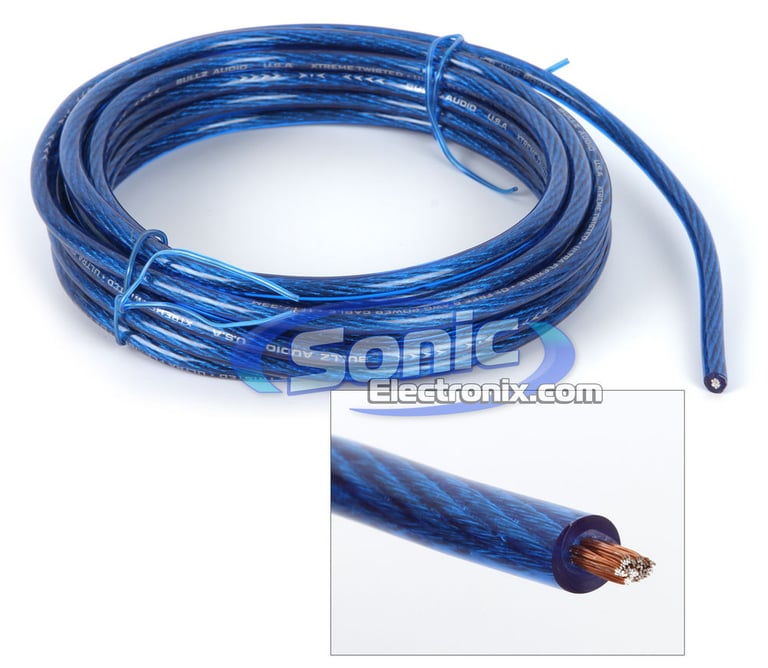

  1. 16 ft. of 8 AWG blue power cable
  2. 3 ft. of 8 AWG platinum ground cable

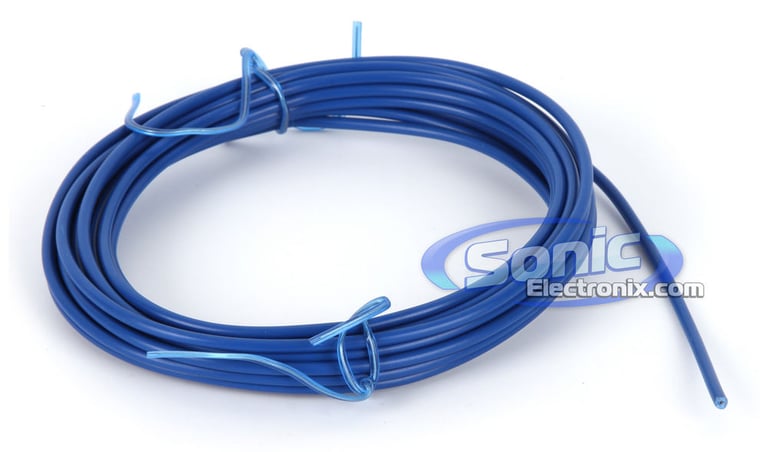

  3. 15 ft. of 18 AWG blue remote turn-on wire

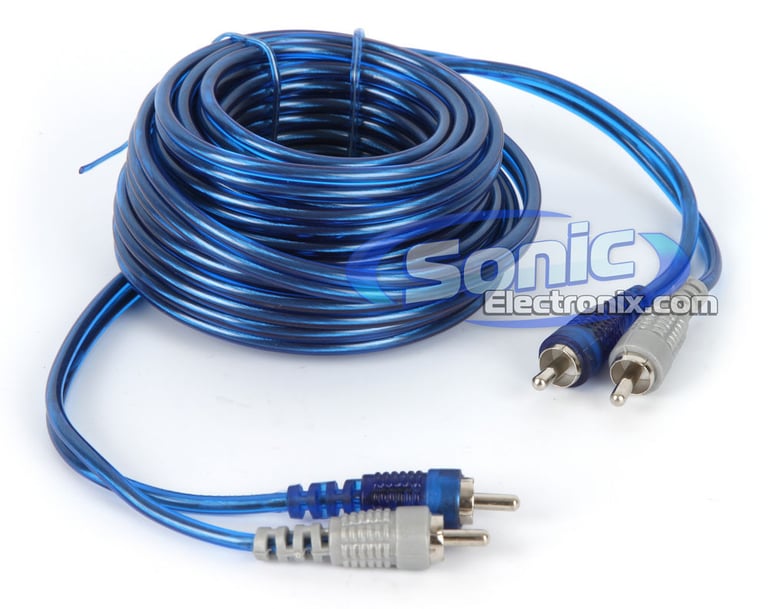

  4. 15 ft. of blue 2-channel RCA cable

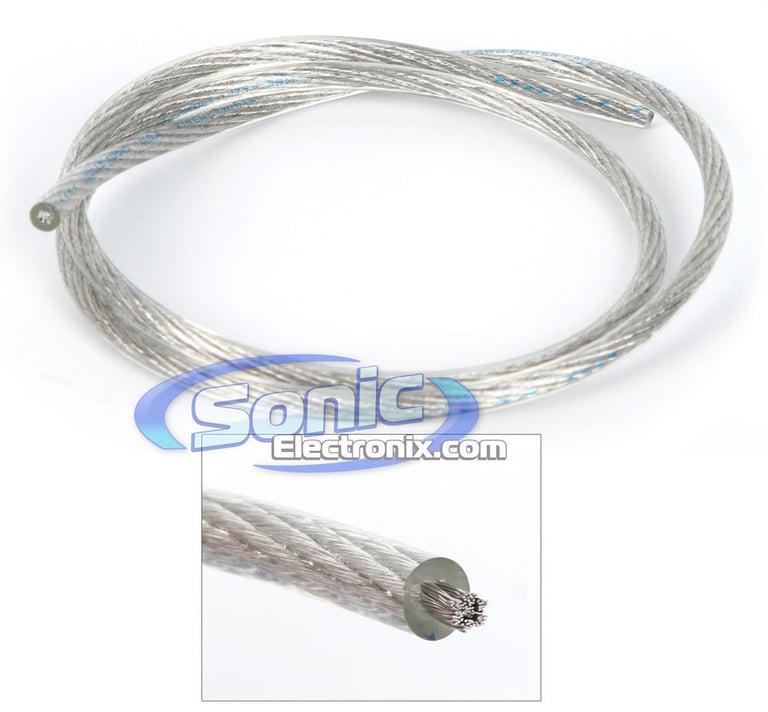

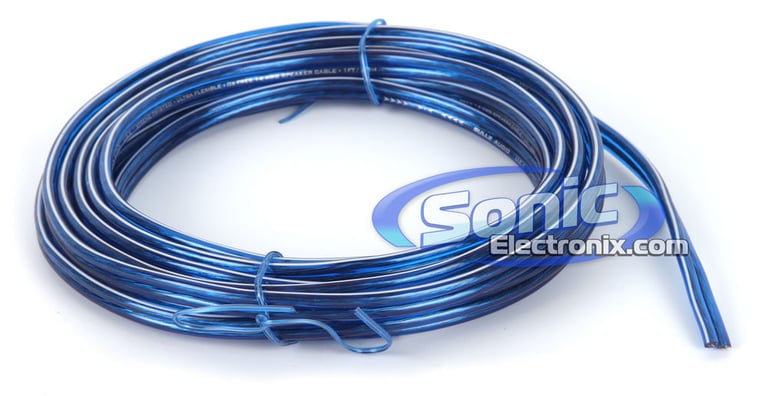

  5. 15 ft. of clear speaker wire

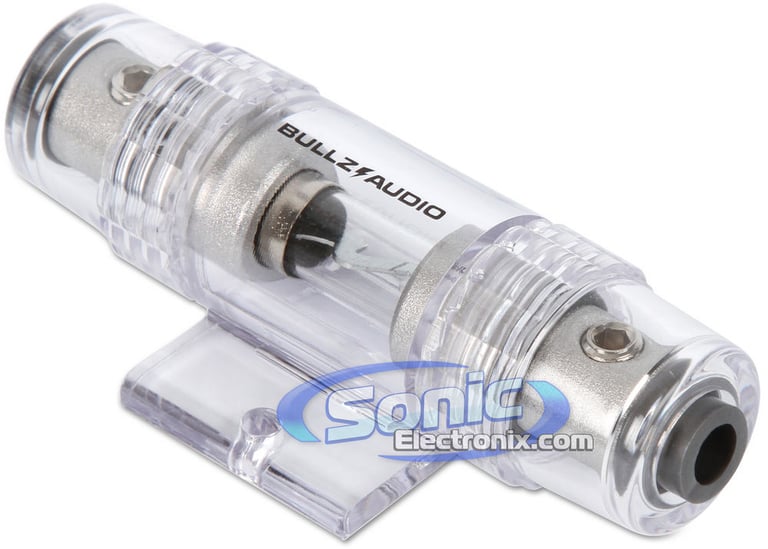

  6. Platinum AGU in-line fuse holder
  7. Platinum AGU fuse

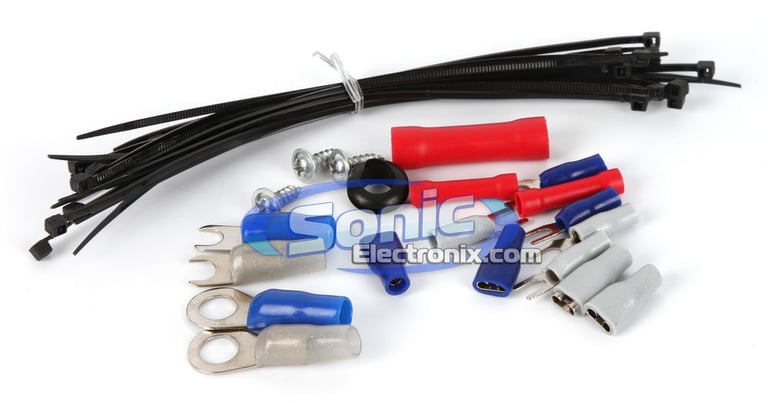

  8. Platinum ring terminals
  9. Platinum spade terminals
  10. Butt connectors
  11. Cable ties

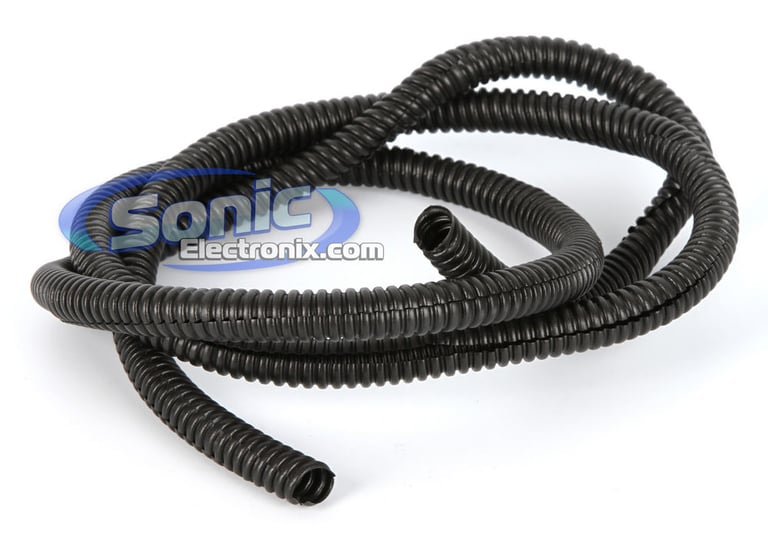

  12. Split loom tubing
  13. Grommets

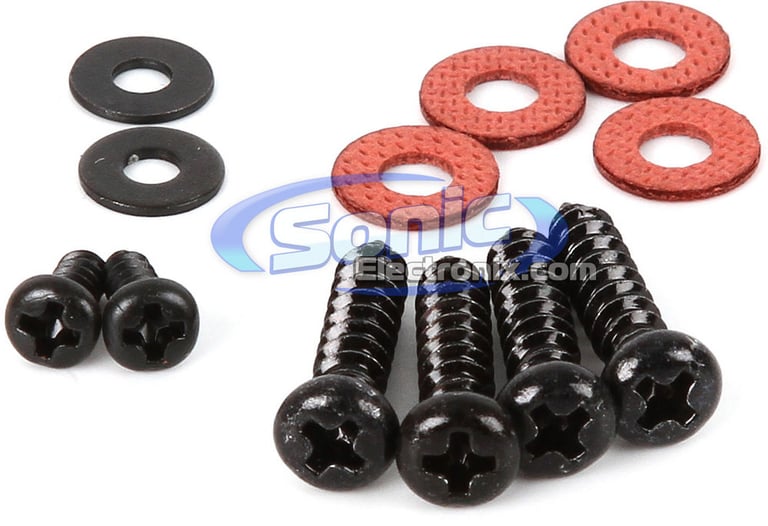

  14. Self tapping screws
10SSPF Features:
  • 10" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil
  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 11"
  • Subwoofer cutout diameter: 9-1/8"
  • Box volume: 0.7 cubic feet (per chamber)
  • Total box volume: 0.7 cubic feet
  • Dimensions: 12-1/2"D x 12-1/2"W x 12-1/2"H

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
165 watts x 1 channel
RMS Power @ 2 ohms
280 watts x 1 channel
RMS Power @ 1 ohm
400 watts x 1 channel
Peak Power Output
800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
17 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
400 watts
Total RMS Power Handling
400 watts
Peak Power Handling
800 watts
Total Peak Power Handling
800 watts
Woofer Surround
Rubber
Woofer Composition
Copolymer
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
83.4 dB
Frequency Response
20 - 250 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
12-1/2"
Width
12-1/2"
Depth
12-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF1014_DTS-800.1

Weight:

39.10lbs

Internal SKU:

bmf1014_dts8001

Internal Product ID:

38486

Product and How-to Videos


Customer Ratings & Reviews


800W Crossfire + RE Audio Complete Bass Bundle thumbnail image

5 star
44%
4 star
38%
3 star
13%
2 star
0%
1 star
6%



Durability
3.9
Value
4.3
Features
3.8
Design
4.1
Usability
4.5

Customer Reviews

Sort by:

Loading...

Just Like JLs

The following review is for BMF1014, which is a part of the bundle you are viewing.

I own 2 of this subs and they're loud. They're loud and clear just like JL subs. I bough em like new in a pawn shop apparently the guys there never heard of the brand so they sold them to me for 60 bucks the pair. When i saw how much they were i was like damn they're expensive but worth it.

By Jose on May 23, 2011

12 found this helpful


Great box

The following review is for 10SSPF, which is a part of the bundle you are viewing.

This box is overall a great product. Just sleek, simple, and perfect.

By Efresh on January 17, 2012

9 found this helpful


NOT Perfect for RE SEX10D4 sub

The following review is for 10SSPF, which is a part of the bundle you are viewing.

This box is sold as a package deal with an RE SEX10D4 sub and the sub does not fit in the opening. The opening will need to be widened to fit the cage of the sub through the hole. Air space is perfect for the RE recommended .65cu ft after sub is installed and it sounds clean and reproduces deep lows.

Beware this is a budget box and the poly fill is loosely glued to the interior of the box. After modifying box and wiring sub I did need to re-glue polyfill. Also the carpet is not perfect and a small area on the face of the box was missing carpet and appeared to have a rusty staple exposed. I don't care about looks so it was right for me.

By Tyler on December 21, 2011

8 found this helpful


Box review

The following review is for 10SSPF, which is a part of the bundle you are viewing.

This box is more than what I expected out of a prefab sealed enclosure. It has a great build quality and looks great. The carpet is decent. I'd definitely recommend this box to anyone looking for a small sealed enclosure who doesn't want to build one. I couldnt have done any better for the price and it fit my sub's sealed spec requirements according to the manufacturer.

By Erik on June 28, 2012

7 found this helpful


great

The following review is for EPAK8BL, which is a part of the bundle you are viewing.

Good, last a very long time, very good sound and holds up.

By blah on March 25, 2012

5 found this helpful


10" Crossfire BMF

The following review is for BMF1014, which is a part of the bundle you are viewing.

My BMF came Brand New as described, in perfect working condition, and still sounds as good as the first day I installed it!

Great Price on a Great Product!!

By DBDragCars on July 13, 2012

4 found this helpful


Just what you expect

The following review is for 10SSPF, which is a part of the bundle you are viewing.

It's exactly what it says. The terminals are a little weak on the inside. Other than that, excellent.

By David on May 30, 2012

4 found this helpful


ok

The following review is for EPAK8BL, which is a part of the bundle you are viewing.

I bought this cause of the price. It work good I am running a Lanzar MXA224 (1000 watt rms bridged) pushing a 12" Kenwood KFC-W3013PS. I only have two bad things to say. Once it was hard to strip the wire and the connectors are horrile (bought my own). 2nd the remote wire was worthless, after running all my wires came to find out it didnt work.. I had mounted my amp to the box so I only needed about a foot of speacker wire. To fix the problem of the remote line not working i just used the remaing speacker wire as the remote. Problem FIXED. All in all it works fine.

By Michael on March 26, 2012

4 found this helpful


Decent

The following review is for EPAK8BL, which is a part of the bundle you are viewing.

This kit is not bad at all just under 8 awg and i think it deserves more appreatiation then the prior reviewer.

By Isaac on December 15, 2011

4 found this helpful


Not true to gauge

The following review is for EPAK8BL, which is a part of the bundle you are viewing.

Bought this kit mainly on the low price and fact it stated it was "true to gauge". Well, no surprise that is not in fact true to gauge. The wires all look to be more insulation and very little inner wire. I mean, these inner wires are as thin and flimsy as it gets. Ok, the power and ground wires arent THAT bad (thin but not terribly thin), but the remote and speaker wires are just about worthless. Also, the RCA cables are about the cheapest Ive ever seen. I tried the fit on my amp and they barely hold on...a few potholes or deep bass hits and these things will probably work themselves off. Luckily, I have a set of high grade RCAs I will be using instead of the set from this kit. And since Im only using this kit to run approx 40rms x 2, Im guessing the thin wires should be able to handle it.
The only seemingly well built piece of this set would be the fuse holder.
Bottom line...If you absolutely cant afford a few extra dollars and arent planning on running high power, this set should work fine for you. Otherwise, Id advise saving a few extra beans and getting something slightly better for you buck.
I will never knock SE, I think they are great and prices are just about unbeatable (esp when u factor in that most of their stuff also has free shipping).

By Buddy on October 8, 2011

5 found this helpful




PFL-157IRB small

Absolute PFL-157IRB (Black)

15" TFT-LCD Overhead Flip-Down Monitor with Built-In IR Transmitter

(2)

$119.95

List price $199.99

No picture

NVX JAD1200.1 (Open Box Complete)

True 1200W RMS, Class D Monoblock Amplifier with Bass Remote

$99.74

List price $0.00

MDR-E10LP/WC small

Sony MDR-E10LP (White)

Fashion Earbud Stereo Headphones w/ iPhone Compatible Mini Plug (MDRE10LP/WC, MDRE10LPWC)

$9.99

List price $14.99

DTX-2000.1_2-CVR104-MDFD10_BAK02 small

1600W Complete Kicker + RE Audio Bass Package

Pair of Kicker 10" 10CVR104 Subwoofers + RE Audio DTX-2000.1 Amplifier + 0 Gauge Amplifier Kit

(149)

$372.81

List price $759.95

ZTX-5000.1_2-VCW124_VCE212_BAK02 small

5000W RE Audio + NVX Bass Bundle

RE Audio 2500W RMS Monoblock ZTX Series Car Amplifier + Pair of NVX VCW124 12" Subs + Dual Box + Kit

(224)

$801.98

List price $1945.95

HCCA124_PH10000W/D1_XKIT02 small

2000 Watt Neighborhood Watch Bass Package

Orion HCCA124 4000 Watts 12" Subwoofer + Earthquake Sound PH10000W/D1 5000 Watt Amp + Amp Kit

(68)

$1206.03

List price $2606.94

MDR-E10LP/GIC small

Sony MDR-E10LP (Pastel Green)

Fashion Earbud Stereo Headphones w/ iPhone Compatible Mini Plug (MDRE10LP/GIC, MDRE10LPGIC)

$9.99

List price $14.99

SEXv2-10D4 XTX1500.1 small

RE Audio and Infinity Complete Sound Package for Mustang and General Ford Applications

600W RMS Dual 10" SE-X Series Subwoofer, Sealed Enclosure, RE Audio Mono-Block/4-Channel Amp and Four Infinity Speakers

(80)

$618.06

List price $2134.77

XIAH-TY2 small

Axxess XIAH-TY2

1998-2005 Toyota Specific Harness for XIA-I01

$7.99

List price $19.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Toyota 4Runner

2011 Toyota 4Runner

2022 Kia K5

2015 BMW 435i

2022 BMW X7

1978 Mazda RX-4

1976 Datsun 620

2024 Lexus IS300

2022 BMW X6

2001 Mercedes-Benz E-Class

Vehicle
Store
Delete

1999 Harley Davidson FXSTC/I Softail Custom

2007 Harley Davidson FXSTSSE2 Screamin Eagle Softail Springer

2006 Harley Davidson FXST Softail Standard

2000 Harley Davidson FXST/I Softail Standard

Vehicle
Store
Delete

2018 Can-Am Defender HD10

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
