2000W Complete Hifonics + RE Audio Bass Package

Hifonics BRZ1700.1D Amplifier + RE Audio SXX12D4 12" Sub + 4 GA Amp Kit + 12" Ported Sub Enclosure

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

Bass Package: Hifonics BRZ17001D Monoblock Amplifiers + RE Audio SXX12D4 12" Subwoofer + Raptor 4 Gauge Amp Kit + Absolute Single 12" Sub Enclosure • Includes Everything You Need To Add Bass To Your Car

Learn more about the brz17001d_sxx12d4

We apologize

This item has been discontinued


Loading...
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15

Product Highlights


Bass Package: Hifonics BRZ17001D Monoblock Amplifiers + RE Audio SXX12D4 12" Subwoofer + Raptor 4 Gauge Amp Kit + Absolute Single 12" Sub Enclosure • Includes Everything You Need To Add Bass To Your Car

Description


RE Audio brand icon

Authorized dealer

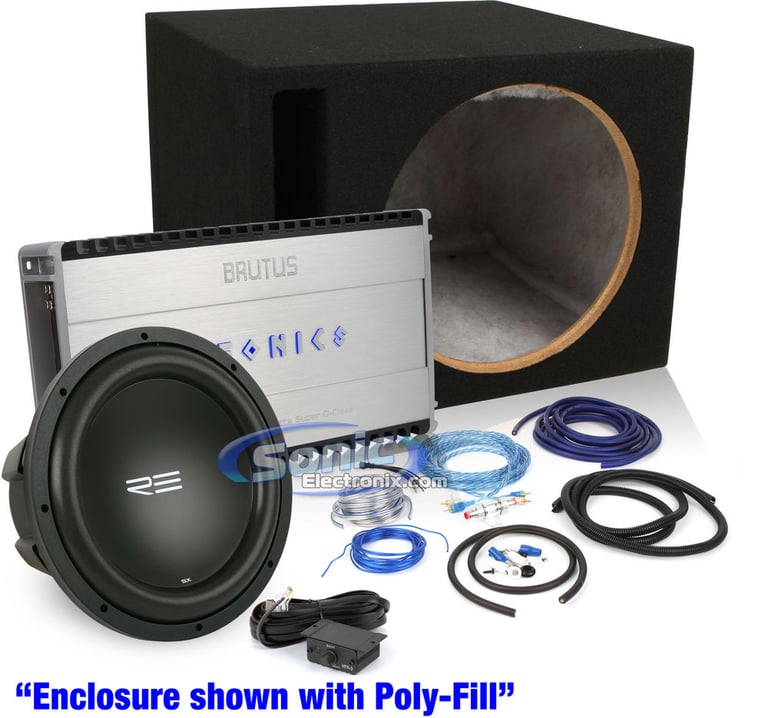

Sonic Electronix Exclusive Bass Package

This combo package includes one RE Audio SXX Series 12" Subwoofer and a Hifonics ClassD Brutus Series Amplifier. This monoblock amplifier is a great match for the 12" subwoofer when wired at 2 ohms. The RE Audio subwoofer features a dual composite 2-piece cone with rubatek foam surrounds and a wrap around rubber gasket. The amplifier is a CEA-2006 compliant amp so you can be assured that the power ratings are accurate and not beefed up for marketing purposes. This exclusive package also includes an Absolute Vented 12" sub enclosure and a Raptor 4 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

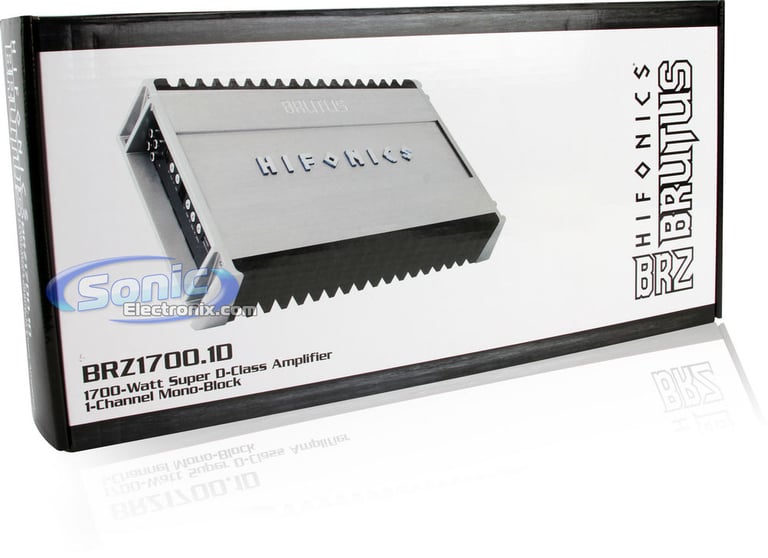

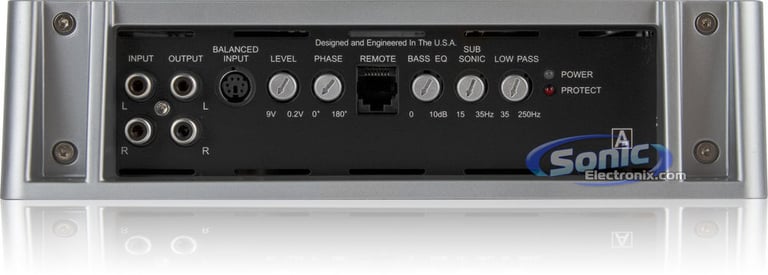

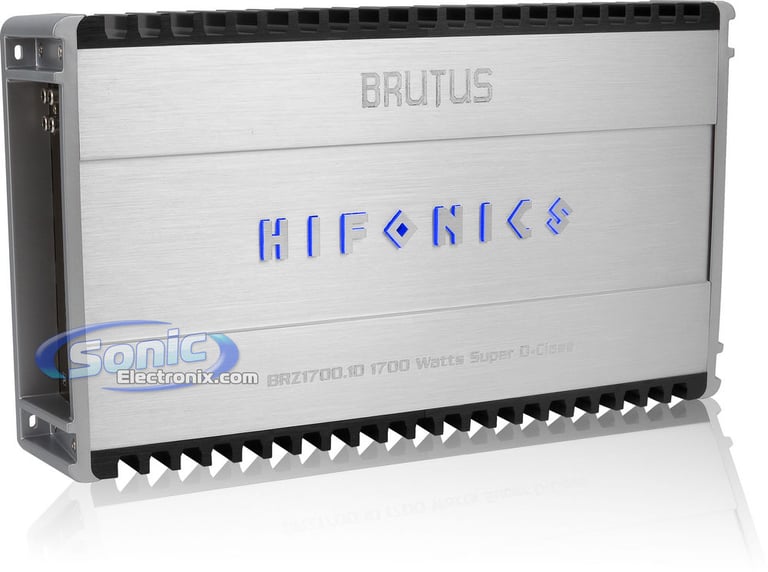

Hifonics Amplifier Features
  • Brutus Series Monoblock Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 1700 watts x 1 chan.
  • MOSFET power supply

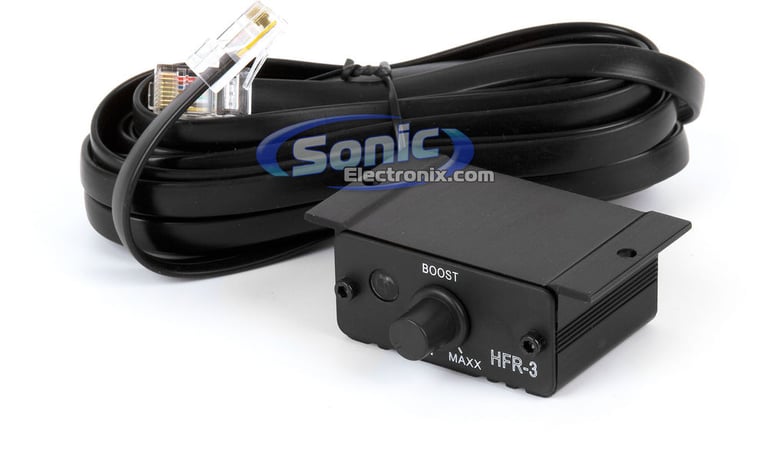

  • Wired HFR-3 remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, speaker short and DC protect)
  • Heavy duty aluminum alloy finned heatsink for maximum heat dissipation
  • Silver-plated unbalanced RCA level inputs

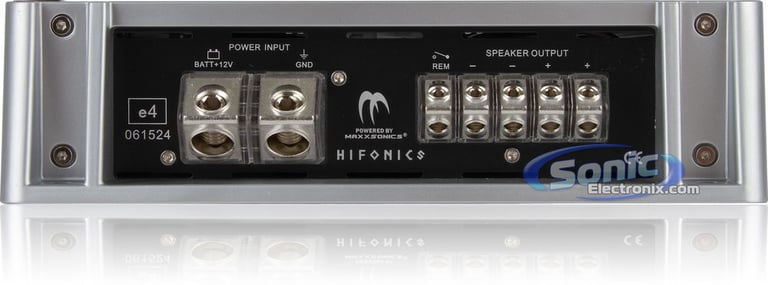

  • Silver-plated molded screw terminals
  • Input sensitivity:
    • Input Level (Unbalanced): 0.2V-9V
    • Input Level (Balanced): 0.04V-8V
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >290
  • Frequency response: 35-250 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 16-15/16"L x 9-1/4"W x 2-7/16"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

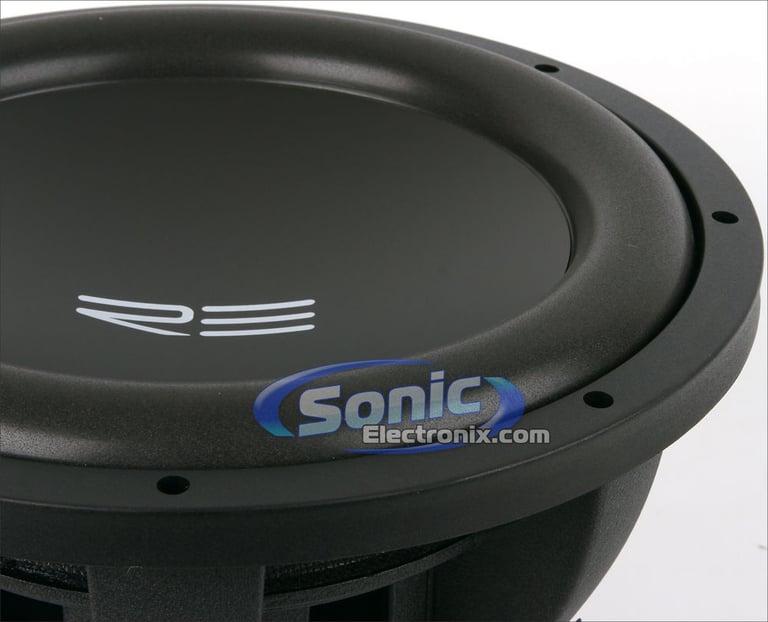

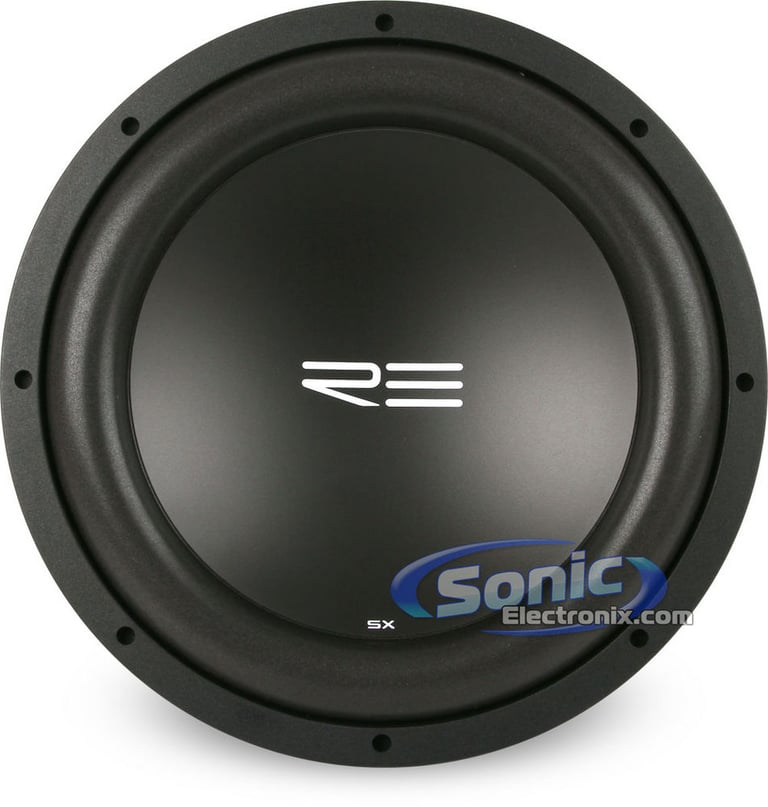

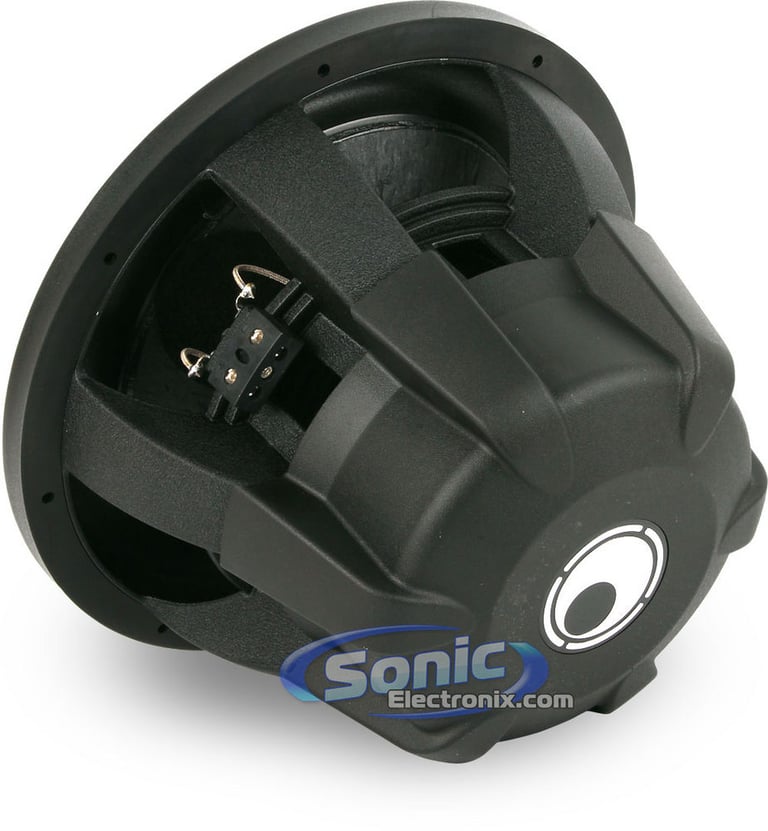

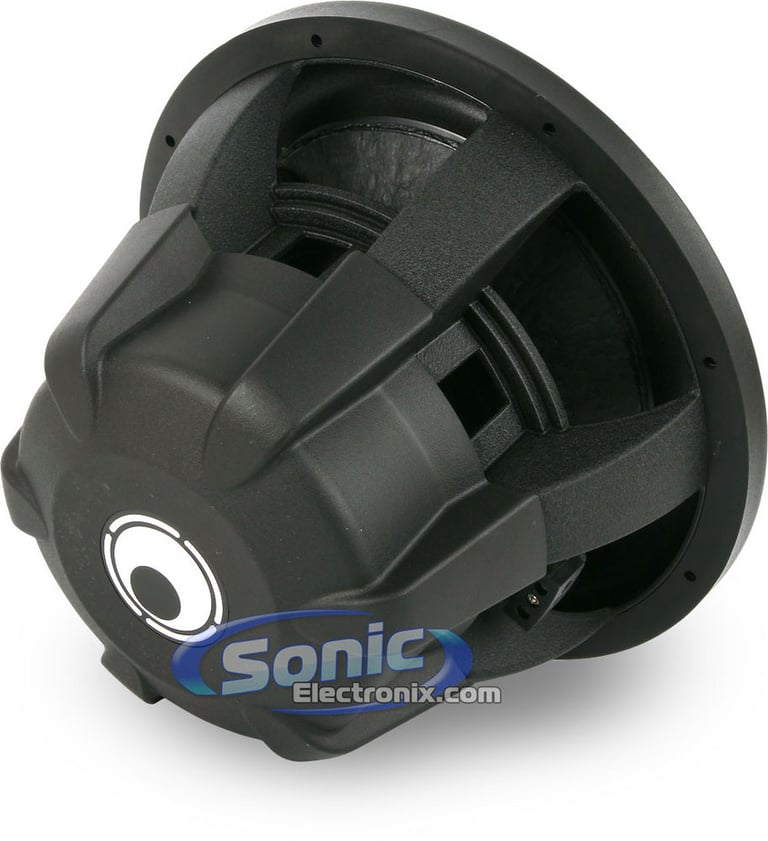

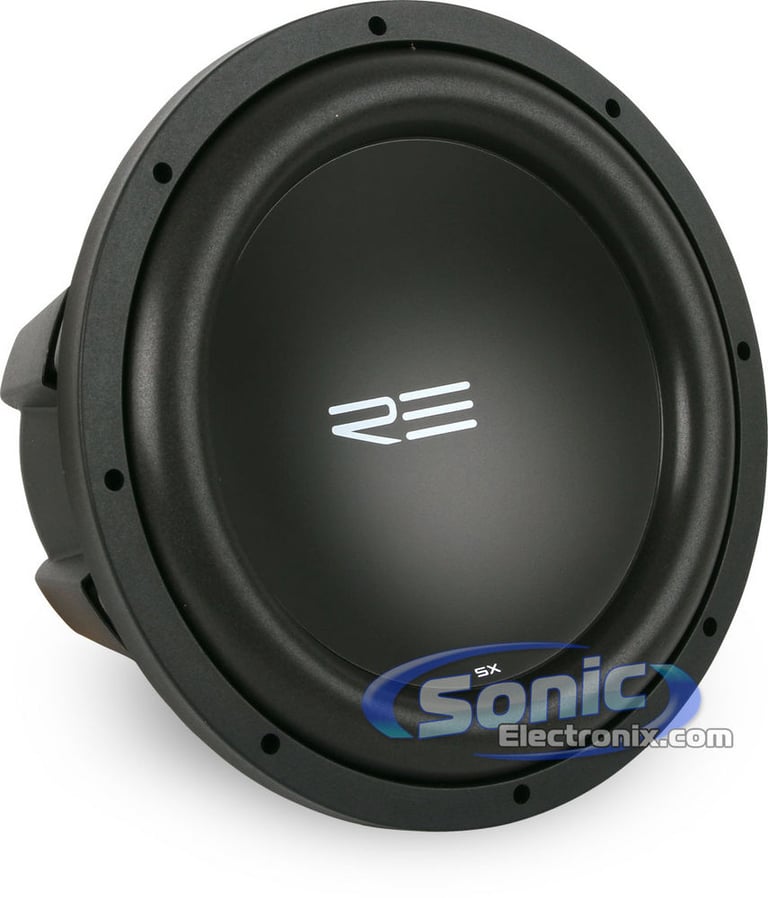

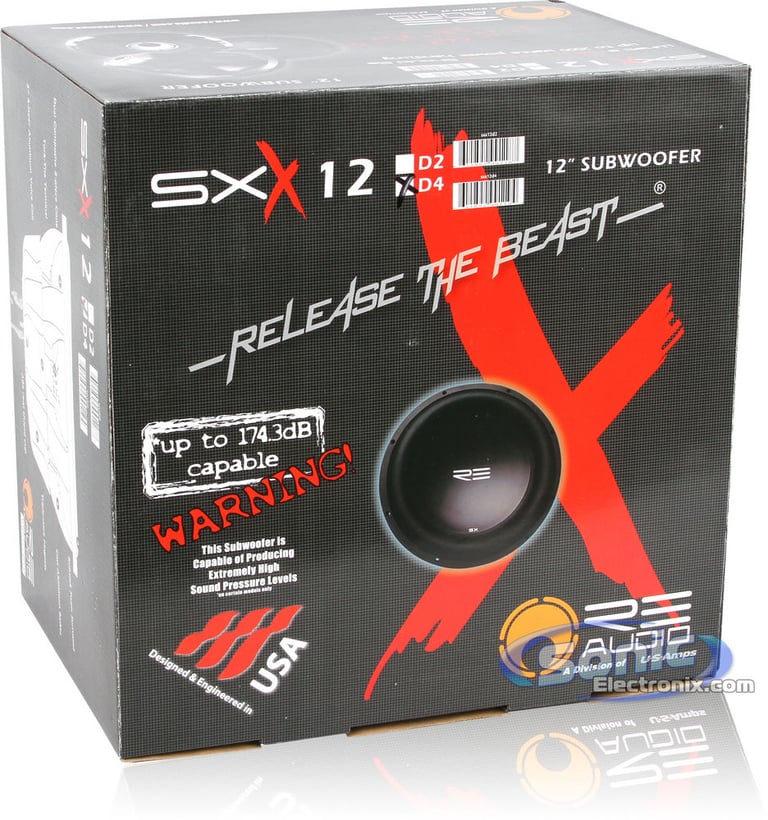

RE Audio Subwoofer Features
  • 12" Dual 4 ohm SXX Series Car Subwoofers
  • Power Handling:
    • RMS: 1000 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

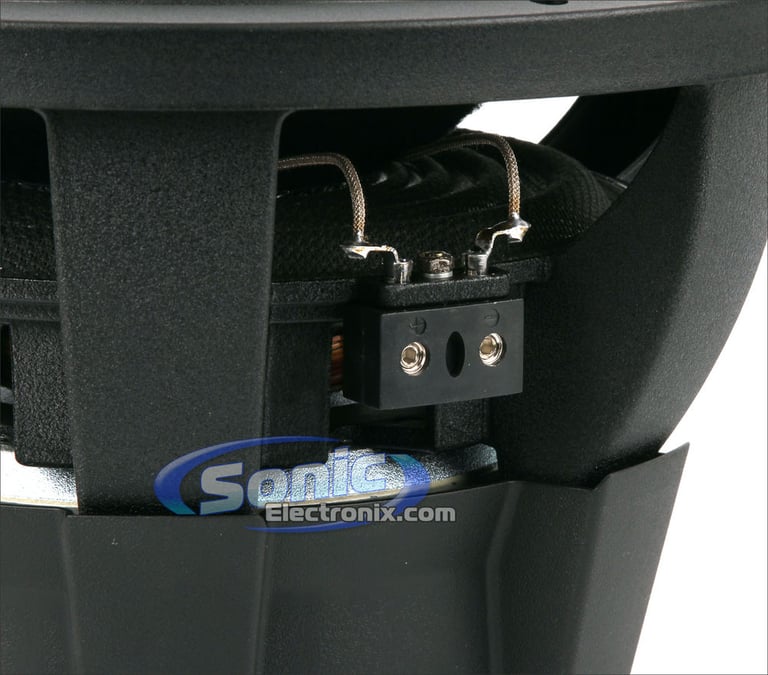

  • Tork-Tite terminals
  • 3" 8-Layer voice coil
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for ported/vented enclosures
  • Also available in a Dual 2 ohm: RE Audio SXX12D2
  • Proudly made in the USA
  • Also found as: sxx 12, sxx12, sxx 12d4, sxx-12, sxx-12d4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

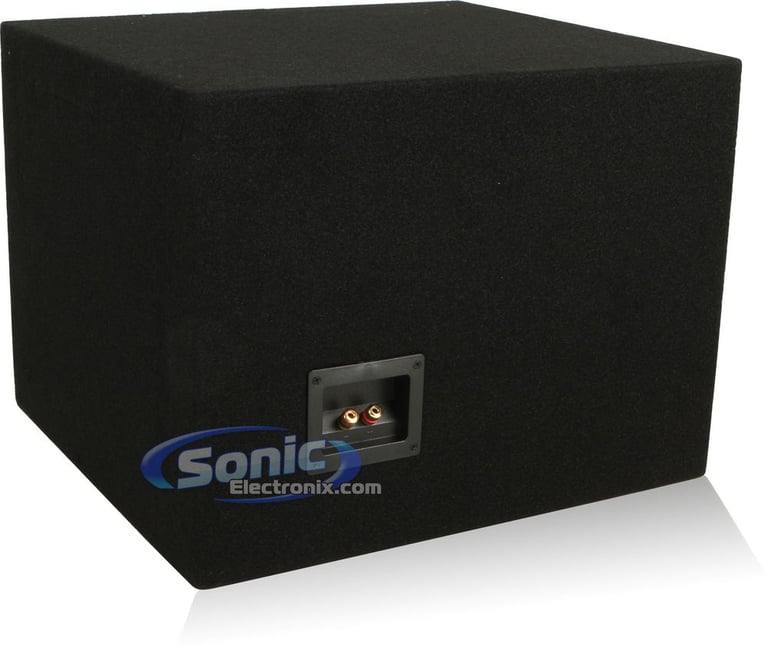

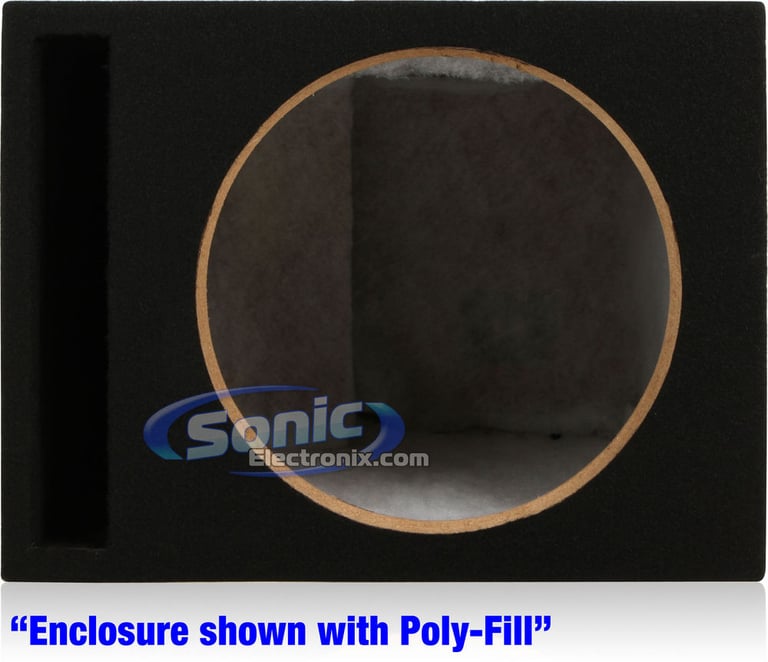

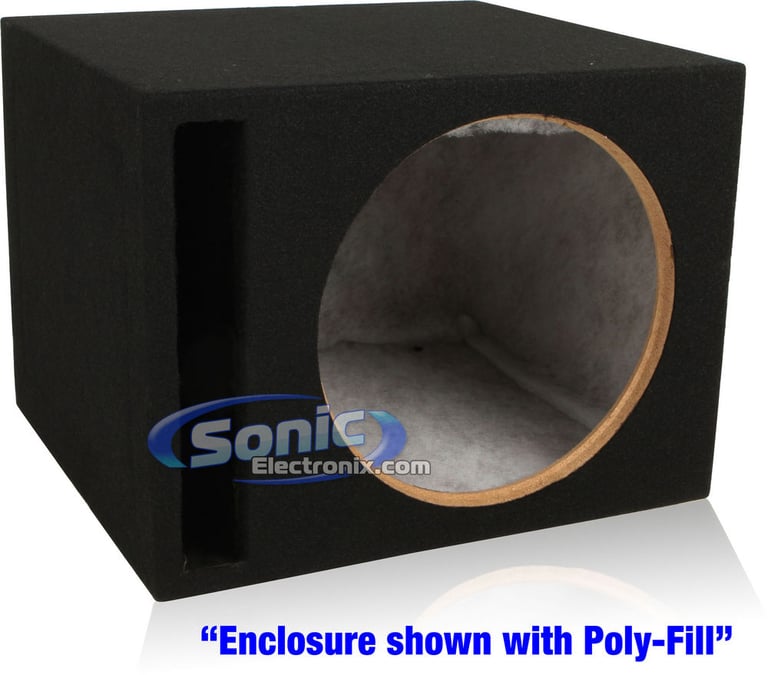

Absolute Subwoofer Enclosure Features
  • 12" Ported Rectangle Subwoofer Enclosure
  • Gold plated binding posts
  • Banana clip ready
  • 1 L-shaped vent/port
  • Mounting depth: 15-1/4"
  • Cutout diameter: 11-1/4"
  • Box volume: 1.66 cubic feet
  • Total port volume: 0.16 cubic feet
  • Made from 3/4" Medium Density Fiberboard (MDF)
  • Dimensions: 16"D x 18"W x 13-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Raptor Amplifier Kit Features
  • Amplifier Installation Kit with RCA Interconnect Cable
  • 4 Gauge Power and ground cable for excellent power transfer
  • Designed for systems up to 1500W
  • Comes with everything needed to install an amplifier
  • RCA Interconnect cables use twisted pair construction for optimal signal transfer with low noise interference
  • Speaker cable is easy to install with clean and clear sound
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:
  1. 17 ft. of 4 Gauge blue power cable
  2. 3 ft. 4 Gauge black ground cable
  3. 17 ft. Neon blue series RCA cable
  4. 16 ft. of Speaker wire
  5. 17 ft. of 18 Gauge blue remote turn-on wire
  6. 6 ft. of Split loom tubing
  7. 1 AGU Fuse Holder
  8. 60 AGU Fuse
  9. All Necessary Hardware for Installation

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1700 watts x 1 channel
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
2 AWG
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
160A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
1000 watts
Total RMS Power Handling
1000 watts
Woofer Surround
Rubatek Foam
Woofer Composition
Dual Composite 2-Piece Cone
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
13-1/2"
Width
30"
Depth
12"
Second Width
15-3/4"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BRZ1700.1D_SXX12D4

Weight:

74.35lbs

Internal SKU:

brz17001d_sxx12d4

Internal Product ID:

29588
