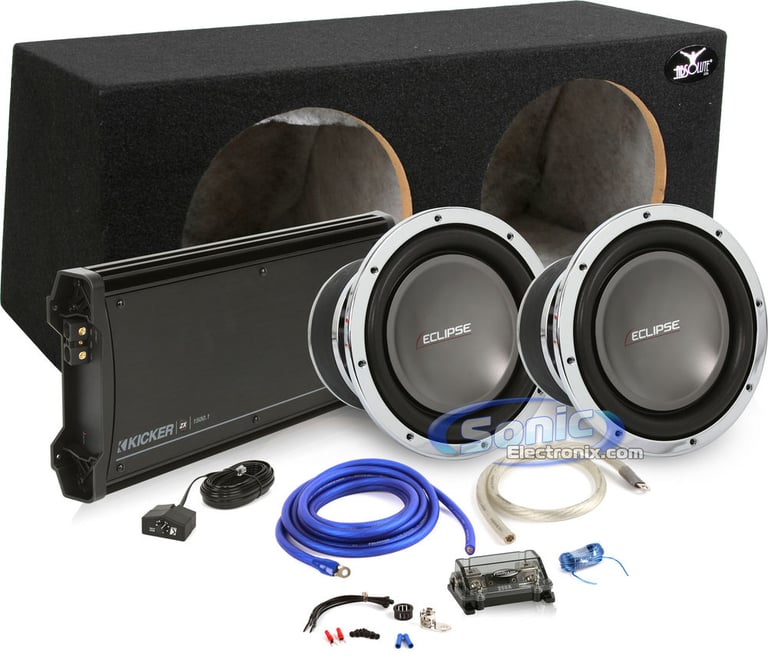

1500W Complete Kicker + Eclipse Bass Package

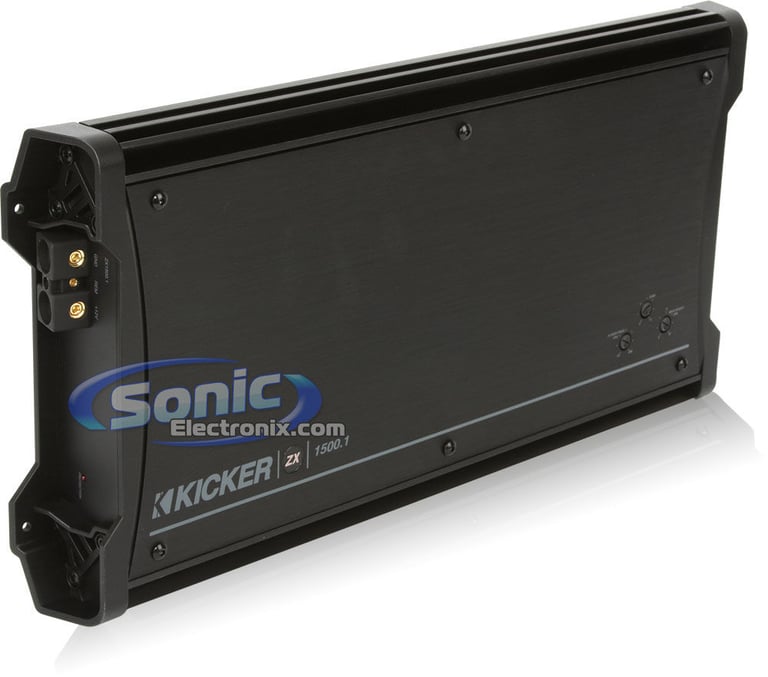

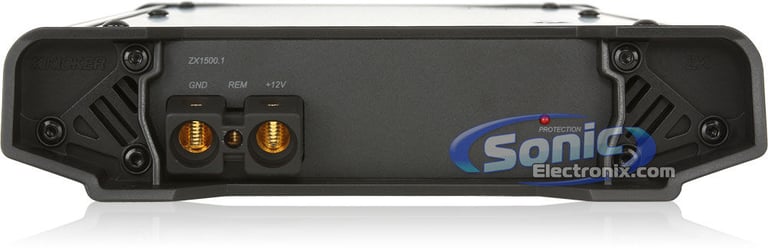

• ZX Series Class D Monoblock Car Amplifier
• RMS Power Rating (14.4V):
  • 4 ohm: 750 watts x 1 chan.
  • 2 ohm: 1500 watts x 1 chan.
• High efficiency MOSFET power supply
• LED power and protection indicators

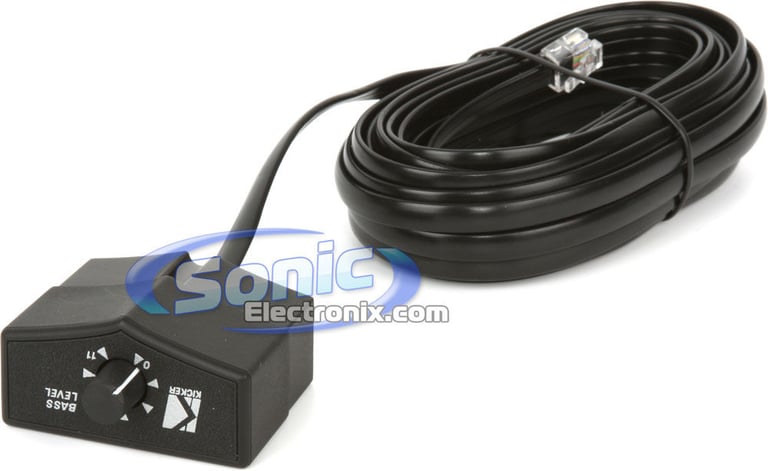

• Remote bass level included
• Tuned Bass EQ (0-18 dB bass boost at 40 Hz)

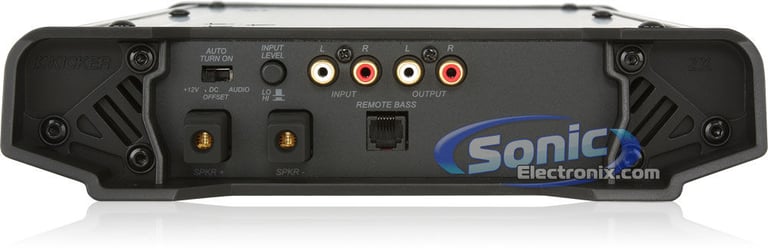

• Preamp RCA outputs
• Muting circuit cancels out unwanted noise
• Boost, gain, and crossover frequencies are top-mounted for easy access
• Balanced differential inputs for noise elimination and factory-radio compatibility
• 3 Automatic turn-on modes (remote, DC offset, signal sense)
• Optional edgy vinyl skins for personalizing heat sinks available
• Optional Kicker 08ZXEC endcaps are available for all ZX amplifier models
• High-density convection heat sink for extreme heat dissipation
• Gold-plated RCA level inputs
• Gold-plated screw terminals
• Input sensitivity:
  • Low level: 125mV-5V
  • High level: 250mV-10V
• Variable low-pass filter (50-200 Hz, 24 dB/octave)
• High-pass subsonic filter (24 dB at 25 Hz)
• CEA-2006 compliant amplifier
• Frequency response: 25-200 Hz
• Dimensions: 20"L x 9-5/8"W x 2-1/8"H
• Actual power exceeds rated power, documented inside each carton
• Authorized Internet Dealer
• 2-year Manufacturer's warranty

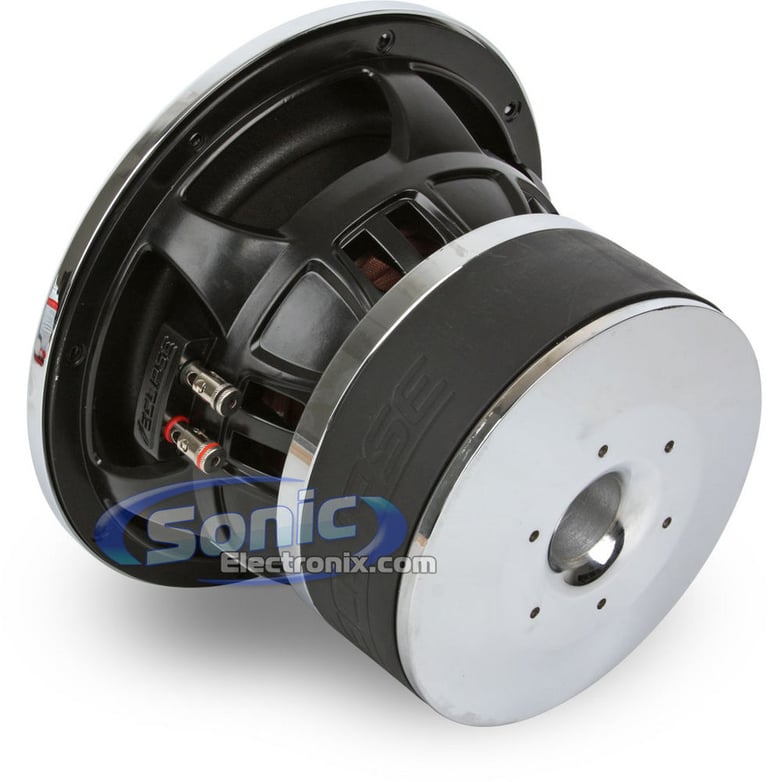

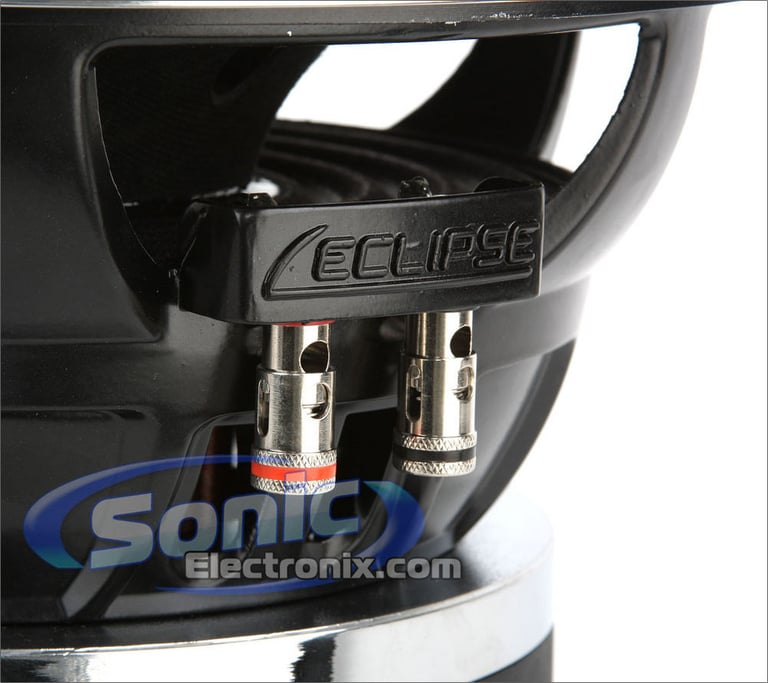

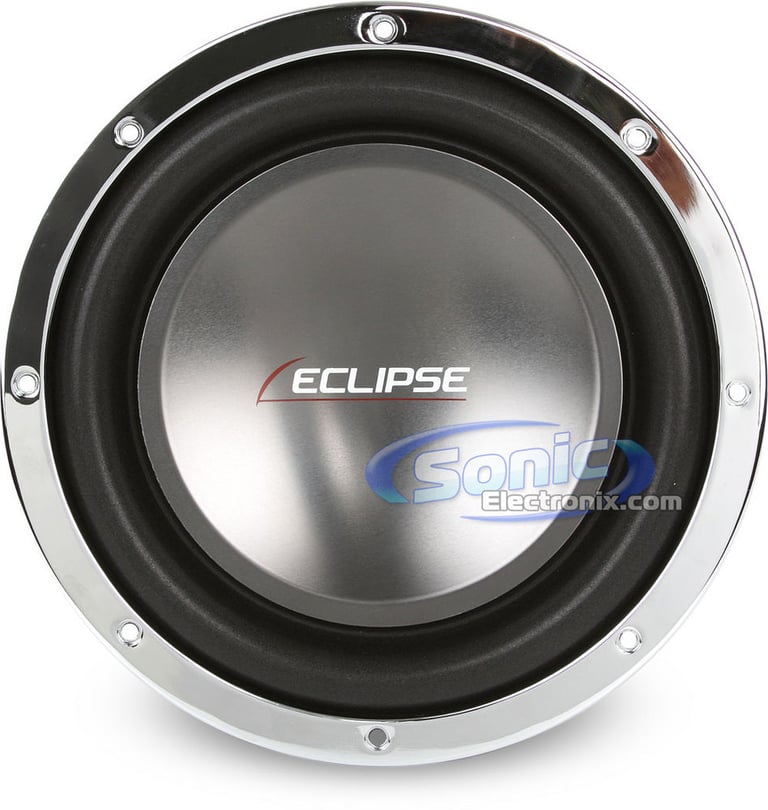

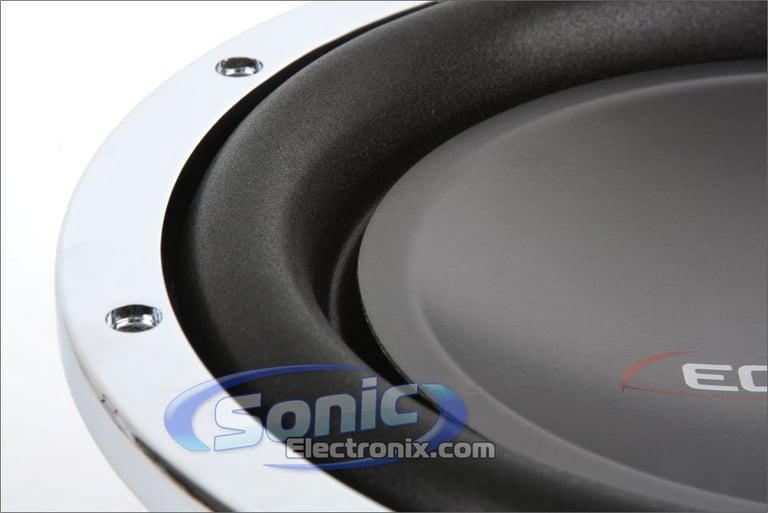

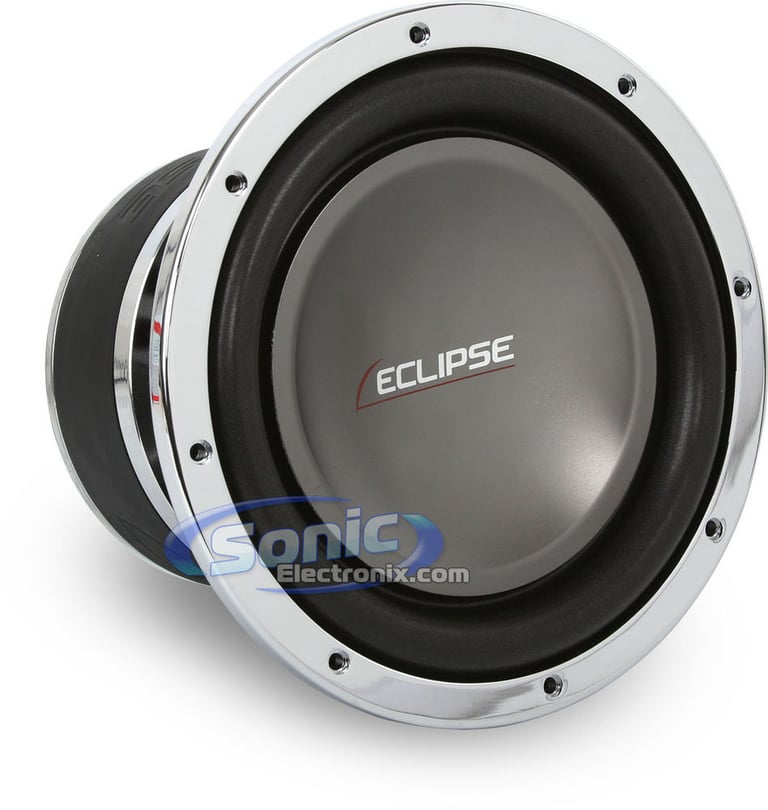

• Two 10" Single 4 Ohm Eclipse 8000 Series Subwoofer
• Power Handling:
  • RMS: 1400 watts total / 700 watts each
• Impedance: 4 Ohm
• Anodized alloy cone woofer
• Multi layer surround
• Backplate venting system
• Progressive "S" surround
• Single inside/outside voice coil
• Long voice coil with 3" diameter and 2" winding height
• Large magnet with rubber cover
• Frequency response: 18-200 Hz
• Sensitivity: 86 dB
• 58 oz. Triple stacked magnets
• Faraday Ring inside the magnet structure
• Includes an aluminum trim ring
• Designed and engineered in the U.S.A
• 1-year SonicElectronix.com warranty

Click Here to read more about the Eclipse SW8010 and the 8000 series of Eclipse subwoofers in our blog!

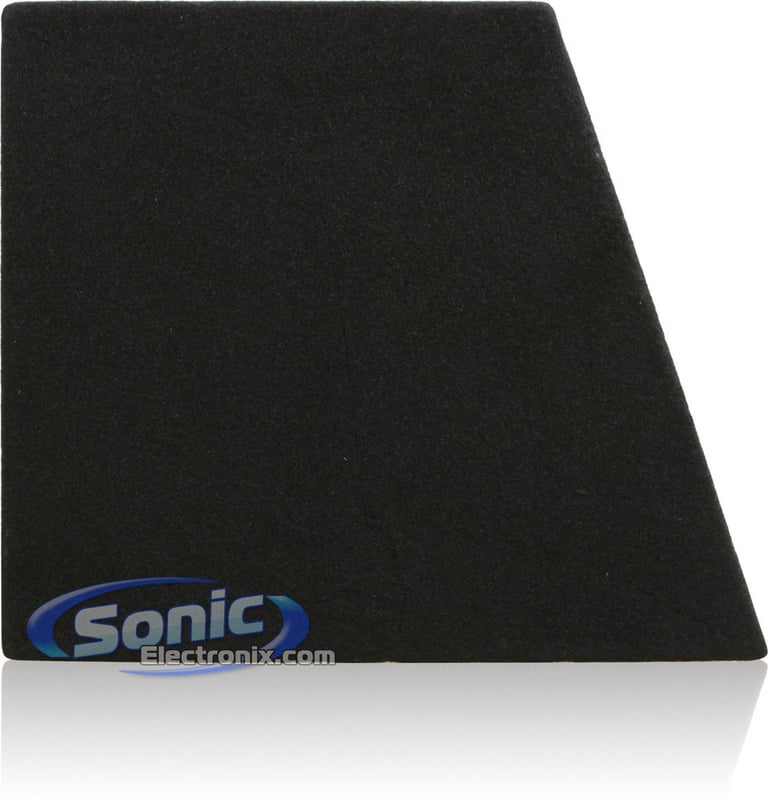

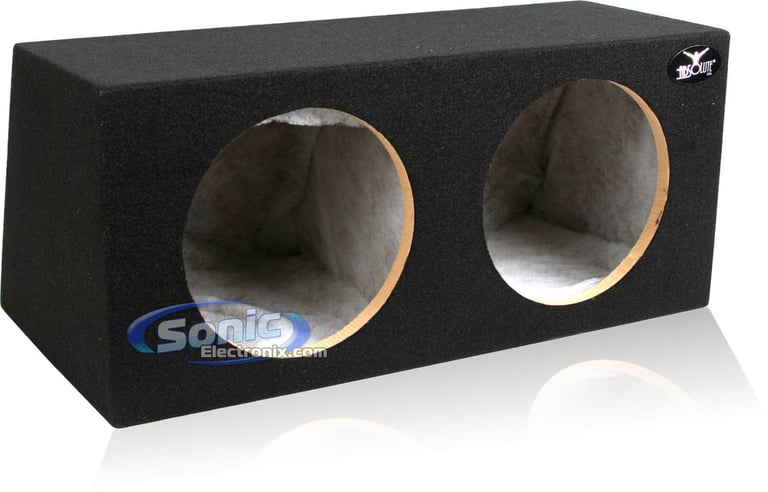

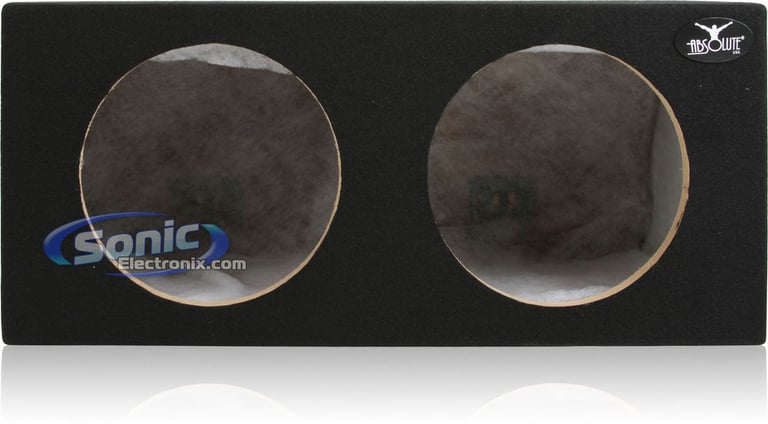

• Dual 10" Universal Sealed Subwoofer Enclosure
• Hold two ten inch subwoofers
• Pre-lined with polyfil for deeper bass

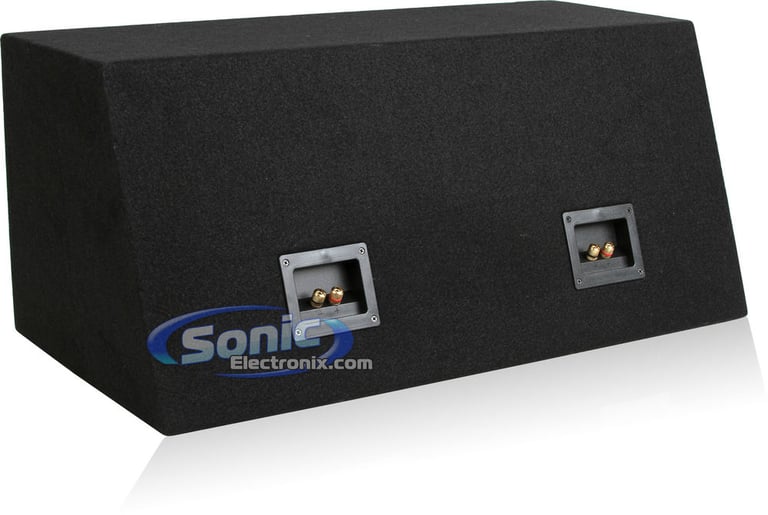

• Two sets of rear binding posts
• Terminals are banana clip ready
• Covered in durable black carpet
• Made from 3/4" MDF (Medium Density Fiberboard)
• Subwoofer mounting depth: 10-1/4"
• Subwoofer cutout diameter: 9-1/4"
• Box volume: 0.78 cubic feet (per chamber)
• Total box volume: 1.56 cubic feet
• Dimensions: 10"TD x 14"BD x 27"W x 12"H
• Authorized Internet Dealer

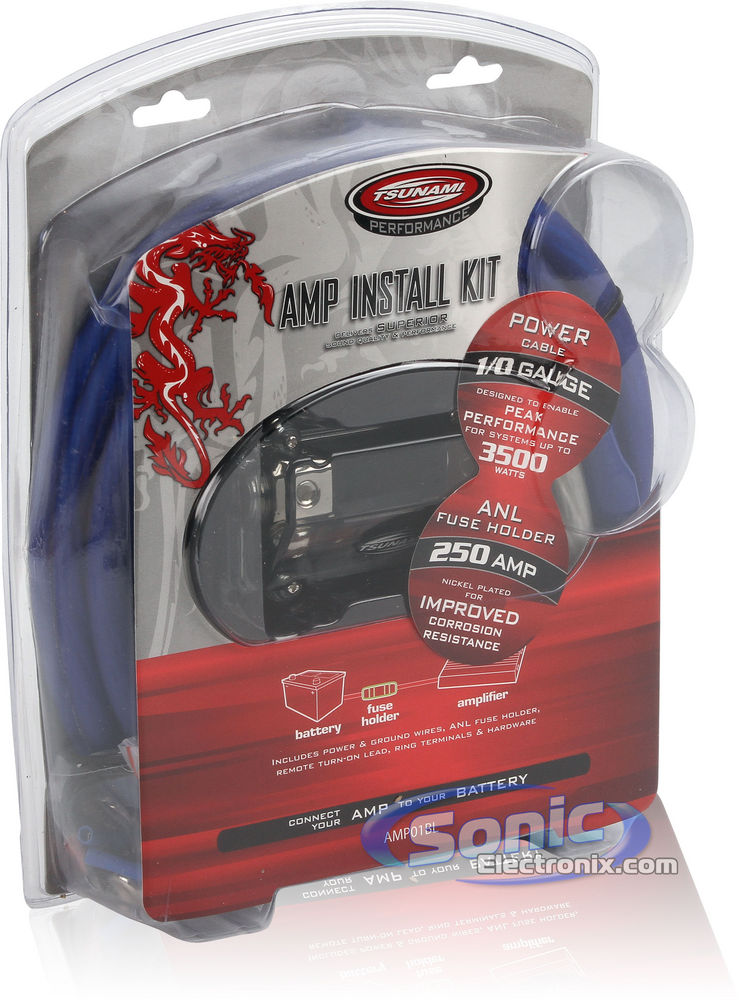

• 1/0 Gauge Performance Amplifier Installation Kit
• Rated for systems up to 3500 watts
• Designed for the connection of a single amplifier
• Kit includes all cables and parts needed for installing a high power amplifier
• Primary power cable has semi-translucent insulation
• Does NOT Include RCA Cables or Speaker Wire
• Fuseholder is clear plastic and wears its fuse to the side of the product
• Authorized Internet Dealer

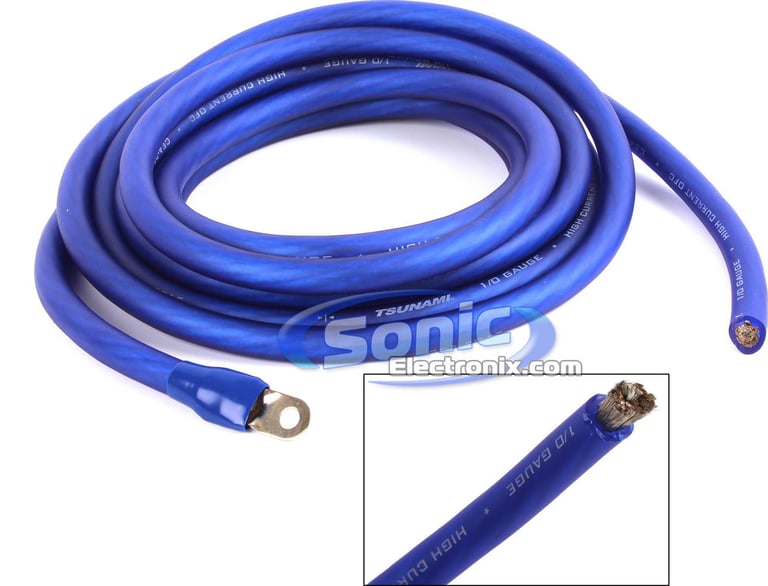

1. 17' 1/0 Gauge Blue Power Cable

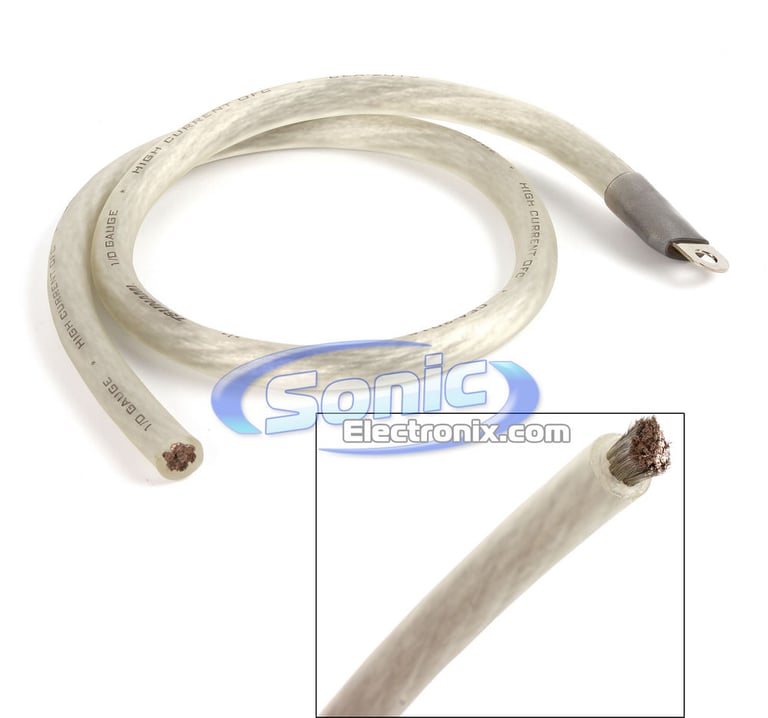

2. 3' 1/0 Gauge Silver Ground Cable

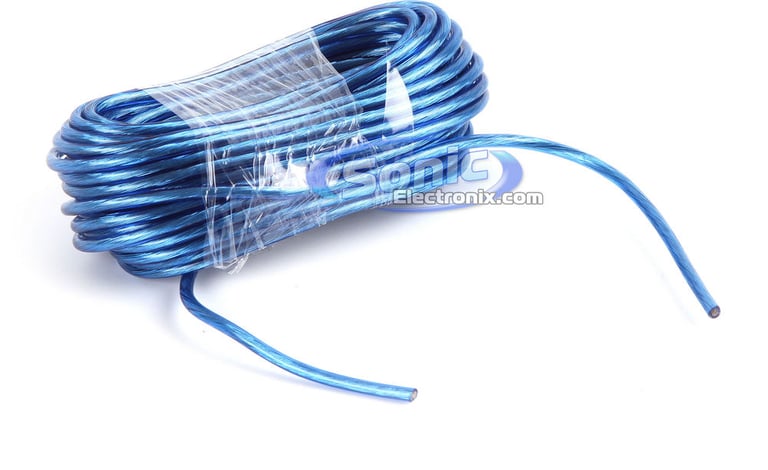

3. 17' 18 Gauge Blue Remote Turn-on Wire

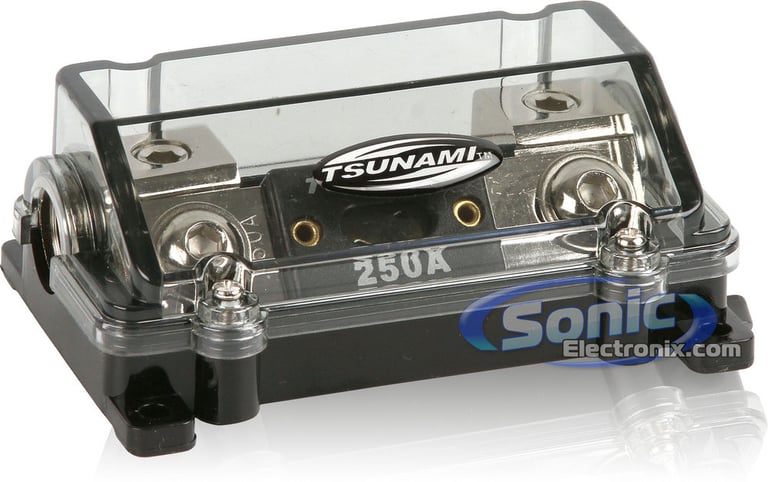

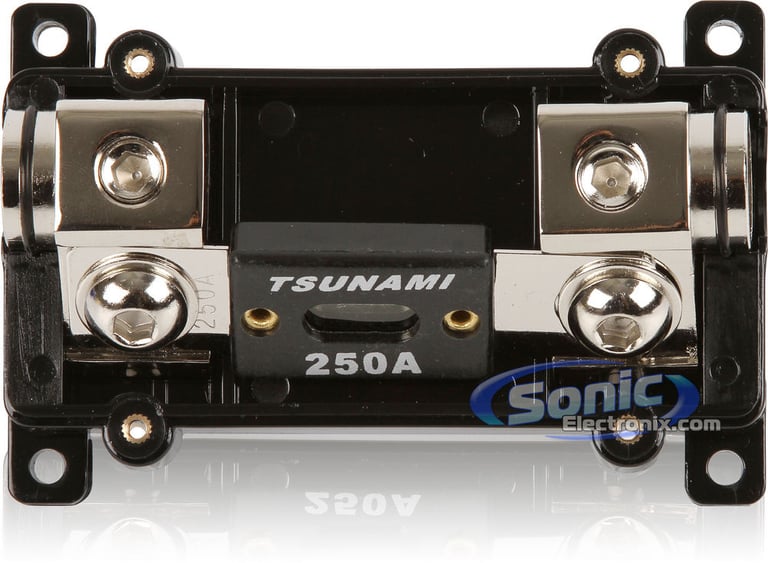

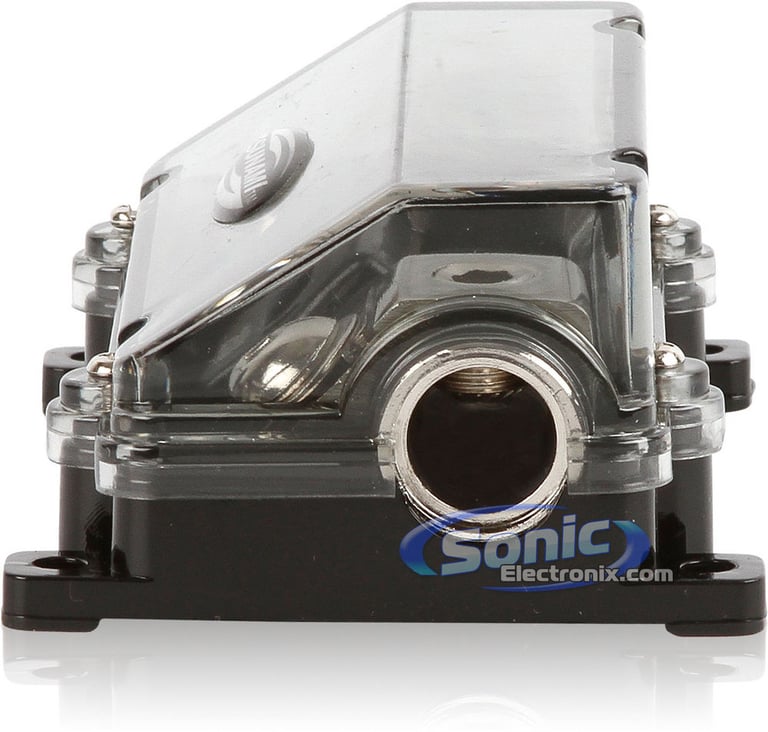

4. 1/0 Gauge 1 Position ANL Fuseholder
5. 250 Amp ANL Fuse
6. Two 1/0 Gauge to 5/16” Nickel-Plated Ring Terminals
7. Blue and Silver Insulators
8. Heavy Duty 1/0 Ga to 5/16” Nickel-Plated Ring Terminal
9. Clear Insulator
10. Heavy Duty Nickel-plated Ground Terminal
11. Ten 6” Cable Ties
12. Six #8 x 3/4” Phillips Nickel-Plated Panhead Screws
13. Two Red Vinyl #10 Nickel-Plated Spade Terminals
14. 2 Blue Vinyl Butt Connectors
15. 1/0 Gauge Snap Grommet
