3600W Complete Kicker + Alpine Bass Package

Kicker 10ZX15001 Amplifier + 2 Alpine SWR-1223D 12" Subwoofers + 1/0 GA Amp Kit + Sealed Enclosure

Alpine
Shop all Alpine
EXCLUSIVE
highlight-star-icon

Bass Package: Kicker 10ZX15001 Monoblock Amplifier + 2 Alpine SWR-1223D 12" Subwoofers + Tsunami 1/0 Gauge Amp Kit + Absolute Dual 12" Sub Enclosure • Includes Everything You Need To Add Bass To Your Car

Learn more about the 10zx15001_2-swr1223d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

51KSC6504 main

Kicker KSC65 (51KSC6504)

400W Peak (200W RMS) 6.5" KS Series 2 Way Coaxial 4-ohm Speakers

5
-13.33%

$129.99

List price $149.99

PRO-X8.4BM main

DS18 PRO-X8.4BM (Sold Individually)

550W Peak (275W RMS) 8” PRO-X Series 4-ohm Mid-Range Loudspeaker

1

Description


Alpine brand icon

Authorized dealer

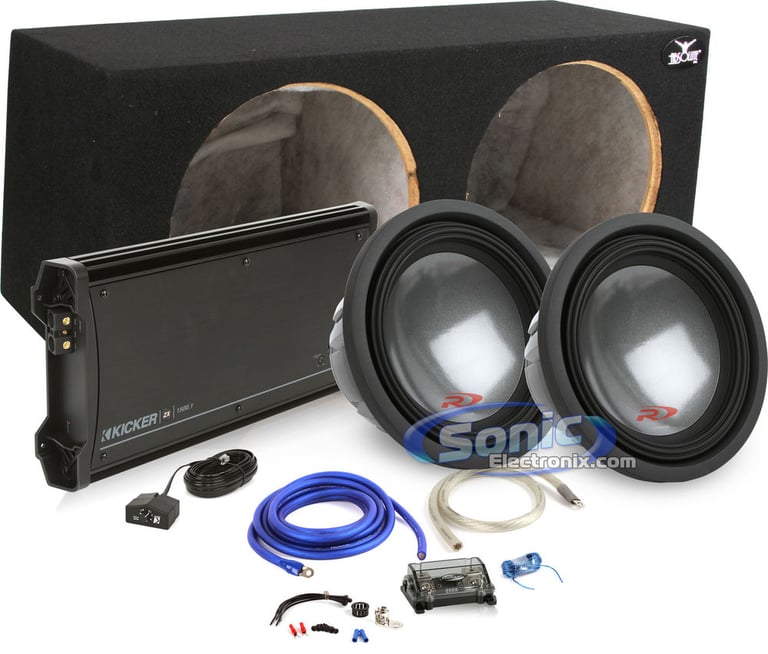

Sonic Electronix Exclusive Bass Package

This combo package includes two Alpine Type-R Series 12" Subwoofers and a Kicker Class D ZX Series Amplifier. This monoblock amplifier is a great match for the 12" subwoofers when wired at 2 ohms. The Alpine subwoofers feature a Kevlar reinforced pulp cone woofer with Injection molded santoprene rubber surrounds and a single-piece cast aluminum frame. The amplifier is a CEA-2006 compliant amp so you can be assured that the power ratings are accurate and not beefed up for marketing purposes. This exclusive package also includes an Absolute sealed dual 12" sub enclosure and a Tsunami 1/0 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

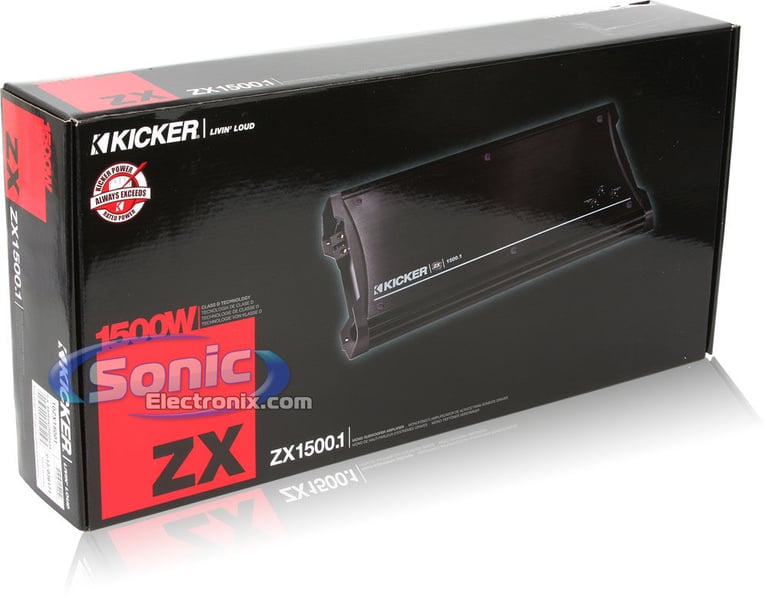

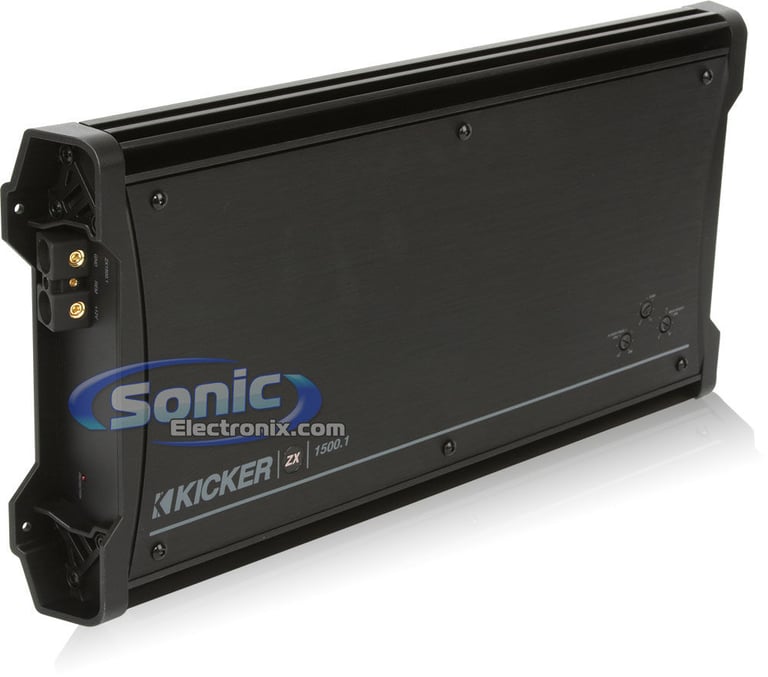

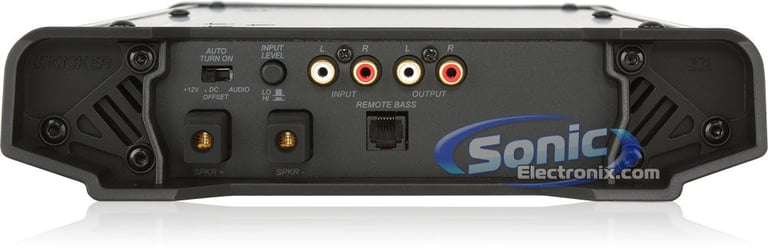

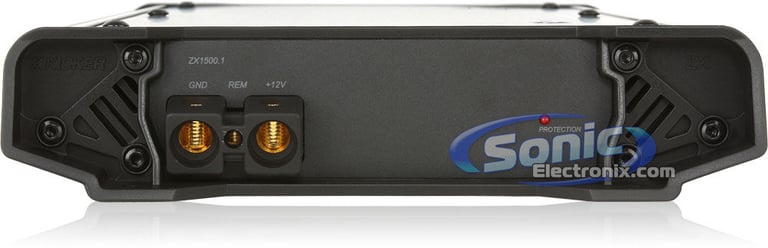

Kicker Amplifier Features
  • ZX Series Class D Monoblock Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 750 watts x 1 chan.
    • 2 ohm: 1500 watts x 1 chan.
  • High efficiency MOSFET power supply
  • LED power and protection indicators

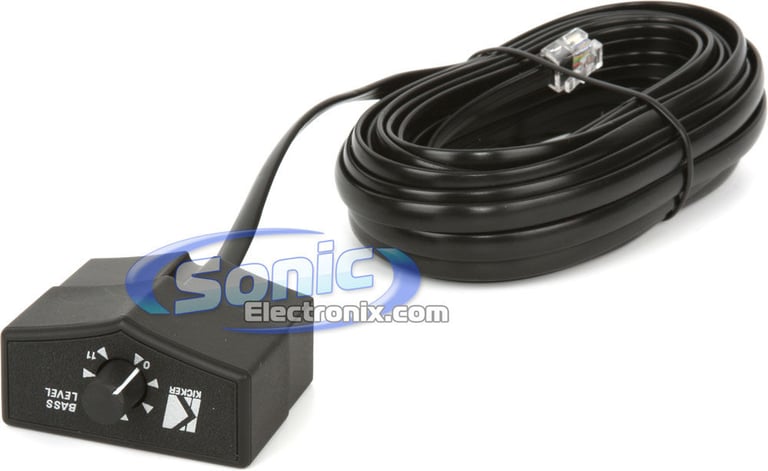

  • Remote bass level included
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Preamp RCA outputs
  • Muting circuit cancels out unwanted noise
  • Boost, gain, and crossover frequencies are top-mounted for easy access
  • Balanced differential inputs for noise elimination and factory-radio compatibility
  • 3 Automatic turn-on modes (remote, DC offset, signal sense)
  • Optional edgy vinyl skins for personalizing heat sinks available
  • Optional Kicker 08ZXEC endcaps are available for all ZX amplifier models
  • High-density convection heat sink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • High-pass subsonic filter (24 dB at 25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 25-200 Hz
  • Dimensions: 20"L x 9-5/8"W x 2-1/8"H

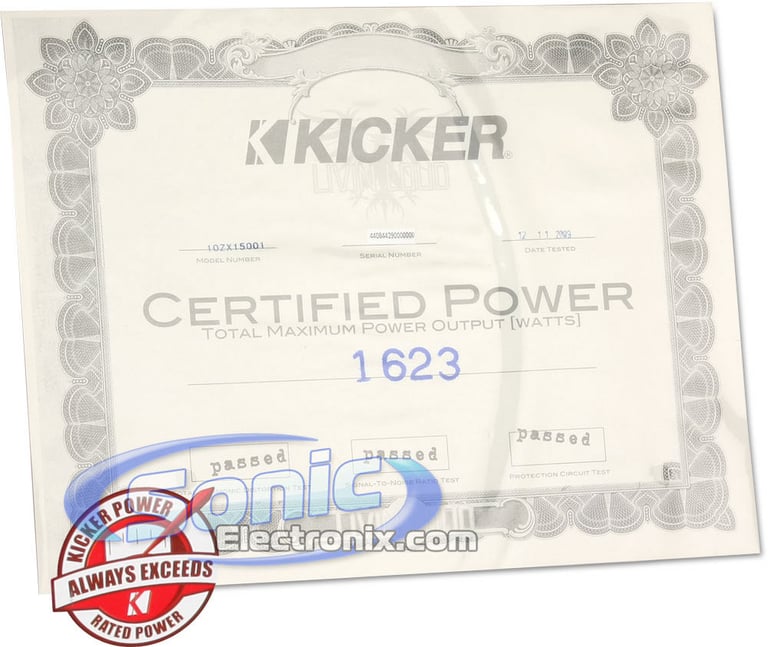

  • Actual power exceeds rated power, documented inside each carton
  • 1/0-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

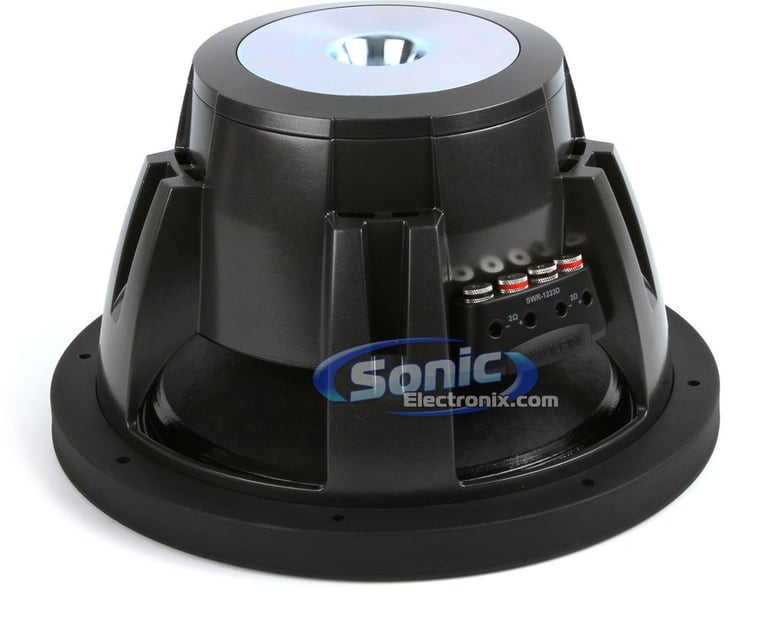

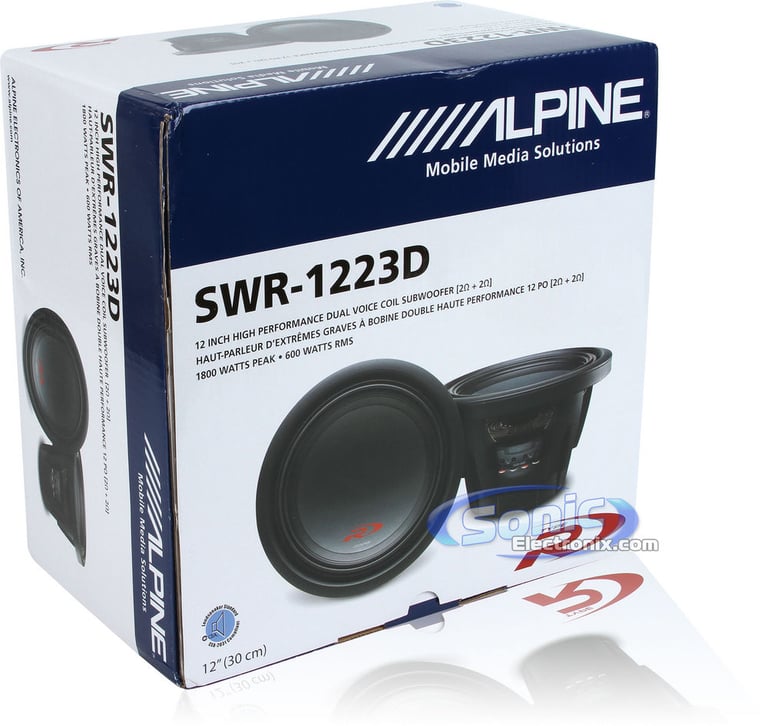

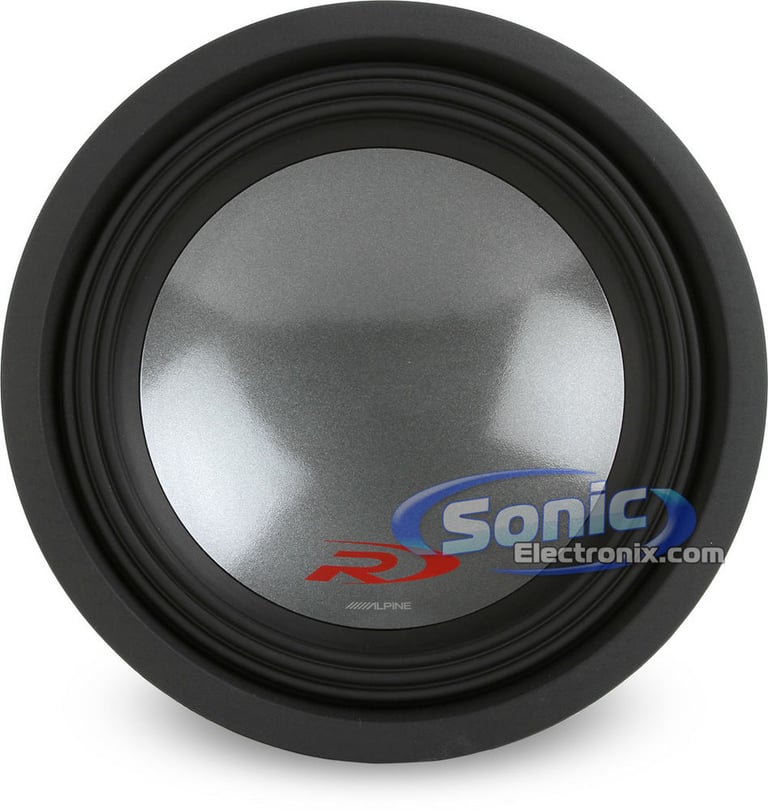

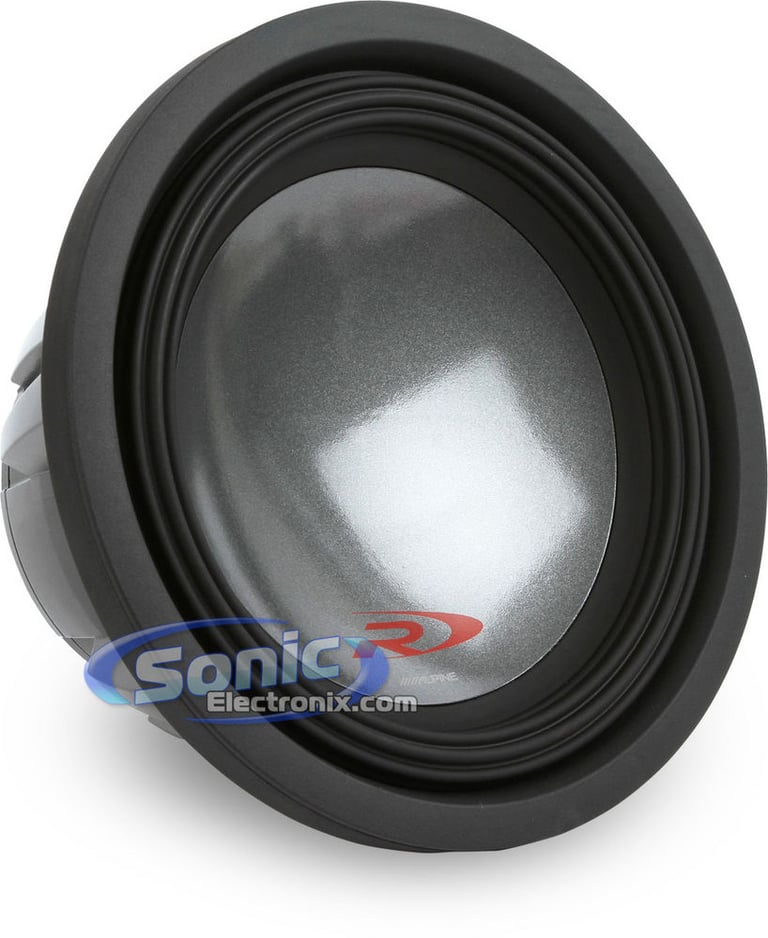

Alpine Subwoofer Features
  • Two 12" Dual 2 ohm Type R Subwoofers
  • Power Handling:
    • Peak: 3600 watts total / 1800 watts each
    • RMS: 1200 watts total / 300-600 watts each
  • Kevlar reinforced pulp cone woofer
  • 2-Piece Structural Parabolic diaphragm design
  • Injection molded Santoprene rubber surround
  • Alpine exclusive High Amplitude Multi-Roll (H.A.M.R) surround for impressive excusrion and clean, accurate bass
  • FEA Optimized progressive NOMEX spider
  • Radial vented VC head sink
  • Concealed mount gasket system
  • Reinforced layer spider integration tinsel leads
  • Oversized 2-1/2" Voice coil
  • 4-Layer dual voice coil design
  • Voice coil made from 180°C high temperature wire on spiral cut aluminum former
  • Single-piece cast aluminum frame with Alpine Patent Pending Airflow Management System for efficient cooling
  • Airflow Management system controls the temperature of the voice coil by directing the air across the heatsink

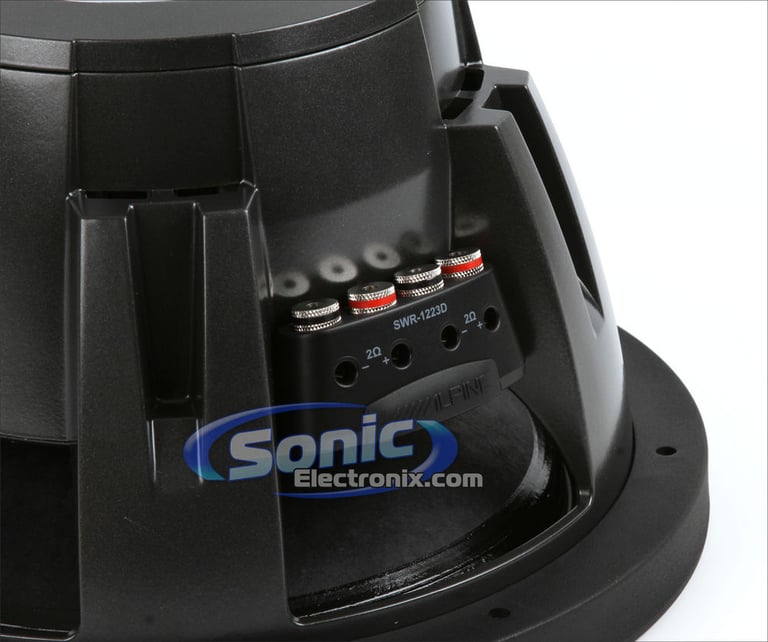

  • One sided push terminals make installation and wiring fast and simple
  • Each terminal accepts up to 8 AWG wire for high power signal transfer
  • Concealed gasket mounting system hides the screw holes and makes for a clean install
  • Integrated grill technology allows for a seamless installation of a grill
  • US Patented Compound Radius Curve (CRC) design with integrated short sleeve configuration
  • CRC Machined motor structure creates a symmetrical magnetic field for less distortion and improves power handling
  • High-power, double-stacked strontium magnet structure
  • Newly redesigned for a 20% depth reduction
  • Frequency response: 24-200 Hz
  • Sensitivity: 83 dB
  • 1-year Sonic Electronix warranty

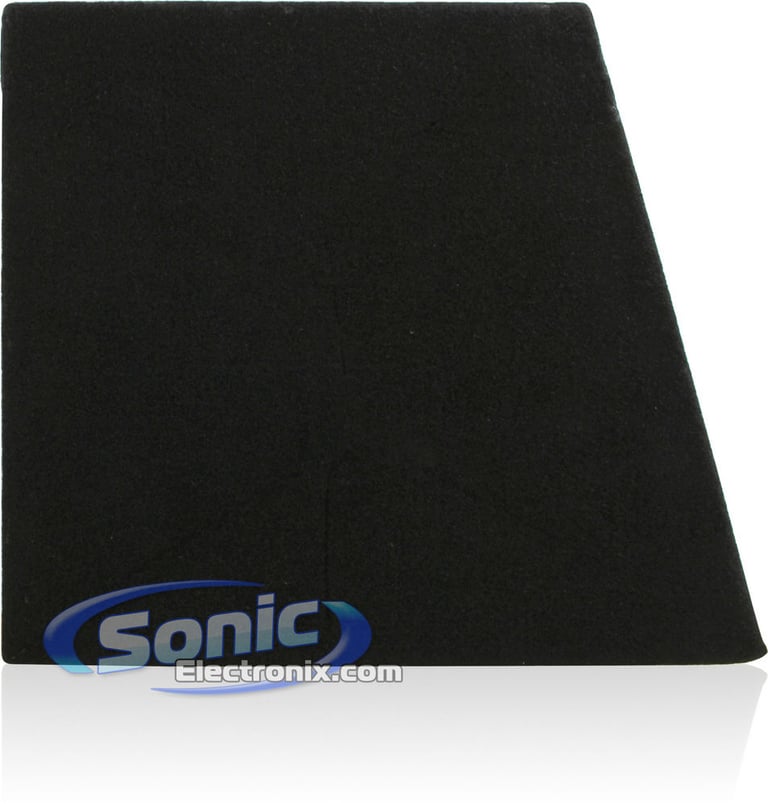

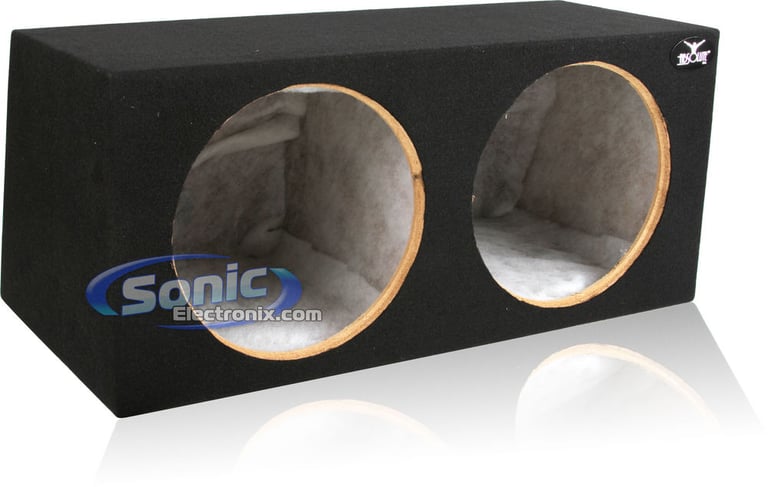

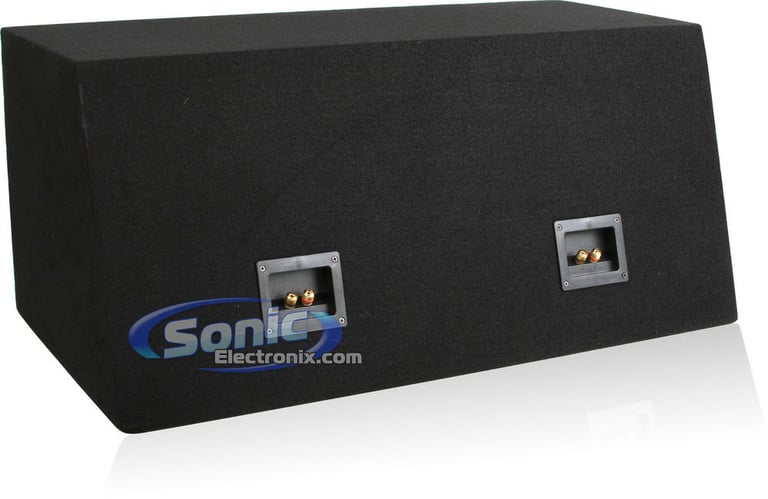

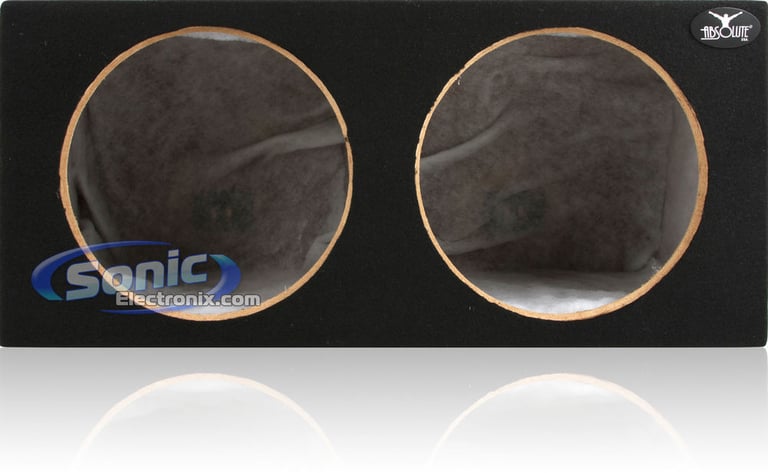

Absolute Subwoofer Enclosure Features
  • 12" Dual Universal Sealed Enclosure
  • Covered in black carpet for durability

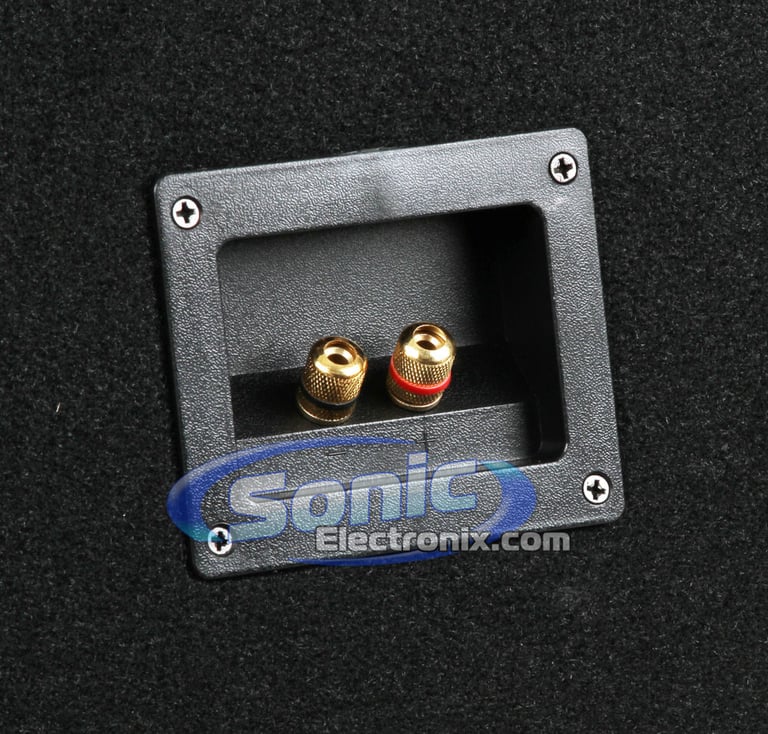

  • Two sets of binding posts
  • Banana clip ready for easy wiring
  • Two sealed chambers gives each subwoofer its own air space
  • 3/4" MDF(Medium Density Fiberboard) construction
  • Subwoofer mounting depth: 12-1/4"
  • Subwoofer cutout diameter: 11-1/4"
  • Box volume: 1.15 cubic feet (per chamber)
  • Total box volume: 2.29 cubic feet
  • Dimensions: 12"TD x 15-3/4"BD x 30"W x 13-1/2"H
  • Authorized Internet Dealer

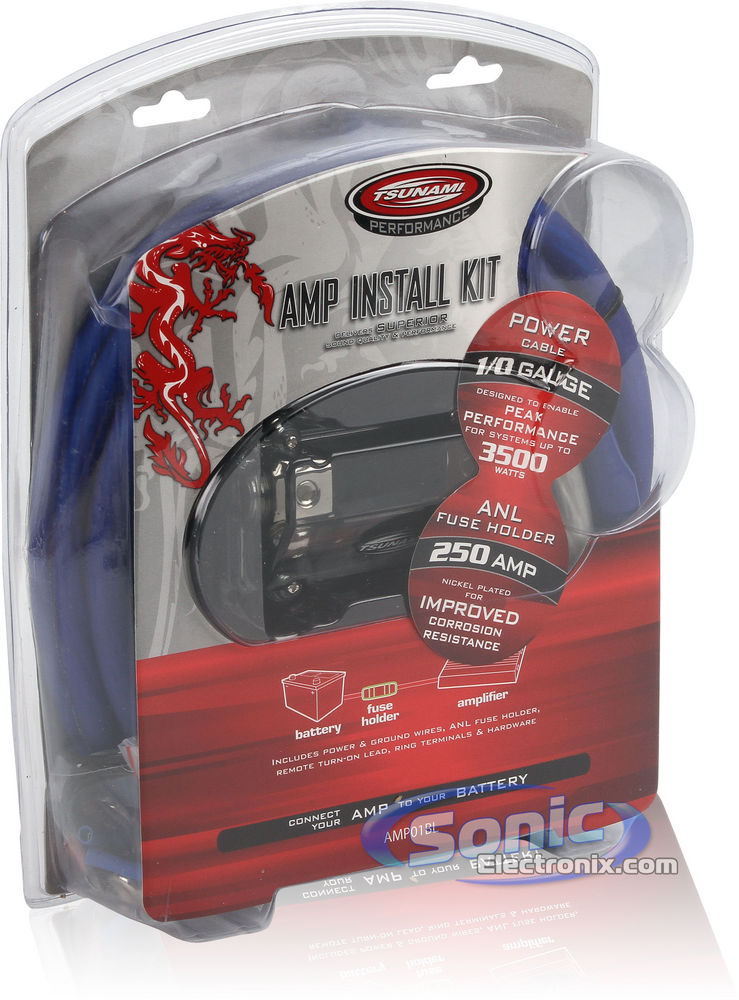

Tsunami Amplifier Kit Features
  • 1/0 Gauge Performance Amplifier Installation Kit
  • Rated for systems up to 3500 watts
  • Designed for the connection of a single amplifier
  • Kit includes all cables and parts needed for installing a high power amplifier
  • Primary power cable has semi-translucent insulation
  • Fuseholder is clear plastic and wears its fuse to the side of the product
  • Authorized Internet Dealer

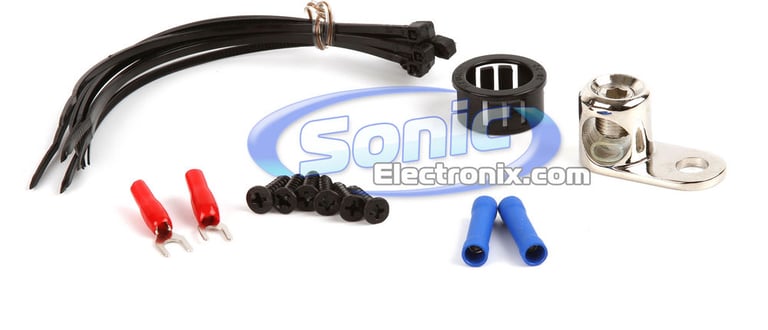

Amp Kit Includes:

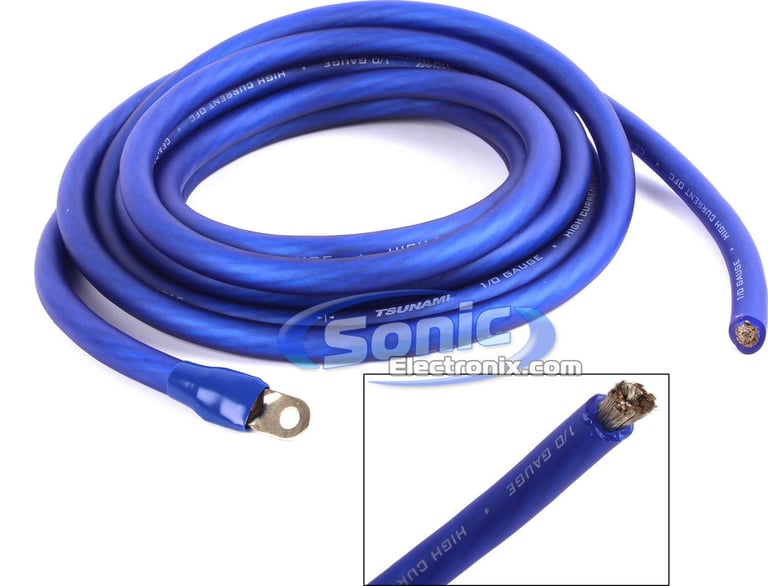

  1. 17' 1/0 Gauge Blue Power Cable

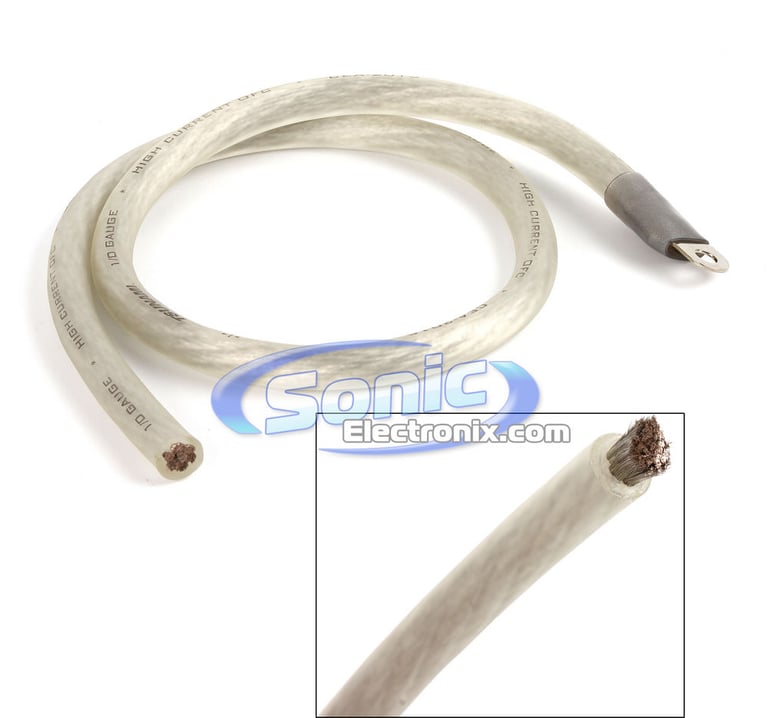

  2. 3' 1/0 Gauge Silver Ground Cable

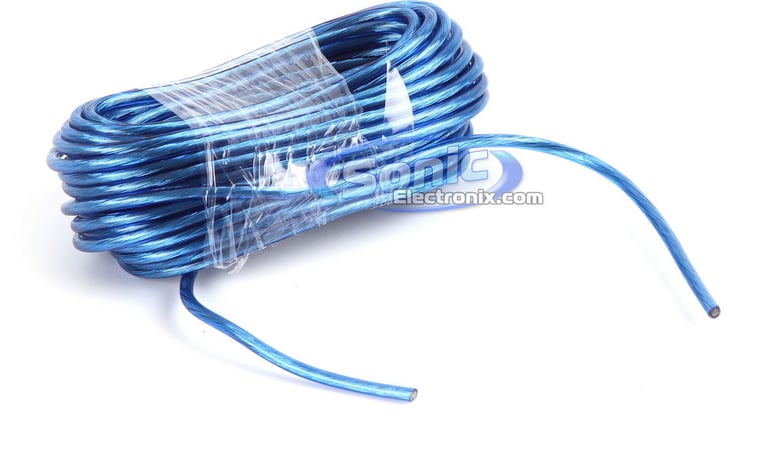

  3. 17' 18 Gauge Blue Remote Turn-on Wire

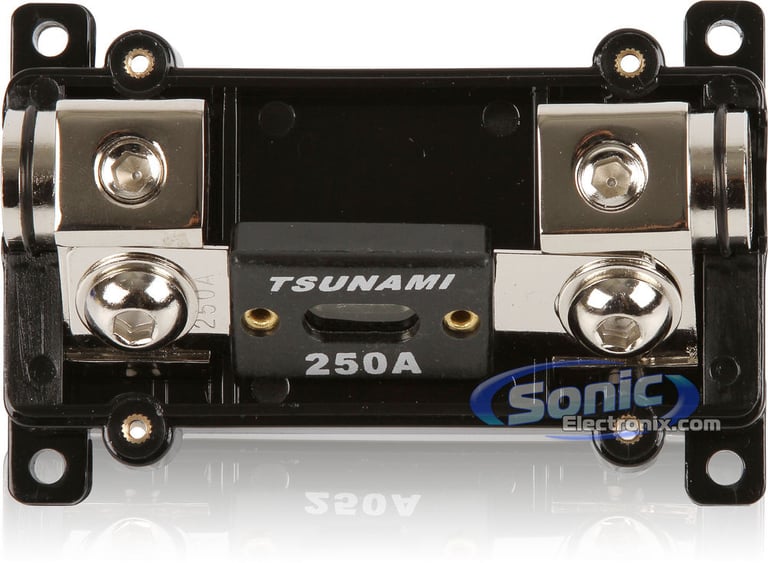

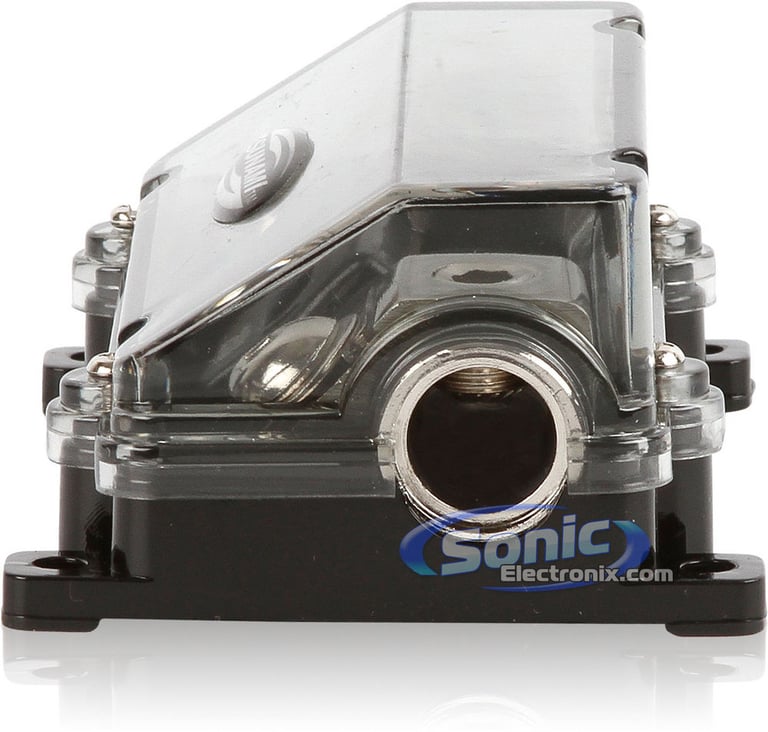

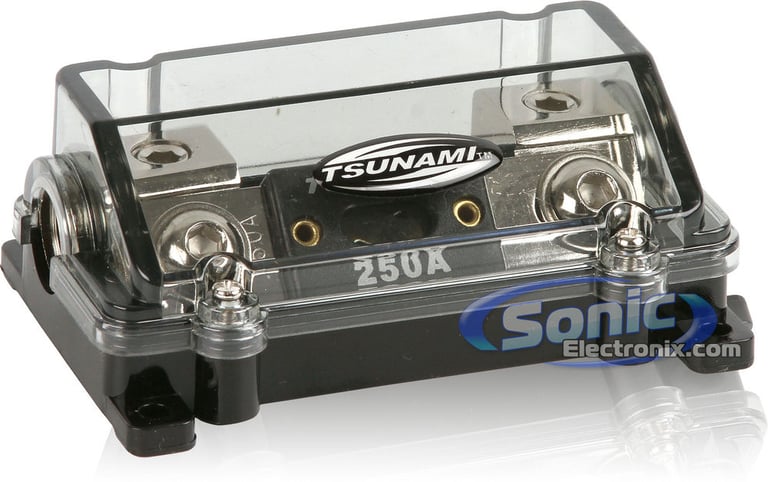

  4. 1/0 Gauge 1 Position ANL Fuseholder
  5. 250 Amp ANL Fuse
  6. Two 1/0 Gauge to 5/16” Nickel-Plated Ring Terminals
  7. Blue and Silver Insulators
  8. Heavy Duty 1/0 Ga to 5/16” Nickel-Plated Ring Terminal
  9. Clear Insulator
  10. Heavy Duty Nickel-plated Ground Terminal
  11. Ten 6” Cable Ties
  12. Six #8 x 3/4” Phillips Nickel-Plated Panhead Screws
  13. Two Red Vinyl #10 Nickel-Plated Spade Terminals
  14. 2 Blue Vinyl Butt Connectors
  15. 1/0 Gauge Snap Grommet

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
2 AWG
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
150A x 1
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
600 watts
Total RMS Power Handling
1200 watts
Peak Power Handling
1800 watts
Total Peak Power Handling
3600 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Kevlar Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
85 dB
Frequency Response
23 - 400 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
13-1/2"
Width
30"
Depth
12"
Second Width
15-3/4"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10ZX1500.1_2-SWR-1223D

Weight:

113.20lbs

Internal SKU:

10zx15001_2-swr1223d

Internal Product ID:

29666

Customer Ratings & Reviews


3600W Complete Kicker + Alpine Bass Package thumbnail image

5 star
80%
4 star
13%
3 star
5%
2 star
2%
1 star
0%



Durability
4.7
Value
4.7
Features
4.6
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great!

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

These things have some power. No doubt the best I've heard. The neighbors get so mad, even people driving next to me. I have mine wired at 2 ohms hooked to a power acoustik 3000 watt amp. I'm sure the amp isn't pushing 3000 watts all the time, but the subs still get insane power, and have great power handling.

By Tony on March 1, 2011

24 found this helpful


Love It......

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

Installed in a 2004 Dodge Stratus, i have 2 hooked up to a SPL 4000 Watt Amp and placed in a Sonic Sub Box: 2SSV12 (Gray). My very first sound system and i am very satisfied. Guarantee it you wont be disappointed, believe me.

By Quan on July 17, 2011

23 found this helpful


12 alpyne type r

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

I have strong woofer sounds excellent February 12 type r in my jetta and paste db 149.80

By jesus on July 3, 2011

23 found this helpful


hits hard and is durable

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

I have two in a ported box running at 400watts each. Wired to 2 ohms. They slam. They don't have much distortion. I got them 6 months ago and held up great. I got an alpine 15 type-r and need to install it. All I have is Alpine in my car. Also 4 spr-60c component speakers from alpine. I'm running them at 50 watts each and they're great. I'm going to run them at 100 watts each soon since they're rated 110 rms. Anyway alpine is awesome and the way to go. With just those 2 swr 1223d's I've gotten pulled over for shaking a cop's windows while I was at a red light and he was over in a parkinglot about a block away.

By ryan on February 21, 2012

22 found this helpful


bbb

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

I have two of these running on a hifonics brutus 1700 rms at 2 ohms it hits pretty hard. hitting 141 db there alright for now.

By Matthew on December 2, 2011

23 found this helpful


amazing

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

I have 2 of these hooked up to a Rockford 1000W class D amp in a dual slot ported box. this thing hits hard. Sounds alot better than my old L7s in terms of SQ. Lows are clear and makes everything around me shake. I would deff. recommend to anyone wanting an amazing set of subs for a great price!! Shipping took only 6 days. I will deff. buy from Sonic Electronix again!!

By combatmedic on November 16, 2010

23 found this helpful


love

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

I love these sub for the price you cant beat it.

By Thomas on January 3, 2013

22 found this helpful


Insanely loud

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

These subs hit extremely hard!!! I have a hifonics 1000wD.1 amp and these mithas hit so hard you can feel the air coming out of the trunk with the seat dowm plus my ears hurt!!!

By Jeffro on February 23, 2012

22 found this helpful


Alpine type r

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

I had 2 Kicker CVR 12 that hit hard and I decided to buy a pair of 12 inch Alpine Type R and ran them to the same amp a Rockford Fosgate Prime 500 and me and all my friends could tell the diffrence right off the bat a more cleaner deeper bass. I recommended them to all of my friends.

By David on March 8, 2011

22 found this helpful


The things rock

The following review is for SWR-1223D, which is a part of the bundle you are viewing.

They kick ass. Plain and simple. They're not too pushy, they're there when you need 'em, and they continue to blow my mind when I least expect it. If you're considering doing it, do it, you'll be glad you did.

By Nick on October 26, 2011

21 found this helpful




FZCFX16 small

Odyssey FZCFX16

Flight Ready ATA Mackie CFX16MK2 DJ Mixer Case with Steel Ball Corners

$159.99

List price $219.99

FZEMX500020 small

Odyssey FZEMX500020

Heavy Duty Flight Ready ATA Yamaha EMX5000 20 Channel DJ Mixer Case with Chrome Plated Hardware

$229.99

List price $319.99

SPHERION TRI LED small

American DJ SPHERION TRI LED

High Powered DMX Rotating LED Ball with 3 Watt RGB LED Source

$299.99

List price $419.99

FRGSDNMC36000 small

Odyssey FRGSDNMC36000

Flight Ready Glide Style DJ Case for either a Denon DNS-3000 and DNS-6000 DJ MIDI Controller

$199.99

List price $279.99

COLORsplash LED-PAR200B small

Chauvet COLORsplash LED-PAR200B (Black)

6-Channel DMX-512 LED Par Can Wash Light with Built-In Sound Activated Programs

$149.99

List price $214.99

HEW8D2 small

Hifonics Elite 8" (HEW8D2)

1200W Peak (600W RMS) 8" Hifonics Elite Series Dual 2-ohm Subwoofer

$169.00

List price $169.00

FRDNX1200BKRED small

Odyssey FRDNX1200BKRED (Red on Black)

Designer DJ Series DJ Mixer Case with Black Powder Coated & Anodized Hardware

$229.99

List price $319.99

ACCU UFO PRO small

American DJ ACCU UFO PRO

High Powered Rotating DMX Classic Center Piece Saucer Effect with 32 LEDs

(2)

$849.00

List price $1399.99

2-KFC-W112S_CPT2-900 small

1600W Kenwood + Power Acoustik Complete Bass Package

Pair of 12" Kenwood KFC-W112S KFC Series Subs + Power Acoustik CPT2-900 Amplifier + Kit + Enclosure

$156.61

List price $509.86

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2024 Subaru Outback

1999 Toyota Corolla

2023 GMC Acadia

1994 Porsche 968

2008 BMW 335i

1989 Dodge Omni

2011 Ram 1500

1996 Chevrolet Astro

2020 Chevrolet Impala

1977 Chevrolet Impala

Vehicle
Store
Delete

2018 Can-Am Defender MAX HD10 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
