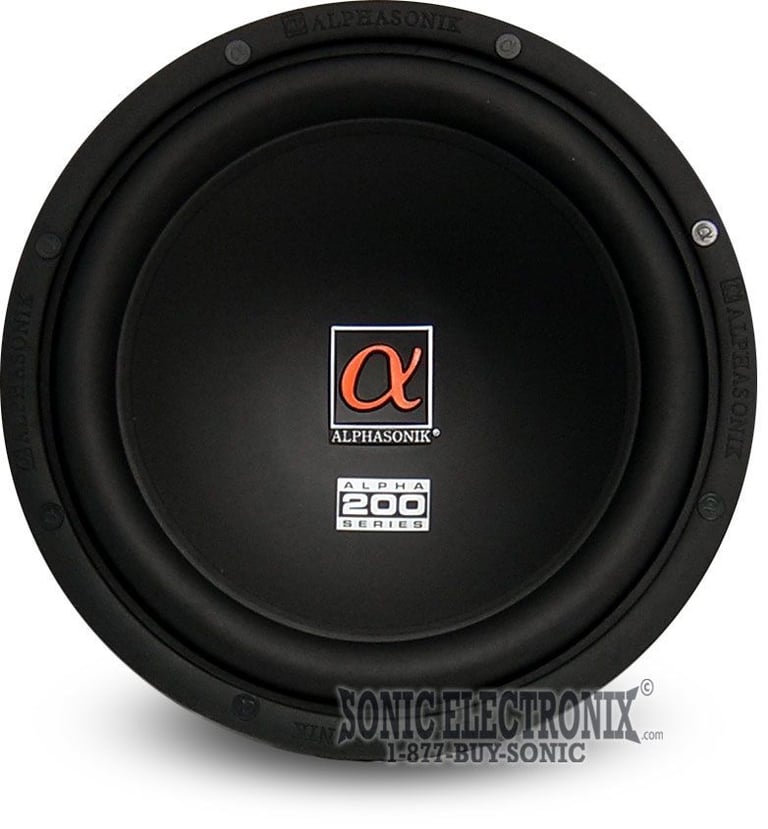

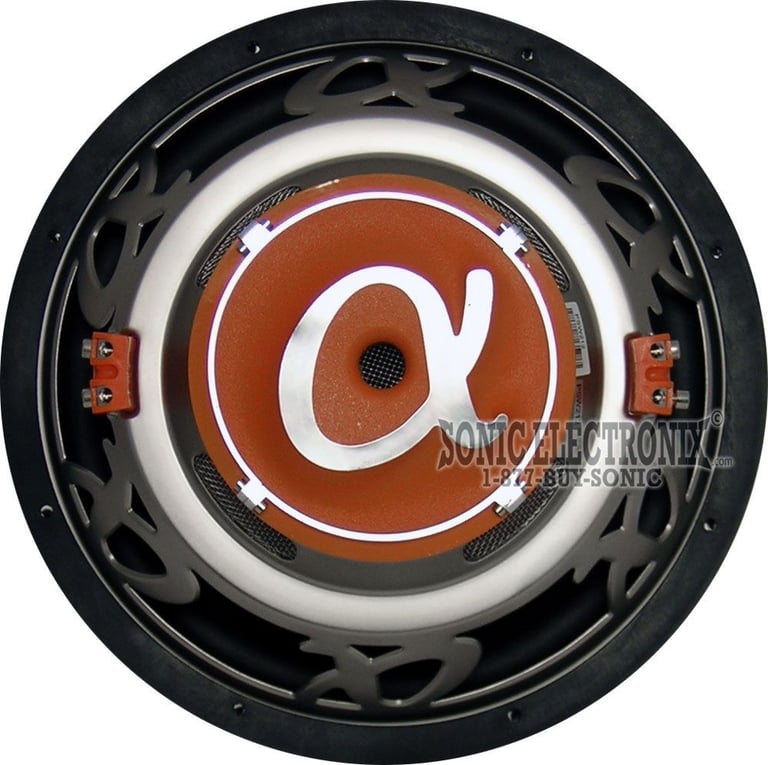

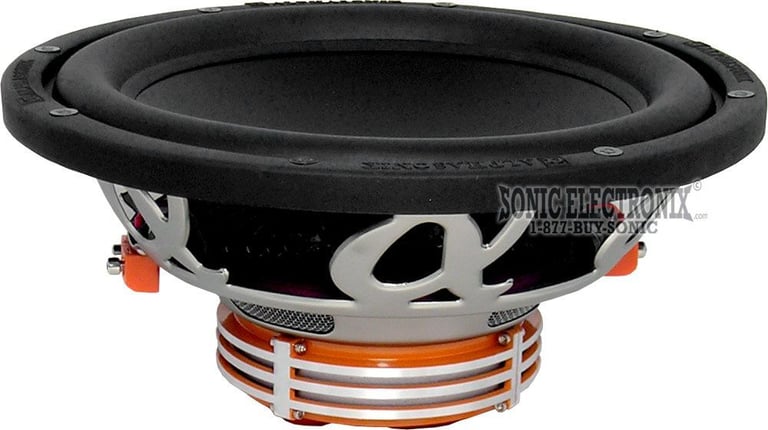

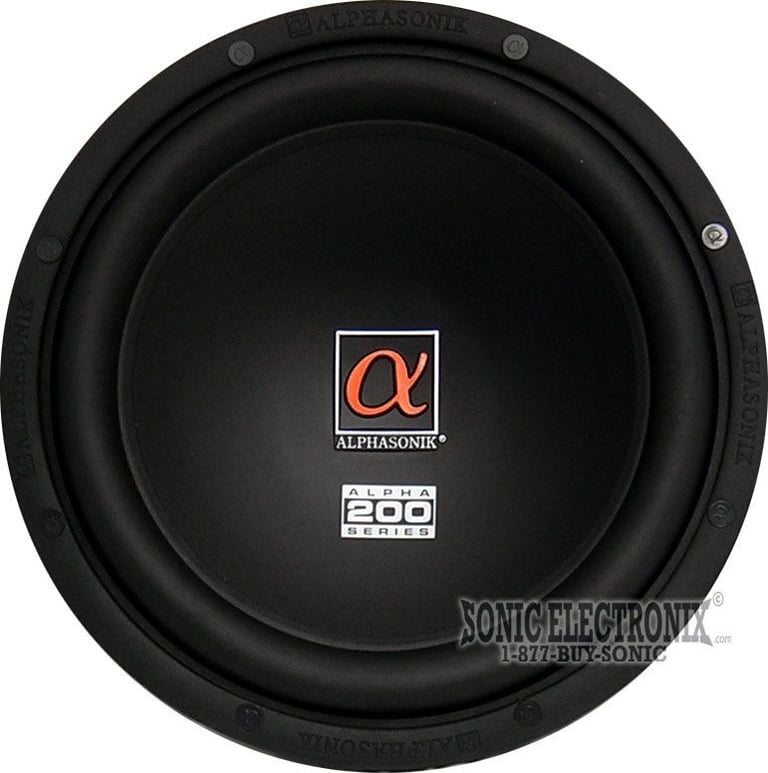

Alphasonik PSW212 12"

Alphasonik
Shop all Alphasonik
Product videos
highlight-star-icon

12" Alpha 200 Series Subwoofer • 400W RMS • Dual 4 Ohm • EPDM Rubber Surround • High Rigidity Inverted Dome Mineral-Filled Composite Cone • Stamped Steel "Alpha" Basket

Learn more about the psw212

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Product Highlights


12" Alpha 200 Series Subwoofer • 400W RMS • Dual 4 Ohm • EPDM Rubber Surround • High Rigidity Inverted Dome Mineral-Filled Composite Cone • Stamped Steel "Alpha" Basket

Description


  • 12" ALPHA 200 SERIES SUBWOOFER
  • Proprietary Heavy Gauge Stamped Steel "Alpha" Basket
  • Proprietary Cooling Rings for Motor Assembly (Patent Pending)
  • High Rigidity Inverted Dome Mineral-Filled Composite Cone
  • EPDM Surround for Enhanced Control at Extreme Temperatures
  • Flat Progressive Rate Nomex® Damper w/ Spiral-Woven Leads
  • 30 oz. Double Stack Magnet
  • Rated at 400 Watts RMS
  • 90dB Efficiency
  • Frequency Response of 25Hz to 500Hz
  • Dual 4 ohm 2" Voice Coils
  • 8-Gauge Lug-Lock Input Terminals
  • Mounting Dimensions — Depth: 106mm / 4-1/4"
  • Through Hole: 184mm / 7-5/16" Diameter: 218mm / 8-9/16"
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alphasonik PSW212 12" Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alphasonik PSW212 12" Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alphasonik PSW212 12" Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alphasonik PSW212 12" Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
