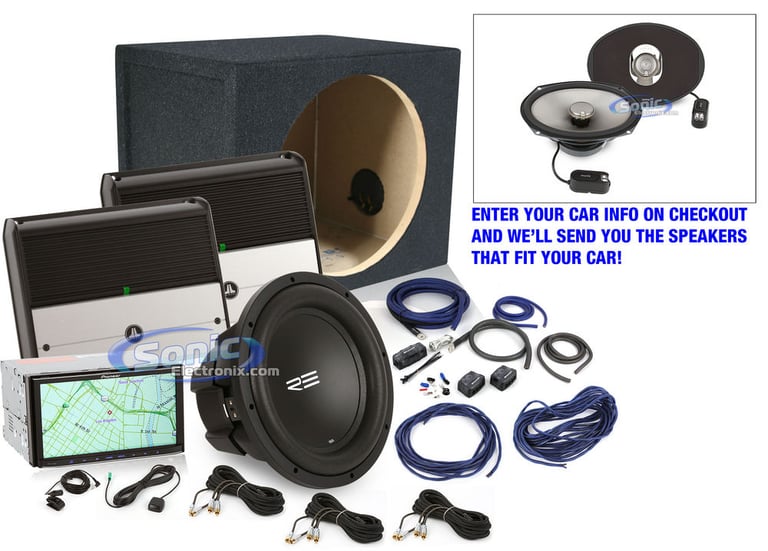

All-Inclusive GPS/DVD Navigation w/ Pioneer, Infinity, JL Audio, and RE Audio

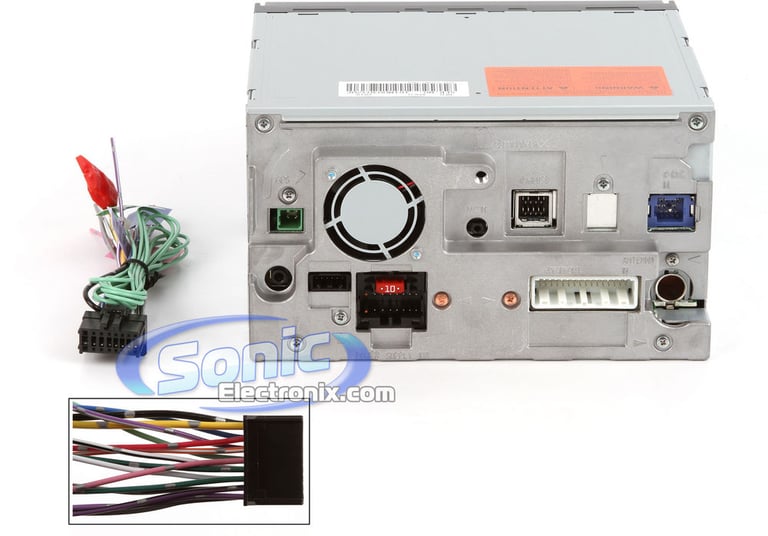

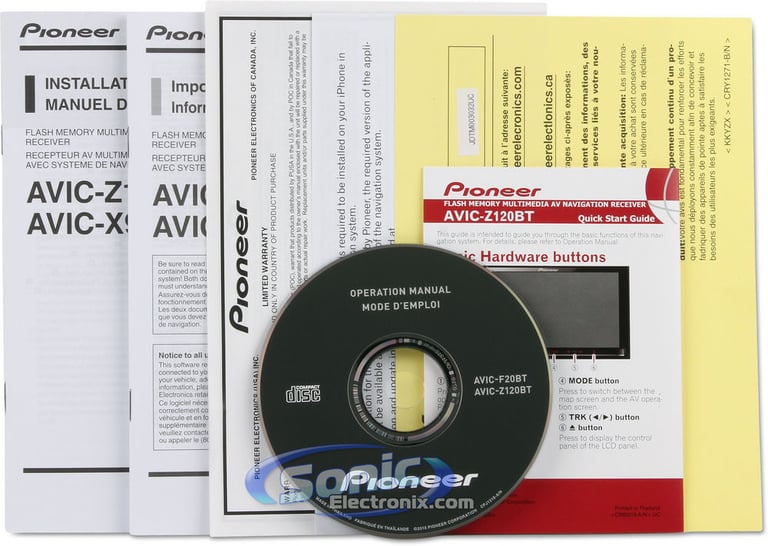

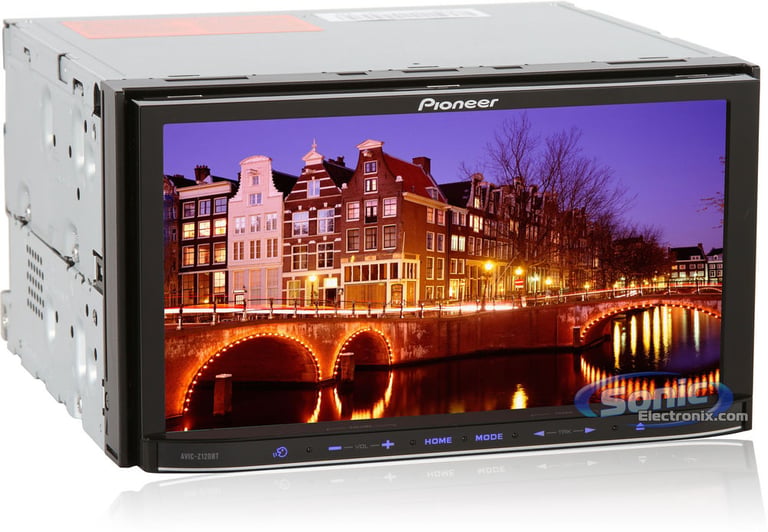

Car Stereo & GPS: Pioneer AVIC-Z120BT

• Double DIN Touchscreen Monitor with SD/USB Input, GPS Navigation, and Bluetooth
• 7-inch WVGA hi-resolution touch screen display
• TFT Active matrix driving with LED backlight
• 16:9 Aspect ratio for bigger picture and exceptional presence and atmosphere
• 800 x 480 Resolution for a total of 384,000 pixels
• CEA-2006 compliant amplifier
• Power Output (14.4V):
  • Peak: 50 watts x 4 channels
  • RMS: 22 watts x 4 channels (Pioneer Certified)
  • RMS: 14 watts x 4 channels (CEA Certified)
• Conversational Voice Control voice-recognition software
• 32,767 variable color illumination with 10 color presets

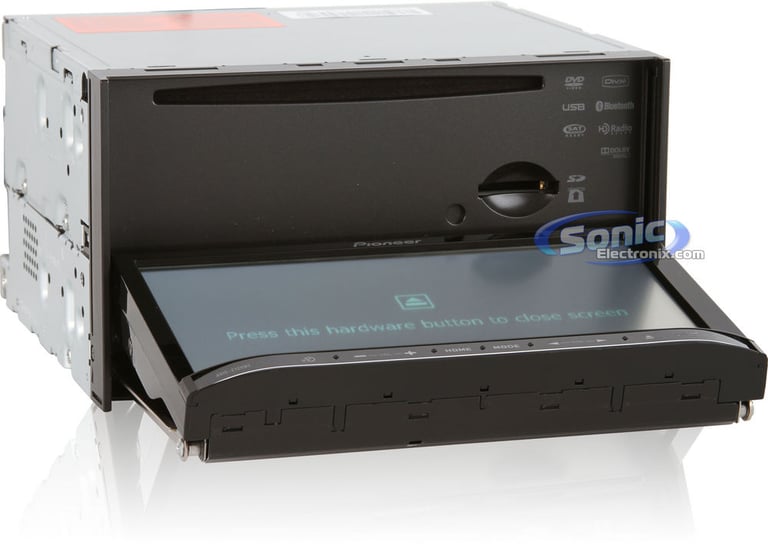

• Motorized display faceplate reveals CD/DVD drive and SD card slot
• 3D animation makes the user interface a completely new, easy to use and intuitive in-car experience
• Customizable home menu with 15 drag and drop function icons for easy one-touch access
• Improved ABC Search and dual-speed scroll for List Searches
• Intuitive touch slide control is utilized for audio/video source selection
• Dynamic interface shortcuts for all built-in or connected media sources
• ECO Driving function records drivers impact on the environment
• AVIC FEEDS PC software can estimate the fuel cost of trip routes as well as the vehicle’s CO2 emissions through detailed Drive Reports
• MusicSphere technology allows users to create unique mood-based playlists via iTunes for their iPod
• Song info and album art appear on the screen
• Use voice commands to search for music by artist, album, genre, and playlist
• Supports Pandora Radio streaming with a unique custom interface through an iPhone or iTouch
• Dual Zone audio and video controls allows the front and rear zones to utilize different AV sources at the same time
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• 1-year Sonicelectronix.com warranty

• Playback of CD, CD-R, CD-RW, CD-DA, DVD, DVD-R, DVD-R DL, DVD-RW, DivX, MP3, WMA, AAC, WMV, MPEG4, JPEG and H.264
• Playback of Region 1 DVD discs
• Automatic down-mix of Dolby Digital signals
• Advanced Sound Retriever to restore your compressed media to near CD quality
• Supertuner® IIID advanced analog and digital processing for smoother broadcast signal reception
• 24-bit digital-to-analog converter
• 18FM station presets as well as 6AM presets
• Two-Way Crossover with separate High and Low Pass settings
• 7-Band graphic equalizer with frequency filters
• 7-Preset equalizer curves (Powerful, Natural, Vocal, Flat, Custom 1, Custom 2 and Super Bass)
• Bands can be adjusted in band-specific steps from +6 to -4, or -6
• 3-Level selectable loudness control
• 6-Level selectable bass boost control

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

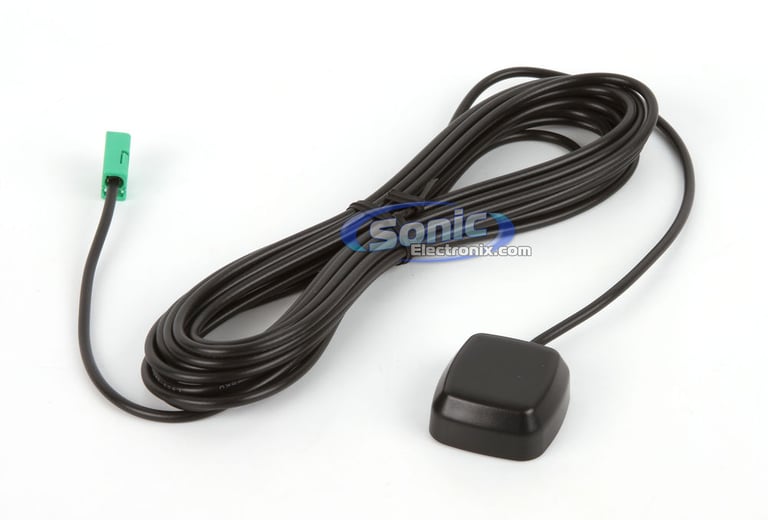

• Navigation: Built-in flash based TeleAtlas navigation with 12 million points of interest
• SIRIUS or XM Satellite Radio ready: SIRIUS Satellite Radio Solution Package or Pioneer GEX-P920XM and subscription required and sold separately
• HD Radio Ready: Pioneer GEX-P20HD tuner and antenna required and sold separately
• MSN Direct Ready: Provides real time traffic, local gas prices, movies times, etc. with purchase of subscription and Pioneer ND-MDT10
• Built-in Bluetooth: Parrot Bluetooth with A2DP and AVRCP audio streaming for hands free phone calls and music playback
• iPod/iPhone Ready: Use voice commands to search for music by artist, album, genre, and playlist, Pioneer CD-IU50V required and sold separately
• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Front Panel SD Card Input: 16GB capacity with support for FAT16 and FAT32 file systems for playback of audio, video, and picture files

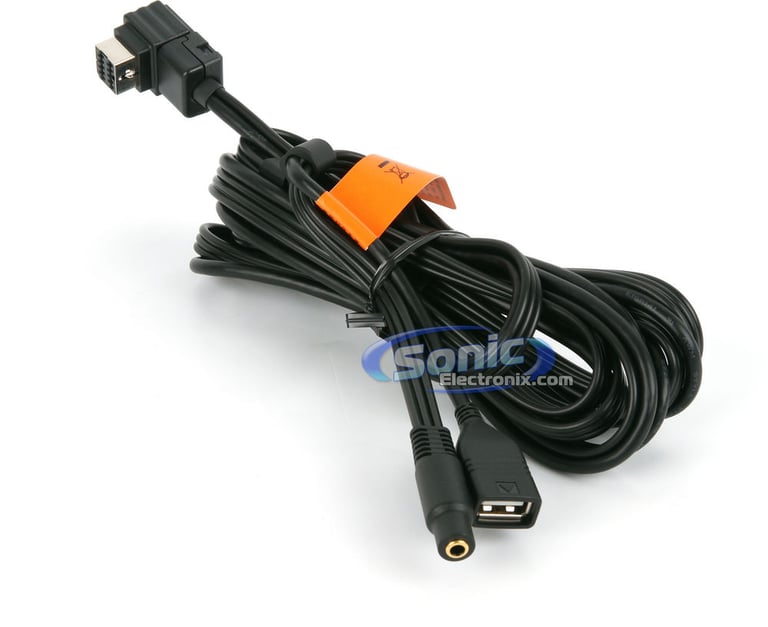

• Rear USB input: Supports Fat16 or FAT32 system USB devices for playback of audio, video, and picture files

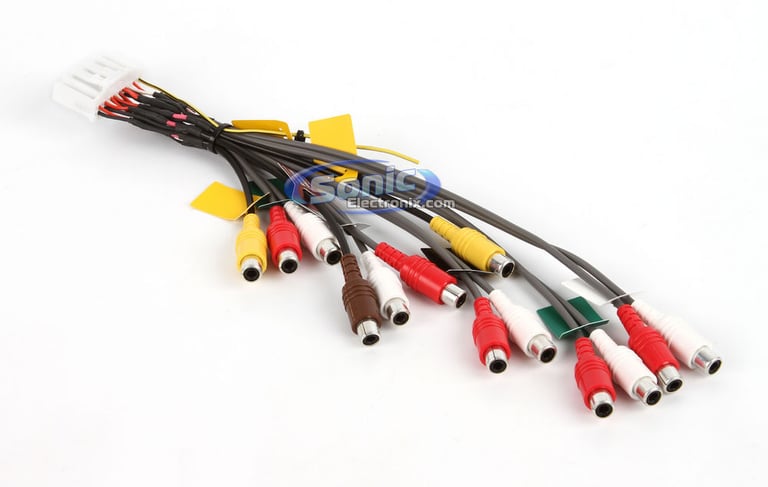

• Two Rear audio/video auxiliary inputs: RCA audio input for connection of monitors, etc
• Rear video input: Rear video input for rear view cameras with a RCA composite input, however the Pioneer ND-BC4 or Pioneer ND-BC20PA is recommended
• Steering wheel remote ready: PAC SWI-PSv1 or the Axxess ASWC required and sold separately
• Double Din install kit: May require the Pioneer ADT-VA133 kit for demo boards or certain vehicle applications

• Comprehensive map database from TeleAtlas
• Map coverage of Canada and the entire U.S. including Hawaii and Alaska
• Selectable 2D or 3D map view
• Text-to-speech function announces street names as you go
• Stored on built-in flash memory so you won't have to insert a disc when you need directions
• 12 million points of interest with brand icons to help you find the right location
• Navigation destination entry by Voice Control (Address Search, POI selection by category or brand name)
• Automatic re-routing calculation so you can remain on track
• Route is highlighted in a bright color on the map display
• Call points of interest with the tap of a button when Bluetooth compatible phone is connect
• Features day and night map mode that dims the screen or brightens it depending on the time of day

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth version 2.0 +EDR certified
• Supports A2DP audio streaming
• Bluetooth profiles supported:
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• Works with most Bluetooth enabled cell phones

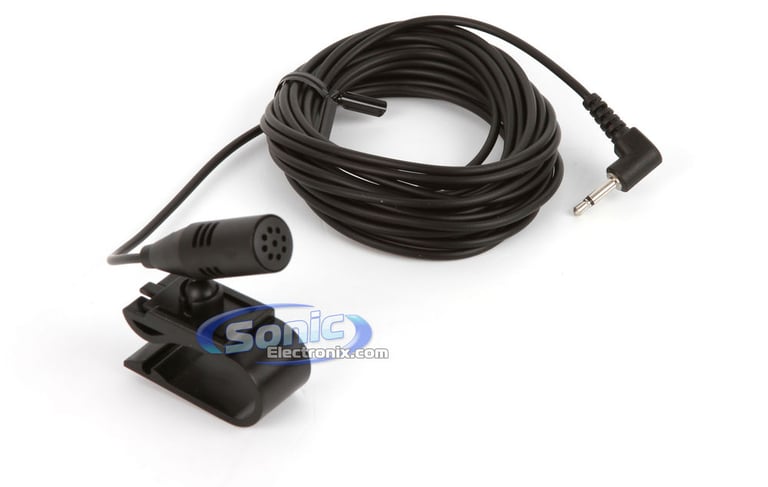

• Includes a (external wired/built-in) microphone for (clear, convenient, distortion-free, etc... choose one) talking

Speakers: Infinity Kappa Series

• Infinity Kappa Series Speakers
• Enter your car information on checkout and we will send you the speakers that fit your car!
• Woven glass fiber cone woofer
• Rubber surround
• Edge driven MMD dome tweeter
• Unipivot patented rotating tweeter allows tweeter to be directed at the listener's location
• Direct connect computer-optimized, voice-matched outboard passive crossover for superb detail and accuracy
• Tweeter level adjustment on tweeter by simply rotating the tweeter to add or subtract 3 dB output
• 2 ohm impedance
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

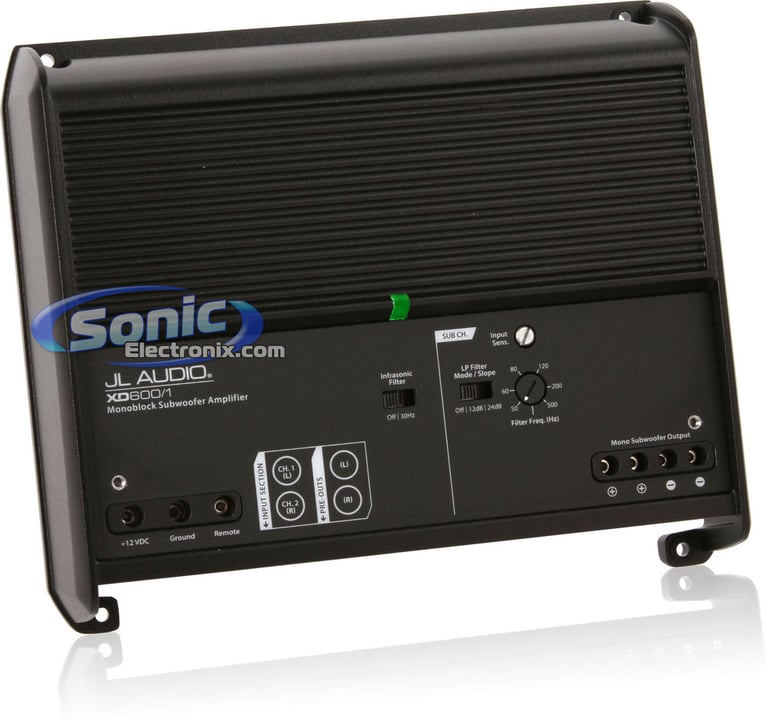

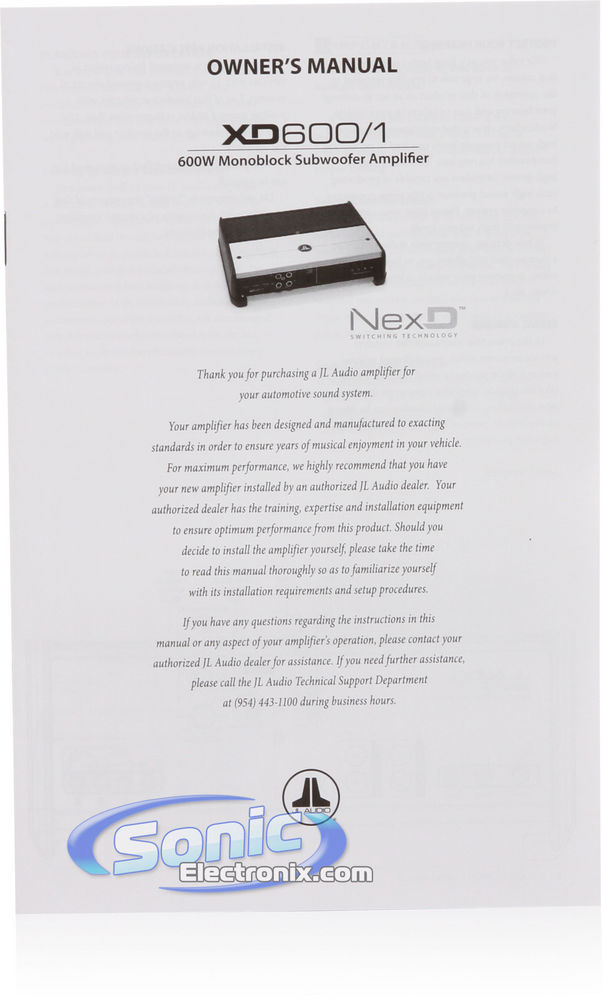

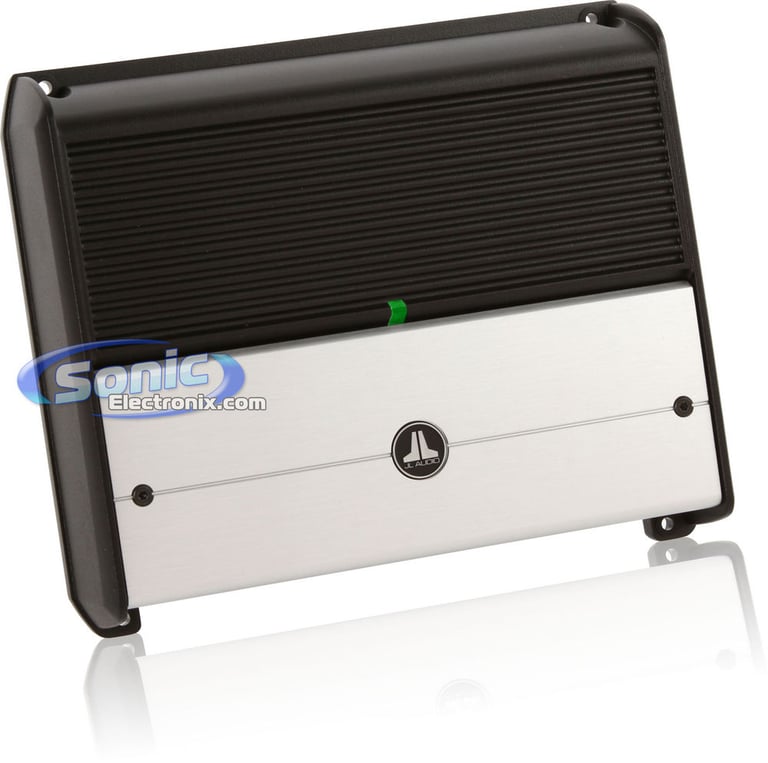

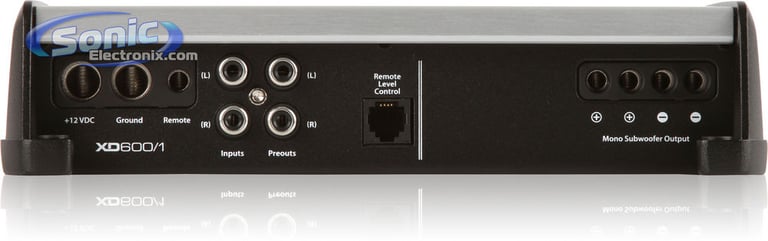

Monoblock Amplifier: JL Audio XD600/1

• XD Series Monoblock Class D Car Amplifier
• RMS Power Rating (14.4V):
  • 4 ohm: 400 watts x 1 chan.
  • 2 ohm: 600 watts x 1 chan.
• RMS Power Rating (12.5V):
  • 4 ohm: 300 watts x 1 chan.
  • 2 ohm: 500 watts x 1 chan.
• Unregulated MOSFET switching type power supply
• NexD Ultra-High Speed Class D topology
• Wired JL Audio HD-RLC remote level control sold separately
• LED power (green) and protect (red/yellow) indicators
• State-of-the-art microelectronic components
• Mono channel operation
• Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
• Studio-grade signal processing with fully variable crossover filters
• Extruded aluminum alloy system setting security cover
• Total amplifier efficiencies exceeding 80%
• Noise-killing, highly flexible differential-balanced inputs
• Preamp RCA outputs to daisy chain multiple amps
• Defeatable low-pass and infrasonic crossover filters
• Dual speaker terminals simplify speaker installation
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Input sensitivity:
  • Level: 100mV-4V
• Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley)
• Infrasonic Filter (30 Hz, 24dB/octave Butterworth)
• Damping factor: >1,000 @ 4 ohm / 50Hz
• Frequency response: 7-500 Hz
• Dimensions: 8-1/2"L x 7-1/16"W x 2-1/16"H
• 1-year Sonic Electronix warranty

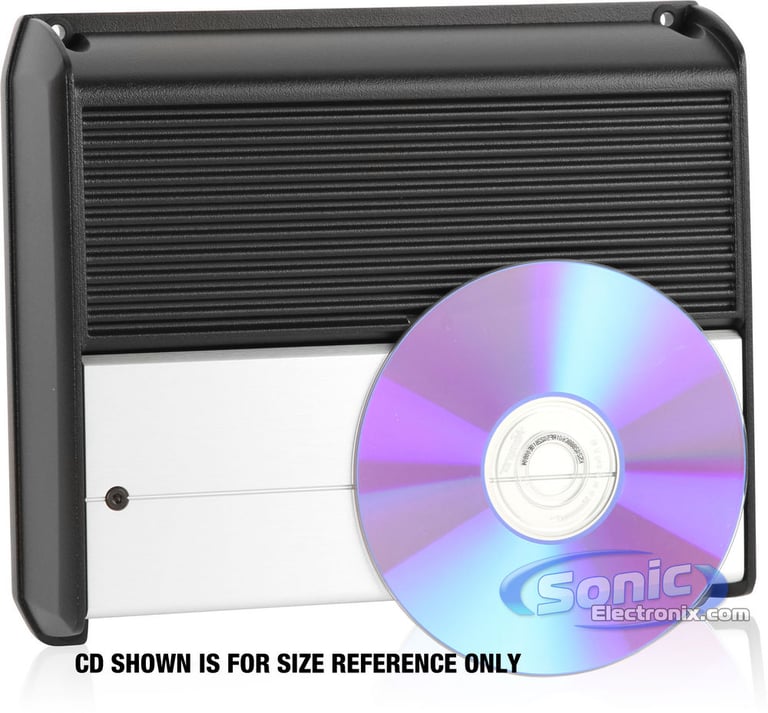

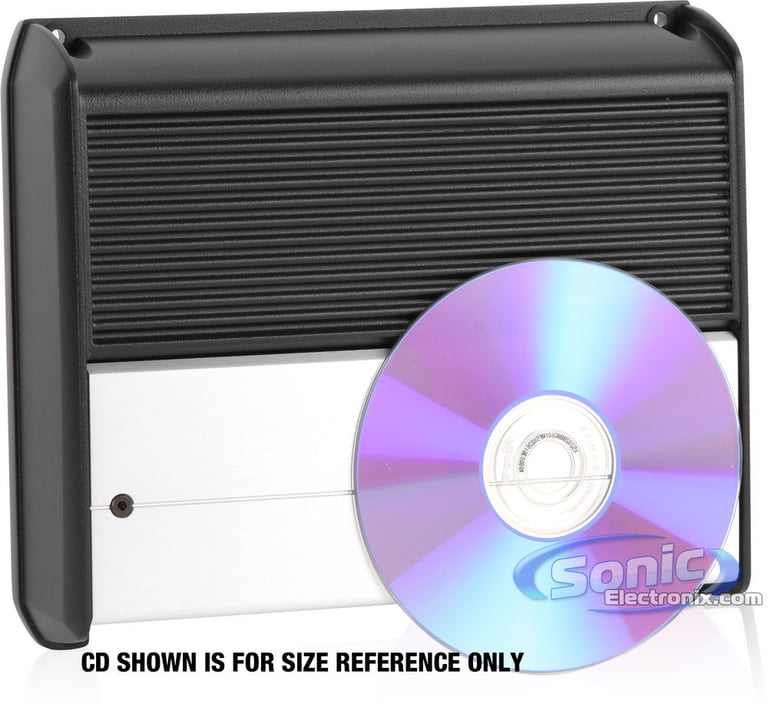

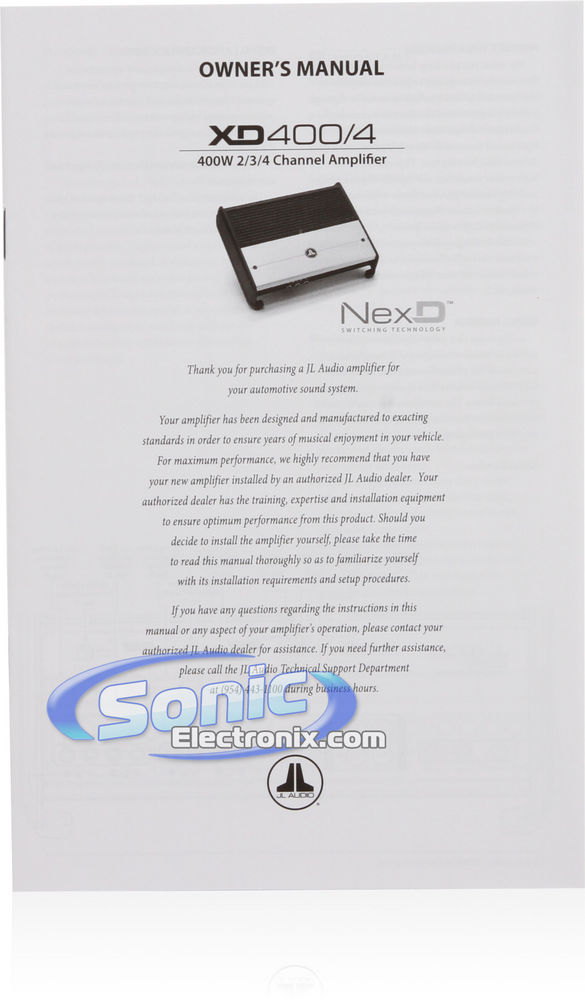

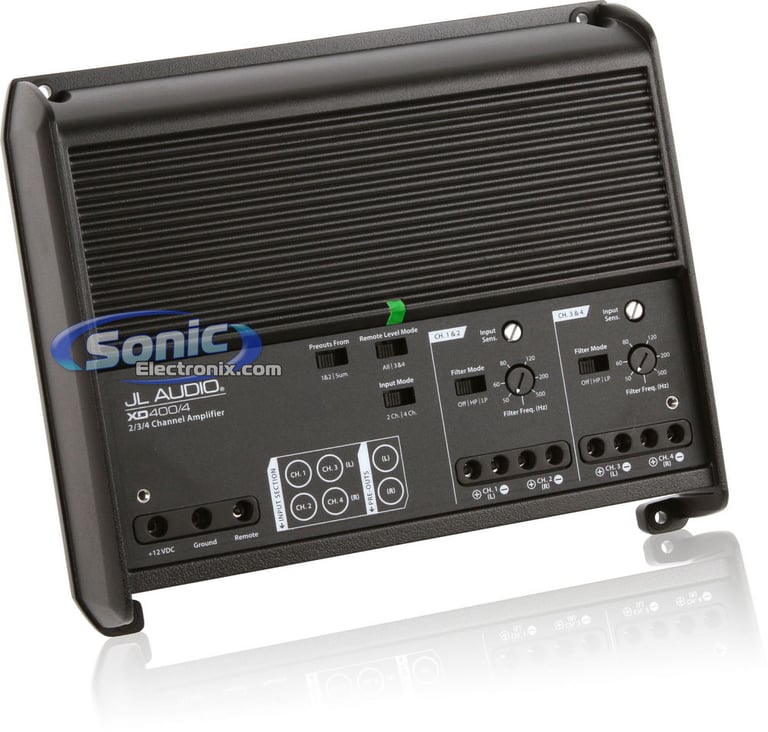

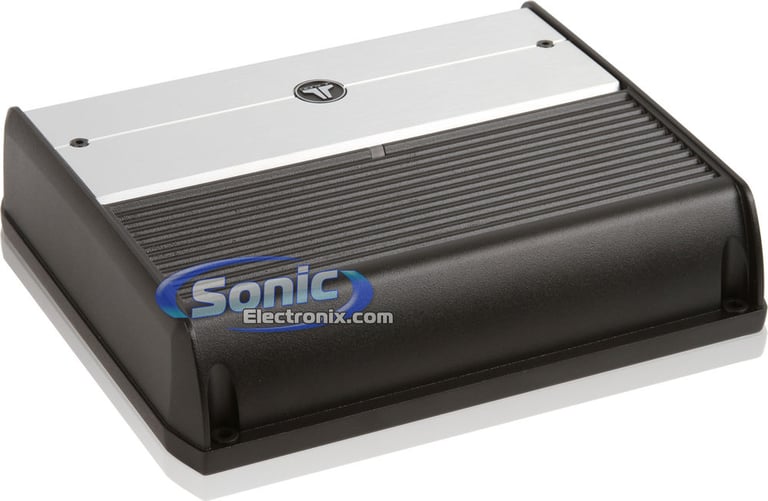

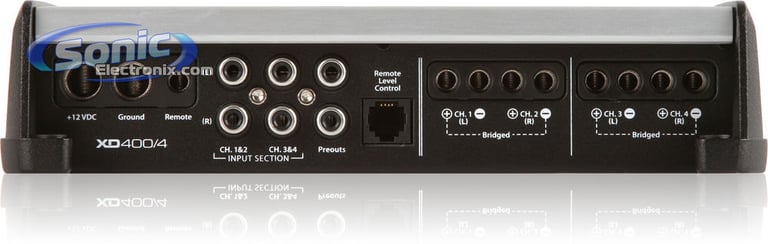

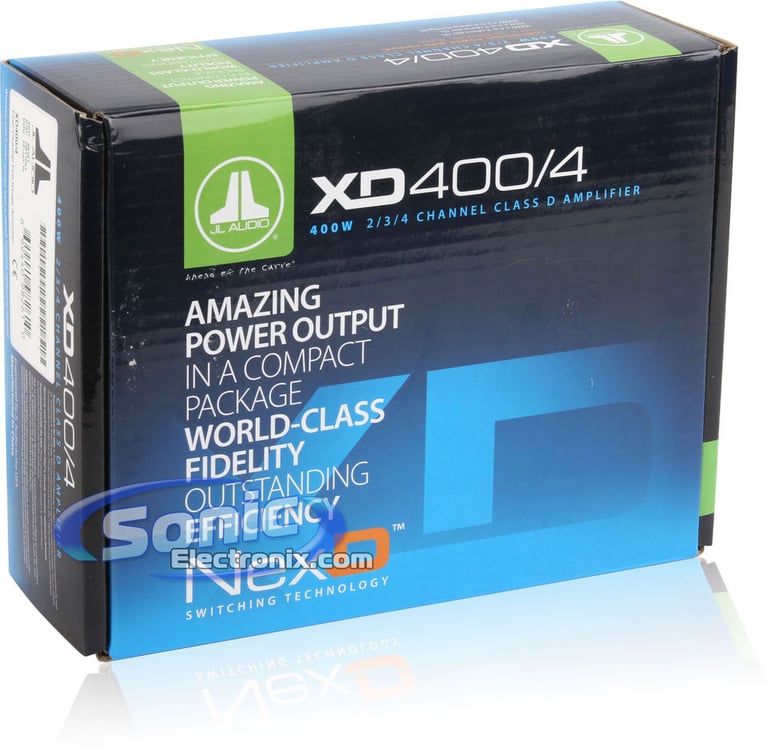

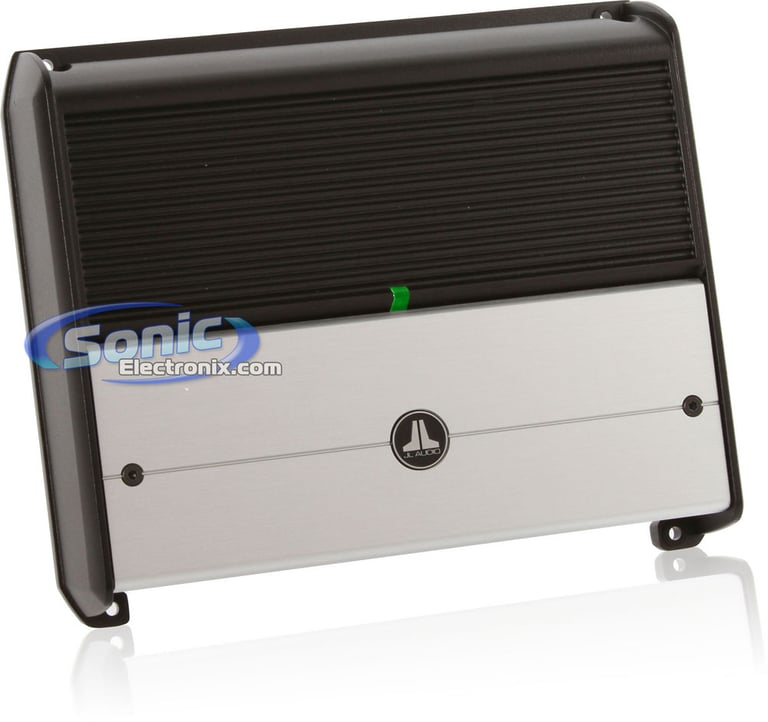

Four Channel Amplifier: JL Audio XD400/4

• XD Series 4-Channel Class D Car Amplifier
• RMS Power Rating (14.4V):
  • 4 ohm: 75 watts x 4 chan.
  • 2 ohm: 100 watts x 4 chan.
  • Bridged, 8 ohm: 150 watts x 2 chan.
  • Bridged, 4 ohm: 200 watts x 2 chan.
• RMS Power Rating (12.5V):
  • 4 ohm: 60 watts x 4 chan.
  • 2 ohm: 90 watts x 4 chan.
  • Bridged, 8 ohm: 120 watts x 2 chan.
  • Bridged, 4 ohm: 180 watts x 2 chan.
• Unregulated MOSFET switching type power supply
• NexD Ultra-High Speed Class D topology
• Wired JL Audio HD-RLC remote level control sold separately
• LED power (green) and protect (red/yellow) indicators
• Independent input sensitivity controls
• State-of-the-art microelectronic components
• 4/3/2 channel operation
• Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
• Studio-grade signal processing with fully variable crossover filters
• Extruded aluminum alloy system setting security cover
• Total amplifier efficiencies exceeding 80%
• Noise-killing, highly flexible differential-balanced inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Input sensitivity:
  • Level: 100mV-4V
• Variable high-pass filter (50-500 Hz, 12 dB/octave Butterworth)
• Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth)
• Damping factor: >150 @ 4 ohm per chan./ 50Hz
• Frequency response: 12-22,000 Hz
• Dimensions: 8-1/2"L x 7-1/16"W x 2-1/16"H
• 1-year Sonic Electronix warranty

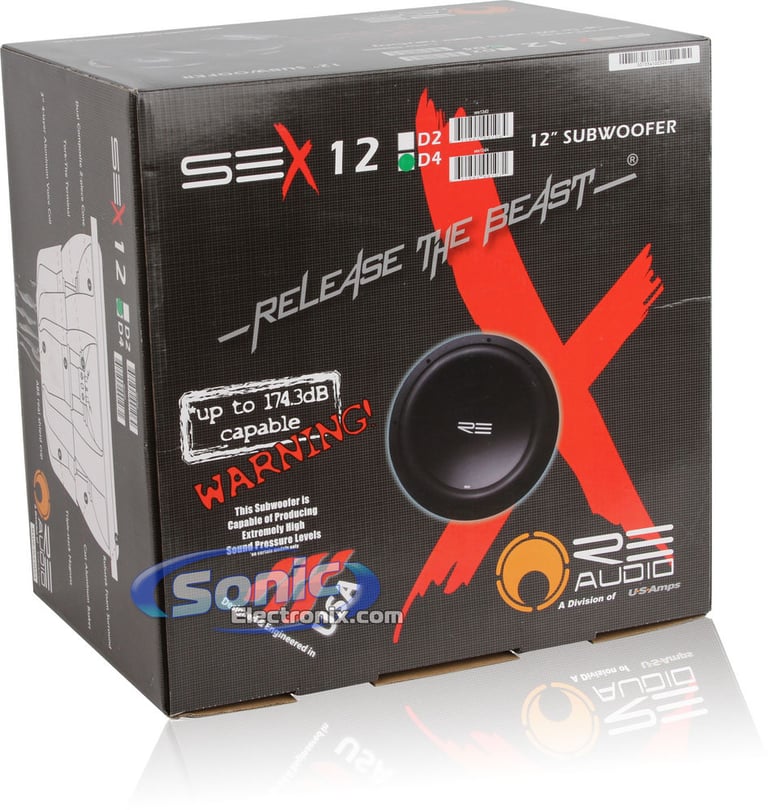

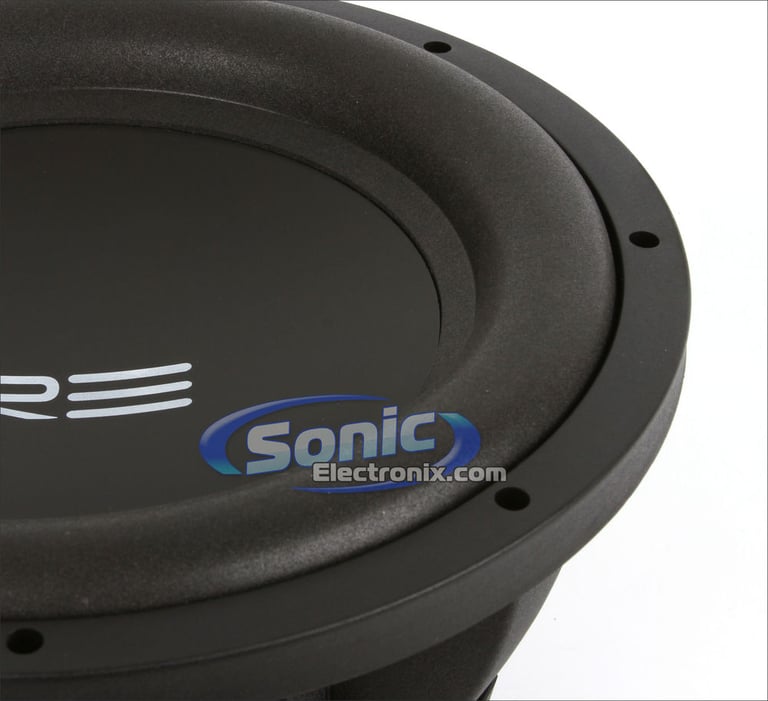

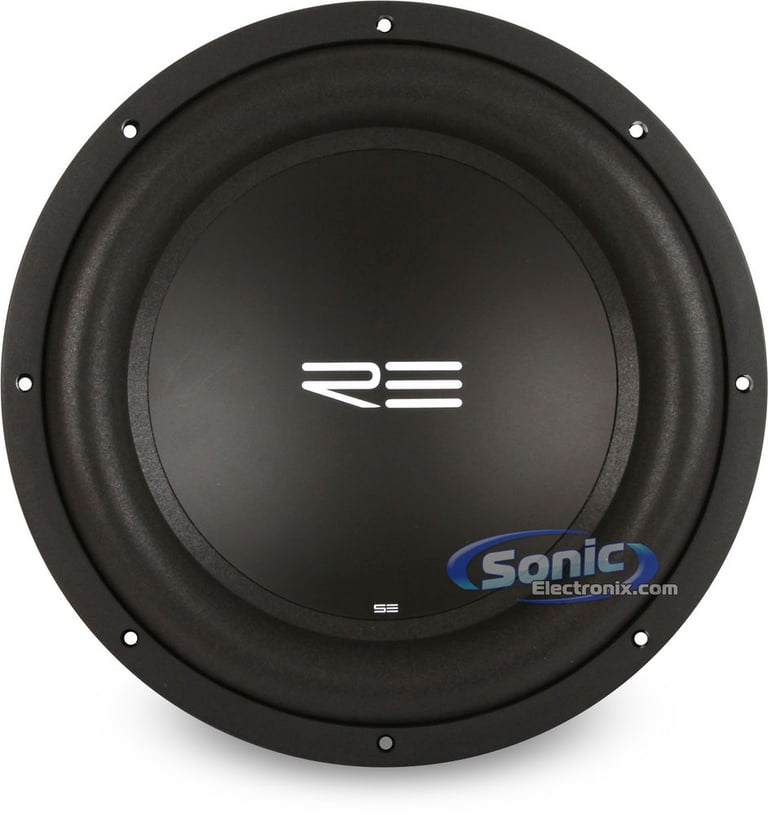

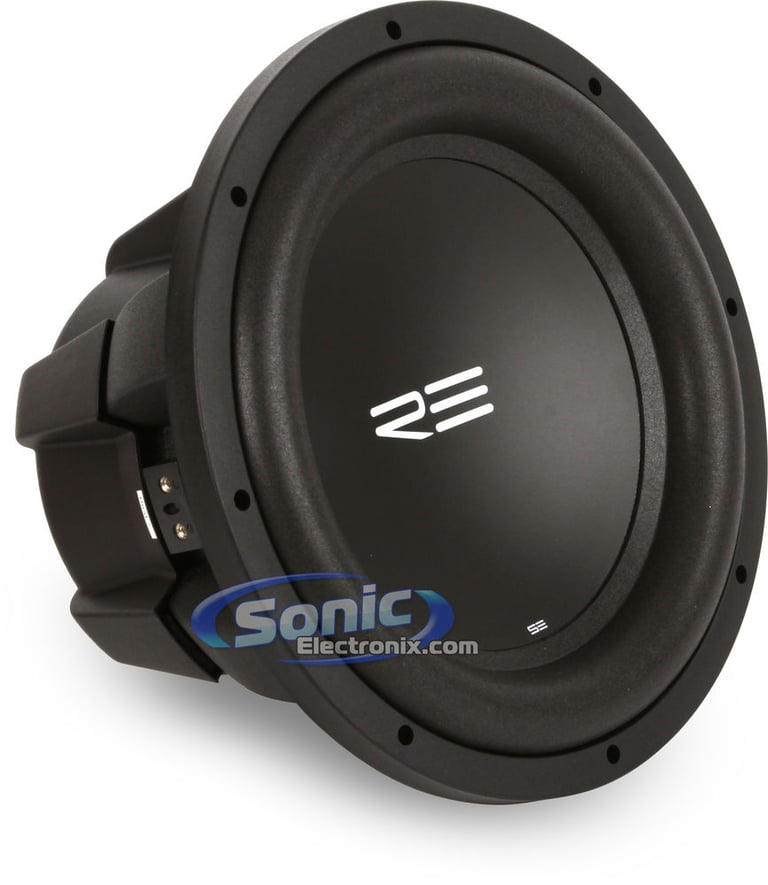

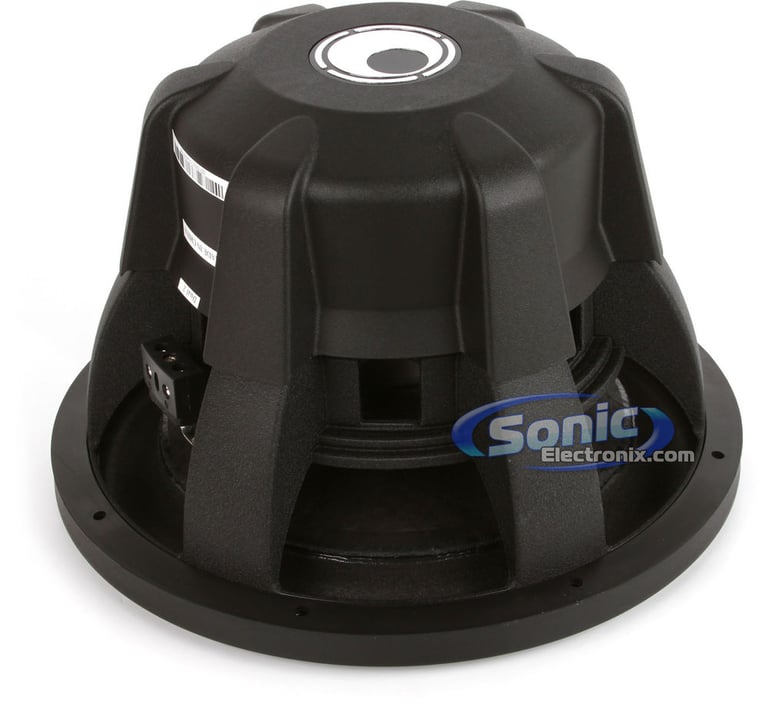

Subwoofer: RE Audio SEX12D4

• 12" Dual 4 ohm SEX Series Car Subwoofer
• Power Handling:
  • RMS: 600 watts
• Impedance: Dual 4 ohm
• Dual composite 2-piece cone
• Rubatek foam surround
• FEA Optimized motor structure
• Progressive spiders
• Wrap around rubber gasket

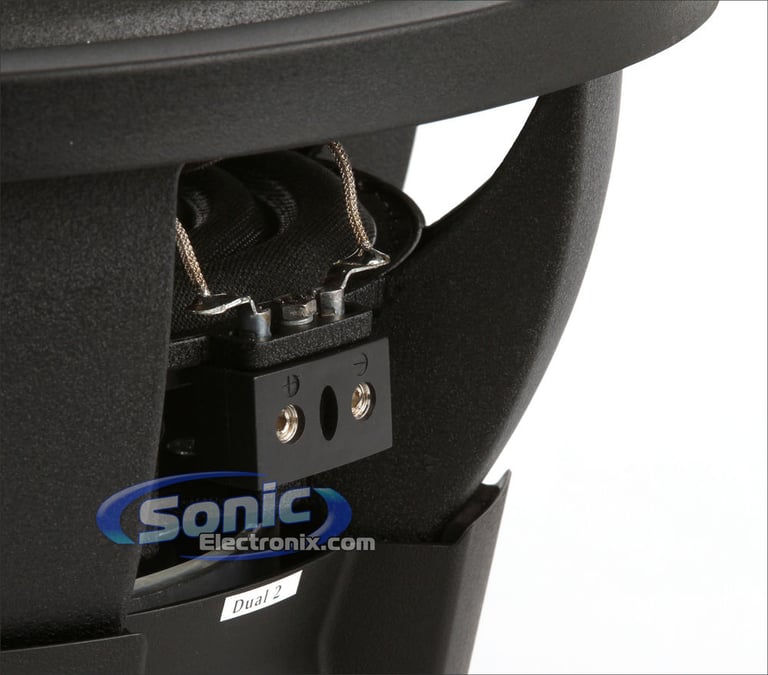

• Tork-Tite terminals
• 3" 4-Layer voice coil
• Triple stacked magnets
• Also available in a Dual 2 ohm: RE Audio SEX12D2
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

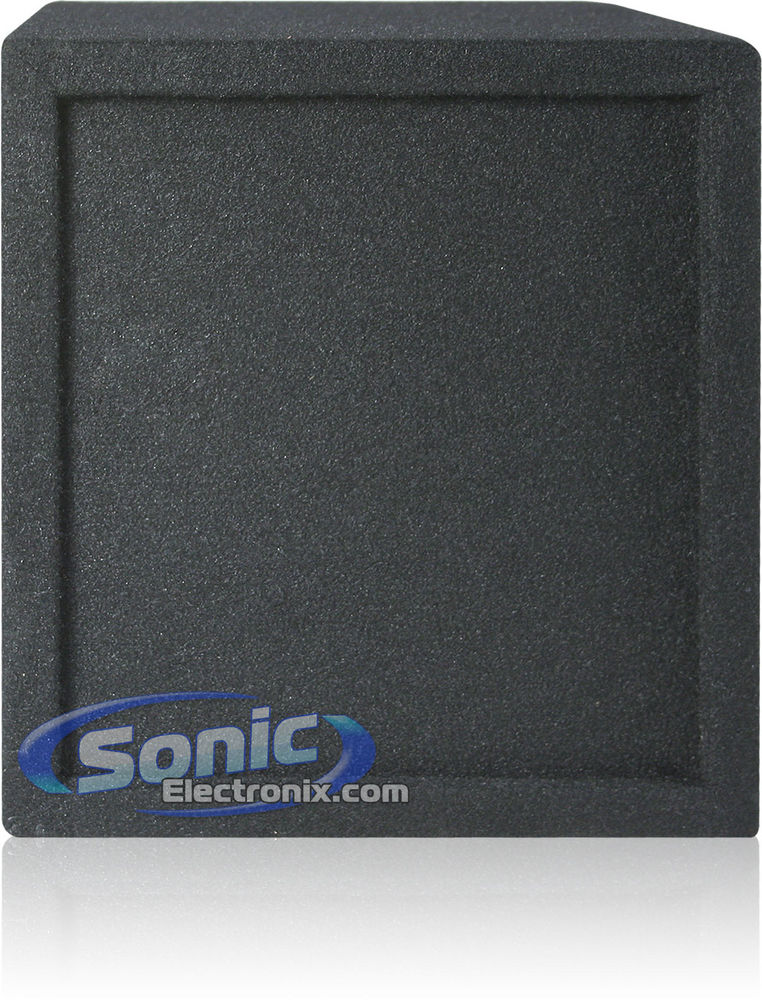

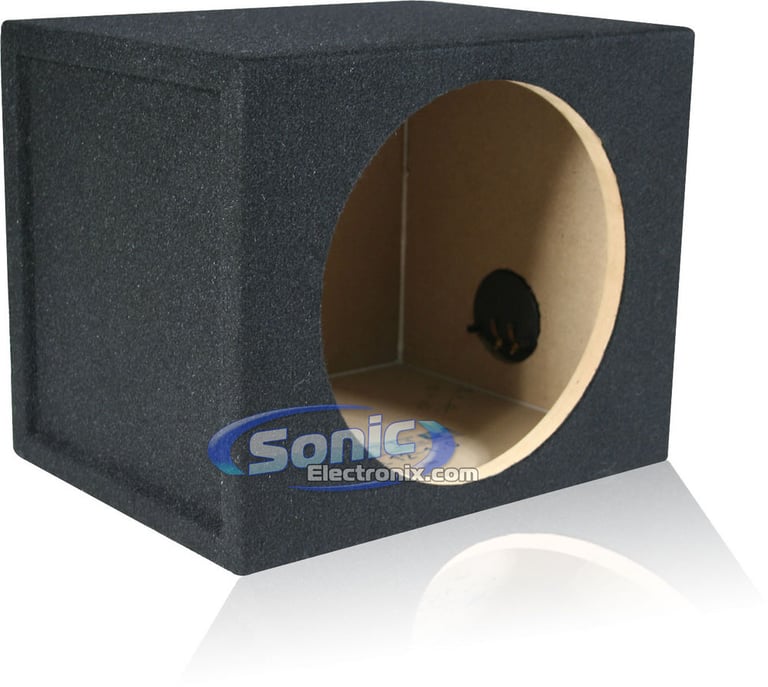

Enclosure: Sonic Sub Box 1SL12-1.0

• Single Sealed 12" Enclosure
• 3/4" High Quality MDF Material machine-cut to perfection
• Professionally Sealed, caulked, and carpeted
• Internal Volume: 1.0 cubic feet
• Durable black carpeting
• Terminal cup installed with gold posts (with banana clip option too!)
• Dimensions: 13"H x 16"W x 12"D
• 30 Day return policy

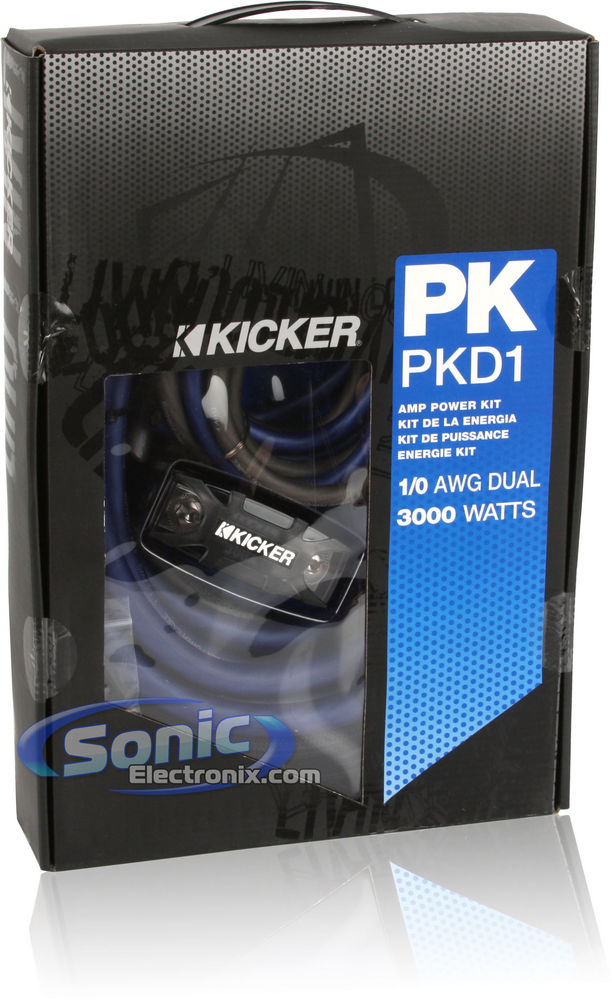

Amplifier Wiring Kit: Kicker 09PKD1

• Dual Amplifier 1/0 Gauge Power Installation Kit
• 3000 Watts max
• Direct-connect engineering
• Fewer connections for less signal distortion
• Twisted-pair technology eliminates noise for crystal clear sound
• Hyper-flex cable and wire
• Full spec cable is true to gauge
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

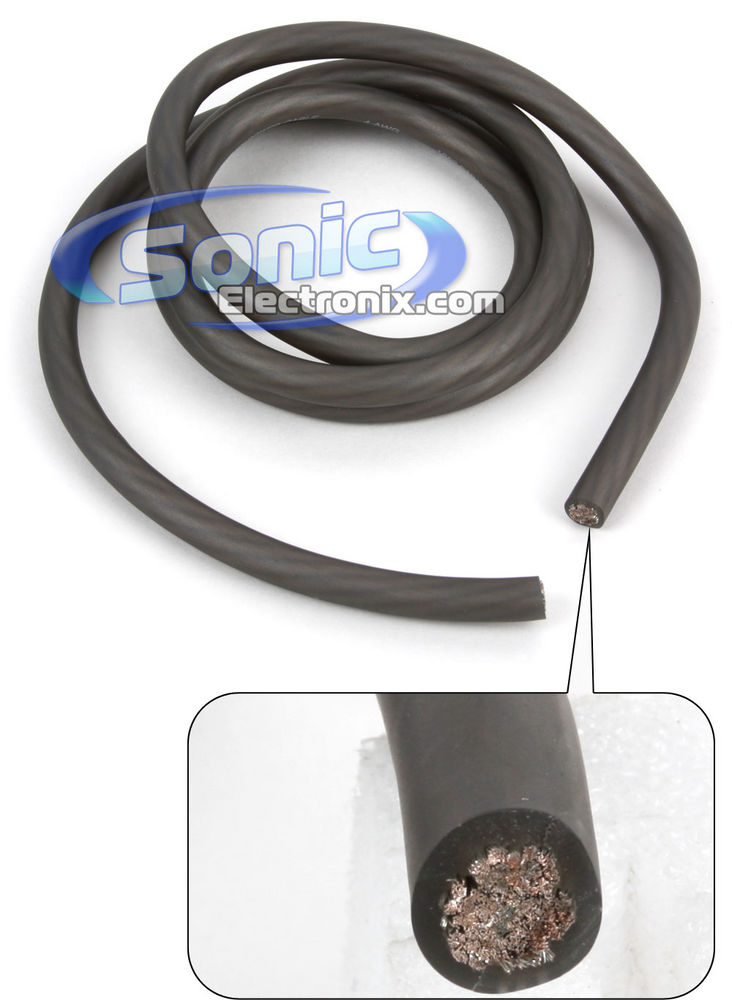

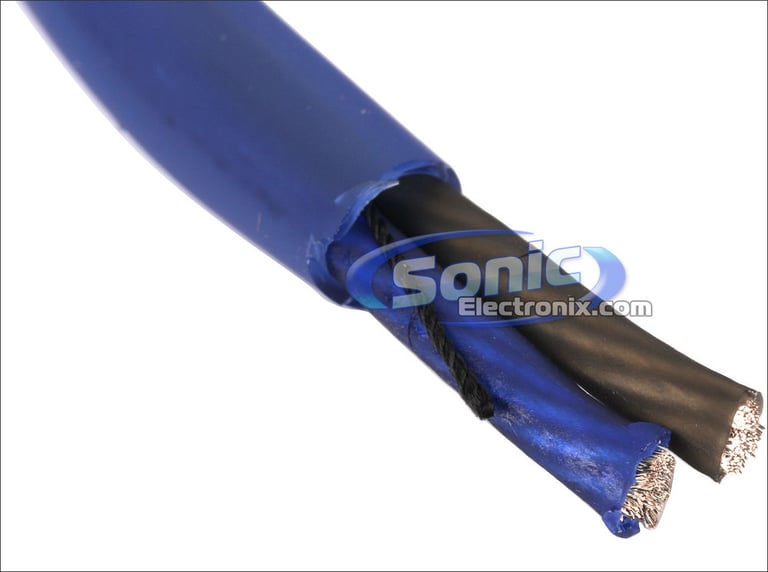

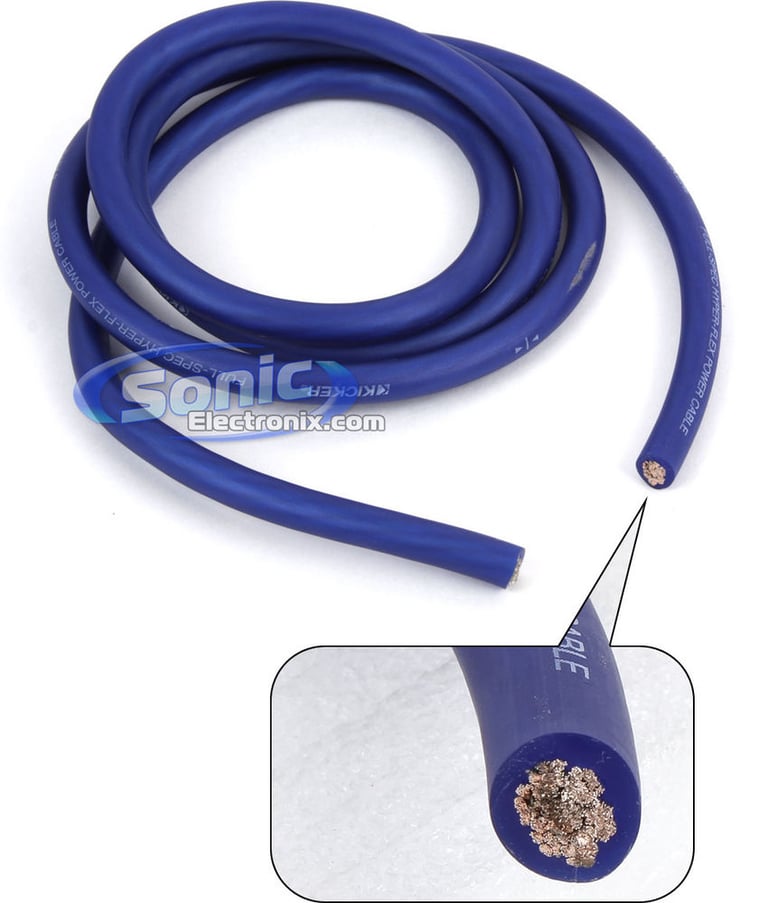

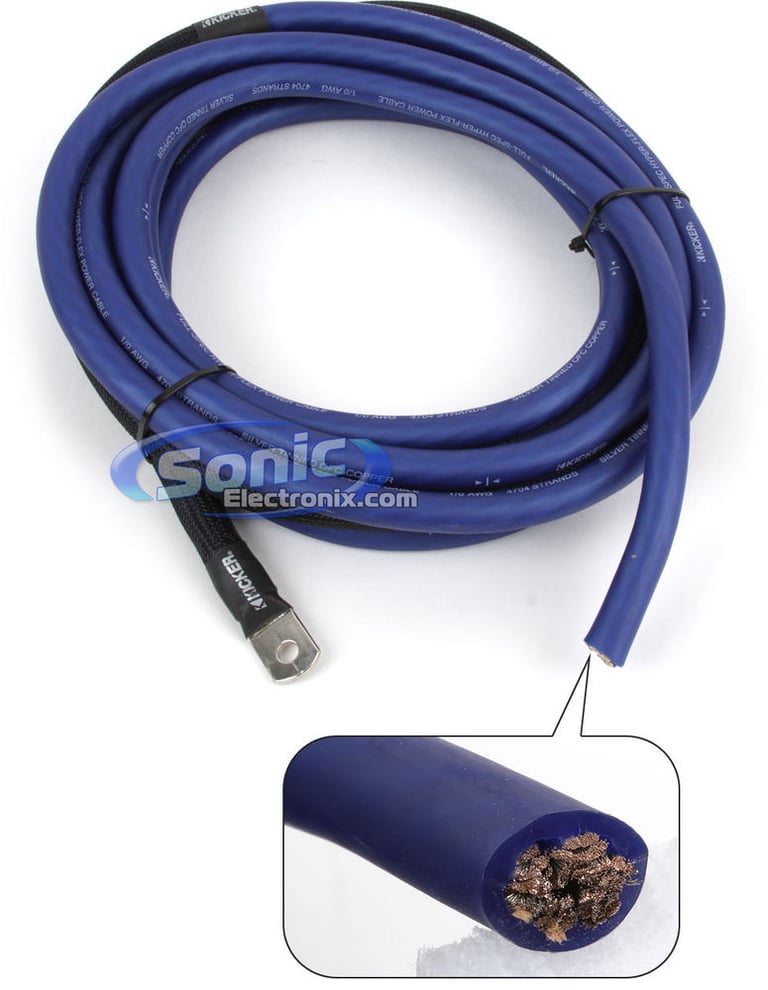

1. 20ft(6.1m) Blue 1/0AWG power wire

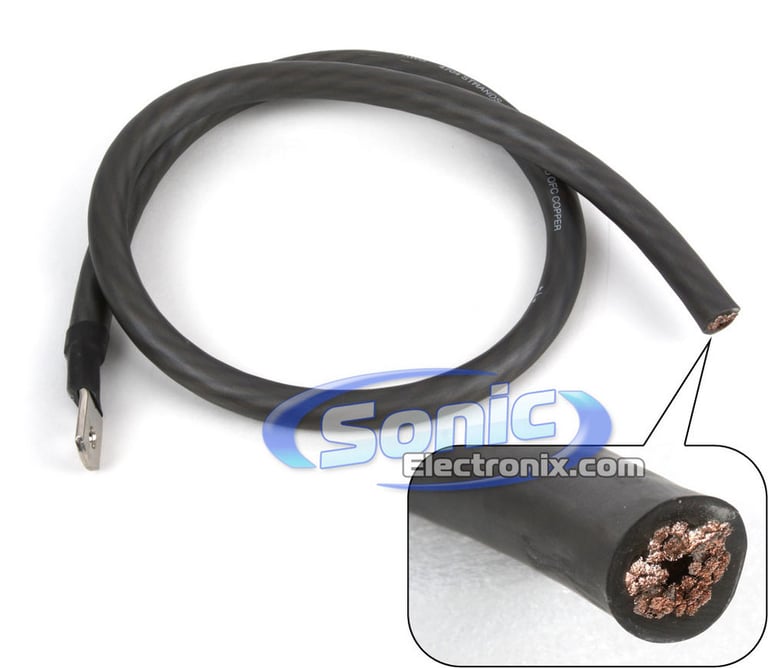

2. 3ft(0.9m) Black 1/0AWG ground wire
3. 5ft(1.5m) Blue 4AWG power wire
4. 5ft(1.5m) Blue 4AWG ground wire
5. 20ft(6.1m) Blue 18AWG remote lead wire

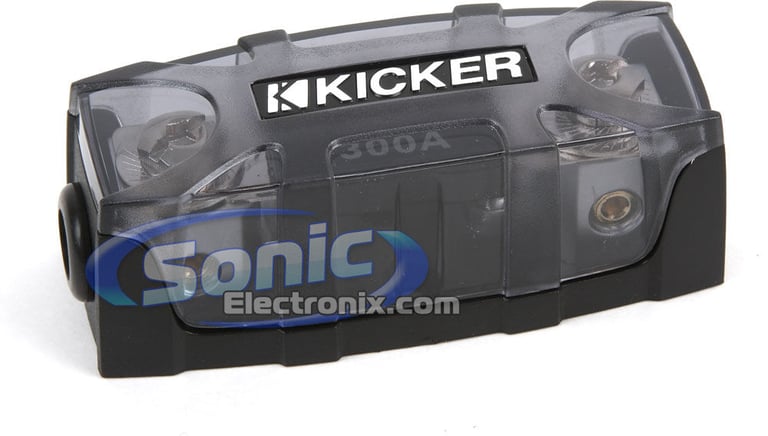

6. 1 Kicker 09FHA Fuse holder with 300 amp ANL fuse

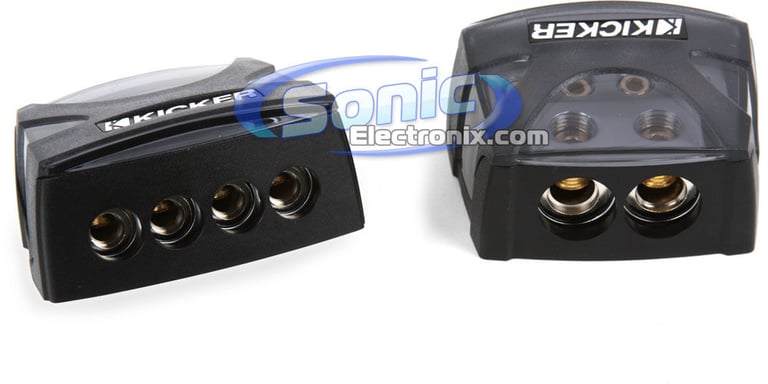

7. 2 Kicker 09DB1448 Distribution blocks

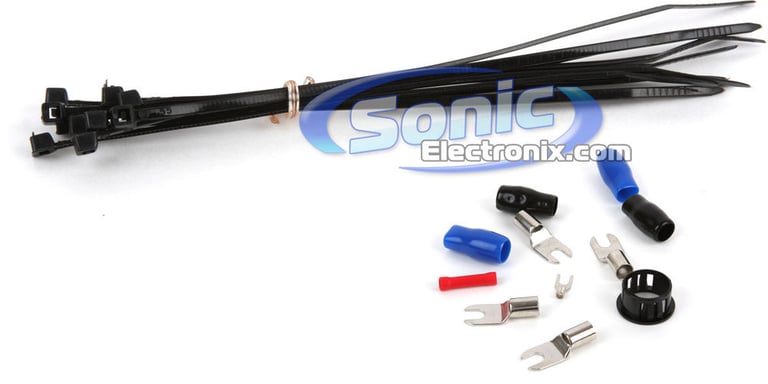

8. Black rubber firewall grommet
9. 4 1/0 AWG Spade terminals
10. 1 18AWG Spade terminal
11. Black zip ties
12. Red butt connector

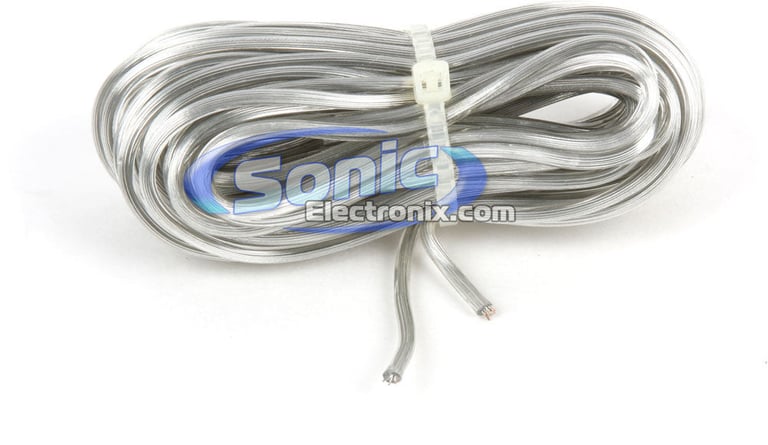

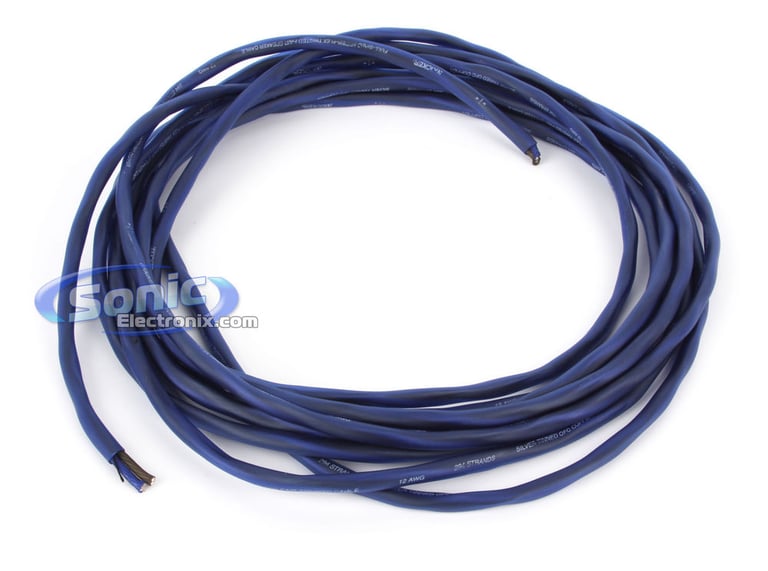

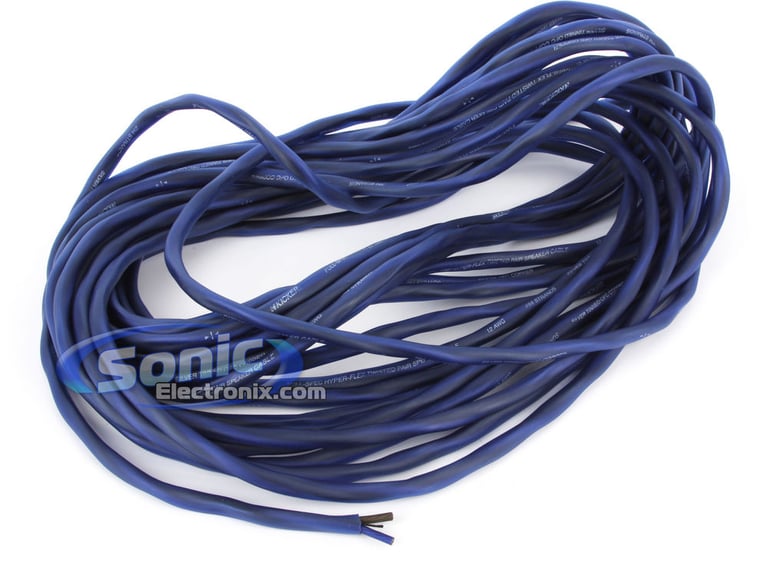

Speaker Wire: Kicker 09XW12

• 50 ft. of 12 AWG X-Series Speaker Wire
• Direct-connect engineering
• Fewer connections for less signal distortion
• Twisted-pair technology eliminates noise for crystal clear sound
• Hyper-flex cable and wire
• Jacket can be cut and and the wire split
• Full spec cable is true to gauge
• Length: 50 ft.
• Precut from a spool of Kicker 09XW12150
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

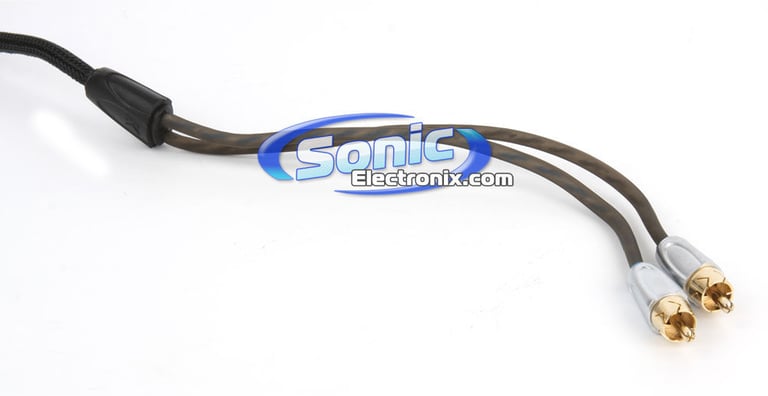

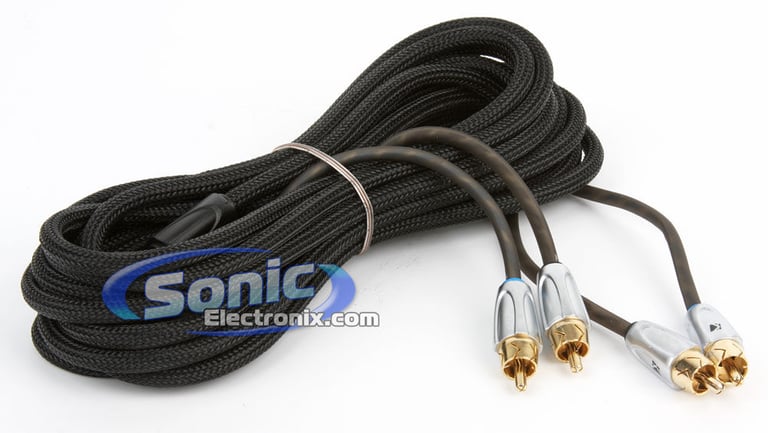

RCA Interconnect Cables: Kicker XI25

• 5 Meter, 6-Channel X-Series signal cables
• Dual twisted-pair conductors to eliminate inducted noise and interference
• Hyper-flex technology for flexibility
• Short, proprietary-machined metal ends
• Gold-plated k-cut collars, dual split center pin, and black protective mesh
• Tactile grip RCA ends
• Color-coded strain relief identifies front-rear/light-right channels
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
