Audio Technica AT2020

Cardioid Condenser Microphone with Custom-Engineered Low-Mass Diaphragm

Product videos
highlight-star-icon

Studio Grade Condenser Microphone with Custom-Engineered Low-Mass Diaphragm • Ideal for Project/Home-Studio Applications • High SPL Handling • Wide Dynamic Range • Pivoting, Threaded Stand Mount

Learn more about the at2020

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

FD3090B main

Scosche FD3090B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1995-2016 vehicles from Ford, Mazda, Lincoln

5
-35.16%

$10.99

List price $16.95

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

DEH-S6220BS main

Pioneer DEH-S6220BS

Single DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-13.05%

$199.99

List price $230.00

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

16
DEH-S1200UB main

Pioneer DEH-S1200UB

Single DIN CD Receiver with Pioneer ARC App and USB Control for Android Phones

1
-8.34%

$109.99

List price $120.00

Product Highlights


Studio Grade Condenser Microphone with Custom-Engineered Low-Mass Diaphragm • Ideal for Project/Home-Studio Applications • High SPL Handling • Wide Dynamic Range • Pivoting, Threaded Stand Mount

Description


Audio Technica brand icon

Authorized dealer

The New Standard

Audio-Technica's stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The AT2020: the new standard for affordable side-address studio condensers.

Product Features:

  • Studio Grade Condenser Microphone with Custom-Engineered Low-Mass Diaphragm
  • The price/performance standard in side-address studio condenser microphone technology
  • Ideal for project/home-studio applications
  • High SPL handling and wide dynamic range provide unmatched versatility
  • Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

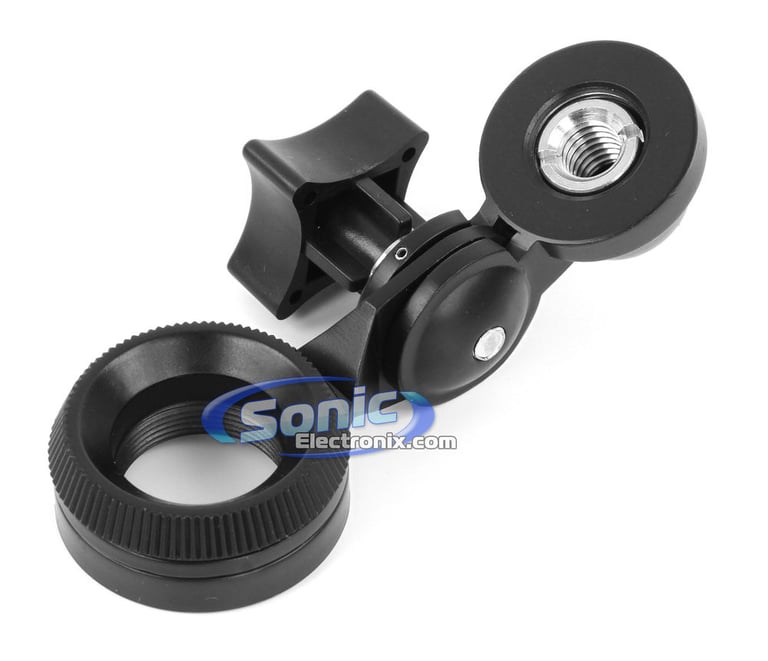

  • Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone
  • Dimensions: 6-7-16"L x 2-1/16"W x "H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications:

  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20-20,000 Hz
  • Open Circuit Sensitivity: 37 dB (14.1 mV) re 1V at 1 Pa
  • Impedance: 100 ohm
  • Maximum Input Sound Level: 144 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range: 124 dB, 1 kHz at Max SPL
  • Signal to Noise Ratio: 74 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 48V DC, 2 mA typical
  • Weight: 12.1 oz (345 g)

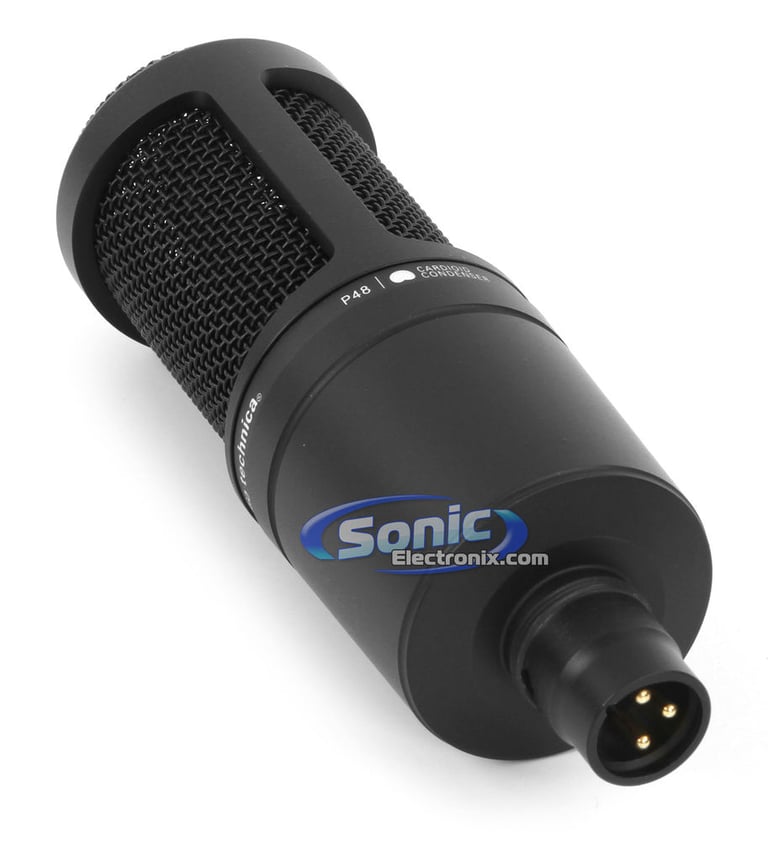

  • Output Connector: Integral 3-pin XLRM-type

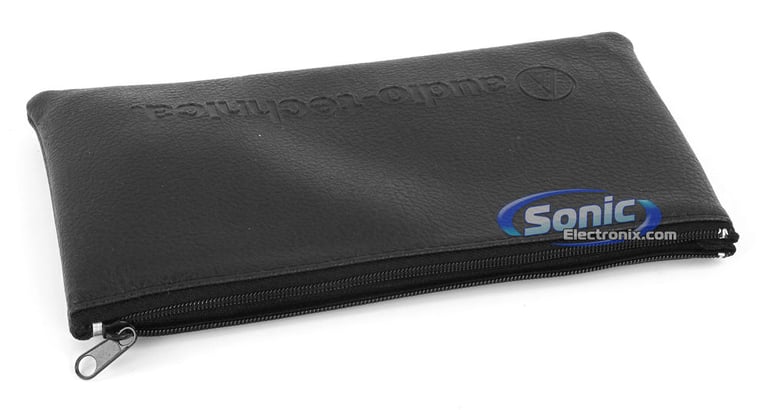

  • Accessories: Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
Audio Technica Authorized Reseller

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

GMR-MIC small

MB Quart GMR-MIC

• Waterproof Marine Stereo Microphone
• Designed for use with MB Quart GMR-7V1 marine stereo
• 3.5mm audio mini jack connection
• IP67 waterproof rating

$37.50

List price $39.00

JBLPBM100BLKAM small

JBL PBM100 (JBLPBM100BLKAM)

• Wired microphone for JBL PartyBox speakers
• Sleek, rugged built-to-last stage quality casing
• Wire mesh cap with windscreen

$54.95

List price $66.00

Specifications & Details


Microphone Specifications
Microphone Type
Studio
Designed Applications
Acoustic Guitar
Bass Amps
Guitar Amps
Vocals
Spoken Word
Instruments
Number of Microphones
1
Polar Patterns
Cardioid
Transducer Type
Condenser
Address
Side
Frequency Response
20 - 20,000 Hz
Signal-to-Noise Ratio
74 dB
Maximum Sound Pressure Level
144 dB
Output Impedance
100 ohm
Power Requirement
+48v (Phantom)
Connection Type
XLR
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AT2020

Weight:

1.75lbs

Internal SKU:

at2020

Internal Product ID:

30637

Product and How-to Videos


Customer Ratings & Reviews


Audio Technica AT2020 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Beware! Needs 48V phantom power to work

The microphone is great, but not suited for all applications. It needs to be connected to a phantom power 48V (e.g. a mixer with this facility), otherwise it won't work at all. So beware if you want to use it as a 'normal' microphone on a karaoke, amplifier or even your computer for speech recording, the microphone will be dead!
This fact is a bit hidden in the specification list. It would be better be listed in the main description. I got fooled by this, and probably others will be too. While a great product, it didn't suit my purpose, and I need to buy another microphone.

By alfons on August 14, 2012

20 found this helpful


great

I bought one of there a few years ago. I can't tell ya how many times I've dropped this thing. And still works like the first time I got it I have it on a m-audio preamp and sounds great. would recomend the 4040 model though

By whyureadinthis on January 12, 2011

22 found this helpful


Solid Product!

I absolutely love this microphone. I initially bought the product for its design and price. Its black and matches the rest of my home studio. I'm actually very picky with the way all my equipment looks. Its also constructed of all metal. It has survived a few drops and still looks perfect.

Now onto sound quality. It does require +48v of phantom power which both my mixer and my portable Zoom H4n had so this was not a problem for me. The audio quality is pretty solid. Its not on par with professional equipment, but for the price that you can buy it for, it does very well for its price.

By Jan Chris on September 22, 2014

20 found this helpful
