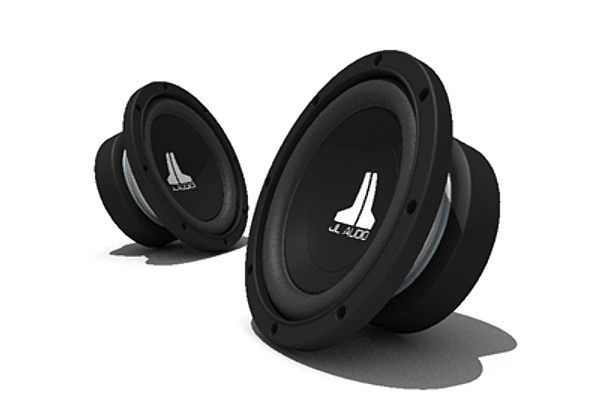

JL Audio 8w3v2-4

8" W3v2 Dual 4 ohms Subwoofer 8W3v2-4

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

8" W3V2 Series Subwoofer • Dual 4 Ohms • 125W RMS • Elevated Frame Technology • VRC Technology • Rubber Mounting Flange Gasket • Dished Cone/Dust-Cap Design

Learn more about the 8w3v24

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

8w3v34 thumbnail

JL Audio 8W3V3-4

OUR PRICE: $349.99

View item

Product Highlights


8" W3V2 Series Subwoofer • Dual 4 Ohms • 125W RMS • Elevated Frame Technology • VRC Technology • Rubber Mounting Flange Gasket • Dished Cone/Dust-Cap Design

Description


JL Audio brand icon

Authorized dealer

Product Features:

  • 8" Dual 4 ohm W3v2 Series Subwoofer
  • Power Handling:
    • RMS: 125 watts
    • Recommended Power Range: 60-125 watts
  • Impedance: Dual 4 ohm
  • 2-1/4", 4-Layer Voice Coil
  • Kapton Voice Coil Former
  • VRC Technology: Cools the Voice Coil
  • Elevated Frame Technology: Enhanced Cooling
  • Powder-Coated Silver Frame Finish
  • Dished Cone/Dust-Cap Design
  • Rubber Mounting Flange Gasket
  • Sensitivity: 85 dB
  • Mounting depth: 4-5/16"
  • Cutout dimensions: 7"
  • Black Steel-Mesh Grille Insert Available: SGR-8
  • 1-year SonicElectronix.com warranty

Product history:

JL Audio 8W3V3-4 thumbnail
(newest, current model)
JL Audio 8w3v2-4 thumbnail
(previous model, replaced by JL Audio 8W3V3-4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 8w3v2-4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 8w3v2-4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 8w3v2-4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 8w3v2-4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
RMS Power Handling
125 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Sensitivity
85 dB
Xmax (millimeters)
9.9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Surround
Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.33 cubic feet
Maximum Sealed Box Volume
0.33 cubic feet
Minimum Ported Box Volume
0.75 cubic feet
Maximum Ported Box Volume
0.75 cubic feet
Top-Mount Depth (Mounting Depth)
4-5/16"
Cutout Diameter
7"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

8w3v2-4

Weight:

7.00lbs

Internal SKU:

8w3v24

Internal Product ID:

31672
