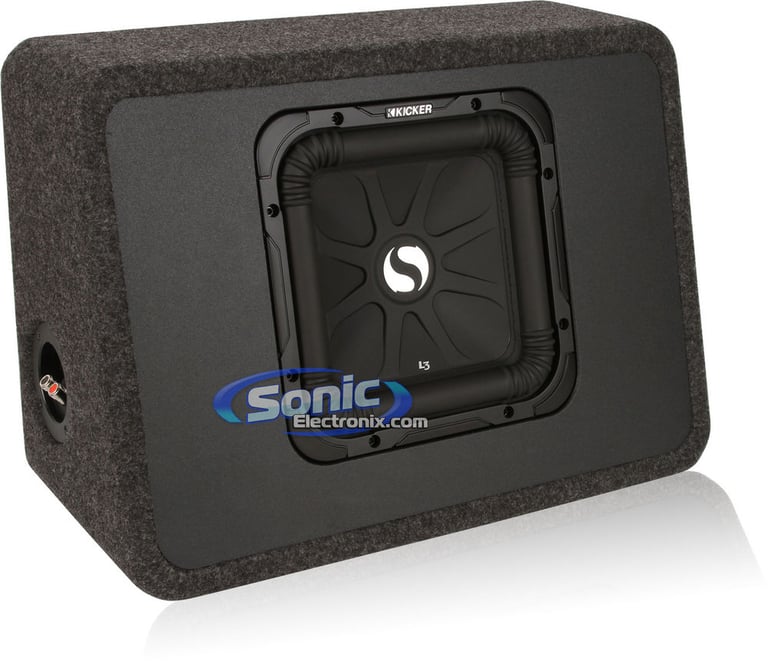

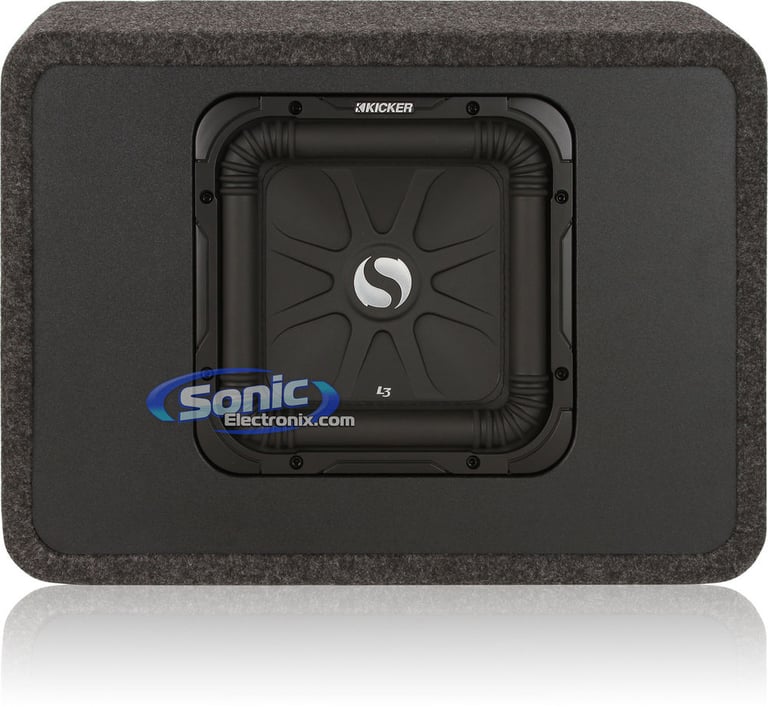

Kicker TS10L32 (11TS10L32)

2 Ohm: 10" Angled Vented Sub Enclosure with 1 Solo-Baric 10" L3 S10L3 Subwoofer (TS10L3-2)

Kicker
Shop all Kicker
Product videos
highlight-star-icon

10" Angled/Truck Vented Sub Enclosure Loaded with 1 Solo-Baric 10" L3 Subwoofer • Carbon-Fiber Front Panel • Designed to Fit Behind the Seat of a Pickup Truck • 800W Max • 400W RMS

Learn more about the 11ts10l32

We apologize

This item has been discontinued


Loading...
Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Product Highlights


10" Angled/Truck Vented Sub Enclosure Loaded with 1 Solo-Baric 10" L3 Subwoofer • Carbon-Fiber Front Panel • Designed to Fit Behind the Seat of a Pickup Truck • 800W Max • 400W RMS

Description


Kicker brand icon

Authorized dealer

The Kicker TS Series enclosure is designed to fit behind the seat of a pickup truck, coupe or wherever space is limited. This design is engineered to provide the best bass response when firing into the back of the seat.

Subwoofer Features:

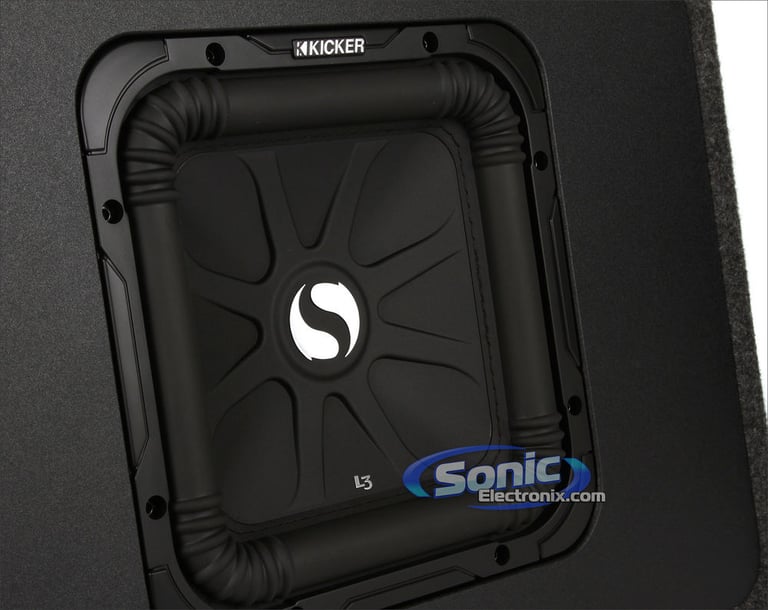

  • 10" Solo-Baric L3 Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Enclosure impedance: 2 ohm (Wired internally in parallel to final 2 ohm impedance)
  • Titanium deposit impregnated cone woofer with rolled outer edge
  • Santoprene rubber surround
  • Full coverage back bracing
  • Poly-cotton semi-progressive spider
  • Spiralead™ tinsel-lead technology
  • Highly-efficient UniPlate™ pole-piece/back plate
  • Heat-reducing T-cut top plate
  • Solid pole piece
  • Cast-aluminum basket
  • Spring loaded terminals
  • High-temp dual 4 ohm voice coil
  • Frequency response: 24-100 Hz
  • Sensitivity: 85.3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty (subwoofer only)

Enclosure Features:

  • 10" Angled/Truck Vented Sub Enclosure
  • Carbon-fiber front panel
  • Solid wood box
  • Embroidered Kicker logo

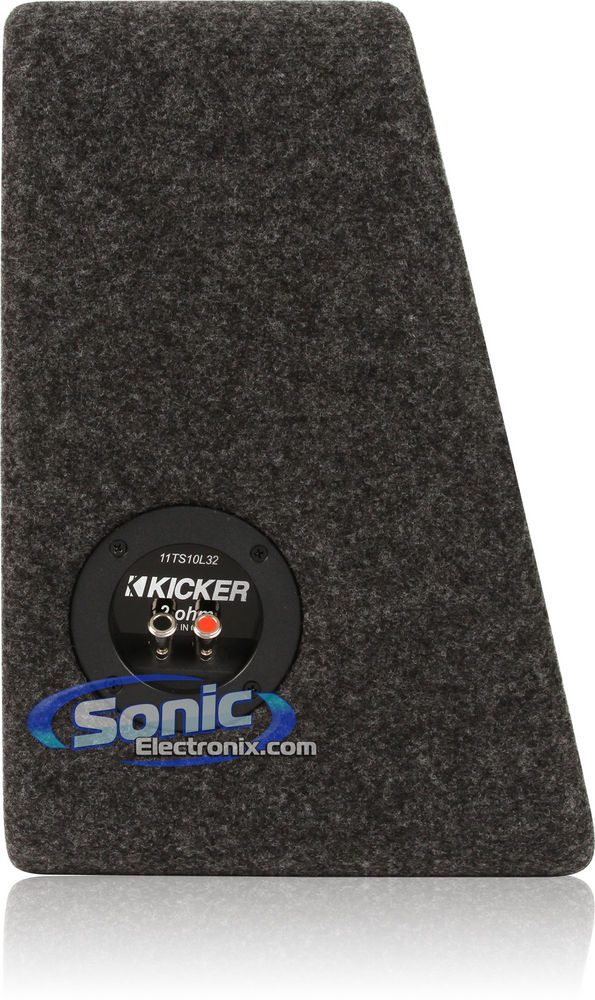

  • Combo vent/terminal cup

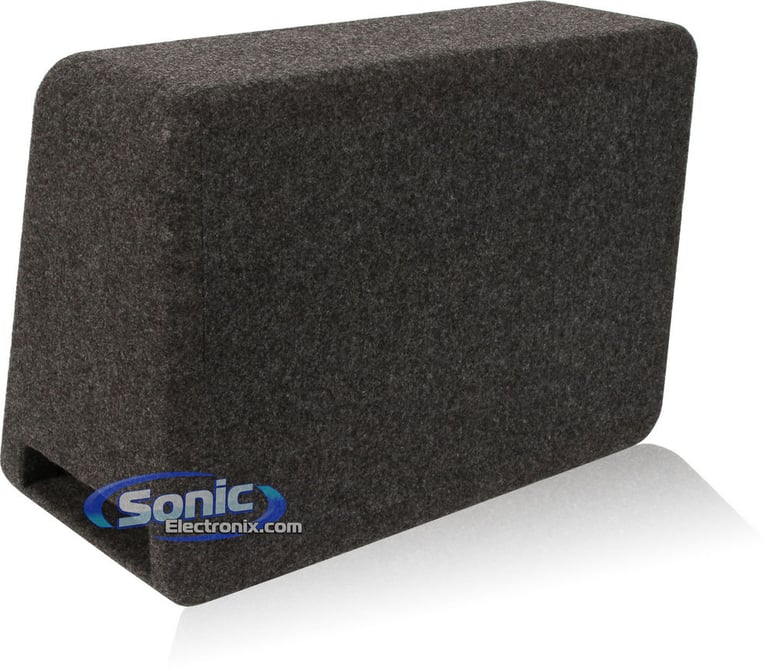

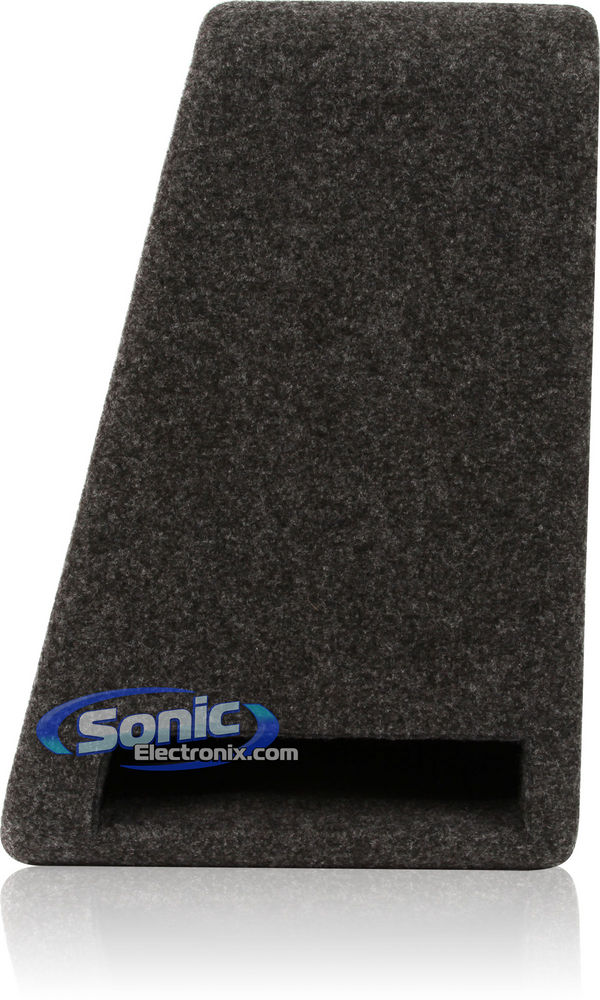

  • Oversized port
  • Dimensions: 6-11/16"TD x 10"BD x 21-1/2"W x 15"H
2011 Kicker Authorized Online Dealer and eBay Seller

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00


Best selling similar products

P3-2X12 small

Rockford Fosgate Punch P3 P3-2X12

• Dual Punch P3 12" Loaded Subwoofer Enclosure
• 2400W Peak
• 1200W RMS
• Constructed with Durable 5/8" MDF
• High Current Binding Posts
• Durable Black Carpet Covering
• Computer Optimized Design
• 1 Ohm Final Impedance

(40)

$709.99

List price $947.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

DCWR122 small

Kicker DCWR122 (48DCWR122)

• Ported enclosure with 2 12" CompR Series Subwoofer
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2

(2)

$439.96

List price $599.99

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
400 watts
Peak Power Handling
800 watts
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Woofer Surround
Santoprene Rubber
Sensitivity
85.3 dB
Frequency Response
24 - 100 Hz
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Truck Style, Slim with Angled Front
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Gray
Box Finish
Carpet
Second Width
10"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11TS10L32

Weight:

40.50lbs

Internal SKU:

11ts10l32

Internal Product ID:

31851

Product and How-to Videos


Customer Ratings & Reviews


Kicker TS10L32 (11TS10L32) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Fricken Kicken

I was a little apprehensive about purchasing this after reading about people blowing the woofer out in the first few weeks. After babying it for 3 weeks I now drive it full force with 500 Watts RMS and it takes it like a champ. This single sub puts my 2 Rockford Fosgates to shame! I received a nice discount on an amp kit by calling Sonic Electronix before ordering. Thanks Kicker and Sonic!!!

By BigJer on March 11, 2012
