American Audio VMS4

4-Channel Table Top MIDI Controller with Built-in Soundcard & Balanced XLR Outputs

highlight-star-icon

• 4 USB / Analog selectable MIDILOG (Midi & Analog) Channels

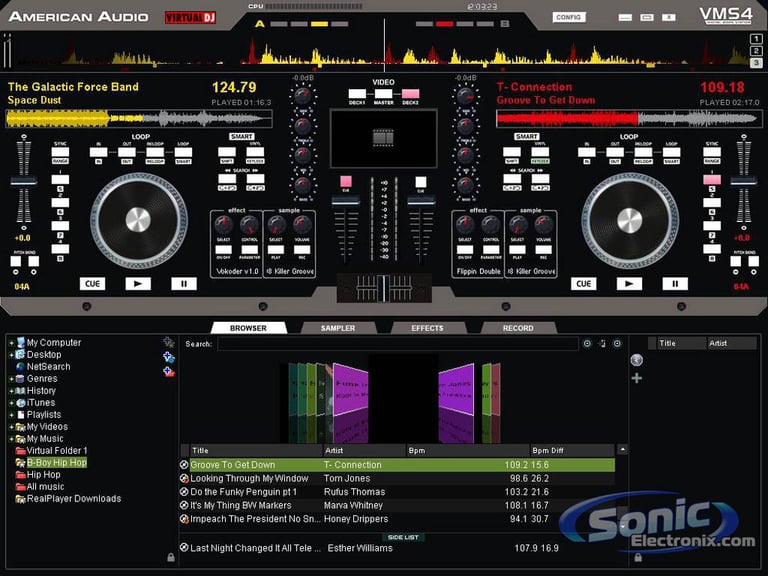

• Bundled with VIRTUAL DJ 6 LE Software
• Gain/Treble/Mid/Bass EQ
• Two Microphone Channels
• Full Analog Mixer Operation

Learn more about the vms4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

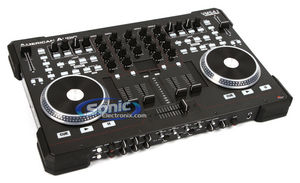

vms41 thumbnail

American Audio VMS4.1

OUR PRICE: $339.99

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Description


American Audio brand icon

Authorized dealer

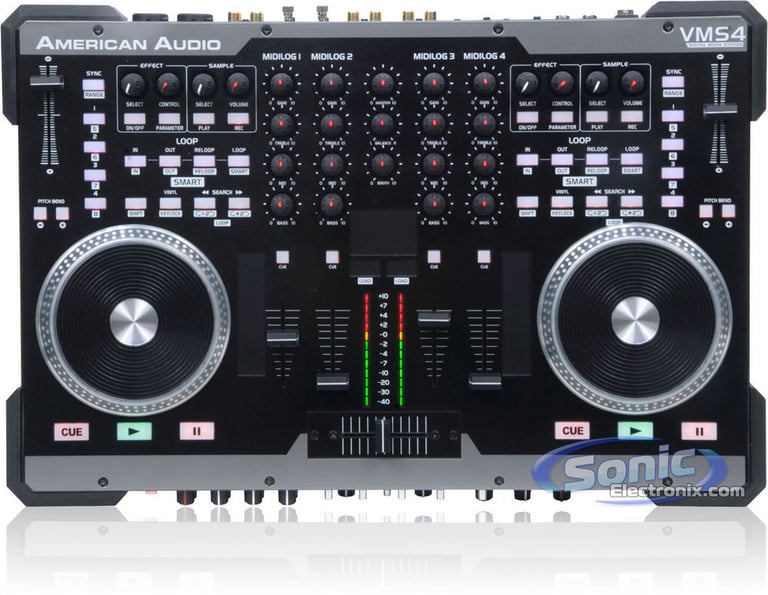

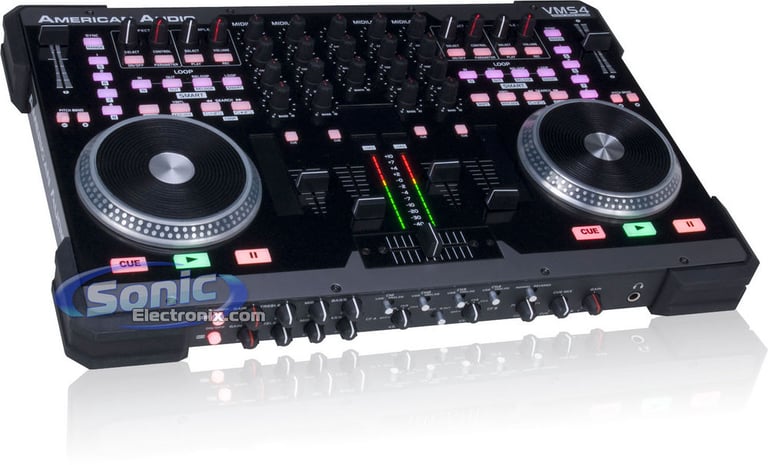

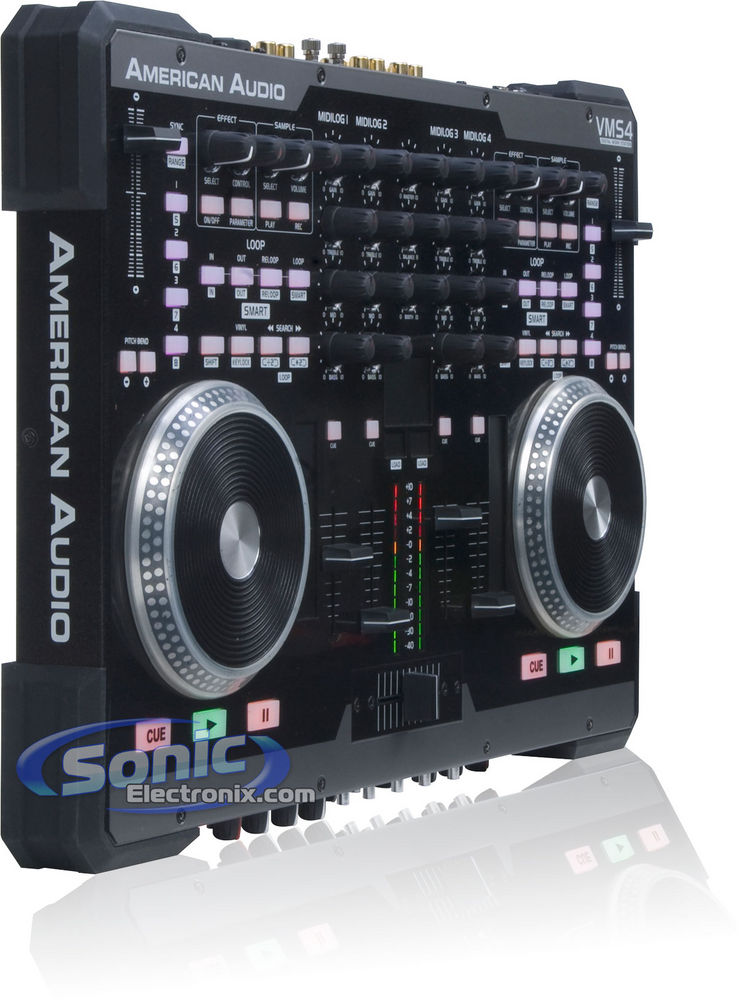

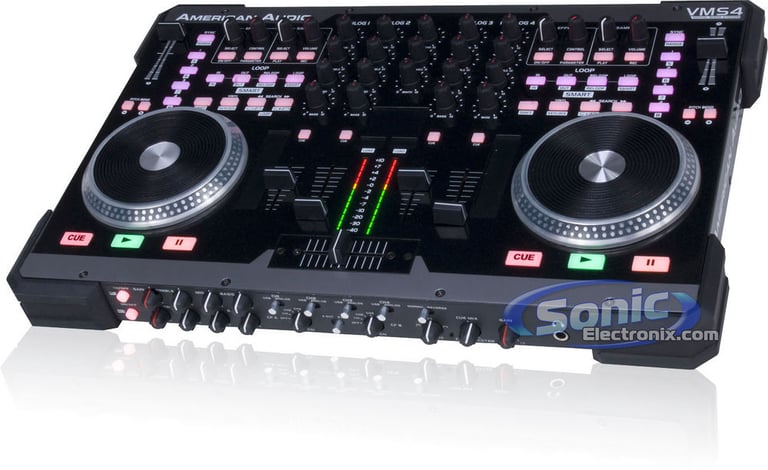

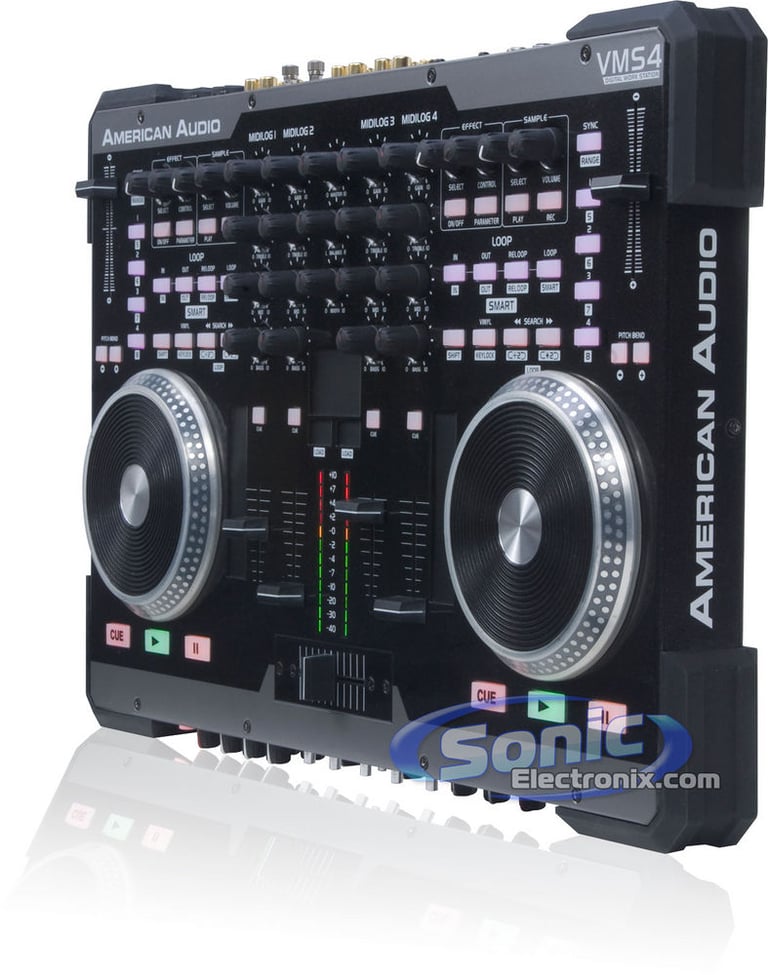

American Audio VMS4 DJ Controller

The VMS4 is a 4-channel table top MIDILOG controller and is American Audio’s top of the line controller. One feature that separates this controller from others is the built in soundcard, which eliminates additional interfaces needed between the controller and computer. American Audio has incorporated a built-in USB port onto this controller, this provides plug-n-play right out of the box and allows the VMS4 to be used with any MIDI audio software titles. This controller is equipped with two velocity touch sensitive jog wheels, a full function mouse pad, two 10- bit resolution pitch sliders, 62 assignable MIDI buttons and switches (50 with LED illuminations, 18 with dual blue/red LEDs), 4 assignable rotary encoders, 34 assignable rotary controllers, and 5 assignable linear fader controllers. All audio control faders, knobs, switches, and buttons have been smoothed to eliminate popping, wiper noise, and zipper noise. This versatile all in one DJ controller is perfect for beginner DJs and has all the features that will satisfy a professional DJ.


Product Features

  • Midi Controller with 4 USB / Analog selectable MIDILOG (Midi & Analog) channels
  • All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
  • On/off soft startup and turnoff
  • Gain/treble/mid/bass EQ on all MIDILOG channels
  • 2 phono/line selectable analog channels
  • Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
  • On/off cueing on each MIDILOG channel
  • Split cueing headphones with rotary mix control
  • Illuminated rubber knobs for ease of use in dark environments
  • Solid 1.6mm thick faceplate for extra durability
  • Panel mounted rotary knobs
  • Full analog mixer operation if the computer crashes or with external power supply
  • Innofader replaceable crossfader compatible (sold separately)
  • Crossfader curve control
  • Crossfader assign and reverse
  • Q-Start crossfader controlled startup for 2 external audio players
  • User replaceable channel faders
  • Master and Booth outputs with L/R balance
  • Balanced Master outputs
  • 12 position stereo master output VU meter
  • Dimensions: 12-3/4"L x 19"W x 1-1/2"H
  • 1-year Manufacturer's warranty

MIDI Features:

  • Built-in mouse pad
  • Long life MIDI assignable touch strips
  • Two 10- bit resolution pitch sliders
  • 62 assignable MIDI buttons and switches
  • 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
  • 4 assignable rotary encoders
  • 34 assignable rotary controllers
  • 5 assignable linear fader controllers
  • Dual MIDI controls on all buttons and switches
  • Dual 2000 point resolution touch sensitive turntable scratch controllers

Audio Features:

  • 24-bit 48 kHz analog audio
  • 16-bit 44.1kHz USB audio
  • 10-bit resolution on all analog fader controls
  • THD <0.1%*
  • Channel separation >60dB
  • S/N ratio >85dB
  • Analog channel audio latency < 1msec
  • Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording

Product history:

American Audio VMS4.1 thumbnail
(newest, current model)
American Audio VMS4 thumbnail
(previous model, replaced by American Audio VMS4.1)

Specifications & Details


Sound Card Features
Number of Microphone Inputs
2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VMS4

Weight:

18.00lbs

Internal SKU:

vms4

Internal Product ID:

32283

Customer Ratings & Reviews


American Audio VMS4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great controller

This thing is killer. Very heavy duty and works great. I just upgraded to Virtual DJ pro ($149) and doing full blown video mixing as well as my normal DJ gigs. Love my VMS4

By Al Anderson on May 2, 2011

5 found this helpful
