American Audio VMS4.1

4-Channel Table Top MIDI Controller with Built-in Soundcard & Balanced XLR Outputs 9 (VMS743)

Product videos
highlight-star-icon

• 4 USB / Analog selectable MIDILOG (Midi & Analog) Channels
• Bundled with VIRTUAL DJ 6 LE Software
• Gain/Treble/Mid/Bass EQ
• Two Microphone Channels
• Full Analog Mixer Operation

Learn more about the vms41

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
Stage3 637F main

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

C3-650 main

JL Audio C3-650

150W RMS 6.5" C3 Series 2-Way 4-ohm Component Speaker System

15

Product Highlights


• 4 USB / Analog selectable MIDILOG (Midi & Analog) Channels
• Bundled with VIRTUAL DJ 6 LE Software
• Gain/Treble/Mid/Bass EQ
• Two Microphone Channels
• Full Analog Mixer Operation

Description


American Audio brand icon

Authorized dealer

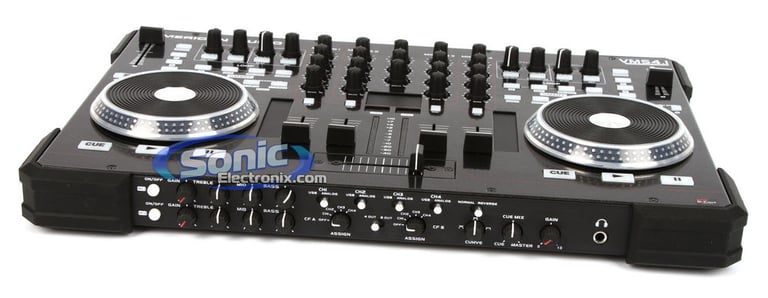

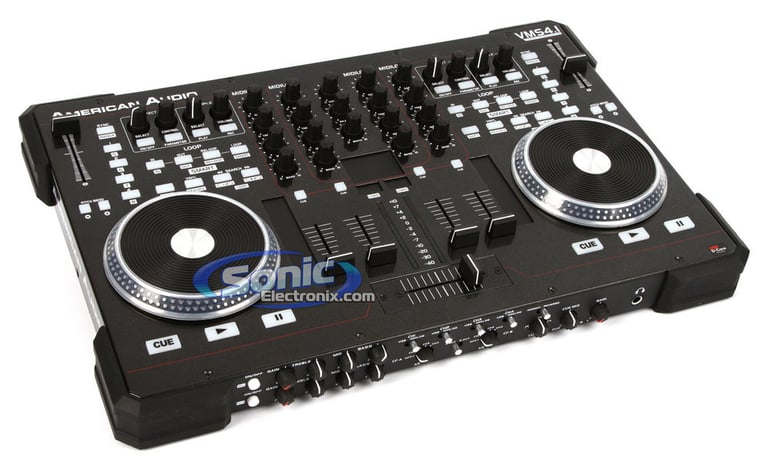

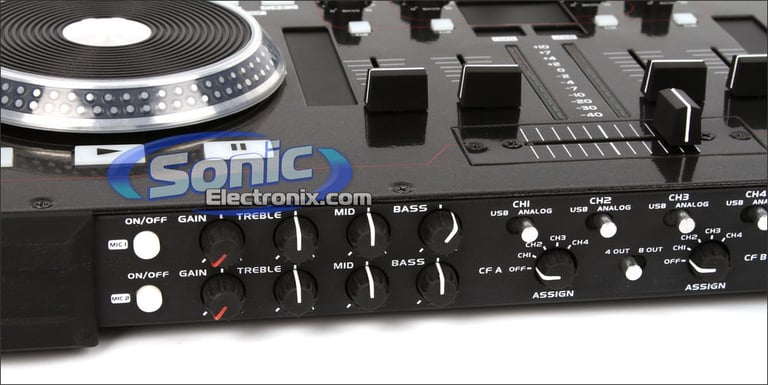

The American Audio VMS4.1 DJ Controller

The VMS4.1 is a the newest version of the 4-channel table top DJ controller from American Audio and it is their flagship controller. One feature that separates this controller from others is the built-in soundcard, which eliminates additional interfaces needed between the controller and computer.

Compared to its breakthrough predecessor, the VMS4.1 has a completely new internal hardware, four times more output, a larger power supply, brighter LEDs on knobs and buttons, stronger facer mounting, vastly improved sound quality and significantly upgraded mic sound, quality and output. It also has a new, more linear EQ design that works better with Traktor software as well as Virtual DJ.

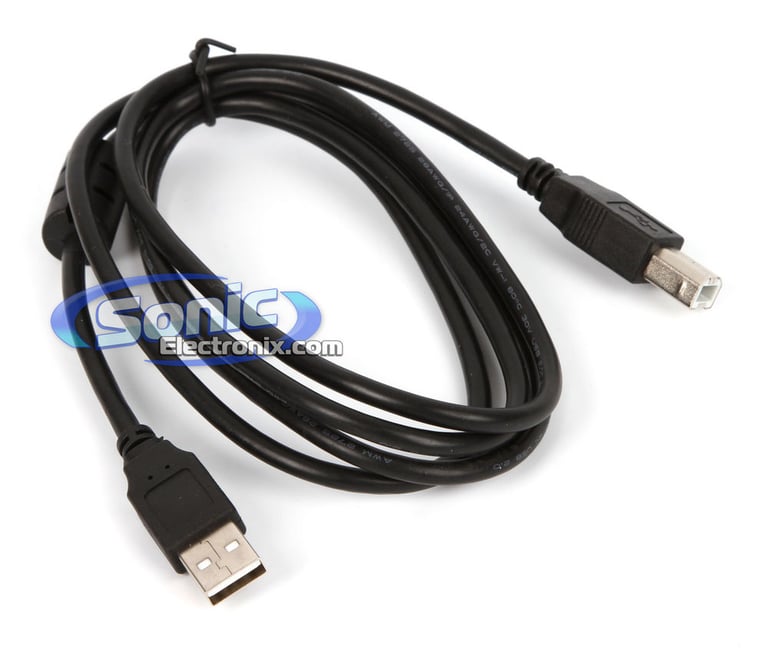

American Audio has incorporated a built-in USB port onto this controller, this provides plug-n-play right out of the box and allows the VMS4 to be used with any MIDI audio software titles. This controller is equipped with two velocity touch sensitive jog wheels, a full function mouse pad, two 10-bit resolution pitch sliders, 62 assignable MIDI buttons and switches (50 with LED illuminations, 18 with dual blue/red LEDs), 4 assignable rotary encoders, 34 assignable rotary controllers, and 5 assignable linear fader controllers. All audio control faders, knobs, switches, and buttons have been smoothed to eliminate popping, wiper noise, and zipper noise. This versatile all in one DJ controller is perfect for beginner DJs and has all the features that will satisfy a professional DJ.

Product Features
  • MIDI Controller with 4 USB / Analog selectable MIDILOG (Midi & Analog) channels
  • All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
  • On/off soft startup and turnoff

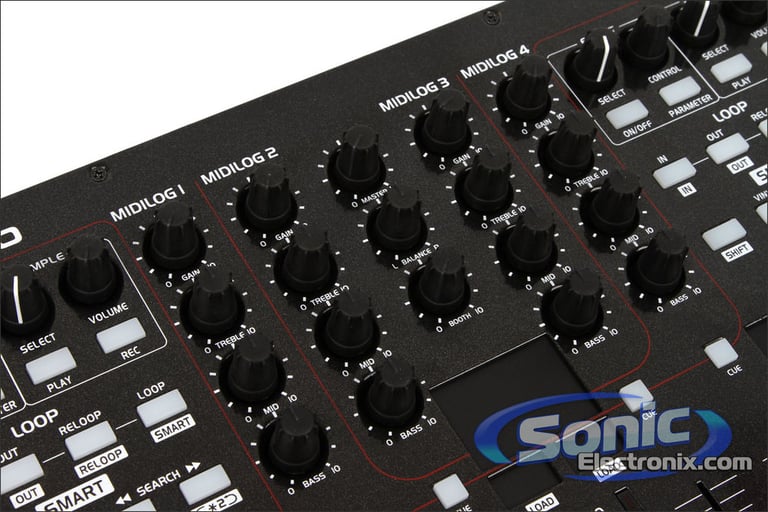

  • Gain/treble/mid/bass EQ on all MIDILOG channels

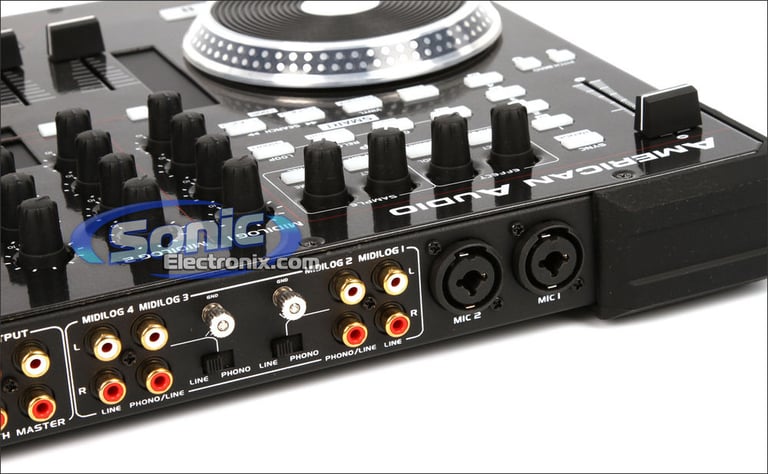

  • 2 phono/line selectable analog channels
  • Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
  • On/off cueing on each MIDILOG channel
  • Split cueing headphones with rotary mix control
  • Illuminated rubber knobs for ease of use in dark environments
  • Solid 1.6mm thick faceplate for extra durability
  • Panel mounted rotary knobs
  • Full analog mixer operation if the computer crashes or with external power supply
  • Innofader replaceable crossfader compatible (sold separately)

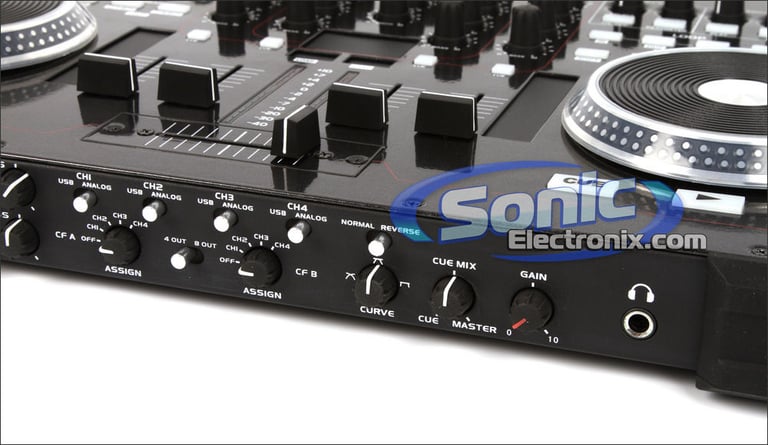

  • Crossfader curve control
  • Crossfader assign and reverse
  • Q-Start crossfader controlled startup for 2 external audio players
  • User replaceable channel faders

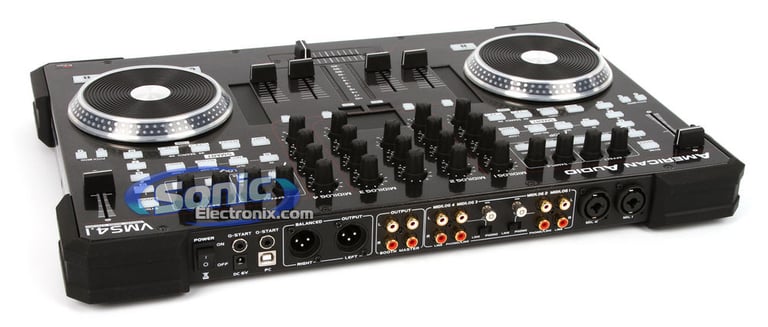

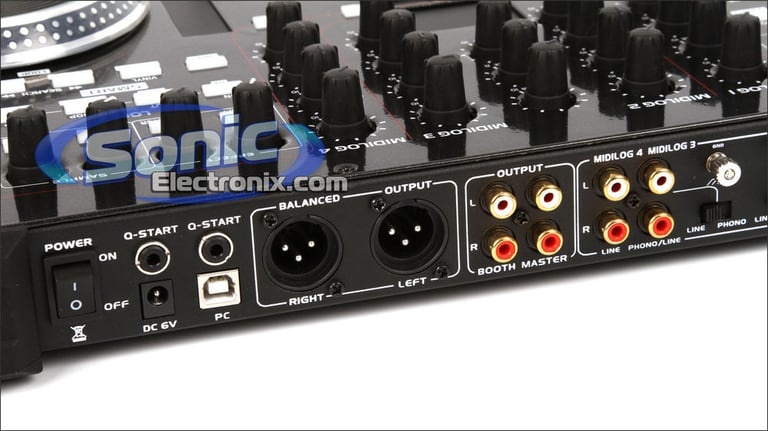

  • Master and Booth outputs with L/R balance
  • Balanced Master outputs
  • 12 position stereo master output VU meter
  • Dimensions: 12-3/4"L x 19"W x 1-1/2"H
  • 1-year Manufacturer's warranty
MIDI Features:
  • Built-in mouse pad
  • Long life MIDI assignable touch strips
  • Two 10- bit resolution pitch sliders
  • 62 assignable MIDI buttons and switches
  • 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
  • 4 assignable rotary encoders
  • 34 assignable rotary controllers
  • 5 assignable linear fader controllers
  • Dual MIDI controls on all buttons and switches
  • Dual 2000 point resolution touch sensitive turntable scratch controllers
Audio Features:
  • 24-bit 48 kHz analog audio
  • 16-bit 44.1kHz USB audio
  • 10-bit resolution on all analog fader controls
  • THD <0.1%*
  • Channel separation >60dB
  • S/N ratio >85dB
  • Analog channel audio latency < 1msec
  • Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
  • Also Found as: VMS4 VMS41 VMS4.1
