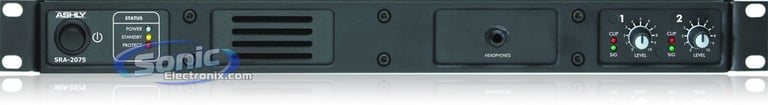

Ashly SRA-2075

150W Peak, 2-Channel SRA-Series Power Amplifier w/ Extensive Protection Circuitry

Ashly
Shop all Ashly
highlight-star-icon

SRA-Series 150W, 2-Channel Class D Power Amplifier • 75W per channel @ 4 ohm • Convection Cooled • Light 1RU Chassis • Extensive Protection Circuitry

Learn more about the sra2075

We apologize

This item has been discontinued


Loading...
SWR-A main

Crux SWR-A

Steering Wheel Control Retention Interface for Analog SWC

1
-35.71%

$58.05

List price $90.30

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42

Description


Ultra-High Sonic Quality

Ashly's SRA-Series Power Amplifiers make it super easy to get what you need at an affordable price. SRA-Series amplifiers are designed to power 4 or 8 ohm loads and come housed in a slim 1RU chassis weighing a mere 10 lbs. or less. The 150W models are amply (no pun intended) capable of directly driving lines of constant 25V. Class-D amplifier circuitry and switch-mode power supplies make for a very power-efficient unit that's perfect for a broad variety of low wattage applications.

The SRA-Series incorporates state of the art technological advancements to deliver highly-efficient amplifiers ideal for installations with moderate power necessities. Four models are available in 2 and 4-channel setups with RMS power ratings of 75W and 150W per channel (@ 4 ohms).

Some of the SRA-Series features include: very low noise, extensive protection circuitry, Euroblock I/O, attenuators for individual channels, clip alert and signal present status LEDs for each channel, rear panel switches for selection between two settings of input sensitivity, HPF frequencies, normal or bridged mode, remote power turn-on/off and customizable power-on delay (up to 8 seconds). In addition, the two-channel models have stereo headphone jacks on the front panel.

All Ashly SRA-Series amplifiers are convection-cooled, which means almost no need for maintenance after initial installation, AND no irritating noise from the fan. With the SRA-Series amplifiers, you get the dependability, ultra-high sonic quality and rugged construction that consumers expect from the Ashly name.

Product Features:
  • 150W Peak, 2-Channel Class D Pro Amplifier
  • RMS Power Rating:
    • 8 ohm: 40 watts x 2 chan.
    • 4 ohm: 75 watts x 2 chan.
    • Bridged, 8 ohm: 150 watts x 1 chan.
  • Voltage Gain: 26 dB, 36 dB sensitivity (selectable)
  • Frequency Response: 20 Hz - 20 kHz, /- 1.0 dB
  • Damping Factor: 8 ohm load, < 1 kHz > 200 into 8 ohm
  • Input Impedance: 20 k ohm, balanced
  • Input Sensitivity: 1dBu
  • Maximum Input Level: 21 dBu
  • Convection cooled so there's no annoying fan noise
  • Individual channel LED indicators for signal and clipping
  • Other front panel LED indicators for overall power, standby and protect
  • Individual attenuators for each channel

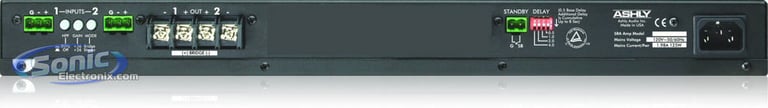

  • Input Connectors: 3- Pin Euroblock
  • Output Connectors: Euroblock
  • Amplifier Protection: Output Overcurrent, DC Output, Main Supply Rail Overvoltage,
    Chassis Temperature, Inrush Limiting, Mains Fuse
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

VS-1200-AMP small

Wet Sounds VS-1200-AMP

• Venue Series 4-Channel Class D Power Amplifier
• Power RMS @ 4 ohm: 200 watts x 4 channel
• Power RMS @ 2 ohm: 300 watts x 4 channel
• Cooling fan for cooling system

$1249.99

List price $1249.99

VS-AmplifierSystem-4 small

Wet Sounds VS-AmplifierSystem-4

• Venue Series 4-Channel Class D Power Amplifier
• Includes VS-LS-ENC landscape enclosure
• Power RMS @ 4 ohm: 200 watts x 4 channel
• Power RMS @ 2 ohm: 300 watts x 4 channel
• Cooling fan for cooling system

$1999.98

List price $1999.98

Specifications & Details


Power Specifications
Number of Channels
2 Channels
Continuous Power @ 8 ohm
40 watts x 2 channel
Continuous Power @ 4 ohm
75 watts x 2 channel
Continuous Power @ 8 ohm (Bridged)
150 watts x 1 channel
Total Continuous Power
150 watts
Amplifier Specifications
Amplifier Class
D
Signal-to-Noise Ratio
>98 dB
Frequency Response
20 - 20000 Hz
Voltage Gain
36 dB
Cooling Options
Convection
Inputs
Euroblock
Outputs
Binding Posts
Physical Specifications
Height
1-3/4"
Width
19"
Depth
11"
Weight (Pounds)
9 lbs
Rackmount Spaces
1U
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SRA-2075

Weight:

19.50lbs

Internal SKU:

sra2075

Internal Product ID:

32364
