Ashly TRA-2150

300W Peak, 2-Channel TRA-Series Power Amplifier w/ Extensive Protection Circuitry

Ashly
Shop all Ashly
highlight-star-icon

TRA-Series 300W Peak, 2-Channel Power Amplifier • 150W Per Channel @ 4 Ohm • Convection Cooling • Extremely Low Noise • Extensive Protection Circuitry • Euroblock Inputs • Screw Terminal Outputs

Learn more about the tra2150

We apologize

This item has been discontinued


Loading...
NSB710 main

American International NSB710

6.5" or 6.75" Speaker Mounting Adapters for select 1995-2019 vehicles from Nissan, Infiniti, Suzuki

17
-64.74%

$11.99

List price $34.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


Switchable For Any Job

Ashly's TRA-Series takes all the best parts of the SRA-Series and throws in some even better parts of its own. The TRA-Series incorporates state of the art technological advancements to deliver highly-efficient amplifiers ideal for low impedance, 25V, 70V or 100V installations with moderate power necessities. Four models are available in 2 and 4-channel setups with RMS power ratings of 75W and 150W per channel (@ 4 ohms).

Every control of the TRA-Series amplifiers are either on the rear panel, or they're internal. A 6-step LED meter enables you to monitor the levels for each of the individual channels. Each TRA-Series amplifier can power 4 or 8 ohm loads in addition to constant lines of 70V and 100V simultaneously. The 150W models are amply (no pun intended) capable of directly driving lines of constant 25V using the direct coupled 4 ohm output.

Some of the TRA-Series features include: very low noise, an internally switchable 120V/240V power supply, extensive protection circuitry, euroblock inputs and outputs, main power switch and an LED signal level meter indicating -24dB, -18dB, -12dB, -6dB, -3dB and a clip alert for each channel, level attenuators for the individual channels, rear panel switches to choose between two settings of input sensitivity, remote power turn-on/off and adjustable power-on delay (up to 8 seconds).

All Ashly TRA-Series amplifiers are convection-cooled, which means almost no need for maintenance after initial installation, AND no irritating noise from the fan. With the TRA-Series amplifiers, you get the dependability, ultra-high sonic quality and rugged construction that consumers expect from the Ashly name.

General Features:
  • 300W Peak, 2-Channel Class D Power Amplifier
  • Power Ratings:
    • 8 ohm: 80 watts x 2 chan.
    • 4 ohm: 150 watts x 2 chan.
    • 25/70/100V: 150 watts x 2 chan.
  • Convection cooled so there's no annoying fan noise
  • Switchable 120V/240V power supply (internal)

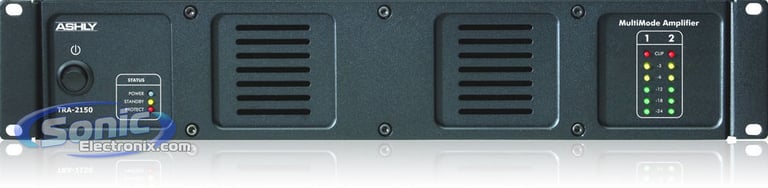

  • Front panel:
    • Signal level L.E.D.’s on each channel include –24, -18, -12, -6, -3 and clip alert

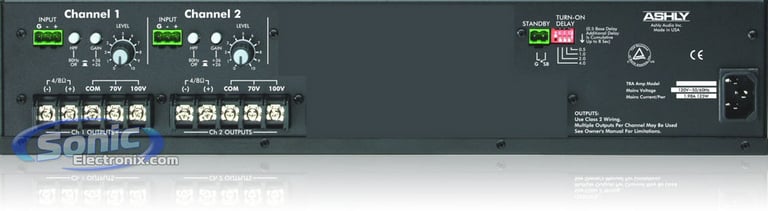

  • Rear panel:
    • Level attenuators for each channel
    • Euroblock inputs
    • Screw terminal outputs
    • Switches to select between two choices of input sensitivity and HPF frequencies on each channel
    • Remote power turn-on/off and adjustable turn-on delay up to eight seconds.
  • 6-Way protection circuitry (Output over-current, DC output, Main supply rail over voltage, chassis internal temperature, inrush limiting and main fuse)
  • 1-year Manufacturer's warranty
Signal to Noise (20 Hz-20 kHz, unweighted):
TRA-2075 TRA-4075 TRA-2150 TRA-4150
>98 dB >98 dB >105 dB >105 dB

Power Consumption (Pink Noise @ 4 Ohm)
  TRA-2075 TRA-4075 TRA-2150 TRA-4150
1/8th Output 18.75W 37.5W 37.5W 75.0W
1/8th Draw 39.0W 74.0W 64.0W 125W
1/8th Current 0.69A 1.24A 1.10A 1.98A
Idle Power 17.0W 30.0W 20.0W 36.0W
Idle Current 0.30A 0.52A 0.35A 0.62A

Output Circuitry: Class D
Voltage Gain: 26 dB, 36 dB sensitivity (selectable)
Frequency Response: 20 Hz - 20 kHz, +/- 1.0 dB
Damping Factor: - 8 ohm load, < 1 kHz > 200 into 8 ohm
Input Impedance: 20 k ohm, balanced
Maximum Input Level: +21 dBu
Cooling: Convection
Front Panel Indicators per channel: -24dB, -18dB, -12dB, -6dB, -3dB and Clip
Front Panel Indicators: overall power, standby, protect
Attenuators: Per channel rear panel
Input Connectors: each channel 3- Pin Euroblock
Output connectors: each channel Screw terminals
Amplifier Protection: Output Overcurent, DC Output, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse

Power Cable Connector: 3-Prong IEC
Dimensions 19” x 3.5” x 11” (All)

Weights TRA-2075 TRA-4075 TRA-2150 TRA-4150
Net 19.5 lbs 29.5 lbs 19.5 lbs 29.5 lbs
Shipping 25.5 lbs 35.5 lbs 25.5 lbs 35.5 lbs

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

VS-AmplifierSystem-4 small

Wet Sounds VS-AmplifierSystem-4

• Venue Series 4-Channel Class D Power Amplifier
• Includes VS-LS-ENC landscape enclosure
• Power RMS @ 4 ohm: 200 watts x 4 channel
• Power RMS @ 2 ohm: 300 watts x 4 channel
• Cooling fan for cooling system

$1999.98

List price $1999.98

VS-1200-AMP small

Wet Sounds VS-1200-AMP

• Venue Series 4-Channel Class D Power Amplifier
• Power RMS @ 4 ohm: 200 watts x 4 channel
• Power RMS @ 2 ohm: 300 watts x 4 channel
• Cooling fan for cooling system

$1249.99

List price $1249.99

Specifications & Details


Power Specifications
Number of Channels
2 Channels
Continuous Power @ 8 ohm
80 watts x 2 channel
Continuous Power @ 4 ohm
150 watts x 2 channel
Continuous Power @ 8 ohm (Bridged)
300 watts x 1 channel
Total Continuous Power
300 watts
Amplifier Specifications
Amplifier Class
D
Signal-to-Noise Ratio
>105 dB
Frequency Response
20 - 20000 Hz
THD (Total Harmonic Distortion)
0.01%
Voltage Gain
36 dB
Cooling Options
Convection
Inputs
Euroblock
Outputs
Binding Posts
Physical Specifications
Height
3-1/2"
Width
19"
Depth
11"
Weight (Pounds)
19-1/2 lbs
Rackmount Spaces
2U
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TRA-2150

Weight:

19.50lbs

Internal SKU:

tra2150

Internal Product ID:

32371
