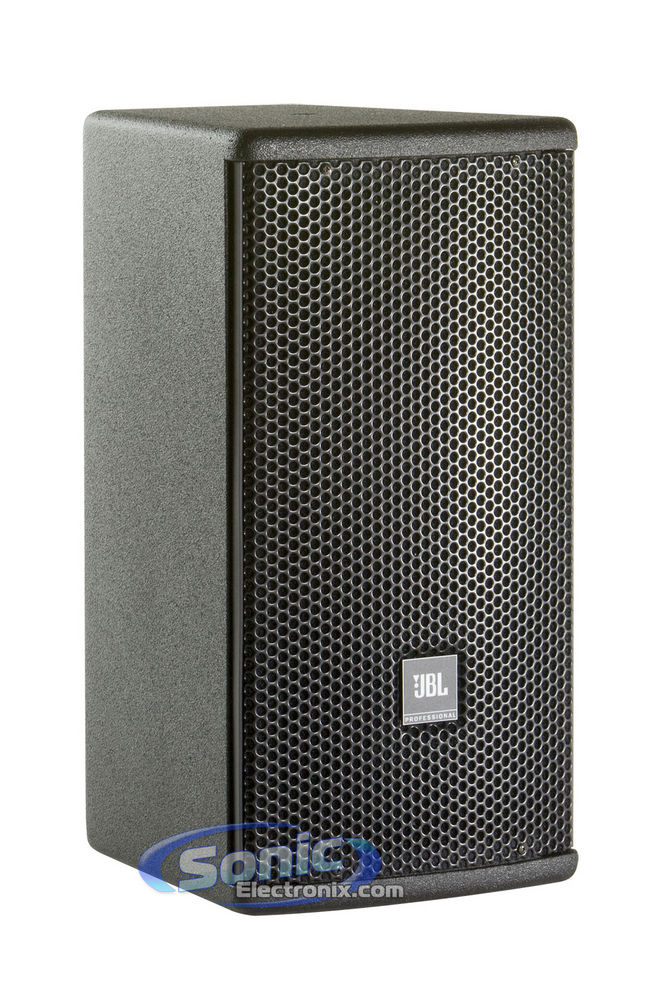

JBL AC16

640W Ultra Compact 2-Way Loudspeaker with 1” Dome Tweeter & 6-1/2" LF Transducer

JBL
Shop all JBL
Product videos
highlight-star-icon

640W Ultra Compact 2-Way Loudspeaker • Progressive Transition waveguide • Dual Neutrik NL4 connectors • Multiple Attachment Points • Exit Compression Driver

Learn more about the ac16

We apologize

This item has been discontinued


Loading...
99-7523S main

Metra 99-7523S

2003-2005 Mazda 6 Double and ISO DIN Radio Install Kit

15
-38.11%

$319.99

List price $516.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

560BRGB main

Boss Elite 560BRGB

Single DIN CD Receiver with Bluetooth (Black)

3
H7652 main

Cerwin Vega H7652

640W Peak (120W RMS) 6.5" HED Series 2-Way Coaxial 4-ohm Speakers

31
-16.67%

$69.99

List price $83.99

P165-SI main

Rockford Fosgate Punch P1 P165-SI

240W Peak (120W RMS) 6.5" Punch Series 2 Way Component 4-ohm Speakers

9

Rockford Fosgate Prime R1525X2

160W Peak (80W RMS) 5.25" Prime Series 2 Way Coaxial 4-ohm Speakers

17

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Product Highlights


640W Ultra Compact 2-Way Loudspeaker • Progressive Transition waveguide • Dual Neutrik NL4 connectors • Multiple Attachment Points • Exit Compression Driver

Description


JBL brand icon

Authorized dealer

A Progressive Transition

The AC16 is an ultra-compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90° x 90° PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC16 utilizes a 6.5" Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.

The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket. The AC16 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory.

The rugged plywood enclosure features JBL’s textured DuraFlex™ finish and is equipped with a heavy duty powder coated steel, foam-backed grille.

General Features:
  • Ultra compact enclosure
  • 165 mm (6.5 in) LF transducer
  • 90° x 90° Progressive Transition waveguide with a 25 mm (1 in) exit compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple Attachment Points for Ultimate Flexibility
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
System Specifications:
  • Frequency Range (-10 dB): 55 Hz - 20 kHz
  • Frequency Response (+/-3 dB): 65 Hz - 18 kHz
  • Horizontal Coverage: 90°
  • Vertical Coverage: 90°
  • Directivity Factor (Q): 7 (avg. 500 Hz - 16 kHz)
  • Directivity Index (DI): 8 dB (avg. 500 Hz - 16 kHz)
  • System Sensitivity1: 90 dB SPL/1W/1m
  • Rated Maximum SPL (1m): 110 dB
  • System Nominal Impedance: 16 Ohm
  • Long-Term System Power Rating: (Continuous/Program/Peak): 160 W / 320 W / 640 W
  • AES Standard Power Rating4: 250 W
  • Crossover: 2.4 kHz
Transducer Specifications:
  • Low Frequency Driver: 1 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil
  • High Frequency Driver: 1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
  • High-Frequency Waveguide: PT-B99HF-1
Physical Specifications:
  • Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
  • Suspension Attachment: 5 x M8 points; 1 top, 3 bottom, 1 rear. 4 x M6 rear for OmniMount® 30.0
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request
  • Optional Weather Resistant Versions5: WRC & WRX available upon request
  • Grille: Powder coated 16 gauge perforated steel, acoustically transparent foam backing (grille cloth backing on white units)
  • Input Connectors: Neutrik Speakon® NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop through)
  • Environmental Specifications: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX
  • Dimensions (H x W x D): 381.0 x 199.4 x 226.1 mm (15.0 x 7.8 x 8.9 in)
  • Weight: 7.2 kg (15.8 lb)
  • Optional Accessories: MTU-16 U-Bracket 365469-001, M8 x 38 Tee Knot Thumbscrew kit for use with BMB-200k or K & M 195/8 stand mount accessory
