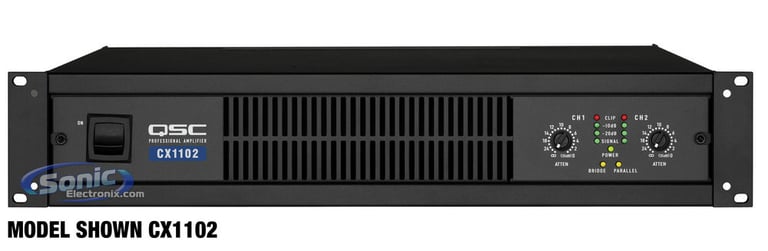

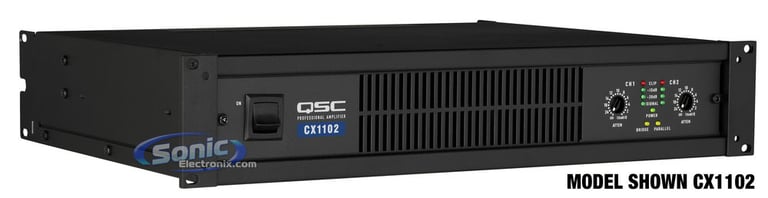

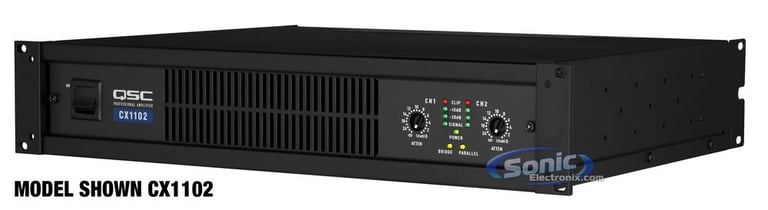

QSC CX702

CX 2-Channel Series

The CX 2-Channel Series is designed to meet the specialized needs of sound contractors. Eight models have been designed from the ground up, combining QSC's exclusive PowerLight® technology with specific features to meet the requirements of fixed installations. With high output power, versatile loading options, high thermal capacity and proven reliability, the CX Series is the ideal solution to any permanently installed sound system.

Advanced monitoring and control when used with a Q-Sys or BASIS system. Learn more The model line incorporates QSC's exclusive PowerLight technology. Three models, the CX302V, CX602V and CX1202V, provide direct 70 volt capability ranging from 250 watts to 1000 watts per channel for distributed audio systems. The CX302, CX502, CX702, CX902 and CX1102 offer low impedance capability and range in power from 325 watts to 1100 watts per channel at 4 ohms (20 Hz -20 kHz, 0.05% THD). The versatile CX902 and CX1102 have the ability to drive both 70 volt and low impedance loads for maximum flexibility.

The CX amplifiers are equipped with many contractor specific features including 1 dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active inrush limiting eliminates AC inrush current, cutting the need for power sequencers.

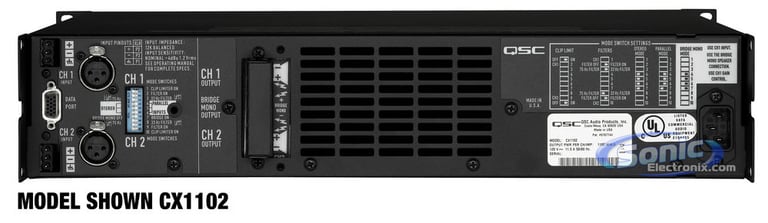

CX amplifiers also include an HD15 Data Port connector to interface with Q-Sys and QSControl networked audio systems, for remote amplifier monitoring and control.
