JBL AM5212/00

1600W Medium Power 12" 2-Way Full Range Loudspeaker with Bi-Amp/Passive Switchable Operation

JBL
Shop all JBL
Product videos
highlight-star-icon

Medium Power 12" 2-Way Full Range Loudspeaker • 1600W Peak • 300W RMS • Progressive Transition Waveguide • Black DuraFlex Finish • Perforated Steel Grille • Bi-Amp/Passive Switchable Operation • NL4 Neutrik Speakon

Learn more about the am521200

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Product Highlights


Medium Power 12" 2-Way Full Range Loudspeaker • 1600W Peak • 300W RMS • Progressive Transition Waveguide • Black DuraFlex Finish • Perforated Steel Grille • Bi-Amp/Passive Switchable Operation • NL4 Neutrik Speakon

Description


JBL brand icon

Authorized dealer

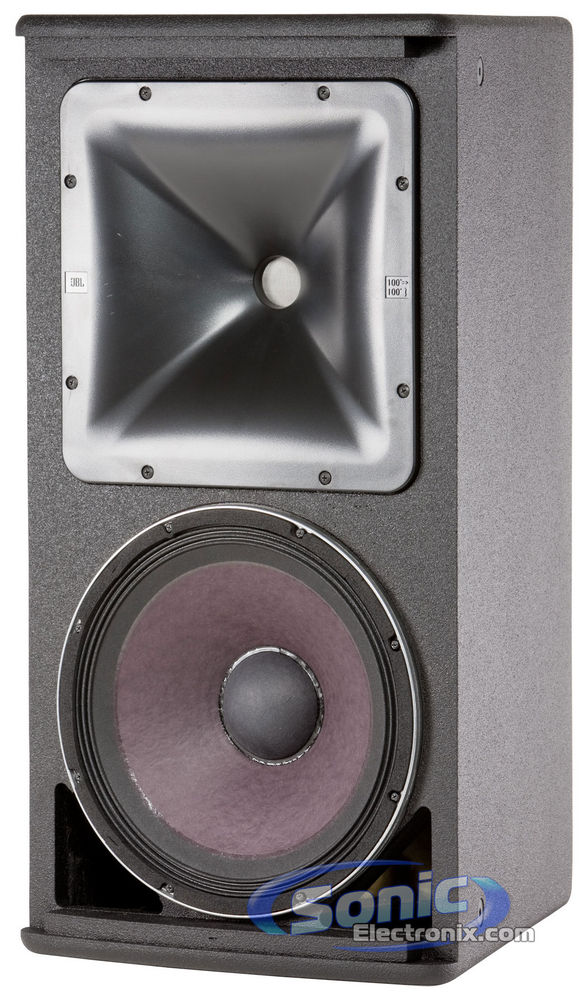

JBL AM5212/00 Full Range Loudspeaker

The AM5212/00 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT Progressive Transition waveguide provides excellent 100° x 100° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances array ability.

Product Features
  • Medium Power 12" 2-Way Full Range Loudspeaker
  • Power Handling
    • Peak: 1600 watts
    • RMS: 300 watts
  • 100° x 100° Coverage
  • 262H-1 Differential Drive Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Black DuraFlex finish
  • Powder coated 14 gauge perforated steel grille
  • 16 mm (5/8 in) exterior grade 11-ply birch plywood
  • Bi-Amp/Passive Switchable operation
  • NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
  • Frequency Range: 37-20,000 Hz
  • Frequency Response: 43-20,000 Hz
  • Impedance: 8 ohm
  • Sensitivity: 97 dB
  • Crossover Frequency: 1600 Hz
  • Dimensions: 18-1/8"D x 14-5/8"W x 28"H
  • 1-year Manufacturer's warranty
