JBL AM6315/64

4000W 15" High Power 3-Way Full Range Loudspeaker with 1 x 15" LF and Rotatable Horn

JBL
Shop all JBL
Product videos
highlight-star-icon

High Power 3-Way Full Range Loudspeaker • 4000W Peak • 600W RMS • 14 Gauge Perforated Steel Grille • PT Progressive Transition Waveguide • Bi-Amp/Passive Switchable Operation • Black DuraFlex Finish

Learn more about the am631564

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

108
-33.36%

$9.99

List price $14.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

99-5802 main

Metra 99-5802 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

3
-46.17%

$13.99

List price $25.99

FD1423B main

Scosche FD1423B / FD1423 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

25
-18.81%

$12.95

List price $15.95

99-5804 main

Metra 99-5804 Dash Kit

Install a new Single-DIN car stereo in select 1998-2011 vehicles from Ford, Lincoln, Mercury

3
-42.56%

$26.99

List price $46.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

Product Highlights


High Power 3-Way Full Range Loudspeaker • 4000W Peak • 600W RMS • 14 Gauge Perforated Steel Grille • PT Progressive Transition Waveguide • Bi-Amp/Passive Switchable Operation • Black DuraFlex Finish

Description


JBL brand icon

Authorized dealer

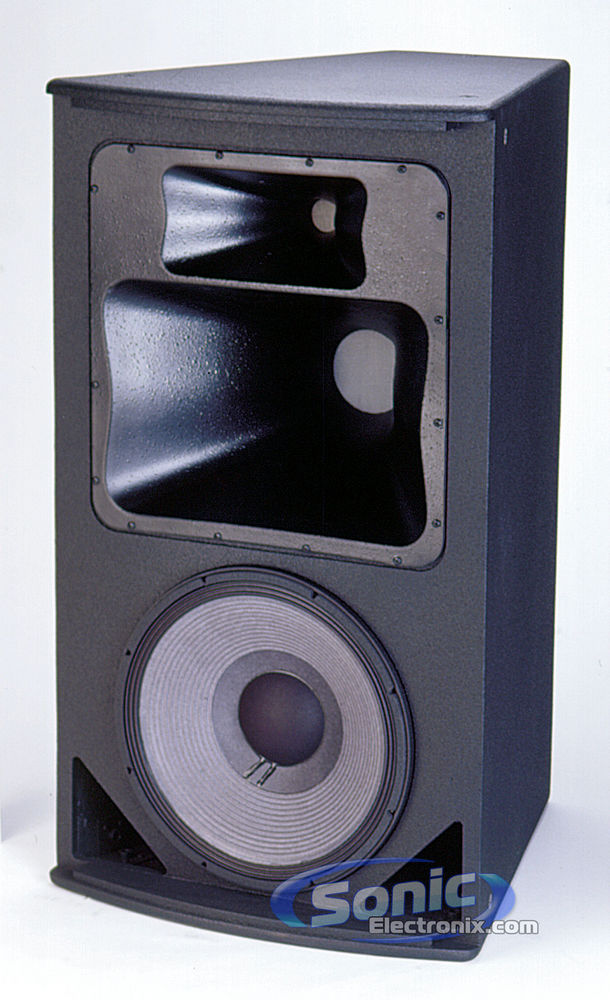

JBL AM6315/64 3-Way Full Range Loudspeaker

AM6315/64 is a high power 3-way full-range loudspeaker system comprised of one 380 mm (15 in) VGC™ Vented Gap Cooled low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver.

For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.

Product Features
  • High Power 3-Way Full Range Loudspeaker
  • Power Handling
    • Peak: 4000 watts
    • RMS: 600 watts
  • 60° x 40° Coverage, rotatable for use in either vertical or horizontal orientation
  • CMCD Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency
  • PT Progressive Transition Waveguide for excellent pattern control with low distortion
  • Bi-Amp/Passive Switchable operation
  • Black DuraFlex finish
  • Powder coated 14 gauge perforated steel grille
  • NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals
  • Frequency Range: 38-19,000 Hz
  • Frequency Response: 45-17,000 Hz
  • Max SPL: 134 dB
  • Sensitivity: 95 dB
  • Nominal Impedance: 8 ohm
  • Dimensions: 25-15/16"D x 22-1/8"W x 38-1/16"H
  • 1-year Manufacturer's warranty
