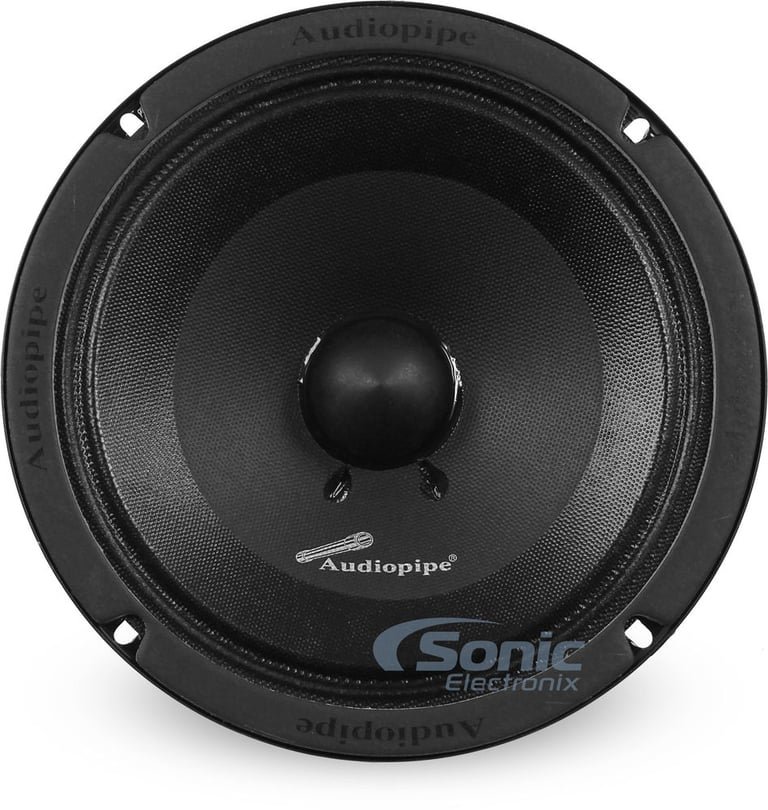

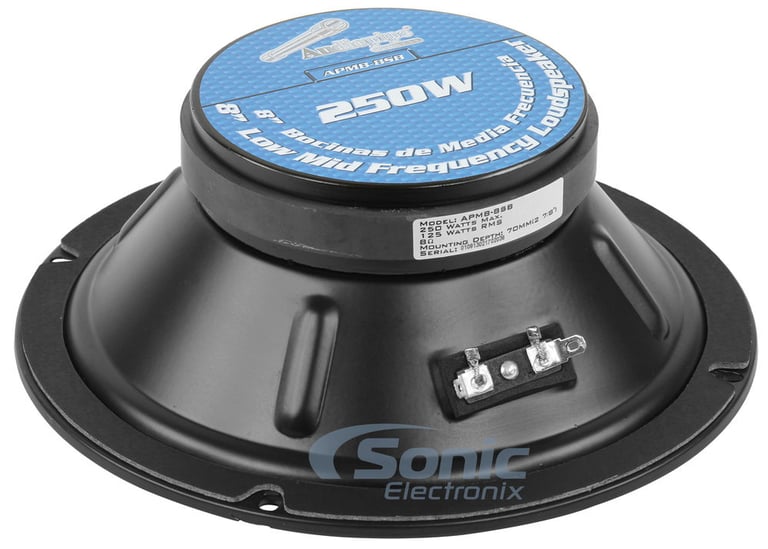

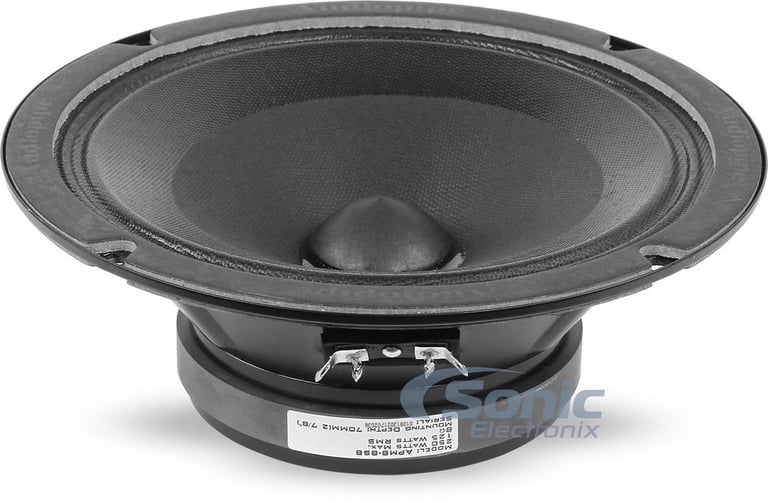

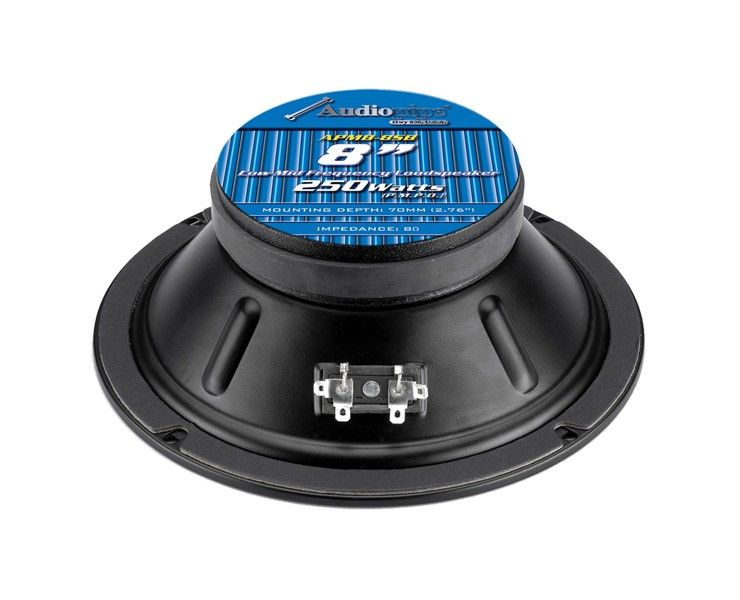

Audiopipe APMB-8SB

8", 8 ohm APMB-8 Series Loudspeaker w/ Sealed Back

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 8" APMB Series Midrange Driver
• Peak: 500 Watts Per Pair
• 1-1/2" Til Voice Coil
• Frequency Response: 350 - 5,000 Hz
• Sensitivity: 99 dB

Learn more about the apmb8sb

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

apmb8sb-c thumbnail

Audiopipe APMB-8SB-C 8" Loudspeaker

OUR PRICE: $29.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
C6-100ct main

JL Audio C6-100ct

75W RMS 1” C6 Series 4-ohm Component Dome Tweeter

Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

Deaf Bonce Apocalypse AP-X69A

800W Peak (400W RMS) 6x9" Apocalypse Series 2 Way Coaxial 4-ohm Speakers

3

Product Highlights


• 8" APMB Series Midrange Driver
• Peak: 500 Watts Per Pair
• 1-1/2" Til Voice Coil
• Frequency Response: 350 - 5,000 Hz
• Sensitivity: 99 dB

Description


Audiopipe brand icon

Authorized dealer

Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 8SB speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Sealed Basket Design Sealed Basket Limits Cone Movement and Improves Speaker Life

The Audiopipe 8SB sealed back design speaker limits the cone movement by utilizing a basket design that encloses the rear of the speaker entirely. As a result of the minimal movement within, sealed back speakers are incredibly durable, very difficult to damage speakers, ensuring use for years to come.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 8SB speaker features a light weight yet incredibly stiff pressed paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear some of the best sound reproduction possible.


General Features:

  • 8" APMB Series Sealed Back Midrange Driver
  • Power Handling:
    • Peak: 250 watts
    • RMS: 125 watts
  • Recommended power range: 10 - 125 watts RMS
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • Pressed paper cone
  • Corrugated surround
  • Sealed basket design for improved speaker life
  • Durable 1-1/2" Til voice coil
  • Frequency Response: 350 - 5000Hz
  • Heavy duty 20 oz Magnet
  • 8 ohm impedance
  • Top-mount Depth: 2.76"
  • Sensitivity: 99dB
  • Ironhide basket
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Individually - ONE Speaker

Product history:

Audiopipe APMB-8SB-C thumbnail
(newest, current model)
Audiopipe APMB-8SB thumbnail
(previous model, replaced by Audiopipe APMB-8SB-C 8" Loudspeaker)

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

PH654 small

Cerwin-Vega PH654

• 300 watts Peak Each, 150 watts RMS Each
• Polymide Horn Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101 dB

(2)

$189.99

List price $227.99

CVP8 small

Cerwin-Vega CVP8 (Sold Individually)

• 350 watts Peak, 170 watts RMS
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$49.99

List price $59.99

AP-M61SE Pro small

Deaf Bonce Apocalypse AP-M61SE Pro

• 300 watts Peak Each, 150 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102.80 dB

$119.90

List price $143.99

PRO-X12MBASS small

DS18 PRO-X12MBASS (Sold individually)

• 1000 watts Peak Each, 500 watts RMS Each
• Paper cone material
• Impedance: 8 ohm
• Sensitivity: 96 dB

$131.95

List price $131.95

10MB800FT small

PRV Audio 10MB800FT

• 1600 watts Peak Each, 800 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 8 ohm
• Sensitivity: 99 dB

$129.91

List price $162.39

EPICPRO8X small

AudioControl EPICPRO8X

• 350 watts Peak Each, 250 watts RMS Each
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99.2 dB

$129.00

List price $129.00

PRO-X6.4BMPK small

DS18 PRO-X6.4BMPK

• 500 watts Peak Each, 250 watts RMS Each
• 1" Aluminum Bullet super tweeters with ferrite magnets
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(4)

$139.95

List price $139.95

HCCA64N small

Orion HCCA64N

• 1400 watts Peak Each, 350 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99 dB

$219.95

List price $263.99

VPRO65 small

NVX VPRO65 (Sold Individually)

• 450 watts Peak Each, 225 watts RMS Each
• 1" Aluminum Bullet tweeter
• Competition Grade Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(4)

$74.99

List price $82.99

CVMPCL8.0 small

Cerwin Vega CVMPCL8.0 (Sold Individually)

• 400 watts Peak Each, 200 watts RMS Each
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$139.99

List price $167.99

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Speaker Size
8"
Design
Mid-range
Tweeter Design
None
Tweeter Composition
None
Woofer Composition
Pressed Pulp Fiber
Woofer Surround
Corrugated
Peak Power Handling
250 watts
RMS Power Handling
125 watts
Sensitivity
99 dB
Frequency Response
350 - 5,000 Hz
Impedance (Per Voice Coil)
8 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/4"

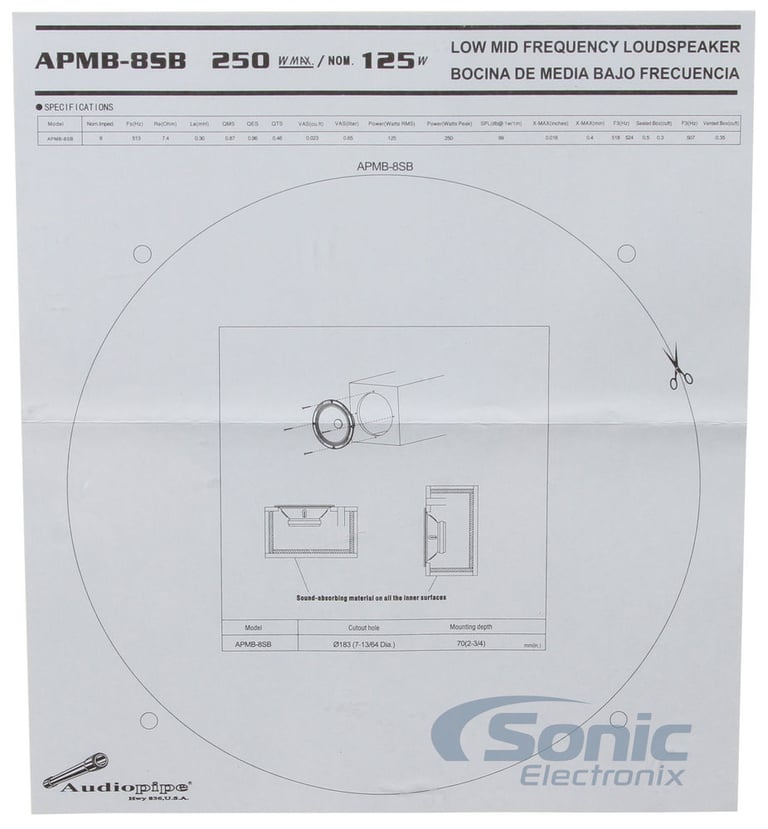

Cutout Dimensions
7-3/16"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-8SB

Weight:

4.60lbs

Internal SKU:

apmb8sb

Internal Product ID:

33326
