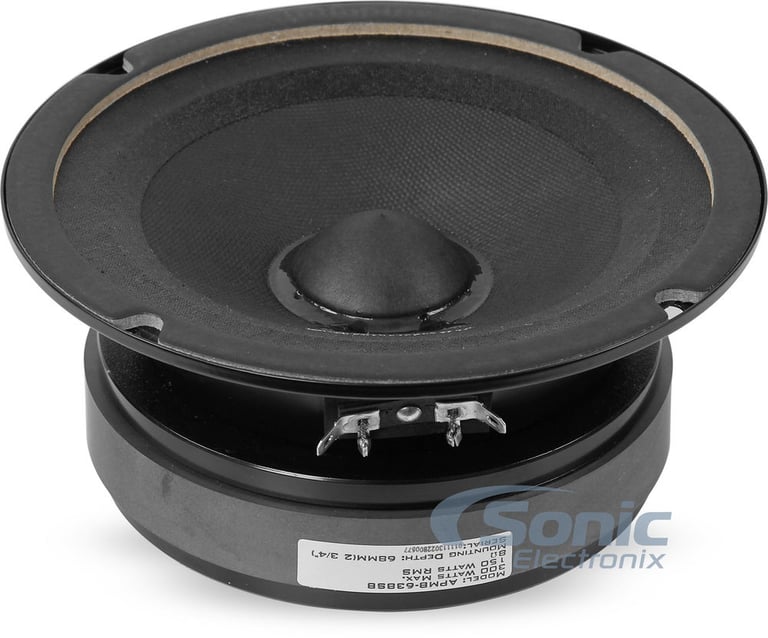

Audiopipe APMB-638SB

6", 8 ohm APMB Loudspeaker Series Midbass Driver w/ Sealed Back

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 6" APMB Series Midbass Drivers
• Peak: 600 Watts
• 1-1/2" Til Voice Coil
• Frequency Response: 500 - 5,400 Hz
• Sensitivity: 98 dB
• Mounting Depth: 2-3/4"

Learn more about the apmb638sb

We apologize

This item has been discontinued


Loading...
S2-S65C main

Alpine S2-S65C

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Component Car Speakers

1
-18.20%

$179.95

List price $220.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

S2-S65 main

Alpine S2-S65

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

5
-16.69%

$149.95

List price $180.00

T152 main

Rockford Fosgate Power T1 T152

240W Peak (120W RMS) 5.25" Power Series 2-way 4-ohm Coaxial Car Speakers

22

Product Highlights


• 6" APMB Series Midbass Drivers
• Peak: 600 Watts
• 1-1/2" Til Voice Coil
• Frequency Response: 500 - 5,400 Hz
• Sensitivity: 98 dB
• Mounting Depth: 2-3/4"

Description


Audiopipe brand icon

Authorized dealer



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the 638SB speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Sealed Basket Design Sealed Basket Limits Cone Movement and Improves Speaker Life

The Audiopipe 638SB sealed back design speaker limits the cone movement by utilizing a basket design that encloses the rear of the speaker entirely. As a result of the minimal movement within, sealed back speakers are incredibly durable, very difficult to damage speakers, ensuring use for years to come.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat, and Audiopipe's 638SB speaker features a light weight yet incredibly stiff pressed paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear some of the best sound reproduction possible.


  • 6" APMB Series Sealed Back Midrange Driver
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • Pressed paper cone
  • Corrugated surround
  • Sealed basket design for improved speaker life
  • Durable 1-1/2" KSV voice coil
  • Heavy duty 38 oz Magnet
  • Iron Basket
  • Frequency Response: 500 - 5,400 Hz
  • Sensitivity: 98 dB
  • Mounting Depth: 2-3/4"
  • Mounting Diameter: 5-11/16"
  • 8 ohm impedance
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications:

  • FS (Free Air Resonance): 463 Hz
  • RE (DC Resistance): 6.2 ohm
  • Le (Voice Coil Inductance): 0.28 mH
  • QMS (Mechanical Q Value): 1.27
  • QES (Electrical Q Value): 1.31
  • QTS (Total Speaker Q Value): 0.64
  • VAS (Equivalent Compliance): 0.4 L (0.014 cu ft.)
  • Xmax (One-Way Linear Excursion): 0.15mm (0.006")
  • F3 (for Sealed Enclosure):
    • 0.35 cu ft.: 480 Hz
    • 0.45 cu ft.: 470 Hz
  • F3 (for Vented Enclosure):
    • 0.4 cu ft.: 455 Hz

Priced Individually


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00


Best selling similar products

PH654 small

Cerwin-Vega PH654

• 300 watts Peak Each, 150 watts RMS Each
• Polymide Horn Tweeters
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 101 dB

(2)

$189.99

List price $227.99

CVP8 small

Cerwin-Vega CVP8 (Sold Individually)

• 350 watts Peak, 170 watts RMS
• Treated Paper cone material
• Impedance: 4 ohm
• Sensitivity: 95 dB

$49.99

List price $59.99

PRO-X12MBASS small

DS18 PRO-X12MBASS (Sold individually)

• 1000 watts Peak Each, 500 watts RMS Each
• Paper cone material
• Impedance: 8 ohm
• Sensitivity: 96 dB

$131.95

List price $131.95

PRO-X6.4BMPK small

DS18 PRO-X6.4BMPK

• 500 watts Peak Each, 250 watts RMS Each
• 1" Aluminum Bullet super tweeters with ferrite magnets
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(4)

$139.95

List price $139.95

10MB800FT small

PRV Audio 10MB800FT

• 1600 watts Peak Each, 800 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 8 ohm
• Sensitivity: 99 dB

$129.91

List price $162.39

VPRO65 small

NVX VPRO65 (Sold Individually)

• 450 watts Peak Each, 225 watts RMS Each
• 1" Aluminum Bullet tweeter
• Competition Grade Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(4)

$74.99

List price $82.99

EPICPRO8X small

AudioControl EPICPRO8X

• 350 watts Peak Each, 250 watts RMS Each
• Paper cone material
• Impedance: 4 ohm
• Sensitivity: 99.2 dB

$129.00

List price $129.00

PRO-HY8.4B small

DS18 PRO-HY8.4B (Sold Individually)

• 500 watts Peak Each, 250 watts RMS Each
• IP55 water-resistant cone
• 1" Titanium Horn tweeter
• Water-Resistant Paper cone material
• Impedance: 4 ohm
• Sensitivity: 97 dB

(1)

$131.95

List price $131.95

CVMPCL6.5 small

Cerwin Vega CVMPCL6.5 (Sold Individually)

• 200 watts Peak Each, 100 watts RMS Each
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93.2 dB

(9)

$99.99

List price $119.99

APM67AC Pro small

Deaf Bonce Apocalypse AP-M67AC PRO (M67AC PRO)

• 600 watts Peak Each, 300 watts RMS Each
• Non-Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 102 dB

(1)

$209.90

List price $229.99

Specifications & Details


Speaker Specifications
Series
APMB Series
Priced Per
Each Speaker
Speaker Size
6"
Design
Mid-range
Tweeter Design
None
Tweeter Composition
None
Woofer Composition
Paper
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Sensitivity
98 dB
Frequency Response
500 - 5,400 Hz
Impedance (Per Voice Coil)
8 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/4"
Cutout Dimensions
5-11/16"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APMB-638SB

Weight:

6.80lbs

Internal SKU:

apmb638sb

Internal Product ID:

33329
