Audiopipe APMB-G6-SL4

200W Peak (100W RMS) 6" APMB Series Midrange Driver

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• Peak Power: 200W • RMS Power: 100W
• Low Mid Frequency
• Mounting Depth: 3"
• 25 Oz. Magnet

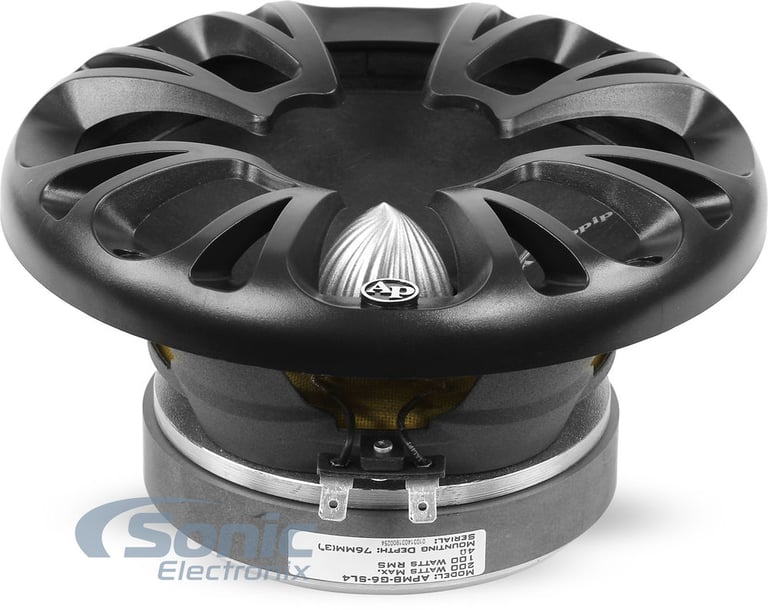

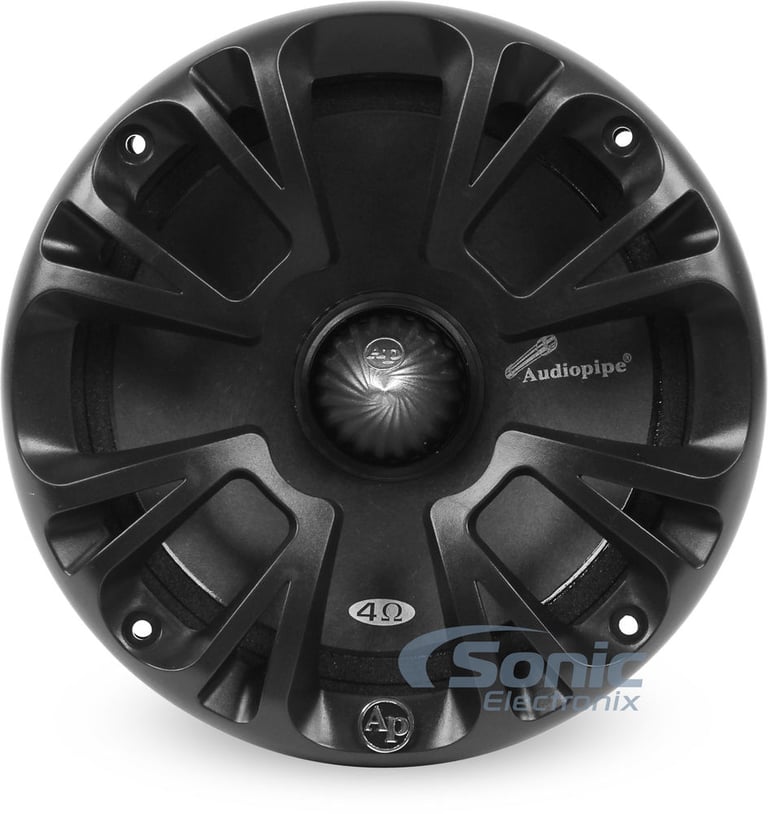

• Includes Speaker Grills
• Sensitivity: 92dB
• Bullet Dust Cap

Learn more about the apmbg6sl4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
NSP4 main

NVX NSP4

300W Peak (100W RMS) 4" N-Series 2-Way Coaxial Car Speakers

25
-25.00%

$44.99

List price $59.99

Product Highlights


• Peak Power: 200W • RMS Power: 100W
• Low Mid Frequency
• Mounting Depth: 3"
• 25 Oz. Magnet
• Includes Speaker Grills
• Sensitivity: 92dB
• Bullet Dust Cap

Description


Audiopipe brand icon

Authorized dealer

Will fit most 6x9" and 5x7"/6x8" locations,
with appropriate speaker adapter. Click "Related Items" Tab.



Pro Audio Quality in Your Car

The Audiopipe APMB series speakers were designed to produce pro audio quality sound in your car. These outstanding speakers thoughtfully engineered to handle significant amounts of amplified power, resulting in clean, crisp sound reproduction. Ideal for virtually any application, the APMB series is meant to let you take your music with you and show off your system in any kind of environment and each speaker in the series has it's own unique purpose. Hear more than just bass with the APMB series pro audio speakers!

Phase Plug for Sound Quality Incorporated Phase Plugs Provide Better Sound

Audiopipe designed the G6-SL4 speaker with an incorporated phase plug to provide quality high frequency response. The phase plug equalizes sound wave lengths which prevents the sound waves from colliding. Sound wave collisions can cause cancellations and frequency response problems, resulting in greatly reduced overall sound quality.

Light and Strong Durable Audiopipe Paper Cones

Despite all of the advances in audio technology, a quality paper cone is still tough to beat. The G6-SL4 speaker features a light weight, yet incredibly stiff paper cone. These cones deliver outstanding linear movement and when combined with the out-of-this world power handling of the APMB series, you will hear the best sound reproduction possible from a paper cone.



General Features:

  • 6" APMB Series Midrange Driver
  • Power Handling:
    • Peak: 200 watts
    • RMS: 100 watts
  • Recommended power range: 15 - 100 watts RMS
  • Low mid frequency loudspeaker
  • Loudspeaker design provides pro audio quality sound in your car
  • Bullet dust cap ensures high quality high frequency sound
  • High quality paper cone
  • Corrugated surround
  • Includes speaker grills to protect the speaker
  • Heavy duty 25 oz. magnet
  • Durable 1.5" KSV voice coil
  • 4 ohm impedance
  • Frequency Response: 70-14,000 Hz
  • Top-mount Depth: 3"
  • Mounting Diameter: 5-13/16"
  • Sensitivity: 92dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • FS (Free Air Resonance): 82 Hz
  • RE (DC Resistance): 3.6 ohm
  • Le (Voice Coil Inductance): 0.2 mH
  • QMS (Mechanical Q Value): 2.7
  • QES (Electrical Q Value): 0.45
  • QTS (Total Speaker Q Value): 0.38
  • VAS (Equivalent Compliance): 7.7 L (0.3 cu ft.)
  • Xmax (One-Way Linear Excursion): 1mm (0.04")
  • F3 (for Sealed Enclosure):
    • 0.45 cu ft.: 95 Hz
    • 0.8 cu ft.: 90 Hz
  • F3 (for Vented Enclosure):
    • 0.5 cu ft.: 76 Hz

Priced Per Speaker
