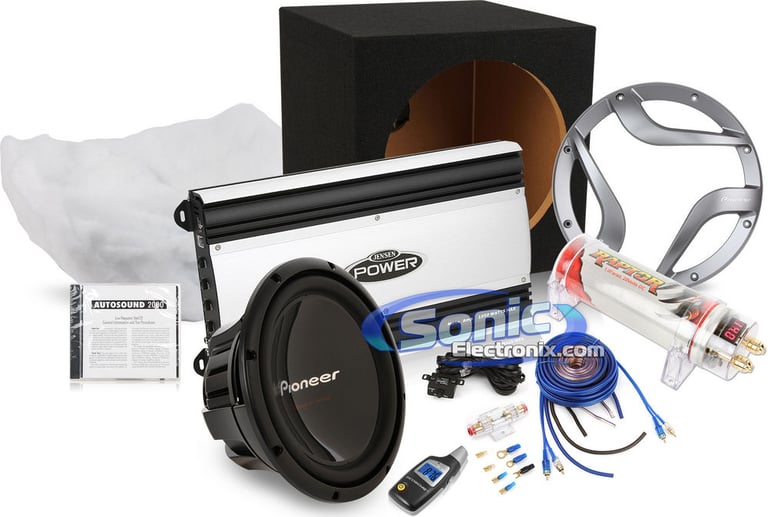

1200W Complete Pioneer + Jensen Bass Package

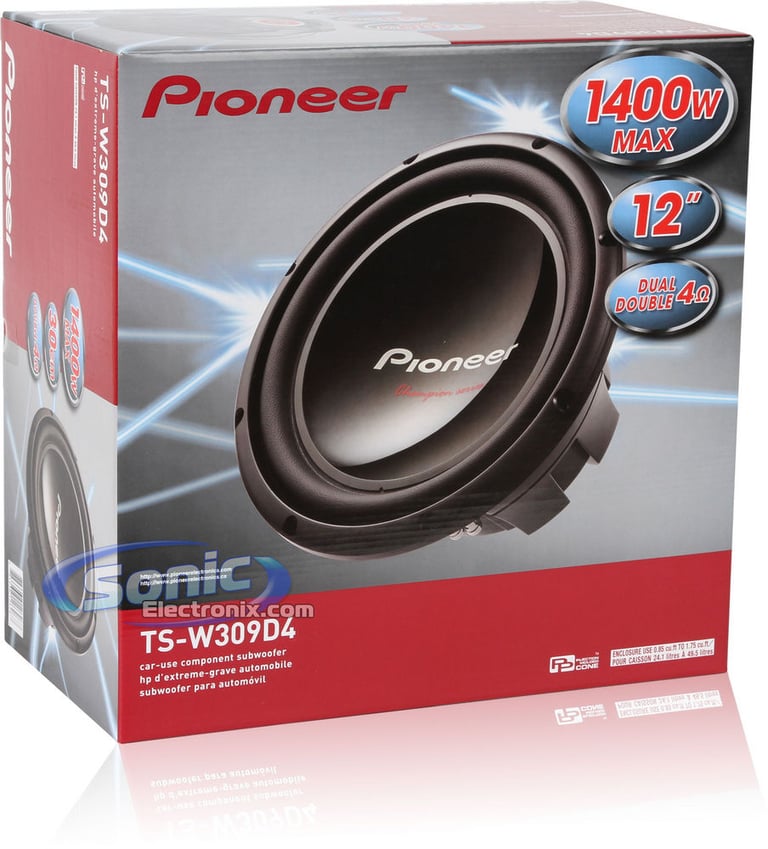

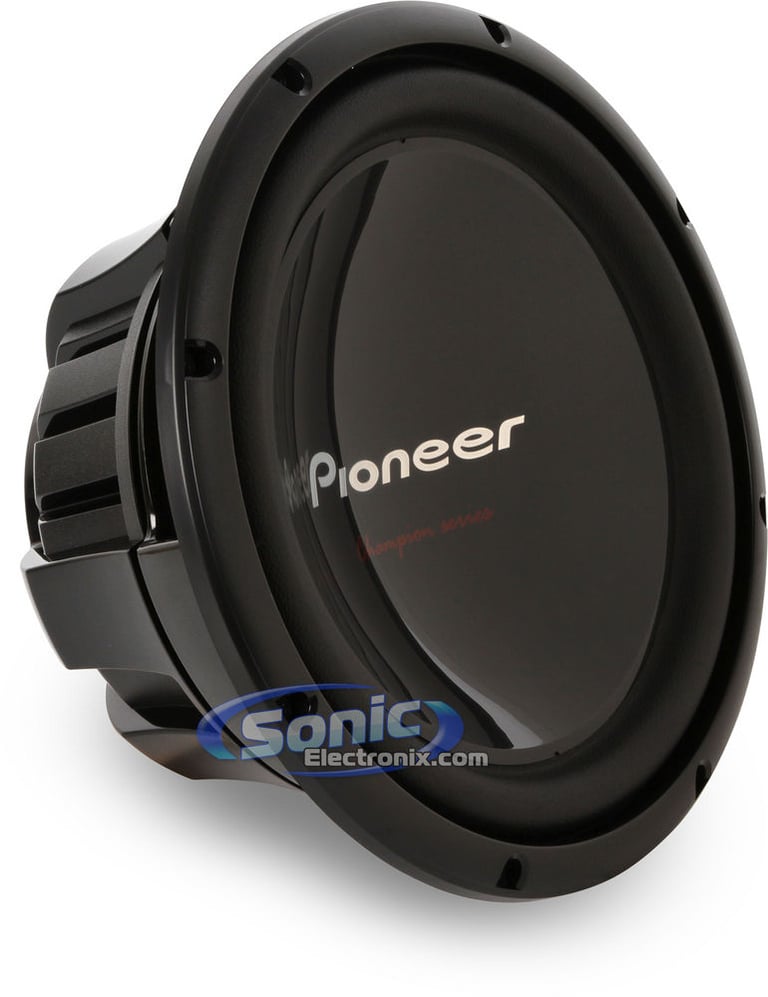

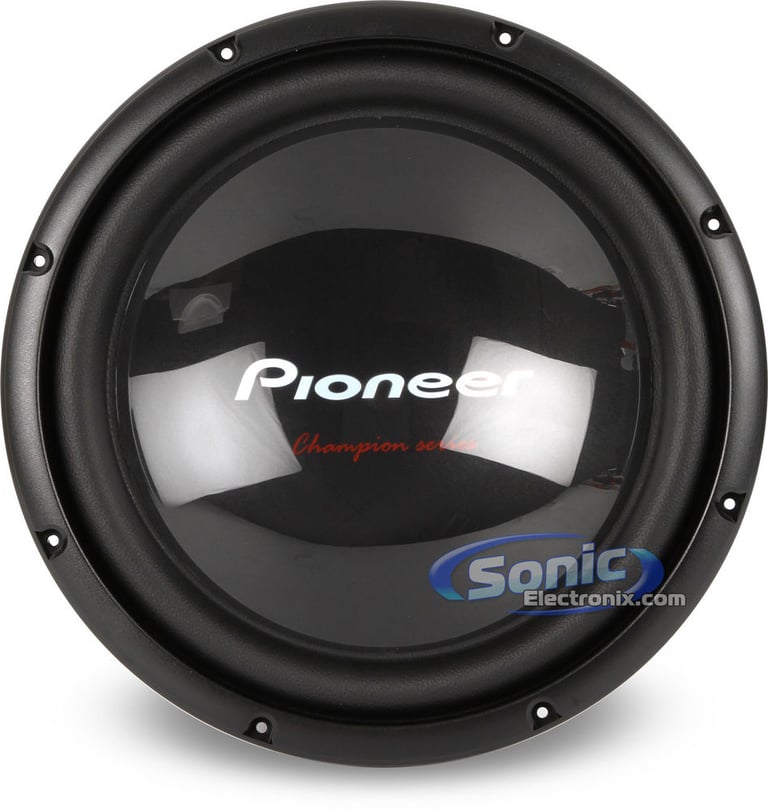

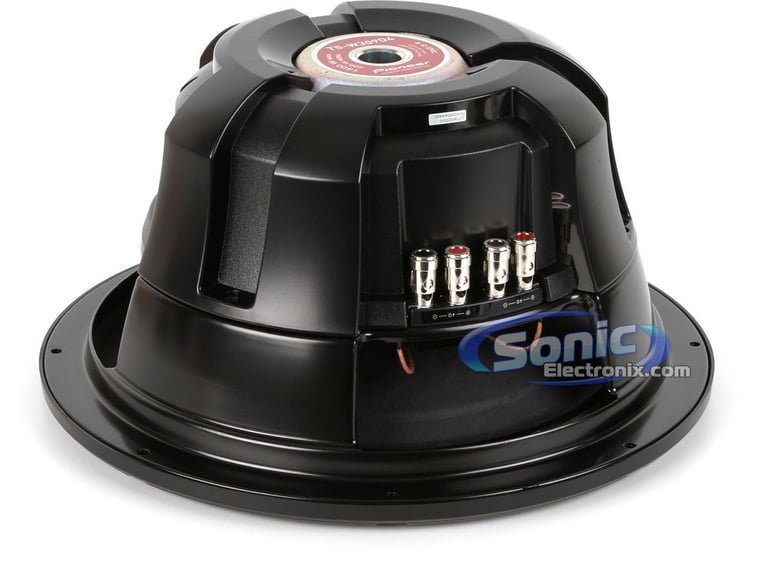

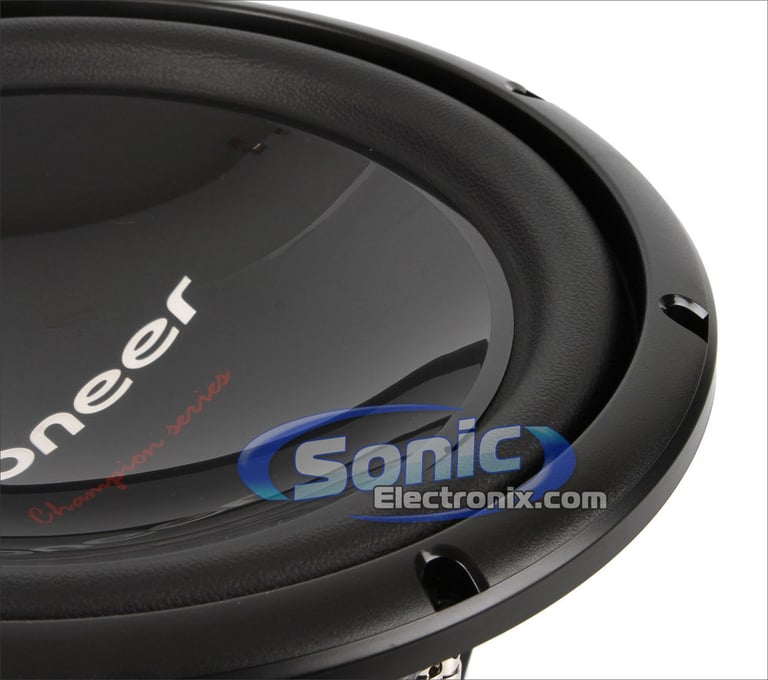

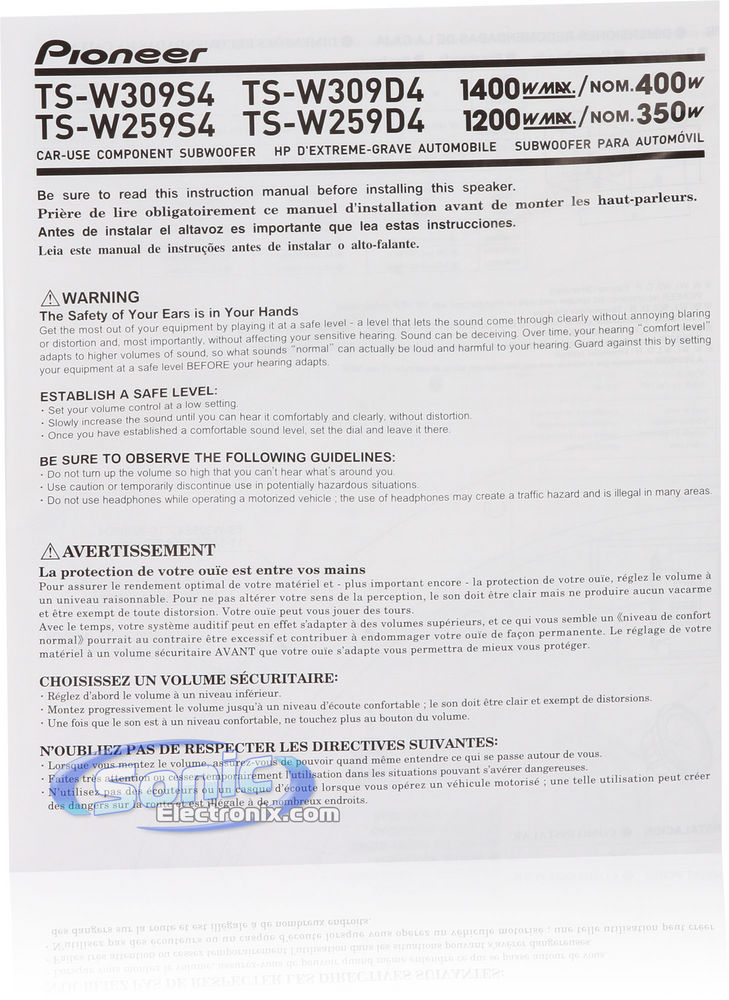

• 12" Dual 4 ohm Champion Series Subwoofer
• Power Handling:
  • Peak: 1,400 watts
  • RMS: 400 watts
• Impedance: Dual 4 ohm
• Seamless Injection Molded Polypropylene (IMPP) composite cone
• Dual layer, fiber reinforced elastic polymer surround

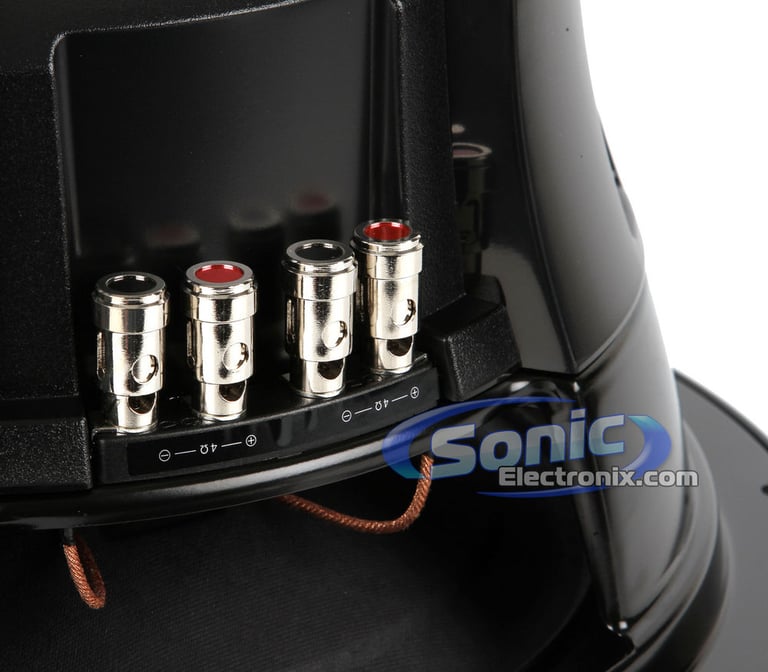

• Large spring loaded, push style binding posts
• High temperature voice coil
• Large double stacked high energy magnets
• Designed for sealed, ported, or bandpass enclosures
• Recommended enclosure volume:
  • Sealed: 1.25 cu. ft
  • Ported: 1.5 cu. ft
  • Bandpass: 0.9 cu. ft in front / 0.9 cu. ft in rear
• Frequency response: 20-220 Hz
• Sensitivity: 94 dB
• 1-year SonicElectronix.com warranty

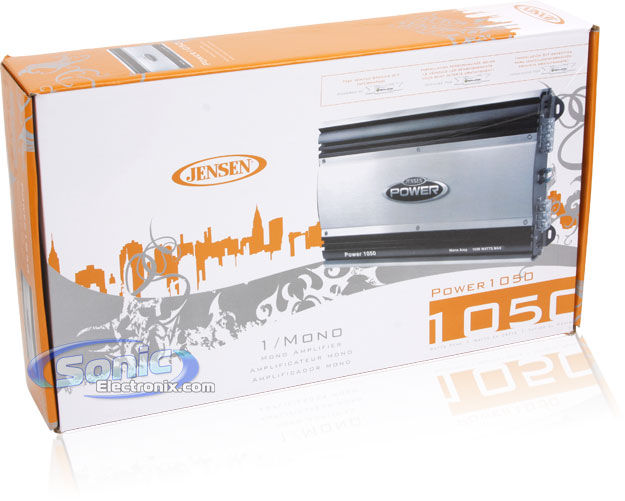

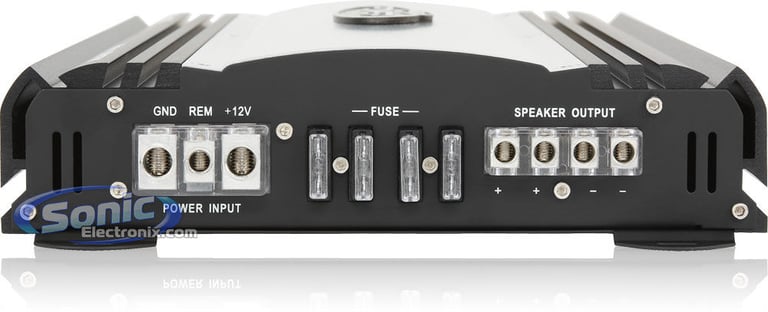

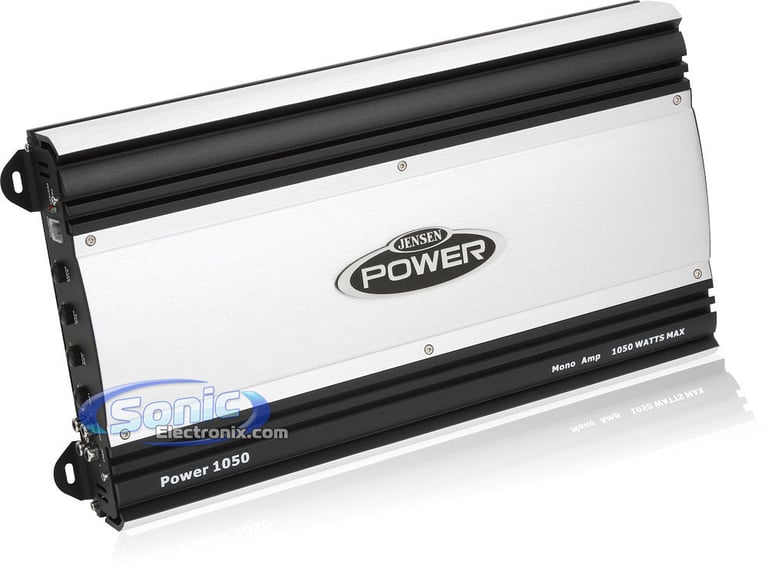

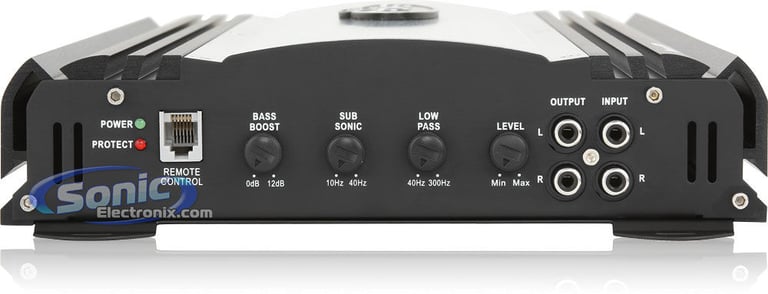

• Power Series Class AB Monoblock Car Amplifier
• RMS Power Rating:
• 4 ohm: 290 watts x 1 chan.
• 2 ohm: 430 watts x 1 chan.
• Max power output: 1050 watts x 1 chan.
• MOSFET power supply

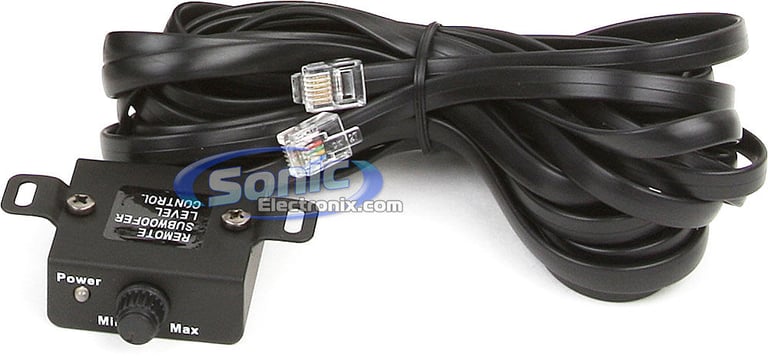

• Wired remote bass level control included
• LED power and protection indicators
• Tuned Bass EQ (0-12 dB bass boost at 45 Hz)
• High current bipolar output transistors
• Preamp RCA outputs
• Short circuit, DC offset, thermal, and overload protection circuitry
• Variable low-pass filter (40-150 Hz, 12 dB/octave)
• Subsonic Filter (12 dB at 15-55 Hz)
• CEA-2006 compliant amplifier
• Frequency response: 5-150 Hz
• Dimensions: 17.25"L x 9"W x 2.5"H
• 1-year Manufacturer's warranty

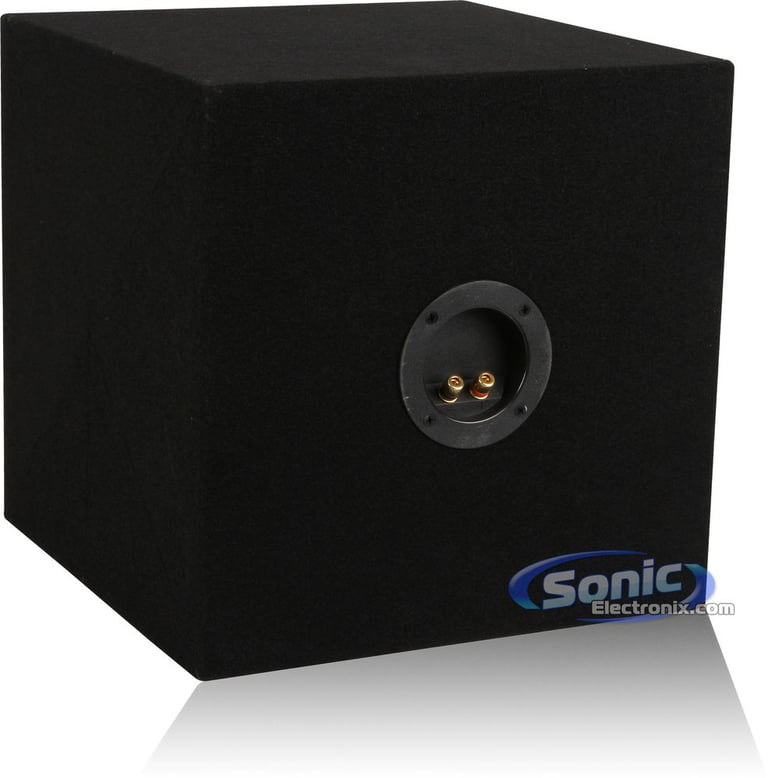

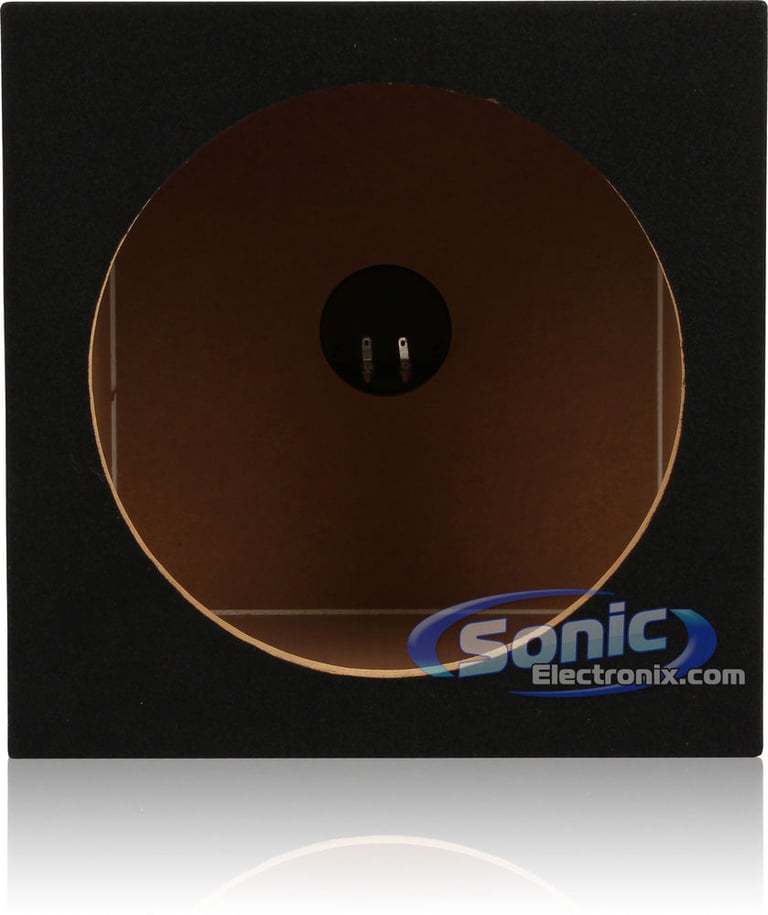

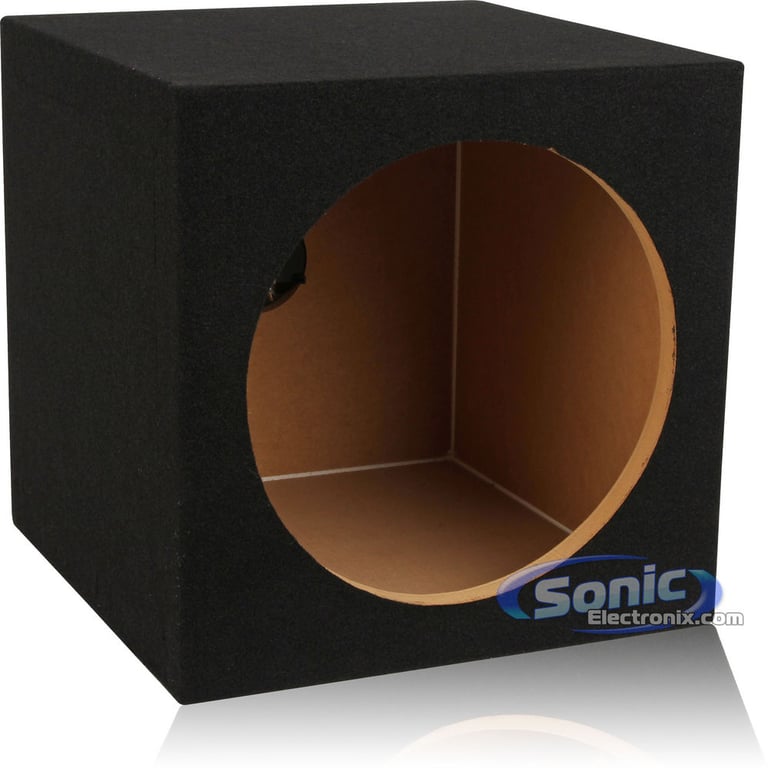

• 12" Sealed Square Subwoofer Enclosure
• Black carpet

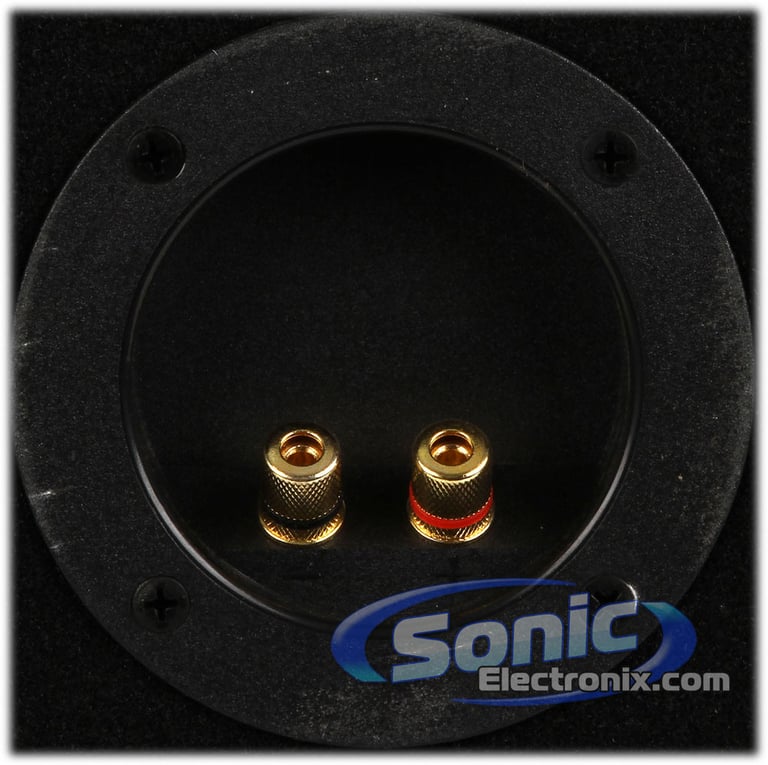

• Gold plated binding posts
• Banana clip ready
• Mounting depth: 13"
• Cutout diameter: 11-1/8"
• Box volume: 1.13 cubic feet
• Made from 3/4" Medium Density Fiberboard (MDF)
• Dimensions: 14"D x 14"W x 14"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

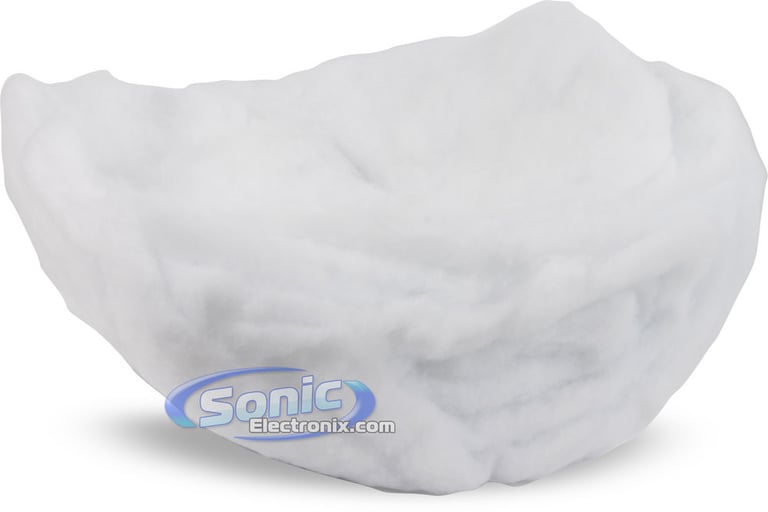

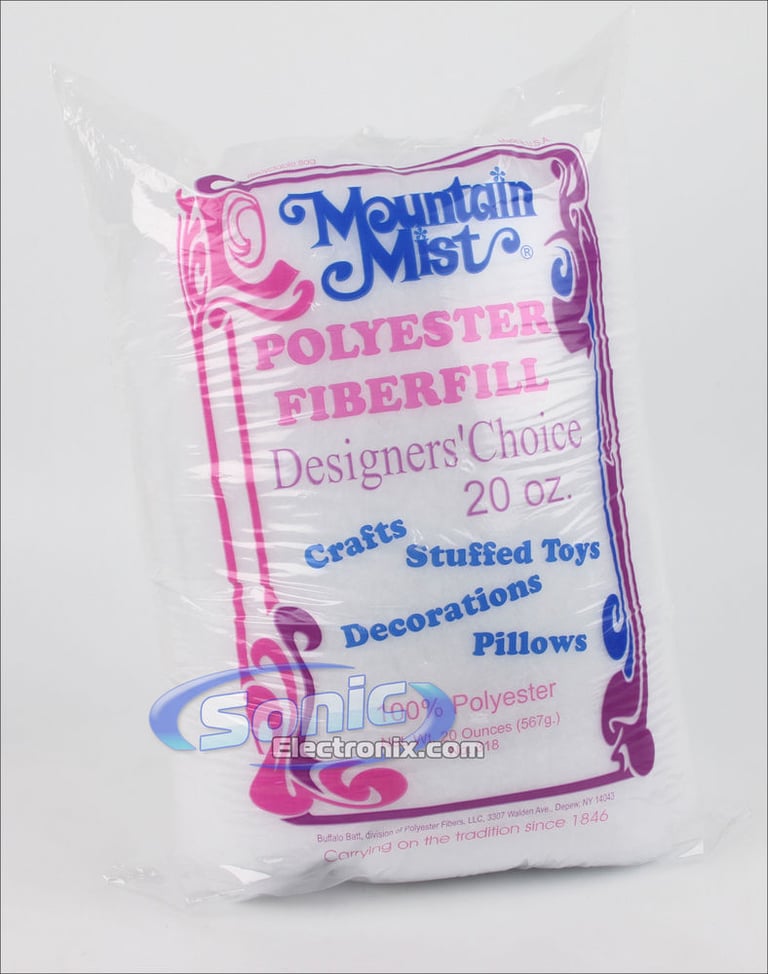

• 20 oz of Polyester Fiber-fill for sub boxes
• Adds better bass to your system by making your sub "think" it is in a larger enclosure
• Made with newer, state-of-the-art processes that offer a very durable batt with little or no fiber migration
• PolyFil

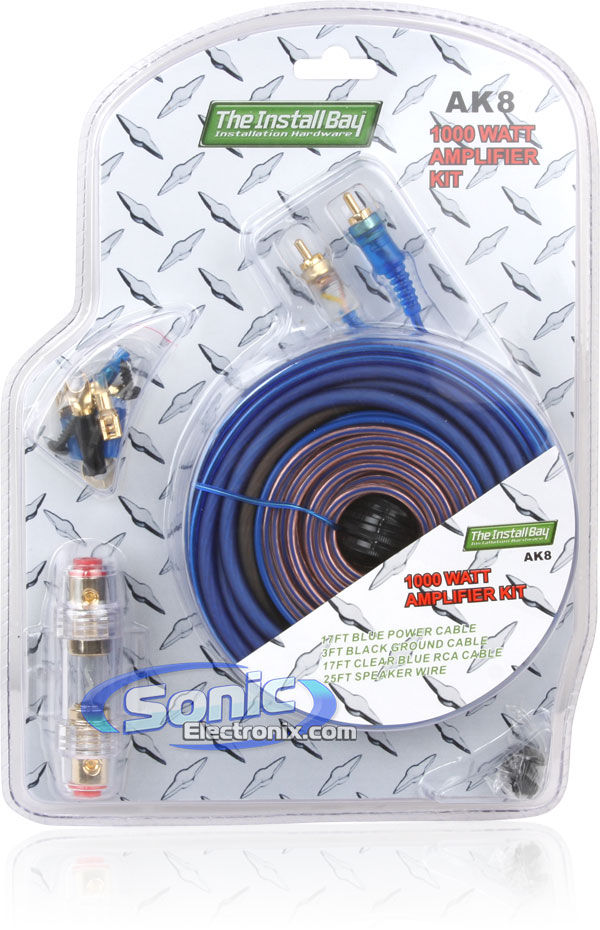

• Complete 8 Gauge Amplifier Installation Kit for a full installation of an amp
• Includes gold plated RCA interconnect cables
• Designed by the manufacturer for systems up to 1000 watts max
• Everything you need for an amplifier installation in one convenient package
• 1-year Manufacturer's warranty

1. 17 ft. of 8AWG Blue power cable
2. 3 ft. of Black ground cable
3. 17 ft. of Clear blue RCA cable
4. 25 ft. Speaker wire
5. 17 ft. of Clear blue remote turn-on wire

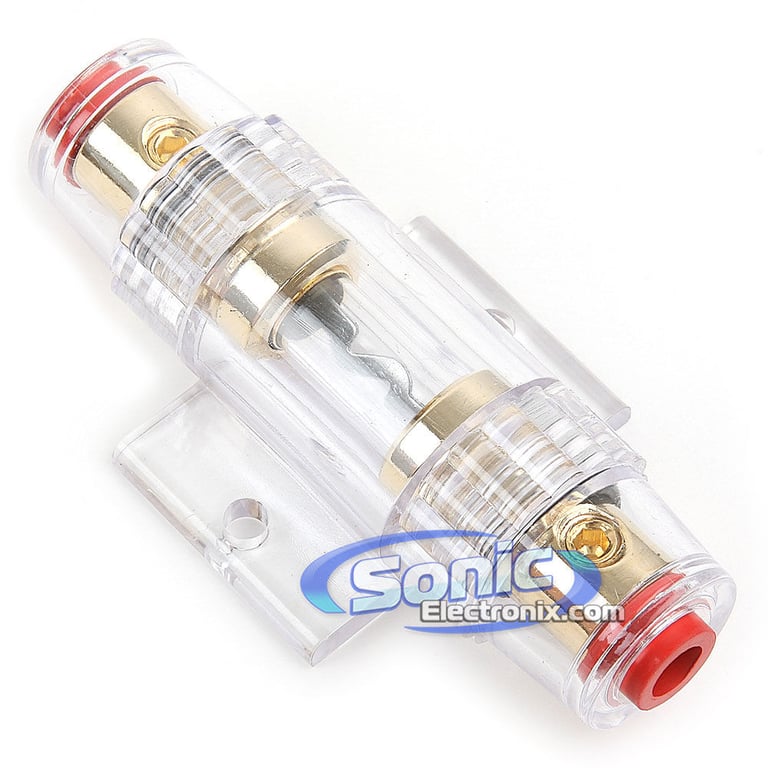

6. 1 AGU fuse holder + 40AMP AGU fuse

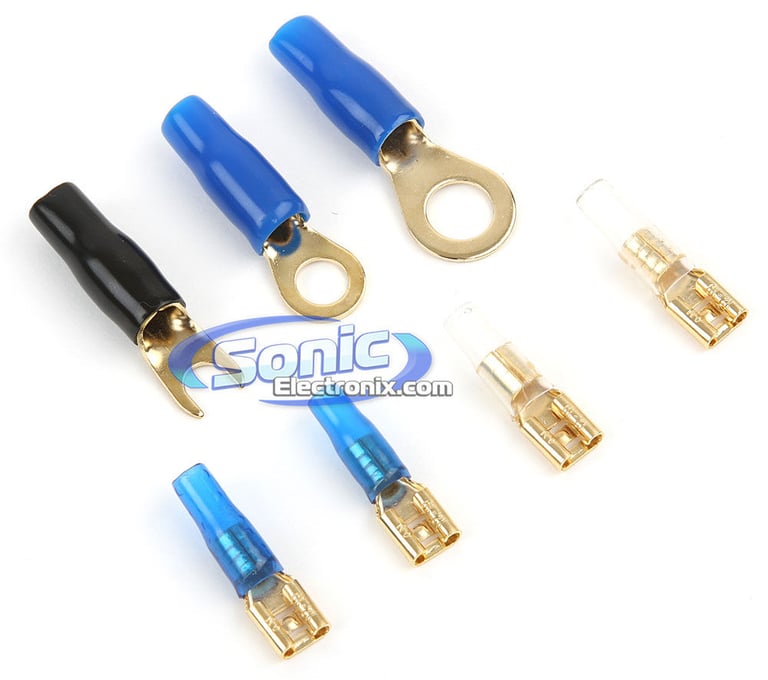

7. 5/16" Gold ring terminal
8. 1/4" Gold ring terminal
9. #10 Gold spade terminal
10. 4 Gold speaker terminals
11. 3 Grommets
12. 20 4" cable ties

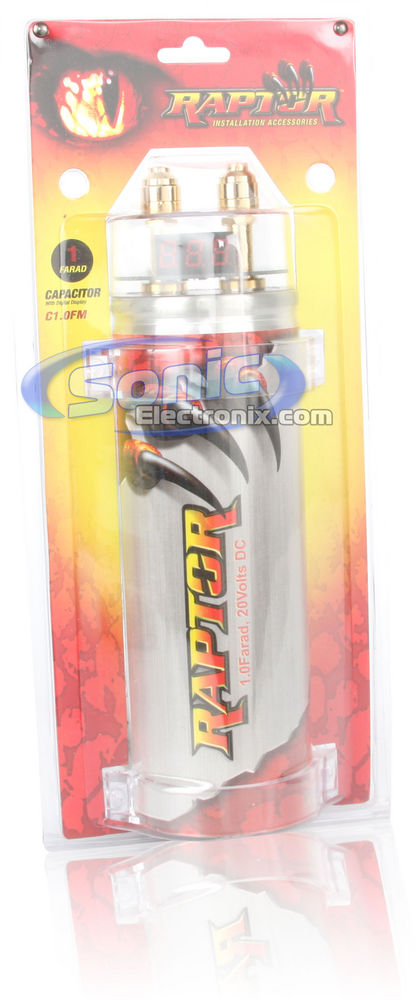

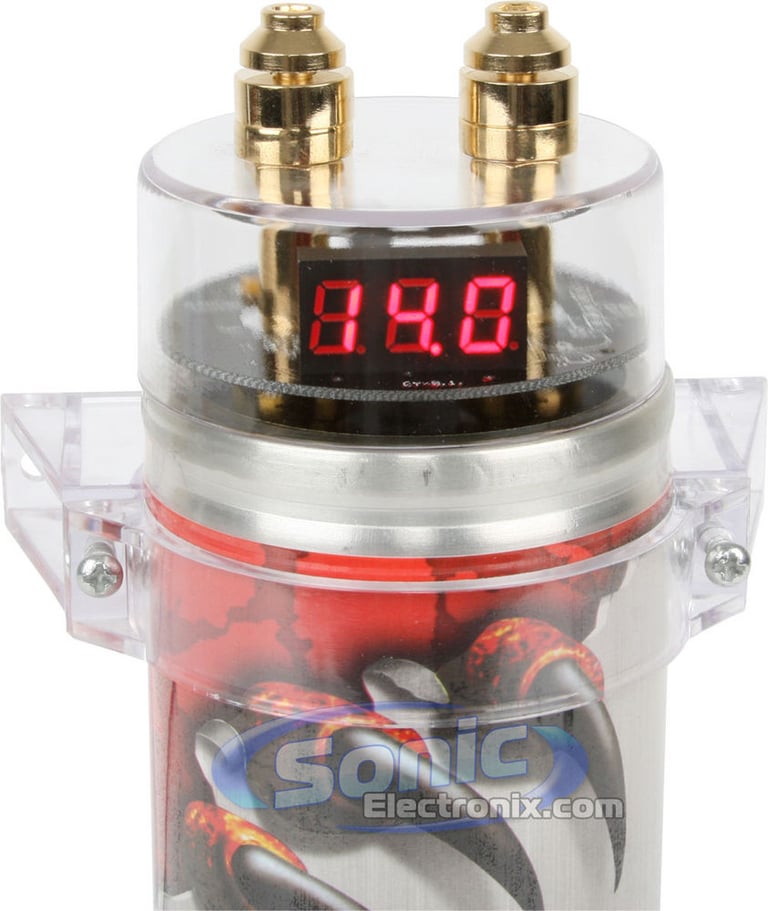

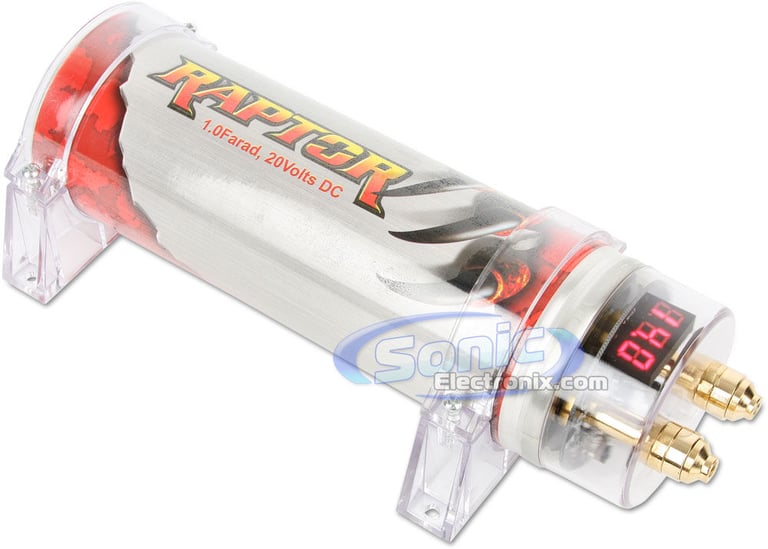

• 1.0 Farad Capacitor from Raptor
• True 1.0 Farad Capacitor for systems up to 1000 watts
• Built in digital display
• Working voltage 20/24 volt surge
• E.S.R. less than 0.002 Ohm
• 24K Hard gold plated brass terminals
• Uses ring terminals to connect to the needed power cable
• Includes mounting hardware for a secure installation
• Color is Silver with red
• Dimensions: 9"L x 3"W x 3"H
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

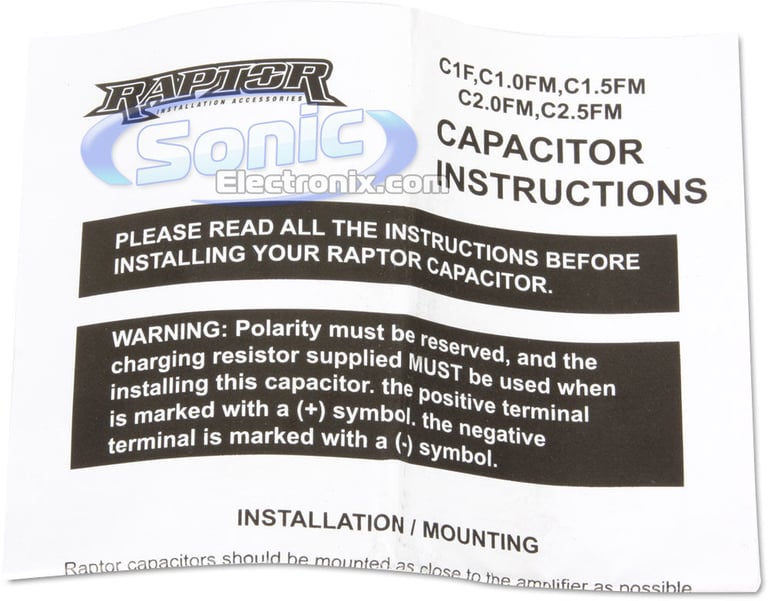

Note: The Raptor C1.0FM does not come with any resistors to charge the capacitor. If you need some resistors, we recommend the Directed 652T.

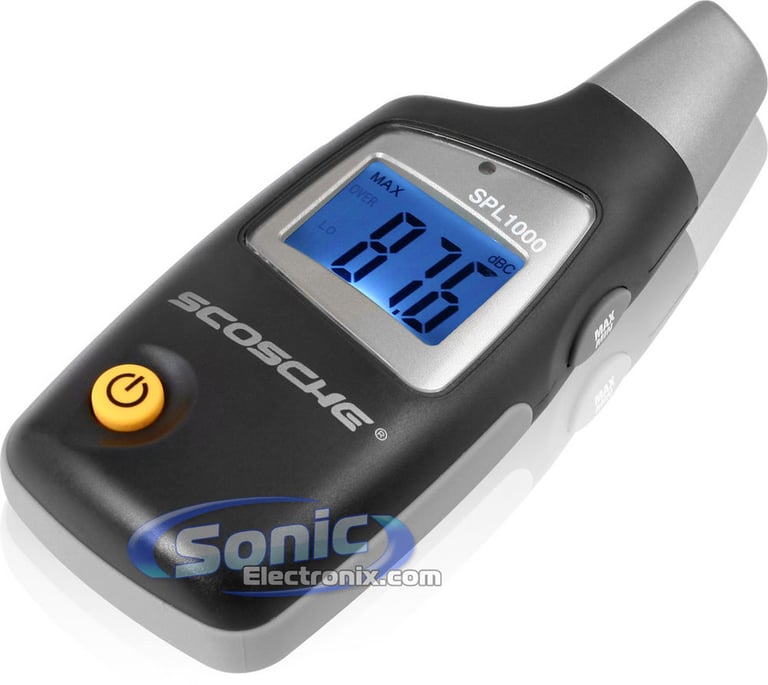

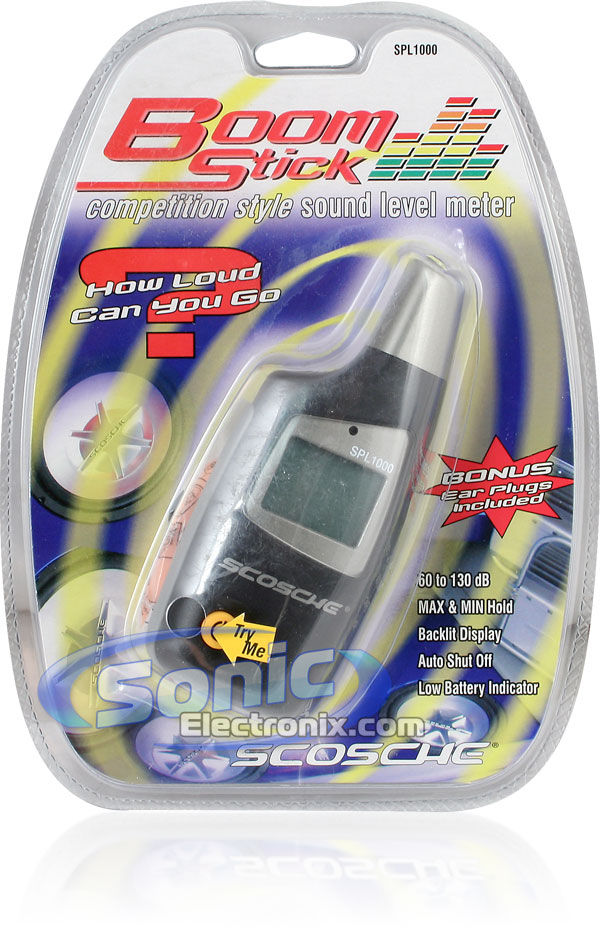

• 130db Max Handheld SPL Meter
• Measure dB range from 60 to 130 dB
• Back light so you can always read the display of the SPL1000
• Peak and minimum volume hold functions
• Automatic turn off and low battery indicator
• Ideal for setting up your home or car stereo system
• Great for monitoring the noise level in an office or home
• Push the limits of your mobile audio system and see just how loud it goes!
• Compact Size
• Handheld
• Accurate Readings
• Includes safety earplugs
• Dimensions: 1-1/4"D x 2-1/8"W x 5"H
• 1-year SonicElectronix.com warranty

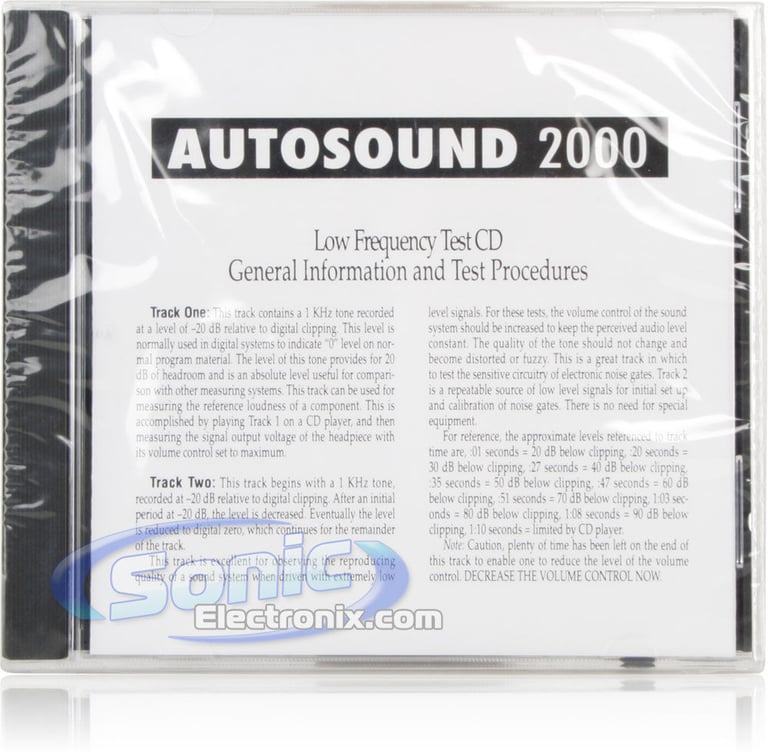

• The Low Frequency Test CD #101
• Contains 99 tracks specifically designed and recorded for performing electronic and acoustic tests on audio systems
• You can find low frequency resonance's in audio listening environments
• Perform measurements on woofers and enclosures
• Evaluate low level resolution of CD players and headunits
• Woofer measurements include impedance, which can be plotted by using CD#101 in a CD player, a resistor, and a VOM (Volt-Ohm Meter)
• Complete instructions are shipped with each disc
• If you're serious about audio, this disc is a must-have
• 1-year SonicElectronix.com warranty

• Track 1: 1 kHz tone at -20 DB (2:06) Helps you measure the reference loudness of a component
• Track 2: 1 kHz tone at -20 dB, fades to black (3:55) Tests the reproduction quality of a sound system when driven with extremely low level signals
• Track 3: Polarity Pulses (3 positive - 1 negative) (2:00) To measure relative and absolute polarity
• Track 4: 20-20,000 Hz slow sweep (1:10) To take response measurements and to check for resonant frequencies
• Track 5: 20-20,000 Hz fast sweep (:19)
• Track 6: Sequential tones 20-20,000 Hz, twice (1:36) For use with test instruments that measure sequential tones
• Track 7: Composite tones (2:04) Used for measurements with swept spectrum analyzers and to determine the overload threshold of a system
• Track 8: 50 Hz square wave with sweep to 20 Hz (2:00) Used for setting up low-frequency servo systems
• Track 9: Low-frequency bursts (1:27) Used to evaluate the transient behavior of a subwoofer system
• Tracks 10-98: Frequencies corresponding to track numbers. The numerical track indicator of the CD player matches with the frequency that is recorded on that track, for example, track 10 = 10Hz
• Track 99: 1 kHz at digital zero (2:36) Used to test the output headroom of a CD player
