JVC KW-AVX840 R/B

General Features:

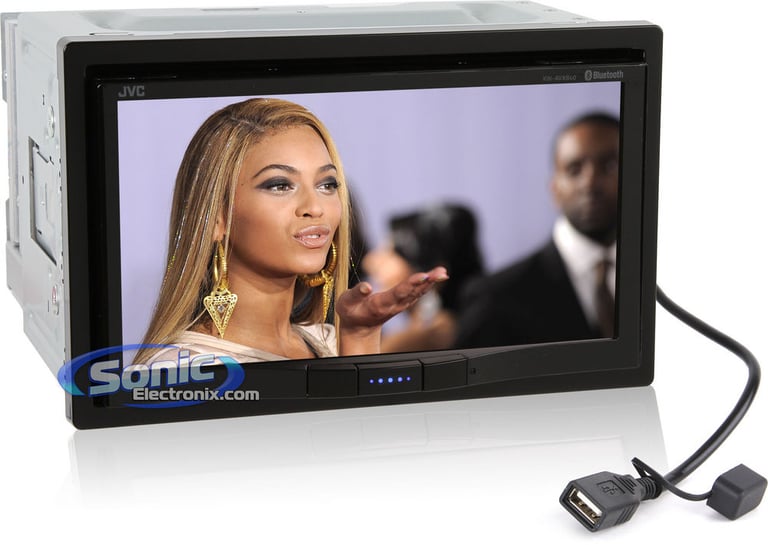

• In-Dash 7" Double DIN AM/FM, DVD, MP3, WMA, WAV Multimedia Receiver
• Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
• 2-Way control for iPod and iPhone allows user to control the device from the headunit or from the device

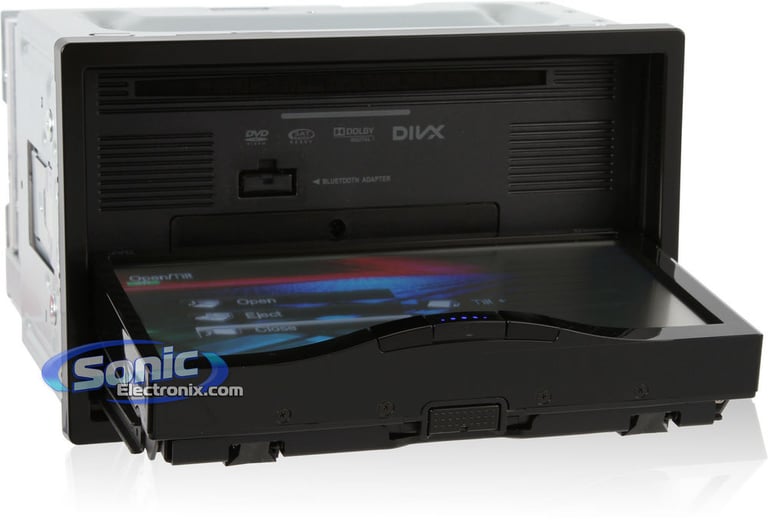

• Motorized faceplate with tilt
• Remote control optional: JVC RM-RK252P required and sold separately

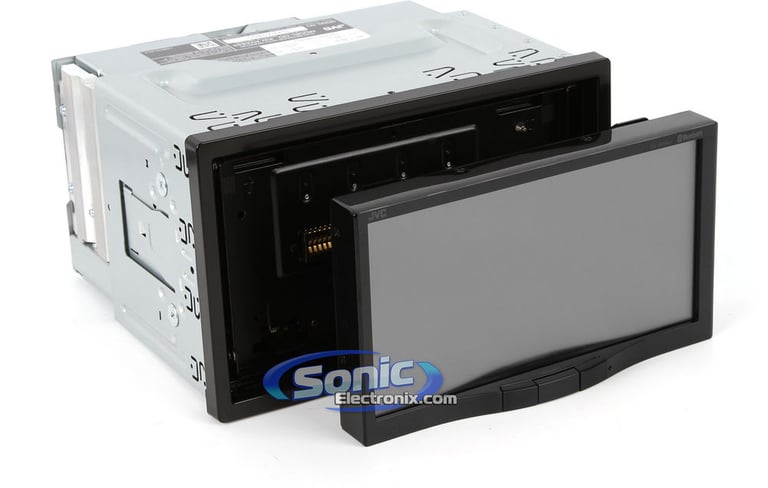

• Slide-down detachable face

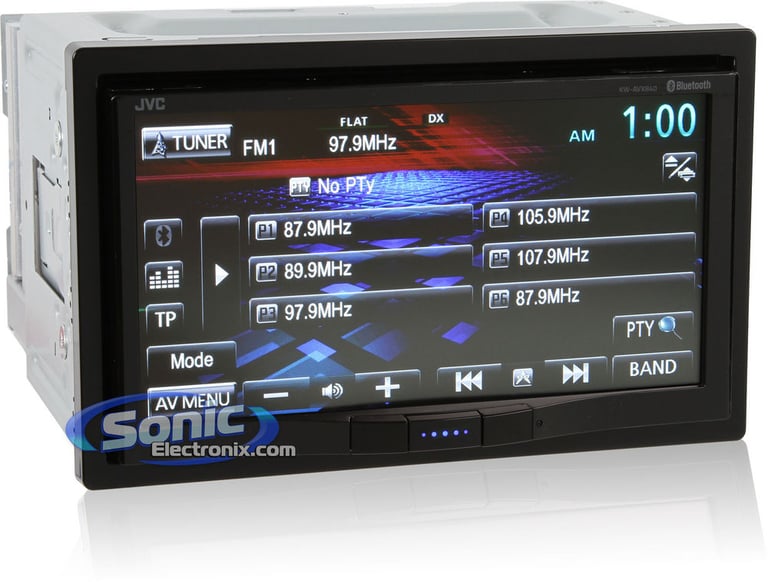

• 7" TFT-LCD Full-color touchscreen display
• Personalized wallpaper backgrounds lets you choose between 4 different wallpaper themes
• Separate variable color control for wallpapers, text, and hard-key buttons
• Switchable 4:3 or 16:9 aspect ratio
• CEA-2006 compliant amplifier
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 20 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• Proximity sensor hides the on screen menu when your hand is away from the unit and reveals the menu when your hand approaches the unit
• El Kameleon design keeps unit concealed
• Blackout feature turns off key illumination
• Authorized Internet Dealer
• 90 Day Manufacturer's warranty

Playback and Audio Features:

• Playback of DVD, DVD-VR, MPEG1, MPEG2, DivX, VCD, CD, CD-R, CD-RW, CD-DA, MP3, WMA, WAV, and JPEG
• Compatible with region 1 DVDs
• AM/FM tuner with 18FM/6AM presets
• 3-Band parametric EQ with 7 selectable tone curves (6 Preset, 1 User)
• High-Pass Filter (40, 60, 80, 100, 120, 150, 180, 220, Hz or Through)
• Low-Pass Filter (50, 60, 80, 100, 120 Hz)
• Radio data system (RDS) displays radio broadcast information such as artist, title and album
• Dolby Digital Audio technology
• PAL/NTSC Compatible
• Adjustable subwoofer output level
• 24-bit digital-to-analog converter
• Dual zone capable

Expandability Options:

• 3 Sets of 4V preamp outputs (front, rear and mono-subwoofer)
• Integrated Bluetooth: Enables phones, headsets, and portable devices to be paired for audio streaming and hands free calling with included voice microphone
• SIRIUS or XM Satellite Radio Ready: SIRIUS Satellite Radio Package or XM Radio Package required and sold separately, as well as a subscription to the respective satellite radio service
• HD Radio Ready: JVC KT-HD300 required and sold separately
• iPod/iPhone Ready:
  • Audio playback Only: Scosche IPUSB2 cable will work with most iPods/iPhones
  • Audio & Video Playback: JVC KS-U30 required and sold separately
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and is sold separately

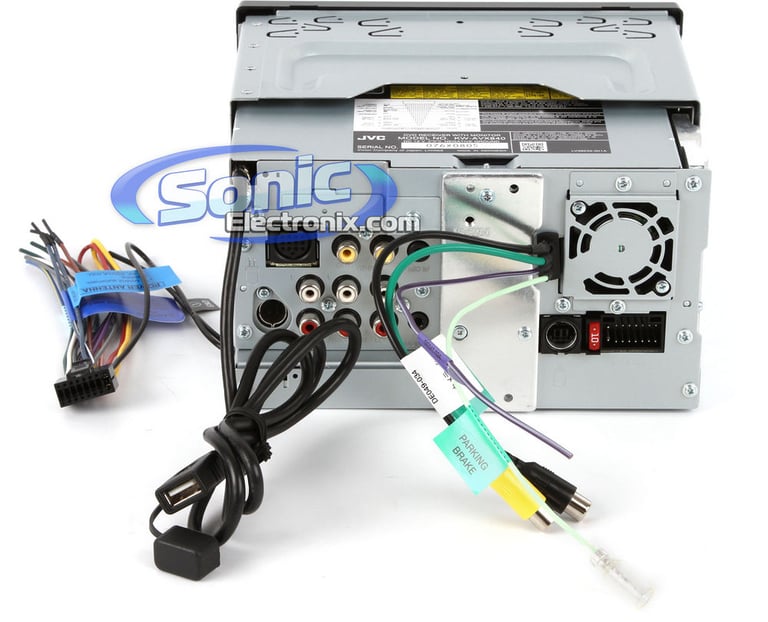

• 1 Rear RCA composite video output
• 1 Rear RCA composite audio/video input
• Dedicated video input for rear view camera
• MotionX GPS Application Ready - iPhone users with MotionX GPS Navigation Application can stream navigation image from application directly onto screen

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Supports SMS message notifications and A2DP audio streaming
• Bluetooth profiles supported:
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• Works with most Bluetooth enabled cell phones
• Supports hands free calling with audio streaming
• Enables the receipt notification of SMS (Short Message Service)
• Voice recognition dialing with compatible cell phones
• Manual phonebook transfer up to a maximum of 400

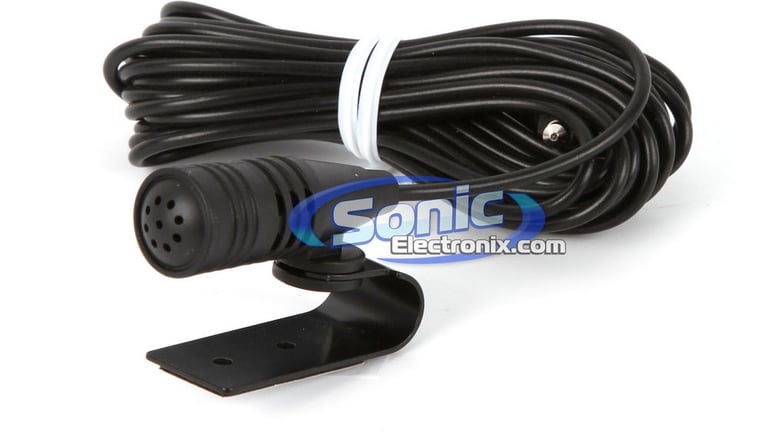

• Microphone (with mounting bracket) included

Key Features And Comparison Chart

	KW-NT50HDT	KW-NT30HD	KW-AVX840	KW-ADV794	KW-AVX740	KW-AVX640	KD-AVX77
Display	6.1" LCD Touchscreen	6.1" LCD Touchscreen	7" LCD Touchscreen	6.1" LCD Touchscreen	6.1" LCD Touchscreen	6.1" LCD Touchscreen	5.4" LCD Monitor
Navigation			Motion X	Motion X	Motion X	Motion X
Variable Color Illumination
Pre-amp Outputs	3 Pairs (2.5 Volts)	3 Pairs (2.5 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (5 Volts)
Video Playback	DVD	DVD	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD
Audio Playback	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA
Bluetooth	Built-In	Built-In	Built-In	Built-In	Built-In	KS-BTA100 Required	Built-In
USB Interface	FRONT	FRONT	REAR	REAR	REAR	REAR	REAR
Auxiliary Input (Mini-Jack)	FRONT	FRONT		FRONT	FRONT	FRONT
HD Radio	Built-In	Built-In	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required
Satellite Radio Ready
2-Way iPod Control
Equalizer	7-Band iEQ	7-Band iEQ	3-Band iEQ	3-Band iEQ	3-Band iEQ	3-Band iEQ	7-Band iEQ
Digital-to-Analog Converter	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit
Dolby Digital Sound	2-Channel	2-Channel	2-Channel				5.1-Channel
AM/FM Presets	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM
Dual Zone
iTunes Tagging
