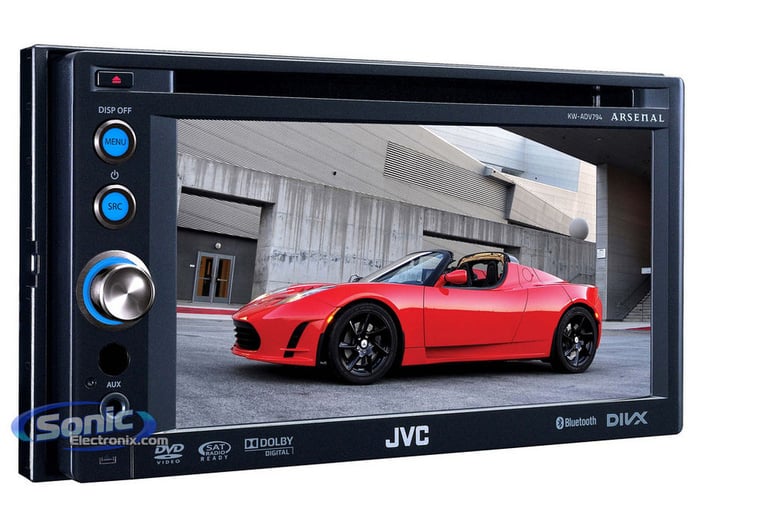

JVC KW-ADV794 R/B

General Features:

• In-dash DVD, AM/FM, CD, MP3, WMA Multimedia player with Remote
• Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
• Detachable anti-plate faceplate
• 6.1" Full color touchscreen monitor
• Wireless remote control included
• Variable Color Illumination for over 30,000+ color options
• CEA-2006 compliant amplifier
• Power Output:
  • Peak: 50 watts x 4 channels
  • RMS: 20 watts x 4 channels
• CD Text Display
• MP3 ID3 Tag Display (Title/Artist/Album)
• Authorized Internet Dealer
• 90-day Sonic Electronix warranty

Playback and Audio Features:

• Playback of DVD, MPEG1, MPEG2, VCD, CD, CD-R, CD-RW, CD-DA, MP3, WMA, WAV, JPEG
• Playback of Region 1 DVD discs
• AM/FM tuner with 18FM/6AM presets
• 24 Bit D/A Converter for excellent sound quality
• Pro EQ3-band parametric equalizer with 7 selectable tone curves (6 Preset, 1 User)
• Loudness function boosts the low and high frequencies
• Source volume adjustment
• Integrated high-pass and low-pass filters
• Speaker select allows you to choose the type of speakers you have installed for more accurate sound reproduction
• Subwoofer control enables advanced subwoofer tuning from the source unit

Expandability Options:

• 3 Sets of 4V preamp outputs (front, rear and mono-subwoofer)
• MotionX GPS Application Ready - iPhone users with MotionX GPS Navigation Application can stream navigation image from application directly onto screen
• SIRIUS or XM Satellite Radio Ready: SIRIUS Radio Package or the XM Radio Package required and sold separately
• HD Radio Ready: JVC KT-HD300 required and sold separately
• iPod Ready:
  • Audio Playback: Standard USB-to-iPod Cable can be used, or the Scosche IPUSB2 can be used.
  • Audio & Video Playback: JVC KS-U30 required and sold separately
• Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
• Rear-panel USB input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
• Rear auxiliary input: 1 Set of RCA Audio/Video Inputs
• Rear video output: 1 RCA Video output
• Rear video input: Rear video input for rear view cameras with a RCA composite input, however the JVC KV-CM10 is recommended
• Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Supports SMS message notifications and A2DP audio streaming
• Bluetooth profiles supported:
  • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• Works with most Bluetooth enabled cell phones
• Supports hands free calling with audio streaming
• Enables the receipt notification of SMS (Short Message Service)
• Voice recognition dialing with compatible cell phones
• Manual phonebook transfer up to a maximum of 400
• Microphone (with mounting bracket) included

Key Features And Comparison Chart

	KW-NT50HDT	KW-NT30HD	KW-AVX840	KW-ADV794	KW-AVX740	KW-AVX640	KD-AVX77
Display	6.1" LCD Touchscreen	6.1" LCD Touchscreen	7" LCD Touchscreen	6.1" LCD Touchscreen	6.1" LCD Touchscreen	6.1" LCD Touchscreen	5.4" LCD Monitor
Navigation			Motion X	Motion X	Motion X	Motion X
Variable Color Illumination
Pre-amp Outputs	3 Pairs (2.5 Volts)	3 Pairs (2.5 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (4 Volts)	3 Pairs (5 Volts)
Video Playback	DVD	DVD	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD, DivX	DVD, VCD
Audio Playback	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA	CD, MP3, WMA
Bluetooth	Built-In	Built-In	Built-In	Built-In	Built-In	KS-BTA100 Required	Built-In
USB Interface	FRONT	FRONT	REAR	REAR	REAR	REAR	REAR
Auxiliary Input (Mini-Jack)	FRONT	FRONT		FRONT	FRONT	FRONT
HD Radio	Built-In	Built-In	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required	KT-HD300 Required
Satellite Radio Ready
2-Way iPod Control
Equalizer	7-Band iEQ	7-Band iEQ	3-Band iEQ	3-Band iEQ	3-Band iEQ	3-Band iEQ	7-Band iEQ
Digital-to-Analog Converter	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit	192kHz/24bit
Dolby Digital Sound	2-Channel	2-Channel	2-Channel				5.1-Channel
AM/FM Presets	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM	18FM / 6AM
Dual Zone
iTunes Tagging
