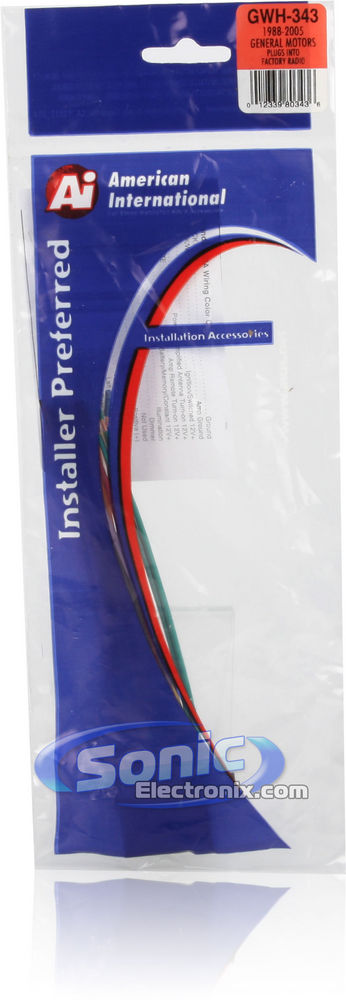

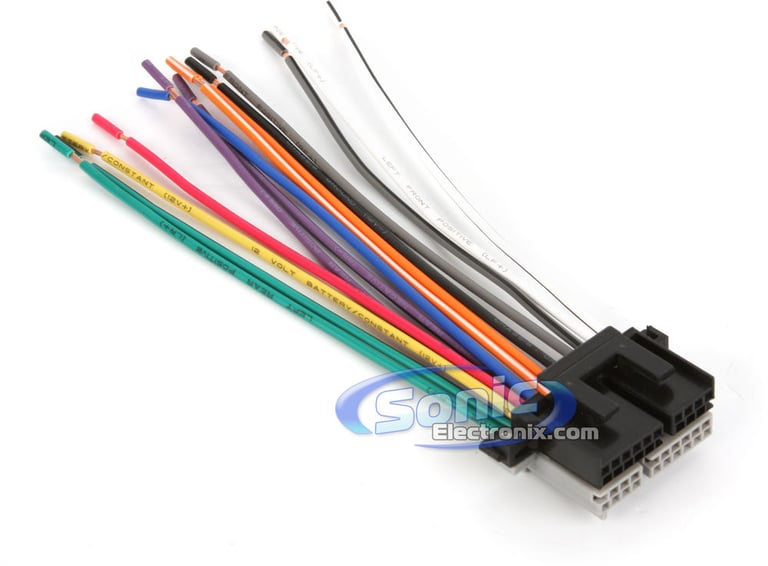

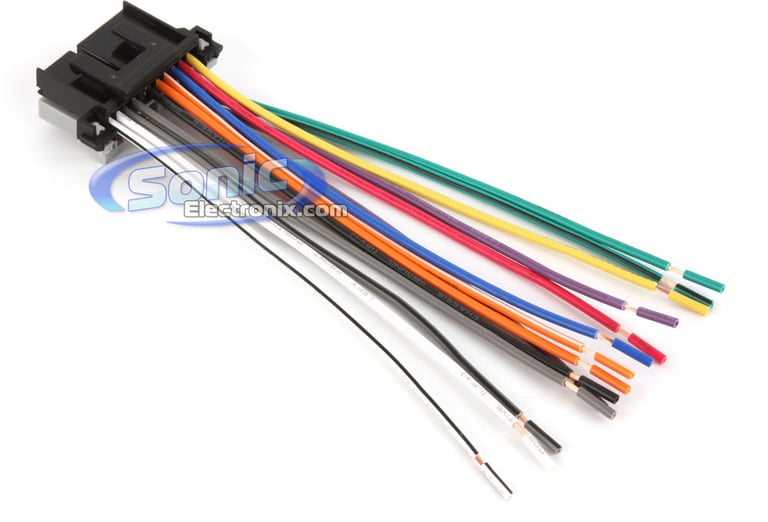

American International GWH-343

Connects an Aftermarket Receiver to Factory Plug on Select 1988-2005 General Motors Vehicles

highlight-star-icon

Plugs into car harness at radio • Power/4-Speaker • Used for Installing an Aftermarket Receiver to factory plug • Compatible with select 1988-2002 GM Vehicles

Learn more about the gwh343

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

Description


American International brand icon

Authorized dealer

When replacing your factory radio with an after-market car stereo, the GWH-343 wire harness is a must for a quick and clean installation. It eliminates cutting your OE radio plug. After connecting it, your install is simple as the wires will color-match and easily connect to the after-market stereo. Without the GWH-343, you would have to cut the OE radio plug and manually test each wire to connect to your after-market receiver.

In addition, because you do not have to cut your OE radio plug off, the GWH-343 allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver. We also recommend the Scosche BOBAZT for a quick connection that is sure to last.

Product Features:
  • Plugs into car harness at radio
  • Power/4-Speaker
  • 21-Pin plug
  • Used for Installing an Aftermarket Receiver to factory plug
  • Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
  • No need to cut or splice in factory wiring
  • Compatible with select 1988-2002 GM Vehicles
  • Metra Equivalent: Metra 70-1858 and Scosche Equivalent: Scosche GM02B
Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)
Compatible with the following vehicles:
  • Buick:
    • 1988 - 1996 Century
    • 1988 - 1990 Electra
    • 1988 - 1994 LeSabre
    • 1988 - 1994 Regal
    • 1986 - 1995 Riviera
    • 1991 - 1994 Roadmaster
    • 1988 - 1989 Skyhawk
    • 1987 - 1995 Skylark
  • Cadillac:
    • 1988 - 1991 Deville
    • 1988 - 1991 El Dorado
    • 1999 - 2002 Escalade
    • 1988 - 1993 Fleetwood
    • 1988 - 1994 Sedan Deville
    • 1988 - 1991 Seville
  • Chevrolet:
    • 1991 - 2005 Astro
    • 1988 - 1997 Beretta
    • 1992 - 1994 Blazer
    • 1988 - 2002 1500, 2500, 3500 Full-Size Truck
    • 1990 - 2002 Camaro
    • 1991 - 1997 Caprice
    • 1991 - 1999 Cavalier
    • 1990 - 2002 Corvette
    • 1994 - 1996 Impala
    • 1997 - 2000 Malibu
    • 1995 - 1999 Monte Carlo
    • 1990 - 2002 S-10
