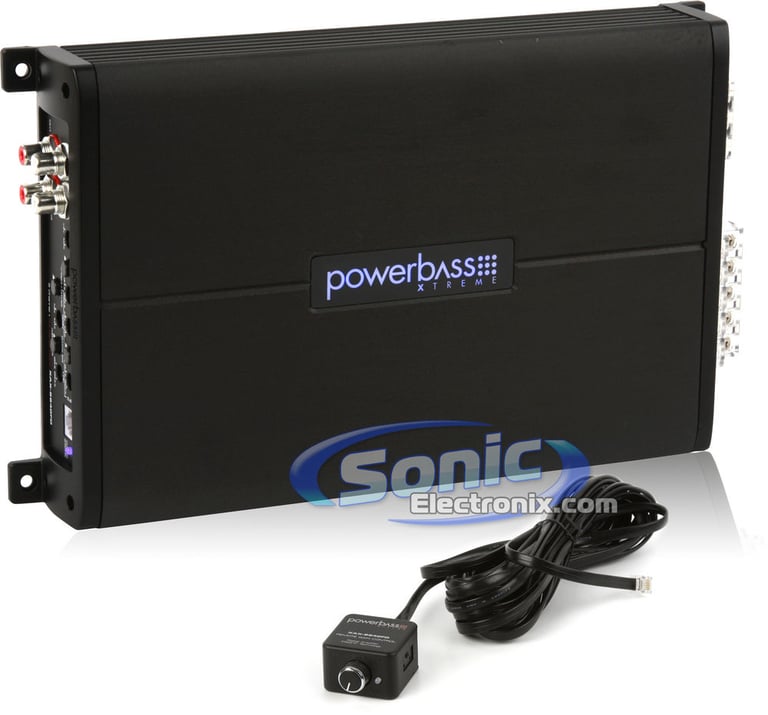

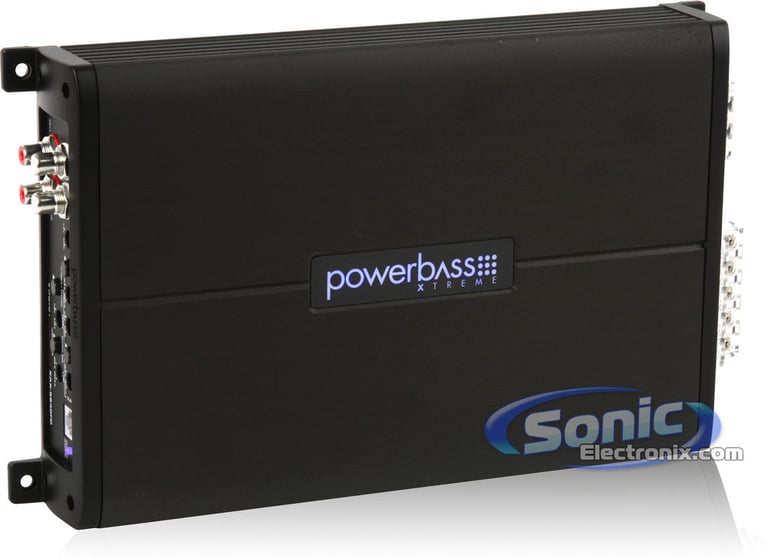

PowerBass Xtreme XAX-5640FD

960W RMS XAX Series Full Range Class D 5-Channel Mini Amplifier

PowerBass
Shop all PowerBass
Product videos
highlight-star-icon

XAX Series 5-Channel Class D Mini Car Amplifier • 1920W MAX • High Efficiency SMD Circuit Technology • Damping Control Circuit • Blue LED Logo, Power And Speaker Terminal Lighting • Platinum-Plated Tiffany RCA Inputs

Learn more about the xax5640fd

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
FRING4 main

NVX FRING4

Universal 4" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

4
-36.91%

$11.98

List price $18.99

FRING525 main

NVX FRING525

Universal 5.25" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

2
-45.02%

$10.99

List price $19.99

REF-5032CFXAM main

Infinity Reference 5032cfx (REF-5032CFXAM)

270W Peak (90W RMS) 5.25" Reference Series 2 Way Coaxial 3-ohm Speakers

-42.32%

$74.99

List price $130.00

Infinity Reference REF-4032cfx (REF4032CFXAM)

210W Peak (70W RMS) 4" Reference Series 2 Way Coaxial 3-ohm Speakers

1
-42.84%

$79.99

List price $139.95

Product Highlights


XAX Series 5-Channel Class D Mini Car Amplifier • 1920W MAX • High Efficiency SMD Circuit Technology • Damping Control Circuit • Blue LED Logo, Power And Speaker Terminal Lighting • Platinum-Plated Tiffany RCA Inputs

Description


PowerBass brand icon

Authorized dealer

  • XAX Series 5-Channel Class D Mini Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan. + 200 x 1 chan.
    • 2 ohm: 160 watts x 4 chan. + 320 x 1 chan.
    • Bridged, 4 ohm: 320 watts x 2 chan.
  • Max power output: 1920 watts
  • Full range class-D technology

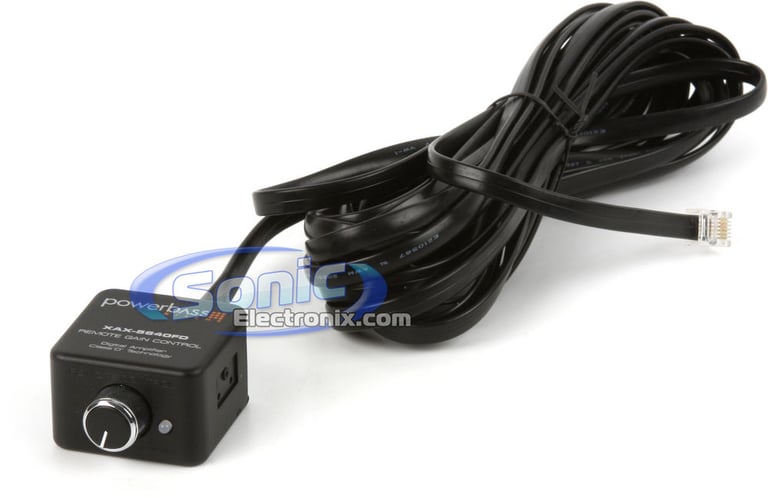

  • Wired remote gain level control included
  • Philips/NXP chip set with double sided copper plated PCB
  • LED power (blue) and protect (red) indicators
  • Selectable Bass Boost EQ (0-18dB at 40 Hz)
  • Virtual silence turn on/off mute circuit
  • High damping control circuit
  • High efficiency SMD circuit technology
  • Ultra low current draw with more than a 85% efficiency rating
  • Dual link power doubling circuitry
  • 5/4/3 channel operation
  • Blue LED logo, power and speaker terminal lighting
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Platinum-plated Tiffany RCA level inputs

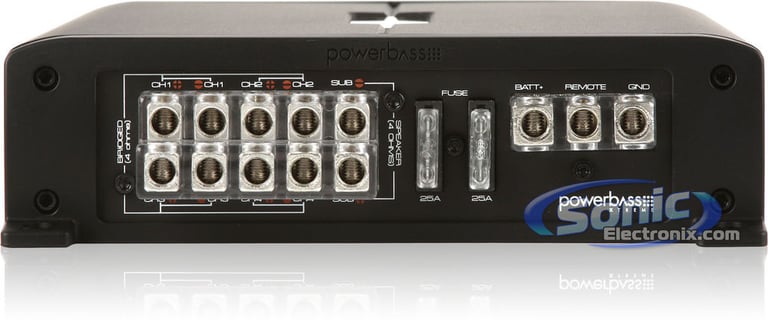

  • Platinum-plated screw terminals

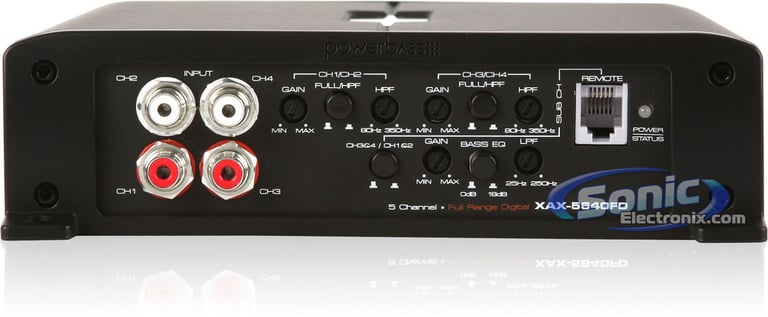

  • Input sensitivity:
    • Level: 500mV-6V
  • Variable high-pass filter (80-350 Hz, 12 dB/octave)
  • Variable low-pass filter (25-250 Hz, 12 dB/octave)
  • Damping factor: >200
  • Frequency response: 20-30,000 Hz
  • Also found as: Power Bass Xtreme XAX-5640FD

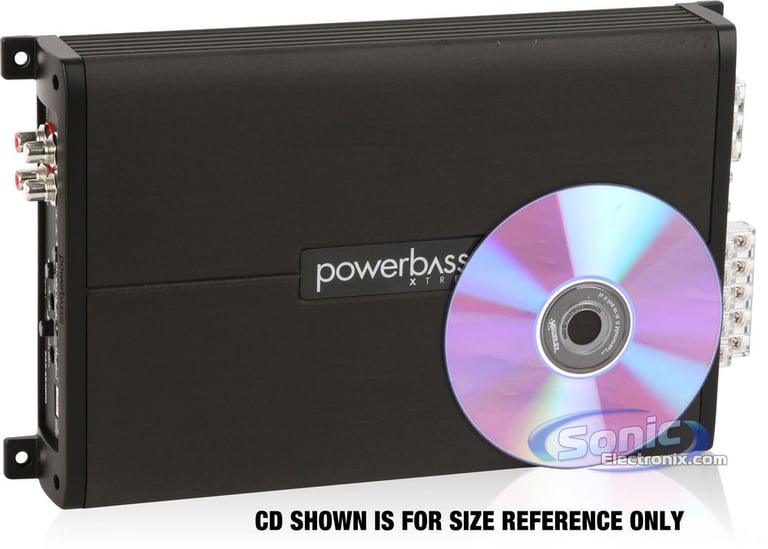

  • Dimensions: 11-13/16"L x 7-1/16"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(10)

$259.99

List price $323.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

X803-5 small

Kenwood eXcelon X803-5

• 50 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 75 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$499.99

List price $600.00

RD800/6 small

JL Audio RD800/6

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 400 watts x 1 channel @ 4 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(1)

$549.99

List price $779.98

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
160 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
320 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
1920 watts
Total RMS Power Output
840 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.02%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
80 - 350 Hz
Low-Pass Crossover Frequency
25 - 250 Hz
Signal-to-Noise Ratio
<90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XAX-5640FD

Weight:

6.00lbs

Internal SKU:

xax5640fd

Internal Product ID:

26883
