Audiobahn ALUM12J

12" Dual 6 ohm Sound Q Series Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

12" Sound Q Series Subwoofer • 1000W RMS • Spun Aluminum Cone • Phat 1-3/4” EPDM Rubber Surround • Chrome Plated 3-Dimensional Flame Design Cast Aluminum Basket • Multi-Connect Lug Lock Terminals • 3" Dual 6 Ohm Voice Coil

Learn more about the alum12j

We apologize

This item has been discontinued


Loading...
VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Product Highlights


12" Sound Q Series Subwoofer • 1000W RMS • Spun Aluminum Cone • Phat 1-3/4” EPDM Rubber Surround • Chrome Plated 3-Dimensional Flame Design Cast Aluminum Basket • Multi-Connect Lug Lock Terminals • 3" Dual 6 Ohm Voice Coil

Description


Audiobahn ALUM12J 12" Subwoofer

Sonic Electronix is now carrying Audiobahn's new 2011 subwoofers. The sound Q series features the same attractive appearance you're used to from Audiobahn with the chrome plated 3-dimensional cast aluminum basket with flame design. The Sound Q series also comes equipped a spun aluminum cone that provides extreme durability. These subwoofers can operate in a 3 ohm or 12 ohm configuration and come in a 10" or a 12" model, each featuring a 3" dual 6 ohm voice coil.

Dual 6-Ohm Configuration

Accommodating the rising trend of triple-subwoofer applications, Audiobahn’s Sound Q subwoofers come in dual 6-ohm configurations. This allows three Sound Q subwoofers to be wired in a 1- or 4-ohm operation. You now have the option to use a wider range of amplifiers to fit the needs of your specific application.

Surround

To lengthen the life of the woofer and to ensure continued enjoyment, this series’ surround is made from EPDM rubber, a denser yet flexible material that is designed to hold its shape over time. It is made to withstand weather conditions such as high and low temperatures.

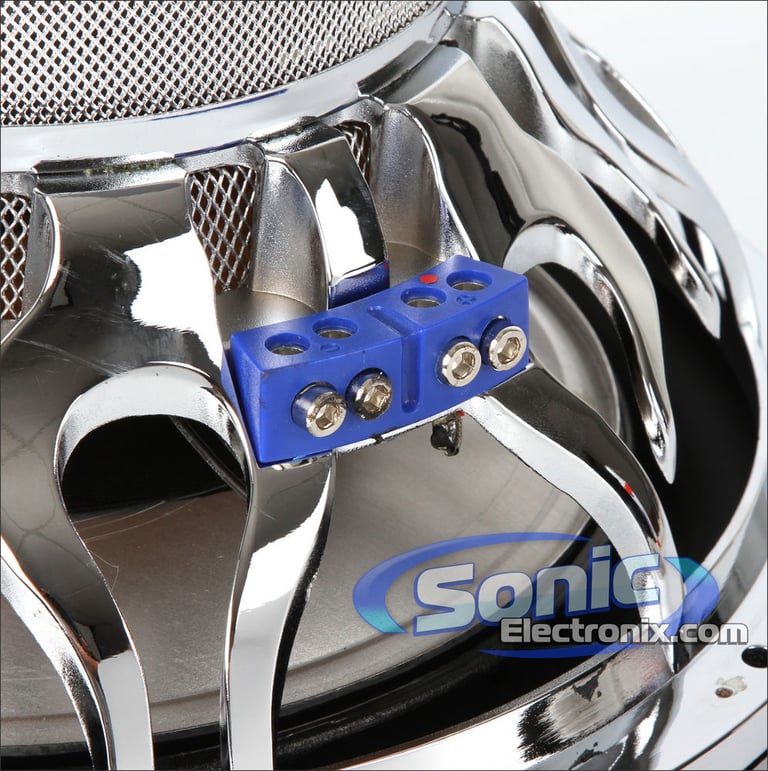

Multi-Connect Lug Lock Terminals

Audiobahn’s patented Multi-Connect Lug Lock Terminals offer increased versatility in wiring multiple subwoofers to an amplifier or to another voice coil. Multi-connect terminals allow you to use single wire connections in each terminal rather than combining multiple wires into one terminal. This feature allows you to use a full 8-gauge wire in each terminal.

Product Features
  • 12" Sound Q Series Subwoofer
  • Power Handling
    • RMS: 1000 watts
  • Impedance: Dual 6 ohm

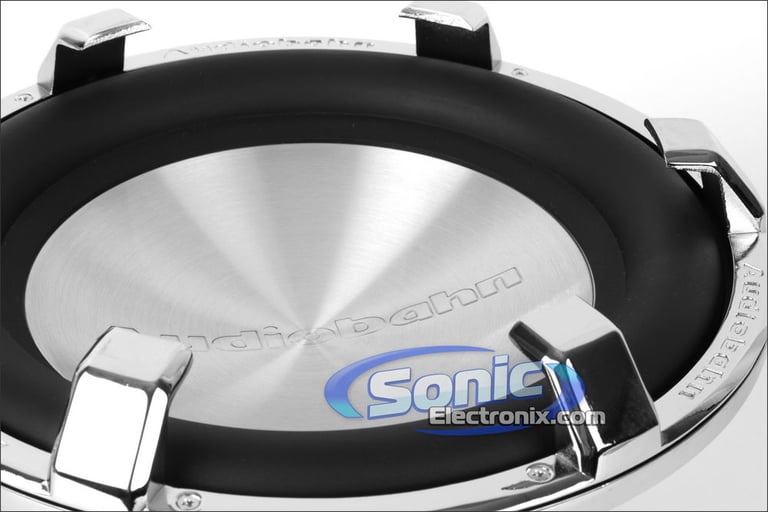

  • Spun aluminum cone provides durability
  • Phat 1-3/4” EPDM rubber surround allows for maximum excursion and maximum cone surface area

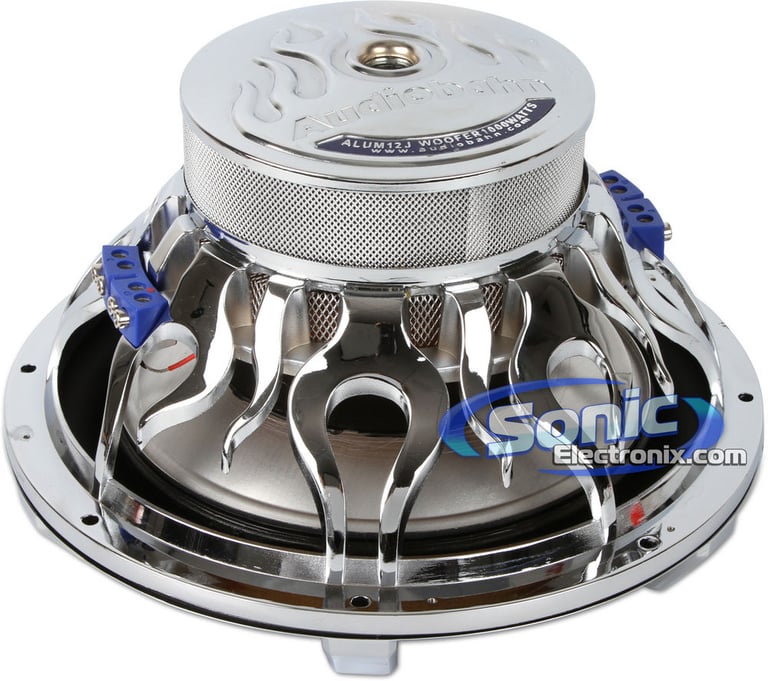

  • Chrome plated 3-dimensional cast aluminum basket with flame design
  • 3" Dual 6 Ohm voice coil
  • 120 oz magnet
  • Multi-Connect lug lock terminals offer increased versatility in wiring multiple subwoofers
  • Allows you to use a full 8-gauge wire in each terminal
  • Operates in 3 or 12 ohm configurations
  • Frequency Response: 18-500 Hz
  • Efficiency: 94.4 dB
  • Mounting Depth: 5-5/8"
  • Hole Cut Out: 11"
  • Outer Diameter: 12-3/4"
  • 1-year Manufacturer's warranty

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12W3v3-4 small

JL Audio 12W3v3-4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 6.65"
• Sensitivity: 87.15 dB

(65)

$469.99

List price $469.99

Specifications & Details


Subwoofer Specifications
Series
Sound Q Series
Subwoofer Size
12"
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
6 ohm
Voice Coil Diameter
3"
Frequency Response
18 - 500 Hz
Sensitivity
94.4 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Aluminum
Woofer Surround
EPDM Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
1.30 cubic feet
Maximum Ported Box Volume
3.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24.4 Hz
Equivalent Compliance (Vas)
76 liters
Total Speaker Q Value (Qts)
0.47
Electrical Q Value (Qes)
0.52
Electrical Resistance of Voice Coil (Re)
5.4 ohm
Mechanical Q Value (Qms)
4.80
