Audiobahn AW1571J

15" Dual 4 ohm Natural Sound Series Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

15" Natural Sound Series Subwoofer • 500W RMS • KM3 Coated, Nonpressed Paper Cone • J-Type Narrow Foam Surround • Stamped Steel Baskets • 3-Dimensional Flames • Chrome Finish • 2" Dual 4 Ohm Voice Coil

Learn more about the aw1571j

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

Product Highlights


15" Natural Sound Series Subwoofer • 500W RMS • KM3 Coated, Nonpressed Paper Cone • J-Type Narrow Foam Surround • Stamped Steel Baskets • 3-Dimensional Flames • Chrome Finish • 2" Dual 4 Ohm Voice Coil

Description

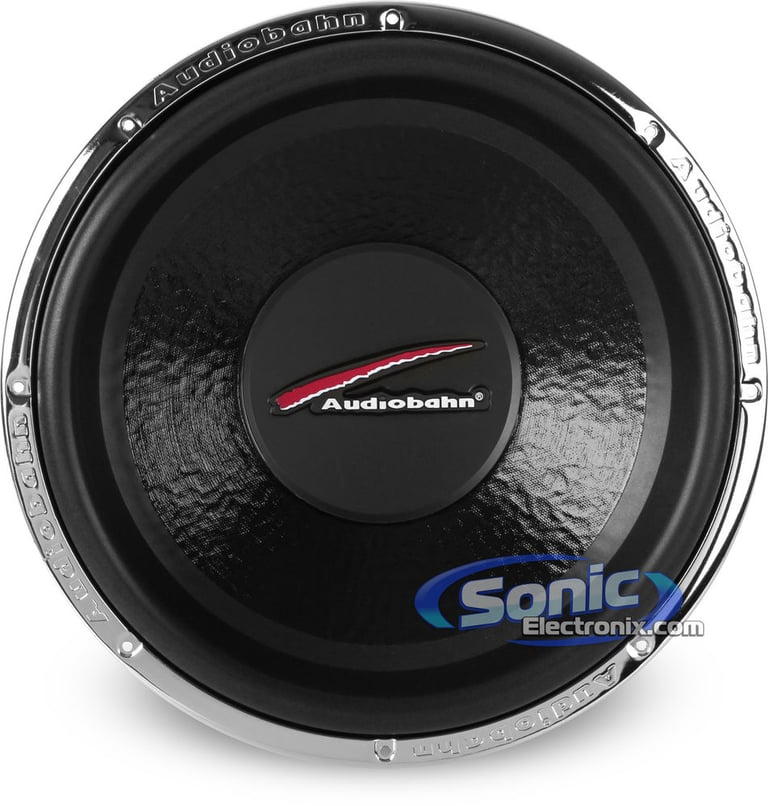

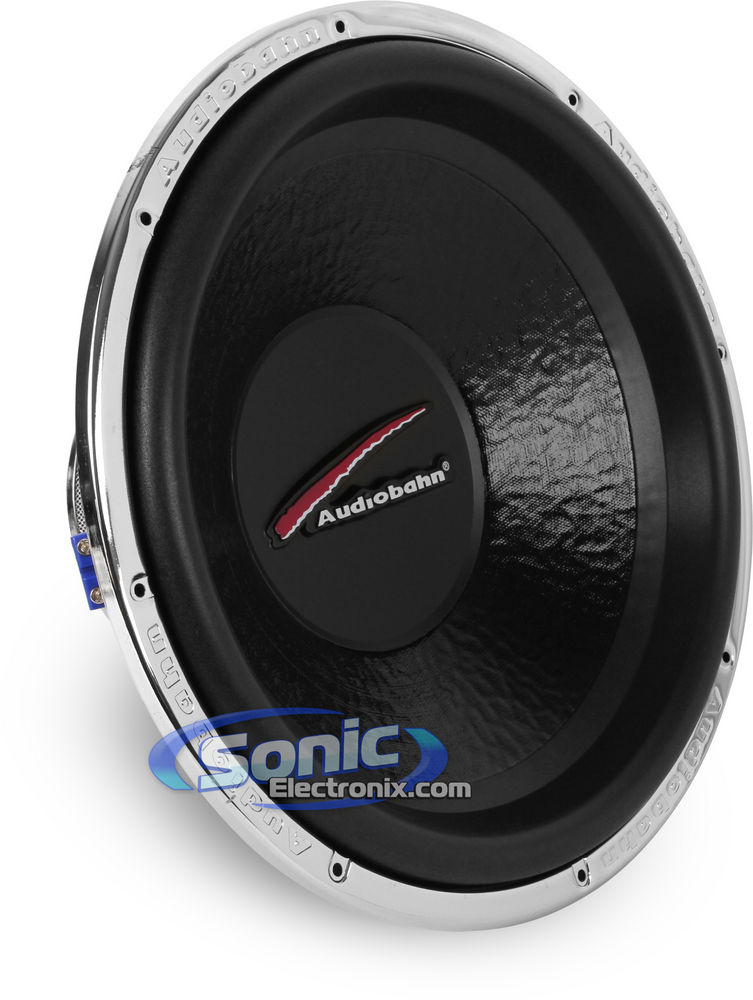

Audiobahn AW1571J 15" Subwoofer

Sonic Electronix is now carrying Audiobahn's new 2011 subwoofers. The Natural Sound series features the same attractive appearance you're used to from Audiobahn with the chrome plated 3-dimensional flame baskets. The natural sound series are equipped with a 2" dual 4 ohm voice coil, vented oversized back plate, and 45/60 oz magnet. These subwoofers can operate in a 2 ohm or 8 ohm configuration and come in a 15", 12" or a 10" model, each featuring multi-connect lug lock terminals, which offer increased versatility in wiring multiple subwoofers.

This woofer features a KM3 coated, nonpressed paper cone, which is lightweight and efficient for a true-to-life sound, hence the name “Natural Sound.” The J-type narrow foam surround gives the woofer more cone surface area, more efficiency and the ability to reproduce a wider range of audio frequencies.

Product Features
  • 15" Natural Sound Series Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Impedance: Dual 4 ohm

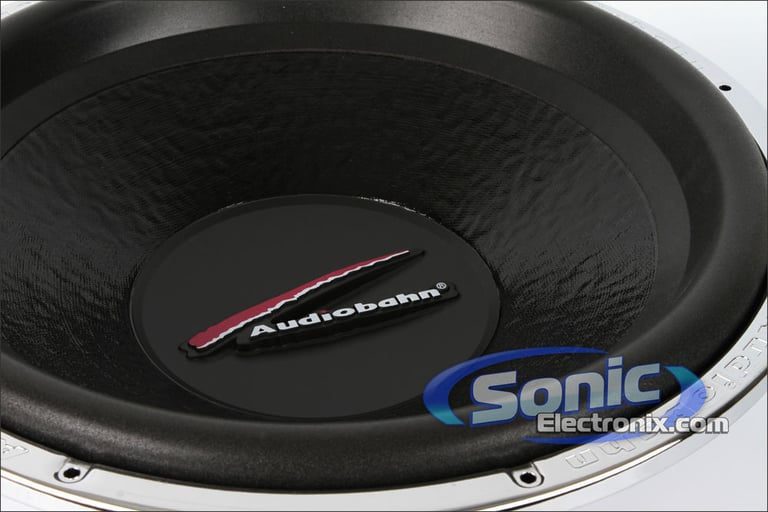

  • KM3 coated, nonpressed paper cone is lightweight and efficient for a true-to-life sound
  • J-type narrow foam surround gives the woofer more cone surface area and more efficiency

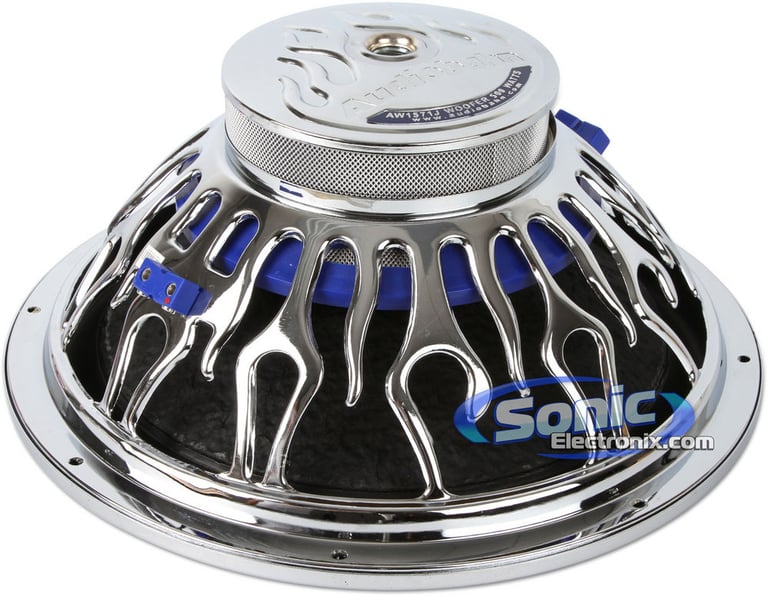

  • Stamped steel baskets with 3-dimensional flames have been computer-modeled to better prevent resonance and vibration during operation
  • Vented oversized back plate allows more excursion without bottoming out
  • Chrome finish for attractive appearance
  • 2 or 8 Ohm operational
  • 60 oz magnet
  • 2" Dual 4 ohm voice coil
  • Frequency Response: 21-1000 Hz
  • Efficiency: 93.4 dB
  • Mounting Depth: 6-7/8"
  • Cutout Hole: 13-7/8"
  • Cutout Diameter: 15-3/8"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1571J Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1571J Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1571J Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1571J Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Lowest price in 30 days
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-21.44%

$109.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

14
-56.40%

$108.99

List price $249.95


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

P3D4-15 small

Rockford Fosgate Punch P3 P3D4-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Sensitivity: 86 dB

(54)

$339.99

List price $339.99

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

SW-M15D1 small

Sundown Audio M-15 D1 15" (M15D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 12.06"
• Sensitivity: 83.024 dB

(1)

$659.99

List price $791.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
21 - 1000 Hz
Sensitivity
93.4 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.7 cubic feet
Maximum Ported Box Volume
3.55 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
15-3/8"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28.2 Hz
Equivalent Compliance (Vas)
132 liters
Total Speaker Q Value (Qts)
0.49
Electrical Q Value (Qes)
0.55
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
4.65
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AW1571J

Weight:

15.50lbs

Internal SKU:

aw1571j

Internal Product ID:

33656
