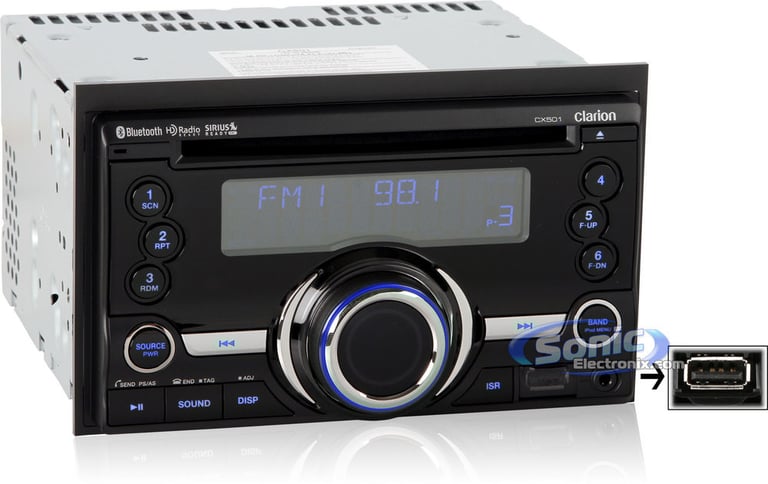

Clarion CX501 Open Box

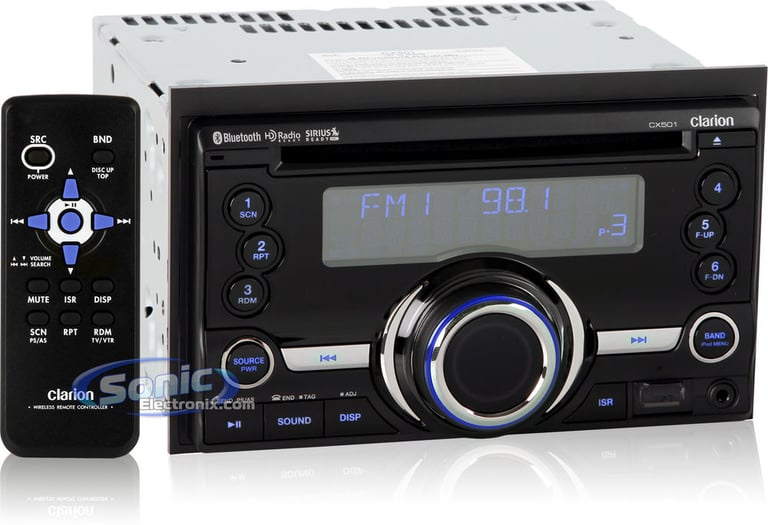

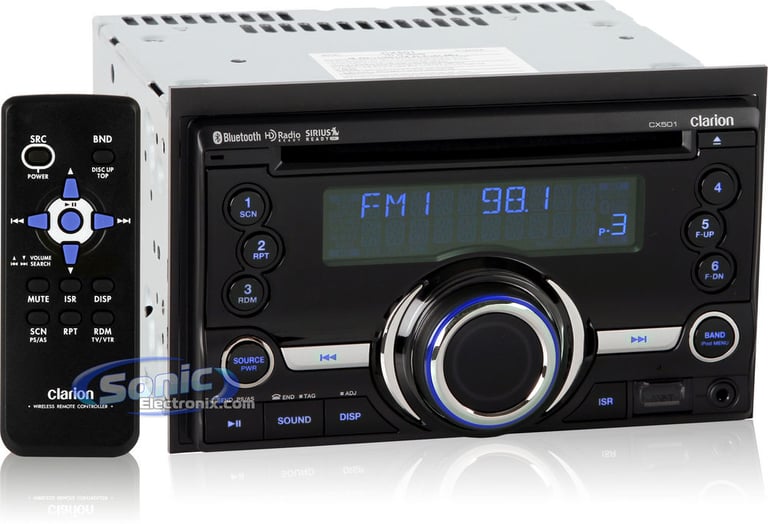

Open Box: In-Dash CD, MP3, WMA Double-Din Receiver Car Stereo w/ Bluetooth and iPod Direct Connection via USB

Clarion
Shop all Clarion
Product videos
highlight-star-icon

• In-dash AM/FM, CD, MP3, WMA player with Remote
• Peak: 50W x 4 Chan.
• RMS: 21W x 4 Chan.
• Low Pass/High Pass Filters
• Built-in iPod Direct Connection Via USB
• HD Radio Ready
• Front Panel Auxiliary Panel

Learn more about the LS-cx501-OB

We apologize

This item has been discontinued

Product Highlights


• In-dash AM/FM, CD, MP3, WMA player with Remote
• Peak: 50W x 4 Chan.
• RMS: 21W x 4 Chan.
• Low Pass/High Pass Filters
• Built-in iPod Direct Connection Via USB
• HD Radio Ready
• Front Panel Auxiliary Panel

Description


Clarion brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.







General Features:

  • In-dash AM/FM, CD, MP3, WMA player with Remote
  • Open Box item for greater discount
  • Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
  • 728 Color Variable Lighting Display and Buttons
  • 13-segment 10 x 2-line White LCD Display

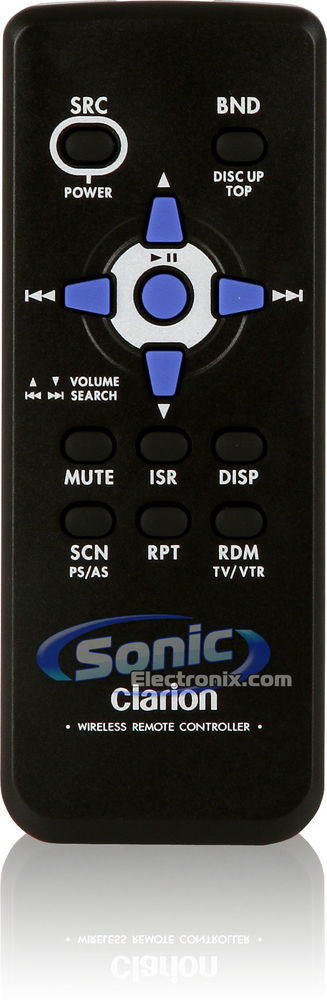

  • Wireless remote control included
  • Blue button lighting
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 21 watts x 4 channels
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year SonicElectronix.com warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, MP3, and WMA
  • AM/FM tuner with 18FM/6AM presets
  • Low-pass filter selectable (through-60-90-120)
  • High-pass filter selectable (through-60-90-120)
  • Phase adjustment allows you to select subwoofer phase directly from source unit
  • BEAT EQ 3-band parametric equalizer with 5 selectable tone curves (4 Preset, 1 User)
  • MAGNA BASS EX boosts the 50Hz range to deliver dynamic bass performance

Expandability Options:

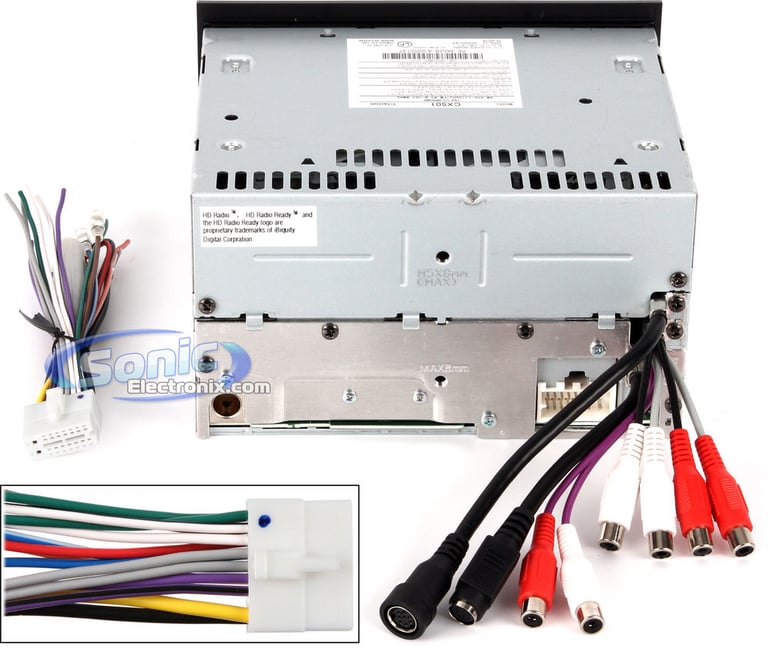

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)
  • SIRIUS Direct Connect Ready: SIRIUS/XM SC-C1 required and sold separately
  • HD Radio Ready: Clarion THD301 required and sold separately

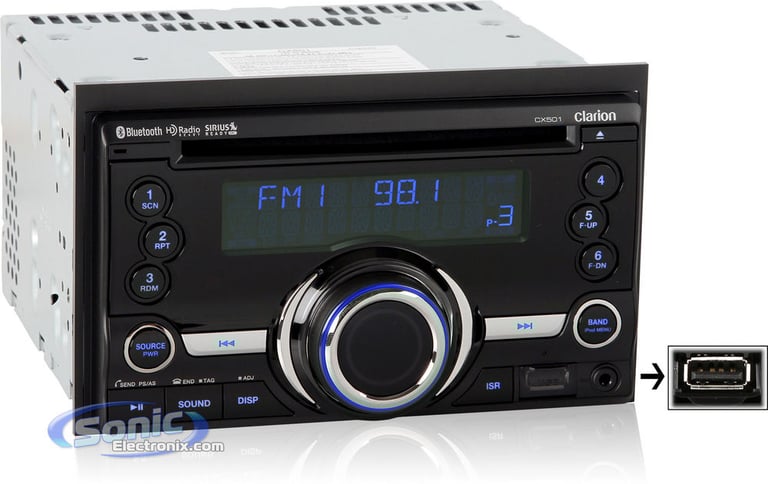

  • iPod Ready: iPod USB direct connectivity via your Standard iPod-to-USB cable allows you to charge, control, and playback your iPod through the receiver and stereo system
  • Front-panel auxiliary input: 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
  • Steering wheel remote ready: PAC SWI-JACKv1 or the Axxess ASWC required and sold separately

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.0 +EDR certified
  • Send/Receive Sensitivity: Class 2
  • Bluetooth profiles supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • HSP: Headset Profile enables the a Bluetooth headset to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
  • Works with most Bluetooth enabled cell phones
  • Includes a built-in microphone for convenient talking

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Security Code
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
21 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
BEAT EQ 3-band parametric equalizer with 5 selectable tone curves (4 Preset, 1 User)
Display Type
LCD Text Display
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

CX501-OB

Weight:

4.85lbs

Internal SKU:

LS-cx501-OB

Internal Product ID:

40448
