Rockford Fosgate Punch P3D4-12 (Newest Model) OPEN BOX INCOMPLETE

600W 12" Punch Stage 3 Dual 4 ohm Subwoofer

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

Missing screws and manual Item is used, has been installed, and has minor marks from screws
• 1200W Peak
• 600W RMS
• Anodized Aluminum Heat Sinking Cone
• Santoprene Vertical Attach Surround Technique
• 4-Layer 2-1/2" Voice Coil
• Proprietary Spider Venting

Learn more about the LS-p3d412-OBIra225175

We apologize

This item has been discontinued

Product Highlights


Missing screws and manual Item is used, has been installed, and has minor marks from screws
• 1200W Peak
• 600W RMS
• Anodized Aluminum Heat Sinking Cone
• Santoprene Vertical Attach Surround Technique
• 4-Layer 2-1/2" Voice Coil
• Proprietary Spider Venting

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.



Item Condition: Open Box Incomplete

  • Missing screws and manual
  • Item is used, has been installed, and has minor marks from screws
    • Product Features

      • 12" Punch P3 Series Dual 4 Ohm Subwoofer
      • Power Handling:
        • Peak: 1200 watts
        • RMS: 600 watts
      • Impedance: 4 ohm

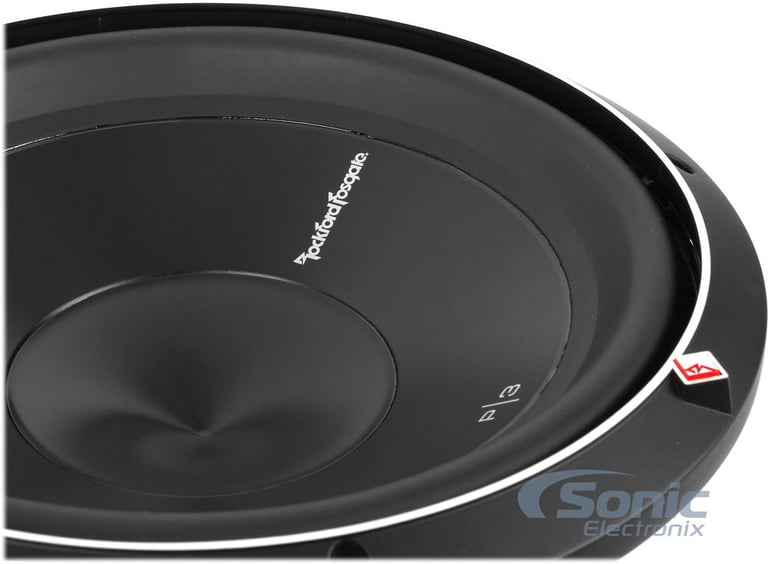

      • Anodized aluminum heat sinking cone & dustcap for strength and durability
      • Tall profile true Santoprene vertical attach surround technique increases a speaker's effective radiating cone area
      • Dual tear & fatigue resistant linear poly cotton spiders
      • Optimized motor magnetics with extended pole and bumped backplate
      • Fatigue resistant and reduced strain stitched tinsel leads
      • Multi point high temp/strength neck joint bonding technique
      • Sturdy 16 gauge compound bend frame geometry
      • Semi-Flexible PVC removable protective motor cover
      • Custom insulated compression input terminal assembly
      • Proprietary spider venting/cooling technique
      • Decorative die cast trim ring

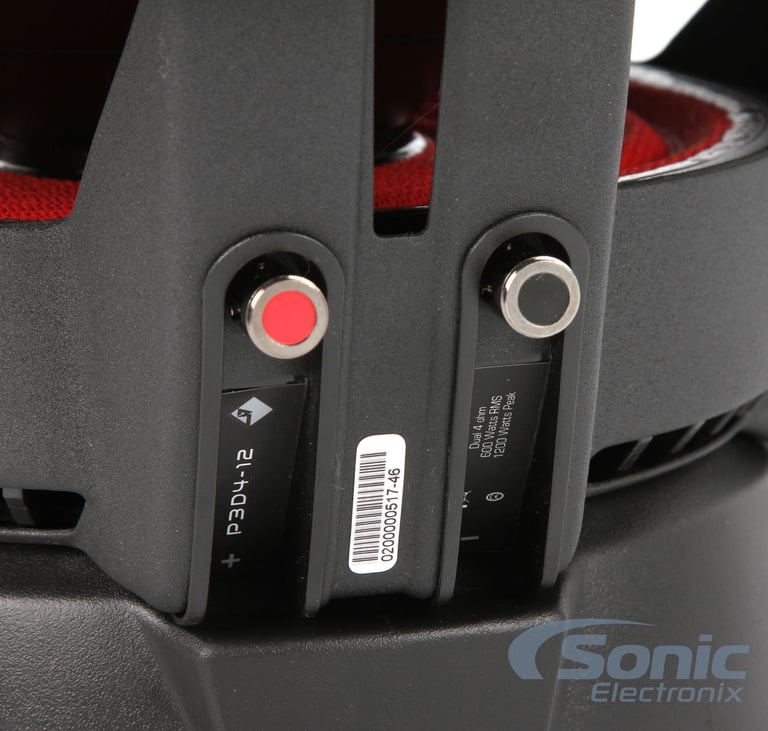

      • Custom 10-AWG nickel plated push terminals
      • High temperature 4-layer 2-1/2" voice coil with spun laced nomex insulating reinforcement collar
      • 102 oz Double stacked ferrite magnet structure
      • Frequency response: 27.7-250 Hz
      • Sensitivity: 85 dB
      • Xmax: 16.2 mm
      • Mounting Depth: 6-11/16"
      • Cutout Diameter: 11-1/4"
      • 1-year Sonic Electronix Warranty

    Product history:

    Rockford Fosgate LS-P3D4-12-OBI-2 thumbnail
    (newest, current model)
    Rockford Fosgate P3D412 thumbnail
    (previous model, replaced by Rockford Fosgate Punch P3D4-12 (Newest Model) OPEN BOX INCOMPLETE)
    Rockford Fosgate P312D4 thumbnail
    (previous model, replaced by Rockford Fosgate Punch P3D412 (09P3D412))

    Subwoofer Wiring Guide


    Wiring Guide to Wire 1 Rockford Fosgate Punch P3D4-12 (Newest Model) OPEN BOX INCOMPLETE Subwoofer

    Mono Amp

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 Rockford Fosgate Punch P3D4-12 (Newest Model) OPEN BOX INCOMPLETE Subwoofers

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 Rockford Fosgate Punch P3D4-12 (Newest Model) OPEN BOX INCOMPLETE Subwoofers

    Mono Amp

    4 Channel Amp

    Wiring Guide to Wire 4 Rockford Fosgate Punch P3D4-12 (Newest Model) OPEN BOX INCOMPLETE Subwoofers

    Mono Amp

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp

    Specifications & Details


    Subwoofer Specifications
    Series
    Punch P3 Series
    Subwoofer Size
    12"
    Peak Power Handling
    1200 watts
    RMS Power Handling
    600 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    4 ohm
    Voice Coil Diameter
    2.5"
    Frequency Response
    27.7 - 250 Hz
    Sensitivity
    85 dB
    Xmax (millimeters)
    16.2 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Anodized Aluminum
    Woofer Surround
    Santoprene Rubber
    Magnet Structure
    Double Stacked
    Subwoofer Grille
    Optional (Accessory required and sold separately)
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    0.75 cubic feet
    Maximum Sealed Box Volume
    1.25 cubic feet
    Minimum Ported Box Volume
    1.79 cubic feet
    Maximum Ported Box Volume
    1.79 cubic feet
    Top-Mount Depth (Mounting Depth)
    6-11/16"
    Cutout Diameter
    11-1/4"
    Shallow Mount Installation
    No
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    27.7 Hz
    Equivalent Compliance (Vas)
    57.7 liters
    Total Speaker Q Value (Qts)
    0.52
    Electrical Q Value (Qes)
    0.57
    Electrical Resistance of Voice Coil (Re)
    6.40 ohm
    Mechanical Q Value (Qms)
    5.60
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    LS-P3D4-12-OBI-2

    Weight:

    22.00lbs

    Internal SKU:

    LS-p3d412-OBIra225175

    Internal Product ID:

    98226
