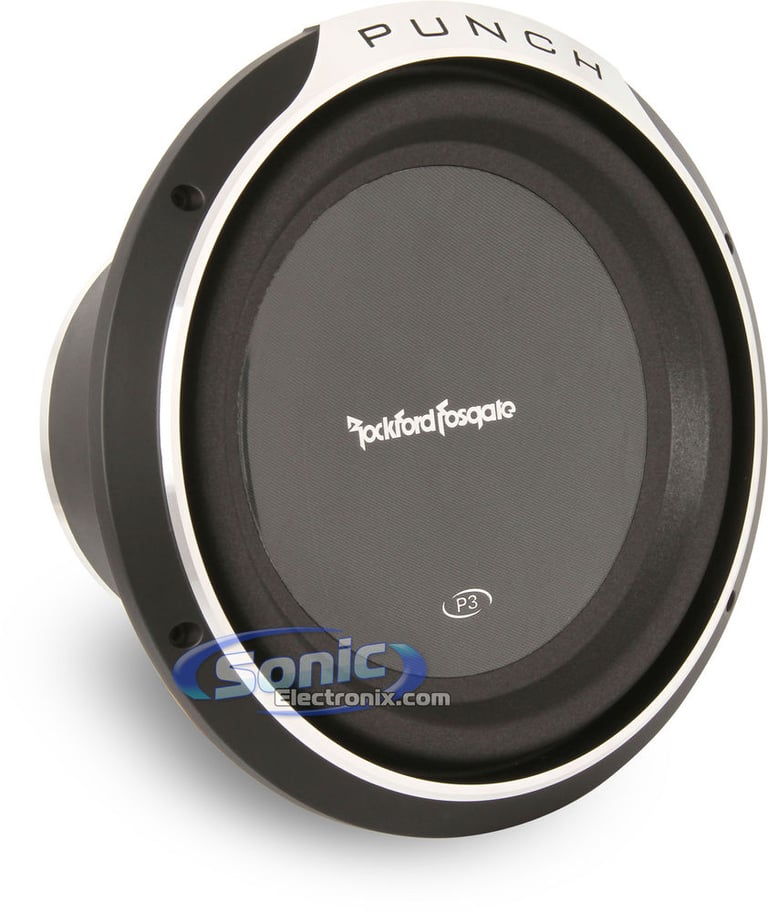

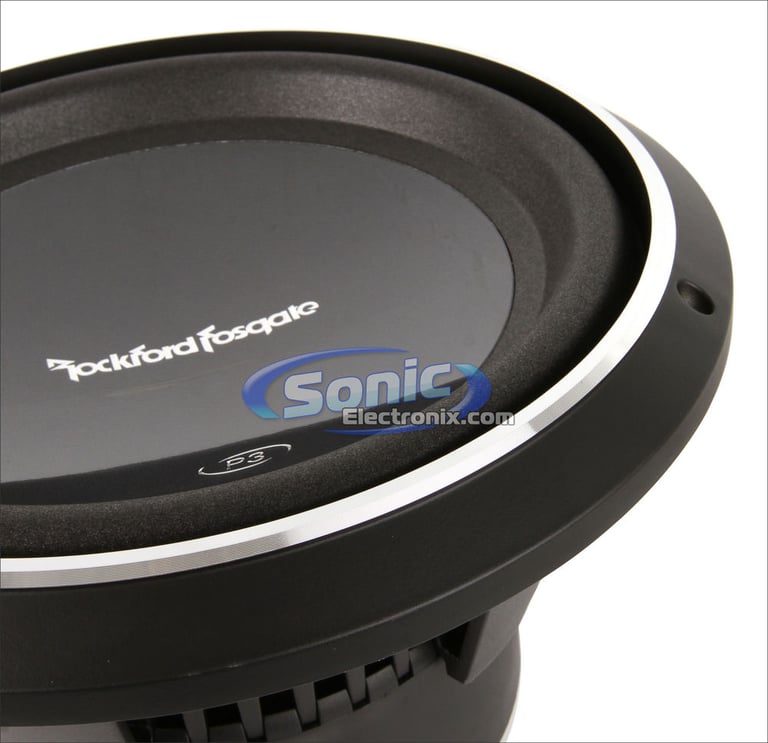

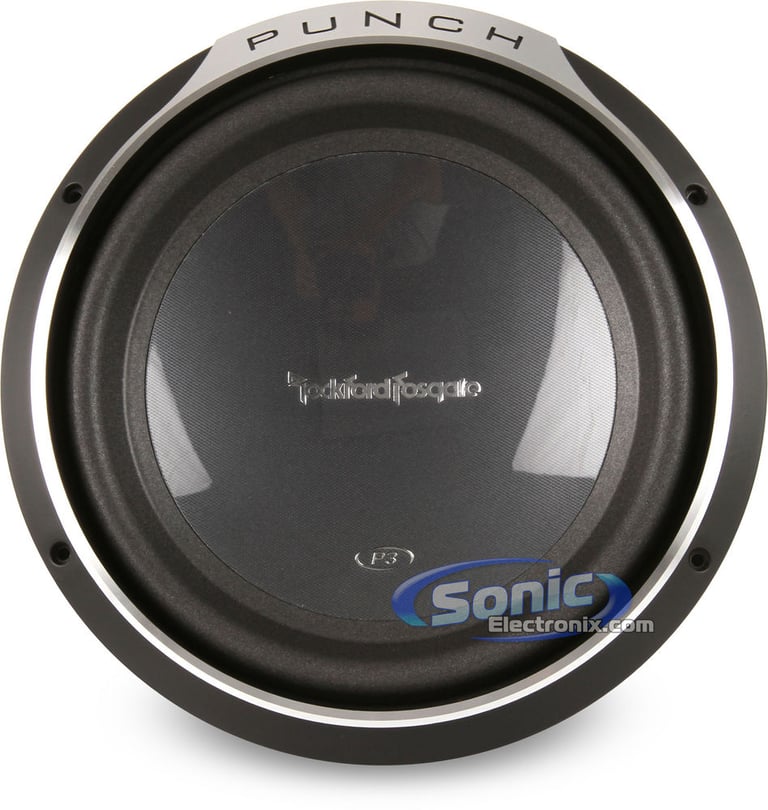

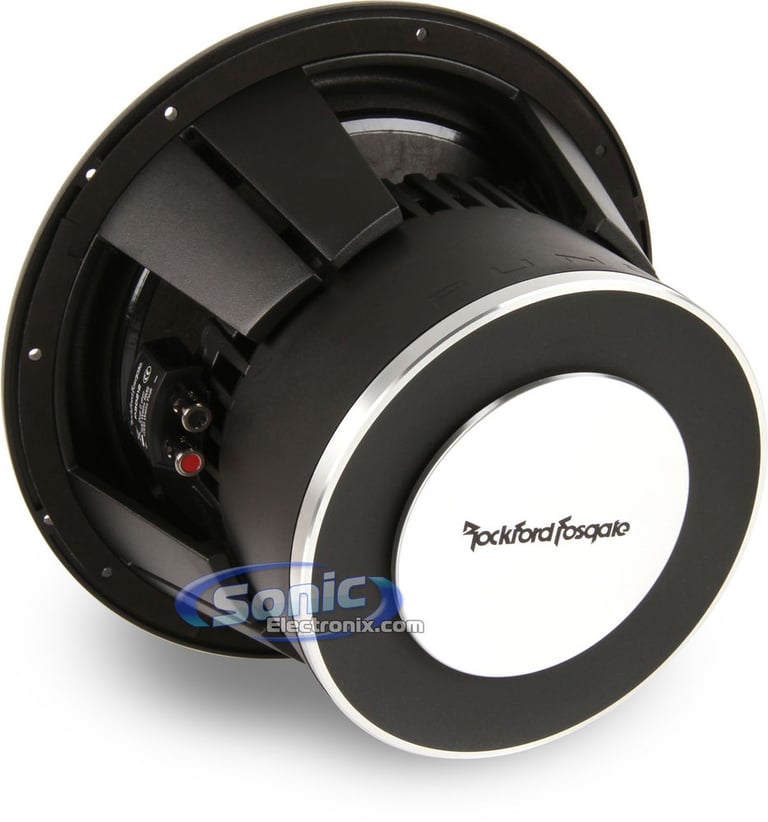

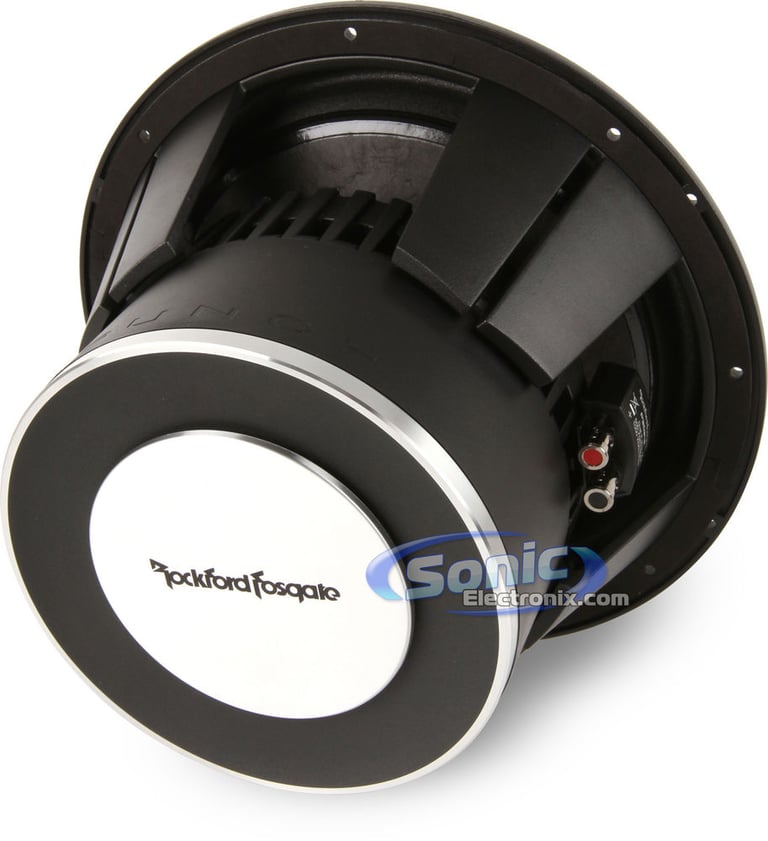

Rockford Fosgate Punch P3D412 (09P3D412)

12" Dual 4 ohm Punch Stage 3 Subwoofer

Product videos
highlight-star-icon

12" Dual 4 Ohm Rockford Fosgate Punch Series Subwoofer • 500W RMS • 1000W Peak • Kevlar Reinforced Semi-Pressed Paper Cone • High Excursion Poly-Ether-Ester Surround • Poly-Cotton Linear Spider

Learn more about the 09p3d412

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p3d412 thumbnail

Rockford Fosgate Punch P3D4-12

OUR PRICE: $219.99

View item

Product Highlights


12" Dual 4 Ohm Rockford Fosgate Punch Series Subwoofer • 500W RMS • 1000W Peak • Kevlar Reinforced Semi-Pressed Paper Cone • High Excursion Poly-Ether-Ester Surround • Poly-Cotton Linear Spider

Description


Rockford Fosgate brand icon

Authorized dealer

It's Called PUNCH For A Reason

The coldest blood runs through the veins of this Rockford Fosgate subwoofer. The 12" dual 4 ohms Punch Stage 3 subwoofer gives the cold shoulder to mercy when it comes to window rattling bass and clarity. The 2.5" dual voice coil receives its power from double stacked ferrite magnets throwing around 1,000 watts of peak power in your face. These energy thirsty Punch stage 3 subwoofers have a simple request; to receive lots of power. Their Kevlar fiber semi-pressed paper cones combine light weight with high strength to dramatically improve performance. Compressed sealed high excursion Poly-ether-ester makes up this woofers surround providing a strong yet elastic connection to the cone. To keep this beast cold blooded, Rockford Fosgate uses anodized aluminum voice coil formers to provide excellent heat dissipation. This punch woofer has stitched tinsel leads that withstand extreme duty cycles, fatigue and high current that is critical to its robust design. This 12" dual 4 ohms Punch Stage 3 subwoofer gives no mercy when it comes to performance, power handling, and construction quality. Just listen, and you will understand why its called a Punch!

General Features:
  • 12" Dual 4 Ohm Rockford Fosgate Punch Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Kevlar Fiber reinforced semi-pressed paper cone
  • High excursion Poly-ether-ester surround
  • ABS/Acrylic dustcap assembly
  • Tear and fatigue resistant poly-cotton dual linear spider
  • Embedded 16AWG tinsel leads
  • Venturi-Effect cooling increases air speed across key thermal components of the speakers motor parts to maximize cooling
  • Reverse mountable subwoofer with reversible diamond cut cast aluminum trim ring
  • Tall profile surround allows maximum linear travel without reducing overall piston size
  • Extended pole piece and bumped backplate
  • 2.5" High temp 4-layer voice coil with spun-laced Nomex® reinforced collar
  • Anodized aluminum voice coil former quickly dissipates thermal build-up on the voice coil
  • 102 oz. double stacked ferrite magnets
  • Protective PVC textured magnet cover
  • Dual 10AWG compression speaker connectors
  • Frequency response: 27-250 Hz
  • Sensitivity: 85 dB
  • CEA-2031 Compliant
  • 1-year Sonic Electronix.com warranty

Product history:

Rockford Fosgate P3D4-12 thumbnail
(newest, current model)
Rockford Fosgate P3D412 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3D4-12)
Rockford Fosgate P312D4 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3D412 (09P3D412))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3D412 (09P3D412) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3D412 (09P3D412) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3D412 (09P3D412) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3D412 (09P3D412) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Frequency Response
27 - 250 Hz
Sensitivity
85 dB
Xmax (millimeters)
16-3/16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Reinforced Semi-Pressed Paper
Woofer Surround
Poly-Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.79 cubic feet
Maximum Ported Box Volume
1.79 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P3D412

Weight:

25.00lbs

Internal SKU:

09p3d412

Internal Product ID:

9105
