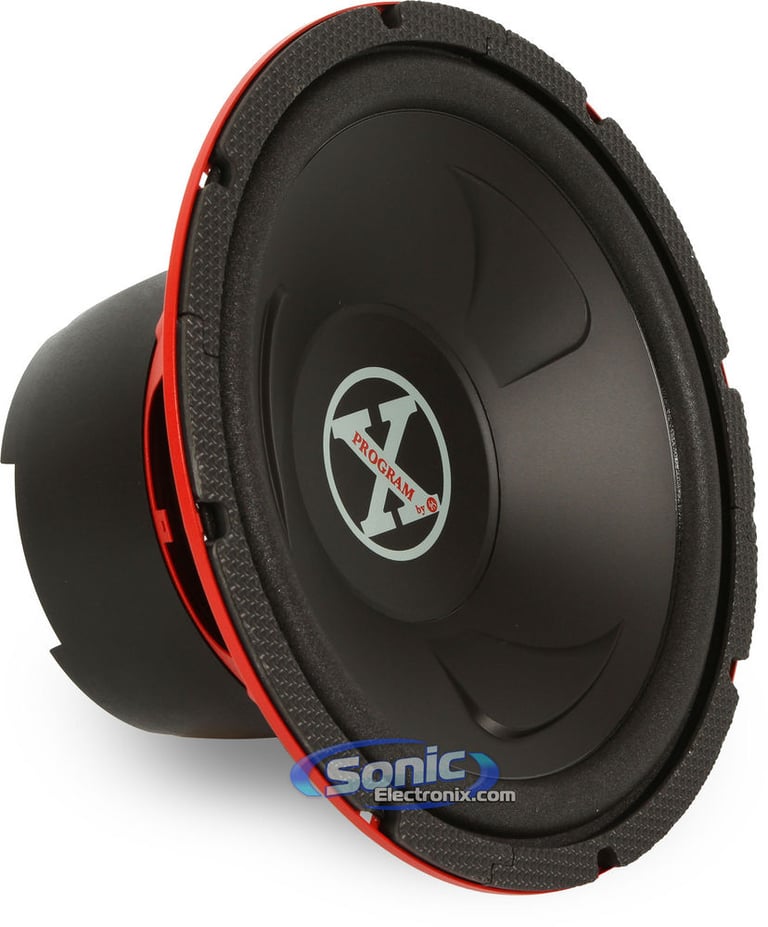

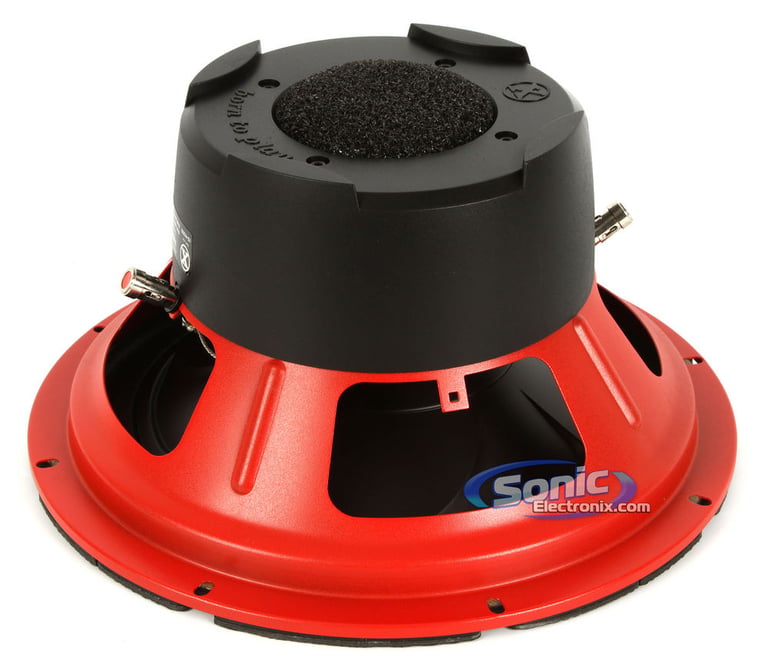

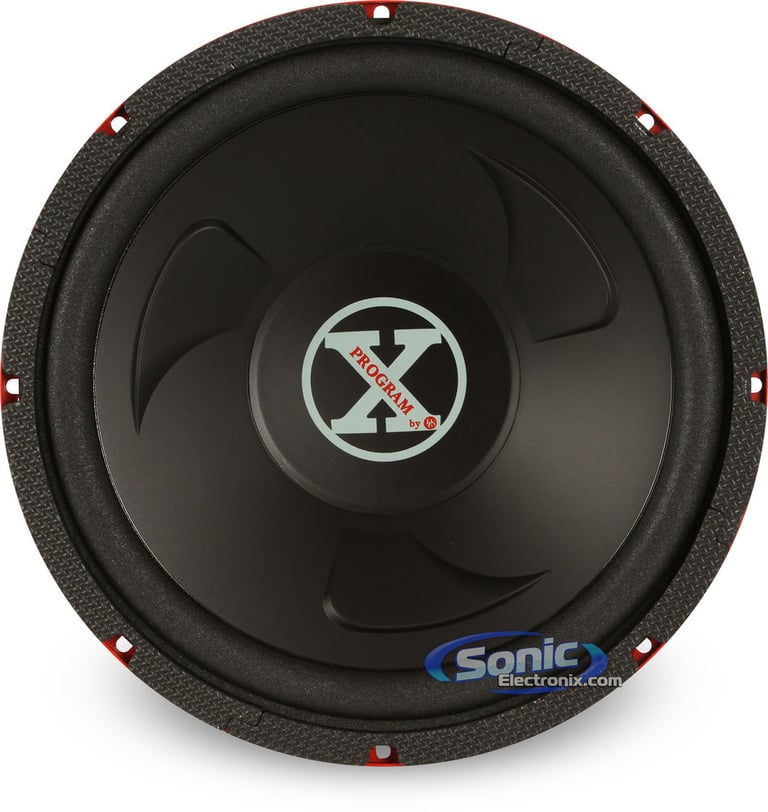

DLS X-Program X-WB12

12" Single 2 ohm X-Program WB Series Car Subwoofer

DLS
Shop all DLS
EXCLUSIVE
Product videos
highlight-star-icon

• Peak Power: 1000 Watts
• RMS Power: 250 Watts
• Non-Pressed Paper Reinforced Cone with Carbon Fiber
• Rubber Surround
• Chrome Steel Basket
• Gold-Plated Terminals

Learn more about the xwb12

We apologize

This item has been discontinued


Loading...
KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DSX-A415BT main

Sony DSX-A415BT (DSXA415BT)

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

6
-21.33%

$118.00

List price $149.99

KD-X560BT main

JVC KD-X560BT

Single DIN Marine Digital Audio Receiver with Bluetooth

4
-7.65%

$239.00

List price $258.80

Product Highlights


• Peak Power: 1000 Watts
• RMS Power: 250 Watts
• Non-Pressed Paper Reinforced Cone with Carbon Fiber
• Rubber Surround
• Chrome Steel Basket
• Gold-Plated Terminals

Description


DLS brand icon

Authorized dealer

X-Program by DLS: Born to Play

The DLS X-Program was designed for those that love their music and love to listen at high levels. This specialized line from DLS has everything you need for a high-end, audiophile sound system. With precise engineering, these items still offer complete control of your audio and help you preserve the sound quality. The X-Program from DLS is a Sonic Electronix exclusive and is the perfect blend of performance and price. Just like the rest of the DLS products, the X-Program is designed and engineered by DLS in Sweden.

  • 12" Single 2 ohm Performance W Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Impedance: 2 ohm
  • Non-Pressed paper reinforced cone with carbon fiber
  • Chrome steel basket
  • Gold-Plated terminals
  • Designed for sealed subwoofer enclosures
  • Mounting Depth: 5-3/4"
  • Mounting Hole: 10.94"
  • Frequency response: 20-2,000 Hz
  • Sensitivity: 88 dB
  • X-Max: +- 9mm
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DLS X-Program X-WB12 Subwoofer

Mono Amp

Wiring Guide to Wire 2 DLS X-Program X-WB12 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 DLS X-Program X-WB12 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 DLS X-Program X-WB12 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
X-Program WB Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 2,000 Hz
Sensitivity
88 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
1.09 cubic feet
Maximum Sealed Box Volume
1.09 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
10.94"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

X-WB12

Weight:

7.00lbs

Internal SKU:

xwb12

Internal Product ID:

34918
