JBL LSR 2325P

Bi-Amplified Two-Way Studio Monitor

JBL
Shop all JBL
Product videos
highlight-star-icon

Bi-Amplified Two-Way Studio Monitors • Detented Level Control • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors • Magnetic Shielding

Learn more about the lsr2325p

We apologize

This item has been discontinued


Loading...
MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

Limited time!
Kappa 693M main

Infinity Kappa 693M (INFSPKKA693MAM)

720W Peak (240W RMS) 6x9” Kappa Series 3 Way Coaxial 3-ohm Speakers

6
-31.43%

$239.95

List price $349.95

REF-5032CFXAM main

Infinity Reference 5032cfx (REF-5032CFXAM)

270W Peak (90W RMS) 5.25" Reference Series 2 Way Coaxial 3-ohm Speakers

-42.32%

$74.99

List price $130.00

Product Highlights


Bi-Amplified Two-Way Studio Monitors • Detented Level Control • XLR, balanced 1/4" TRS, and RCA unbalanced input connectors • Magnetic Shielding

Description


JBL brand icon

Authorized dealer

The JBL LSR2325P Powered Studio Monitor:

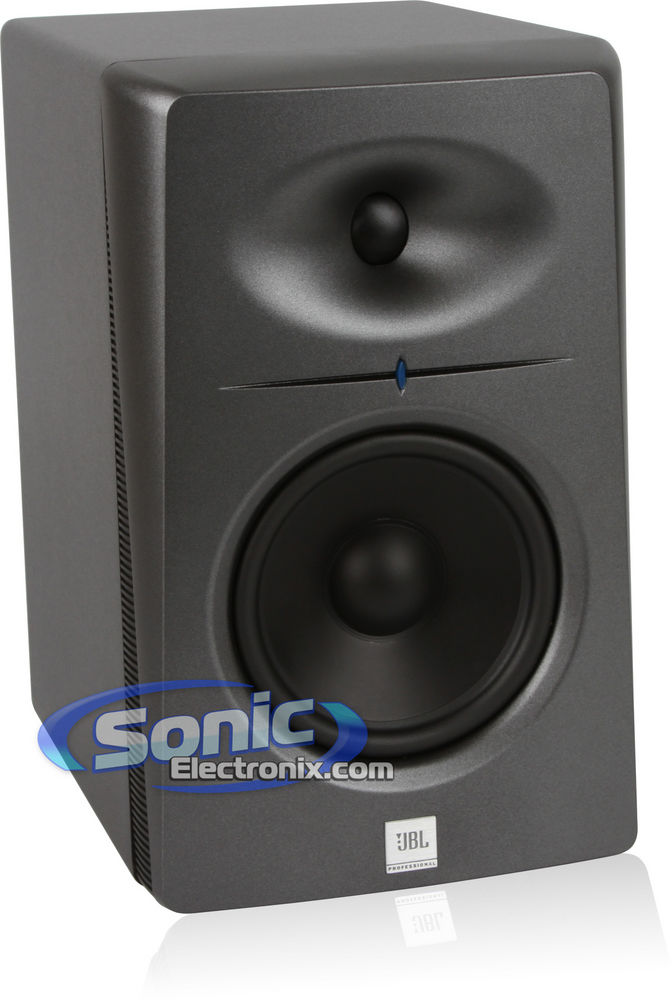

The LSR2325P Bi-Amplified 2-Way Studio Monitor is based on a 5" (132 mm) long excursion woofer and a 1" (25 mm) soft dome tweeter. It includes balanced XLR, balanced 1/4" TRS, and RCA unbalanced inputs to enable connection of audio visual equipment, computer audio interfaces, professional mixing consoles, and consumer audio systems. A detented level control gives users the ability to fine tune the levels on each speaker to properly balance the system. Low Frequency and High Frequency Trim controls enable users to tweak the speaker’s response to room acoustics or personal preference. A neoprene rubber pad on the bottom of the monitor offers acoustic isolation and increases stability when the speaker is placed on a speaker stand or a console top. Mounting points are included and the enclosure has been reinforced for safe mounting using industry-standard mounting hardware.

Product Features & Specifications:

  • Frequency Range: 43 Hz - 20 kHz
  • Low-High Frequency Crossover: 1.7 kHz 4th-order acoustic Linkwitz-Riley
  • Maximum Continuous SPL each / Per Pair @ 1m >101 dB SPL / >107dB SPL
  • Maximum Peak SPL Each/ Per Pair @ 1m >112 dB / >118 dB SPL / 1m

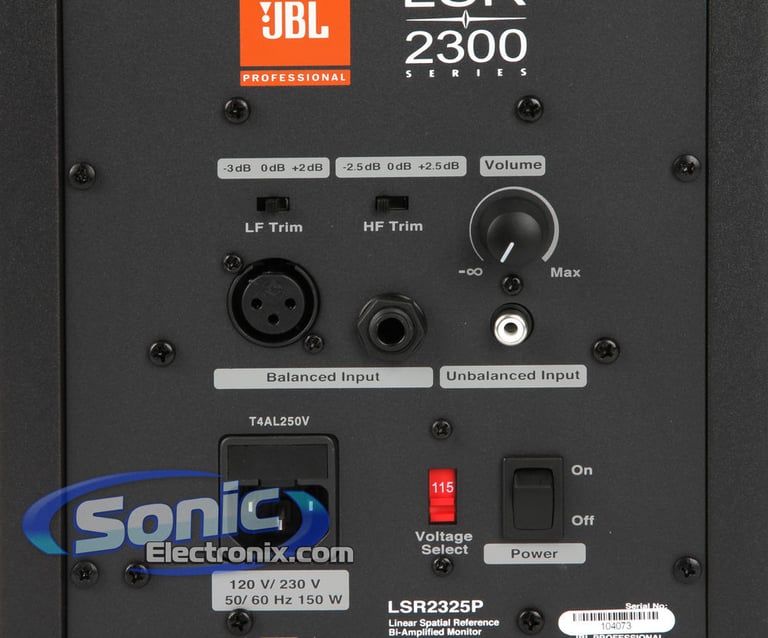

  • Input Connectors: Balanced XLR, 1/4" tip-ring-sleeve and unbalanced RCA. Positive voltage applied to XLR pin 2 , 1/4" tip, RCA pin produces outward woofer motion
  • Calibrated Input Sensitivity, XLR & 1/4": -10dBV 92 dB SPL / 1 m
  • RCA Input: -22dBV 92 dB SPL / 1 m
  • AC Input Voltage: 115 / 230 VAC, 50/60 Hz
  • AC Input Voltage Operating Range +/- 15%
  • Long-Term Maximum System Power: 21 watts (IEC265-5)
  • Impedance: 4 ohm
  • Magnet Type: Neodymium
  • EOS Elliptical Oblate Spheroidal waveguide with Elliptical Aperture
  • THD + N, H Power: <0.05%
  • Enclosure Volume (net): 7.1 liter (0.25 cu. ft.)
  • Dimensions: 11-15/16"L x 7-7/16"W x 10"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Specifications & Details


General Features
Monitor Type
Near-Field Active
Peak Power
90 watts
Frequency Response
43 - 20,000 Hz
Maximum Sound Pressure Level (SPL)
112 dB
Crossover Frequency
1,700 Hz
Sensitivity
92 dB
THD (Total Harmonic Distortion)
0.05%
Digital Inputs
None
Inputs
1/4" TRS
RCA Composite
XLR
Outputs
None
Controls
Power On/Off
Volume Knob
Monitors Included
1 (Single)
High Frequency Driver
Speaker Size
1"
Speaker Design
Soft Dome
Low Frequency Driver
Speaker Size
5"
Studio Monitor Features
Enclosure Type
Ported
Height
12"
Width
7-1/2"
Depth
10"
Weight (Pounds)
16 lbs
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

LSR 2325P

Weight:

18.10lbs

Internal SKU:

lsr2325p

Internal Product ID:

35044
