See all parts that fit your 2015 Sonic

MobileVision C-SDL

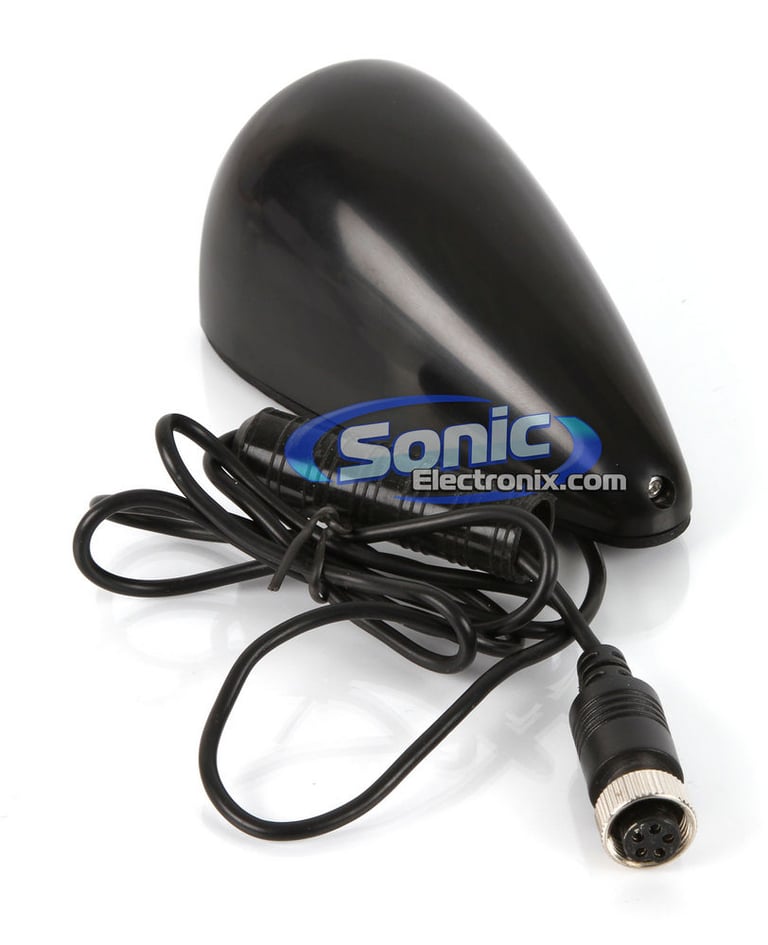

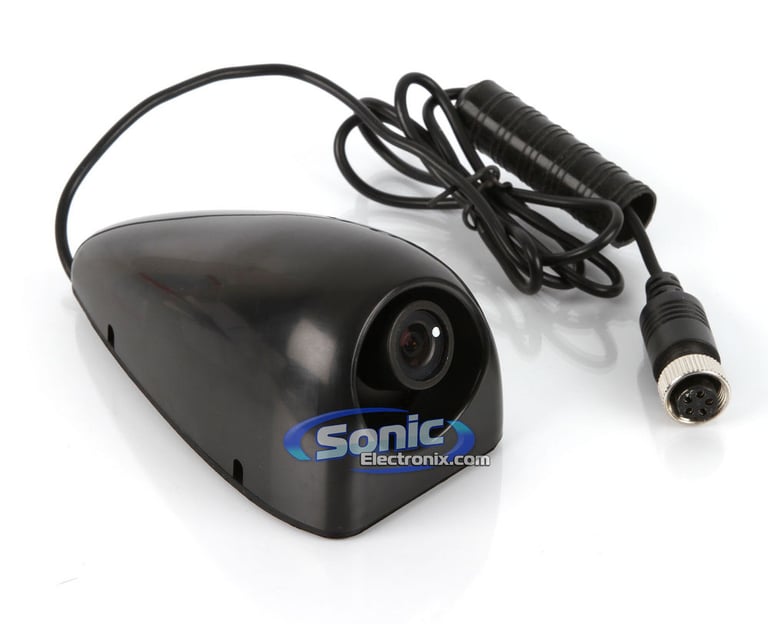

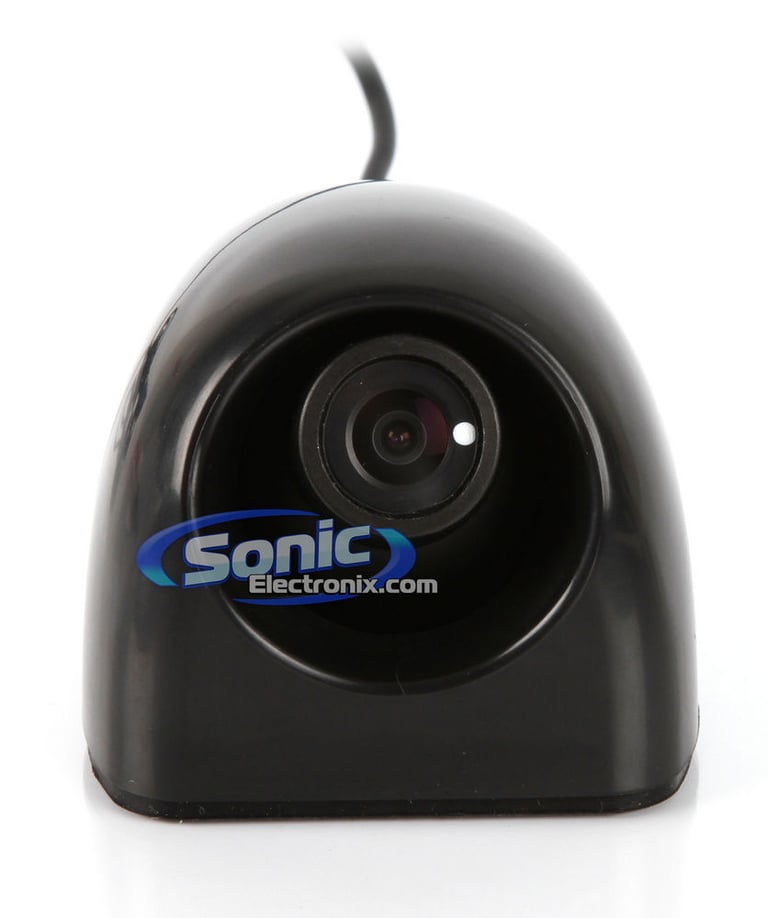

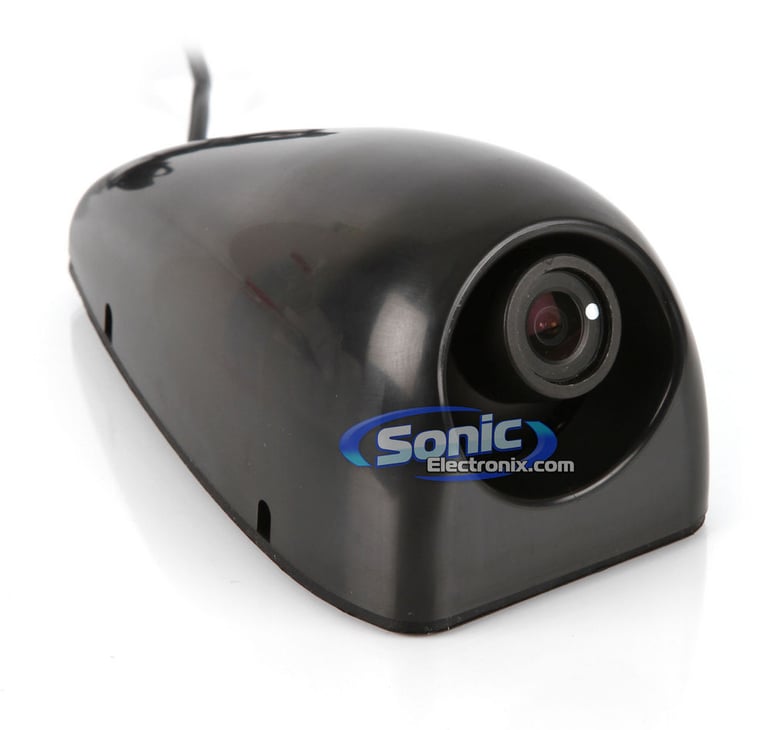

Compact Color CCD Side View Camera (Left Side)

Product videos
highlight-star-icon

• Custom Side Mount 1/3" Color Camera
• Waterproof camera and housing
• Reverse image
• Night Vision
• 92°-120°° Adjustable Viewing Angle
• Paintable Housing

Learn more about the csdl

We apologize

This item has been discontinued


Loading...
40-EU55 main

Metra 40-EU55

Antenna Adapter for select 2000-2026 vehicles from Audi, Chevrolet, Ram

49
-13.05%

$19.99

List price $22.99

99-3012G main

Metra 99-3012G (Includes Wiring Harness)

Single DIN / Double DIN Installation Kit for select 2012-2016 Sonic

2
-31.18%

$255.99

List price $371.99

GMK315DA main

American International GMK315DA

Single DIN or Double DIN Stereo Dash Kit for select 2012-2016 Sonic (Dark Argent)

1
-54.07%

$33.99

List price $74.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

10
-37.63%

$499.00

List price $800.00

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

DCPA723W main

Dual DCPA723W

7” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto

4
-16.67%

$239.99

List price $287.99

CVMPCL6.5 main

Cerwin Vega CVMPCL6.5 (Sold Individually)

200W Peak (100W RMS) 6.5" Stroker Pro Series Full Range 4-ohm Speakers

9
-16.67%

$99.99

List price $119.99

Product Highlights


• Custom Side Mount 1/3" Color Camera
• Waterproof camera and housing
• Reverse image
• Night Vision
• 92°-120°° Adjustable Viewing Angle
• Paintable Housing

Description


MobileVision brand icon

Authorized dealer

General Features:

  • Custom side mount 1/3" color camera
  • Specifically designed for left (model: C-SDL) side mounting
  • Easy mounting
  • Waterproof camera and housing
  • Reverse image
  • Night vision
  • 92°-120° adjustable viewing angle
  • Paintable housing
  • Also available for Right Side
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Specifications:

  • Image Sensor: 1/3" Sharp Color CCD with Low Illumination
  • Board Lens: 2.8 mm
  • Resolution: 420 TV Lines
  • S/N Ratio: 48dB (AGC On)
  • Diagonal Lens Angle: 120°
  • Sync System: Internal Synchronization
  • Minimum Illumination: 1 Lux
  • Video Output: 1.0Vp-p 75 ohm
  • Water Resistance: Ip66
  • Power Consumption: 120 mA
  • Camera & Bracket Weight: 350g
  • Operating Temperature: -20°C to -70#deg;C
