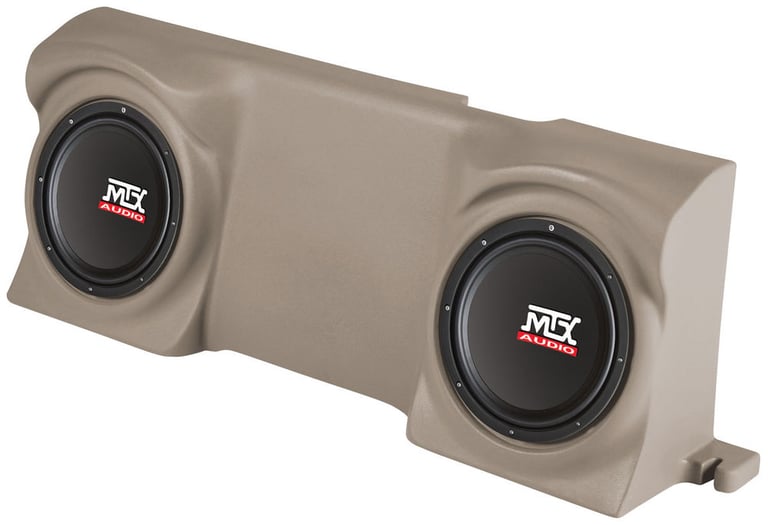

MTX Audio Thunderform F150R04T24A-TN (Tan, Amplified)

Ford F-150 Regular Cab 2004-2008, Amplified 2 12" 4 ohms Loaded Car Specific Thunderform Enclosure

MTX
Shop all MTX
highlight-star-icon

• Dual 12" Loaded MTX Thunderform Sealed Subwoofer Enclosure
• For 2004-2008 Ford F-150 Regular Cab
• Loaded with 12" Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 ohm
• Polypropylene Cone

Learn more about the f150r04t24atn

We apologize

This item has been discontinued


Loading...
TS-A878 main

Pioneer TS-A878

120W Peak (30W RMS) 3.5" A-Series 2-way 4-ohm Coaxial Speakers for select GM, Ford and Volkswagen models

31
-28.59%

$49.99

List price $70.00

REF-5032CFXAM main

Infinity Reference 5032cfx (REF-5032CFXAM)

270W Peak (90W RMS) 5.25" Reference Series 2 Way Coaxial 3-ohm Speakers

-42.32%

$74.99

List price $130.00

R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34

Description


MTX brand icon

Authorized dealer

Authorized MTX Dealer

Subwoofer Features:

  • Dual 12" Terminator Series Subwoofers
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 4 ohm
  • Polypropylene cone
  • Rubber surround
  • MTX Audio logo on dustcap
  • 1-1/2" Aluminum voice coil
  • 28 oz. Magnet structure
  • Frequency response: 24 - 160Hz
  • Sensitivity: 85.8 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Enclosure Features:

  • Dual 12" Sealed Loaded Thunderform Subwoofer Enclosure
  • For 2004-2006 Ford F-150 Regular Cab

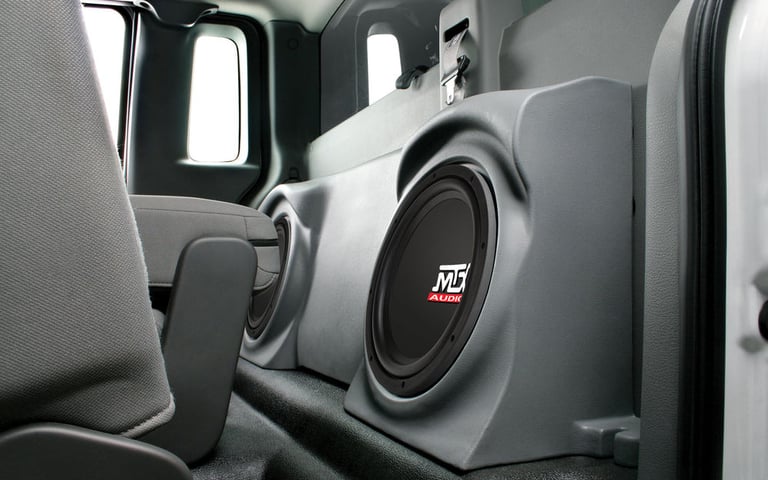

  • Mounts behind the front seat
  • Jack stays in factory location and is still accessible
  • Install hardware included
  • Made of a high density polyethylene resin, which is flexible enough to transform into a variety of shapes and sizes, yet strong enough to avoid flexing
  • Enclosure volume: 2.5 cubic feet, sealed
  • Molded factory color is Tan
  • Also available in: Charcoal, Black
  • Dimensions: 8"TD x 10"BD x 53-1/2"W x 18"H

Note: Since each MTX Audio Thunderform is custom made to order, it can ship within 2 to 5 business days. When ordering please allow enough time for the manufacturing and shipping of the product.

Product history:

MTX F150R04T24A-TN thumbnail
(newest, current model)
MTX F150R04T24A-T45 thumbnail
(previous model, replaced by MTX Audio Thunderform F150R04T24A-TN (Tan, Amplified))

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

DRQC20AC-TN small

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

• Dual 10" Loaded Amplified MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 Ohm

(2)

$899.95

List price $802.95

C1500C-07A small

MTX C1500C-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

J-WRANGLER-07L small

MTX J-WRANGLER-07L

• 1 10" MTX ThunderForm Series Subwoofer
• 250 watts RMS ( Peak)
• Final Impedance: 4-ohm
• Dimensions: 17-4/5" L x 16-5/16" H x 6-9/16" W

$719.95

List price $639.95

C1500EX-07A small

MTX C1500EX-07A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

F-150C-09A small

MTX F-150C-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

DRQC20C-TN small

MTX Audio Thunderform DRQC20C-TN (Charcoal, Loaded)

• Dual 10" Loaded MTX Thunderform Subwoofer Enclosure
• For Dodge Ram Quad Cab 2002-2014
• Loaded with Dual Terminator Series Subwoofers
• 800W Max
• 400W RMS
• 4 ohm
• Polypropylene Cone

$719.95

List price $637.95

F150C04BK12A-TN small

MTX Audio Thunderform F150C04BK12A-TN (Black, Amplified)

• Amplified 12" Loaded MTX Thunderform Sealed Subwoofer Enclosure
• For 2004-2008 Ford F-150 Crew/Ext Cab
• Loaded with 12" Terminator Series Subwoofers
• 400W Max
• 200W RMS
• 4 Ohm

$719.95

List price $637.95

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
200 watts
Total RMS Power Handling
400 watts
Peak Power Handling
400 watts
Total Peak Power Handling
800 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Sensitivity
87.8 dB
Frequency Response
24 - 160 Hz
Subwoofer Size
12"
Enclosure Specifications
Number of Subwoofers
2
Box Style/Shape
Vehicle Specific
Height
18"
Width
53-1/2"
Depth
8"
Second Width
10"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Brown
Box Finish
Paint
Final Wired Impedance
4-ohm
Type of Enclosure
Loaded and Amplified
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

F150R04T24A-TN

Weight:

54.00lbs

Internal SKU:

f150r04t24atn

Internal Product ID:

36460
