1200W RE Audio + Hifonics Complete Bass Package

2 RE Audio 10" SEX10D4 Subs + Hifonics Brutus BRZ1200.1D Amp + Amp Kit + 10DSPF Enclosure + ANL Fuse

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 10" Dual 4 ohm SEX Series Car Subwoofers • Dual 4 Ohm • 1200W RMS • Brutus Series Monoblock Class D Car Amplifier • MOSFET Power Supply • Wired HFR-3 Remote Bass Level Control Included • Variable Low-Pass Filter • 4-way Protection Circuitry

Learn more about the 2-sex10d4_brz12001d

We apologize

This item has been discontinued


Loading...
THUNDER61 main

MTX Audio THUNDER61

180W RMS 6.5" Thunder Series 2 Way Component 4-ohm Speaker System

2
S2-S40C main

Alpine S2-S40C

280W Peak (90W RMS) 4" S-Series Hi-Res 2-Way Component Car Speakers

1
-16.69%

$149.95

List price $180.00

Product Highlights


Pair of 10" Dual 4 ohm SEX Series Car Subwoofers • Dual 4 Ohm • 1200W RMS • Brutus Series Monoblock Class D Car Amplifier • MOSFET Power Supply • Wired HFR-3 Remote Bass Level Control Included • Variable Low-Pass Filter • 4-way Protection Circuitry

Description


RE Audio brand icon

Authorized dealer

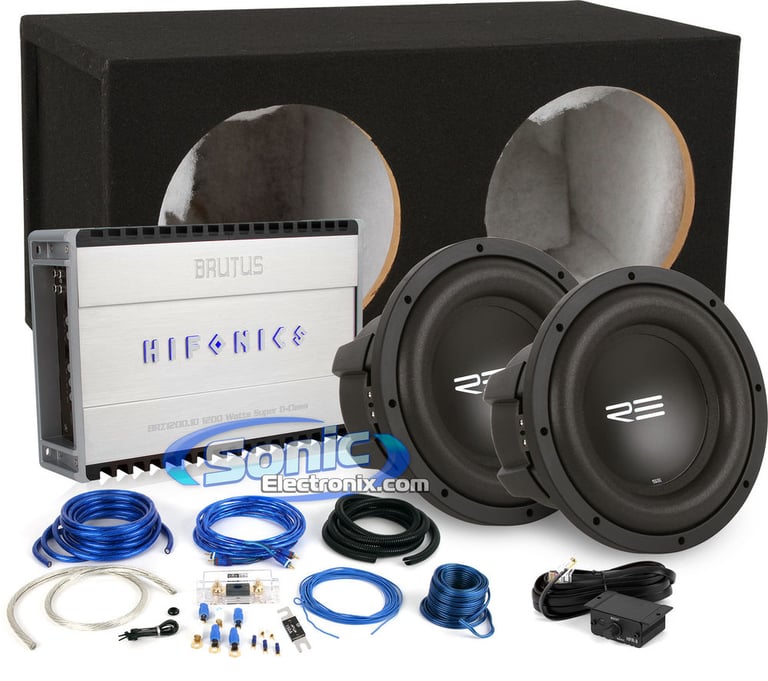

RE Audio and Hifonics Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Hifonics Brutus BRZ1200.1D Amplifier along with a pair of 10" SEX Series RE Audio Subwoofers. This excellent bass package pushes 1200 watts of clean, continuous RMS power. The RE Audio Subwoofers each have Dual 4 Ohm Voice Coils; meant to be wired in parallel/parallel, that is to say you wire the voice coils in parallel and then the subs in parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

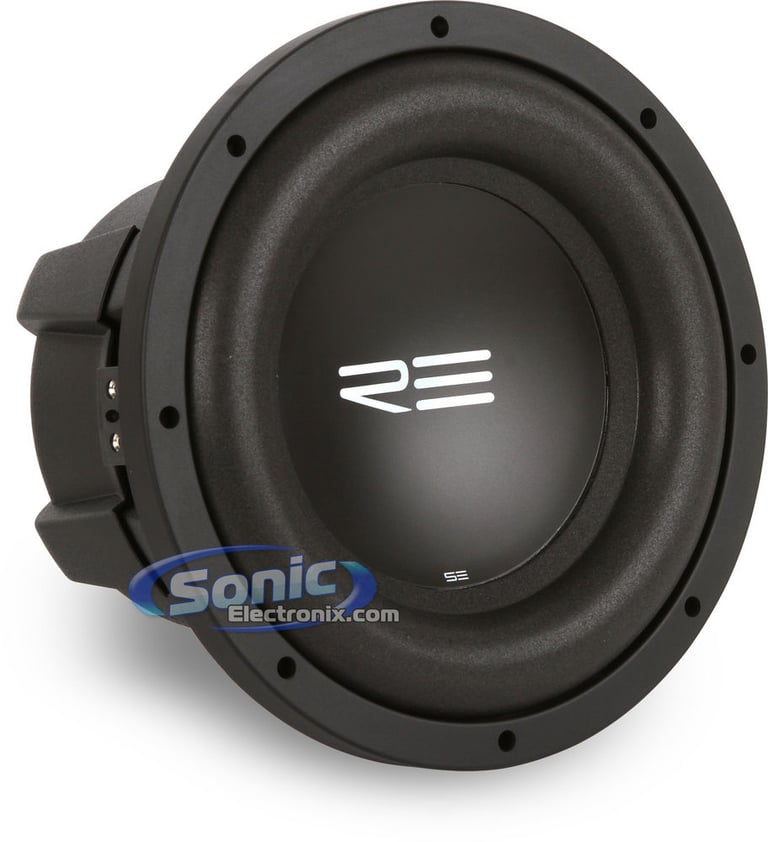

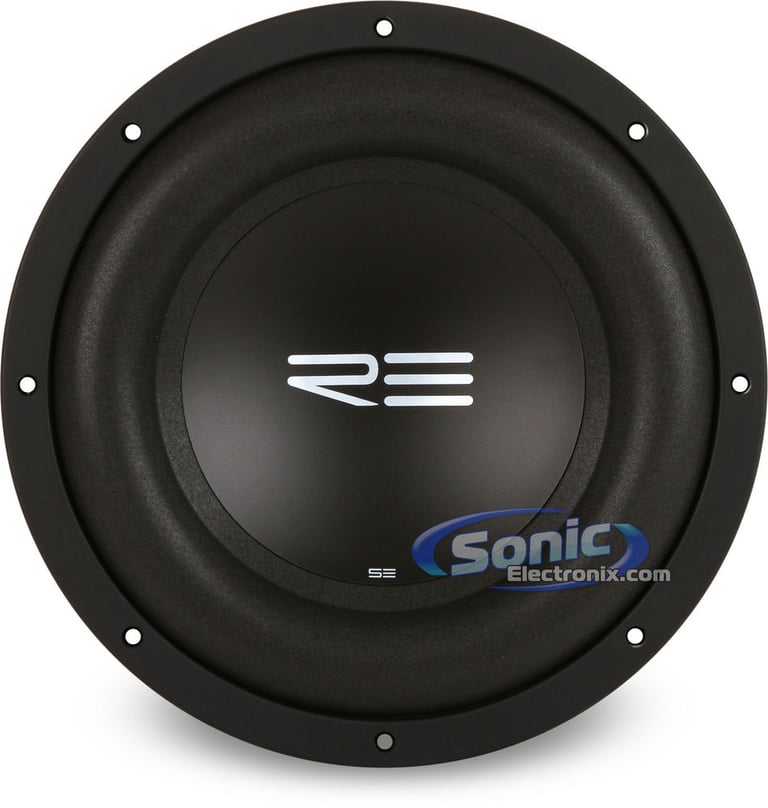

These RE Audio SEX10D4 10" SEX Series subwoofers require 1200 watts of RMS power. The included Hifonics Brutus BRZ1200.1D amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. To make this a complete package a dual 10" sealed enclosure will also be included in this deal. The enclosure is made from 3/4" MDF wood and is pre-lined with Poly-Fil for optimum sound production. With the pair of RE Audio subs, Hifonics amplifier, dual 10" sealed enclosure, and amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

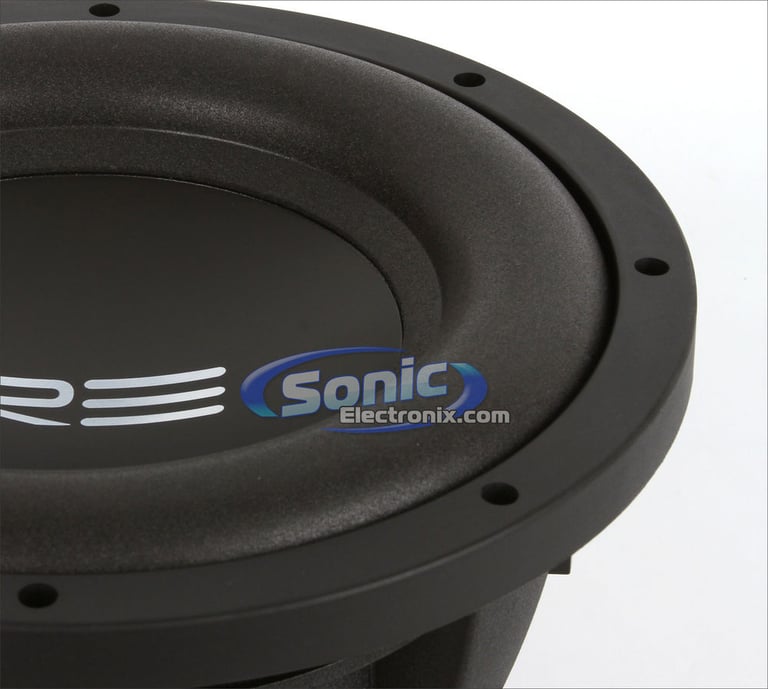

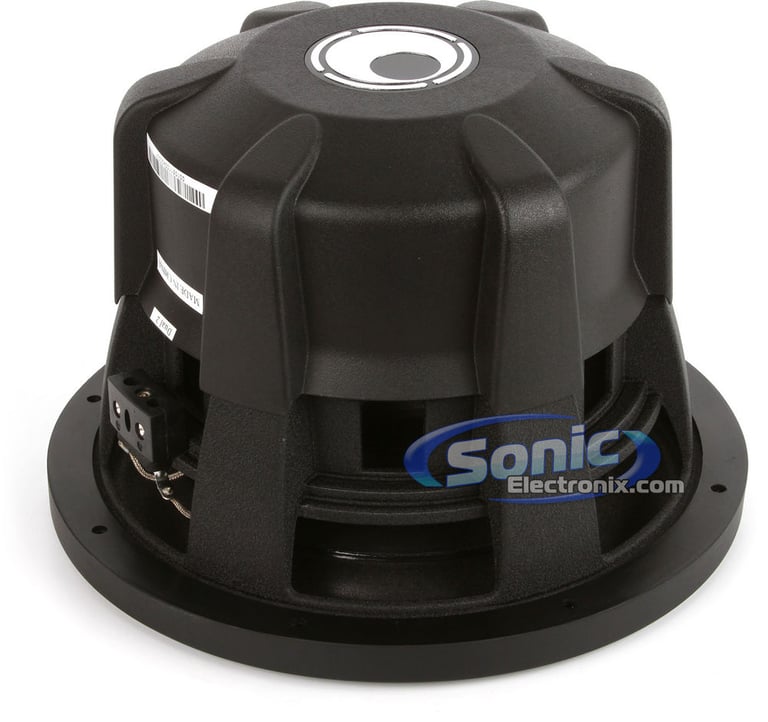

RE Audio SEX10D4 Features:
  • Pair of 10" Dual 4 ohm SEX Series Car Subwoofers
  • Power Handling:
    • RMS: 1200 watts total / 600 watts each
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

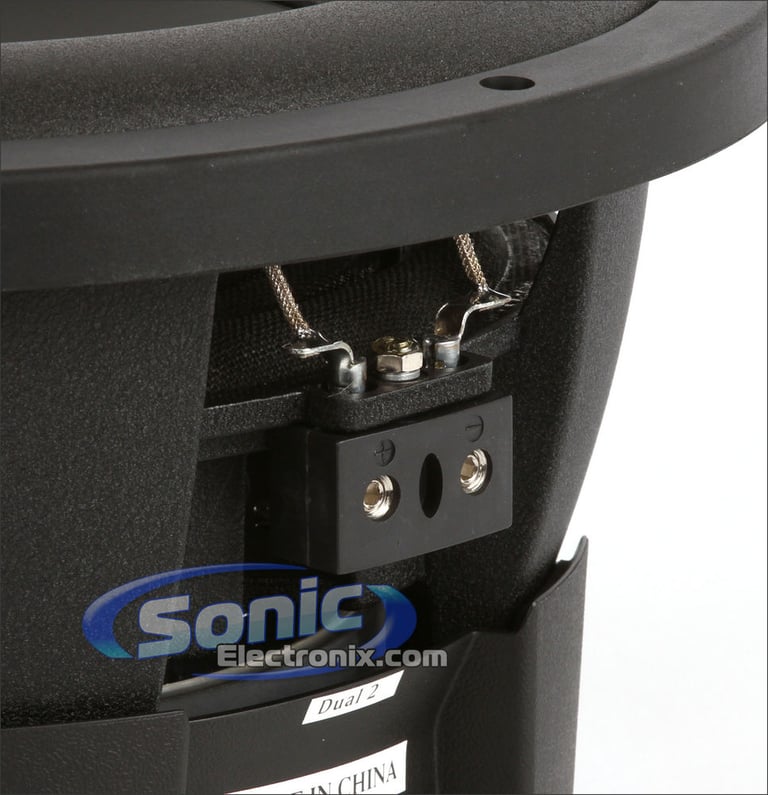

  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Triple stacked magnets
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SEX 10" T/S Parameters:
  • Electrical Q Value (Qes): 0.46
  • Mechanical Q Value (Qms): 4.4
  • Total Speaker Q Value (Qts): 0.42
  • Free Air Resonance (Fs): 26.6 Hz
  • Equivalent Compliance (Vas): 31 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 83.2 dB SPL
  • Effective Piston Area (Sd): 310 cm2
  • DC Resistance (Re): 2.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 600 W
  • Force Factor (Bl): 17.7

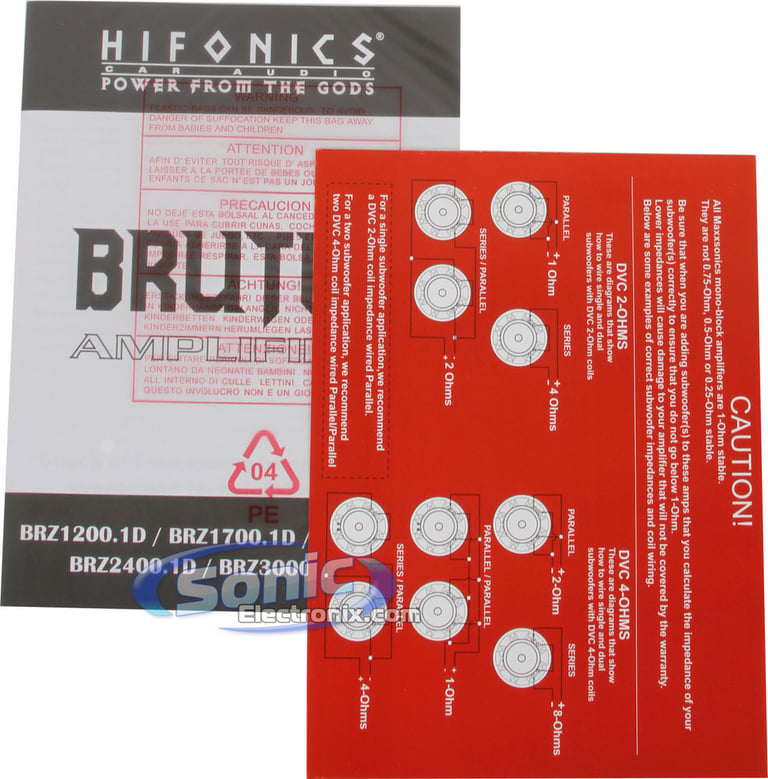

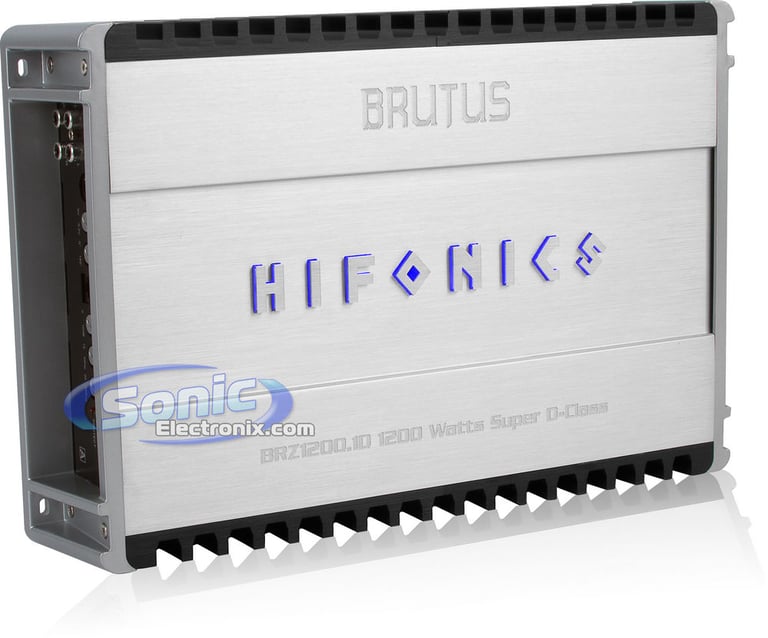

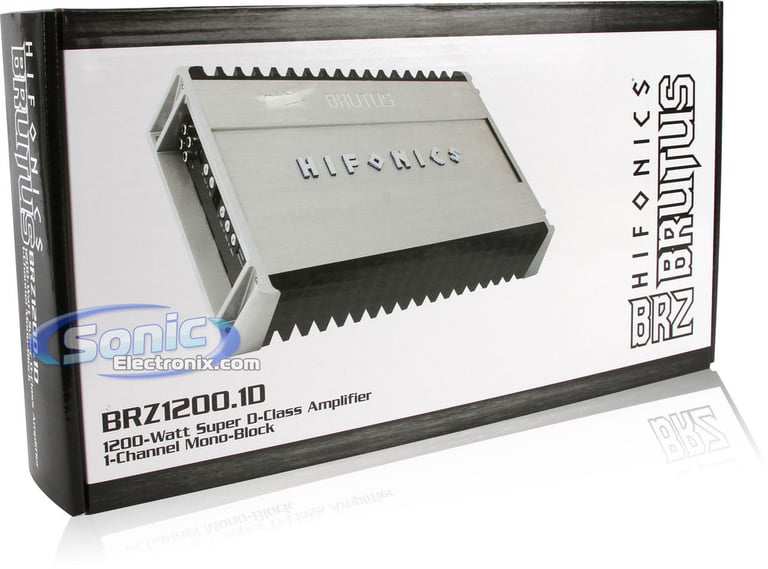

Hifonics Brutus BRZ1200.1D Features:
  • Brutus Series Monoblock Class D Car Amplifier
  • RMS Power Rating (@ 14.4V):
    • 4 ohm: 450 watts x 1 chan.
    • 2 ohm: 900 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • MOSFET power supply

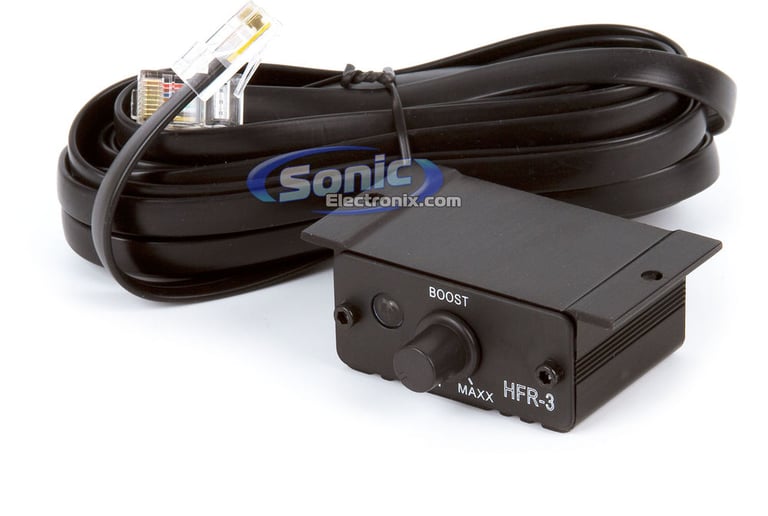

  • Wired HFR-3 remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, speaker short and DC protect)
  • Heavy duty aluminum alloy finned heatsink for maximum heat dissipation
  • Silver-plated unbalanced RCA level inputs

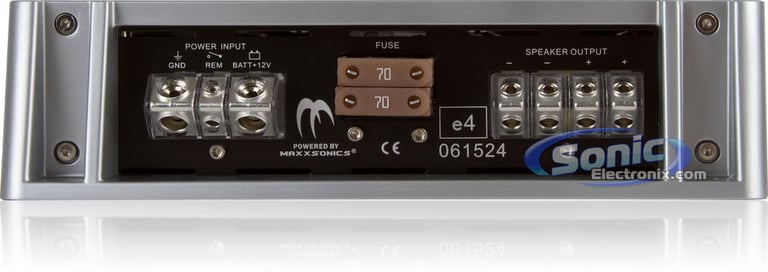

  • Silver-plated molded screw terminals

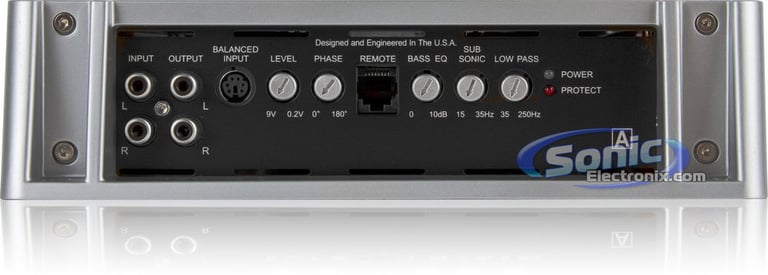

  • Input sensitivity:
    • Input Level (Unbalanced): 0.2V-9V
    • Input Level (Balanced): 0.04V-18V
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (15-35 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >290
  • Frequency response: 35-250 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 14-5/8"L x 9-1/4"W x 2-7/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

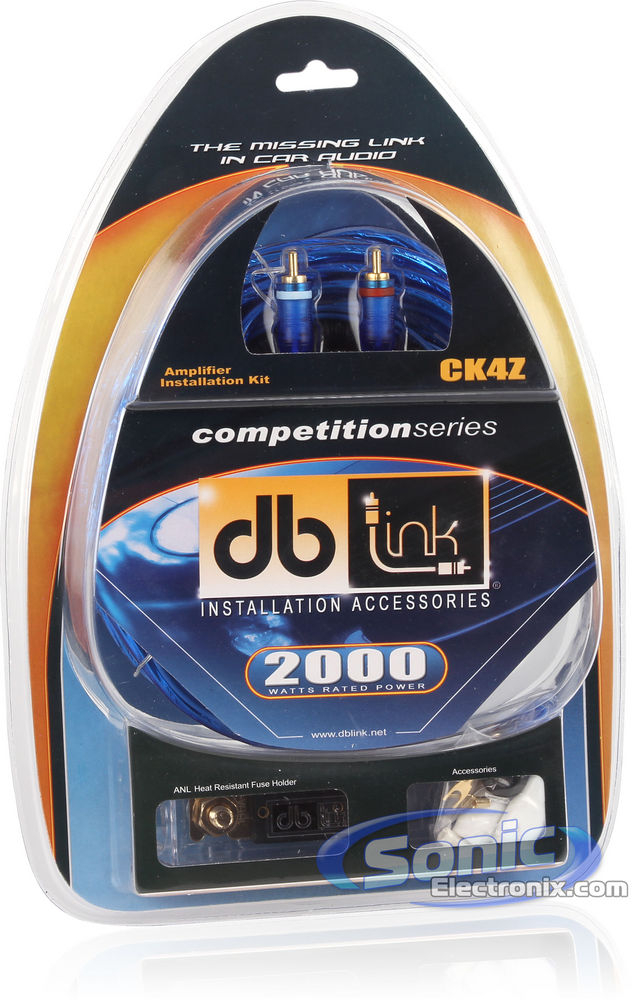

db Link CK4Z Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 2000 watts
  • Premium power and ground wire provides optimal power transfer
  • Made with oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Terminals are nickel-plated for excellent signal transfer
  • ANL Fuse holder offers ideal protection for mid level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
db Link CK4Z Includes:

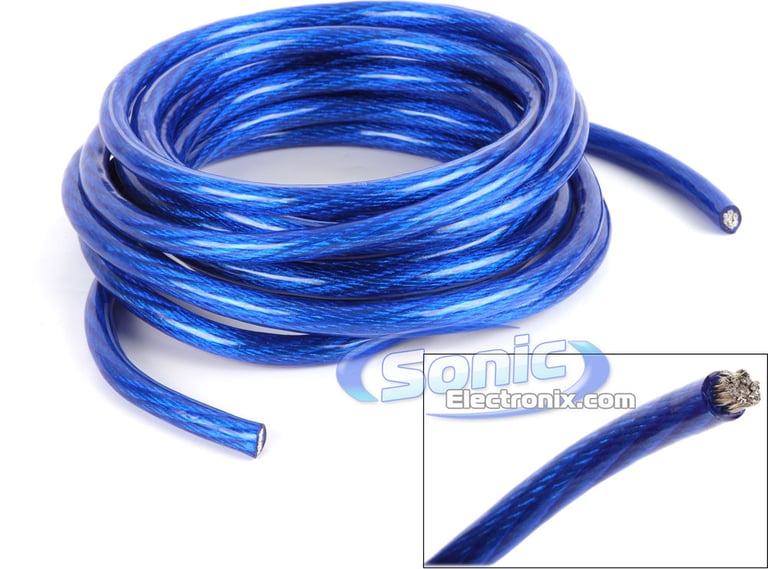

  1. 17 ft. of 4 AWG Blue power cable

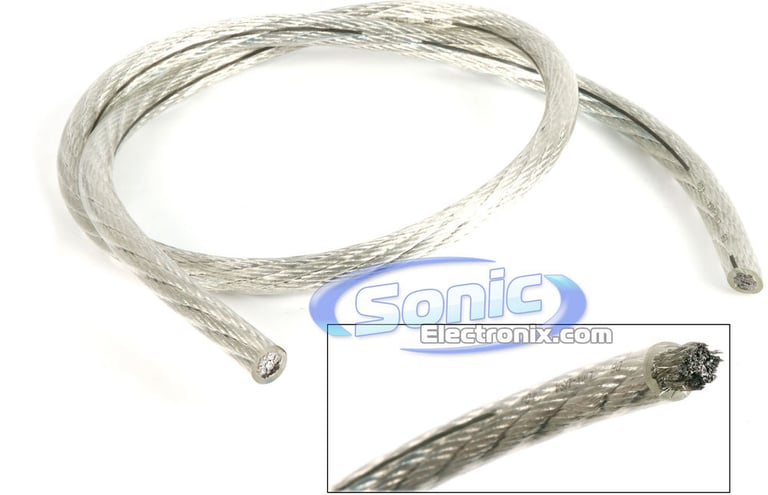

  2. 3 ft. of 4 AWG Silver ground cable
  3. 17 ft. of 18 AWG Blue remote turn-on wire

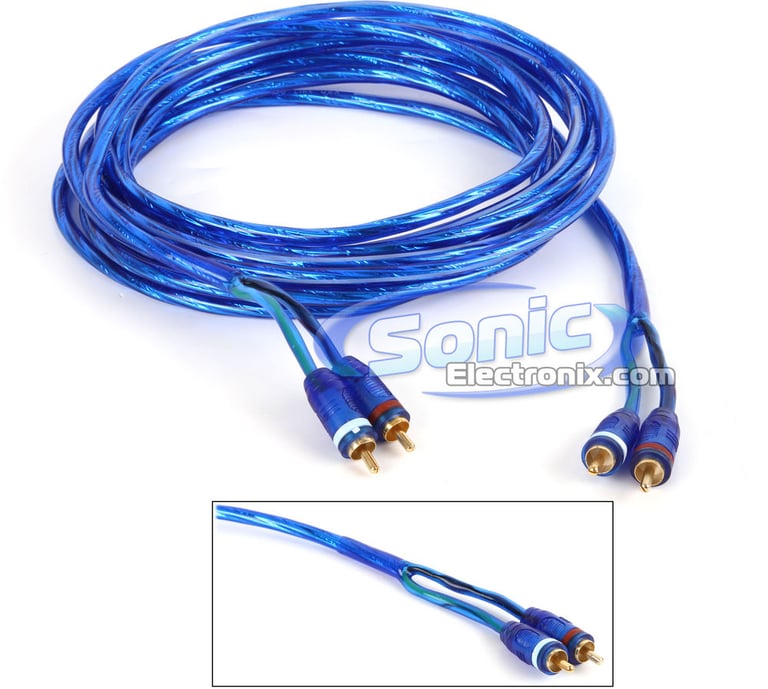

  4. 17 ft. of Blue twisted pair shielded RCA cable

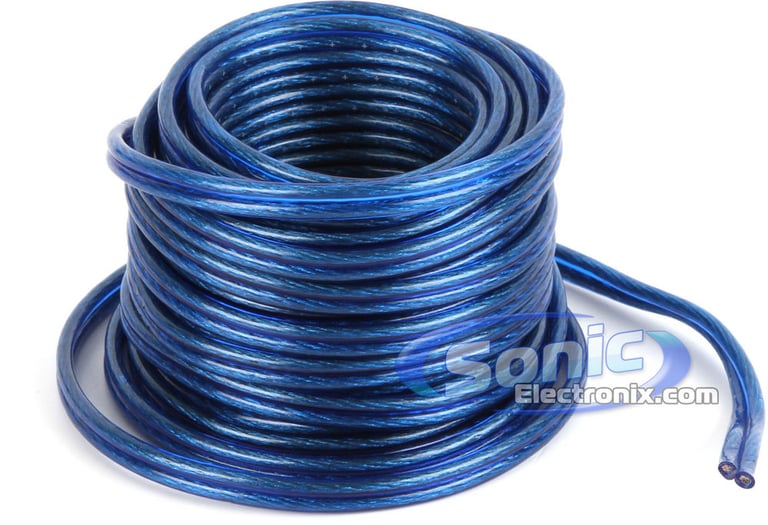

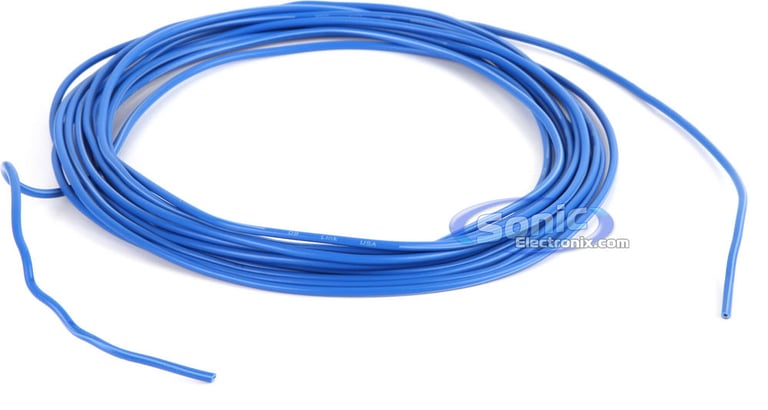

  5. 25 ft. of 16 AWG Blue speaker wire

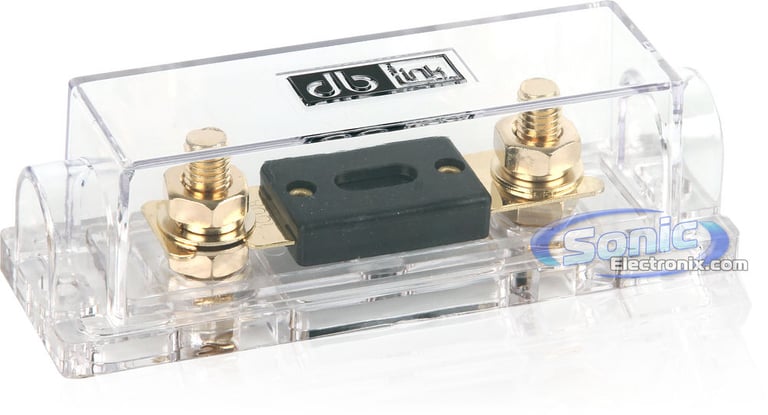

  6. 4 AWG In-line ANL fuseholder
  7. 100 Amp ANL fuse

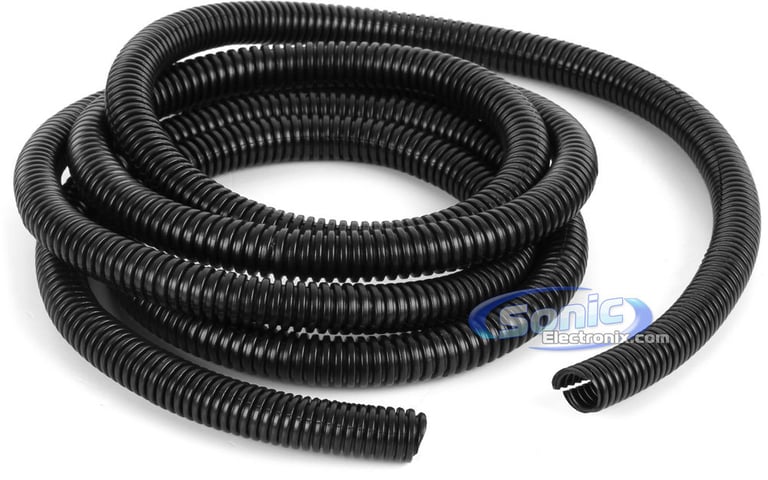

  8. 6 ft. Black split loom tubing

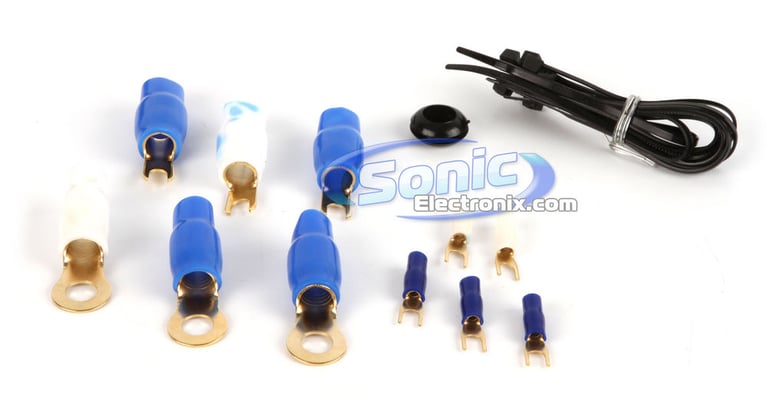

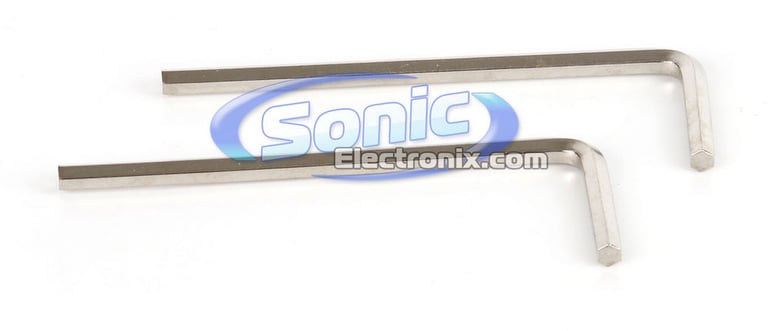

  9. Other Installation Accessories

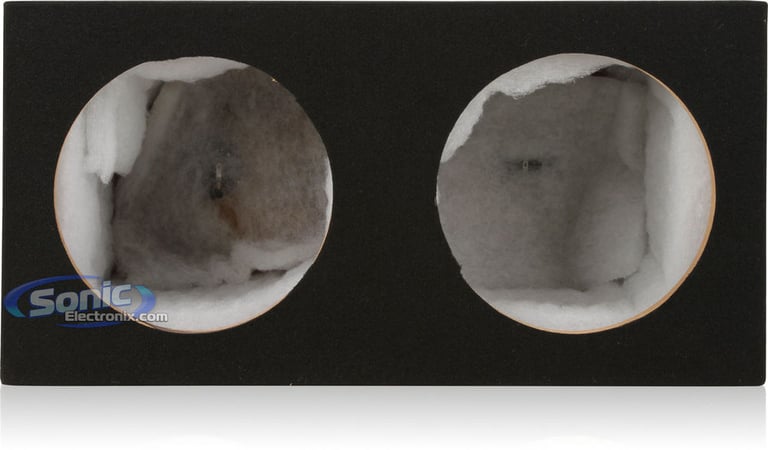

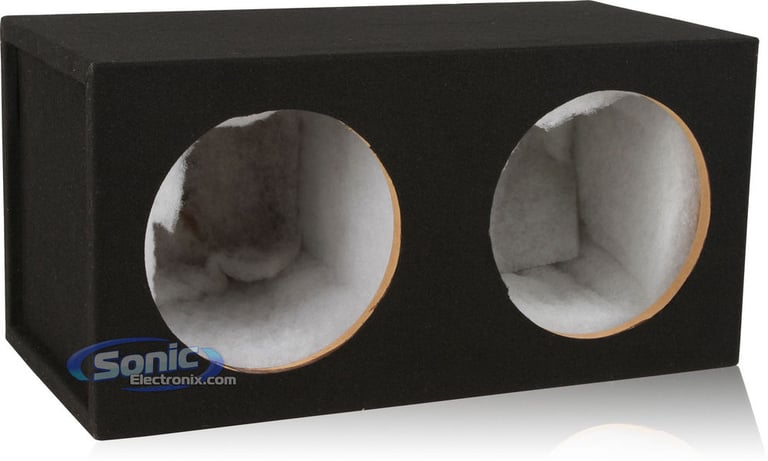

Enclosure Features:
  • 10" Dual Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

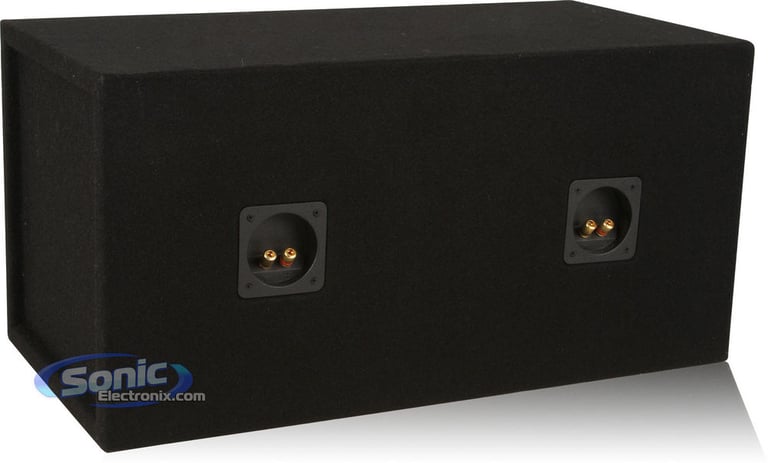

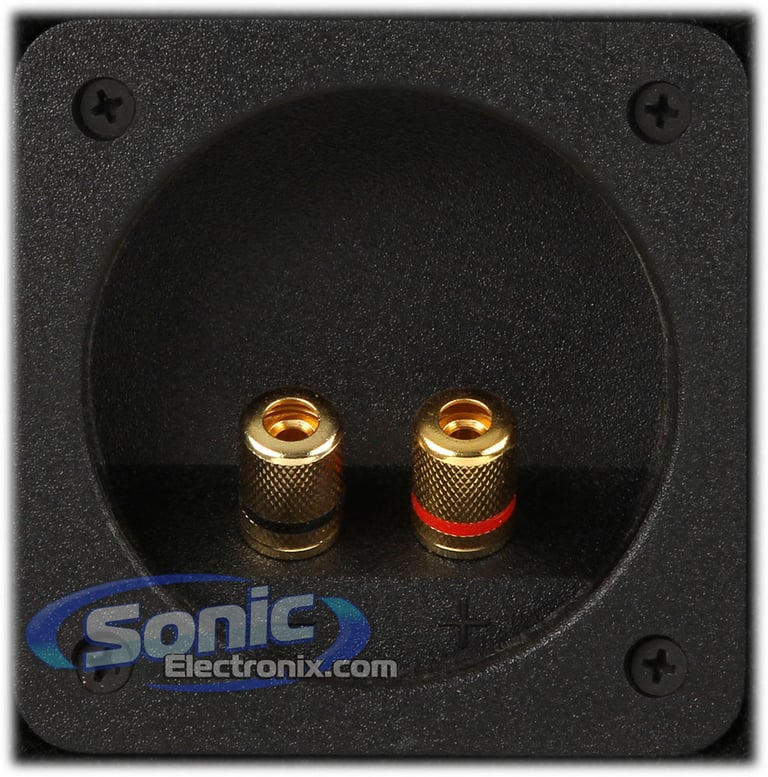

  • Two sets of gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 11"
  • Subwoofer cutout diameter: 9-1/8"
  • Box volume: 0.76 cubic feet (per chamber)
  • Total box volume: 1.52 cubic feet
  • Dimensions: 12-1/2"D x 25"W x 12-1/2"H

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(260)

$491.43

List price $682.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$309.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
450 watts x 1 channel
RMS Power @ 2 ohms
900 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
70A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Number of Subwoofers
2
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
600 watts
Total RMS Power Handling
1200 watts
Peak Power Handling
Not Specified
Total Peak Power Handling
Not Specified
Woofer Surround
Rubatek Foam
Woofer Composition
Dual Composite 2-Piece Cone
Minimum Sealed Box Volume
0.4 cubic feet
Maximum Sealed Box Volume
0.65 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Xmax (millimeters)
18 mm
Top-Mount Depth (Mounting Depth)
6-1/2"
Cutout Diameter
9-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-SEX10D4_BRZ1200.1D

Weight:

93.25lbs

Internal SKU:

2-sex10d4_brz12001d

Internal Product ID:

36484

Product and How-to Videos


Customer Ratings & Reviews


1200W RE Audio + Hifonics Complete Bass Package thumbnail image

5 star
74%
4 star
20%
3 star
6%
2 star
0%
1 star
1%



Durability
4.6
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Too powerful

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

If you're going to buy this amp, make sure you know what you're doing. This amp is the same internals as the hifonics 2400W amp just with a smaller current handling system. If you don't know how to tune it right you're going to be blowing subwoofers left right and center. The speaker output has been reading up to 62V (at 1 ohm that is equivelant to 3844W). With the fuses that are in it and over-current protection I was still able to blow my hifonics brutus 1200W Peak subwoofer. Aside from that amazing amp, beautiful power coming from it.

By Matthew on April 23, 2014

51 found this helpful


dtp

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

I been running the same hifonics amp since 2008 never had any problem with it so when I upgraded the sound system in my truck I went with 2 of these. I would recommend hifonics amps to anyone who want to upgrade without breaking the bank.

By Bojangles on April 28, 2014

47 found this helpful


HiFonics

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

For the price this product is well worth it. Big BANG for the BUCK! Completely satisfied and thinking about purchasing more HiFonics products.

By Derrick on February 26, 2013

46 found this helpful


Pretty cool amp for a decent price.

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

I would recommend this to anyone looking for a pretty nice sound system for a little bit cheaper. This amp is the perfect middle ground. It's not so nice as to where it'd break the bank but it's not so cheap that it can't deliver its power ratings. I've had this amp for a little over a year and I'm happy with it. I push two Type R's with it just fine.

By George on July 1, 2013

44 found this helpful


ok buy

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

Had this amp for a few months. Made my Alpines kick so hard, people could here my car for blocks. Amp started cutting out after a few months when I played something with too much bass. Called Sonic Electronix. They handled my problem greatly and sent me a new one.

By Kronmuffin on June 14, 2012

43 found this helpful


PEOPLE READ VERY IMPORTANT

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

When i first saw this amp and read through the reviews i knew this would be a very smart choice. i just had mine installed last week and man, this thing slaps so hard its insane. i can here this thing all the way down my street behind my buddy's fence(500ft). When my wife wants a massage i dont even have to get up anymore, i just have my boy go downstairs and turn on the car. sometimes i play some of that young jeezy slap for the premium massage. when i roll into work i roll with style. inside my employees know its me comin because half the store shakes therefor its a mess when i come in. Trust me and ALL the other reviews, this amp is the best if you dont wanna pay too much and if you want serious power. honestly i dont even know how my heart hasnt stopped yet this thing is so loud. ive gotten like 20 loud music ticketts!!!!!

By My. Greens on July 16, 2011

43 found this helpful


Good Amp

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

Bought this amp to power a single 10 inch kicker, it pushes it really well and makes it sound good. Only down side to the amp is that when the weather gets hot it overheats really easily. Other than that it is a good amp for a everyday system.

By Casey on January 3, 2013

41 found this helpful


Too much to say!

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

This amp right here, Wow... All i have to say... I have had this baby power 2 alpine 10" 2012 alpines in a 2 cube ported enclosure at 1 ohm, and they pounded the living hell out of my poor little subby...

I currently have the amp hooked up to a rockford t2d2 woofer at 1 ohm.. And i was a little skeptical at first thinking, why am i hooking up a cheaper amp to a 900 dollar sub...

Man was i wrong. This amp pushed the living hell out of the 900 dollar woofer... Throwing the maximum excursion of 4 inches off the sub with zero stress, at barely HALF THE POWER.

Please.. please buy this amp.. It is the only amp in the price range that can deliver this much bass for the affordable price.

By BassHeadDan on February 20, 2013

38 found this helpful


Brutus 1200

The following review is for BRZ1200.1D, which is a part of the bundle you are viewing.

Not bad, just has some distortion. Won't push as much without distortion. But not a bad amp.

By DJ on February 10, 2013

39 found this helpful


Decent but I was expecting more.

The following review is for SEXv2-10D4, which is a part of the bundle you are viewing.

Put it in two different custom built boxes. Giant

In the end I went back to my SD-2 10.

This woofer is in my dad's truck. He just wants some low end and doesn't really care about performance.

By gary on September 18, 2013

41 found this helpful




XDVD700+XNAV9525 small

Video + Navigation Combo: Dual XDVD700 + Dual XNAV9525

In-Dash 7" Touchscreen TFT-LCD Monitor with DVD, Multimedia CD, MP3, WMA Playback and Remote PLUS Compatible GPS Navigation Unit

$519.99

List price $1499.99

KCA-IP240V small

Kenwood KCA-IP240V

USB Direct Connection Cable for iPod (Audio and Video), Exclusive for Kenwood Head Units

$31.99

List price $49.99

DK2-2000 small

SPL DK2-2000 R/B

2000W Max Phantom Series 2-Channel Amplifier

$109.99

List price $259.99

GRLA1250/2 small

SPL GRLA 1250/2 (GRLA1250/2)

1250W Max Gorilla Series 2-Channel Amplifier

(10)

$89.99

List price $229.99

UN55C6500 small

Samsung UN55C6500 (UN-55C6500) ** COMING SOON MARCH/APRIL 2010 **

55", 120Hz Full HD 1080p LED Television with Ultra Clear Panel Technology and Internet@ TV

$2799.99

List price $2799.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 BMW 760Li

2012 Scion tC

2009 Volvo S80

1977 Volkswagen Scirocco

2020 Buick Enclave

2018 Cadillac XT5

2022 BMW M2

2016 Ram Promaster City

1997 GMC Sonoma

2011 Audi A6 Quattro

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
