7000W Pioneer + Massive Audio Bass Bundle

2 Pioneer TS-W3002D4 12" Champion PRO Subs + Massive Audio N4 Amplifier + 0 Gauge Amplifier Kit

Pioneer
Shop all Pioneer
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 12" Dual 4 ohm Champion PRO Series Subwoofers • Dual 4 Ohm • 7000W Max • 2000W RMS • Massive Audio N4 Nano Block Series Monoblock Car Amplifier • Ultra Efficient Nano Technology • 3-Way Protection Circuitry • CEA-2006 Compliant

Learn more about the n4_2-tsw3002d4

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
Limited time!
XAV-AX6000 main

Sony XAV-AX6000

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto (Sirius XM Ready)

10
-21.71%

$548.00

List price $699.99

Add to cart
REF507F main

Infinity REF507F (INFSPKRF507FUS)

270W Peak (90W RMS) 5.25" Reference Series 2-Way Coaxial 3-ohm Speakers

1
-21.44%

$109.95

List price $139.95

Add to cart

Product Highlights

Pair of 12" Dual 4 ohm Champion PRO Series Subwoofers • Dual 4 Ohm • 7000W Max • 2000W RMS • Massive Audio N4 Nano Block Series Monoblock Car Amplifier • Ultra Efficient Nano Technology • 3-Way Protection Circuitry • CEA-2006 Compliant

Description

Pioneer brand icon

Authorized dealer

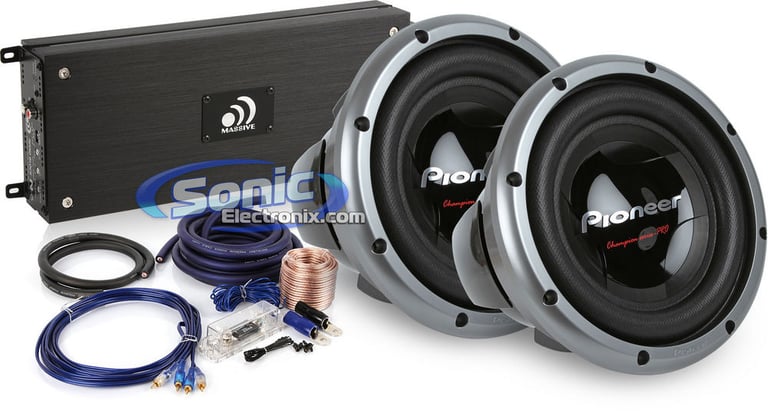

Pioneer and Massive Audio Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Massive Audio N4 Amplifier along with a pair of 12" Champion PRO Series Pioneer Subwoofers. This excellent bass package pushes 2000 watts of clean, continuous RMS power. The Pioneer Subwoofers each have Dual 4 Ohm Voice Coils; meant to be wired in parallel/parallel, that is to say wiring the voice coils in parallel and then the subwoofers in parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These Pioneer TS-W3002D4 12" Champion PRO Series subwoofers require 2000 watts of RMS power. The included Massive Audio N4 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 0 gauge amplifier kit which is perfect to supply power to the amplifier. With the Pioneer subwoofers, Massive Audio amplifier, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

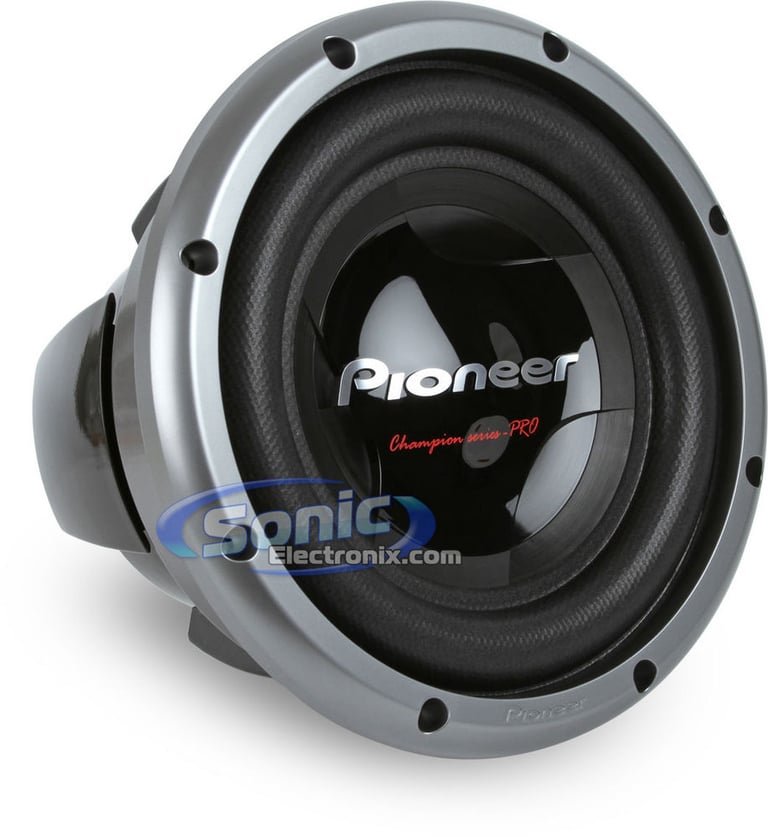

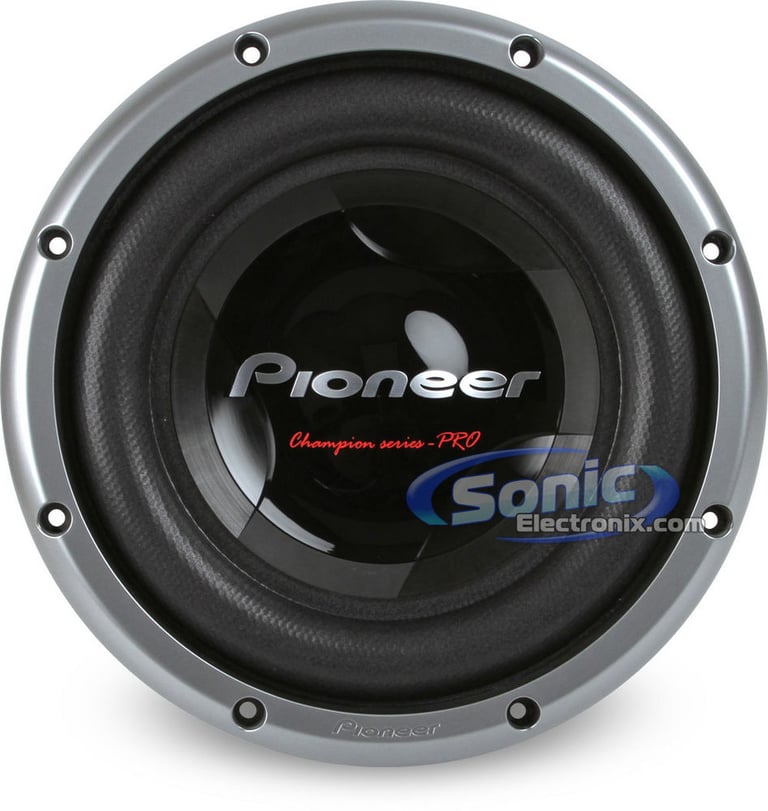

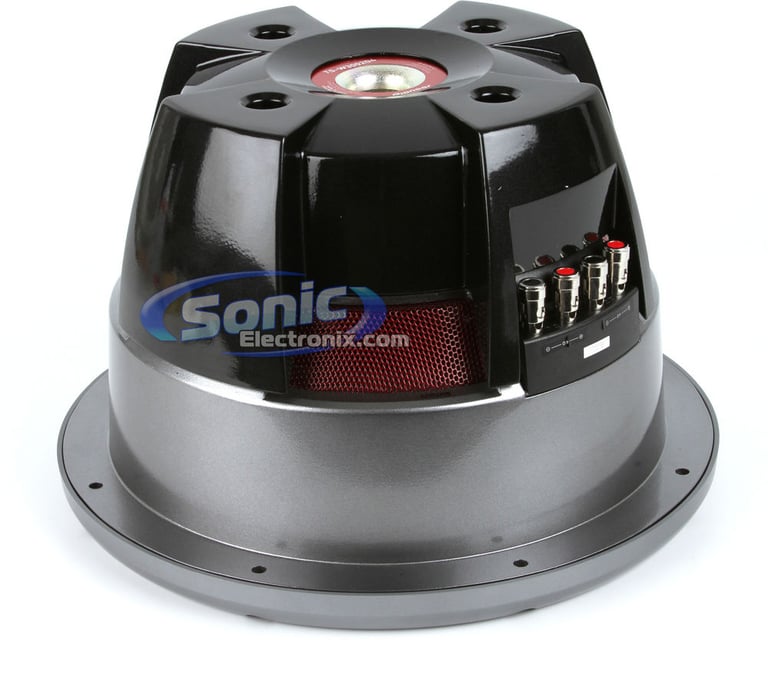

Pioneer TS-W3002D4 Features:
  • Pair of 12" Dual 4 ohm Champion PRO Series Subwoofers
  • Power Handling:
    • Peak: 7000 watts total / 3500 watts each
    • RMS: 2000 watts total / 1000 watts each
  • Impedance: Dual 4 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Wide-roll, 3-layer fiber woven aramid radial with honeycomb cloth surround
  • Phenol resin coated glass cloth bobbin
  • Copper voice coil wire
  • Dual 4-layer, long voice coil
  • Double stacked (110oz) magnet
  • Frequency response: 20-150 Hz
  • Sensitivity: 90 dB
  • Aluminum die-cast rigid chassis basket design
  • 1-Piece rubber gasket
  • Integrated single-sided silver compression wire terminals
  • Mounting Depth: 7-1/2"
  • 1-year SonicElectronix.com warranty

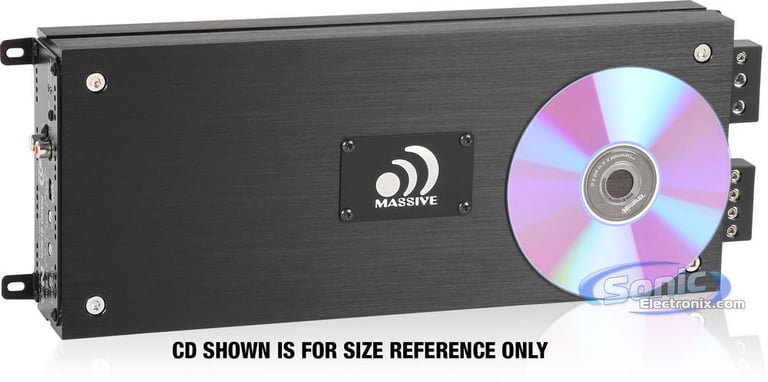

Massive Audio N4 Features:

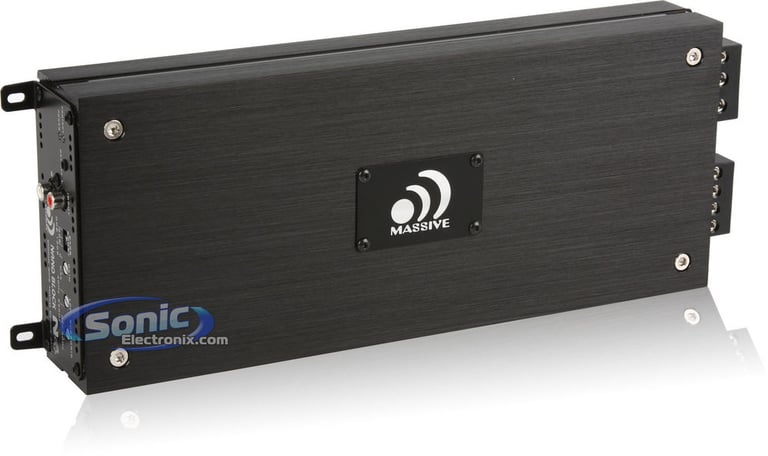

  • Massive Audio N4 Nano Block Series Monoblock Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 650 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 2000 watts x 1 chan.
  • Max power output: 4000 watts x 1 chan.
  • MOSFET power supply with high grade switching devices
  • LED power/protect indicators

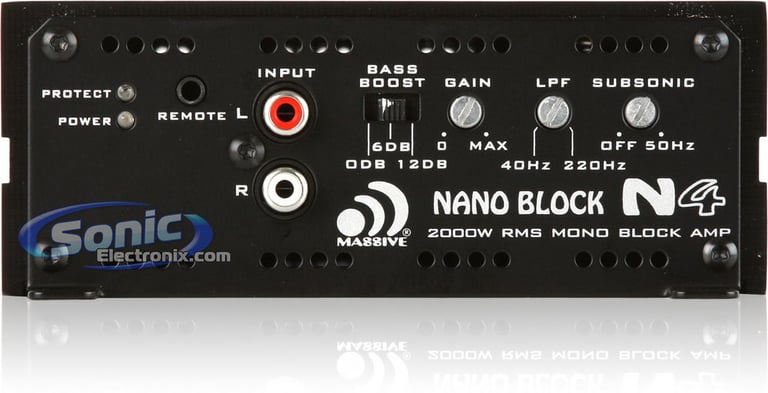

  • Selectable bass boost (0, 6, 12 dB switchable at 50 Hz)
  • Designed to fit into restrictive or limited spaces while still delivering staggering amounts of power
  • Ultra efficient Nano Technology power supplies and endless possible installation scenarios
  • Monoblock operation
  • Extreme power in a small footprint
  • Ultimate mounting flexibility (stackable, line array, side mount)
  • Mill Spec double sided PCB with SMD parts
  • Built-In noise reduction circuitry
  • Heavy duty aluminum alloy heatsink are anodized in a Raven Black finish for extreme heat dissipation
  • 3-Way protection circuitry (short circuit, overheating and Low Voltage)
  • Chrome-plated RCA level inputs

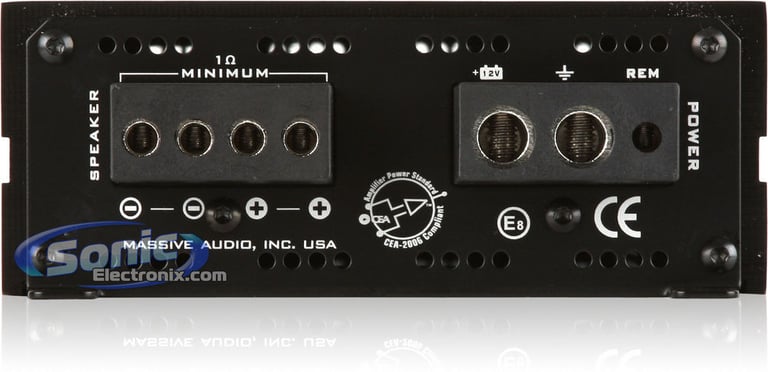

  • Chrome-plated screw terminals
  • Adjustable low-pass filter (40-220 Hz, 24 dB/octave)
  • Subsonic Filter (10-50 Hz, 24 dB/octave)
  • Frequency response: 10-220 Hz
  • THD (Total Harmonic Distortion): <0.3%
  • Signal-to-Noise Ratio: >80 dB
  • Max Voltage: 15V
  • Max RCA Voltage: 5V
  • 1/0-gauge power and ground wiring is required for installation.
  • CEA-2006 compliant amplifier
  • Also found as: Massive Audio SKUN4
  • Weight: 12 lbs
  • Dimensions: 13-7/16"L x 5-1/2"W x 2-1/8"H
  • 1-year Sonic Electronix warranty

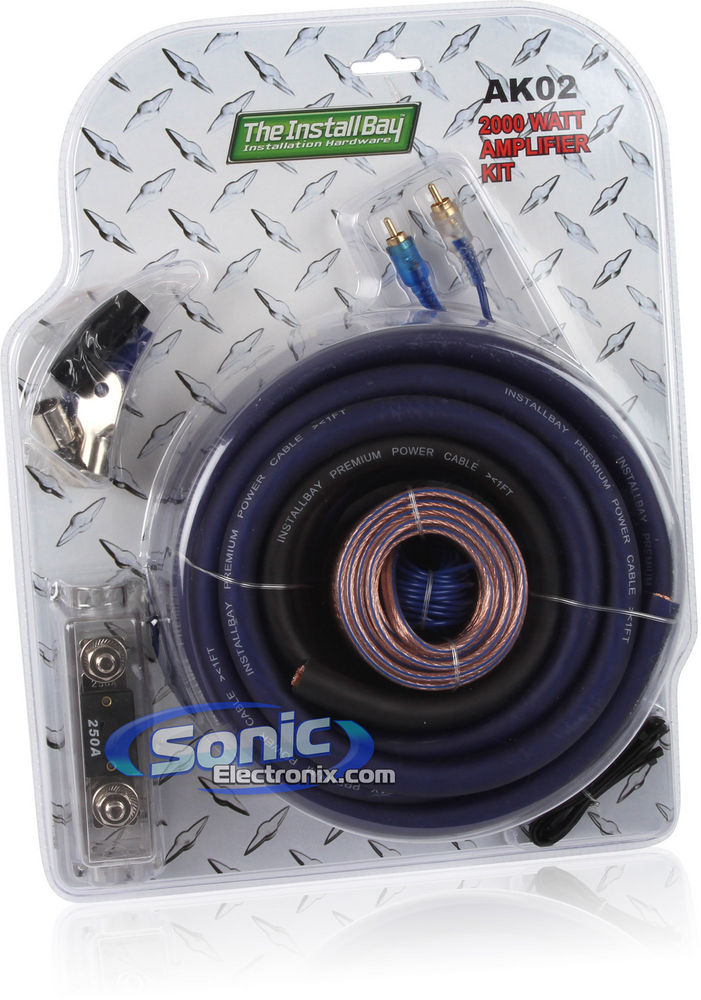

The Install Bay AK02 Features:
  • 0 Gauge Amplifier Installation Kit
  • Includes everything that you need to power an amplifier up to 2000W!
  • Authorized Internet Dealer
  • 1-year Manufacturer’s warranty
The Install Bay AK02 Includes:

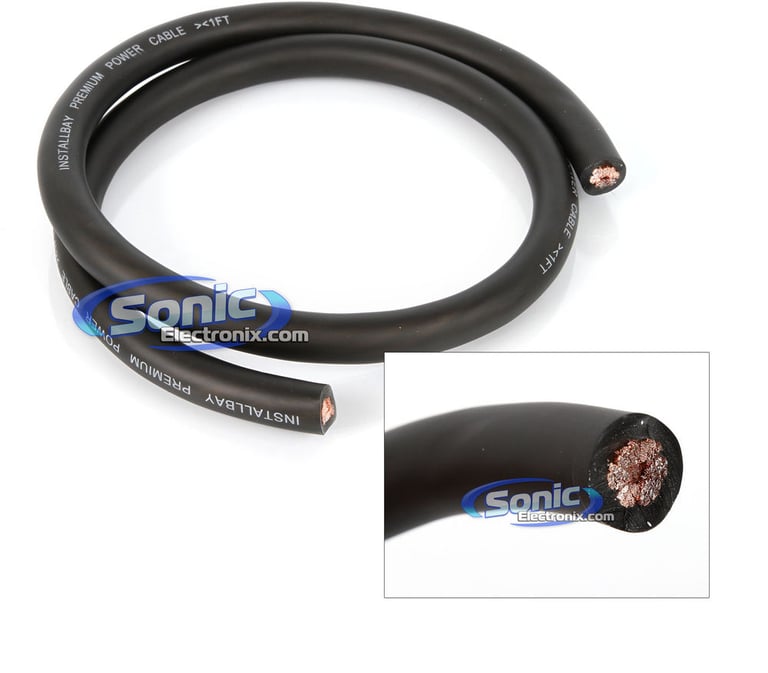

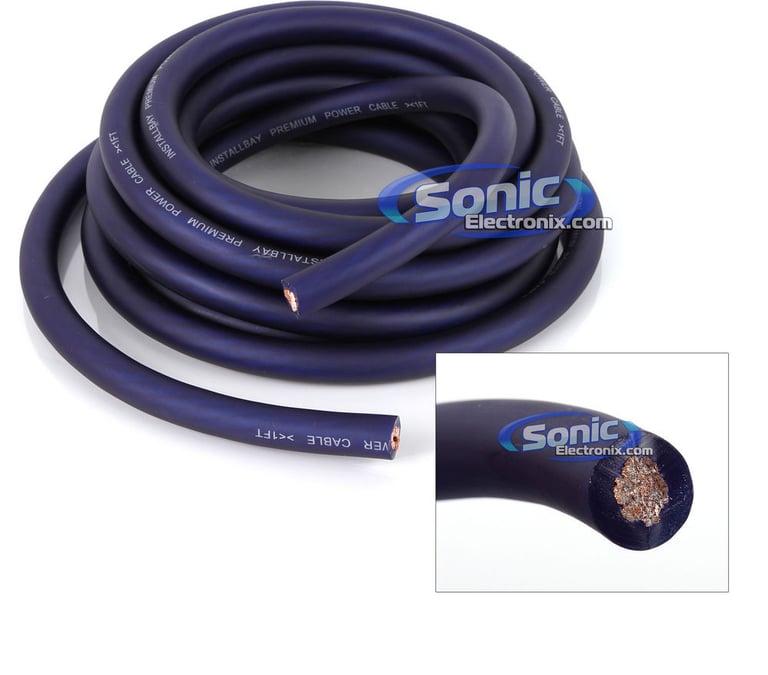

  1. 17ft. of 0 Gauge blue power cable
  2. 3ft. of 0 Gauge black ground cable

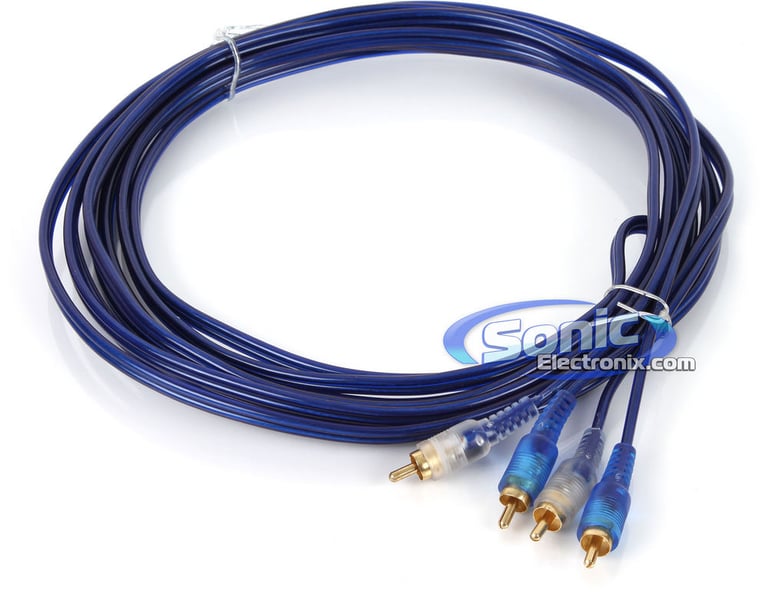

  3. 17ft. of Clear blue RCA cable

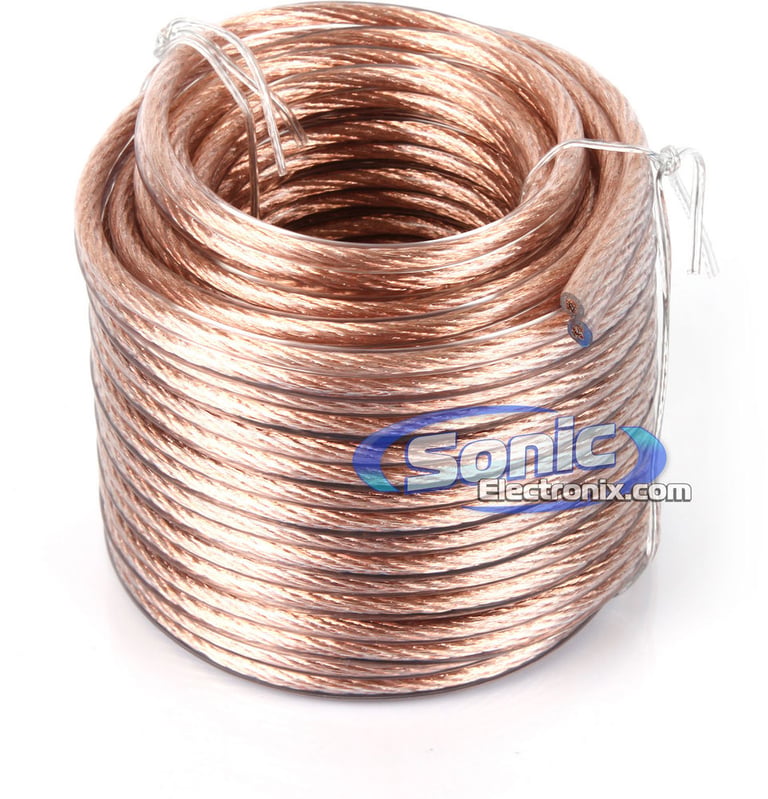

  4. 25ft. of 12 Gauge speaker wire

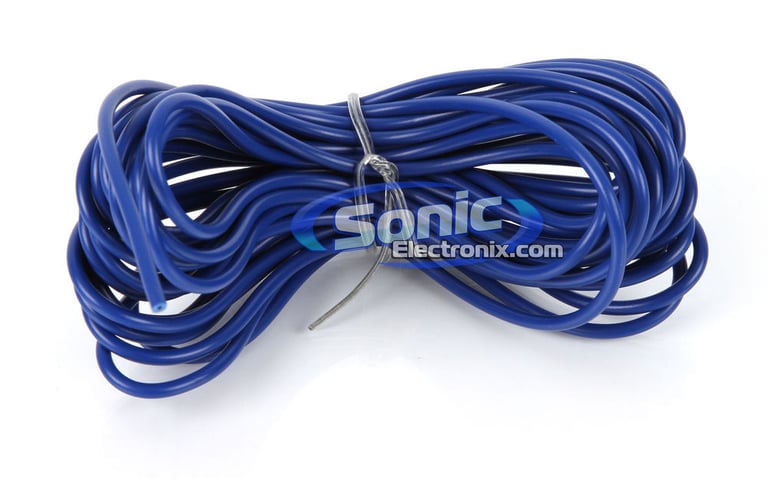

  5. 17ft. of Clear blue remote turn-on wire

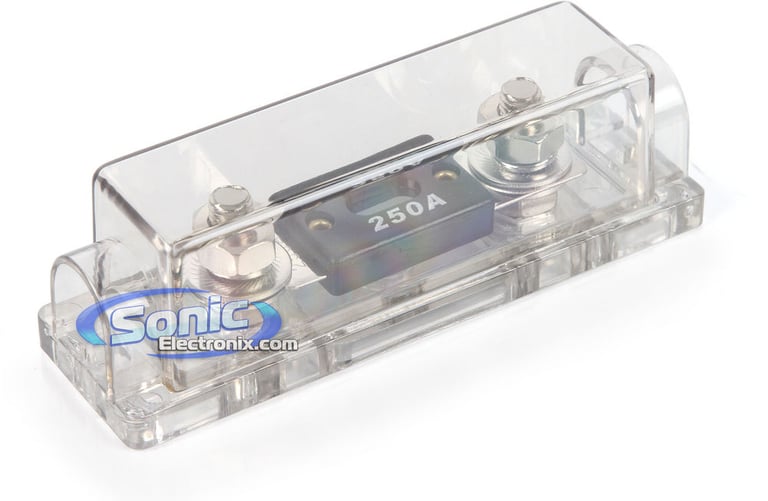

  6. 1 ANL fuse holder with 250 AMP ANL fuse

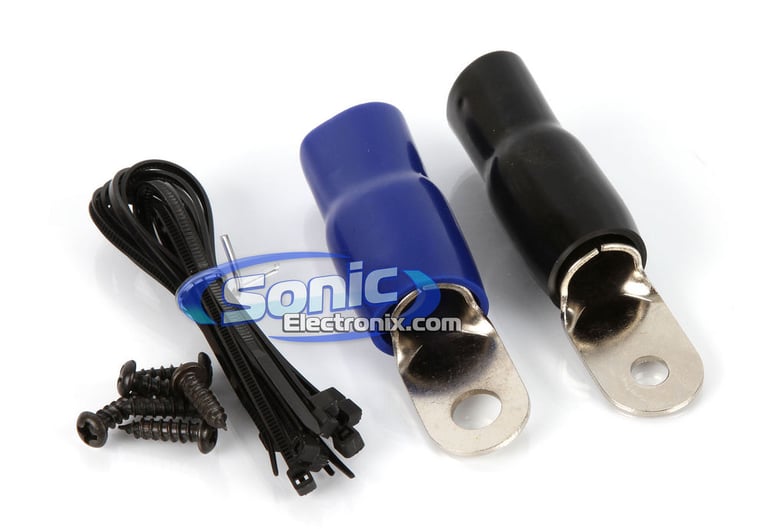

  7. (2) 0 Gauge gold ring terminal
  8. (3) Grommets
  9. (10) 6" Cable ties
  10. (3) #6 Screws
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Add to cart
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Add to cart
BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Add to cart
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart

Specifications & Details

Amplifier Power Specifications
RMS Power @ 4 ohms
650 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
2000 watts x 1 channel
Peak Power Output
4000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.3%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0dB, 6dB, 12dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
Not specified by manufacturer
CEA-2031 Compliant
Yes
Subwoofer Specifications
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
1000 watts
Total RMS Power Handling
2000 watts
Peak Power Handling
3500 watts
Total Peak Power Handling
7000 watts
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Woofer Composition
Carbon Fiber
Minimum Sealed Box Volume
.50 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.8 cubic feet
Maximum Ported Box Volume
1.6 cubic feet
Sensitivity
90 dB
Frequency Response
20 - 150 Hz
Top-Mount Depth (Mounting Depth)
7-1/2"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details

Manufacturer:

Pioneer

Model Number:

N4_2-TS-W3002D4

Weight:

74.00lbs

Internal SKU:

n4_2-tsw3002d4

Internal Product ID:

36532
