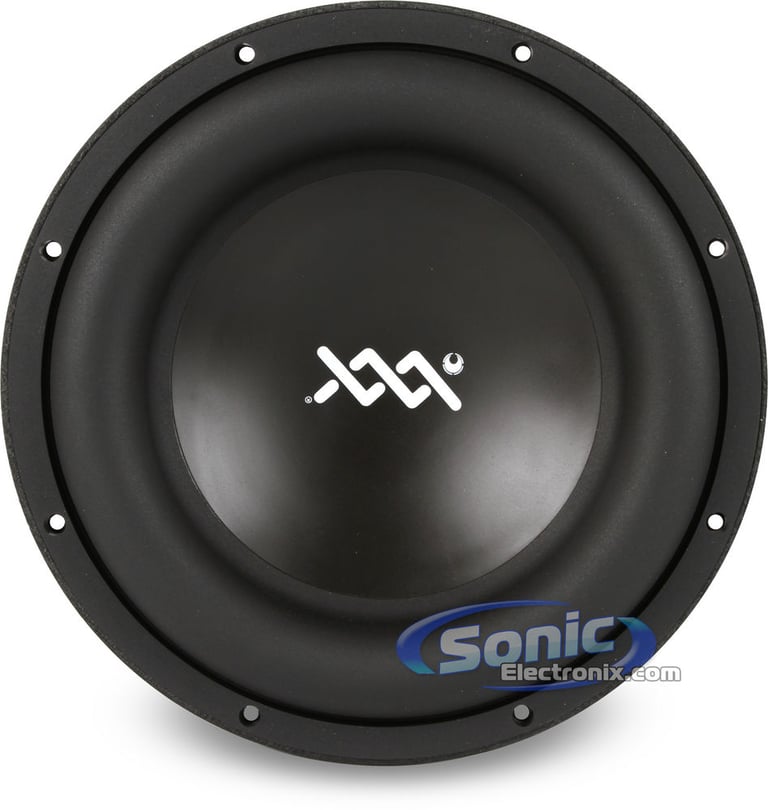

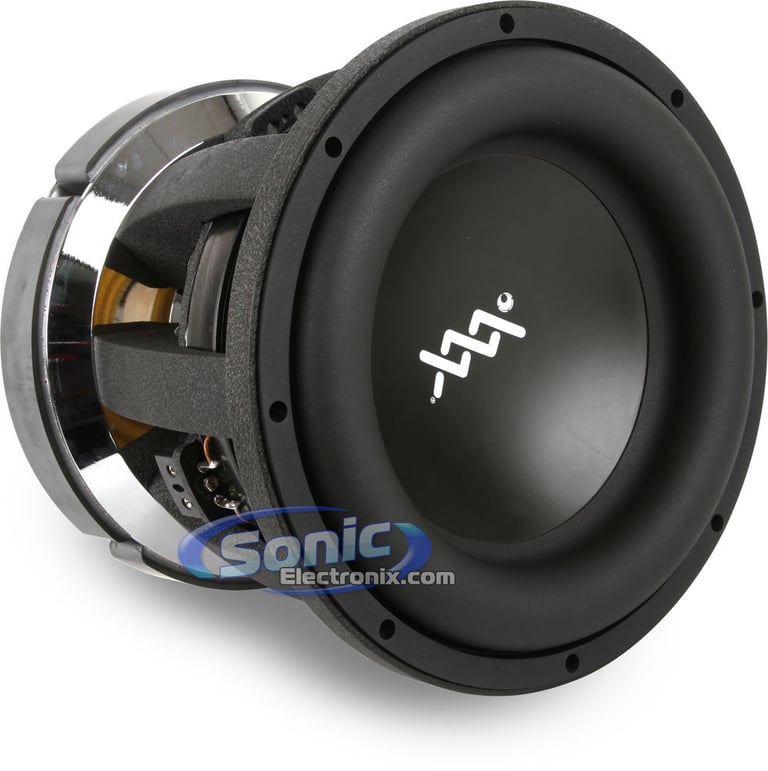

RE Audio XXX12D4

2000W 12" XXX Series Dual 4 ohm Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• RMS Power: 2000W
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Triple Stacked Magnets
• Flat Wire Voice Coil
• Venting System

Learn more about the xxx12d4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

CVP65 main

Cerwin-Vega CVP65 (Sold Individually)

300W Peak (150W RMS) 6.5" CVPRO Series Pro Full Range 4-ohm Speaker

2
-16.67%

$44.99

List price $53.99

Product Highlights


• RMS Power: 2000W
• Rubber Surround
• Dual Composite 2-Piece Cone
• Tork-Tite Terminals
• Dual Progressive Spiders
• Triple Stacked Magnets
• Flat Wire Voice Coil
• Venting System

Description


RE Audio brand icon

Authorized dealer



Subwoofer Features:
  • 12" Dual 4 ohm XXX Series Car Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Impedance: Dual 4 ohm
  • Kevlar reinforced kraft pulp, dual composite 2-piece cone

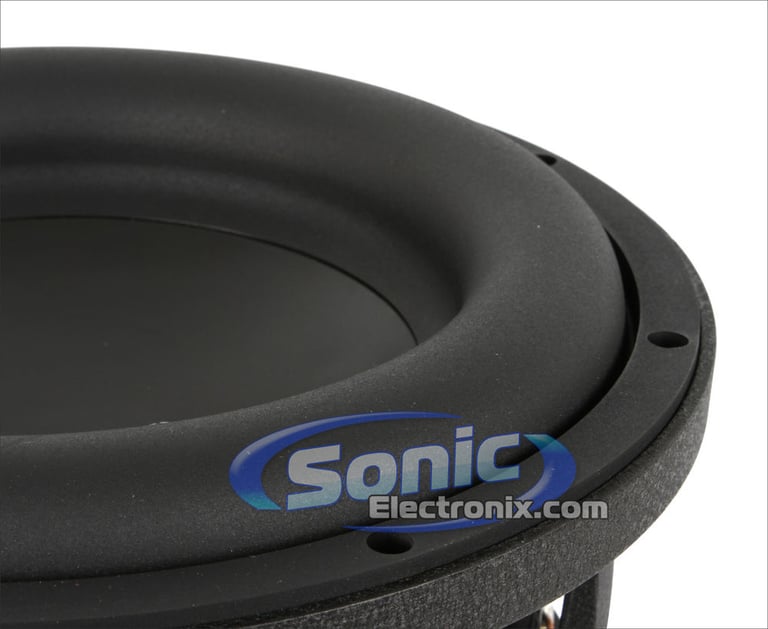

  • Rubber surround
  • Integrated tinsel leads
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Integrated gasket
  • Tork-Tite terminals
  • 3" 4-Layer aluminum flat wire voice coil
  • Split coil design
  • VMS Vented magnet system

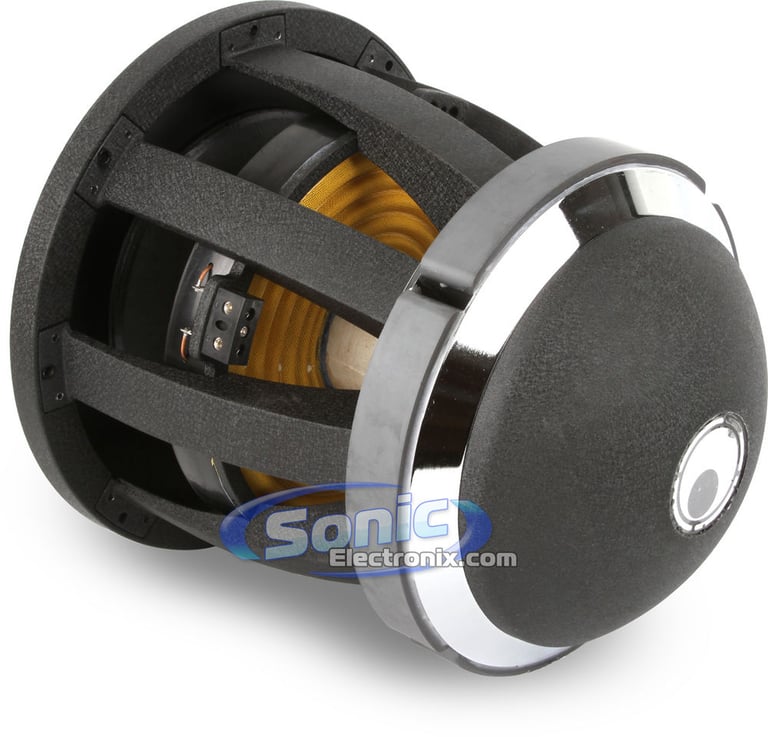

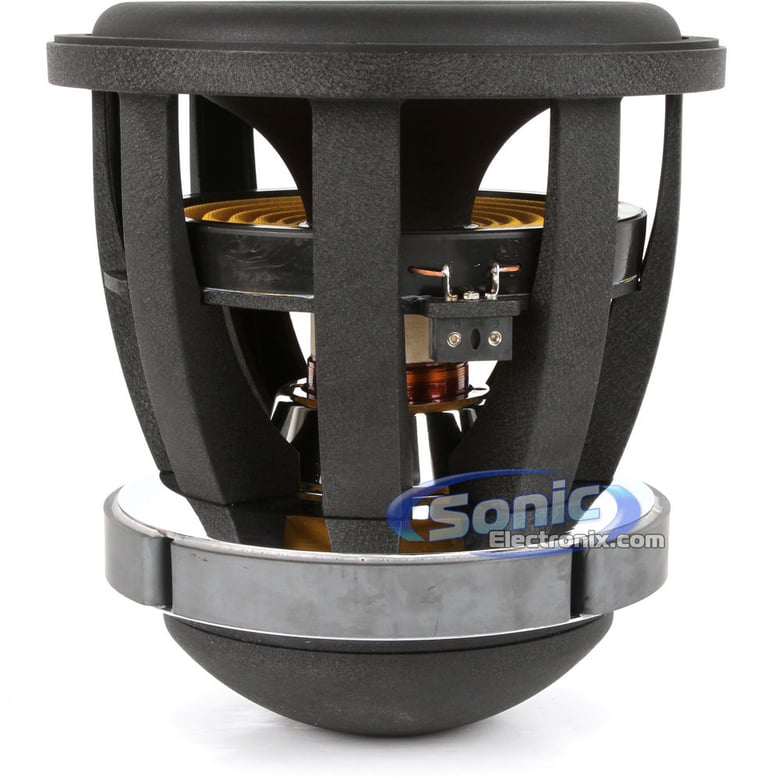

  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for sealed or ported enclosures
  • Mounting Depth: 12-3/4"
  • Mounting Hole Diameter: 11-1/2"
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
XXX 12" T/S Parameters:
  • Electrical Q Value (Qes): 0.46
  • Mechanical Q Value (Qms): 3.29
  • Total Speaker Q Value (Qts): 0.404
  • Free Air Resonance (Fs): 21 Hz
  • Equivalent Compliance (Vas): 74 liters
  • One-Way, Linear Excursion (Xmax): 54 mm
  • Efficiency (SPL 1W/1m): 83.76 dB SPL
  • Effective Piston Area (Sd): 480 cm2
  • DC Resistance (Re): 4.2 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 2000 W
  • Force Factor (Bl): 18.16

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio XXX12D4 Subwoofer Enclosure Guide

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

(newest, current model)
RE Audio XXX12D4 thumbnail
(previous model, replaced by RE Audio XXX 124)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio XXX12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio XXX12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio XXX12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio XXX12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
XXX Series
Subwoofer Size
12"
RMS Power Handling
2000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
83.7 dB
Xmax (millimeters)
54 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar reinforced kraft pulp, dual composite 2-piece cone
Woofer Surround
Rubber
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.85 cubic feet
Maximum Sealed Box Volume
1.1 cubic feet
Minimum Ported Box Volume
1.7 cubic feet
Maximum Ported Box Volume
2.2 cubic feet
Top-Mount Depth (Mounting Depth)
12-3/4"
Cutout Diameter
11-1/2"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
21 Hz
Equivalent Compliance (Vas)
74 liters
Total Speaker Q Value (Qts)
0.404
Electrical Q Value (Qes)
0.46
Electrical Resistance of Voice Coil (Re)
4.2 ohm
Mechanical Q Value (Qms)
3.29
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XXX12D4

Weight:

93.00lbs

Internal SKU:

xxx12d4

Internal Product ID:

36761
