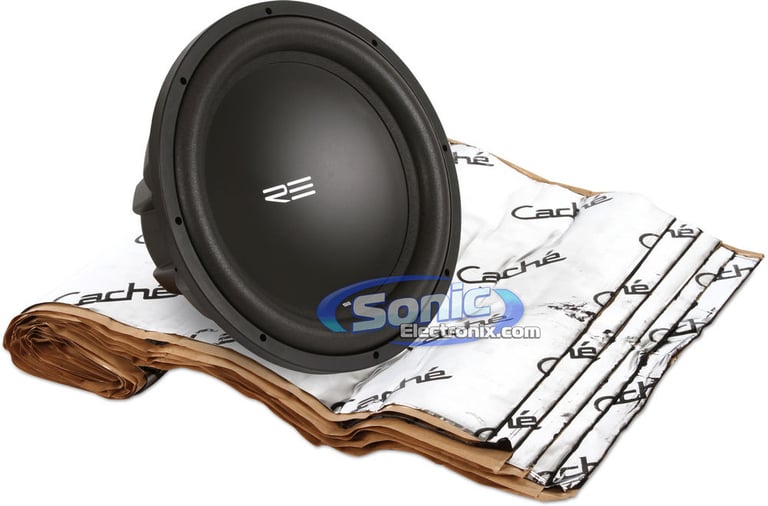

600W RE Audio + Sound Dampening Material Bass Bundle

15" RE Audio SEX15D4 SEX Subwoofer + Cache CTM Dead Shield Sound Dampening Material

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

15" Dual 4 Ohm SEX Series Subwoofer • 600W RMS • Dual Composite 2-Piece Cone • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Learn more about the sex15d4_ctm

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


15" Dual 4 Ohm SEX Series Subwoofer • 600W RMS • Dual Composite 2-Piece Cone • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Description


RE Audio brand icon

Authorized dealer

RE Audio plus Sound Dampening Material Bass Bundle

This Sonic Electronix Exclusive Bundle showcases a 15" Dual 4 Ohm RE Audio SEX Series Subwoofer. This subwoofer is rated at 600 watts RMS of continues power. The subwoofer is equipped with a Dual Composite 2-Piece cone and Rubatek Foam surround for rigidity and performance. It is also equipped with Tork-Tite terminals for a secure installation, and 3" 4-layer voice coils that will help to dissipate heat from the subwoofer. With an FEA Optimized motor structue and triple stacked magnets, this RE Audio SEX series subwoofer is sure to provide efficient sound and bass for long periods of time. In order to improve the all around sound of your audio car system, this bundle also includes five 18" x 32" pieces of Dead Shield sound dampening material. This dampening material will help reduce engine noise, vibrations, road noise and rattling to give you a higher sound quality. Four step peel and stick application makes installation simple and efficient. This sound dampening material is sure to improve the over all quality and output of your system.

RE Audio SEX15D4 11S8L72 Features:

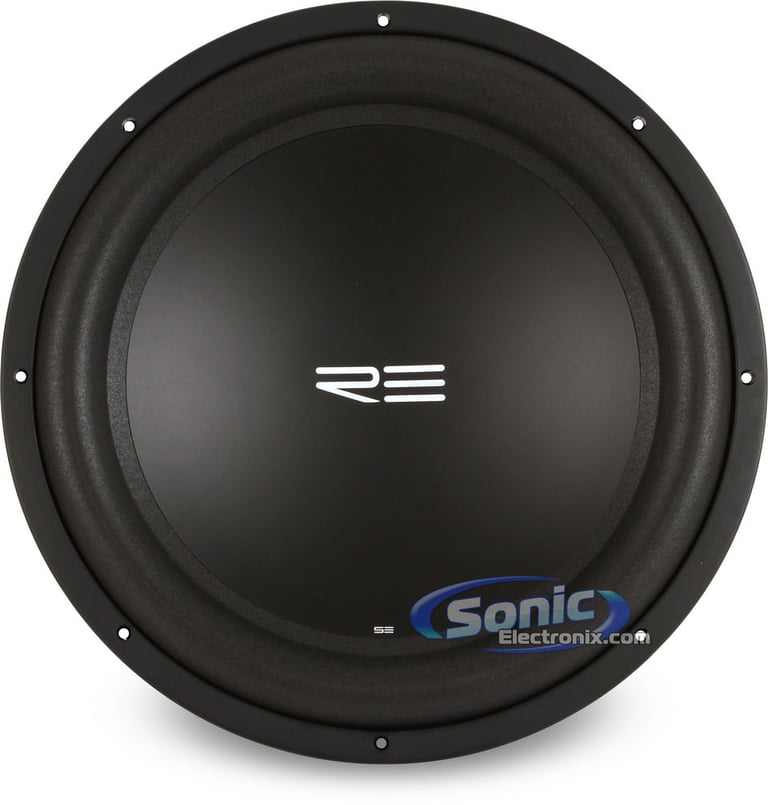

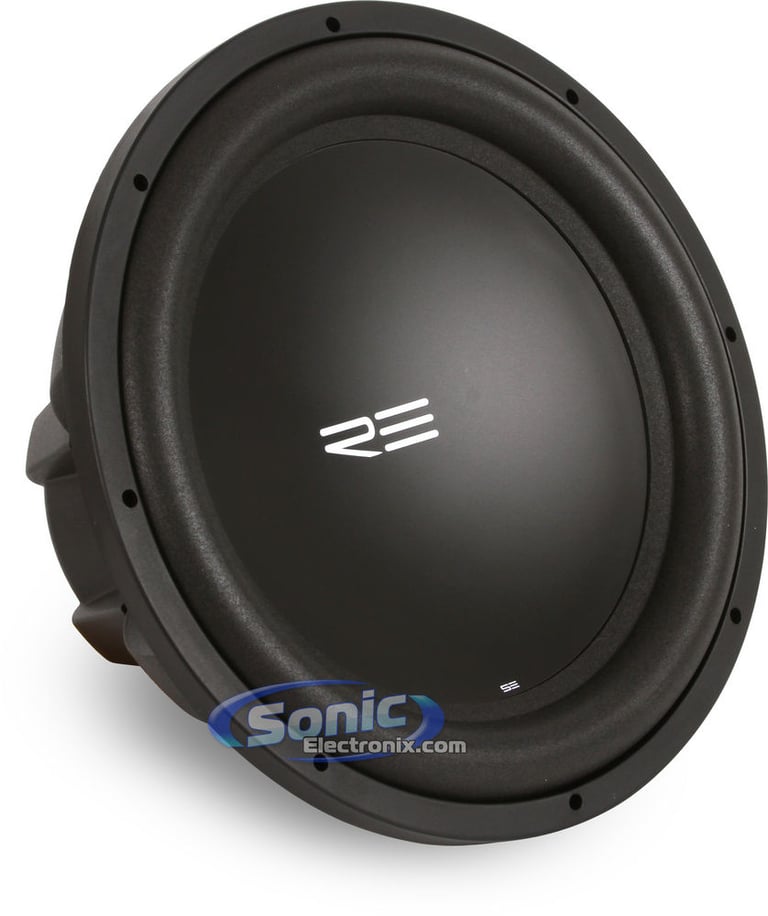

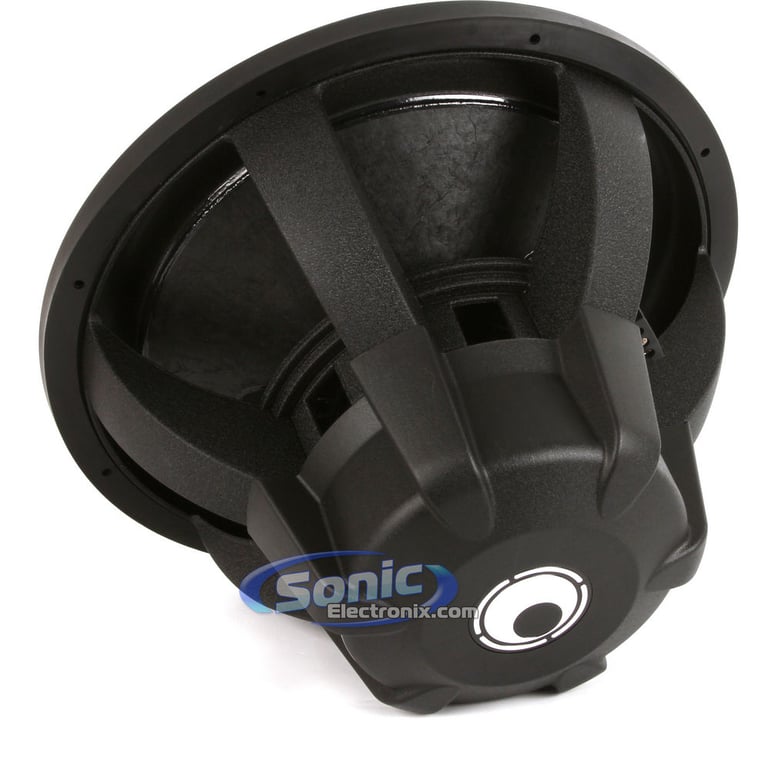

  • 15" Dual 4 ohm SEX Series Car Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround

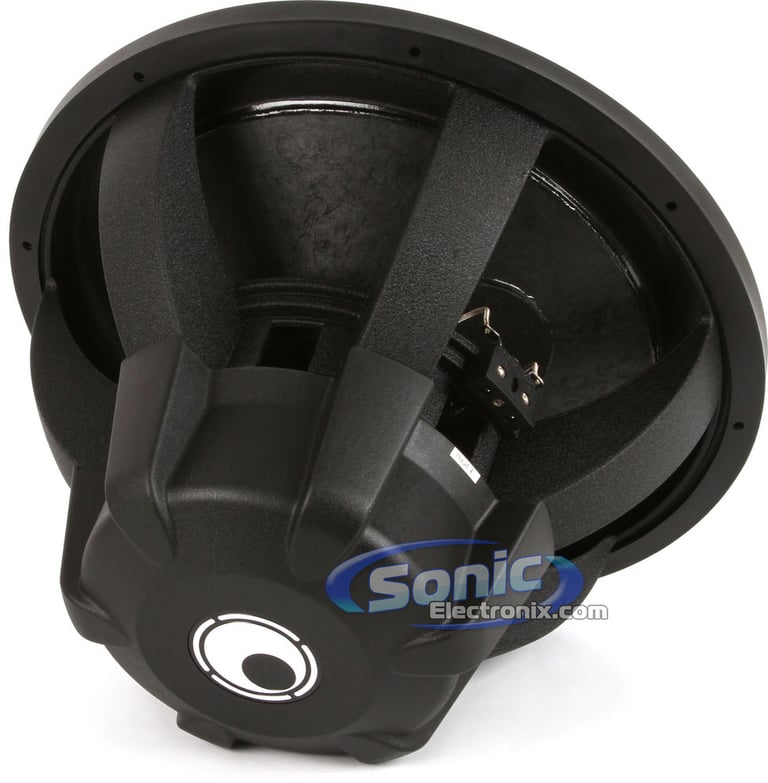

  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

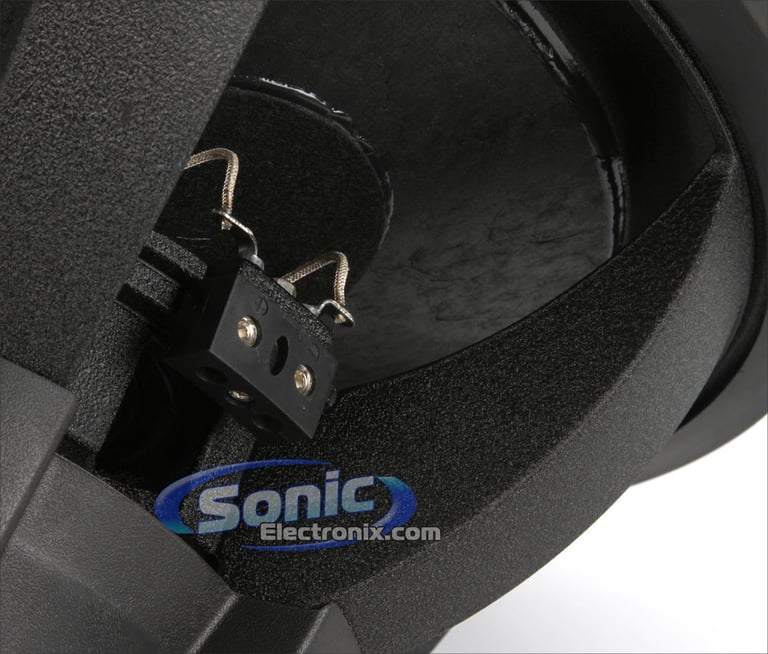

  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Triple stacked magnets
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
SEX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.55
  • Mechanical Q Value (Qms): 4.3
  • Total Speaker Q Value (Qts): 0.49
  • Free Air Resonance (Fs): 22 Hz
  • Equivalent Compliance (Vas): 209 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 88 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 2.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 600 W
  • Force Factor (Bl): 17.7
Cache CTM Features:

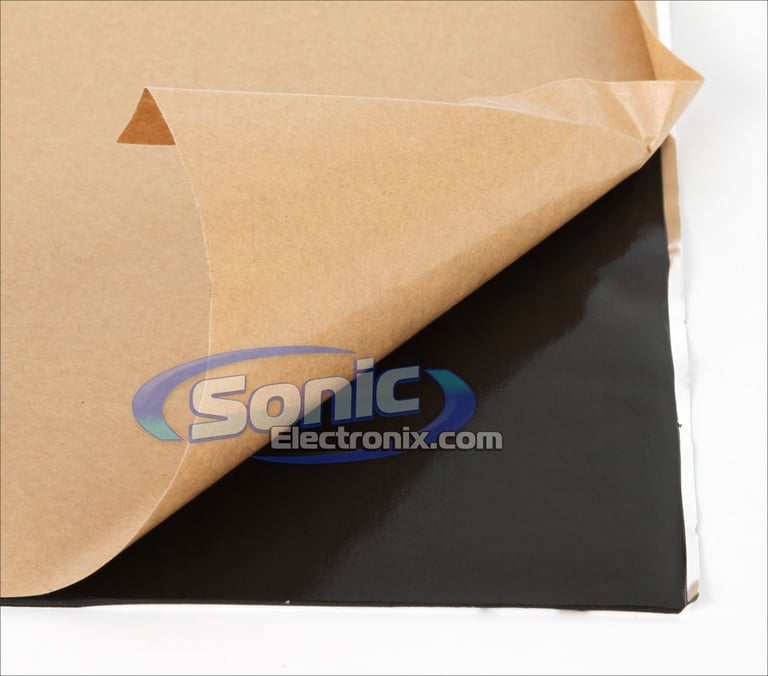

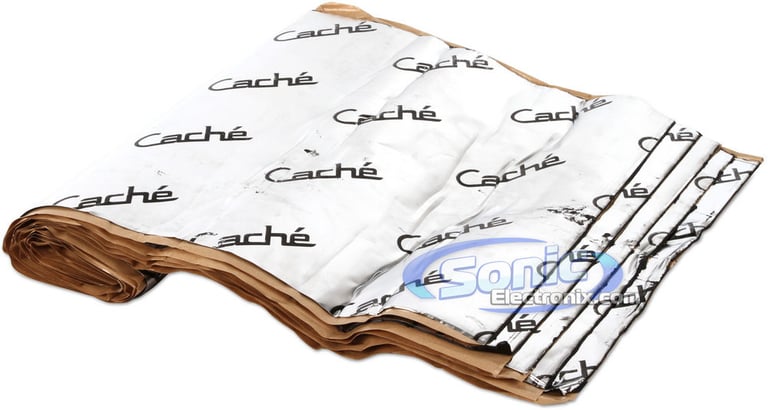

  • Five 18" x 32" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 18"L x 32"W

Subwoofer Wiring Guide


Wiring Guide to Wire 1 600W RE Audio + Sound Dampening Material Bass Bundle Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 600W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 600W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 600W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.82

List price $2348.97

Specifications & Details


Subwoofer Specifications
Series
SEX Series
Subwoofer Size
15"
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
3.0 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
8-1/2"
Cutout Diameter
14"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SEX15D4_CTM

Weight:

44.00lbs

Internal SKU:

sex15d4_ctm

Internal Product ID:

36795

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


600W RE Audio + Sound Dampening Material Bass Bundle thumbnail image

5 star
73%
4 star
27%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.8
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

se/x v2 d4

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

2 d4's paralled , sealed 1.5cu per, off an re 45kv.1(1500x1@1ohm)....all around solid woofer...only been 2 weeks with gains at halves or ever so slightly less, but still sound tight/smooth no shenanigans so far...

By mac292 on April 29, 2014

51 found this helpful


Great sub

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

I have one of these in a 5 ft box and my whole car shakes....thinking of adding dynomat.

By Robert on August 8, 2014

48 found this helpful


GOOD PRODUCT

The following review is for CTM, which is a part of the bundle you are viewing.

Super thick and easy to install. Noticeable difference and reasonably priced. 5 stars

By Brendan on April 18, 2012

31 found this helpful


What a difference

The following review is for CTM, which is a part of the bundle you are viewing.

I came across this while looking for something to get rid of the rattle in my trunk. I bought it and when I opened my package, immediately knew it was of good quality. its thick and stuck well wherever I placed it and it made a noticeable difference. The rattling is gone and my JL Audio W3 sounds much deeper and louder. Thanks Sonic!

By Todd on April 27, 2011

31 found this helpful


Sound Dampner

The following review is for CTM, which is a part of the bundle you are viewing.

Best bang for the buck.

By Brian on March 11, 2012

30 found this helpful


awesome

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

Definitely recommend these subs...they hit hard paired with a massive audio n4 flexes the windshield. Sq is good also.

By chris on May 15, 2015

23 found this helpful


Great product

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

This is a great entry level speaker or a great all round speaker I have two in a 14 cubic foot box with 2 planet audio 3000s and they are beating my blazer apart

By Oldswade on July 20, 2015

16 found this helpful


J woods RE

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

I have to make a box still coming soon as I seen on you tube looks like these subs pound for the money ...send me another e mail in a couple weeks be glad to post I pumped hope they pound my tahoe down. :-)

By jason on July 2, 2016

13 found this helpful


Bangin' subs for the price!

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

I've got a pair of these in 3.5 cu. ft. per sub tuned to 42 hz and the sound great!

By Puresound1 on February 1, 2017 Checkmark Icon Verified purchase

12 found this helpful


Very Underrated!

The following review is for SEXv2-15D4, which is a part of the bundle you are viewing.

Wow, great subs have 4 walled off in my silverado , in a 16Cuft box, tuned to 34Hz. When I first installed them the box was tuned to 28Hz and I was very disappointed, they weren't louder than my 10 year old type R's, to the point that I was going to sell them, than I read the manual and it said tune the box to 34-35Hz so I did, what a difference SPL went way up, SQ went way up, and so did the power handling alot, right now they are getting pushed by 2 twistedsounds 2.8K's strapped together, and they take it! each of the amps DYNO'd at over 3800 watts CERTIFIED!!! I have to be careful with the subs because I can make them stink at will, and have the gains set a little under 3/8", but they are still pushing over 5200 Watts(clamped) to the 4, Anybody that says these subs SUCK, doesnt have them in the right box https://www.youtube.com/watch?v=9G1Y0XUPOuM https://www.youtube.com/watch?v=Mv2eHAr_4y0

By Adam on October 3, 2016 Checkmark Icon Verified purchase

11 found this helpful




XTR-130 small

Whistler XTR-130

Radar and Laser Detector with 360 Degree Total Band Protection

(4)

$39.99

List price $59.99

KEH-P4020 small

Pioneer KEH-P4020

In-Dash Flip-down AM/FM Cassette Receiver

$129.99

List price $159.99

9004-DB-6K-VE small

Vision Extreme 9004-DB-6K-VE HID Xenon Headlights

6000K 9004/HB1 Dual Beam Bi-Xenon Headlamp Bulbs HID Headlight Conversion Kit w/ DC Ballasts

$59.99

List price $159.99

9004-DB-8K-VE small

Vision Extreme 9004-DB-8K-VE HID Xenon Headlights

8000K 9004/HB1 Dual Beam Bi-Xenon Headlamp Bulbs HID Headlight Conversion Kit w/ DC Ballasts

$59.99

List price $159.99

6832cf small

Infinity 6832cf

6" x 8" Reference Series 2-way Car Speakers (also mounts in most 5" x 7" locations)

(20)

$69.95

List price $149.95

FORDAH small

Peripheral FORDAH

Radio Replacement Interface for Select Ford, Lincoln and Mercury Vehicles with Factory Systems

$89.99

List price $129.95

RA10 small

DLS Reference RA10

780W RMS, Class A/B Monoblock Amplifier (Reference RA 10 -- 10-32010)

$449.99

List price $749.99

CSP14 small

Coby CSP14BLK (CS-P14) Personal Mini Portable Speaker

Personal Mini Stereo Speaker System

$3.99

List price $13.99

HLA600 small

Absolute HLA600

2-Channel High / Low Level Converter

(4)

$6.99

List price $24.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Jaguar Super V8

2014 BMW X6 M

2022 Nissan Rogue

1988 Mazda B2600

2002 Dodge Intrepid

2004 Buick Park Avenue

1998 Volvo S90

1973 Jeep CJ5

2021 Nissan Rogue Sport

1951 GMC 250

Vehicle
Store
Delete

1950 Harley Davidson EL

2003 Harley Davidson FLHTC/I Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
