Audiobahn + Hifonics Amplifer and Speaker Bundle

6-1/2" AS65J Car Speakers + Hifonics HFi55.4 4 Channel Amplifier + Kit + Sound Dampening

Product videos
highlight-star-icon

6-1/2" 2-Way AS Series Full Range Speaker • 100W RMS • HFi Series 4-Channel Class A/B Car Amplifier • MOSFET Power Supply • 4-Way System Protection Circuitry • Amplifier Kit • Sound Dampening Material

Learn more about the hfi554_as65j

We apologize

This item has been discontinued


Loading...
K 165 main

Hertz K 165

300W Peak (75W RMS) 6.5" Uno Series 2-way 4-ohm Component Speaker System

4
-33.34%

$99.99

List price $150.00

Limited time!
Stage3 627 main

JBL Stage3 627 (Stage3627AM)

270W Peak (90W RMS) 6.5" Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-22.74%

$84.95

List price $109.95

MM-50L main

Deaf Bonce Machete MM-50L

320W Peak (196W RMS) 5.2" Machete Series Midrange 4-ohm Speakers

1
NSP35 main

NVX NSP35

200W Peak (70W RMS) 3.5" N-Series 2 Way Coaxial Car Speakers

55
-16.67%

$49.99

List price $59.99

Product Highlights


6-1/2" 2-Way AS Series Full Range Speaker • 100W RMS • HFi Series 4-Channel Class A/B Car Amplifier • MOSFET Power Supply • 4-Way System Protection Circuitry • Amplifier Kit • Sound Dampening Material

Description

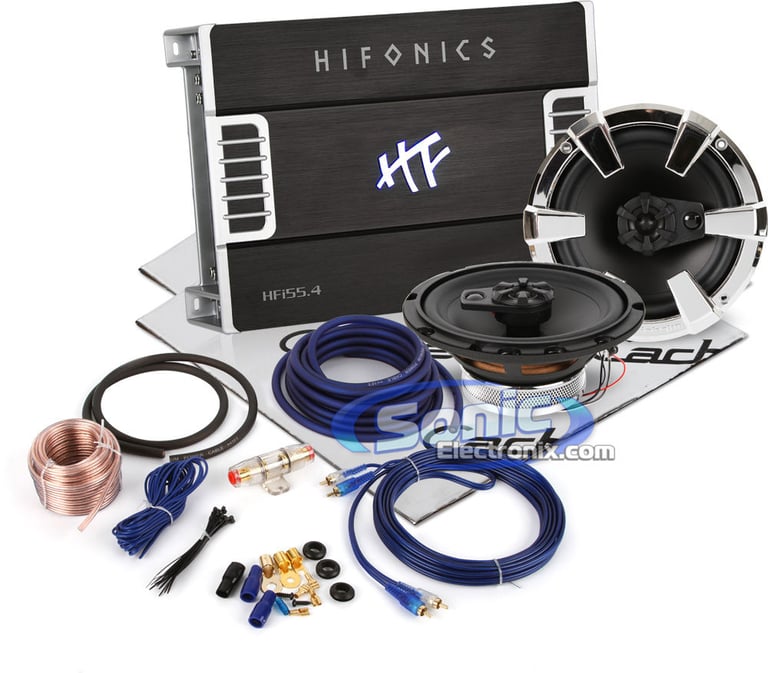

Audiobahn Speakers and Hifonics Amplifier Bundle

This Sonic Electronix Exclusive offer showcases a pair of 6-1/2" Audiobahn AS65J 3-Way Car Speakers. These speakers are rated at 100 watts RMS per pair. The speakers feature a Poly Carbon cone woofer and Butyl rubber surround for rigidity and optimum performance. These full range speakers features a removable Mylar tweeter for remote mounting. With a 4 Ohm impedance, 2-Layer high temp ASV voice coils, and Polyswitch tweeter protection circuit, these speakers are great if you are looking to improve that factory installed sound in your vehicle.

In order to provide the sufficient power to the AS Series speakers, this bundle will also include a Hifonics HFi55.4 4-Channel HFi Series Amplifier. This amplifier is rated at 55 watts x 4 Chan. @ 4 Ohms, 110 watts x 4 Chan. @ 2 ohms, and 220 watts x 2 Chan. @ 4 Ohms bridged. The amplifier features 4-Way System Protection Circuitry and variable high and low pass filters for complete control of your music. In addition this bundle will include a complete 4 gauge amplifier kit with RCA interconnect cables for complete installation. In order to increase the overall sound quality and output from your system, this bundle also includes 10" x 10" Pieces of Dead Shield Sound Dampening Material. The sound damp will reduce road noise, vibrations and rattles that diminish the sound quality of your car audio system. This bundles has everything you need to take your factory sound and make it a sound all your own.

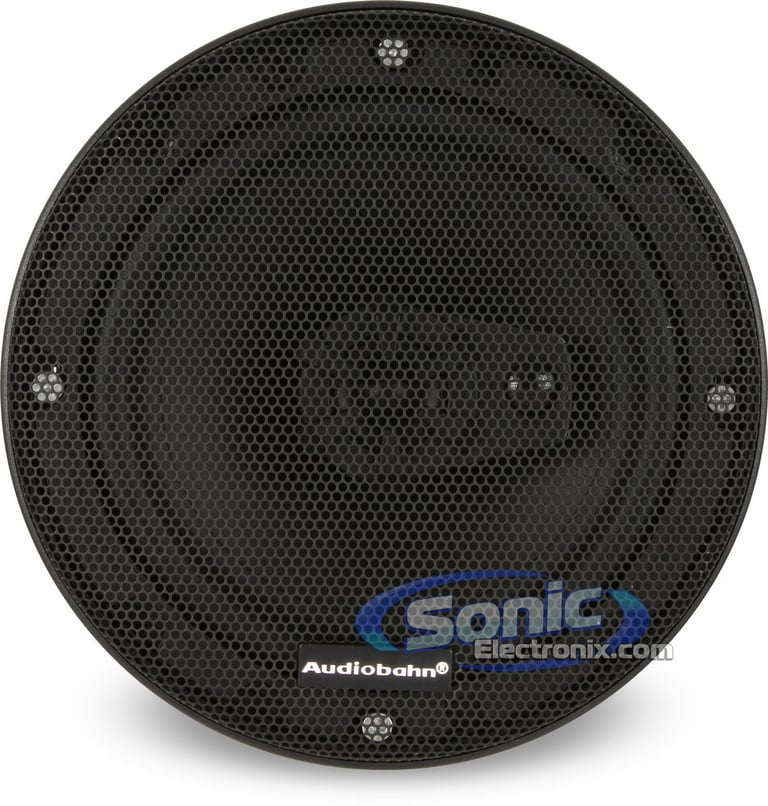

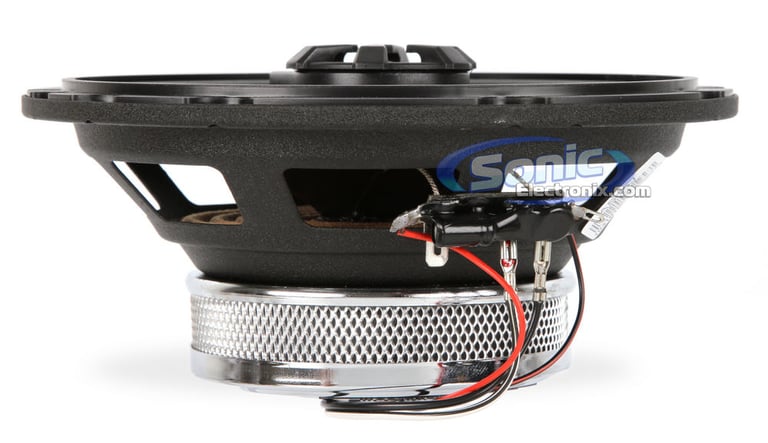

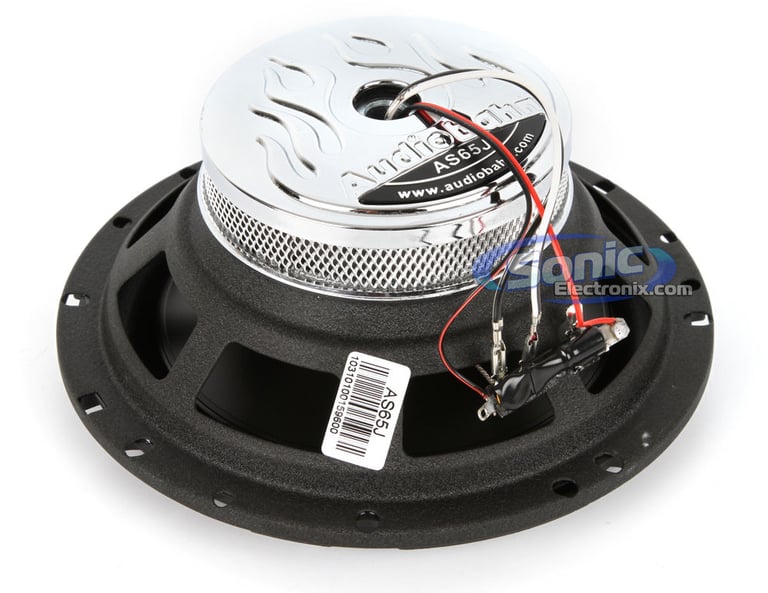

Audiobahn AS65J Features:

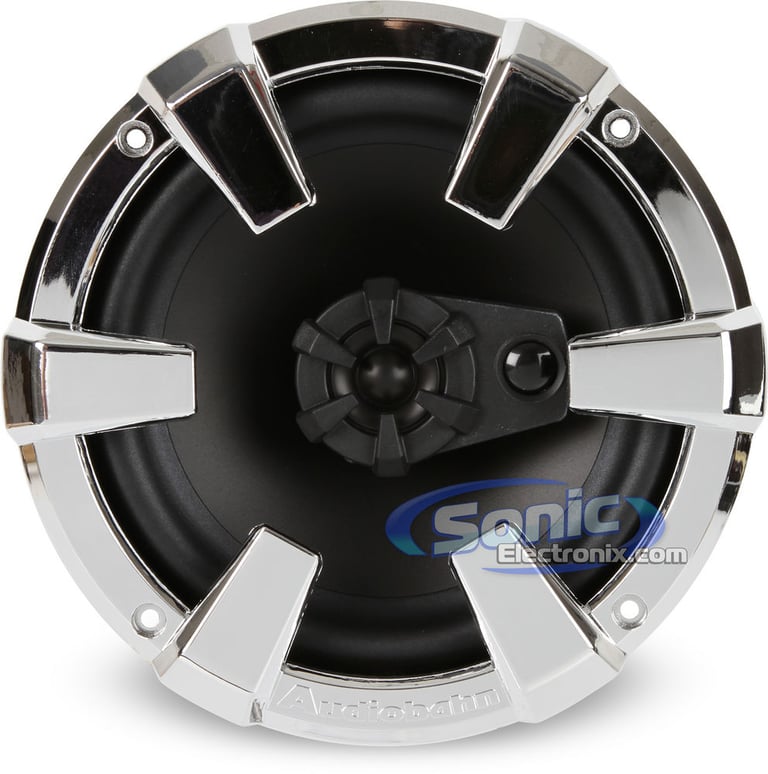

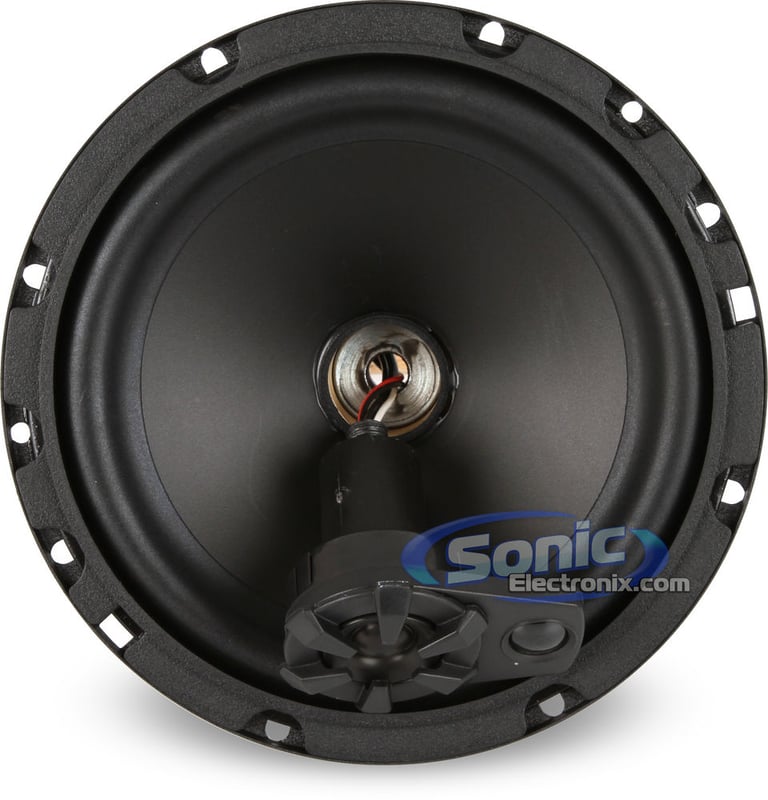

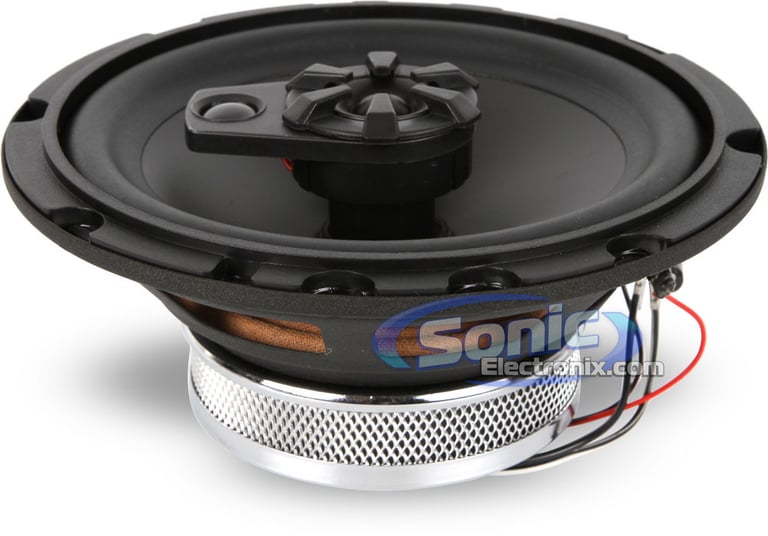

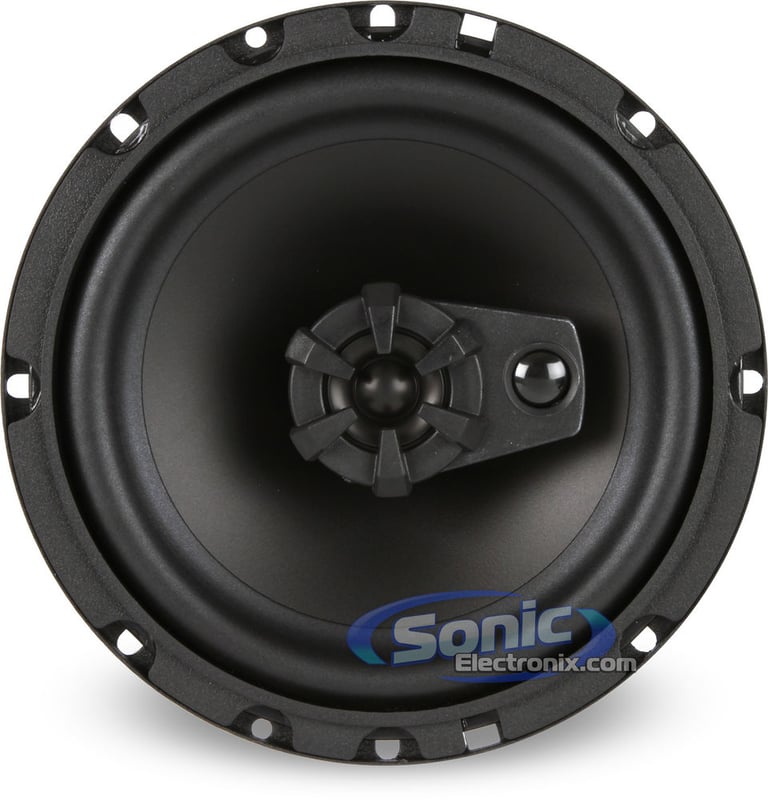

  • 6-1/2" 2-Way AS Series Full Range Speakers
  • Power Handling
    • RMS: 100 watts per pair / 50 watts each
  • Poly carbon cone
  • Butyl rubber surround

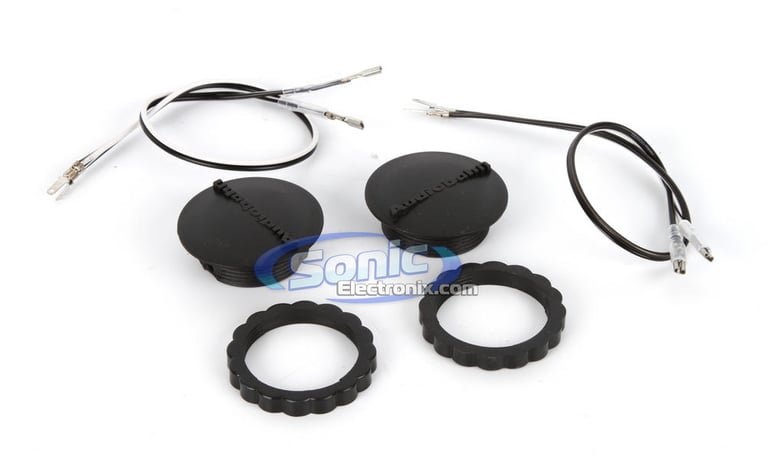

  • Removable mylar tweeter for remote mounting
  • Black ice basket provides a very attractive appearance
  • 2-Layer high-temp ASV voice coil
  • Polyswitch tweeter protection circuit

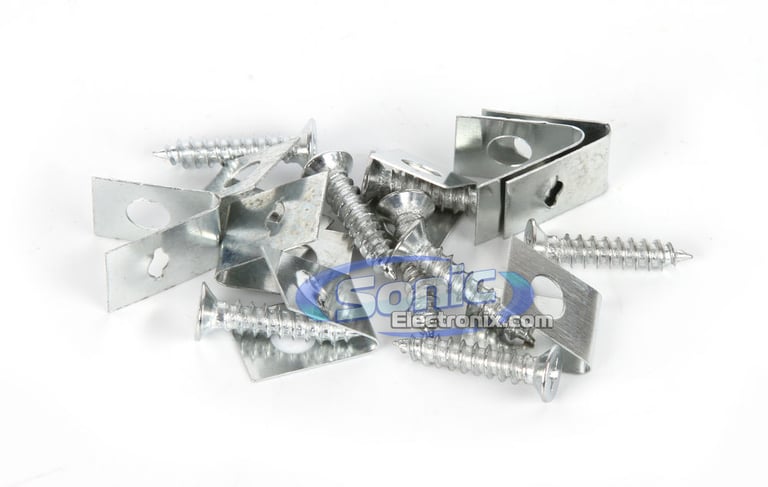

  • Complete with mounting hardware
  • 18 oz magnet
  • 4 Ohm impedance
  • Frequency Response: 50-20,000 Hz
  • Sensitivity: 94 dB
  • Mounting Depth: 2-1/4"
  • 1-year Manufacturer's warranty

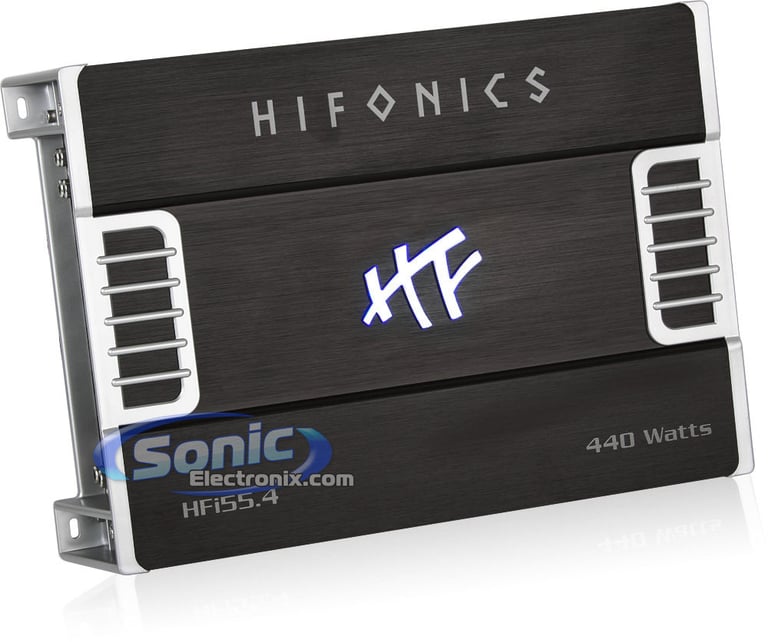

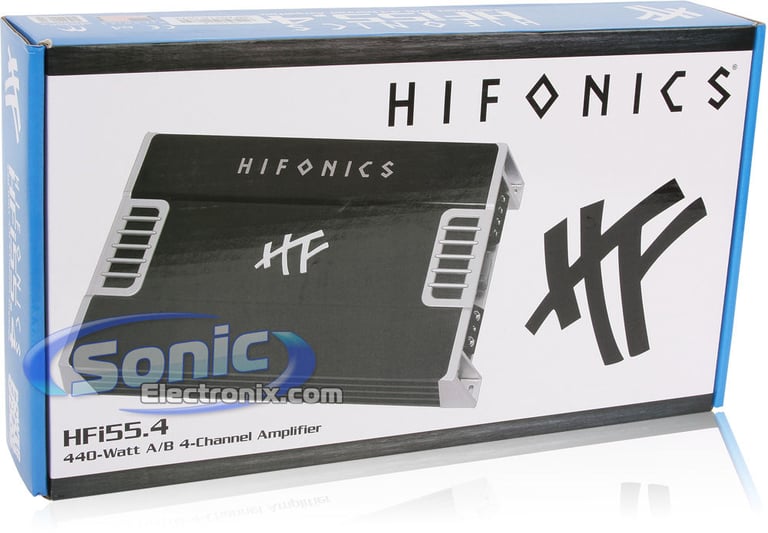

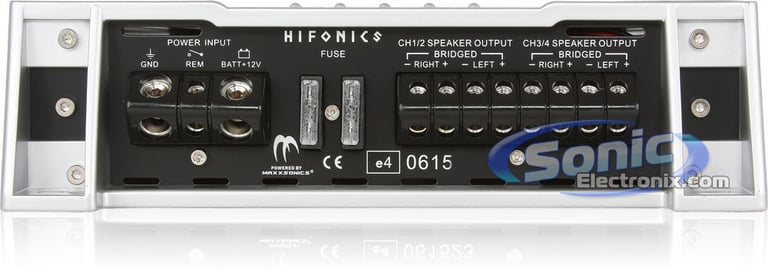

Hifonics HFi55.4 Features:
  • HFi Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 55 watts x 4 chan.
    • 2 ohm: 110 watts x 4 chan.
    • Bridged, 4 ohm: 220 watts x 2 chan.
  • Pulse Width Modulated (PWM) MOSFET power supply
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)
  • Tri-mode speaker operation
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals

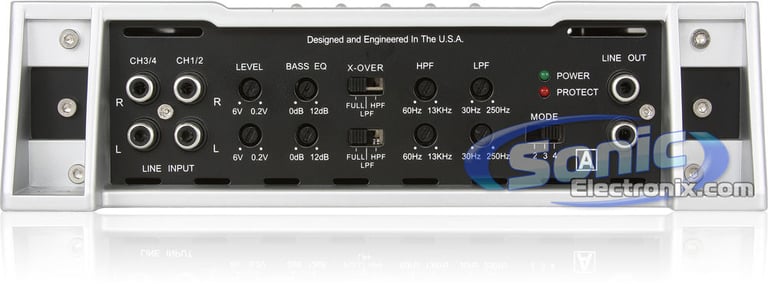

  • Input sensitivity:
    • Variable level: 200mV-6V
  • Variable high-pass filter (60-12,000 Hz, 12 dB/octave)
  • Variable low-pass filter (30-250 Hz, 12 dB/octave)
  • Damping factor: >180
  • Frequency response: 30-12,000 Hz
  • Dimensions: 13-1/2"L x 8-13/16"W x 2-7/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

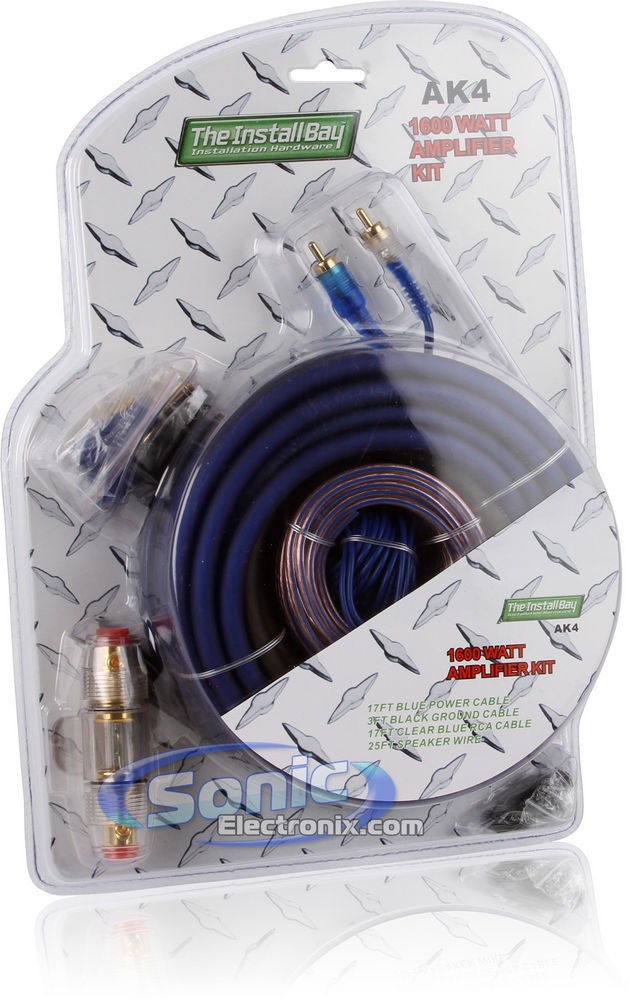

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

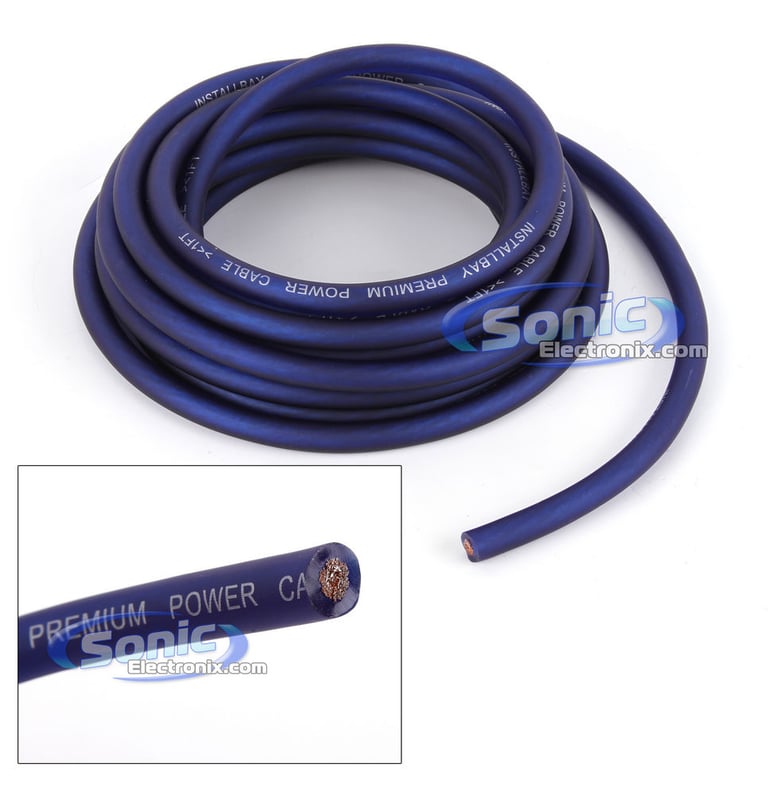

  1. 17 ft. of Blue power cable

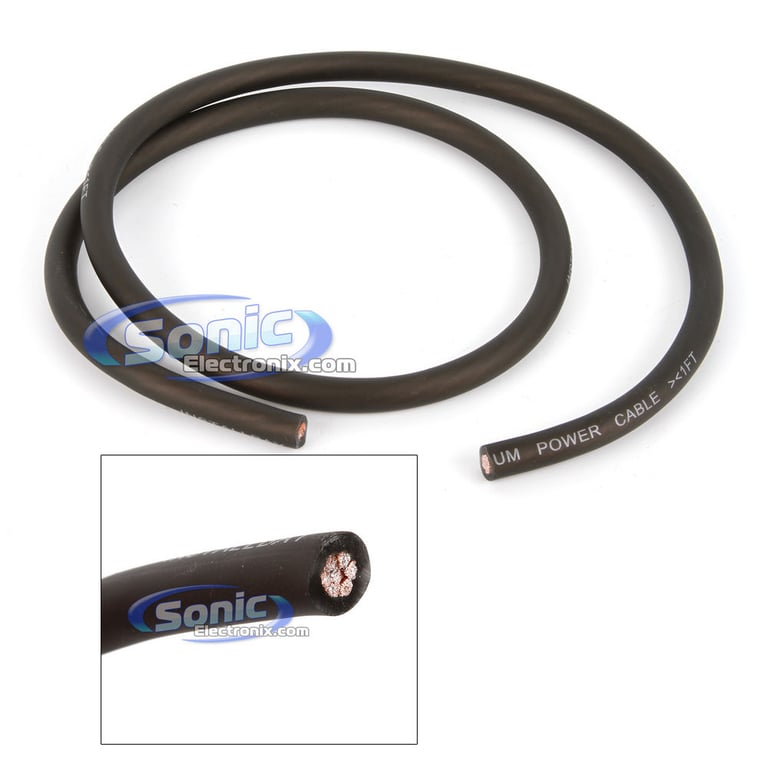

  2. 3 ft. of Black ground cable

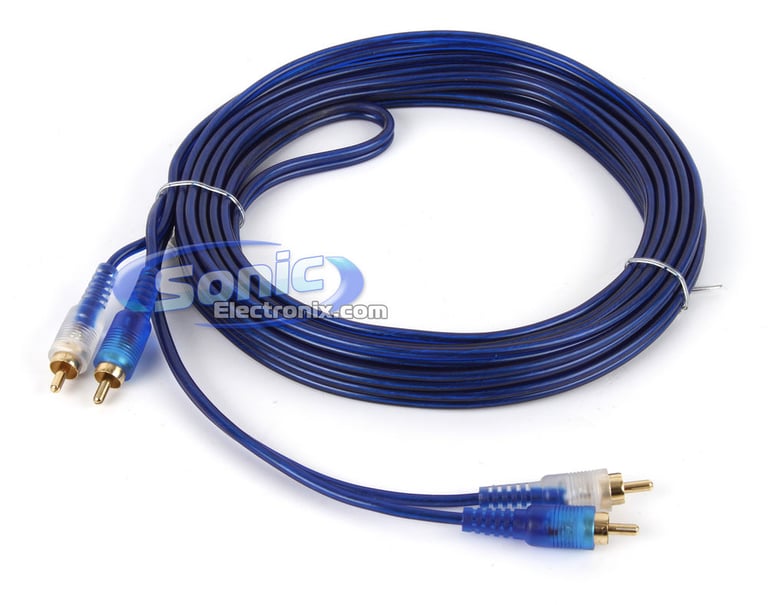

  3. 17 ft. of Clear/blue RCA cable

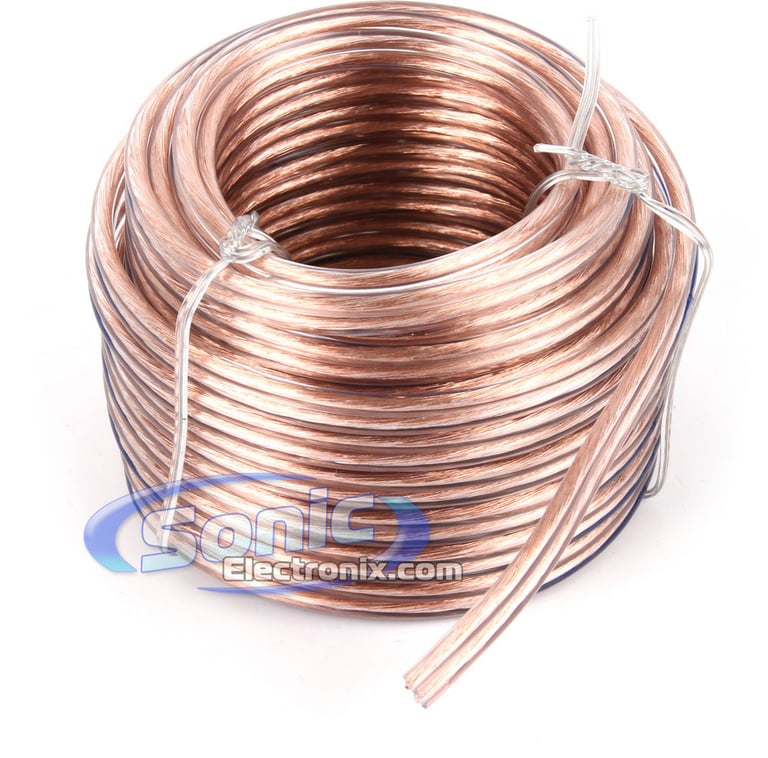

  4. 25 ft. of Speaker wire

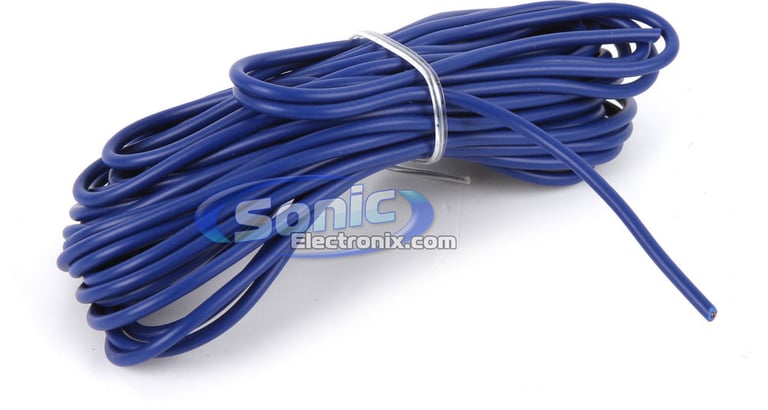

  5. 17 ft. of Remote turn-on wire

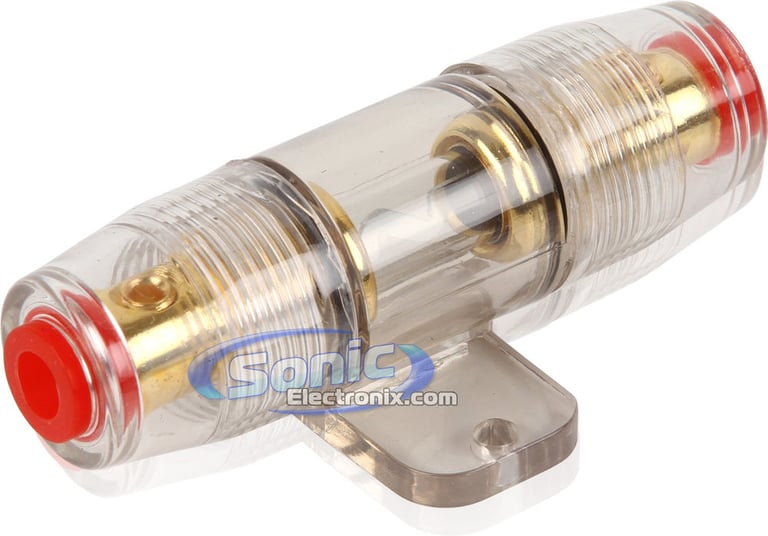

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

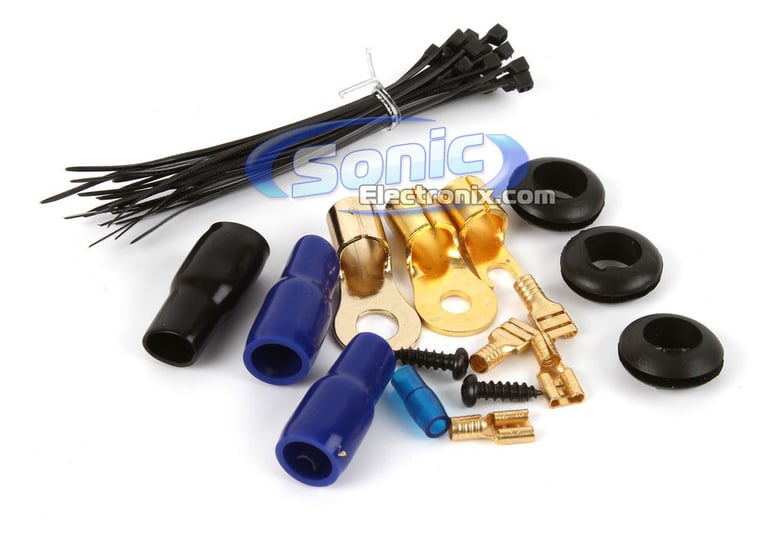

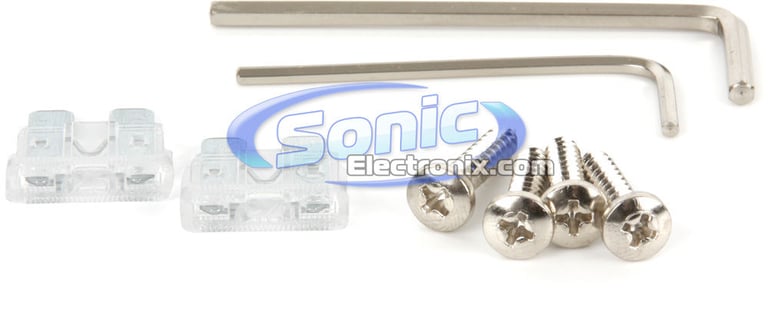

  8. Installation hardware

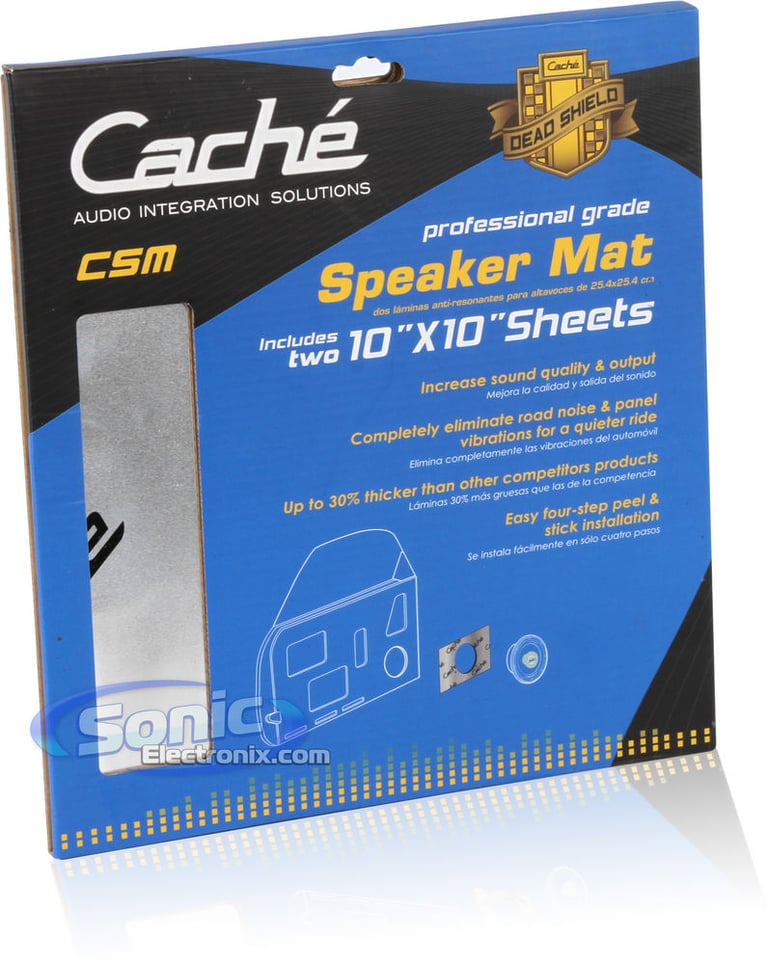

Cache CSM Features:
  • 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Specifications & Details


Front Speaker Specifications
Speaker Size
6-1/2"
Design
2-way Coaxial
Shallow Mount Installation
No
Tweeter Design
Dome
Tweeter Composition
Mylar
Woofer Composition
Poly Carbon
Woofer Surround
Butyl Rubber
RMS Power Handling
50 watts
Sensitivity
94 dB
Frequency Response
50 - 20,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
6-1/4"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
55 watts x 4 channel
RMS Power @ 2 ohms
110 watts x 4 channel
Bridged RMS Power
220 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
440 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 12,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HFi55.4_AS65J

Weight:

19.53lbs

Internal SKU:

hfi554_as65j

Internal Product ID:

36902

Product and How-to Videos


Customer Ratings & Reviews
