VIBE Audio SPACEB12-V1

3600W Max 12" Space Series Passive Bandpass Subwoofer Enclosure with Variable Port Tuning

VIBE
Shop all VIBE
highlight-star-icon

12" Black Space Series Subwoofer • Dual 2 Ohm • 3600 Watts Max • 1200 Watts RMS • Polyglass Cone • Multi-Roll Rubber Surround • FEMM Motor and FEA Cone • Enclosed in Box • Variable Port Tuning

Learn more about the spaceb12v1

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Lowest price in 30 days
KIT-MFT1 main

iDataLink Maestro KIT-MFT1 Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2012-2025 vehicles from Ford, Lincoln (Requires MRR or MRR2 module)

4
-24.14%

$219.99

List price $289.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

29
-28.13%

$22.99

List price $31.99

72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

44
-20.01%

$11.99

List price $14.99

AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Description


VIBE brand icon

Authorized dealer

Subwoofer Features:

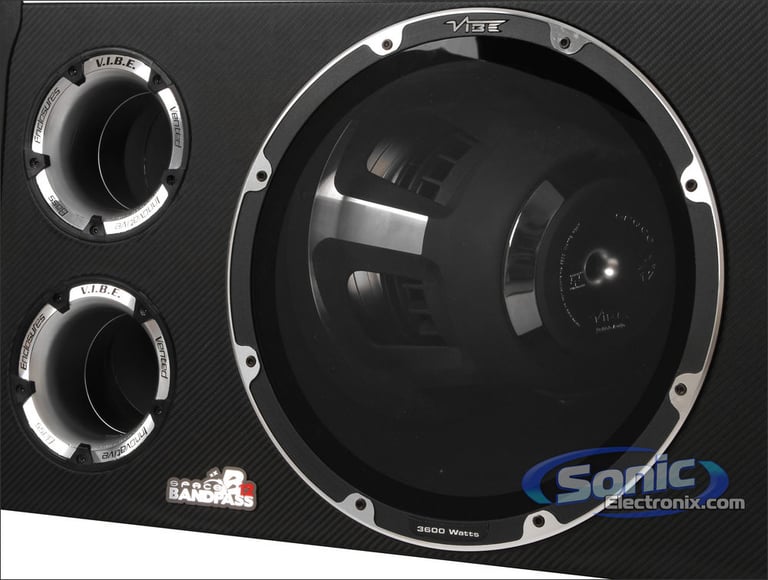

  • 12" Dual 2 ohm Black Space Series Subwoofer
  • Power Handling:
    • Peak: 3600 watts
    • RMS: 1200 watts
    • Minimum: 600 watts
  • Final Impedance (of enclosure): 1 ohm (Wired in parallel internally to create a 1-Ohm amplifier load)
  • One piece aluminum cone for increased depth and bass clarity
  • Single spider provides control and stability for the woofer cone
  • Specially designed cone support adds rigidity without excessive weight
  • Cone designed using Finite Element Analysis to ensure maximum rigidity to weight ratio
  • Moving parts of the subwoofer can be replaced
  • Multi-roll surround achieves better linearity throughout the woofers excursion range
  • Heavy gauge cable connects directly to the voice coil for easy wiring
  • Alloy gasket made from high quality machined aluminum
  • Machined cast aluminum basket for high rigidity and support
  • Mechanical thermal unity increases heat dissipation
  • 3" Aluminum 4 layer voice coil
  • 120oz Y30 rated double stacked ferrite magnet for immense power handling
  • Removable rubber boot for magnet protection
  • Frequency response: 25-500 Hz
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
General Enclosure Features:

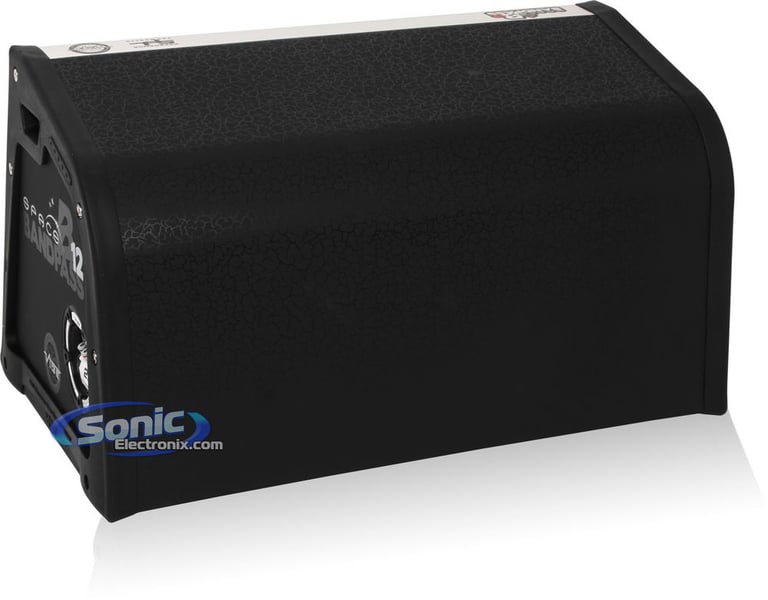

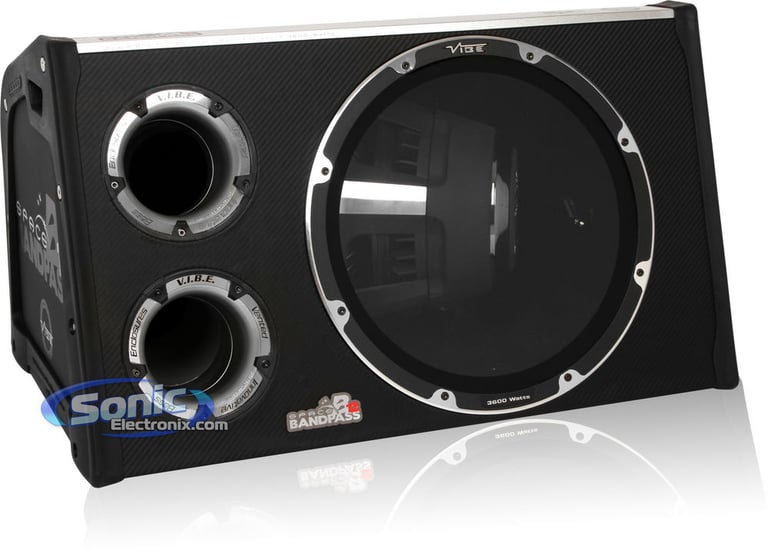

  • 12" Bandpass Subwoofer Enclosure
  • Box pre-installed with VIBE SPACE12D4-V4 Subwoofer

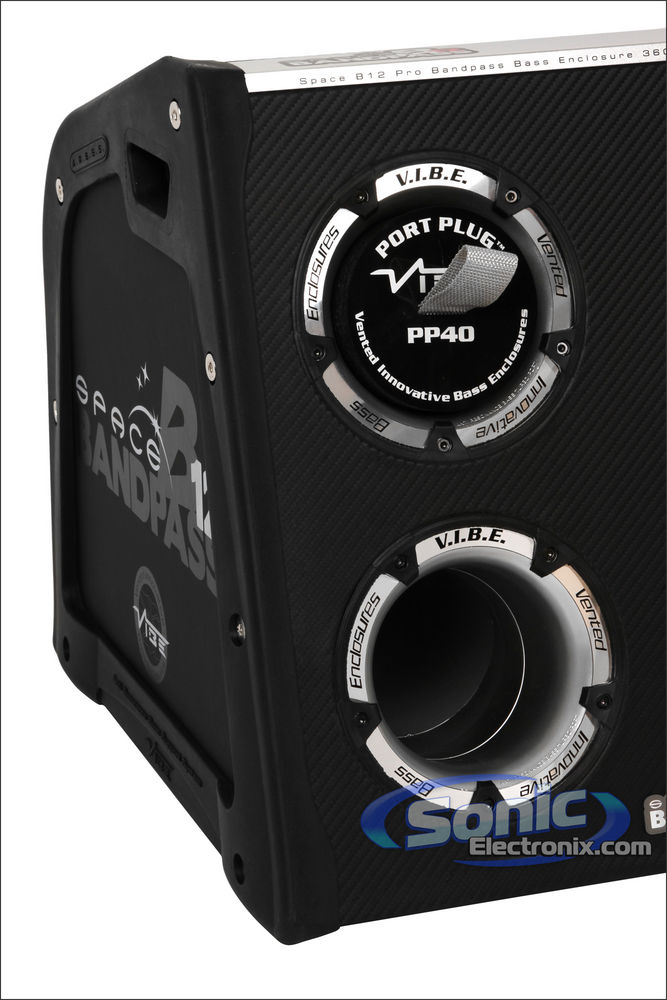

  • Variable Port Tuning allows for different port configurations
  • Made from durable 3/4" MDF
  • Designed and engineered specifically for the loaded subwoofer
  • Inserting both Port Plugs allows enclosure to act as Sealed
  • Dimensions: 17-15/16"L x 27-5/8"W x 16-1/2"H
